Isuzu WW
▶
SUV
▶
UCS
▶
50892 - UCS(THAILAND)
▶
5 - Frame, Cab Mounting
▶
5-30 - SPARE TIRE CARRIER AND COVER
▶

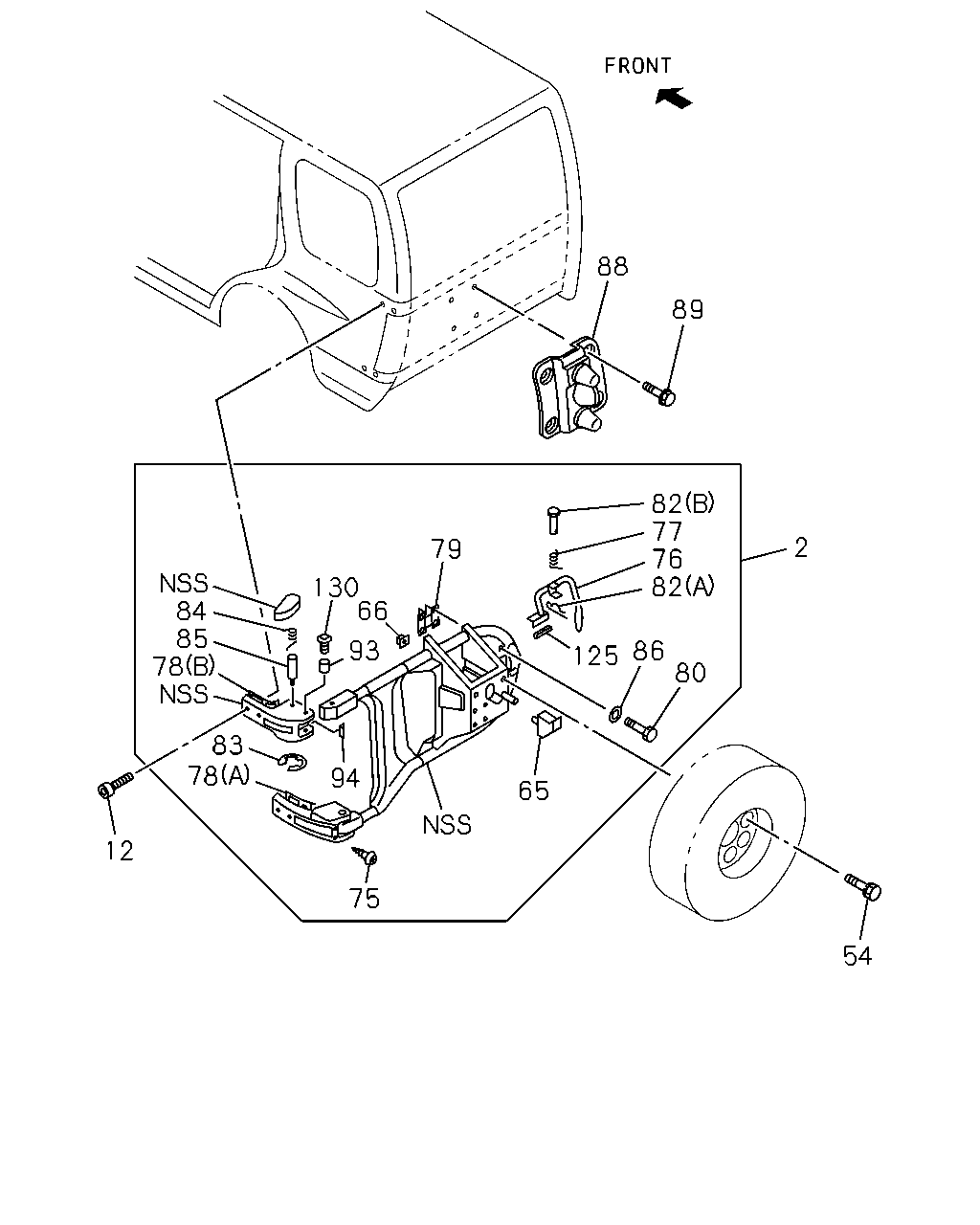

5-30 — SPARE TIRE CARRIER AND COVER
(#17700) — 24 parça
88
89
82
77
76
82
2
79
125
86
80
84
85
78
130
66
93
83
78
94
65
12
75
54
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
2
CARRIER ASM; SPARE TIRE
USA
8-97179-803-0
01
1
0009-
12
BOLT; SPARE TIRE CARRIER
USA
8-97176-197-0
06
1
0009-
54
BOLT; SPARE TIRE MTG,STEEL WHEEL
8-97805-242-0
03
1
0009-
65
SADDLE; SPARE TIRE
USA
8-97126-242-0
01
1
0009-
66
NUT; SADDLE,SPARE TIRE
M8 FLANGE
0-91150-108-0
01
1
0009-
75
SCREW
USA
8-97122-469-0
02
1
0009-
76
LEVER; LOCK
USA
8-97126-238-0
01
1
0009-
77
SPRING; LEVER
USA
8-97115-999-0
01
1
0009-
78
GASKET
(B) USA
8-97126-239-0
01
1
0009-
78
GASKET
(A) USA
8-97126-240-0
01
1
0009-
79
LOCK ASM
USA
8-97126-241-0
01
1
0009-
80
BOLT; LOCK
M10X25 USA
8-94388-915-0
04
1
0009-
82
PIN
(A) L=27.7
1-09747-005-0
01
1
0009-
82
PIN
(B)
9-08223-841-0
01
1
0009-
83
RING; SNAP
ID=8 THA
9-09185-408-0
01
1
0009-
84
SPRING; STOPPER
USA
8-94389-955-2
01
1
0009-
85
STOPPER ASM
USA
8-97126-237-0
01
1
0009-
86
WASHER; LOCK
USA
8-94388-914-0
04
1
0009-
88
STRIKER; SPARE TIRE CARRIER
USA
8-97126-246-0
01
1
0009-
89
BOLT; STRIKER
M8X20 FLANGE
8-94318-556-0
04
1
0009-
93
RUBBER; CAP
USA
8-97015-037-1
01
1
0009-
94
RUBBER; STOPPER
USA
8-97102-216-0
01
1
0009-
125
RUBBER; CUSHION
USA
8-97088-562-1
01
1
0009-
130
CAP
USA
8-97113-343-0
01
1
0009-
