4-60 — REAR SUSPENSION (#1770) — 83 parça

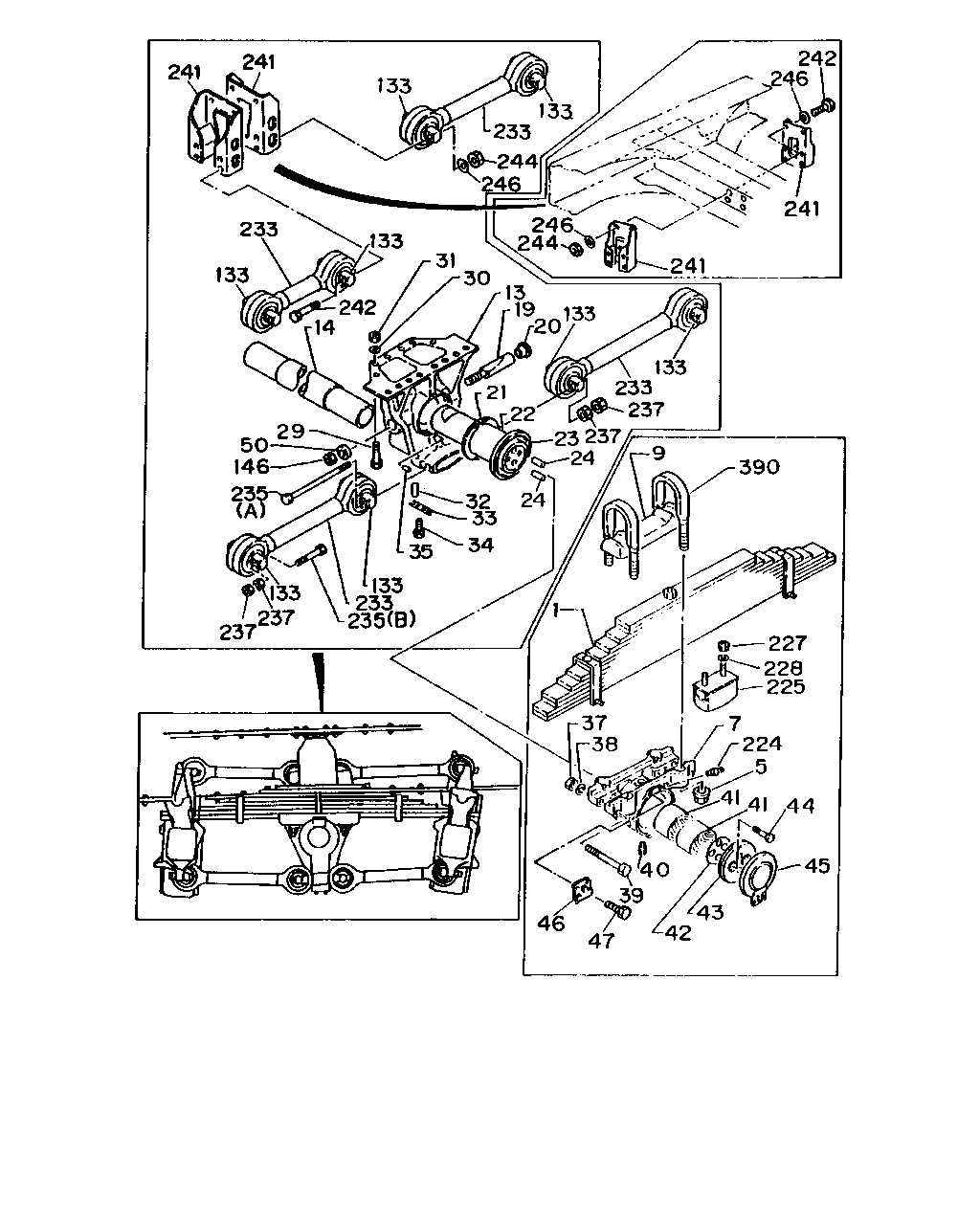

çizim 29064
241 241 133 133 241 241 246 246 242 244 133 133 20 19 13 30 31 133 242 14 133 233 29 50 146 21 233 237 9 390 237 23 22 24 24 32 35 34 33 133 233 235 237 237 235 133 1 227 228 225 224 5 44 45 41 41 7 38 40 43 42 47 46 39 37 246 244 233
BalonParca AdiParca NoAdetTipApplied Date A B
1 SPRING ASM; LEAF,RR
SEE FIG-NO 4-65 FOR COMPONENT. FRAME EQUIPMENT HEAVY DUTY<F03> FRT & RR SUSPENSION HEAVY DUTY VAR1(F40) 		1-51310-453-1 02 1 9307- ●
1 SPRING ASM; LEAF,RR
SEE FIG-NO 4-65 FOR COMPONENT. EXC. FRAME EQUIPMENT HEAVY DUTY<F03>,FRT & RR SUSPENSION HEAVY DUTY VAR1(F40) 12-LEAF 		1-51310-436-2 02 1 9002- ● ●
1 SPRING ASM; LEAF,RR
SEE FIG-NO 4-65 FOR COMPONENT. FRT & RR SUSPENSION HEAVY DUTY VAR1(F40) EXC. FRAME EQUIPMENT HEAVY DUTY<F03> 		1-51310-443-4 02 1 9002- ● ●
5 NUT; U-BOLT,RR SPR
M27 FLANGE 		9-09844-662-1 08 1 9002- ● ●
7 SEAT; SPR,LWR 1-51385-060-2 02 1 9002-9208 ● ●
7 SEAT; SPR,LWR 1-51385-091-0 02 1 9209- ● ●
9 PAD; U BOLT,RR SPR 1-51372-019-1 02 1 9002- ● ●
13 BRACKET; TRUNNION SHAFT 1-53361-032-6 02 1 9002-9407 ● ●
13 BRACKET; TRUNNION SHAFT 1-53361-065-0 02 1 9408- ● ●
14 PIPE; TRUNNION BRKT 1-51389-032-0 01 1 9002- ● ●
19 BOLT; KEY,SHAFT 1-51389-018-2 02 1 9002- ● ●
20 GROMMET; KEY BOLT 1-09333-057-0 02 1 9002- ● ●
21 WASHER; THRUST,TRUNNION SHAFT 1-51389-058-0 02 1 9002- ● ●
22 SHAFT; TRUNNION,RR SUSP 1-51381-022-2 02 1 9002- ● ●
23 SEAL; OIL,TRUNNION SHAFT 1-51389-005-0 02 1 9002- ● ●
24 PIN; SIDE PLATE TO SHAFT 1-09740-009-0 04 1 9002- ● ●
29 BOLT; BRKT TO FRAME
M18X75 		1-09000-221-1 24 1 9002- ● ●
29 BOLT; BRKT TO FRAME
M18X55 		9-92061-855-0 04 1 9002- ● ●
30 WASHER; PL,TRUNNION BRKT
ID=19 		1-09503-162-0 AR 1 9002- ● ●
31 NUT; TRUNNION BRKT
M18 		9-99110-518-0 28 1 9002- ● ●
32 PIN; STRAIGHT 1-09740-027-0 04 1 9002- ● ●
33 PLATE; LK KNOCK PIN 1-53369-032-1 02 1 9002- ● ●
34 BOLT; LOCK PLATE
M10X20 		9-01961-020-0 02 1 9002-9204 ● ●
34 BOLT; LOCK PLATE
M10X20 W/LK&PL WASHER 		0-50141-020-0 02 1 9205- ● ●
35 PIN; TRUNNION SHAFT 1-09749-030-1 04 1 9002- ● ●
37 NUT; SPR SETTING
M22 		9-09110-522-0 04 1 9002- ● ●
38 WASHER; LK,SPR SETTING
ID=22.5 		9-09150-622-0 04 1 9002- ● ●
39 BOLT; SPR SETTING
M22X155 		9-09801-290-1 04 1 9002- ● ●
40 VALVE; GREASE ESCAPE 9-51389-010-0 02 1 9002- ● ●
41 BUSHING; TRUNNION SHAFT 1-51386-004-0 04 1 9002- ● ●
42 SHIM; SIDE PLATE TO SHAFT 1-51389-033-1 12 1 9002- ● ●
43 PLATE; SIDE,TRUNNION SHAFT 1-51382-010-4 02 1 9002- ● ●
44 BOLT; SIDE PLATE TO SHAFT
M18X48.5 FLANGE 		1-09044-038-2 04 1 9002- ● ●
45 COVER; SPR SEAT 1-51387-013-2 02 1 9002- ● ●
46 BRACKET; COVER 1-51387-015-2 02 1 9002- ● ●
47 BOLT; COVER TO SEAT
M8X12 W/LK WASHER 		9-01900-812-0 08 1 9002-9204 ● ●
47 BOLT; COVER TO SEAT
M8X12 W/LK WASHER 		0-50040-812-0 08 1 9205-9302 ● ●
47 BOLT; COVER TO SEAT
M8X12 FLANGE 		0-28080-812-0 08 1 9303- ● ●
50 WASHER; PL,TRUNNION SHAFT 1-09503-071-0 02 1 9002- ● ●
133 BUSHING; RUBBER,TORQUE ROD
SAITAMA KIKI OD=105 		1-51519-066-2 16 1 9002-9210 ● ●
133 BUSHING; RUBBER,TORQUE ROD
FUKOKU GOMU OD=105 		1-51519-113-0 16 1 9002- ● ●
146 NUT; KEY BOLT
M24 		9-99110-524-0 02 1 9002- ● ●
224 NIPPLE; GREASE,SPR SEAT
PT1/8 STRAIGHT 		9-09031-010-0 02 1 9002- ● ●
225 RUBBER; CUSHION,RR SPR
FORWARD LH,REARWARD RH 		1-53366-072-1 02 1 9002- ● ●
225 RUBBER; CUSHION,RR SPR
FORWARD RH,REARWARD LH 		1-53366-073-1 02 1 9002- ● ●
227 NUT; CUSHION RUBBER
M12 		9-99110-412-0 08 1 9002-9304 ● ●
227 NUT; CUSHION RUBBER
M12 		9-99110-512-0 08 1 9305- ● ●
228 WASHER; LK,CUSHION RUBBER
ID=12.2 		9-09150-512-0 08 1 9002- ● ●
233 ROD ASM; TORQUE,RR SUSP
FORWARD LOWER L=522 		1-51511-386-2 02 1 9002-9205 ● ●
233 ROD ASM; TORQUE,RR SUSP
FORWARD LOWER L=522 		1-51511-578-1 02 1 9206-9508 ● ●
233 ROD ASM; TORQUE,RR SUSP
FORWARD LOWER L=520 		1-51511-605-0 02 1 9509- ● ●
233 ROD ASM; TORQUE,RR SUSP
REARWARD UPPER L=481 		1-51511-387-2 01 1 9002-9205 ● ●
233 ROD ASM; TORQUE,RR SUSP
V TYPE ENG<91L> FORWARD UPPER L=481 		1-51511-577-0 01 1 9010-9508 ● ●
233 ROD ASM; TORQUE,RR SUSP
V TYPE ENG<91L> FORWARD UPPER L=480 		1-51511-677-0 01 1 9509- ● ●
233 ROD ASM; TORQUE,RR SUSP
REARWARD LOWER L=481 		1-51511-577-0 02 1 9206-9508 ● ●
233 ROD ASM; TORQUE,RR SUSP
REARWARD LOWER L=480 		1-51511-677-0 02 1 9509- ● ●
233 ROD ASM; TORQUE,RR SUSP
L TYPE ENG<90L> FORWARD UPPER L=491 		1-51511-397-0 01 1 9002-9205 ● ●
233 ROD ASM; TORQUE,RR SUSP
L TYPE ENG<90L> FORWARD UPPER L=491 		1-51511-585-0 01 1 9206-9210 ● ●
233 ROD ASM; TORQUE,RR SUSP
L TYPE ENG<90L> FORWARD UPPER L=491 		1-51511-397-0 01 1 9211-9212 ● ●
233 ROD ASM; TORQUE,RR SUSP
L TYPE ENG<90L> FORWARD UPPER L=491 		1-51511-585-0 01 1 9301-9508 ● ●
233 ROD ASM; TORQUE,RR SUSP
L TYPE ENG<90L> FORWARD UPPER L=490 		1-51511-668-0 01 1 9509- ● ●
233 ROD ASM; TORQUE,RR SUSP
L TYPE ENG<90L> REARWARD LOWER L=605 		1-51511-434-0 02 1 9002-9205 ● ●
233 ROD ASM; TORQUE,RR SUSP
L TYPE ENG<90L> REARWARD UPPER L=605 		1-51511-586-0 01 1 9206-9210 ● ●
233 ROD ASM; TORQUE,RR SUSP
L TYPE ENG<90L> REARWARD UPPER L=605 		1-51511-434-0 01 1 9211-9212 ● ●
233 ROD ASM; TORQUE,RR SUSP
L TYPE ENG<90L> REARWARD UPPER L=605 		1-51511-586-0 01 1 9301-9508 ● ●
233 ROD ASM; TORQUE,RR SUSP
L TYPE ENG<90L> REARWARD UPPER L=605 		1-51511-686-0 01 1 9509- ● ●
233 ROD ASM; TORQUE,RR SUSP
V TYPE ENG<91L> REARWARD LOWER L=593 		1-51511-435-0 02 1 9002-9108 ● ●
233 ROD ASM; TORQUE,RR SUSP
V TYPE ENG<91L> REARWARD LOWER L=593 		1-51511-338-2 02 1 9109-9205 ● ●
233 ROD ASM; TORQUE,RR SUSP
V TYPE ENG<91L> REARWARD UPPER L=593 		1-51511-579-1 01 1 9206-9508 ● ●
233 ROD ASM; TORQUE,RR SUSP
V TYPE ENG<91L> REARWARD UPPER L=590 		1-51511-673-0 01 1 9509- ● ●
233 ROD ASM; TORQUE,RR SUSP
V TYPE ENG<91L> FORWARD UPPER L=481 		1-51511-451-0 01 1 9002-9009 ● ●
235 BOLT; TORQUE ROD
(A) M18X265 		1-09000-078-1 06 1 9002- ● ●
235 BOLT; TORQUE ROD
(B) M18X95 		1-09000-266-1 12 1 9002-9011 ● ●
235 BOLT; TORQUE ROD
(B) M18X102 		1-09000-568-0 12 1 9012- ● ●
237 NUT; TORQUE ROD
M18 		1-09464-011-0 18 1 9002- ● ●
241 BRACKET; TORQUE ROD 1-53363-031-2 02 1 9002- ● ●
242 BOLT; BRKT TO FRAME
M14X205 		1-09000-147-0 02 1 9002- ● ●
242 BOLT; BRKT TO FRAME
M14X50 		9-91066-450-0 02 1 9002- ● ●
244 NUT; BRKT
M14 		9-99110-514-0 04 1 9002- ● ●
246 WASHER; TORQUE ROD
ID=15 		9-09651-069-0 08 1 9002-9105 ● ●
390 U-BOLT SET; RR SPRING
FRAME EQUIPMENT HEAVY DUTY<F03> FRT & RR SUSPENSION HEAVY DUTY VAR1(F40) L=340 		1-87870-146-0 04 1 9307- ●
390 U-BOLT SET; RR SPRING
EXC. FRAME EQUIPMENT HEAVY DUTY<F03>,FRT & RR SUSPENSION HEAVY DUTY VAR1(F40) L=340 		1-87870-146-0 04 1 9307- ●
390 U-BOLT SET; RR SPRING
FRT & RR SUSPENSION HEAVY DUTY VAR1(F40) EXC. FRAME EQUIPMENT HEAVY DUTY<F03> L=310 		1-87870-166-2 04 1 9307- ● ●
