Sayfa 2-01 - Isuzu EPC

2-01 — CLUTCH (#177) — 196 parça

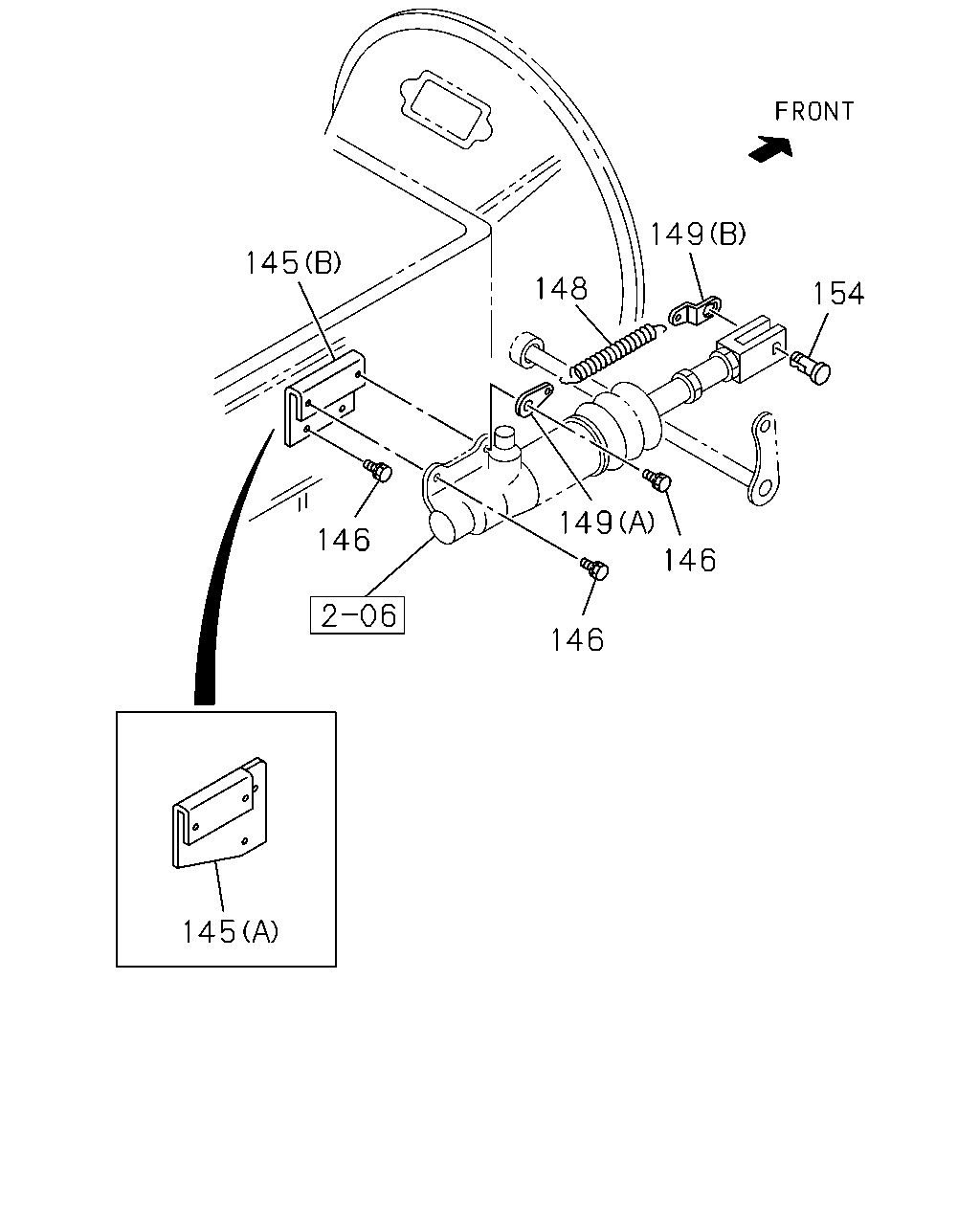

149 145 148 154 149 146 146 146 145

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D
145	BRACKET; SLAVE CYL,OIL CLU (B)	1-47579-007-0	01	1	9212-	●	●	●
145	BRACKET; SLAVE CYL,OIL CLU (A)	1-47579-051-0	01	1	9212-				●
146	BOLT; SLAVE CYL TO TRANS CASE M10X25 FLANGE	0-28181-025-0	04	1	9212-	●	●	●	●
148	SPRING; CLU RETURN	1-09583-249-0	01	1	9212-	●	●	●	●
149	EYE; SPRING,RETURN SPRING (B)	1-31426-019-1	01	1	9212-	●	●	●	●
149	EYE; SPRING,RETURN SPRING (A) T=2.3	1-47324-005-1	01	1	9212-	●	●	●	●
154	PIN; JAW JOINT	1-31424-001-1	01	1	9212-9312	●	●	●	●
154	PIN; JAW JOINT	1-31424-009-0	01	1	9401-	●	●	●	●

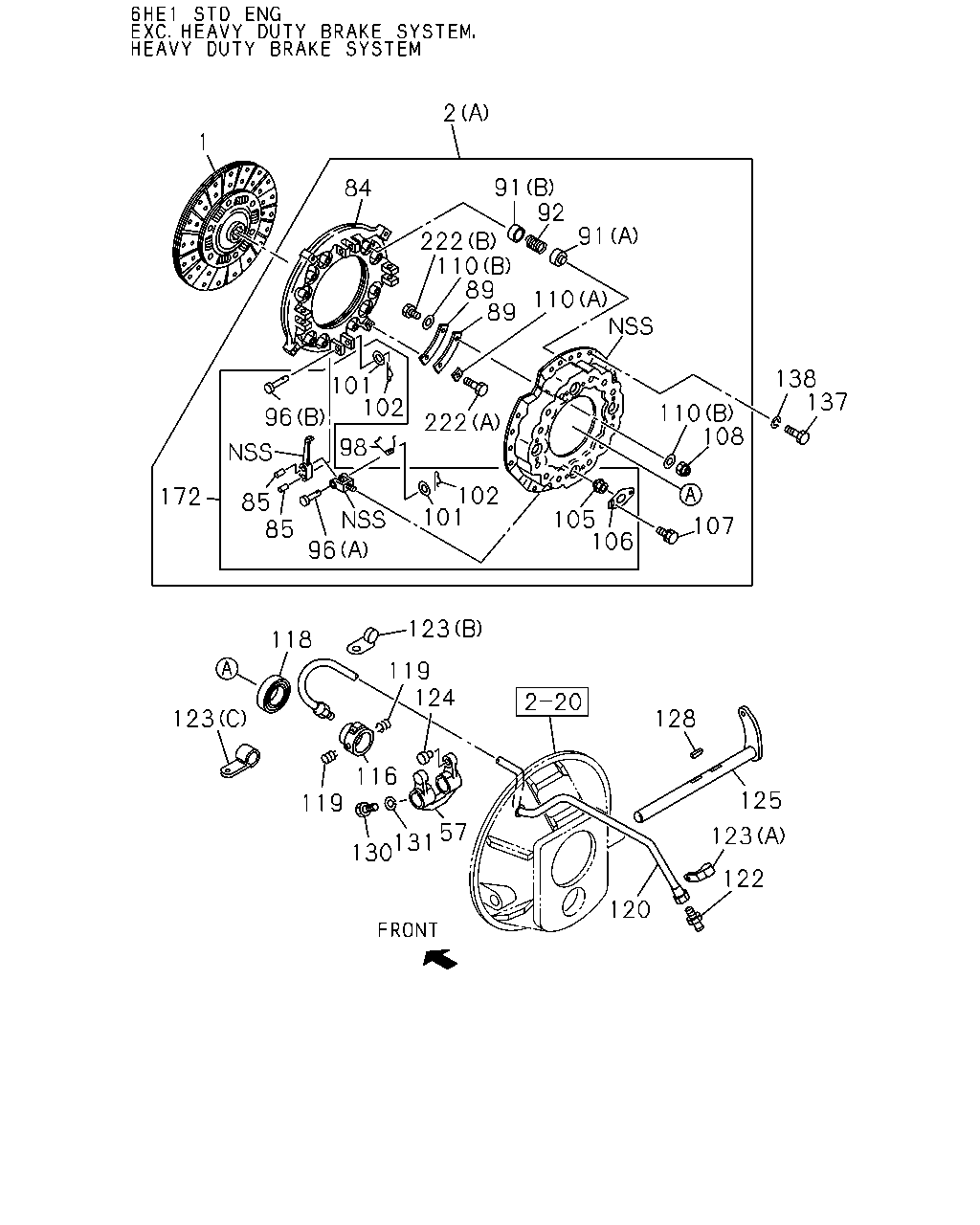

2 1 91 92 84 222 110 89 89 91 110 138 137 101 102 110 108 96 222 98 102 101 172 85 85 105 106 107 96 123 118 119 124 128 123 116 125 119 57 131 130 123 122 120

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D
1	DISC; CLUTCH 6HE1 N ENG(47L) EXC. BRAKE SYSTEM HEAVY DUTY VAR2(WG3) 13"	1-31240-525-0	01	1	9212-9309	●	●	●	●
1	DISC; CLUTCH 6HE1 N ENG(47L) EXC. BRAKE SYSTEM HEAVY DUTY VAR2(WG3) 13"	1-31240-661-0	01	1	9310-	●	●	●	●
1	DISC; CLUTCH 6HE1 STD ENG(46L) 14"	1-31240-515-0	01	1	9212-9309	●	●	●	●
1	DISC; CLUTCH 6HE1 N ENG(47L) BRAKE SYSTEM HEAVY DUTY VAR2(WG3) 14"	1-31240-515-0	01	1	9212-9309	●	●	●	●
1	DISC; CLUTCH 6HE1 STD ENG(46L) 14"	1-31240-662-0	01	1	9310-9310	●	●	●	●
1	DISC; CLUTCH 6HE1 N ENG(47L) BRAKE SYSTEM HEAVY DUTY VAR2(WG3) 14"	1-31240-662-0	01	1	9310-9310	●	●	●	●
1	DISC; CLUTCH 6HE1 STD ENG(46L) 14"	1-31240-671-0	01	1	9311-	●	●	●	●
1	DISC; CLUTCH 6HE1 N ENG(47L) BRAKE SYSTEM HEAVY DUTY VAR2(WG3) 14"	1-31240-671-0	01	1	9311-	●	●	●	●
2	PLATE ASM; PRESSURE,CLU HEAVY DUTY PACKAGE TRUCK<RD2> BRAKE SYSTEM HEAVY DUTY VAR2(WG3) (A) 14"	1-31220-168-1	01	1	9212-	●	●	●	●
2	PLATE ASM; PRESSURE,CLU 6HE1 N ENG(47L) EXC. BRAKE SYSTEM HEAVY DUTY VAR2(WG3) (B) 13"	1-31220-278-0	01	1	9212-	●	●	●	●
2	PLATE ASM; PRESSURE,CLU 6HE1 STD ENG(46L) EXC. BRAKE SYSTEM HEAVY DUTY VAR2(WG3) (A) 14"	1-31220-182-1	01	1	9212-	●	●	●	●
2	PLATE ASM; PRESSURE,CLU BRAKE SYSTEM HEAVY DUTY VAR2(WG3) EXC. HEAVY DUTY PACKAGE TRUCK<RD2> (A) 14"	1-31220-182-1	01	1	9212-	●	●	●	●
57	FORK; SHIFT,CLU	1-31341-028-0	01	1	9212-	●	●	●
57	FORK; SHIFT,CLU	1-31340-056-0	01	1	9212-				●
84	PLATE; PRESSURE 6HE1 N ENG(47L) EXC. BRAKE SYSTEM HEAVY DUTY VAR2(WG3) 13"	1-31221-105-0	01	1	9212-	●	●	●	●
84	PLATE; PRESSURE 6HE1 STD ENG(46L) EXC. BRAKE SYSTEM HEAVY DUTY VAR2(WG3) 14"	1-31221-044-0	01	1	9212-	●	●	●	●
84	PLATE; PRESSURE BRAKE SYSTEM HEAVY DUTY VAR2(WG3) 14"	1-31221-044-0	01	1	9212-	●	●	●	●
85	BUSHING; RELEASE LEVER 6HE1 N ENG(47L) EXC. BRAKE SYSTEM HEAVY DUTY VAR2(WG3)	1-31239-004-0	08	1	9212-	●	●	●	●
85	BUSHING; RELEASE LEVER 6HE1 STD ENG(46L) EXC. BRAKE SYSTEM HEAVY DUTY VAR2(WG3)	9-31239-116-0	08	1	9212-	●	●	●	●
85	BUSHING; RELEASE LEVER BRAKE SYSTEM HEAVY DUTY VAR2(WG3)	9-31239-116-0	08	1	9212-	●	●	●	●
89	PLATE; STRAP 6HE1 STD ENG(46L) EXC. BRAKE SYSTEM HEAVY DUTY VAR2(WG3)	1-31229-001-0	08	1	9212-	●	●	●	●
89	PLATE; STRAP BRAKE SYSTEM HEAVY DUTY VAR2(WG3)	1-31229-001-0	08	1	9212-	●	●	●	●
91	SEAT; SPR 6HE1 STD ENG(46L) EXC. BRAKE SYSTEM HEAVY DUTY VAR2(WG3) (A) ID=37 H=25	1-31219-012-0	12	1	9212-	●	●	●	●
91	SEAT; SPR BRAKE SYSTEM HEAVY DUTY VAR2(WG3) (A) ID=37 H=25	1-31219-012-0	12	1	9212-	●	●	●	●
91	SEAT; SPR 6HE1 STD ENG(46L) EXC. BRAKE SYSTEM HEAVY DUTY VAR2(WG3) (B) ID=37 H=15	1-31219-013-0	12	1	9212-	●	●	●	●
91	SEAT; SPR BRAKE SYSTEM HEAVY DUTY VAR2(WG3) (B) ID=37 H=15	1-31219-013-0	12	1	9212-	●	●	●	●
92	SPRING; CLU HEAVY DUTY PACKAGE TRUCK<RD2> BRAKE SYSTEM HEAVY DUTY VAR2(WG3)	1-09580-234-0	12	1	9212-	●	●	●	●
92	SPRING; CLU 6HE1 N ENG(47L) EXC. BRAKE SYSTEM HEAVY DUTY VAR2(WG3)	1-31214-045-0	12	1	9212-	●	●	●	●
92	SPRING; CLU 6HE1 STD ENG(46L) EXC. BRAKE SYSTEM HEAVY DUTY VAR2(WG3)	1-09580-412-0	12	1	9212-	●	●	●	●
92	SPRING; CLU BRAKE SYSTEM HEAVY DUTY VAR2(WG3) EXC. HEAVY DUTY PACKAGE TRUCK<RD2>	1-09580-412-0	12	1	9212-	●	●	●	●
96	PIN; RELEASE LEVER 6HE1 N ENG(47L) EXC. BRAKE SYSTEM HEAVY DUTY VAR2(WG3) (A) L=63.0	1-31232-002-0	04	1	9212-	●	●	●	●
96	PIN; RELEASE LEVER 6HE1 N ENG(47L) EXC. BRAKE SYSTEM HEAVY DUTY VAR2(WG3) (B) L=29.0	1-31232-003-0	04	1	9212-	●	●	●	●
96	PIN; RELEASE LEVER 6HE1 STD ENG(46L) EXC. BRAKE SYSTEM HEAVY DUTY VAR2(WG3) (A) L=49.0	1-31232-005-0	04	1	9212-	●	●	●	●
96	PIN; RELEASE LEVER BRAKE SYSTEM HEAVY DUTY VAR2(WG3) (A) L=49.0	1-31232-005-0	04	1	9212-	●	●	●	●
96	PIN; RELEASE LEVER 6HE1 STD ENG(46L) EXC. BRAKE SYSTEM HEAVY DUTY VAR2(WG3) (B) L=57.0	1-31232-008-0	04	1	9212-	●	●	●	●
96	PIN; RELEASE LEVER BRAKE SYSTEM HEAVY DUTY VAR2(WG3) (B) L=57.0	1-31232-008-0	04	1	9212-	●	●	●	●
98	SPRING; RETURN 6HE1 N ENG(47L) EXC. BRAKE SYSTEM HEAVY DUTY VAR2(WG3)	1-31233-004-0	04	1	9212-	●	●	●	●
98	SPRING; RETURN 6HE1 STD ENG(46L) EXC. BRAKE SYSTEM HEAVY DUTY VAR2(WG3)	1-31233-003-0	04	1	9212-	●	●	●	●
98	SPRING; RETURN BRAKE SYSTEM HEAVY DUTY VAR2(WG3)	1-31233-003-0	04	1	9212-	●	●	●	●
101	WASHER; RELEASE LEVER 6HE1 STD ENG(46L) EXC. BRAKE SYSTEM HEAVY DUTY VAR2(WG3)	9-31239-039-0	08	1	9212-	●	●	●	●
101	WASHER; RELEASE LEVER BRAKE SYSTEM HEAVY DUTY VAR2(WG3)	9-31239-039-0	08	1	9212-	●	●	●	●
102	PIN; SPLIT,RELEASE LEVER 6HE1 N ENG(47L) EXC. BRAKE SYSTEM HEAVY DUTY VAR2(WG3) OD=2.7 L=22	9-08113-022-0	04	1	9212-	●	●	●	●
102	PIN; SPLIT,RELEASE LEVER 6HE1 STD ENG(46L) EXC. BRAKE SYSTEM HEAVY DUTY VAR2(WG3) OD=2.7 L=22	9-08113-022-0	08	1	9212-	●	●	●	●
102	PIN; SPLIT,RELEASE LEVER BRAKE SYSTEM HEAVY DUTY VAR2(WG3) OD=2.7 L=22	9-08113-022-0	08	1	9212-	●	●	●	●
105	NUT; SUPPORT 6HE1 N ENG(47L) EXC. BRAKE SYSTEM HEAVY DUTY VAR2(WG3)	1-31239-006-0	04	1	9212-	●	●	●	●
105	NUT; SUPPORT 6HE1 STD ENG(46L) EXC. BRAKE SYSTEM HEAVY DUTY VAR2(WG3)	9-31235-061-0	04	1	9212-	●	●	●	●
105	NUT; SUPPORT BRAKE SYSTEM HEAVY DUTY VAR2(WG3)	9-31235-061-0	04	1	9212-	●	●	●	●
106	PLATE; LK,LEVER SUPPORT 6HE1 N ENG(47L) EXC. BRAKE SYSTEM HEAVY DUTY VAR2(WG3)	1-31239-017-0	04	1	9212-	●	●	●	●
106	PLATE; LK,LEVER SUPPORT 6HE1 STD ENG(46L) EXC. BRAKE SYSTEM HEAVY DUTY VAR2(WG3)	1-31239-019-0	04	1	9212-	●	●	●	●
106	PLATE; LK,LEVER SUPPORT BRAKE SYSTEM HEAVY DUTY VAR2(WG3)	1-31239-019-0	04	1	9212-	●	●	●	●
107	BOLT; LK PLATE 6HE1 N ENG(47L) EXC. BRAKE SYSTEM HEAVY DUTY VAR2(WG3)	1-31239-015-0	08	1	9212-	●	●	●	●
107	BOLT; LK PLATE 6HE1 STD ENG(46L) EXC. BRAKE SYSTEM HEAVY DUTY VAR2(WG3) M8X12.7 W/LK&PL WASHER	1-31239-020-0	08	1	9212-	●	●	●	●
107	BOLT; LK PLATE BRAKE SYSTEM HEAVY DUTY VAR2(WG3) M8X12.7 W/LK&PL WASHER	1-31239-020-0	08	1	9212-	●	●	●	●
108	NUT; STRAP 6HE1 STD ENG(46L) EXC. BRAKE SYSTEM HEAVY DUTY VAR2(WG3)	1-09449-036-0	04	1	9212-	●	●	●	●
108	NUT; STRAP BRAKE SYSTEM HEAVY DUTY VAR2(WG3)	1-09449-036-0	04	1	9212-	●	●	●	●
110	WASHER; SPECIAL,STRAP 6HE1 N ENG(47L) EXC. BRAKE SYSTEM HEAVY DUTY VAR2(WG3) (C)	9-09854-128-0	04	1	9212-	●	●	●	●
110	WASHER; SPECIAL,STRAP 6HE1 STD ENG(46L) EXC. BRAKE SYSTEM HEAVY DUTY VAR2(WG3) (B)	1-09503-095-0	08	1	9212-	●	●	●	●
110	WASHER; SPECIAL,STRAP BRAKE SYSTEM HEAVY DUTY VAR2(WG3) (B)	1-09503-095-0	08	1	9212-	●	●	●	●
110	WASHER; SPECIAL,STRAP 6HE1 STD ENG(46L) EXC. BRAKE SYSTEM HEAVY DUTY VAR2(WG3) (A)	1-31229-009-0	04	1	9212-	●	●	●	●
110	WASHER; SPECIAL,STRAP BRAKE SYSTEM HEAVY DUTY VAR2(WG3) (A)	1-31229-009-0	04	1	9212-	●	●	●	●
116	BLOCK; SHIFT,CLU	1-31321-054-0	01	1	9212-	●	●	●
116	BLOCK; SHIFT,CLU	1-31321-052-2	01	1	9212-				●
118	BEARING; CLU RELEASE	1-09820-008-0	01	1	9212-	●	●	●	●
119	SPRING; SHIFT FORK	1-31329-015-0	01	1	9212-	●	●	●
119	SPRING; SHIFT FORK	1-31329-014-0	01	1	9212-	●	●	●
119	SPRING; SHIFT FORK	1-09585-054-0	01	1	9212-				●
119	SPRING; SHIFT FORK	1-09585-053-0	01	1	9212-				●
120	HOSE; FLEX,SHIFT BLOCK,CLU REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) L=315	9-09919-042-0	01	1	9212-	●	●	●
120	HOSE; FLEX,SHIFT BLOCK,CLU L=315	9-09919-042-0	01	1	9212-				●
120	HOSE; FLEX,SHIFT BLOCK,CLU EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) L=615	1-09364-717-0	01	1	9212-	●	●	●
122	NIPPLE; GREASE,FLEX HOSE,SHIFT BLOCK PT1/8 STRAIGHT	9-09031-010-0	01	1	9212-	●	●	●	●
123	CLIP; FLEX HOSE,SHIFT BLOCK (C) ID=13 L=20	1-09701-138-1	01	1	9212-	●	●	●
123	CLIP; FLEX HOSE,SHIFT BLOCK (A) ID=15.5	1-09700-814-1	01	1	9212-	●	●	●	●
123	CLIP; FLEX HOSE,SHIFT BLOCK (B) ID=22	1-09700-644-1	01	1	9212-				●
124	BEARING; CAM,SHIFT FORK	1-31349-004-1	02	1	9212-				●
125	SHAFT; CLU	1-31342-265-0	01	1	9212-	●	●	●
125	SHAFT; CLU	1-31342-169-1	01	1	9212-				●
128	KEY; FEATHER,CLU SHAFT	9-09867-008-0	02	1	9212-	●	●	●	●
130	SCREW; SHIFT FORK M8X14	9-06120-814-0	01	1	9212-	●	●	●	●
131	WASHER; LK,SHIFT FORK ID=8.2	9-09150-508-0	01	1	9212-	●	●	●	●
137	BOLT; CLU COVER 6HE1 N ENG(47L) EXC. BRAKE SYSTEM HEAVY DUTY VAR2(WG3) M10X22	0-23801-022-0	10	1	9212-9504	●	●	●	●
137	BOLT; CLU COVER 6HE1 N ENG(47L) EXC. BRAKE SYSTEM HEAVY DUTY VAR2(WG3) M10X20 FLANGE	0-28181-020-0	10	1	9505-	●	●	●	●
137	BOLT; CLU COVER 6HE1 STD ENG(46L) M10X22	0-23801-022-0	12	1	9212-9504	●	●	●	●
137	BOLT; CLU COVER 6HE1 N ENG(47L) BRAKE SYSTEM HEAVY DUTY VAR2(WG3) M10X22	0-23801-022-0	12	1	9212-9504	●	●	●	●
137	BOLT; CLU COVER 6HE1 STD ENG(46L) M10X20 FLANGE	0-28181-020-0	12	1	9505-	●	●	●	●
137	BOLT; CLU COVER 6HE1 N ENG(47L) BRAKE SYSTEM HEAVY DUTY VAR2(WG3) M10X20 FLANGE	0-28181-020-0	12	1	9505-	●	●	●	●
138	WASHER; LK,CLU COVER 6HE1 N ENG(47L) EXC. BRAKE SYSTEM HEAVY DUTY VAR2(WG3) ID=10.2	9-09150-510-0	10	1	9212-9504	●	●	●	●
138	WASHER; LK,CLU COVER 6HE1 STD ENG(46L) ID=10.2	9-09150-510-0	12	1	9212-9504	●	●	●	●
138	WASHER; LK,CLU COVER 6HE1 N ENG(47L) BRAKE SYSTEM HEAVY DUTY VAR2(WG3) ID=10.2	9-09150-510-0	12	1	9212-9504	●	●	●	●
172	LEVER KIT; RELEASE,CLU 6HE1 N ENG(47L) EXC. BRAKE SYSTEM HEAVY DUTY VAR2(WG3) 13"	1-87830-086-4	01	1	9212-	●	●	●	●
172	LEVER KIT; RELEASE,CLU 6HE1 STD ENG(46L) EXC. BRAKE SYSTEM HEAVY DUTY VAR2(WG3)	1-87830-620-0	01	1	9212-	●	●	●	●
172	LEVER KIT; RELEASE,CLU BRAKE SYSTEM HEAVY DUTY VAR2(WG3)	1-87830-620-0	01	1	9212-	●	●	●	●
222	BOLT; STRAP 6HE1 N ENG(47L) EXC. BRAKE SYSTEM HEAVY DUTY VAR2(WG3) M10X24	9-09802-708-0	04	1	9212-	●	●	●	●
222	BOLT; STRAP 6HE1 STD ENG(46L) EXC. BRAKE SYSTEM HEAVY DUTY VAR2(WG3) (A) M10X23.2	1-09040-042-0	04	1	9212-	●	●	●	●
222	BOLT; STRAP BRAKE SYSTEM HEAVY DUTY VAR2(WG3) (A) M10X23.2	1-09040-042-0	04	1	9212-	●	●	●	●
222	BOLT; STRAP 6HE1 STD ENG(46L) EXC. BRAKE SYSTEM HEAVY DUTY VAR2(WG3) (B) M10X26 HEX SOCKET	1-09040-043-0	04	1	9212-	●	●	●	●
222	BOLT; STRAP BRAKE SYSTEM HEAVY DUTY VAR2(WG3) (B) M10X26 HEX SOCKET	1-09040-043-0	04	1	9212-	●	●	●	●

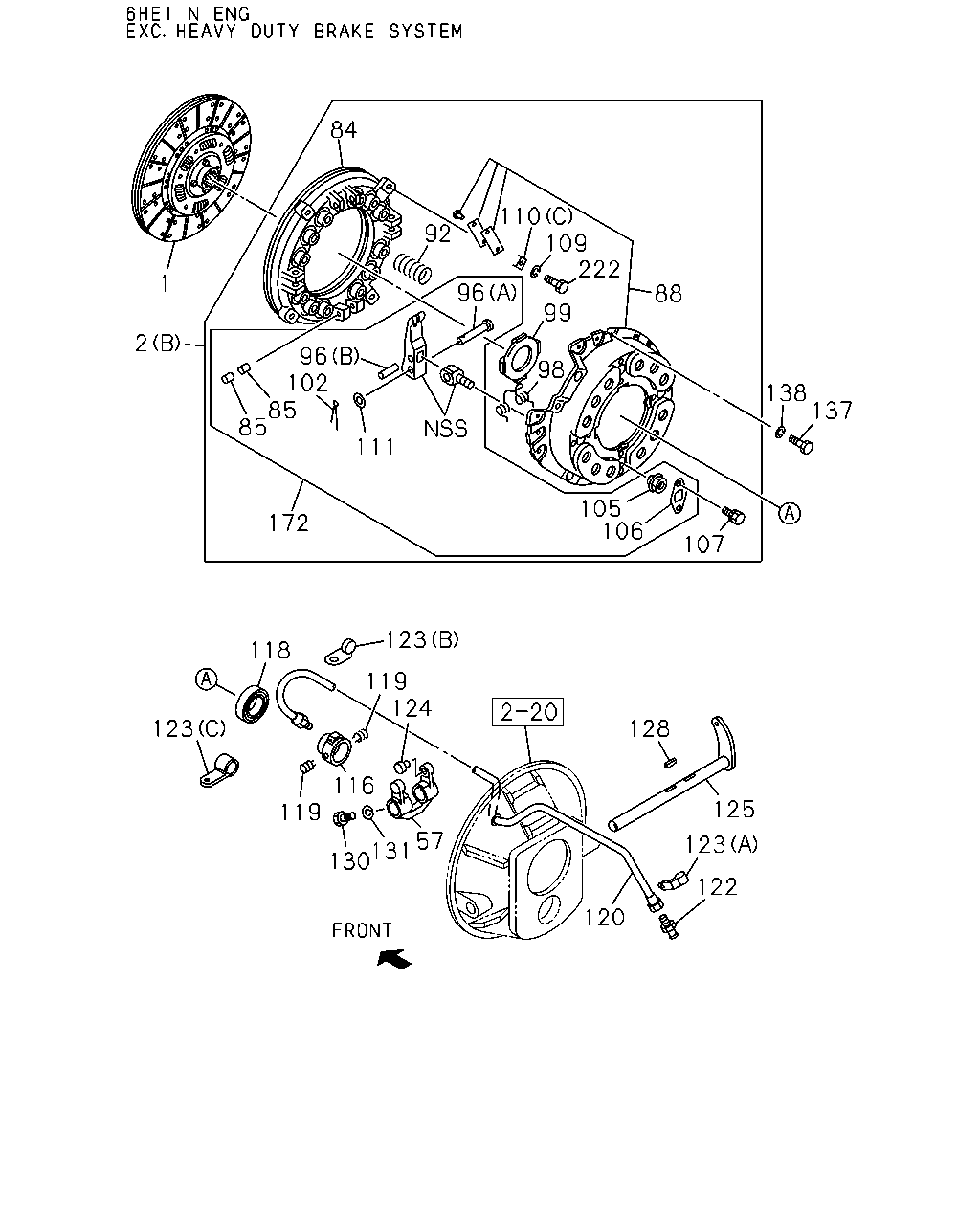

84 110 109 222 92 1 96 88 99 2 96 102 85 85 98 138 137 111 105 106 172 107 123 118 119 124 123 128 116 125 119 57 131 130 123 122 120

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D
1	DISC; CLUTCH 6HE1 N ENG(47L) EXC. BRAKE SYSTEM HEAVY DUTY VAR2(WG3) 13"	1-31240-525-0	01	1	9212-9309	●	●	●	●
1	DISC; CLUTCH 6HE1 N ENG(47L) EXC. BRAKE SYSTEM HEAVY DUTY VAR2(WG3) 13"	1-31240-661-0	01	1	9310-	●	●	●	●
1	DISC; CLUTCH 6HE1 STD ENG(46L) 14"	1-31240-515-0	01	1	9212-9309	●	●	●	●
1	DISC; CLUTCH 6HE1 N ENG(47L) BRAKE SYSTEM HEAVY DUTY VAR2(WG3) 14"	1-31240-515-0	01	1	9212-9309	●	●	●	●
1	DISC; CLUTCH 6HE1 STD ENG(46L) 14"	1-31240-662-0	01	1	9310-9310	●	●	●	●
1	DISC; CLUTCH 6HE1 N ENG(47L) BRAKE SYSTEM HEAVY DUTY VAR2(WG3) 14"	1-31240-662-0	01	1	9310-9310	●	●	●	●
1	DISC; CLUTCH 6HE1 STD ENG(46L) 14"	1-31240-671-0	01	1	9311-	●	●	●	●
1	DISC; CLUTCH 6HE1 N ENG(47L) BRAKE SYSTEM HEAVY DUTY VAR2(WG3) 14"	1-31240-671-0	01	1	9311-	●	●	●	●
2	PLATE ASM; PRESSURE,CLU HEAVY DUTY PACKAGE TRUCK<RD2> BRAKE SYSTEM HEAVY DUTY VAR2(WG3) (A) 14"	1-31220-168-1	01	1	9212-	●	●	●	●
2	PLATE ASM; PRESSURE,CLU 6HE1 N ENG(47L) EXC. BRAKE SYSTEM HEAVY DUTY VAR2(WG3) (B) 13"	1-31220-278-0	01	1	9212-	●	●	●	●
2	PLATE ASM; PRESSURE,CLU 6HE1 STD ENG(46L) EXC. BRAKE SYSTEM HEAVY DUTY VAR2(WG3) (A) 14"	1-31220-182-1	01	1	9212-	●	●	●	●
2	PLATE ASM; PRESSURE,CLU BRAKE SYSTEM HEAVY DUTY VAR2(WG3) EXC. HEAVY DUTY PACKAGE TRUCK<RD2> (A) 14"	1-31220-182-1	01	1	9212-	●	●	●	●
57	FORK; SHIFT,CLU	1-31341-028-0	01	1	9212-	●	●	●
57	FORK; SHIFT,CLU	1-31340-056-0	01	1	9212-				●
84	PLATE; PRESSURE 6HE1 N ENG(47L) EXC. BRAKE SYSTEM HEAVY DUTY VAR2(WG3) 13"	1-31221-105-0	01	1	9212-	●	●	●	●
84	PLATE; PRESSURE 6HE1 STD ENG(46L) EXC. BRAKE SYSTEM HEAVY DUTY VAR2(WG3) 14"	1-31221-044-0	01	1	9212-	●	●	●	●
84	PLATE; PRESSURE BRAKE SYSTEM HEAVY DUTY VAR2(WG3) 14"	1-31221-044-0	01	1	9212-	●	●	●	●
85	BUSHING; RELEASE LEVER 6HE1 N ENG(47L) EXC. BRAKE SYSTEM HEAVY DUTY VAR2(WG3)	1-31239-004-0	08	1	9212-	●	●	●	●
85	BUSHING; RELEASE LEVER 6HE1 STD ENG(46L) EXC. BRAKE SYSTEM HEAVY DUTY VAR2(WG3)	9-31239-116-0	08	1	9212-	●	●	●	●
85	BUSHING; RELEASE LEVER BRAKE SYSTEM HEAVY DUTY VAR2(WG3)	9-31239-116-0	08	1	9212-	●	●	●	●
88	COVER SUB ASM; CLU 6HE1 N ENG(47L) EXC. BRAKE SYSTEM HEAVY DUTY VAR2(WG3)	1-31210-016-0	01	1	9212-	●	●	●	●
92	SPRING; CLU HEAVY DUTY PACKAGE TRUCK<RD2> BRAKE SYSTEM HEAVY DUTY VAR2(WG3)	1-09580-234-0	12	1	9212-	●	●	●	●
92	SPRING; CLU 6HE1 N ENG(47L) EXC. BRAKE SYSTEM HEAVY DUTY VAR2(WG3)	1-31214-045-0	12	1	9212-	●	●	●	●
92	SPRING; CLU 6HE1 STD ENG(46L) EXC. BRAKE SYSTEM HEAVY DUTY VAR2(WG3)	1-09580-412-0	12	1	9212-	●	●	●	●
92	SPRING; CLU BRAKE SYSTEM HEAVY DUTY VAR2(WG3) EXC. HEAVY DUTY PACKAGE TRUCK<RD2>	1-09580-412-0	12	1	9212-	●	●	●	●
96	PIN; RELEASE LEVER 6HE1 N ENG(47L) EXC. BRAKE SYSTEM HEAVY DUTY VAR2(WG3) (A) L=63.0	1-31232-002-0	04	1	9212-	●	●	●	●
96	PIN; RELEASE LEVER 6HE1 N ENG(47L) EXC. BRAKE SYSTEM HEAVY DUTY VAR2(WG3) (B) L=29.0	1-31232-003-0	04	1	9212-	●	●	●	●
96	PIN; RELEASE LEVER 6HE1 STD ENG(46L) EXC. BRAKE SYSTEM HEAVY DUTY VAR2(WG3) (A) L=49.0	1-31232-005-0	04	1	9212-	●	●	●	●
96	PIN; RELEASE LEVER BRAKE SYSTEM HEAVY DUTY VAR2(WG3) (A) L=49.0	1-31232-005-0	04	1	9212-	●	●	●	●
96	PIN; RELEASE LEVER 6HE1 STD ENG(46L) EXC. BRAKE SYSTEM HEAVY DUTY VAR2(WG3) (B) L=57.0	1-31232-008-0	04	1	9212-	●	●	●	●
96	PIN; RELEASE LEVER BRAKE SYSTEM HEAVY DUTY VAR2(WG3) (B) L=57.0	1-31232-008-0	04	1	9212-	●	●	●	●
98	SPRING; RETURN 6HE1 N ENG(47L) EXC. BRAKE SYSTEM HEAVY DUTY VAR2(WG3)	1-31233-004-0	04	1	9212-	●	●	●	●
98	SPRING; RETURN 6HE1 STD ENG(46L) EXC. BRAKE SYSTEM HEAVY DUTY VAR2(WG3)	1-31233-003-0	04	1	9212-	●	●	●	●
98	SPRING; RETURN BRAKE SYSTEM HEAVY DUTY VAR2(WG3)	1-31233-003-0	04	1	9212-	●	●	●	●
99	PLATE; RELEASE LEVER 6HE1 N ENG(47L) EXC. BRAKE SYSTEM HEAVY DUTY VAR2(WG3)	1-31321-006-0	01	1	9212-	●	●	●	●
102	PIN; SPLIT,RELEASE LEVER 6HE1 N ENG(47L) EXC. BRAKE SYSTEM HEAVY DUTY VAR2(WG3) OD=2.7 L=22	9-08113-022-0	04	1	9212-	●	●	●	●
102	PIN; SPLIT,RELEASE LEVER 6HE1 STD ENG(46L) EXC. BRAKE SYSTEM HEAVY DUTY VAR2(WG3) OD=2.7 L=22	9-08113-022-0	08	1	9212-	●	●	●	●
102	PIN; SPLIT,RELEASE LEVER BRAKE SYSTEM HEAVY DUTY VAR2(WG3) OD=2.7 L=22	9-08113-022-0	08	1	9212-	●	●	●	●
105	NUT; SUPPORT 6HE1 N ENG(47L) EXC. BRAKE SYSTEM HEAVY DUTY VAR2(WG3)	1-31239-006-0	04	1	9212-	●	●	●	●
105	NUT; SUPPORT 6HE1 STD ENG(46L) EXC. BRAKE SYSTEM HEAVY DUTY VAR2(WG3)	9-31235-061-0	04	1	9212-	●	●	●	●
105	NUT; SUPPORT BRAKE SYSTEM HEAVY DUTY VAR2(WG3)	9-31235-061-0	04	1	9212-	●	●	●	●
106	PLATE; LK,LEVER SUPPORT 6HE1 N ENG(47L) EXC. BRAKE SYSTEM HEAVY DUTY VAR2(WG3)	1-31239-017-0	04	1	9212-	●	●	●	●
106	PLATE; LK,LEVER SUPPORT 6HE1 STD ENG(46L) EXC. BRAKE SYSTEM HEAVY DUTY VAR2(WG3)	1-31239-019-0	04	1	9212-	●	●	●	●
106	PLATE; LK,LEVER SUPPORT BRAKE SYSTEM HEAVY DUTY VAR2(WG3)	1-31239-019-0	04	1	9212-	●	●	●	●
107	BOLT; LK PLATE 6HE1 N ENG(47L) EXC. BRAKE SYSTEM HEAVY DUTY VAR2(WG3)	1-31239-015-0	08	1	9212-	●	●	●	●
107	BOLT; LK PLATE 6HE1 STD ENG(46L) EXC. BRAKE SYSTEM HEAVY DUTY VAR2(WG3) M8X12.7 W/LK&PL WASHER	1-31239-020-0	08	1	9212-	●	●	●	●
107	BOLT; LK PLATE BRAKE SYSTEM HEAVY DUTY VAR2(WG3) M8X12.7 W/LK&PL WASHER	1-31239-020-0	08	1	9212-	●	●	●	●
109	WASHER; LK,STRAP 6HE1 N ENG(47L) EXC. BRAKE SYSTEM HEAVY DUTY VAR2(WG3) ID=10.2	9-09150-010-0	04	1	9212-	●	●	●	●
110	WASHER; SPECIAL,STRAP 6HE1 N ENG(47L) EXC. BRAKE SYSTEM HEAVY DUTY VAR2(WG3) (C)	9-09854-128-0	04	1	9212-	●	●	●	●
110	WASHER; SPECIAL,STRAP 6HE1 STD ENG(46L) EXC. BRAKE SYSTEM HEAVY DUTY VAR2(WG3) (B)	1-09503-095-0	08	1	9212-	●	●	●	●
110	WASHER; SPECIAL,STRAP BRAKE SYSTEM HEAVY DUTY VAR2(WG3) (B)	1-09503-095-0	08	1	9212-	●	●	●	●
110	WASHER; SPECIAL,STRAP 6HE1 STD ENG(46L) EXC. BRAKE SYSTEM HEAVY DUTY VAR2(WG3) (A)	1-31229-009-0	04	1	9212-	●	●	●	●
110	WASHER; SPECIAL,STRAP BRAKE SYSTEM HEAVY DUTY VAR2(WG3) (A)	1-31229-009-0	04	1	9212-	●	●	●	●
111	WASHER; PL,STRAP 6HE1 N ENG(47L) EXC. BRAKE SYSTEM HEAVY DUTY VAR2(WG3)	9-31239-039-0	04	1	9212-	●	●	●	●
116	BLOCK; SHIFT,CLU	1-31321-054-0	01	1	9212-	●	●	●
116	BLOCK; SHIFT,CLU	1-31321-052-2	01	1	9212-				●
118	BEARING; CLU RELEASE	1-09820-008-0	01	1	9212-	●	●	●	●
119	SPRING; SHIFT FORK	1-31329-015-0	01	1	9212-	●	●	●
119	SPRING; SHIFT FORK	1-31329-014-0	01	1	9212-	●	●	●
119	SPRING; SHIFT FORK	1-09585-054-0	01	1	9212-				●
119	SPRING; SHIFT FORK	1-09585-053-0	01	1	9212-				●
120	HOSE; FLEX,SHIFT BLOCK,CLU REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) L=315	9-09919-042-0	01	1	9212-	●	●	●
120	HOSE; FLEX,SHIFT BLOCK,CLU L=315	9-09919-042-0	01	1	9212-				●
120	HOSE; FLEX,SHIFT BLOCK,CLU EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) L=615	1-09364-717-0	01	1	9212-	●	●	●
122	NIPPLE; GREASE,FLEX HOSE,SHIFT BLOCK PT1/8 STRAIGHT	9-09031-010-0	01	1	9212-	●	●	●	●
123	CLIP; FLEX HOSE,SHIFT BLOCK (C) ID=13 L=20	1-09701-138-1	01	1	9212-	●	●	●
123	CLIP; FLEX HOSE,SHIFT BLOCK (A) ID=15.5	1-09700-814-1	01	1	9212-	●	●	●	●
123	CLIP; FLEX HOSE,SHIFT BLOCK (B) ID=22	1-09700-644-1	01	1	9212-				●
124	BEARING; CAM,SHIFT FORK	1-31349-004-1	02	1	9212-				●
125	SHAFT; CLU	1-31342-265-0	01	1	9212-	●	●	●
125	SHAFT; CLU	1-31342-169-1	01	1	9212-				●
128	KEY; FEATHER,CLU SHAFT	9-09867-008-0	02	1	9212-	●	●	●	●
130	SCREW; SHIFT FORK M8X14	9-06120-814-0	01	1	9212-	●	●	●	●
131	WASHER; LK,SHIFT FORK ID=8.2	9-09150-508-0	01	1	9212-	●	●	●	●
137	BOLT; CLU COVER 6HE1 N ENG(47L) EXC. BRAKE SYSTEM HEAVY DUTY VAR2(WG3) M10X22	0-23801-022-0	10	1	9212-9504	●	●	●	●
137	BOLT; CLU COVER 6HE1 N ENG(47L) EXC. BRAKE SYSTEM HEAVY DUTY VAR2(WG3) M10X20 FLANGE	0-28181-020-0	10	1	9505-	●	●	●	●
137	BOLT; CLU COVER 6HE1 STD ENG(46L) M10X22	0-23801-022-0	12	1	9212-9504	●	●	●	●
137	BOLT; CLU COVER 6HE1 N ENG(47L) BRAKE SYSTEM HEAVY DUTY VAR2(WG3) M10X22	0-23801-022-0	12	1	9212-9504	●	●	●	●
137	BOLT; CLU COVER 6HE1 STD ENG(46L) M10X20 FLANGE	0-28181-020-0	12	1	9505-	●	●	●	●
137	BOLT; CLU COVER 6HE1 N ENG(47L) BRAKE SYSTEM HEAVY DUTY VAR2(WG3) M10X20 FLANGE	0-28181-020-0	12	1	9505-	●	●	●	●
138	WASHER; LK,CLU COVER 6HE1 N ENG(47L) EXC. BRAKE SYSTEM HEAVY DUTY VAR2(WG3) ID=10.2	9-09150-510-0	10	1	9212-9504	●	●	●	●
138	WASHER; LK,CLU COVER 6HE1 STD ENG(46L) ID=10.2	9-09150-510-0	12	1	9212-9504	●	●	●	●
138	WASHER; LK,CLU COVER 6HE1 N ENG(47L) BRAKE SYSTEM HEAVY DUTY VAR2(WG3) ID=10.2	9-09150-510-0	12	1	9212-9504	●	●	●	●
172	LEVER KIT; RELEASE,CLU 6HE1 N ENG(47L) EXC. BRAKE SYSTEM HEAVY DUTY VAR2(WG3) 13"	1-87830-086-4	01	1	9212-	●	●	●	●
172	LEVER KIT; RELEASE,CLU 6HE1 STD ENG(46L) EXC. BRAKE SYSTEM HEAVY DUTY VAR2(WG3)	1-87830-620-0	01	1	9212-	●	●	●	●
172	LEVER KIT; RELEASE,CLU BRAKE SYSTEM HEAVY DUTY VAR2(WG3)	1-87830-620-0	01	1	9212-	●	●	●	●
222	BOLT; STRAP 6HE1 N ENG(47L) EXC. BRAKE SYSTEM HEAVY DUTY VAR2(WG3) M10X24	9-09802-708-0	04	1	9212-	●	●	●	●
222	BOLT; STRAP 6HE1 STD ENG(46L) EXC. BRAKE SYSTEM HEAVY DUTY VAR2(WG3) (A) M10X23.2	1-09040-042-0	04	1	9212-	●	●	●	●
222	BOLT; STRAP BRAKE SYSTEM HEAVY DUTY VAR2(WG3) (A) M10X23.2	1-09040-042-0	04	1	9212-	●	●	●	●
222	BOLT; STRAP 6HE1 STD ENG(46L) EXC. BRAKE SYSTEM HEAVY DUTY VAR2(WG3) (B) M10X26 HEX SOCKET	1-09040-043-0	04	1	9212-	●	●	●	●
222	BOLT; STRAP BRAKE SYSTEM HEAVY DUTY VAR2(WG3) (B) M10X26 HEX SOCKET	1-09040-043-0	04	1	9212-	●	●	●	●

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
