5-10 — CAB MOUNTING; FRAME SIDE (#17698) — 27 parça

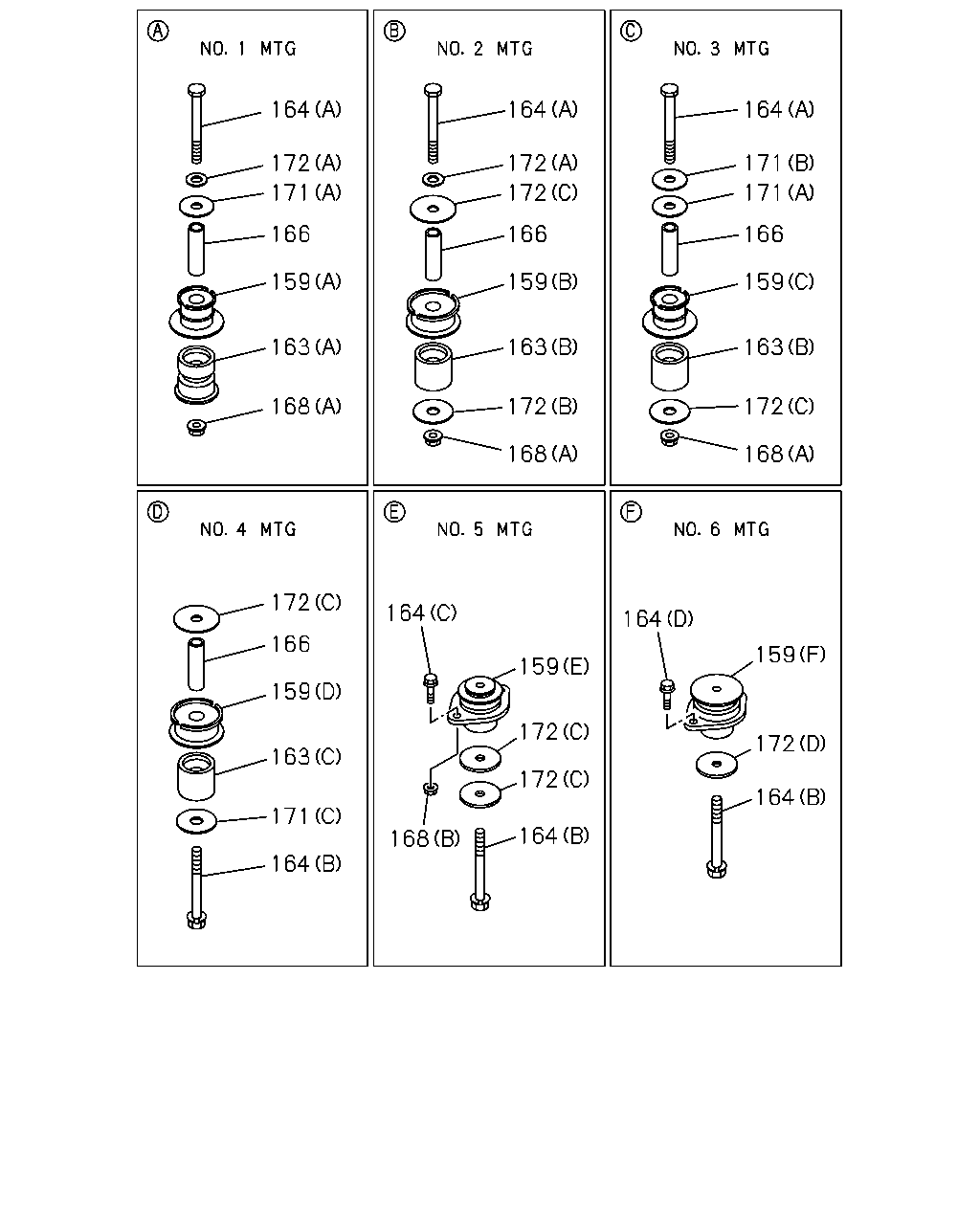

çizim 9533
164 164 164 172 171 172 172 171 171 166 166 166 159 159 159 163 163 163 168 172 172 168 168 172 164 164 166 159 159 159 172 172 163 172 164 171 164 168 164
BalonParca AdiParca NoAdetTipApplied Date
159 RUBBER; CUSHION,CAB MTG
(C) NO.3 MTG THA 		8-97911-026-0 02 1 0009-
159 RUBBER; CUSHION,CAB MTG
(A) NO.1 MTG THA 		8-97913-469-0 02 1 0009-
159 RUBBER; CUSHION,CAB MTG
(D) NO.4 MTG THA 		8-97914-018-0 02 1 0009-
159 RUBBER; CUSHION,CAB MTG
(B) NO.2 MTG THA 		8-97914-685-0 02 1 0009-
159 RUBBER; CUSHION,CAB MTG
(E) NO.5 MTG THA 		8-97914-021-0 01 1 0009-
159 RUBBER; CUSHION,CAB MTG
(F) NO.6 MTG THA 		8-97914-023-0 01 1 0009-
159 RUBBER; CUSHION,CAB MTG
(E) NO.5 MTG THA 		8-97914-020-0 01 1 0009-
159 RUBBER; CUSHION,CAB MTG
(F) NO.6 MTG THA 		8-97914-022-0 01 1 0009-
163 RUBBER; CUSHION,BODY MTG,REBOUND
(A) NO.1 MTG THA 		8-97913-470-0 02 1 0009-
163 RUBBER; CUSHION,BODY MTG,REBOUND
(B) NO.2,NO.3 MTG THA 		8-97914-017-0 04 1 0009-
163 RUBBER; CUSHION,BODY MTG,REBOUND
(C) NO.4 MTG THA 		8-97914-019-0 02 1 0009-
164 BOLT; CUSHION RUBBER,CAB MTG
(C) NO.5 MTG M10X25 FLANGE 		0-28281-025-0 04 1 0009-
164 BOLT; CUSHION RUBBER,CAB MTG
(D) NO.6 MTG M10X20 FLANGE 		0-28681-020-0 04 1 0009-
164 BOLT; CUSHION RUBBER,CAB MTG
(B) NO.4,NO.5,NO.6 MTG M10X102 		8-97091-599-0 06 1 0009-
164 BOLT; CUSHION RUBBER,CAB MTG
(A) NO.1,NO.2,NO.3 MTG M10X120 		8-97134-968-0 06 1 0009-
166 PIECE; DIST,BODY MTG RUBBER
NO.1,NO.2,NO.3,NO.4 MTG L=70 		8-97148-478-0 08 1 0009-
168 NUT; CUSHION RUBBER,BODY MTG
(B) NO.5 MTG M10 FLANGE 		0-91150-110-0 04 1 0009-
168 NUT; CUSHION RUBBER,BODY MTG
(A) NO.1,NO.2,NO.3 MTG M10 FLANGE 		0-91150-210-0 06 1 0009-
171 WASHER; BODY MTG RUBBER
(C) NO.4 MTG ID=11 OD=62 T=2.9 		8-97037-993-0 02 1 0009-
171 WASHER; BODY MTG RUBBER
(B) NO.3 MTG ID=11 OD=48 T=6.0 THA 		8-97918-424-0 02 1 0009-
171 WASHER; BODY MTG RUBBER
(A) NO.1,NO.3 MTG ID=11 OD=48 T=29 THA 		8-97918-426-0 04 1 0009-
172 WASHER; BODY MTG RUBBER
(D) NO.6 MTG ID=11 OD=75 T=6.0 		8-94338-455-0 02 1 0009-
172 WASHER; BODY MTG RUBBER
(C) NO.2,NO.3,NO.4,NO.5 MTG ID=11 OD=62 T=2.9 		8-97037-993-0 10 1 0009-
172 WASHER; BODY MTG RUBBER
(A) NO.1,NO.2 MTG ID=11 OD=32 T=6.0 THA 		8-97918-425-0 04 1 0009-
172 WASHER; BODY MTG RUBBER
(B) NO.2 MTG ID=11 OD=48 T=29 THA 		8-97918-426-0 02 1 0009-

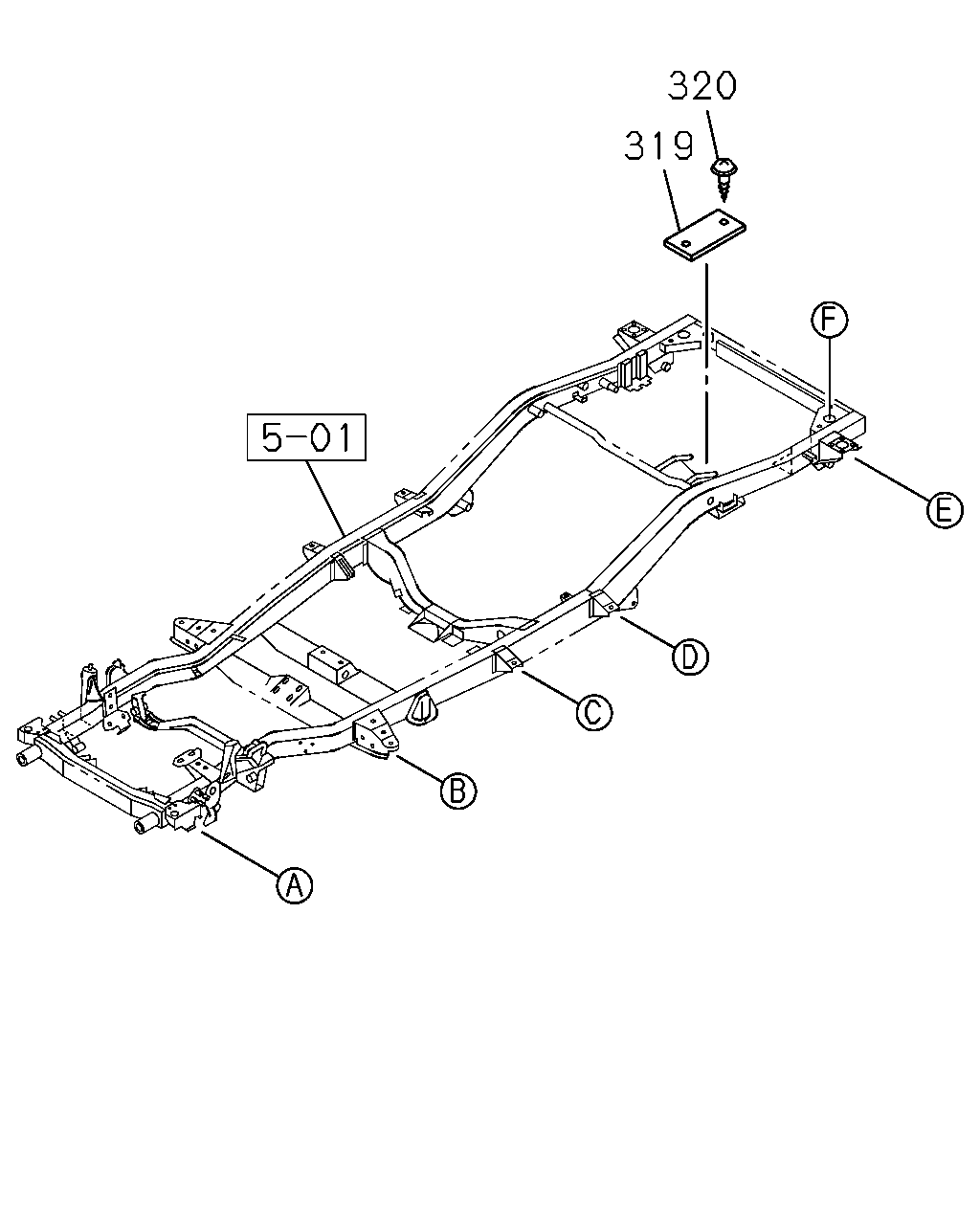

çizim 12172
320 319
BalonParca AdiParca NoAdetTipApplied Date
319 GASKET; BODY MTG BOLT 8-97085-292-0 02 1 0009-
320 SCREW; BODY MTG GASKET
M6X20 TAPPING W/PL WASHER 		0-74100-620-0 04 1 0009-
