◀ 🏠 ▶ Isuzu WW ▶ SUV ▶ UCS ▶ 50892 - UCS(THAILAND) ▶ 5 - Frame, Cab Mounting ▶ 5-01 - FRAME AND OTHER PARTS ▶
5-01 — FRAME AND OTHER PARTS (#17697) — 49 parça

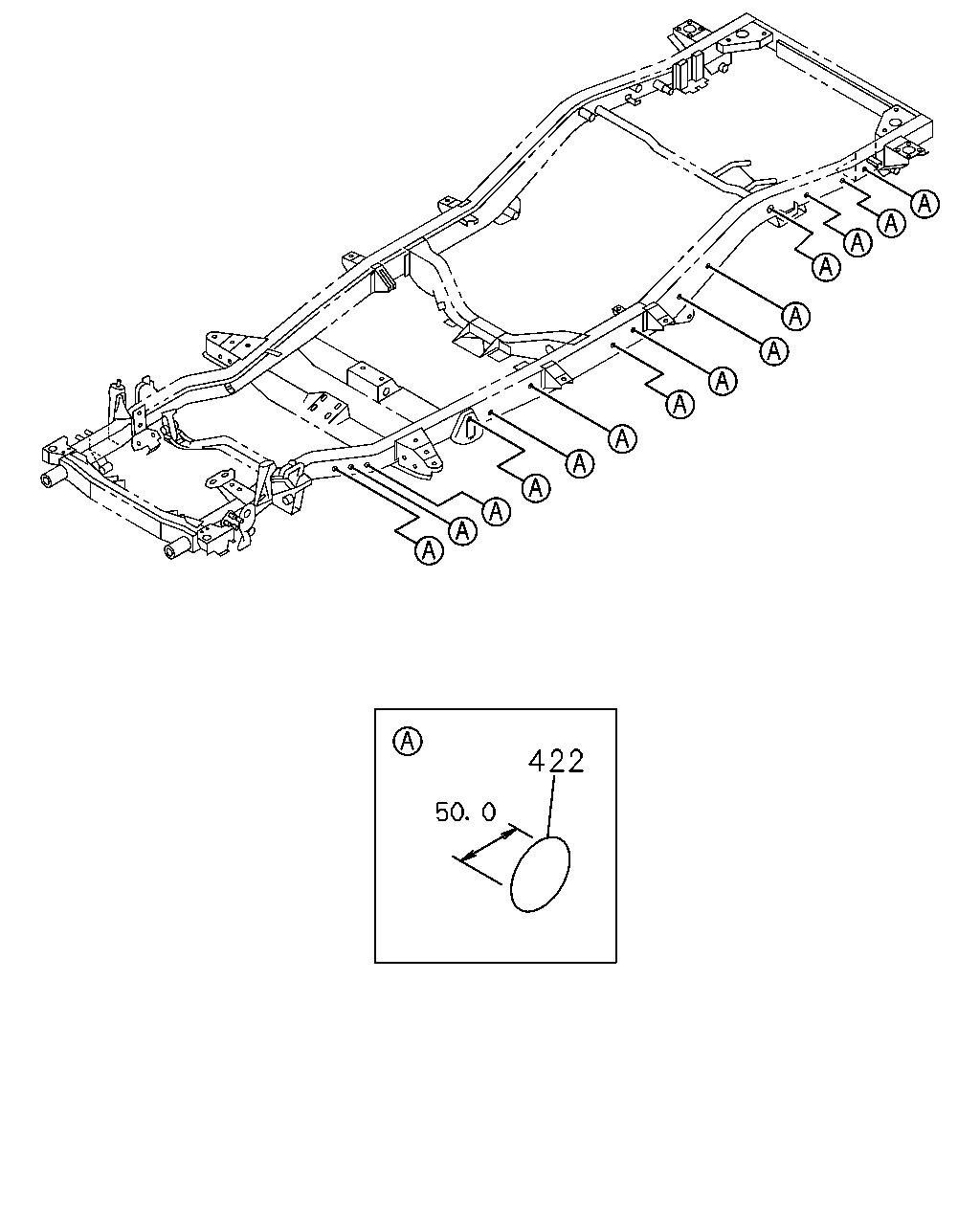

çizim 12136
422
BalonParca AdiParca NoAdetTipApplied Date
422 SEAL; HOLE
A/T AISIN<RMD> D=50 THA 		8-97911-059-0 29 1 0009-0104
422 SEAL; HOLE
A/T AISIN<RMD> D=50 THA 		8-97911-059-0 19 1 0105-0105
422 SEAL; HOLE
D=50 THA 		8-97911-059-0 21 1 0106-
422 SEAL; HOLE
M/T MUA 5 SPEED<RMN> D=50 THA 		8-97911-059-0 31 1 0009-0104
422 SEAL; HOLE
M/T MUA 5 SPEED<RMN> D=50 THA 		8-97911-059-0 21 1 0105-0105

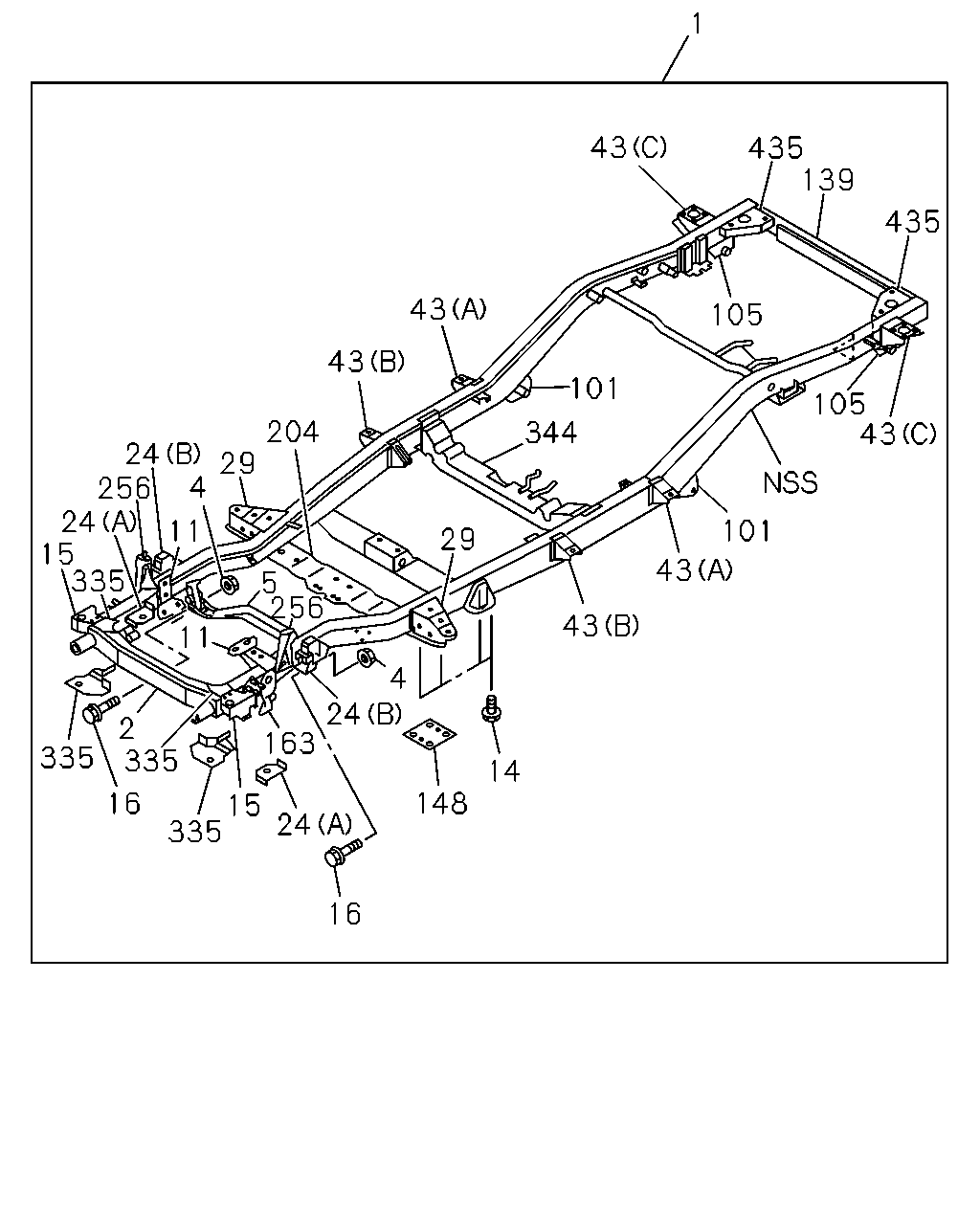

çizim 12267
1 43 435 139 435 43 105 43 101 344 105 43 204 24 29 256 24 11 15 335 11 101 43 29 5 256 4 24 163 15 335 24 43 2 335 16 335 14 148 16 4
BalonParca AdiParca NoAdetTipApplied Date
1 FRAME ASM
A/T AISIN<RMD> THA 		8-97921-387-0 01 1 0009-
1 FRAME ASM
M/T MUA 5 SPEED<RMN> THA 		8-97921-388-0 01 1 0009-
2 MEMBER; CROSS,1ST
THA 		8-97910-438-0 01 1 0009-
4 NUT; 1ST C/MBR TO S/MBR
M10 FLANGE THA 		8-94383-595-0 04 1 0009-
5 MEMBER; CROSS,SUSPENSION
THA 		8-97117-957-0 01 1 0009-
11 BRACKET; ENG MTG
THA 		8-97910-468-0 01 1 0009-
11 BRACKET; ENG MTG
THA 		8-97910-466-0 01 1 0009-
14 BOLT; TRANS MTG MBR,FRAME
A/T AISIN<RMD> M12X37 FLANGE THA 		8-97029-702-0 08 1 0009-
14 BOLT; TRANS MTG MBR,FRAME
M/T MUA 5 SPEED<RMN> M12X31 FLANGE THA 		8-97166-862-0 08 1 0009-
15 BRACKET; BODY MTG,FRT
THA 		8-97910-451-0 01 1 0009-
15 BRACKET; BODY MTG,FRT
THA 		8-97910-450-1 01 1 0009-
16 BOLT; 1ST C/MBR TO S/MBR
M10X83 FLANGE 		8-97805-841-0 04 1 0009-
24 BRACKET; FRT SPR,FRT
(B) THA 		8-97115-757-2 01 1 0009-
24 BRACKET; FRT SPR,FRT
(A) 		8-97227-017-0 01 1 0009-
24 BRACKET; FRT SPR,FRT
(B) THA 		8-97115-756-2 01 1 0009-
24 BRACKET; FRT SPR,FRT
(A) 		8-97227-015-0 01 1 0009-
29 BRACKET; CAB MTG
A/T AISIN<RMD> THA 		8-97915-043-0 01 1 0009-
29 BRACKET; CAB MTG
A/T AISIN<RMD> THA 		8-97915-042-0 01 1 0009-
43 BRACKET; CAB MTG,RR
(B) THA 		8-97912-923-0 02 1 0009-
43 BRACKET; CAB MTG,RR
(A) THA 		8-97912-598-0 01 1 0009-
43 BRACKET; CAB MTG,RR
(C) THA 		8-97912-925-0 01 1 0009-
43 BRACKET; CAB MTG,RR
(A) THA 		8-97912-597-1 01 1 0009-
43 BRACKET; CAB MTG,RR
(C) THA 		8-97912-924-0 01 1 0009-
101 BRACKET; RR SPR,FRT
THA 		8-97910-480-1 01 1 0009-
101 BRACKET; RR SPR,FRT
THA 		8-97913-489-1 01 1 0009-
105 BRACKET; RR SPR,RR
THA 		8-97912-929-0 01 1 0009-
105 BRACKET; RR SPR,RR
THA 		8-97912-928-0 01 1 0009-
139 MEMBER; CROSS,6TH
THA 		8-97912-922-0 01 1 0009-
148 SPACER; C/MBR
A/T AISIN<RMD> T=6.0 THA 		8-97914-397-1 02 1 0009-
148 SPACER; C/MBR
A/T AISIN<RMD> T=2.9 THA 		8-97914-399-1 02 1 0009-
148 SPACER; C/MBR
M/T MUA 5 SPEED<RMN> T=6.0 THA 		8-97914-398-0 02 1 0009-
163 BRACKET; LINK ARM
THA 		8-97915-494-0 01 1 0009-
163 BRACKET; LINK ARM
THA 		8-97915-493-0 01 1 0009-
204 MEMBER; CROSS,TRANS MTG
A/T AISIN<RMD> THA 		8-97921-386-0 01 1 0009-
204 MEMBER; CROSS,TRANS MTG
M/T MUA 5 SPEED<RMN> THA 		8-97921-384-0 01 1 0009-
256 BRACKET; S/ABS
THA 		8-97910-470-0 01 1 0009-
256 BRACKET; S/ABS
THA 		8-97910-469-0 01 1 0009-
335 PATCH; 1ST C/MBR
LOWER THA 		8-97114-261-0 01 1 0009-
335 PATCH; 1ST C/MBR
UPPER THA 		8-97121-281-0 01 1 0009-
335 PATCH; 1ST C/MBR
LOWER THA 		8-97114-258-0 01 1 0009-
335 PATCH; 1ST C/MBR
UPPER THA 		8-97121-280-0 01 1 0009-
344 MEMBER; CROSS,4TH
THA 		8-97914-667-1 01 1 0009-
435 BRACKET; CAB MTG
THA 		8-97912-927-0 01 1 0009-
435 BRACKET; CAB MTG
THA 		8-97912-926-0 01 1 0009-
