Isuzu WW
▶
SUV
▶
UCS
▶
50892 - UCS(THAILAND)
▶
4 - Propeller Shaft, Axles, Steering, Suspension
▶

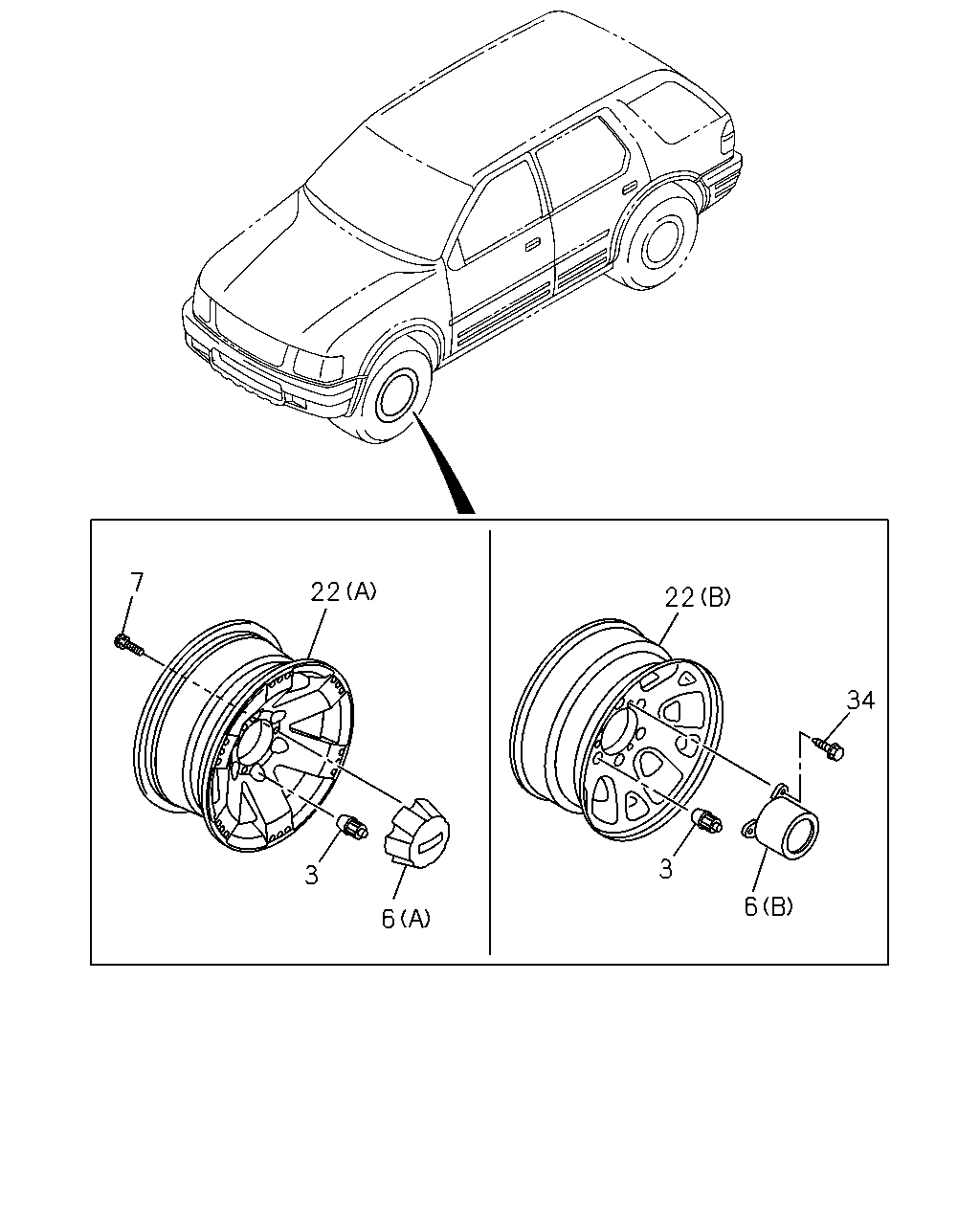

4-80 - ROAD WHEEL
▶
4-80 — ROAD WHEEL
(#17696) — 9 parça
7
22
22
34
3
3
6
6
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
3
NUT; WHEEL,FRT AXLE
M12 H=30.5 THA
8-97911-311-0
24
1
0009-
6
CAP; WHEEL
FRT&RR 265/70R15 7JJX15 ALUMI WHEEL<BVH> (A) THA
8-97917-917-0
04
1
0009-
6
CAP; WHEEL
HUB CAP ALUMI WHEEL<6UY> (B)
8-97127-044-1
04
1
0009-
7
SCREW; HUB CAP
FRT&RR 265/70R15 7JJX15 ALUMI WHEEL<BVH> THA
8-97918-488-0
12
1
0009-0106
7
SCREW; HUB CAP
FRT&RR 265/70R15 7JJX15 ALUMI WHEEL<BVH> THA
8-97921-830-0
12
1
0107-
22
WHEEL; DISC,AL
FRT&RR P225/75R15 6JJX15 AL<9LH> TIRE & DISC BREAK DOWN FOR KD<6MF> (B) THA
8-97913-346-0
05
1
0009-
22
WHEEL; DISC,AL
FRT&RR 265/70R15 7JJX15 ALUMI WHEEL<BVH> (A) THA
8-97921-221-2
05
1
0009-
34
BOLT; HUB CAP
HUB CAP ALUMI WHEEL<6UY> M6X16 FLANGE
8-97230-790-0
12
1
0009-0112
34
BOLT; HUB CAP
HUB CAP ALUMI WHEEL<6UY> M6X18 FLANGE
8-97324-856-0
12
1
0201-
Seçili parçaları sepete ekle
İpucu: çizimdeki balona veya tablodaki
Balon
sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
