Isuzu WW
▶
SUV
▶
UCS
▶
50892 - UCS(THAILAND)
▶
4 - Propeller Shaft, Axles, Steering, Suspension
▶
4-60 - REAR SUSPENSION
▶

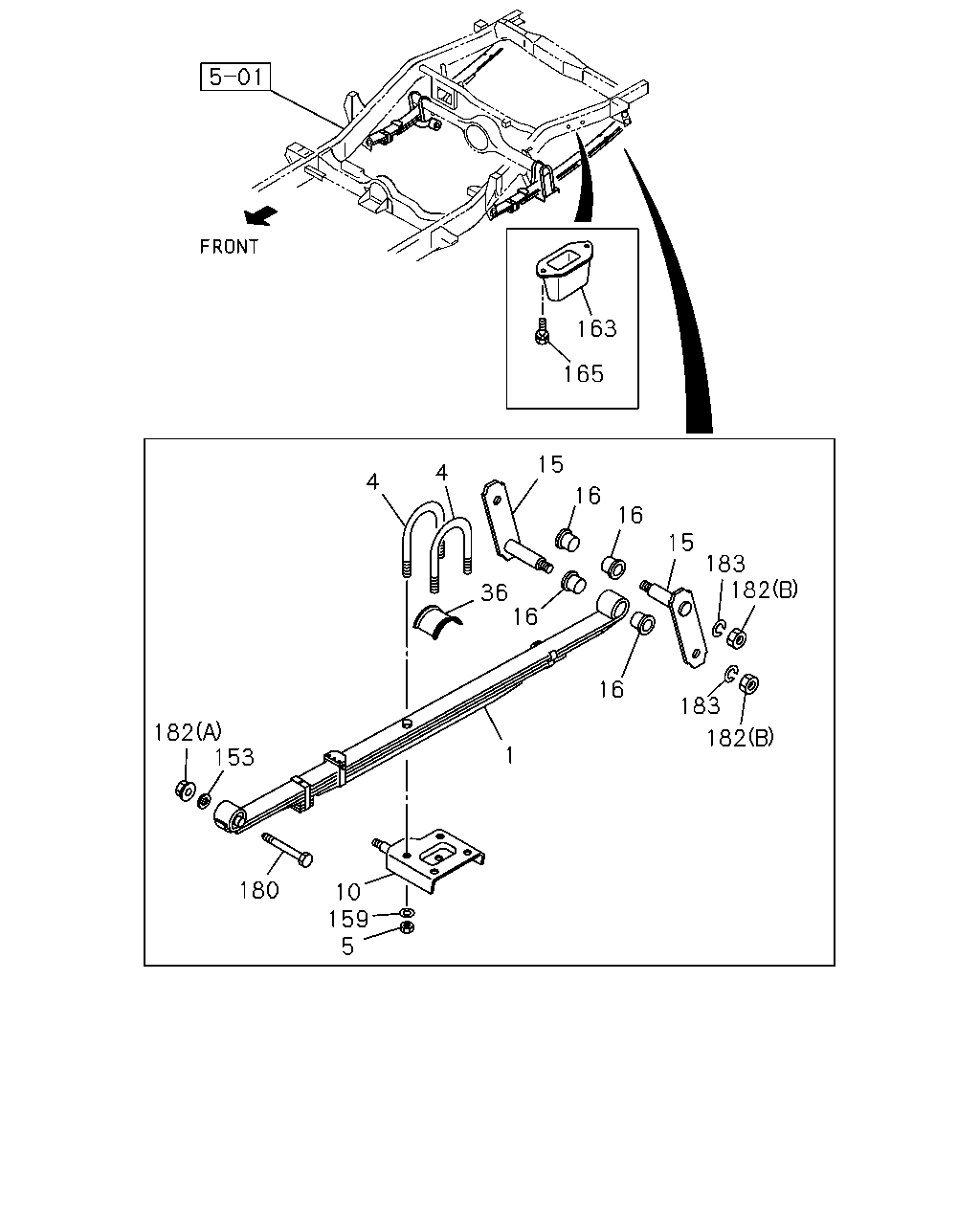

4-60 — REAR SUSPENSION
(#17693) — 17 parça
163
165
15
16
4
4
16
15
183
182
36
16
16
183
182
182
153
1
180
10
159
5
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
1
SPRING ASM; LEAF,RR
SEE FIG-NO 4-65 FOR COMPONENT. A/T AISIN<RMD> THA
8-97917-929-2
02
1
0009-
1
SPRING ASM; LEAF,RR
SEE FIG-NO 4-65 FOR COMPONENT. M/T MUA 5 SPEED<RMN> THA
8-97917-930-1
02
1
0009-
4
U-BOLT; RR SPR
L=160 THA
8-97910-474-0
04
1
0009-
5
NUT; U-BOLT,RR SPR
M14 THA
9-99110-514-0
08
1
0009-
10
CLAMP; LWR,RR SPR
8-94473-188-0
02
1
0009-
15
SHACKLE; RR SPR
THA
8-97912-958-0
04
1
0009-
16
BUSHING; SHACKLE,RR SPR
8-94234-319-0
08
1
0009-0302
16
BUSHING; SHACKLE,RR SPR
THA
8-97357-492-0
08
1
0303-
36
SEAT; HELPER RUBBER,RR SPR
THA
8-97918-427-0
02
1
0009-
153
WASHER; PL,SPRING PIN
ID=14.5 OD=30 THA
8-94476-635-0
02
1
0009-
159
WASHER; LK,RR SPR
ID=14.2
9-09150-614-0
08
1
0009-
163
RUBBER; HELPER,RR SPR
THA
8-97912-959-0
02
1
0009-
165
BOLT; HELPER RUBBER
M10X25 W/LK WASHER
0-50041-025-0
04
1
0009-
180
PIN; RR SPR
M14X106 THA
8-97911-112-0
02
1
0009-
182
NUT; PIN,RR SPR
(A) M14
8-94232-849-0
02
1
0009-
182
NUT; PIN,RR SPR
(B) M14
9-99110-414-0
04
1
0009-
183
WASHER; LK,PIN,RR SPR
ID=14.2
9-09150-614-0
04
1
0009-
