4-50 — FRONT SUSPENSION (#17692) — 58 parça

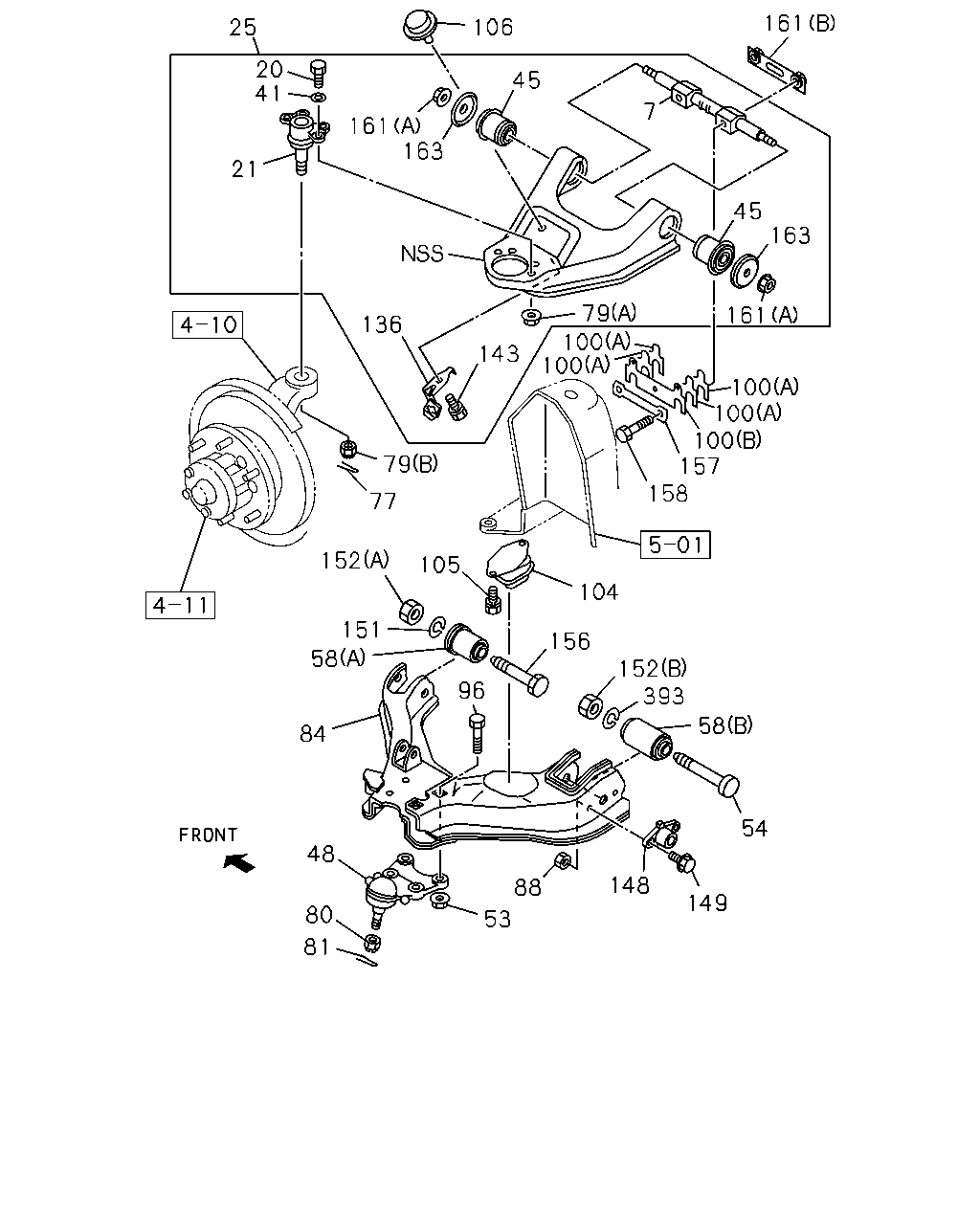

çizim 11892
161 25 106 20 41 45 7 161 163 21 45 163 161 79 100 100 136 143 100 100 100 157 158 79 77 152 105 104 151 58 156 152 393 58 96 84 54 48 148 88 53 149 80 81
BalonParca AdiParca NoAdetTipApplied Date
7 PIN; FULCRUM,UPR LINK 8-94173-352-3 02 1 0009-
20 BOLT; UPR LINK END TO UPR LINK 8-94478-727-0 08 1 0009-
21 JOINT ASM; BALL,UPR CONT ARM 8-94459-453-4 02 1 0009-
25 ARM; UPR CONT 8-94322-754-4 01 1 0009-
25 ARM; UPR CONT 8-94322-753-4 01 1 0009-
41 WASHER; LK,UPR LINK END TO UPR LINK
ID=8.2 		9-09150-808-0 08 1 0009-
45 BUSHING; UPR LINK,FRT 8-94408-840-3 04 1 0009-
48 JOINT ASM; BALL,LWR CONT ARM
THA 		8-94459-465-2 02 1 0009-
53 NUT; LWR LINK
M12 FLANGE 		0-91150-212-0 08 1 0009-
54 PIN; FULCRUM,LWR LINK
M18X127 		8-97032-986-0 02 1 0009-
58 BUSHING; LWR LINK
(A) ID=16 L=55.6 		8-94408-841-1 02 1 0009-
58 BUSHING; LWR LINK
(B) ID=18.2 OD=44.1 L=85.2 THA 		8-97018-166-1 02 1 0009-
77 PIN; SPLIT,LINK END TO KNUCKLE
OD=2.8 L=28 		9-08113-028-0 02 1 0009-0204
77 PIN; SPLIT,LINK END TO KNUCKLE
OD=2.8 L=25 		9-08113-025-0 02 1 0205-
79 NUT; UPR LINK END TO KNUCKLE
(A) M8 FLANGE THA 		5-09440-010-0 08 1 0009-
79 NUT; UPR LINK END TO KNUCKLE
(B) M14 SLOTTED THA 		8-94124-556-0 02 1 0009-
80 NUT; LWR LINK END TO KNUCKLE
M18 SLOTTED 		9-99116-418-0 02 1 0009-
81 PIN; SPLIT,LWR LINK TO KNUCKLE
OD=3.7 L=30 		9-08114-030-0 02 1 0009-
84 ARM; LWR CONT
M/T MUA 5 SPEED<RMN> FRT&RR 265/70R15 7JJX15 ALUMI WHEEL<BVH> THA 		8-94367-913-0 01 1 0009-
84 ARM; LWR CONT
FRT&RR P225/75R15 6JJX15 AL<9LH> THA 		8-94367-913-0 01 1 0009-
84 ARM; LWR CONT
M/T MUA 5 SPEED<RMN> FRT&RR 265/70R15 7JJX15 ALUMI WHEEL<BVH> THA 		8-94367-912-0 01 1 0009-
84 ARM; LWR CONT
FRT&RR P225/75R15 6JJX15 AL<9LH> THA 		8-94367-912-0 01 1 0009-
88 NUT; LWR LINK
M12 FLANGE 		0-91150-212-0 04 1 0009-
96 BOLT; LWR LINK
M12X35 		9-92061-235-0 08 1 0009-
100 SHIM; UPR LINK TO FRAME
(A) T=0.40 		8-94227-053-1 AR 1 0009-
100 SHIM; UPR LINK TO FRAME
(A) T=1.60 		8-94227-054-2 AR 1 0009-
100 SHIM; UPR LINK TO FRAME
(A) T=3.20 		8-94241-885-3 AR 1 0009-
100 SHIM; UPR LINK TO FRAME
(B) T=1.60 		8-94408-859-2 AR 1 0009-
100 SHIM; UPR LINK TO FRAME
(B) T=3.20 		8-94408-860-2 AR 1 0009-
104 RUBBER; BUMPER,STRUT
THA 		8-97911-084-0 01 1 0009-
104 RUBBER; BUMPER,STRUT
THA 		8-97911-083-0 01 1 0009-
105 BOLT; STRUT BAR TO LWR LINK
M10X25 W/LK WASHER 		0-50041-025-0 04 1 0009-
106 RUBBER; REBOUND,STRUT
THA 		8-97911-086-0 02 1 0009-
136 BRACKET; FLEX HOSE,FRT BRAKE 8-94455-514-1 01 1 0009-
136 BRACKET; FLEX HOSE,FRT BRAKE 8-94455-513-1 01 1 0009-
143 BOLT; BRKT,FLEX HOSE,FRT BRAKE
M8X18 W/LK WASHER 		0-50040-818-0 02 1 0009-
148 ARM; LWR LINK 8-97018-220-0 02 1 0009-
149 BOLT; ARM TO LWR CONT ARM
M12X37 FLANGE 		8-94382-104-2 04 1 0009-
151 WASHER; LK,LWR LINK TO FRT C/MBR
ID=16.2 		9-09150-616-0 02 1 0009-
152 NUT; LWR LINK TO FRT C/MBR
(A) M16 		8-94478-728-0 02 1 0009-
152 NUT; LWR LINK TO FRT C/MBR
(B) M18 		8-94478-729-0 02 1 0009-
156 PIN; FULCRUM,FRT SUSPENSION
M16X91 		8-94173-359-1 02 1 0009-
157 PLATE; UPR LINK TO FRAME 8-94407-719-1 02 1 0009-
158 BOLT; UPR LINK TO FRAME
M14X65 THA 		8-97916-678-0 04 1 0009-
161 NUT ASM; UPR LINK TO FRAME
(A) M14 FLANGE 		8-94137-483-0 04 1 0009-
161 NUT ASM; UPR LINK TO FRAME
(B) M14 		8-94478-731-0 02 1 0009-0208
161 NUT ASM; UPR LINK TO FRAME
(B) 		8-97327-724-0 02 1 0209-
163 PLATE; FULCRUM PIN,UPR LINK 8-94407-707-0 04 1 0009-
393 WASHER; PL
ID=19 OD=36 		9-09164-618-0 02 1 0009-
çizim 51519
62 14 65 17 18 17 65 60 76 103
BalonParca AdiParca NoAdetTipApplied Date
14 NUT; S/ABS,UPR
M10 THA 		8-97913-685-0 02 1 0009-
17 BUSHING; RUBBER,S/ABS
THA 		8-97913-678-0 04 1 0009-
18 WASHER; CENTERING,S/ABS
THA 		8-97913-681-0 02 1 0009-
60 BOLT; S/ABS TO LWR LINK
M12X50 		9-91061-250-0 02 1 0009-
62 ABSORBER ASM; SHOCK,FRT
THA 		8-97913-675-0 02 1 0009-
65 WASHER; S/ABS
(A) THA 		8-97913-312-0 02 1 0009-
65 WASHER; S/ABS
(B) THA 		8-97914-146-0 02 1 0009-
76 WASHER; LK,S/ABS TO LWR LINK
ID=12.2 		9-09150-512-0 02 1 0009-
103 NUT; S/ABS TO LWR LINK
M12 		9-99111-512-0 02 1 0009-
