◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ FVR ▶ 11167 - FVR(SOUTH AFRICA) ▶ 7 - Interior Trim, Emblems / Labels, Seats, Mirrors ▶ 7-10 - CAUTION PLATE AND LABEL ▶
7-10 — CAUTION PLATE AND LABEL (#17683) — 11 parça

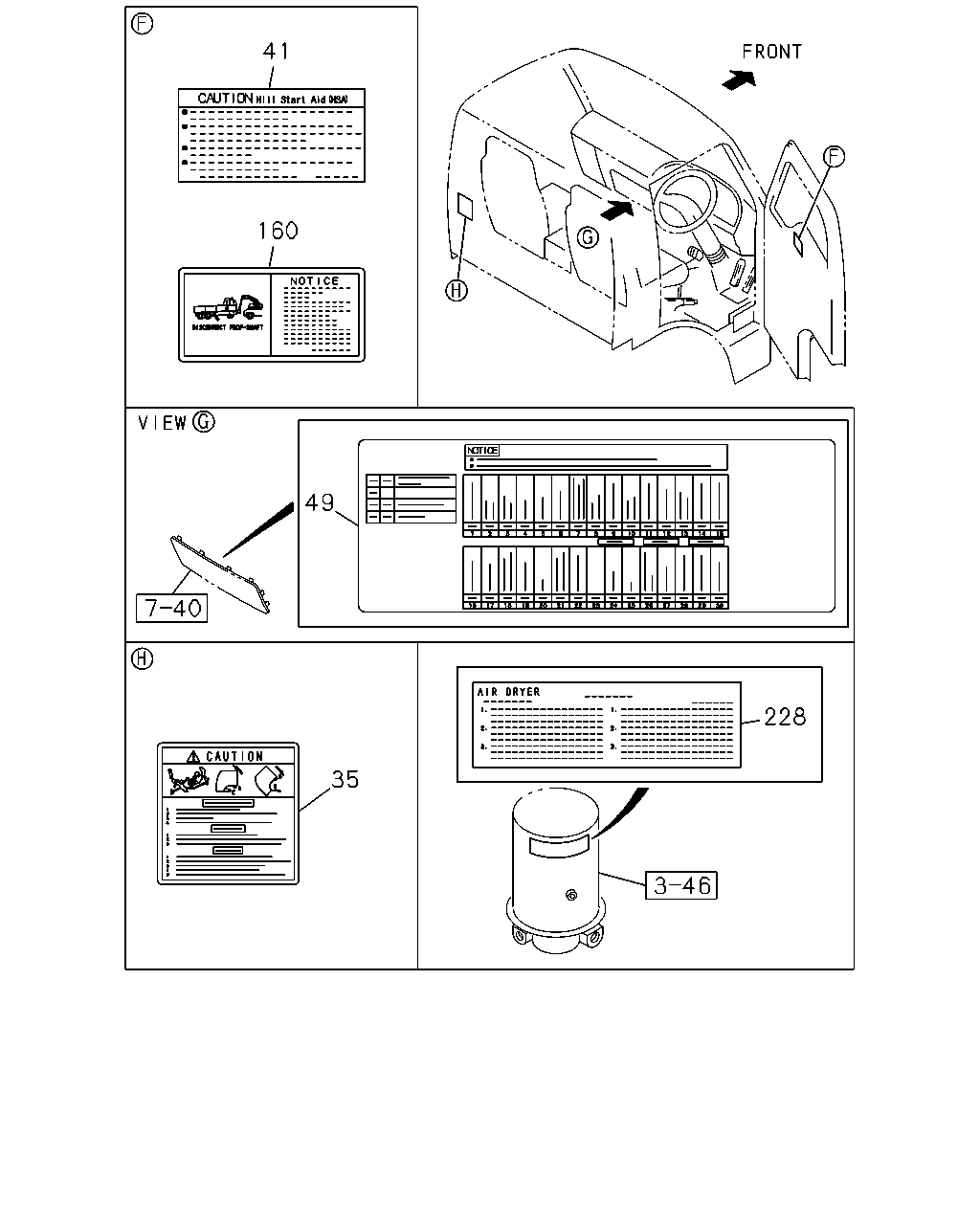

çizim 127797
41 160 49 228 35
BalonParca AdiParca NoAdetTipApplied Date
35 PLATE; CAUTION,CAB 8-98065-363-0 01 1 1001-
41 PLATE; CAUTION,HSA
H.S.A SYSTEM<6EP> 		8-98141-836-0 01 1 1001-
49 PLATE; CAUTION,FUSE BOX 8-98122-353-0 01 1 1001-
160 PLATE; CAUTION,TOWING
SOU 		1-85888-737-1 01 1 1001-
228 PLATE; CAUTION,AIR DRYER
AIR DRYER<PS7> 		1-85887-935-0 01 1 1001-1001

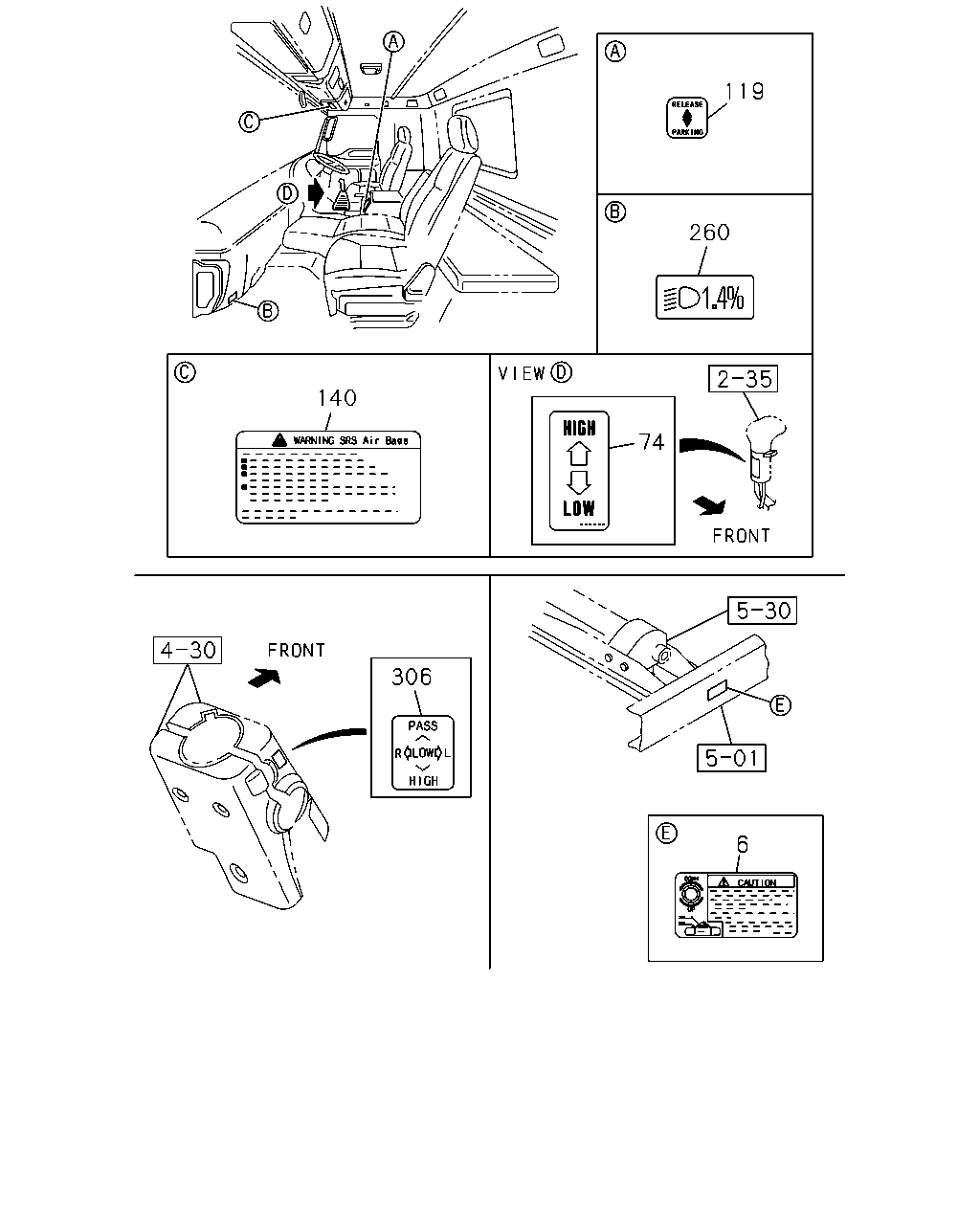

çizim 127808
119 260 140 74 306 6
BalonParca AdiParca NoAdetTipApplied Date
6 PLATE; CAUTION,SPARE TIRE
SPARE WHEEL CARRIER FRAME REAR<P10>,SPARE TIRE CARRIER LIFTING TYPE VAR1<SY8> 		8-98082-437-0 01 1 1001-
74 PLATE; CAUTION,CHANGE LEV
ASSISTOR SHIFT CONTROL<WX8> 		8-98118-493-0 01 1 1001-
119 PLATE; CAUTION,HAND BRK LEVER
SOU 		1-85881-759-0 01 1 1001-
140 PLATE; CAUTION,SRS
AIR BAG DRIVER(AJ3) 		8-98139-964-0 01 1 1001-
260 PLATE; CAUTION,HEAD LAMP LEVELING 8-98008-779-0 01 1 1001-
306 LABEL; BEAM & PASS 8-98070-239-0 01 1 1001-
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
