◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ EXZ ▶ 10653 - EXZ ▶ 4 - Propeller Shaft, Axles, Steering, Suspension ▶ 4-50 - FRONT SUSPENSION ▶
4-50 — FRONT SUSPENSION (#1768) — 63 parça

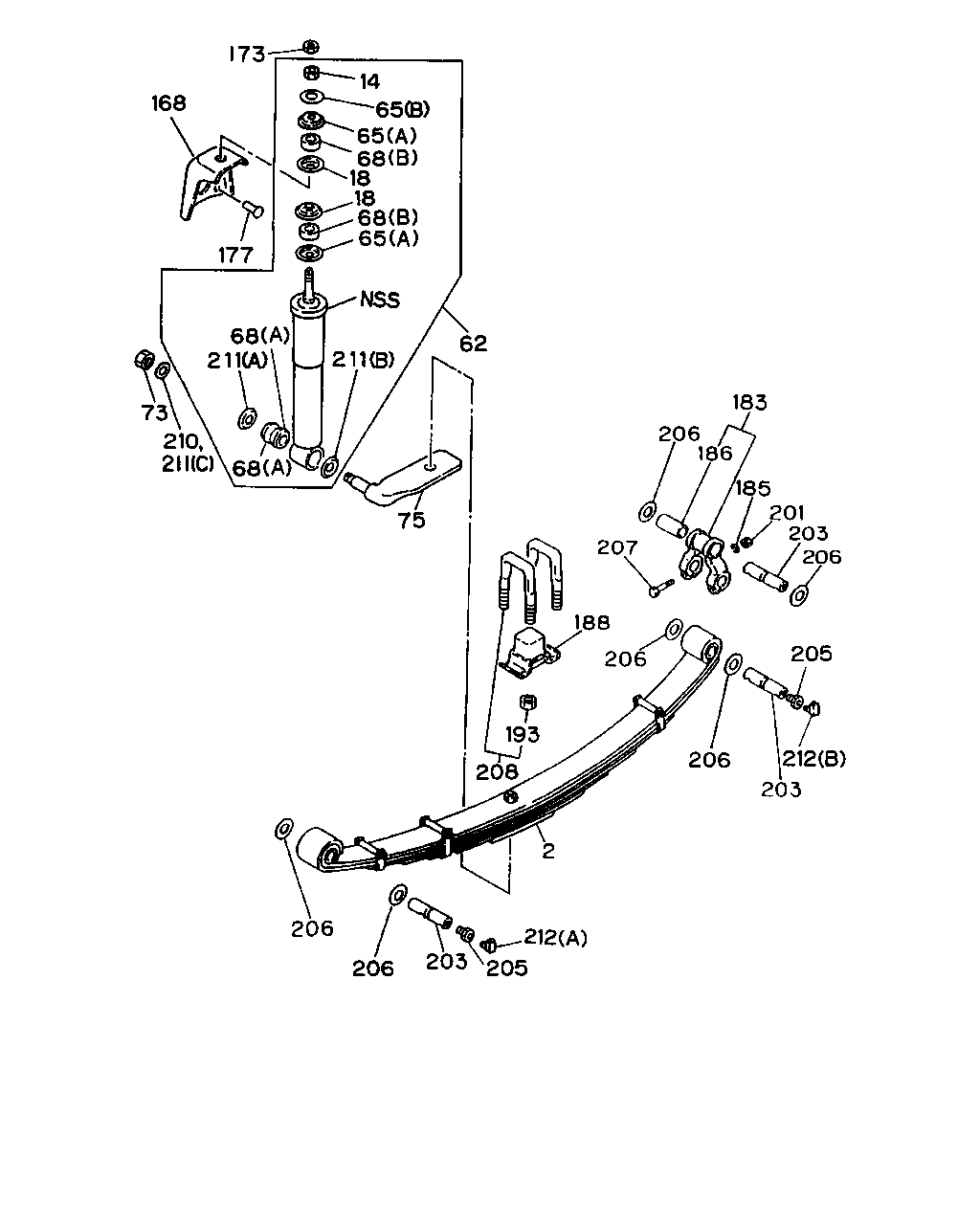

çizim 28846
62 75 211 65 68 18 18 68 65 65 14 173 168 177 211 68 73 211 210 207 206 186 183 185 201 203 206 205 212 203 206 206 188 193 208 2 212 205 203 206 206 68
BalonParca AdiParca NoAdetTipApplied Date A B
2 SPRING ASM; LEAF,FRT
SEE FIG-NO 4-55 FOR COMPONENT. FRAME EQUIPMENT HEAVY DUTY<F03> FRT & RR SUSPENSION HEAVY DUTY VAR1(F40) 		1-51130-245-0 02 1 9307- ●
2 SPRING ASM; LEAF,FRT
SEE FIG-NO 4-55 FOR COMPONENT. FRAME EQUIPMENT HEAVY DUTY<F03> FRONT SPRING HEAVY DUTY VAR1(F60) 		1-51130-245-0 02 1 9307- ●
2 SPRING ASM; LEAF,FRT
SEE FIG-NO 4-55 FOR COMPONENT. EXC. FRAME EQUIPMENT HEAVY DUTY<F03>,FRT & RR SUSPENSION HEAVY DUTY VAR1(F40),FRONT SPRING HEAVY DUTY VAR1(F60) 		1-51130-246-0 02 1 9307- ● ●
2 SPRING ASM; LEAF,FRT
SEE FIG-NO 4-55 FOR COMPONENT. FRT & RR SUSPENSION HEAVY DUTY VAR1(F40) EXC. FRAME EQUIPMENT HEAVY DUTY<F03> 		1-51130-207-0 02 1 9307- ● ●
2 SPRING ASM; LEAF,FRT
SEE FIG-NO 4-55 FOR COMPONENT. FRONT SPRING HEAVY DUTY VAR1(F60) EXC. FRAME EQUIPMENT HEAVY DUTY<F03> 		1-51130-207-0 02 1 9307- ● ●
2 SPRING ASM; LEAF,FRT
SEE FIG-NO 4-55 FOR COMPONENT. FRT & RR SUSPENSION HEAVY DUTY VAR1(F40) L TYPE ENG<90L> 		1-51110-551-0 02 1 9002-9306 ● ●
2 SPRING ASM; LEAF,FRT
SEE FIG-NO 4-55 FOR COMPONENT. FRONT SPRING HEAVY DUTY VAR1(F60) L TYPE ENG<90L> 		1-51110-551-0 02 1 9002-9306 ● ●
2 SPRING ASM; LEAF,FRT
SEE FIG-NO 4-55 FOR COMPONENT. FRT & RR SUSPENSION HEAVY DUTY VAR1(F40) V TYPE ENG<91L> 		1-51110-513-1 02 1 9002-9306 ● ●
2 SPRING ASM; LEAF,FRT
SEE FIG-NO 4-55 FOR COMPONENT. FRONT SPRING HEAVY DUTY VAR1(F60) V TYPE ENG<91L> 		1-51110-513-1 02 1 9002-9306 ● ●
2 SPRING ASM; LEAF,FRT
SEE FIG-NO 4-55 FOR COMPONENT. EXC. FRT & RR SUSPENSION HEAVY DUTY VAR1(F40), FRONT SPRING HEAVY DUTY VAR1(F60) 		1-51110-539-0 02 1 9002-9306 ● ●
14 NUT; S/ABS,UPR
M14 		9-99111-414-0 02 1 9012- ● ●
18 WASHER; CENTERING,S/ABS
ID=20.8 		9-51631-041-0 04 1 9012- ● ●
62 ABSORBER ASM; SHOCK,FRT 1-51630-053-3 02 1 9012-9306 ● ●
62 ABSORBER ASM; SHOCK,FRT 1-51630-378-0 02 1 9307- ● ●
65 WASHER; S/ABS
(A) 		9-51631-040-0 04 1 9012- ● ●
65 WASHER; S/ABS
(B) ID=16.5 		1-09503-228-0 02 1 9307- ● ●
68 BUSHING; S/ABS
(A) 		9-51631-026-0 04 1 9012- ● ●
68 BUSHING; S/ABS
(B) 		9-51631-039-0 04 1 9012- ● ●
73 NUT; BRKT,SHOCK
M20 		9-99110-420-0 02 1 9012- ● ●
75 BRACKET; FRT S/ABS 1-51681-551-0 01 1 9012-9306 ● ●
75 BRACKET; FRT S/ABS 1-51681-550-0 01 1 9012-9306 ● ●
75 BRACKET; FRT S/ABS 1-51681-598-1 01 1 9307- ● ●
75 BRACKET; FRT S/ABS 1-51681-597-1 01 1 9307- ● ●
168 BRACKET; S/ABS,FRT SUSP 1-51681-130-1 02 1 9002-9306 ● ●
168 BRACKET; S/ABS,FRT SUSP 1-51681-616-0 02 1 9307- ● ●
173 NUT; S/ABS
M14 		9-99111-414-0 02 1 9002- ● ●
177 RIVET; BRKT,S/ABS
FRAME EQUIPMENT HEAVY DUTY<F03> L=45 		1-09730-091-0 04 1 9307- ●
177 RIVET; BRKT,S/ABS
D13X36 		1-09730-107-0 08 1 9002-9212 ● ●
177 RIVET; BRKT,S/ABS
FRAME EQUIPMENT HEAVY DUTY<F03> D13X36 PLATED TAPER END 		1-09730-087-0 04 1 9307- ●
177 RIVET; BRKT,S/ABS
EXC. FRAME EQUIPMENT HEAVY DUTY<F03> D13X36 PLATED TAPER END 		1-09730-087-0 08 1 9301- ● ●
183 SHACKLE; FRT SUSP 1-51162-029-4 02 1 9002- ● ●
185 WASHER; LK,PIN
ID=12.2 		9-09150-512-0 12 1 9002-9209 ● ●
185 WASHER; LK,PIN
ID=12.2 		9-09150-612-0 12 1 9210-9306 ● ●
185 WASHER; LK,PIN
ID=12.2 		9-09150-512-0 12 1 9307-9512 ● ●
185 WASHER; LK,PIN
ID=12.2 		9-09150-612-0 12 1 9601- ● ●
186 BUSHING; SHACKLE
OD=38 		1-51351-009-0 02 1 9002- ● ●
188 RUBBER; CLAMP,U-BOLT,FRT SPR
FRAME EQUIPMENT HEAVY DUTY<F03> FRT & RR SUSPENSION HEAVY DUTY VAR1(F40) 		1-51172-086-0 02 1 9307- ●
188 RUBBER; CLAMP,U-BOLT,FRT SPR
FRAME EQUIPMENT HEAVY DUTY<F03> FRONT SPRING HEAVY DUTY VAR1(F60) 		1-51172-086-0 02 1 9307- ●
188 RUBBER; CLAMP,U-BOLT,FRT SPR
EXC. FRAME EQUIPMENT HEAVY DUTY<F03> 		1-51172-081-0 02 1 9307- ●
188 RUBBER; CLAMP,U-BOLT,FRT SPR 1-51172-081-0 02 1 9307- ●
188 RUBBER; CLAMP,U-BOLT,FRT SPR
FRT & RR SUSPENSION HEAVY DUTY VAR1(F40) L TYPE ENG<90L> 		1-51172-023-1 02 1 9002-9306 ● ●
188 RUBBER; CLAMP,U-BOLT,FRT SPR
FRONT SPRING HEAVY DUTY VAR1(F60) L TYPE ENG<90L> 		1-51172-023-1 02 1 9002-9306 ● ●
188 RUBBER; CLAMP,U-BOLT,FRT SPR
EXC. FRT & RR SUSPENSION HEAVY DUTY VAR1(F40), FRONT SPRING HEAVY DUTY VAR1(F60) 		1-51172-028-1 02 1 9002-9306 ● ●
188 RUBBER; CLAMP,U-BOLT,FRT SPR
V TYPE ENG<91L> FRT & RR SUSPENSION HEAVY DUTY VAR1(F40),FRONT SPRING HEAVY DUTY VAR1(F60) 		1-51172-033-1 02 1 9002-9306 ● ●
193 NUT; U BOLT
M22 		9-09112-822-0 08 1 9002- ● ●
201 NUT; PIN LK
M12 		9-99110-412-0 12 1 9002-9304 ● ●
201 NUT; PIN LK
M12 		9-99110-512-0 12 1 9305- ● ●
203 PIN; SPR TO SHACKLE 1-51161-031-0 06 1 9002- ● ●
205 ATTACHMENT; GREASE NIPPLE 9-43165-001-0 06 1 9002- ● ●
206 WASHER; LK,SPRING PIN
ID=32.4 		1-51169-018-0 12 1 9002- ● ●
207 BOLT; SPR TO SHACKLE 9-91056-280-0 12 1 9002-9005 ● ●
207 BOLT; SPR TO SHACKLE
M12X80 		0-10806-280-0 12 1 9006- ● ●
208 U-BOLT SET; FRT SPRING
L=190 		1-87870-163-2 04 1 9002-9306 ● ●
208 U-BOLT SET; FRT SPRING
EXC. FRAME EQUIPMENT HEAVY DUTY<F03>,FRT & RR SUSPENSION HEAVY DUTY VAR1(F40),FRONT SPRING HEAVY DUTY VAR1(F60) L=210 		1-87870-118-3 04 1 9307-9307 ● ●
208 U-BOLT SET; FRT SPRING
EXC. FRAME EQUIPMENT HEAVY DUTY<F03>,FRT & RR SUSPENSION HEAVY DUTY VAR1(F40),FRONT SPRING HEAVY DUTY VAR1(F60) L=210 		1-87870-380-0 04 1 9308- ● ●
208 U-BOLT SET; FRT SPRING
FRT & RR SUSPENSION HEAVY DUTY VAR1(F40) L=230 		1-87870-269-1 04 1 9307- ● ●
208 U-BOLT SET; FRT SPRING
FRONT SPRING HEAVY DUTY VAR1(F60) L=230 		1-87870-269-1 04 1 9307- ● ●
210 WASHER; S/ABS,OUTER
ID=21 		9-09160-520-0 02 1 9307- ● ●
211 WASHER; BRKT,SHOCK
(C) ID=21 		9-09160-520-0 02 1 9012-9306 ● ●
211 WASHER; BRKT,SHOCK
(A) ID=27 		9-51631-027-0 02 1 9012- ● ●
211 WASHER; BRKT,SHOCK
(B) ID=21 		9-51631-028-0 02 1 9012- ● ●
212 NIPPLE; GREASE,ELBOW
(A) PT1/8 STRAIGHT 		9-09031-010-0 01 1 9002- ● ●
212 NIPPLE; GREASE,ELBOW
(B) PT1/8 ELBOW 		9-09031-210-0 05 1 9002- ● ●
