Isuzu WW
▶
TRUCKS
▶
FVR
▶
11167 - FVR(SOUTH AFRICA)
▶
6 - Exterior Body, Glass Mounting, Door Trim, Molding
▶
6-66 - HEAD LINING AND TRIM
▶

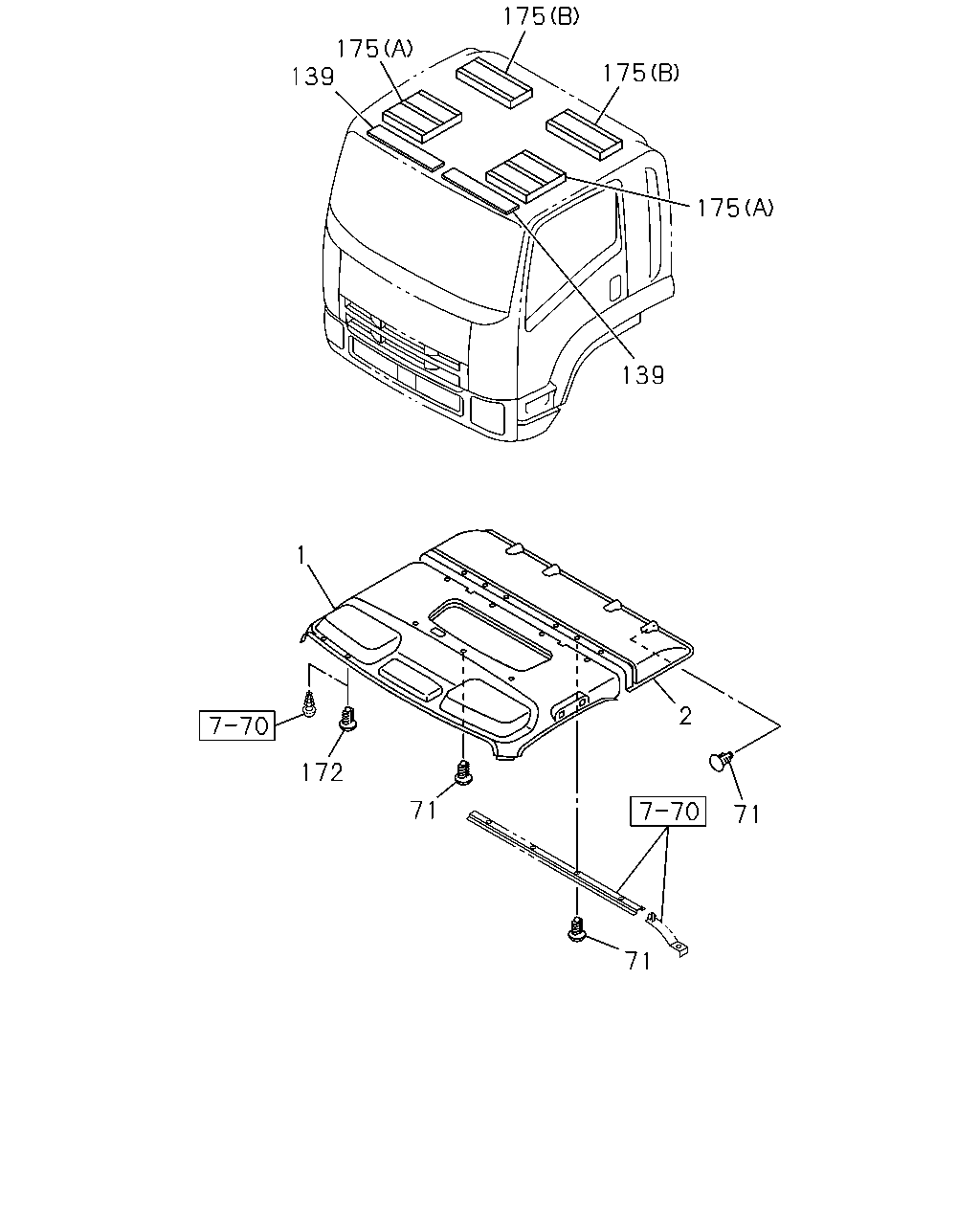

6-66 — HEAD LINING AND TRIM
(#17673) — 14 parça
175
175
139
175
175
139
1
2
172
71
71
71
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
1
LINING; HD
HEADER CONSOLE DRIVER & PASSENGER<EDG> 3-SPEAKER SYSTEM FRT<NNR> DARK GRAY
8-97411-663-2
01
1
1001-1306
1
LINING; HD
HEADER CONSOLE DRIVER & PASSENGER<EDG> 3-SPEAKER SYSTEM FRT<NNR> DARK GRAY
8-97426-736-0
01
1
1307-
1
LINING; HD
HEADER CONSOLE DRIVER & PASSENGER<EDG> EXC. 3-SPEAKER SYSTEM FRT<NNR> DARK GRAY
8-97409-899-3
01
1
1001-1306
1
LINING; HD
HEADER CONSOLE DRIVER & PASSENGER<EDG> EXC. 3-SPEAKER SYSTEM FRT<NNR> DARK GRAY
8-97426-728-0
01
1
1307-
1
LINING; HD
EXC. HEADER CONSOLE DRIVER & PASSENGER<EDG>, 3-SPEAKER SYSTEM FRT<NNR> DARK GRAY
8-97409-898-3
01
1
1001-1306
1
LINING; HD
EXC. HEADER CONSOLE DRIVER & PASSENGER<EDG>, 3-SPEAKER SYSTEM FRT<NNR> DARK GRAY
8-97426-727-0
01
1
1307-
2
LINING; HD,ROOF RR
DARK GRAY
8-97415-674-0
01
1
1001-1306
2
LINING; HD,ROOF RR
DARK GRAY
8-97427-627-0
01
1
1307-
71
FASTENER; HD LINING
DARK GRAY
8-97405-282-0
07
1
1001-
139
SEAL; ROOF
8-98076-274-0
02
1
1001-1009
139
SEAL; ROOF
8-98169-116-0
02
1
1010-
172
RETAINER; HEAD LINING
EXC. ROUND CURTAIN RAIL<EDH> DARK GRAY
8-97411-875-0
14
1
1001-
175
CUSHION; HEAD LINING
(A)
8-98030-965-2
02
1
1001-
175
CUSHION; HEAD LINING
(B)
8-98082-685-1
02
1
1001-
