4-40 — STEERING UNIT (#1766) — 71 parça

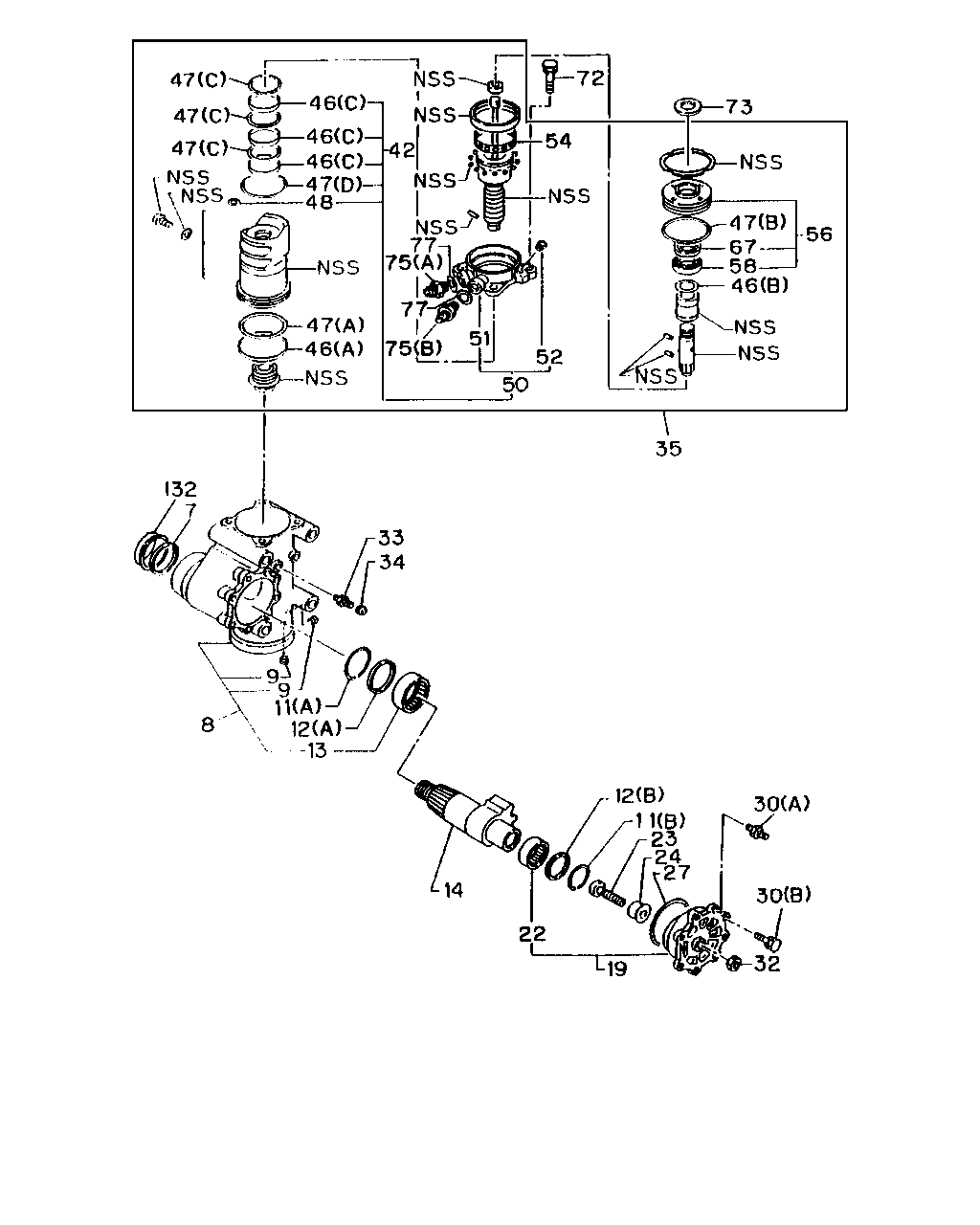

çizim 28569
73 56 47 67 46 58 35 50 52 51 75 77 75 77 42 54 72 46 46 46 47 47 47 47 48 47 46 132 33 34 7 9 9 8 12 13 11 14 22 19 32 30 30 24 27 12 11 23
BalonParca AdiParca NoAdetTipApplied Date
7 SEAL; SECTOR SHAFT,STRG UNIT
ASM PART: A = 1-44000-761-3, B = 1-44000-765-3, C = 1-44000-805-2, D = 1-44000-826-0 		1-44249-041-0 01 1 -
8 BOX ASM; STRG UNIT
ASM PART: A = 1-44000-761-3 		1-44240-040-0 01 1 -
8 BOX ASM; STRG UNIT
ASM PART: B = 1-44000-765-3, D = 1-44000-826-0 		1-44240-041-0 01 1 -
8 BOX ASM; STRG UNIT
ASM PART: C = 1-44000-805-2 		1-44240-089-0 01 1 -
9 PLUG; FILLER,STRG UNIT
ASM PART: A = 1-44000-761-3, B = 1-44000-765-3, C = 1-44000-805-2, D = 1-44000-826-0 		1-44519-071-0 02 1 -
11 RING; BACKUP,STRG UNIT
(A) ASM PART: A = 1-44000-761-3, B = 1-44000-765-3, C = 1-44000-805-2, D = 1-44000-826-0 		1-44249-040-0 01 1 -
11 RING; BACKUP,STRG UNIT
(B) ASM PART: A = 1-44000-761-3, B = 1-44000-765-3, C = 1-44000-805-2, D = 1-44000-826-0 		1-44519-103-0 01 1 -
12 GASKET; SHAFT,STRG UNIT
(A) ASM PART: A = 1-44000-761-3, B = 1-44000-765-3, C = 1-44000-805-2, D = 1-44000-826-0 		1-44249-071-0 01 1 -
12 GASKET; SHAFT,STRG UNIT
(B) ASM PART: A = 1-44000-761-3, B = 1-44000-765-3, C = 1-44000-805-2, D = 1-44000-826-0 		1-44519-226-0 01 1 -
13 BEARING; SHAFT,BOX SIDE,STRG UNIT
ASM PART: A = 1-44000-761-3, B = 1-44000-765-3, C = 1-44000-805-2, D = 1-44000-826-0 		1-44249-038-0 01 1 -
14 SHAFT; SECTOR,STRG UNIT
ASM PART: A = 1-44000-761-3, B = 1-44000-765-3, C = 1-44000-805-2, D = 1-44000-826-0 		1-44321-022-0 01 1 -
19 COVER; SIDE STRG UNIT
ASM PART: B = 1-44000-765-3, D = 1-44000-826-0 		1-44260-006-0 01 1 -
19 COVER; SIDE STRG UNIT
ASM PART: C = 1-44000-805-2 		1-44260-019-0 01 1 -
19 COVER; SIDE STRG UNIT
ASM PART: A = 1-44000-761-3 		1-44261-031-0 01 1 -
22 BEARING; SHAFT,COVER SIDE,STRG UNIT
ASM PART: A = 1-44000-761-3, B = 1-44000-765-3, C = 1-44000-805-2, D = 1-44000-826-0 		1-44519-105-0 01 1 -
23 SCREW; ADJ,SECTOR SHAFT,STRG UNIT
ASM PART: A = 1-44000-761-3, B = 1-44000-765-3, C = 1-44000-805-2, D = 1-44000-826-0 		1-44277-003-1 01 1 -
24 RETAINER; STRG UNIT
ASM PART: A = 1-44000-761-3, B = 1-44000-765-3, C = 1-44000-805-2, D = 1-44000-826-0 		1-44279-011-0 01 1 -
27 GASKET; SIDE COVER,STRG UNIT
ASM PART: A = 1-44000-761-3, B = 1-44000-765-3, C = 1-44000-805-2, D = 1-44000-826-0 		1-44269-016-0 01 1 -
30 BOLT; COVER STRG UNIT
(A) ASM PART: A = 1-44000-761-3, B = 1-44000-765-3, C = 1-44000-805-2, D = 1-44000-826-0 		1-19519-121-0 03 1 -
30 BOLT; COVER STRG UNIT
(B) ASM PART: A = 1-44000-761-3, B = 1-44000-765-3, C = 1-44000-805-2, D = 1-44000-826-0 		1-44279-012-0 05 1 -
32 NUT; ADJ SCREW,STRG UNIT
ASM PART: A = 1-44000-761-3, B = 1-44000-765-3, C = 1-44000-805-2, D = 1-44000-826-0 		1-44269-007-0 01 1 -
33 PLUG; DRAIN,STRG UNIT
ASM PART: A = 1-44000-761-3, B = 1-44000-765-3, C = 1-44000-805-2, D = 1-44000-826-0 		9-83331-704-0 01 1 -
34 PROTECTOR; STRG UNIT
ASM PART: A = 1-44000-761-3, B = 1-44000-765-3, C = 1-44000-805-2, D = 1-44000-826-0 		9-83335-044-0 01 1 -
35 HOUSING & SCREW ASM; STRG UNIT
ASM PART: A = 1-44000-761-3 		1-44150-026-1 01 1 -
35 HOUSING & SCREW ASM; STRG UNIT
ASM PART: B = 1-44000-765-3 		1-44150-029-1 01 1 -
35 HOUSING & SCREW ASM; STRG UNIT
ASM PART: C = 1-44000-805-2 		1-44150-048-0 01 1 -
35 HOUSING & SCREW ASM; STRG UNIT
ASM PART: D = 1-44000-826-0 		1-44150-051-0 01 1 -
42 HOUSING & SEAL ASM; STRG UNIT
ASM PART: A = 1-44000-761-3, B = 1-44000-765-3 		1-44560-039-0 01 1 -
42 HOUSING & SEAL ASM; STRG UNIT
ASM PART: C = 1-44000-805-2, D = 1-44000-826-0 		1-44560-073-0 01 1 -
46 SEAL; RING,HSG STRG UNIT
(A) ASM PART: A = 1-44000-761-3, B = 1-44000-765-3, C = 1-44000-805-2, D = 1-44000-826-0 		1-44159-037-0 01 1 -
46 SEAL; RING,HSG STRG UNIT
(B) ASM PART: A = 1-44000-761-3, B = 1-44000-765-3, C = 1-44000-805-2, D = 1-44000-826-0 		1-44519-096-0 01 1 -
46 SEAL; RING,HSG STRG UNIT
(C) ASM PART: A = 1-44000-761-3, B = 1-44000-765-3, C = 1-44000-805-2, D = 1-44000-826-0 		1-44519-100-0 03 1 -
47 GASKET; HSG,STRG UNIT
(A) ASM PART: A = 1-44000-761-3, B = 1-44000-765-3, C = 1-44000-805-2, D = 1-44000-826-0 		1-44159-036-0 01 1 -
47 GASKET; HSG,STRG UNIT
(B) ASM PART: A = 1-44000-761-3, B = 1-44000-765-3, C = 1-44000-805-2, D = 1-44000-826-0 		1-44519-099-0 01 1 -
47 GASKET; HSG,STRG UNIT
(C) ASM PART: A = 1-44000-761-3, B = 1-44000-765-3, C = 1-44000-805-2, D = 1-44000-826-0 		1-44519-101-0 03 1 -
47 GASKET; HSG,STRG UNIT
(D) ASM PART: A = 1-44000-761-3, B = 1-44000-765-3, C = 1-44000-805-2, D = 1-44000-826-0 		1-44519-116-0 01 1 -
48 GASKET; HSG,STRG UNIT
ASM PART: A = 1-44000-761-3, B = 1-44000-765-3, C = 1-44000-805-2, D = 1-44000-826-0 		1-44519-097-0 01 1 -
50 HOUSING ASM; VALVE STRG UNIT
ASM PART: A = 1-44000-761-3, B = 1-44000-765-3 		1-44560-040-0 01 1 -
50 HOUSING ASM; VALVE STRG UNIT
ASM PART: C = 1-44000-805-2, D = 1-44000-826-0 		1-44560-072-0 01 1 -
52 PLUG; HSG STRG UNIT
ASM PART: A = 1-44000-761-3, B = 1-44000-765-3, C = 1-44000-805-2, D = 1-44000-826-0 		1-44519-071-0 01 1 -
54 CASE; BEARING STRG UNIT
ASM PART: A = 1-44000-761-3, B = 1-44000-765-3, C = 1-44000-805-2, D = 1-44000-826-0 		1-44241-088-0 01 1 -
56 PLUG & SEAL ASM; STRG UNIT
ASM PART: A = 1-44000-761-3, B = 1-44000-765-3, C = 1-44000-805-2, D = 1-44000-826-0 		1-44250-006-0 01 1 -
58 BEARING; HSG STRG UNIT
ASM PART: A = 1-44000-761-3, B = 1-44000-765-3, C = 1-44000-805-2, D = 1-44000-826-0 		1-44259-029-0 01 1 -
67 SEAL; OIL,PLUG,STRG UNIT
ASM PART: A = 1-44000-761-3, B = 1-44000-765-3, C = 1-44000-805-2, D = 1-44000-826-0 		1-44259-036-0 01 1 -
72 BOLT; HSG FIX STRG UNIT
ASM PART: A = 1-44000-761-3, B = 1-44000-765-3, C = 1-44000-805-2, D = 1-44000-826-0 		1-44259-017-0 04 1 -
73 COVER; DUST,STRG UNIT
ASM PART: A = 1-44000-761-3, B = 1-44000-765-3 		1-44159-039-0 01 1 -
73 COVER; DUST,STRG UNIT
ASM PART: C = 1-44000-805-2, D = 1-44000-826-0 		1-44519-114-0 01 1 -
75 CONNECTOR; HSG STRG UNIT
(A), M20X1.5 ASM PART: A = 1-44000-761-3, B = 1-44000-765-3, C = 1-44000-805-2, D = 1-44000-826-0 		1-44259-034-1 01 1 -
75 CONNECTOR; HSG STRG UNIT
(B), M22X1.5 ASM PART: A = 1-44000-761-3, B = 1-44000-765-3, C = 1-44000-805-2, D = 1-44000-826-0 		1-44259-035-1 01 1 -
77 GASKET; CONNECTOR,STRG UNIT
ASM PART: A = 1-44000-761-3, B = 1-44000-765-3, C = 1-44000-805-2, D = 1-44000-826-0 		9-89970-787-0 02 1 -
132 COVER; DUST,STRG UNIT
ASM PART: C = 1-44000-805-2, D = 1-44000-826-0 		1-44519-227-0 01 1 -

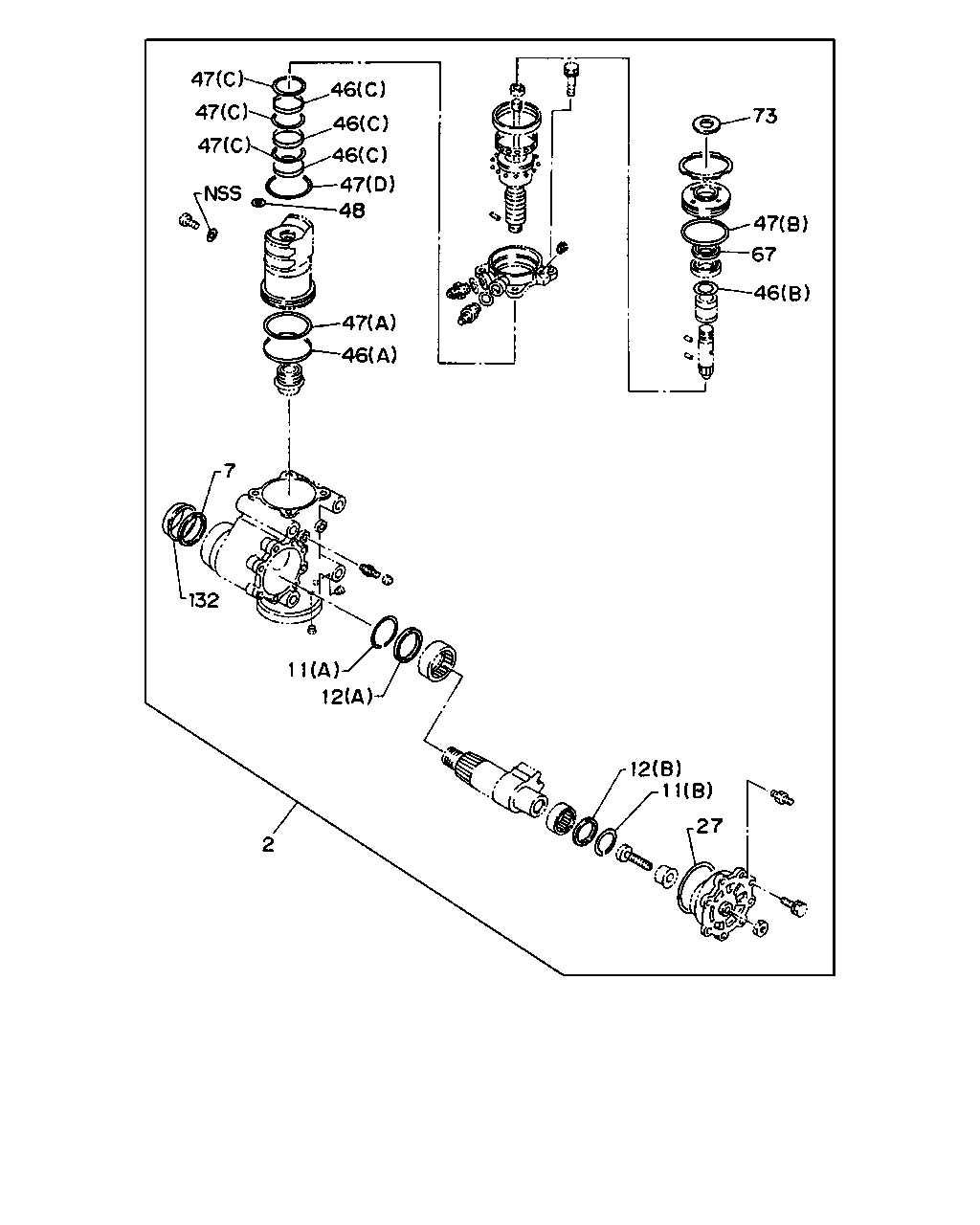

çizim 94404
47 47 47 48 47 46 46 46 47 46 73 47 67 46 7 132 11 12 2 12 11 27
BalonParca AdiParca NoAdetTipApplied Date
2 REPAIR KIT; STRG UNIT,2 YEAR
2 YEAR ASM PART: A = 1-44000-761-3, B = 1-44000-765-3 		1-85574-005-1 01 1 -
2 REPAIR KIT; STRG UNIT,2 YEAR
2 YEAR ASM PART: C = 1-44000-805-2, D = 1-44000-826-0 		1-85574-030-0 01 1 -
7 SEAL; SECTOR SHAFT,STRG UNIT
ASM PART: A = 1-44000-761-3, B = 1-44000-765-3, C = 1-44000-805-2, D = 1-44000-826-0 		1-44249-041-0 01 1 -
11 RING; BACKUP,STRG UNIT
(A) ASM PART: A = 1-44000-761-3, B = 1-44000-765-3, C = 1-44000-805-2, D = 1-44000-826-0 		1-44249-040-0 01 1 -
11 RING; BACKUP,STRG UNIT
(B) ASM PART: A = 1-44000-761-3, B = 1-44000-765-3, C = 1-44000-805-2, D = 1-44000-826-0 		1-44519-103-0 01 1 -
12 GASKET; SHAFT,STRG UNIT
(A) ASM PART: A = 1-44000-761-3, B = 1-44000-765-3, C = 1-44000-805-2, D = 1-44000-826-0 		1-44249-071-0 01 1 -
12 GASKET; SHAFT,STRG UNIT
(B) ASM PART: A = 1-44000-761-3, B = 1-44000-765-3, C = 1-44000-805-2, D = 1-44000-826-0 		1-44519-226-0 01 1 -
27 GASKET; SIDE COVER,STRG UNIT
ASM PART: A = 1-44000-761-3, B = 1-44000-765-3, C = 1-44000-805-2, D = 1-44000-826-0 		1-44269-016-0 01 1 -
46 SEAL; RING,HSG STRG UNIT
(A) ASM PART: A = 1-44000-761-3, B = 1-44000-765-3, C = 1-44000-805-2, D = 1-44000-826-0 		1-44159-037-0 01 1 -
46 SEAL; RING,HSG STRG UNIT
(B) ASM PART: A = 1-44000-761-3, B = 1-44000-765-3, C = 1-44000-805-2, D = 1-44000-826-0 		1-44519-096-0 01 1 -
46 SEAL; RING,HSG STRG UNIT
(C) ASM PART: A = 1-44000-761-3, B = 1-44000-765-3, C = 1-44000-805-2, D = 1-44000-826-0 		1-44519-100-0 03 1 -
47 GASKET; HSG,STRG UNIT
(A) ASM PART: A = 1-44000-761-3, B = 1-44000-765-3, C = 1-44000-805-2, D = 1-44000-826-0 		1-44159-036-0 01 1 -
47 GASKET; HSG,STRG UNIT
(B) ASM PART: A = 1-44000-761-3, B = 1-44000-765-3, C = 1-44000-805-2, D = 1-44000-826-0 		1-44519-099-0 01 1 -
47 GASKET; HSG,STRG UNIT
(C) ASM PART: A = 1-44000-761-3, B = 1-44000-765-3, C = 1-44000-805-2, D = 1-44000-826-0 		1-44519-101-0 03 1 -
47 GASKET; HSG,STRG UNIT
(D) ASM PART: A = 1-44000-761-3, B = 1-44000-765-3, C = 1-44000-805-2, D = 1-44000-826-0 		1-44519-116-0 01 1 -
48 GASKET; HSG,STRG UNIT
ASM PART: A = 1-44000-761-3, B = 1-44000-765-3, C = 1-44000-805-2, D = 1-44000-826-0 		1-44519-097-0 01 1 -
67 SEAL; OIL,PLUG,STRG UNIT
ASM PART: A = 1-44000-761-3, B = 1-44000-765-3, C = 1-44000-805-2, D = 1-44000-826-0 		1-44259-036-0 01 1 -
73 COVER; DUST,STRG UNIT
ASM PART: A = 1-44000-761-3, B = 1-44000-765-3 		1-44159-039-0 01 1 -
73 COVER; DUST,STRG UNIT
ASM PART: C = 1-44000-805-2, D = 1-44000-826-0 		1-44519-114-0 01 1 -
132 COVER; DUST,STRG UNIT
ASM PART: C = 1-44000-805-2, D = 1-44000-826-0 		1-44519-227-0 01 1 -
