5-01 — FRAME AND OTHER PARTS
(#17656) — 58 parça
◀
[501A] CROSS MEMBER (25 parça)
[501A] BRACKET AND OTHER PARTS (33 parça)
▶

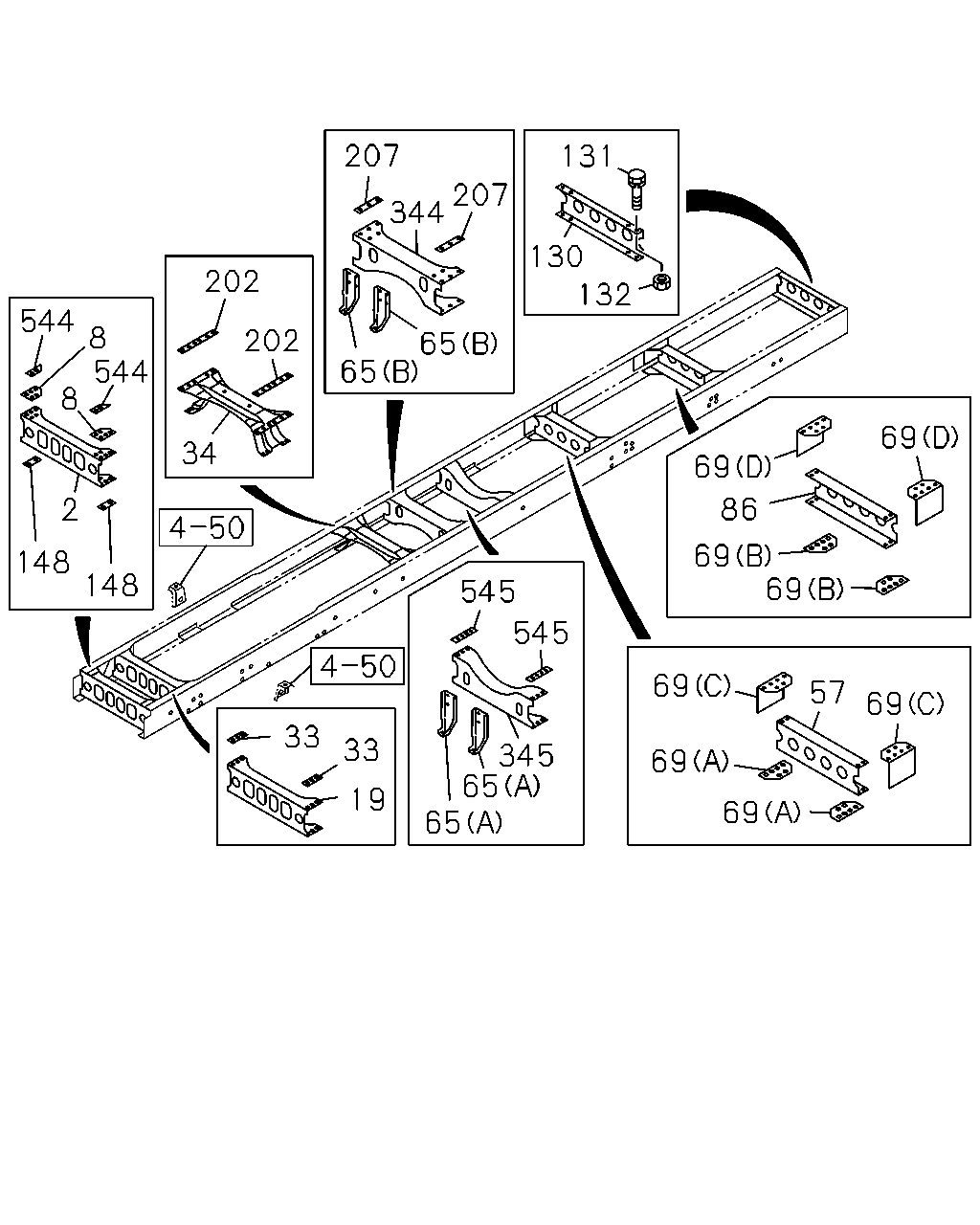

207
131
207
344
130
132
202
544
8
544
202
65
65
8
69
34
69
86
2
69
69
148
148
545
545
69
57
69
33
33
345
65
65
69
19
69
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
2
MEMBER; CROSS,1ST
8-97610-852-7
01
1
1001-
8
GUSSET; 1ST C/MBR
SOU
8-97611-027-0
02
1
1001-
19
MEMBER; CROSS,2ND
8-97610-853-5
01
1
1001-
33
SPACER; 2ND C/MBR,UPR
SOU
8-97611-040-0
02
1
1001-
34
MEMBER; CROSS,3RD
SOU
8-97610-854-2
01
1
1001-
57
MEMBER; CROSS,RR SUSP FRT
SOU
8-97610-858-5
01
1
1001-
65
BRACKET; CENTER BRG
(B)
8-97614-133-0
02
1
1001-
65
BRACKET; CENTER BRG
(A)
8-97614-134-0
02
1
1001-
69
GUSSET; RR SUSP,UPR
(A) SOU
8-97610-865-0
02
1
1001-
69
GUSSET; RR SUSP,UPR
(B) SOU
8-97610-866-0
02
1
1001-
69
GUSSET; RR SUSP,UPR
(C) SOU
8-97611-908-1
01
1
1001-
69
GUSSET; RR SUSP,UPR
(D) SOU
8-97611-911-0
01
1
1001-
69
GUSSET; RR SUSP,UPR
(C) SOU
8-97611-907-1
01
1
1001-
69
GUSSET; RR SUSP,UPR
(D) SOU
8-97611-910-0
01
1
1001-
86
MEMBER; CROSS,RR SUSP RR
SOU
8-97610-858-5
01
1
1001-
130
MEMBER; CROSS,END
8-97610-869-1
01
1
1001-
131
BOLT; END C/MBR
M12X30 W/LK WASHER SOU
0-50541-230-0
04
1
1001-
132
NUT; END C/MBR
M12 SOU
0-91110-512-0
04
1
1001-
148
SPACER; C/MBR
8-97611-039-0
02
1
1001-
202
SPACER; 3RD C/MBR
SOU
8-97610-872-0
02
1
1001-
207
SPACER; 4TH C/MBR
SOU
8-97611-244-0
02
1
1001-
344
MEMBER; CROSS,4TH
8-97611-238-1
01
1
1001-
345
MEMBER; CROSS,5TH
8-97611-238-1
01
1
1001-
544
PLATE; CAB FRT MTG
SOU
8-97615-598-0
02
1
1001-
545
SPACER; 5TH C/MBR
SOU
8-97611-245-0
02
1
1001-

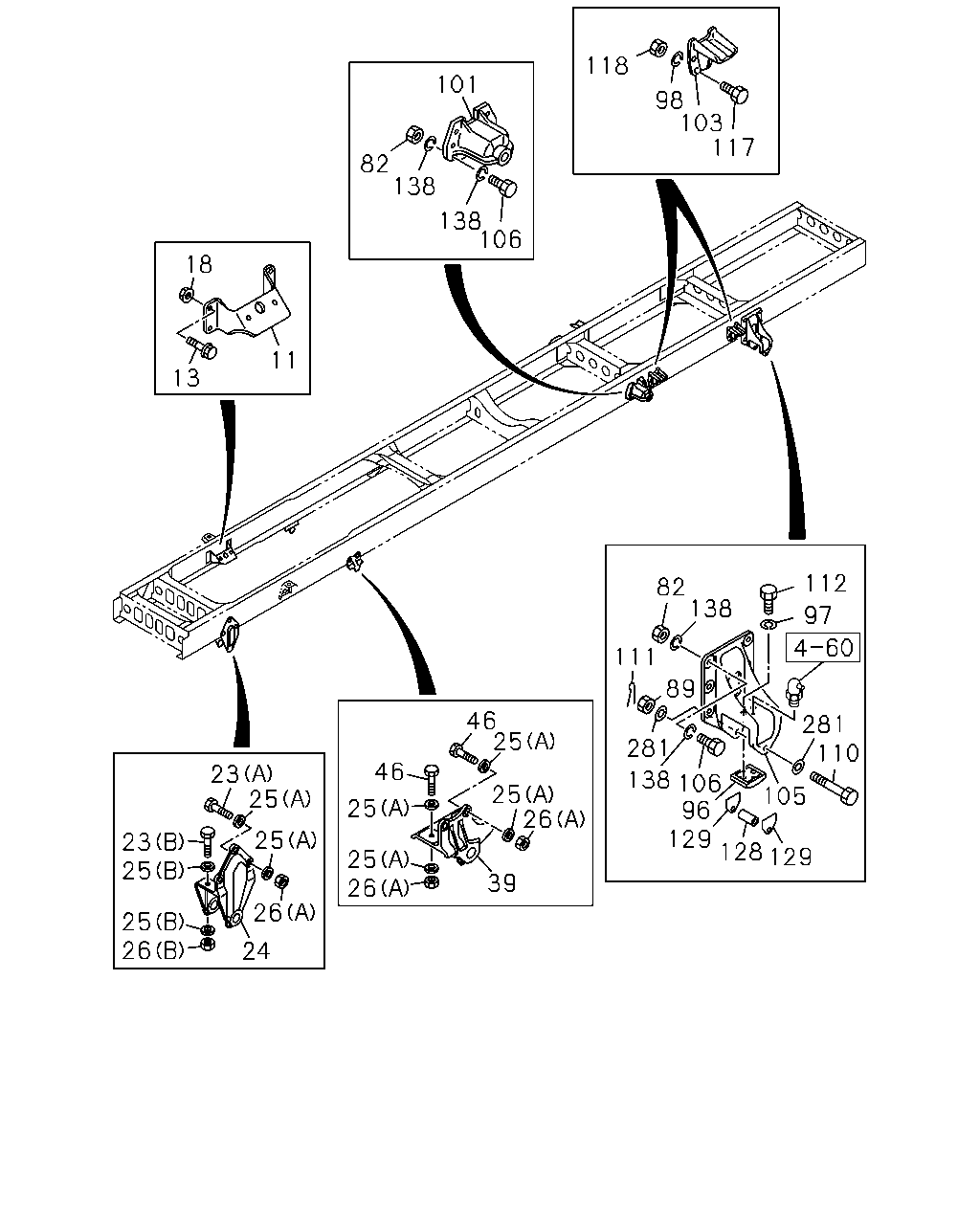

118
101
98
103
117
82
138
138
106
18
11
13
112
82
138
97
111
89
281
46
25
281
110
46
23
25
25
138
106
96
129
25
26
105
25
128
129
23
25
25
26
39
26
25
26
24
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
11
BRACKET; ENG MTG
8-97619-550-0
02
1
1001-
13
BOLT; BRKT,ENG MTG
M12X35 FLANGE SOU
0-28661-235-0
08
1
1001-
18
NUT; BRKT,ENG MTG
M12 FLANGE SOU
0-91180-212-0
08
1
1001-
23
BOLT; BRKT,SPR
(A) M14X50 SOU
0-20951-450-0
06
1
1001-
23
BOLT; BRKT,SPR
(B) M16X60
0-20951-660-0
04
1
1001-
24
BRACKET; FRT SPR,FRT
8-98018-840-0
01
1
1001-
24
BRACKET; FRT SPR,FRT
8-98018-841-0
01
1
1001-
25
WASHER; PL,BRKT
(B) ID=16.2
1-09503-316-0
08
1
1001-
25
WASHER; PL,BRKT
(A) ID=15 SOU
8-98010-627-1
28
1
1001-
26
NUT; BRKT,SPR
(A) M14 SOU
0-91110-514-0
14
1
1001-
26
NUT; BRKT,SPR
(B) M16 SOU
0-91110-516-0
04
1
1001-
39
BRACKET; FRT SPR,RR
8-98043-648-0
01
1
1001-
39
BRACKET; FRT SPR,RR
8-98043-649-0
01
1
1001-
46
BOLT; BRKT FIX
M14X50 SOU
0-20951-450-0
08
1
1001-
82
NUT; BRKT
M14 SOU
0-91110-514-0
24
1
1001-
89
NUT; LEAF SPR STOPPER
M14 SLOTTED
0-91116-514-0
02
1
1001-
96
PAD; RR SPR
SOU
1-53359-047-0
02
1
1001-
97
WASHER; LK,PAD
ID=14.2 SOU
0-91510-514-0
04
1
1001-
98
WASHER; LK,STOPPER
ID=14.2 SOU
0-91510-814-0
16
1
1001-
101
BRACKET; RR SPR,FRT
1-53353-078-1
02
1
1001-
103
STOPPER; SUB SPR
1-53356-057-0
04
1
1001-
105
BRACKET; RR SPR,RR
SOU
1-53354-064-1
02
1
1001-
106
BOLT; BRKT
M14X50 SOU
0-20951-450-0
24
1
1001-
110
BOLT; LEAF SPR STOPPER
SOU
1-09000-007-0
02
1
1001-
111
PIN; SPLIT,LEAF SPR STOPPER
OD=2.8 L=28 SOU
0-81123-028-0
02
1
1001-
112
BOLT; PAD
M14X35
0-20851-435-0
04
1
1001-
117
BOLT; STOPPER
M14X50 SOU
0-20951-450-0
16
1
1001-
118
NUT; STOPPER
M14 SOU
0-91110-514-0
16
1
1001-
128
COLLAR; RUBBER
1-53359-004-0
02
1
1001-
129
SHIM; SIDE
T=4.5 SOU
1-53359-061-1
02
1
1001-
129
SHIM; SIDE
T=3.2 SOU
1-53359-062-1
02
1
1001-
138
WASHER; LK,BRKT
ID=14.2 SOU
0-91510-814-0
24
1
1001-
281
WASHER; LEAF SPR STOPPER
ID=15 OD=30
9-09160-614-0
04
1
1001-
