◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ FVR ▶ 11167 - FVR(SOUTH AFRICA) ▶ 4 - Propeller Shaft, Axles, Steering, Suspension ▶ 4-55 - FRONT LEAF SPRING ▶
4-55 — FRONT LEAF SPRING (#17652) — 50 parça

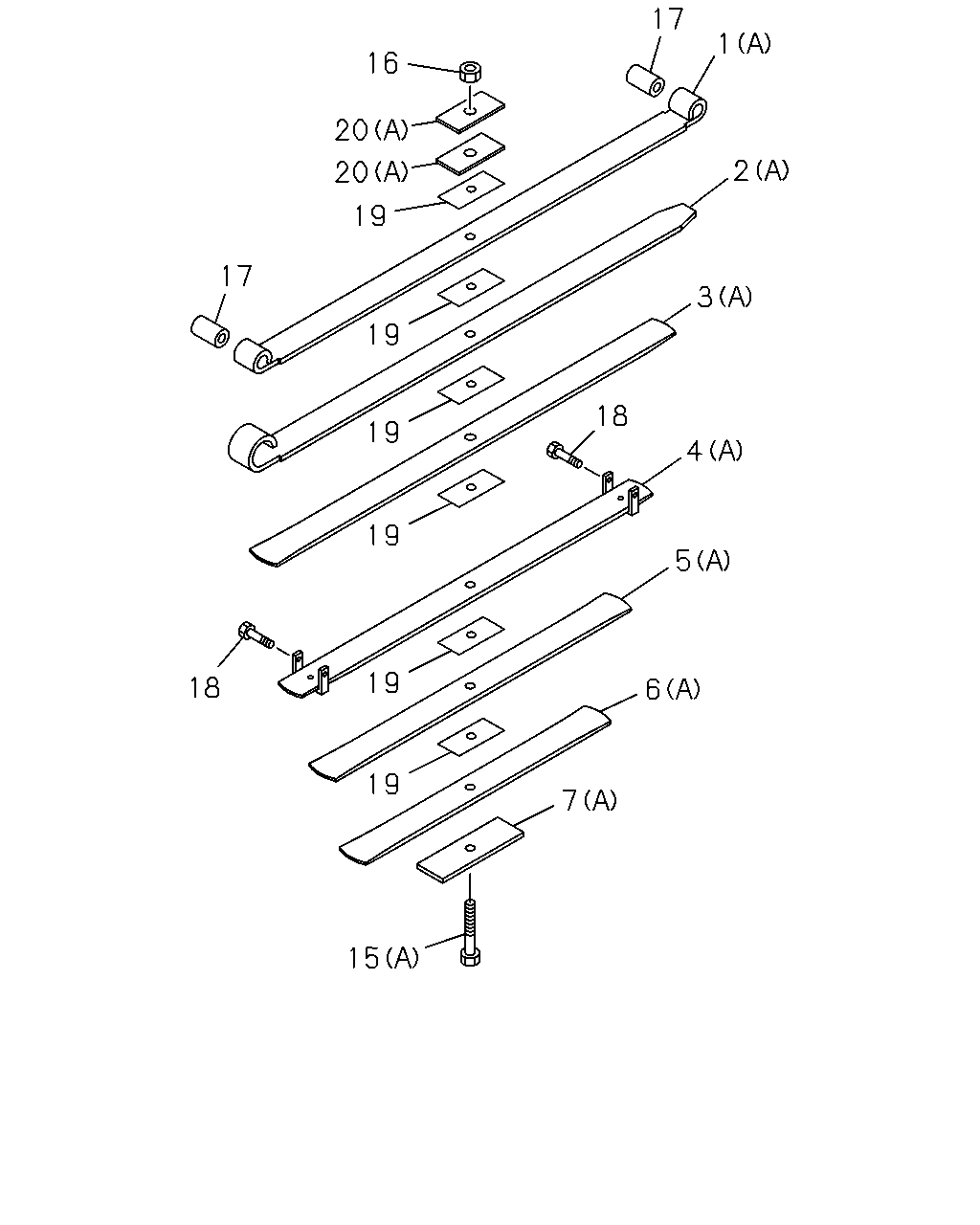

çizim 127748
17 1 16 20 2 20 19 17 3 19 18 19 4 19 5 19 18 6 19 7 15
BalonParca AdiParca NoAdetTipApplied Date
1 SPRING; LEAF,NO 1,FRT
(A) ASM PART: A = 8-98010-512-0, C = 8-98291-197-0 		8-98031-820-0 01 1 -
1 SPRING; LEAF,NO 1,FRT
(B) ASM PART: B = 8-98029-096-0 		8-98031-827-0 01 1 -
2 SPRING; LEAF,NO 2,FRT
(A) ASM PART: A = 8-98010-512-0, C = 8-98291-197-0 		8-98031-821-0 01 1 -
2 SPRING; LEAF,NO 2,FRT
(B) ASM PART: B = 8-98029-096-0 		8-98031-828-0 01 1 -
3 SPRING; LEAF,NO 3,FRT
(A) ASM PART: A = 8-98010-512-0, C = 8-98291-197-0 		8-98031-822-0 01 1 -
3 SPRING; LEAF,NO 3,FRT
(B) ASM PART: B = 8-98029-096-0 		8-98031-829-0 01 1 -
4 SPRING; LEAF,NO 4,FRT
(A) ASM PART: A = 8-98010-512-0, C = 8-98291-197-0 		8-98031-823-0 01 1 -
4 SPRING; LEAF,NO 4,FRT
(B) ASM PART: B = 8-98029-096-0 		8-98031-830-0 01 1 -
5 SPRING; LEAF,NO 5,FRT
(A) ASM PART: A = 8-98010-512-0, C = 8-98291-197-0 		8-98031-824-0 01 1 -
5 SPRING; LEAF,NO 5,FRT
(B) ASM PART: B = 8-98029-096-0 		8-98031-831-0 01 1 -
6 SPRING; LEAF,NO 6,FRT
(A) ASM PART: A = 8-98010-512-0, C = 8-98291-197-0 		8-98031-825-0 01 1 -
6 SPRING; LEAF,NO 6,FRT
(B) ASM PART: B = 8-98029-096-0 		8-98031-832-0 01 1 -
7 SPRING; LEAF,NO 7,FRT
(A) ASM PART: A = 8-98010-512-0, C = 8-98291-197-0 		8-98031-826-0 01 1 -
7 SPRING; LEAF,NO 7,FRT
(B) ASM PART: B = 8-98029-096-0 		8-98031-833-0 01 1 -
15 BOLT; CENTER,LEAF SPR,FRT
L=160 ASM PART: C = 8-98291-197-0 		1-51156-296-0 01 1 -
15 BOLT; CENTER,LEAF SPR,FRT
(B), L=145 ASM PART: B = 8-98029-096-0 		1-51156-298-0 01 1 -
15 BOLT; CENTER,LEAF SPR,FRT
(A), L=155 ASM PART: A = 8-98010-512-0 		1-51156-336-0 01 1 -
16 NUT; CENTER BOLT,LEAF SPR,FRT
M16, SOU ASM PART: A = 8-98010-512-0, B = 8-98029-096-0, C = 8-98291-197-0 		1-09400-054-0 01 1 -
17 BUSHING; LEAF SPR,FRT
OD=38, SOU ASM PART: A = 8-98010-512-0, B = 8-98029-096-0, C = 8-98291-197-0 		1-51351-009-0 02 1 -
18 BOLT; CLIP,LEAF SPR,FRT
M10X99, SOU ASM PART: A = 8-98010-512-0, B = 8-98029-096-0, C = 8-98291-197-0 		1-09000-328-0 02 1 -
19 SPACER; LEAF SPRING,FRT
T=1 ASM PART: A = 8-98010-512-0, B = 8-98029-096-0, C = 8-98291-197-0 		1-51177-071-0 06 1 -
20 SEAT; LEAF SPR,FRT
T=6 ASM PART: C = 8-98291-197-0 		1-51177-115-0 01 1 -
20 SEAT; LEAF SPR,FRT
(B), T=10 ASM PART: B = 8-98029-096-0 		1-51177-161-0 01 1 -
20 SEAT; LEAF SPR,FRT
(C), T=8 ASM PART: B = 8-98029-096-0 		1-51177-178-0 01 1 -
20 SEAT; LEAF SPR,FRT
(A), T=16 ASM PART: A = 8-98010-512-0, C = 8-98291-197-0 		8-98032-510-0 02 1 -

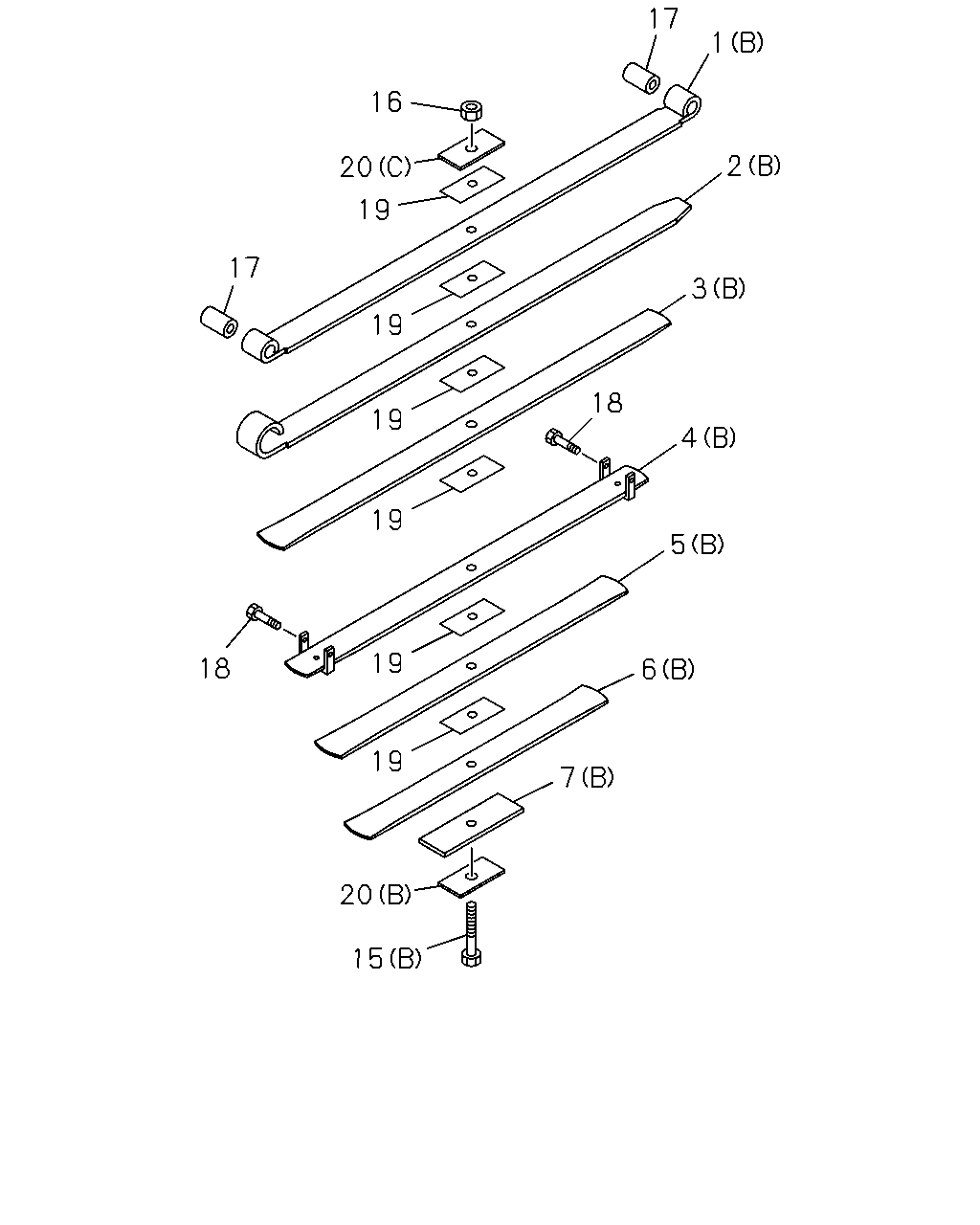

çizim 127761
17 1 16 2 20 19 17 3 19 18 19 4 19 5 19 18 6 19 7 20 15
BalonParca AdiParca NoAdetTipApplied Date
1 SPRING; LEAF,NO 1,FRT
(A) ASM PART: A = 8-98010-512-0, C = 8-98291-197-0 		8-98031-820-0 01 1 -
1 SPRING; LEAF,NO 1,FRT
(B) ASM PART: B = 8-98029-096-0 		8-98031-827-0 01 1 -
2 SPRING; LEAF,NO 2,FRT
(A) ASM PART: A = 8-98010-512-0, C = 8-98291-197-0 		8-98031-821-0 01 1 -
2 SPRING; LEAF,NO 2,FRT
(B) ASM PART: B = 8-98029-096-0 		8-98031-828-0 01 1 -
3 SPRING; LEAF,NO 3,FRT
(A) ASM PART: A = 8-98010-512-0, C = 8-98291-197-0 		8-98031-822-0 01 1 -
3 SPRING; LEAF,NO 3,FRT
(B) ASM PART: B = 8-98029-096-0 		8-98031-829-0 01 1 -
4 SPRING; LEAF,NO 4,FRT
(A) ASM PART: A = 8-98010-512-0, C = 8-98291-197-0 		8-98031-823-0 01 1 -
4 SPRING; LEAF,NO 4,FRT
(B) ASM PART: B = 8-98029-096-0 		8-98031-830-0 01 1 -
5 SPRING; LEAF,NO 5,FRT
(A) ASM PART: A = 8-98010-512-0, C = 8-98291-197-0 		8-98031-824-0 01 1 -
5 SPRING; LEAF,NO 5,FRT
(B) ASM PART: B = 8-98029-096-0 		8-98031-831-0 01 1 -
6 SPRING; LEAF,NO 6,FRT
(A) ASM PART: A = 8-98010-512-0, C = 8-98291-197-0 		8-98031-825-0 01 1 -
6 SPRING; LEAF,NO 6,FRT
(B) ASM PART: B = 8-98029-096-0 		8-98031-832-0 01 1 -
7 SPRING; LEAF,NO 7,FRT
(A) ASM PART: A = 8-98010-512-0, C = 8-98291-197-0 		8-98031-826-0 01 1 -
7 SPRING; LEAF,NO 7,FRT
(B) ASM PART: B = 8-98029-096-0 		8-98031-833-0 01 1 -
15 BOLT; CENTER,LEAF SPR,FRT
L=160 ASM PART: C = 8-98291-197-0 		1-51156-296-0 01 1 -
15 BOLT; CENTER,LEAF SPR,FRT
(B), L=145 ASM PART: B = 8-98029-096-0 		1-51156-298-0 01 1 -
15 BOLT; CENTER,LEAF SPR,FRT
(A), L=155 ASM PART: A = 8-98010-512-0 		1-51156-336-0 01 1 -
16 NUT; CENTER BOLT,LEAF SPR,FRT
M16, SOU ASM PART: A = 8-98010-512-0, B = 8-98029-096-0, C = 8-98291-197-0 		1-09400-054-0 01 1 -
17 BUSHING; LEAF SPR,FRT
OD=38, SOU ASM PART: A = 8-98010-512-0, B = 8-98029-096-0, C = 8-98291-197-0 		1-51351-009-0 02 1 -
18 BOLT; CLIP,LEAF SPR,FRT
M10X99, SOU ASM PART: A = 8-98010-512-0, B = 8-98029-096-0, C = 8-98291-197-0 		1-09000-328-0 02 1 -
19 SPACER; LEAF SPRING,FRT
T=1 ASM PART: A = 8-98010-512-0, B = 8-98029-096-0, C = 8-98291-197-0 		1-51177-071-0 06 1 -
20 SEAT; LEAF SPR,FRT
T=6 ASM PART: C = 8-98291-197-0 		1-51177-115-0 01 1 -
20 SEAT; LEAF SPR,FRT
(B), T=10 ASM PART: B = 8-98029-096-0 		1-51177-161-0 01 1 -
20 SEAT; LEAF SPR,FRT
(C), T=8 ASM PART: B = 8-98029-096-0 		1-51177-178-0 01 1 -
20 SEAT; LEAF SPR,FRT
(A), T=16 ASM PART: A = 8-98010-512-0, C = 8-98291-197-0 		8-98032-510-0 02 1 -
