Isuzu WW
▶
TRUCKS
▶
FXZ
▶
11662 - FXZ/GXZ LHD CHINA
▶
1 - Fuel Tank, Cooling, Air Intake, Exhaust System
▶
1-11 - RADIATOR HOSE AND SUB TANK
▶
1-11 — RADIATOR HOSE AND SUB TANK
(#176445) — 22 parça
◀

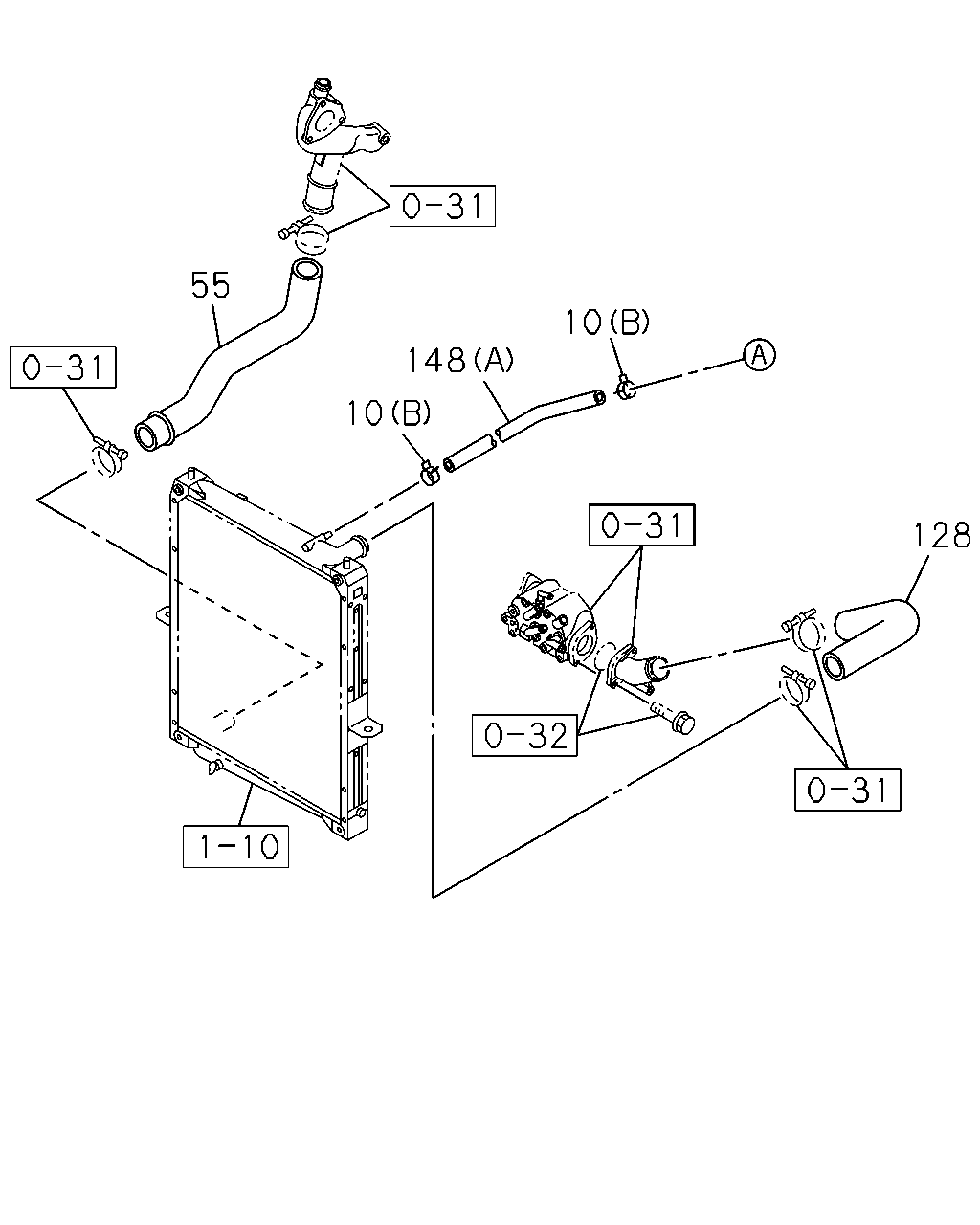

[111A] RADIATOR SIDE (8 parça)

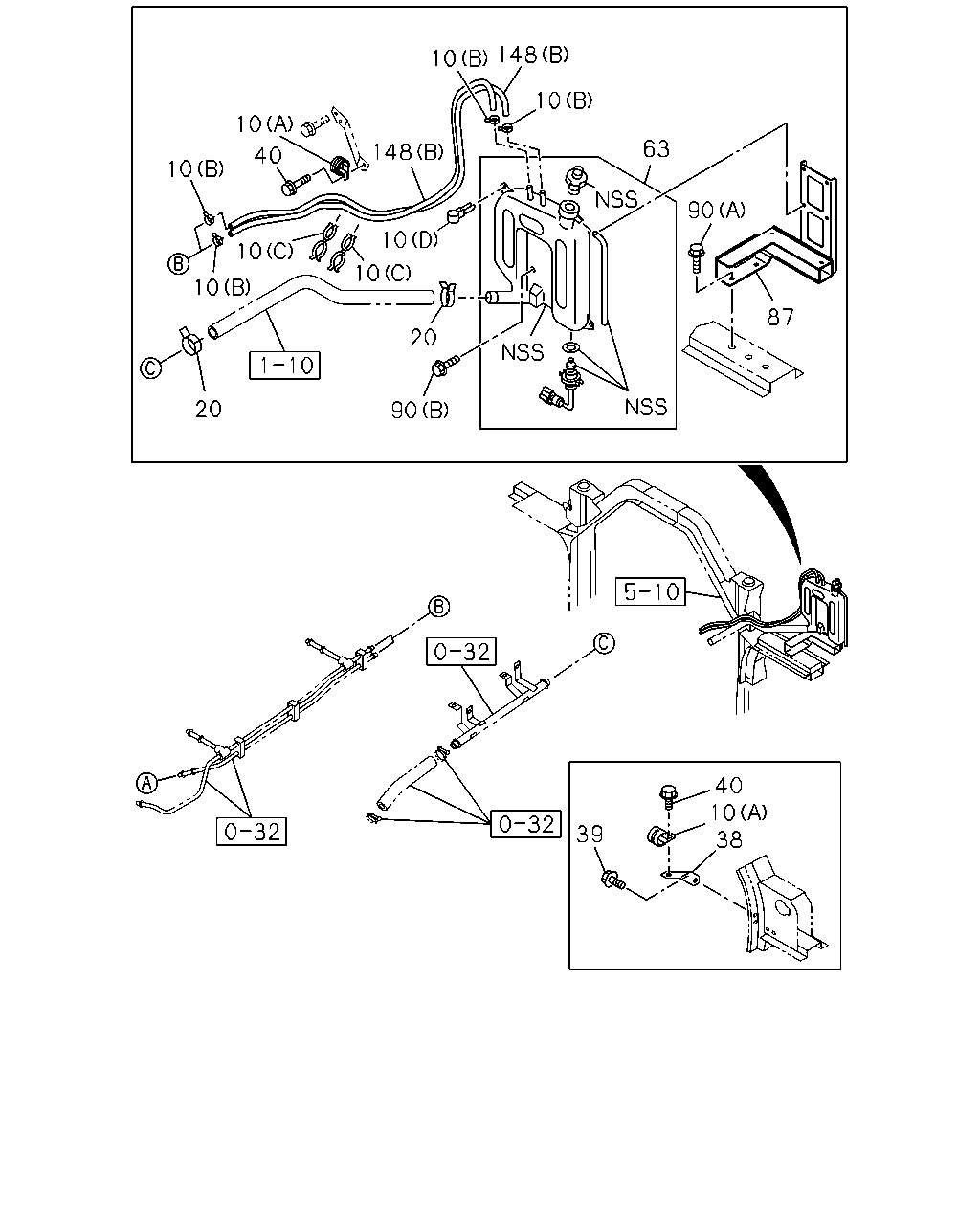

[111A] SUB TANK SIDE (14 parça)
▶
55
10
148
10
128
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
10
CLIP; RUBBER HOSE
(B) ID=14
1-09704-102-0
06
1
1509-
10
CLIP; RUBBER HOSE
(D) ID=28 L=58
1-09700-400-0
02
1
1509-
10
CLIP; RUBBER HOSE
(C) ID=44 & 16
1-09709-125-0
08
1
1509-
10
CLIP; RUBBER HOSE
(A) ID=43 L=40
1-09700-624-2
02
1
1509-
55
HOSE; WATER,RAD OUTLET
8-98193-421-0
01
1
1509-
128
HOSE; WATER,RAD INL
8-98193-418-0
01
1
1509-
148
HOSE; RUBBER,OUT
(A) L=450
8-97430-214-0
01
1
1509-
148
HOSE; RUBBER,OUT
(B) L=1530
8-97430-215-0
02
1
1509-
10
40
10
10
10
10
10
20
90
148
20
10
148
10
63
90
87
39
40
10
38
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
10
CLIP; RUBBER HOSE
(B) ID=14
1-09704-102-0
06
1
1509-
10
CLIP; RUBBER HOSE
(D) ID=28 L=58
1-09700-400-0
02
1
1509-
10
CLIP; RUBBER HOSE
(C) ID=44 & 16
1-09709-125-0
08
1
1509-
10
CLIP; RUBBER HOSE
(A) ID=43 L=40
1-09700-624-2
02
1
1509-
20
CLIP; HOSE,RAD
ID=31
1-09707-093-1
02
1
1509-
38
BRACKET; RUBBER HOSE
8-97608-796-0
01
1
1509-
39
BOLT; BRKT FIX
M10X20 FLANGE
0-28151-020-0
01
1
1509-
40
BOLT; CLIP
M10X25 FLANGE
0-28651-025-0
02
1
1509-
63
TANK ASM; SUB
1-21481-143-2
01
1
1509-
87
BRACKET; SUB TANK
8-97430-191-1
01
1
1509-
90
BOLT; SUB TANK TO BRKT
(B) M8X25 W/LK&PL WASHER
1-09030-027-0
04
1
1509-
90
BOLT; SUB TANK TO BRKT
(A) M12X30 FLANGE
0-28051-230-0
03
1
1509-
148
HOSE; RUBBER,OUT
(A) L=450
8-97430-214-0
01
1
1509-
148
HOSE; RUBBER,OUT
(B) L=1530
8-97430-215-0
02
1
1509-
