2 |

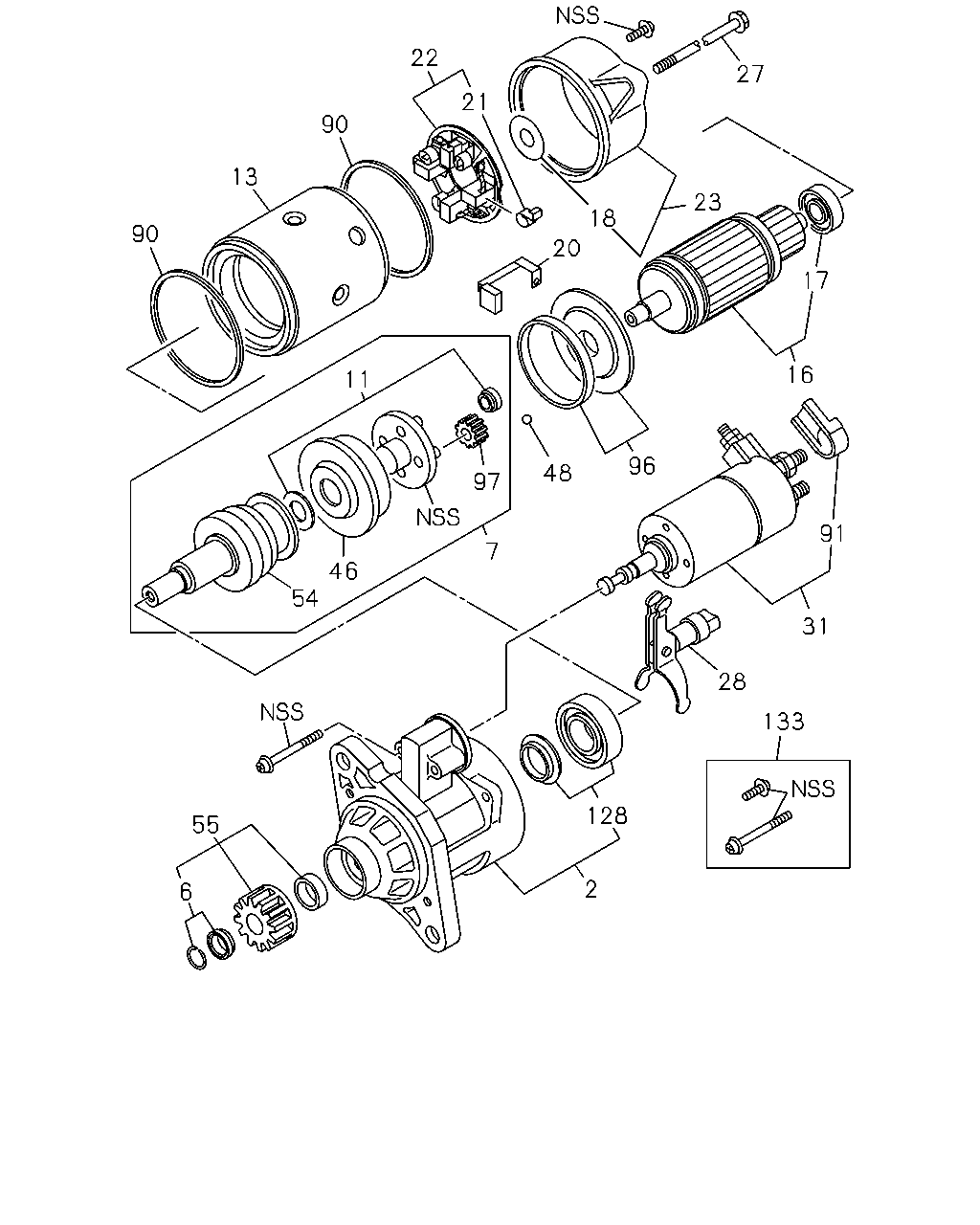

CASE; PINION,STARTER
ASM PART: A = 8-97430-657-0
|
8-98244-951-0 |
01 |
1 |
- |
| |
6 |
STOPPER; PINION STARTER
ASM PART: A = 8-97430-657-0
|
1-81129-803-0 |
01 |
1 |
- |
| |
7 |
CLUTCH ASM; PINION,STARTER
ASM PART: A = 8-97430-657-0
|
8-98244-952-0 |
01 |
1 |
- |
| |
11 |
WASHER; GEAR SHAFT STARTER
ASM PART: A = 8-97430-657-0
|
1-81129-781-0 |
01 |
1 |
- |
| |
13 |
YOKE; STARTER
ASM PART: A = 8-97430-657-0
|
8-98244-960-0 |
01 |
1 |
- |
| |
16 |
ARMATURE; STARTER
ASM PART: A = 8-97430-657-0
|
1-81121-074-0 |
01 |
1 |
- |
| |
17 |
BEARING; ARMATURE,STARTER
ASM PART: A = 8-97430-657-0
|
1-81129-837-0 |
01 |
1 |
- |
| |
18 |
WASHER; THRUST,ARMATURE,STARTER
ASM PART: A = 8-97430-657-0
|
8-98237-565-0 |
01 |
1 |
- |
| |
20 |
BRUSH; (+),STARTER
ASM PART: A = 8-97430-657-0
|
1-81116-068-0 |
01 |
1 |
- |
| |
21 |
SPRING; BRUSH HOLDER STARTER
ASM PART: A = 8-97430-657-0
|
1-81129-809-0 |
04 |
1 |
- |
| |
22 |
HOLDER; BRUSH STARTER
ASM PART: A = 8-97430-657-0
|
8-98215-748-0 |
01 |
1 |
- |
| |
23 |
COVER; RR COVER STARTER
ASM PART: A = 8-97430-657-0
|
8-98244-962-0 |
01 |
1 |
- |
| |
27 |
BOLT; THROUGH,STARTER
ASM PART: A = 8-97430-657-0
|
1-81129-769-0 |
01 |
1 |
- |
| |
28 |
LEVER; SHIFT,STARTER
ASM PART: A = 8-97430-657-0
|
8-98244-956-0 |
01 |
1 |
- |
| |
31 |
SWITCH; ENGAGE STARTER
ASM PART: A = 8-97430-657-0
|
8-98244-958-0 |
01 |
1 |
- |
| |
46 |
GEAR; CLU STARTER
ASM PART: A = 8-97430-657-0
|
1-81123-075-0 |
01 |
1 |
- |
| |
48 |
BALL; PINION,STARTER
ASM PART: A = 8-97430-657-0
|
8-97116-515-0 |
01 |
1 |
- |
| |
54 |
CLUTCH; PINION,STARTER
ASM PART: A = 8-97430-657-0
|
1-81129-854-0 |
01 |
1 |
- |
| |
55 |
PINION; CLU,STARTER
ASM PART: A = 8-97430-657-0
|
8-98244-957-0 |
01 |
1 |
- |
| |
90 |
GASKET; ARMATURE
ASM PART: A = 8-97430-657-0
|
1-81129-808-0 |
02 |
1 |
- |
| |
91 |
COVER; STARTER
ASM PART: A = 8-97430-657-0
|
1-81129-804-0 |
01 |
1 |
- |
| |
96 |
GASKET; FRT CASE
ASM PART: A = 8-97430-657-0
|
8-98244-959-0 |
01 |
1 |
- |
| |
97 |
GEAR; STARTER
ASM PART: A = 8-97430-657-0
|
1-81123-059-0 |
04 |
1 |
- |
| |
128 |
BEARING; STARTER
ASM PART: A = 8-97430-657-0
|
1-81129-797-0 |
01 |
1 |
- |
| |
133 |
SCREW SET; STARTER
ASM PART: A = 8-97430-657-0
|
1-81129-805-0 |
01 |
1 |
- |
