0-60 — ENGINE ELECTRICAL CONTROL PARTS (#176438) — 53 parça

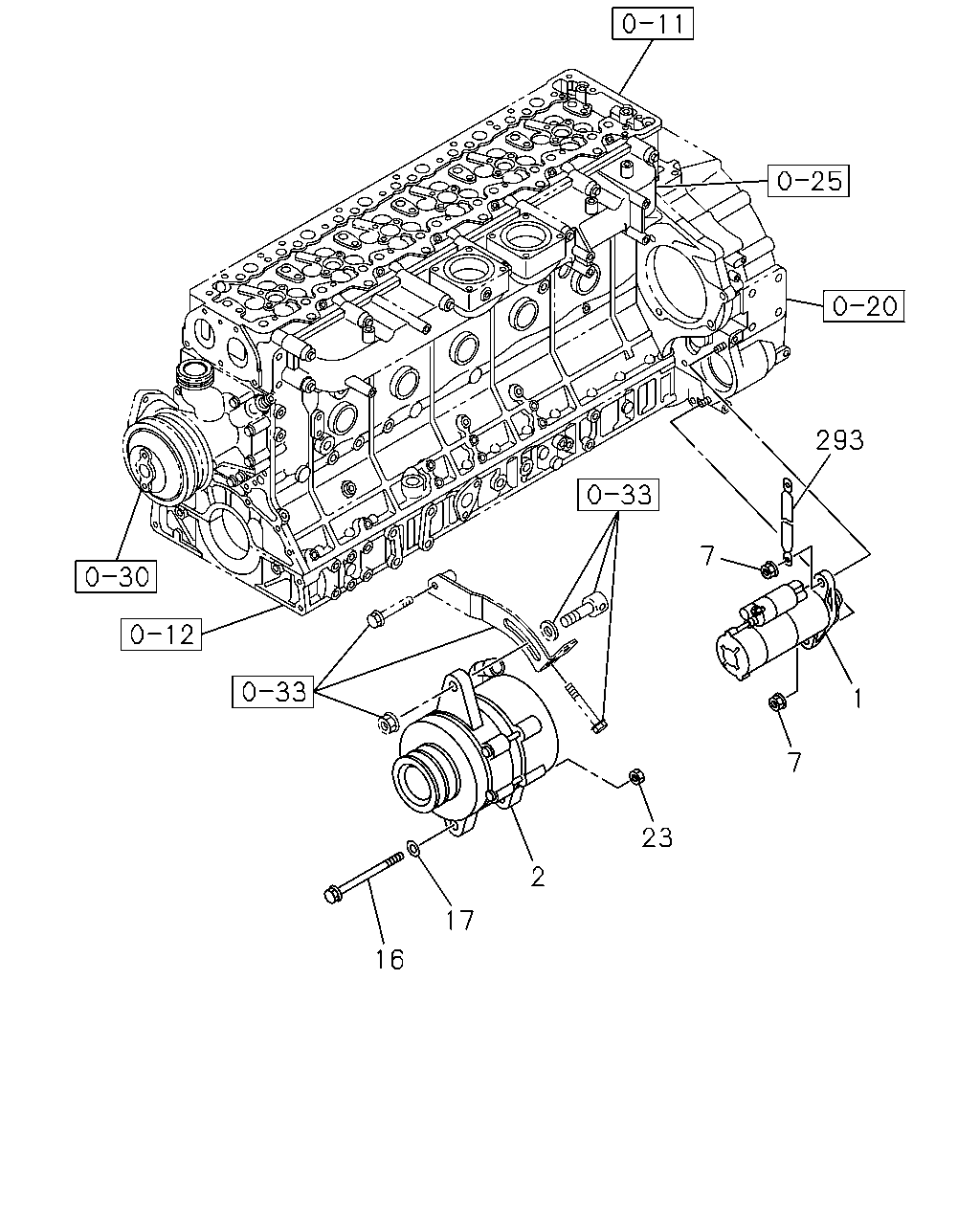

16 17 2 23 7 7 1 293

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	STARTER ASM SEE FIG-NO 0-65 FOR COMPONENT.	8-97430-657-0	01	1	1509-	●	●
2	GENERATOR ASM SEE FIG-NO 0-66 FOR COMPONENT. 28V 50A	8-97431-231-0	01	1	1509-	●	●
7	NUT; STARTER M14 FLANGE	0-91150-114-0	02	1	1509-	●	●
16	BOLT; GEN M14X123	9-09801-204-1	01	1	1509-	●	●
17	WASHER; PL,GEN ID=15	0-91610-514-0	01	1	1509-	●	●
23	NUT; GEN M14 FLANGE	0-91150-114-0	01	1	1509-	●	●
293	CABLE; STARTER EARTH WHEEL BASE 5300MM(53W) X8	1-82650-410-1	01	1	1509-	●
293	CABLE; STARTER EARTH Q8	1-82650-409-1	01	1	1509-	●	●

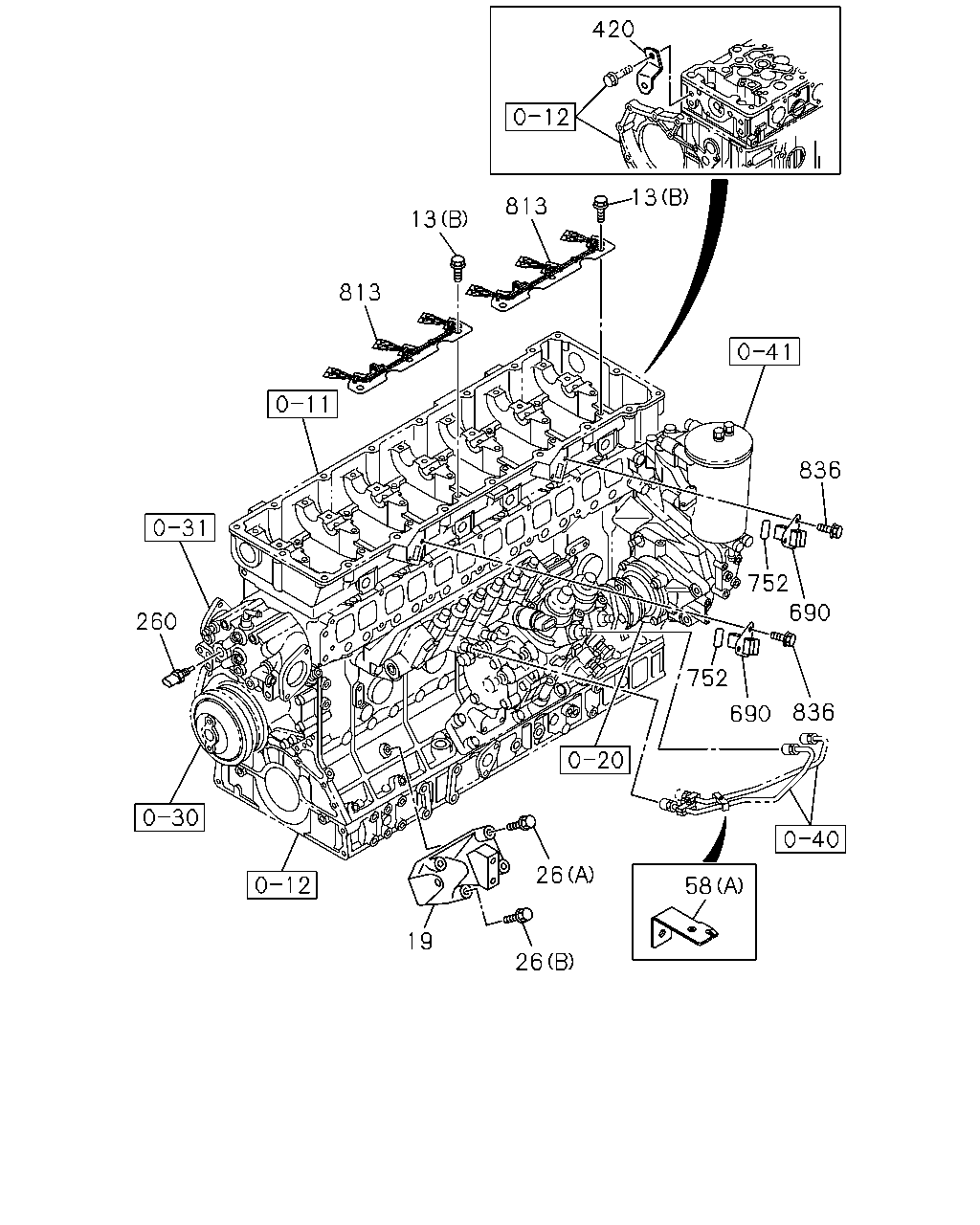

420 13 813 13 836 752 690 752 690 836 26 26 19 260 813 58

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
13	BOLT; BRKT (B) M8X20 FLANGE	0-28650-820-0	06	1	1509-	●	●
13	BOLT; BRKT (A) M8X20 FLANGE	0-28050-820-0	02	1	1509-	●	●
19	BRACKET; GEN	8-97605-943-0	01	1	1509-	●	●
26	BOLT; GEN BRKT (A) M12X50 FLANGE	0-28151-250-0	03	1	1509-	●	●
26	BOLT; GEN BRKT (B) M12X70 FLANGE	0-28151-270-0	01	1	1509-	●	●
58	BRACKET; CLIP WHEEL BASE 5300MM(53W) (D) X8	8-98021-694-1	01	1	1509-	●
58	BRACKET; CLIP (A)	8-97633-825-1	01	1	1509-	●	●
58	BRACKET; CLIP (C)	8-97633-824-1	01	1	1509-	●	●
58	BRACKET; CLIP (B)	8-97625-412-0	01	1	1509-	●	●
260	SENSOR; WATER TEMP NISHIDA	8-98260-257-0	01	1	1509-	●	●
420	BRACKET; HARNESS WHEEL BASE 5300MM(53W) X8	8-98024-768-1	01	1	1509-	●
690	CONNECTOR	8-94390-858-1	02	1	1509-	●	●
752	GASKET ALSO INCLUDED IN GASKET SET(ENGINE).	8-94391-310-0	02	1	1509-	●	●
813	HARNESS; INJECTOR	8-97430-693-0	02	1	1509-	●	●
836	BOLT; CONNECTOR M8X12 FLANGE	0-28050-812-0	04	1	1509-	●	●

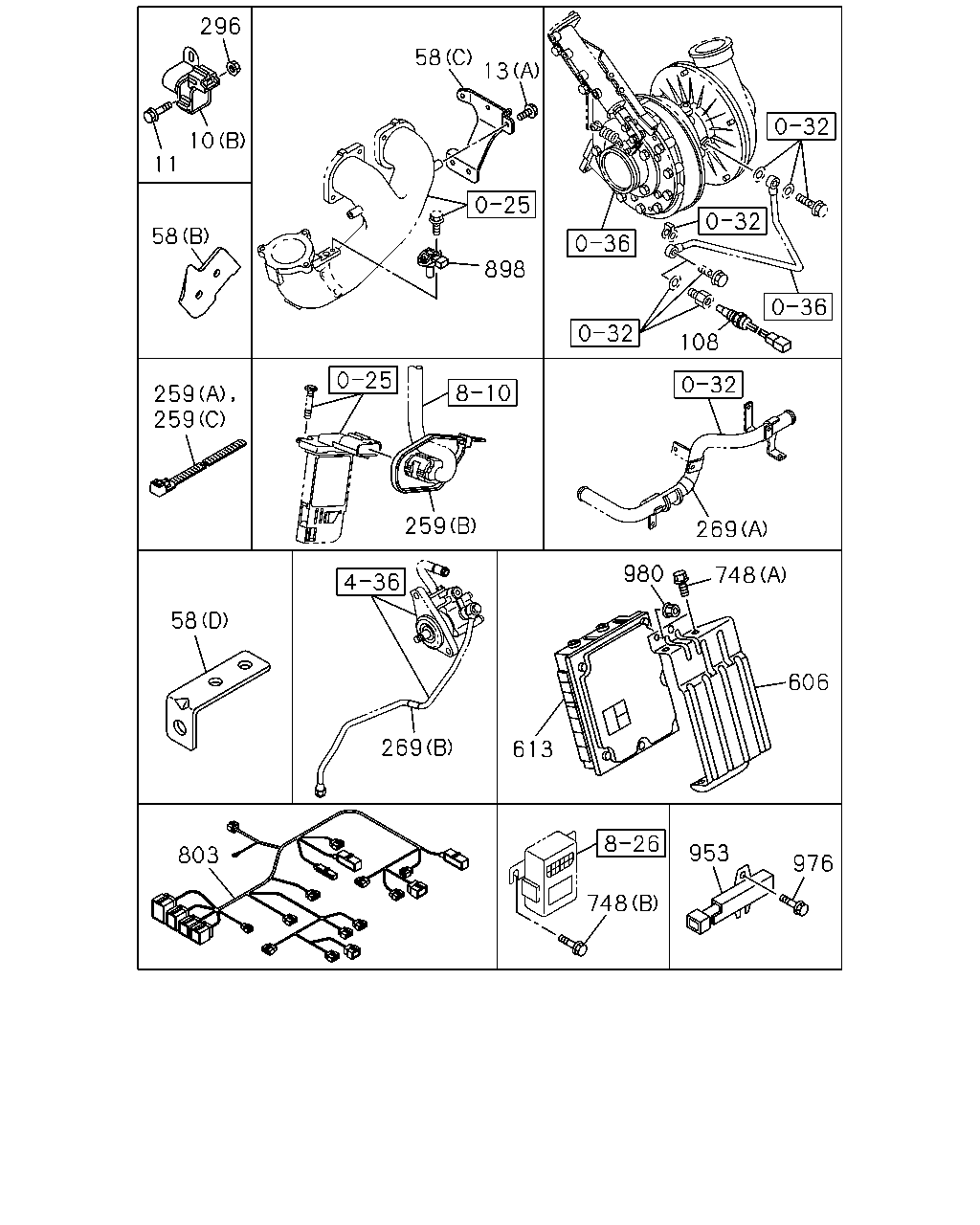

296 58 10 11 58 13 898 259 259 58 259 980 269 748 606 108 976 953 748 269 613 803

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
10	RELAY; STARTER (B) 24V NIKKO	8-98005-631-0	01	1	1509-	●	●
10	RELAY; STARTER (A) 24V 10A PANASONIC	8-98167-173-0	01	1	1509-	●	●
11	BOLT; RELAY STARTER M8X25 FLANGE	0-28650-825-0	02	1	1509-	●	●
13	BOLT; BRKT (B) M8X20 FLANGE	0-28650-820-0	06	1	1509-	●	●
13	BOLT; BRKT (A) M8X20 FLANGE	0-28050-820-0	02	1	1509-	●	●
58	BRACKET; CLIP WHEEL BASE 5300MM(53W) (D) X8	8-98021-694-1	01	1	1509-	●
58	BRACKET; CLIP (A)	8-97633-825-1	01	1	1509-	●	●
58	BRACKET; CLIP (C)	8-97633-824-1	01	1	1509-	●	●
58	BRACKET; CLIP (B)	8-97625-412-0	01	1	1509-	●	●
108	SWITCH; THERMO	1-83161-033-0	01	1	1509-	●	●
259	CLIP; BAND,HARNESS TO OIL PIPE WHEEL BASE 5300MM(53W) (A) X8 L=250	8-98216-430-0	01	1	1509-	●
259	CLIP; BAND,HARNESS TO OIL PIPE WHEEL BASE 5300MM(53W) (C) X8 L=109.5	8-97807-385-0	01	1	1509-	●
259	CLIP; BAND,HARNESS TO OIL PIPE (B) L=251	8-97619-917-0	01	1	1509-	●	●
259	CLIP; BAND,HARNESS TO OIL PIPE (A) L=250	8-98216-430-0	13	1	1509-	●	●
269	SLEEVE; RUBBER,CABLE (B) ID=10 OD=14 L=30	9-09956-682-0	05	1	1509-	●	●
269	SLEEVE; RUBBER,CABLE (A) ID=17 OD=21 L=40	1-09337-012-0	02	1	1509-	●	●
269	SLEEVE; RUBBER,CABLE WHEEL BASE 5300MM(53W) (B) X8 ID=10 OD=14 L=30	9-09956-682-0	01	1	1509-	●
296	NUT; RELAY,STARTER M8 FLANGE	0-91180-108-0	02	1	1509-	●	●
606	BRACKET; CONT UNIT	8-97430-090-0	01	1	1509-	●	●
613	CONTROL UNIT; ENG	8-98185-383-4	01	1	1509-	●	●
748	BOLT; CONT UNIT (B) M6X16 FLANGE	0-28650-616-0	02	1	1509-	●	●
748	BOLT; CONT UNIT (A) M5X10 W/LK+PL WASHER	0-36230-510-0	04	1	1509-	●	●
803	HARNESS; GOVERNOR	8-97431-379-0	01	1	1509-	●	●
898	SENSOR; BOOST	8-98009-418-0	01	1	1509-	●	●
953	RESISTOR; CONT UNIT	8-97357-613-0	01	1	1509-	●	●
976	BOLT; RESISTOR M6X20 FLANGE	0-28650-620-0	02	1	1509-	●	●
980	NUT; CONT UNIT M8 FLANGE	0-91180-108-0	04	1	1509-	●	●

46 10

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
10	RELAY; STARTER (B) 24V NIKKO	8-98005-631-0	01	1	1509-	●	●
10	RELAY; STARTER (A) 24V 10A PANASONIC	8-98167-173-0	01	1	1509-	●	●
46	RELAY; GLOW PLUG 24V 50A	8-97173-947-0	01	1	1509-	●	●
