Sayfa 0-52 - Isuzu EPC

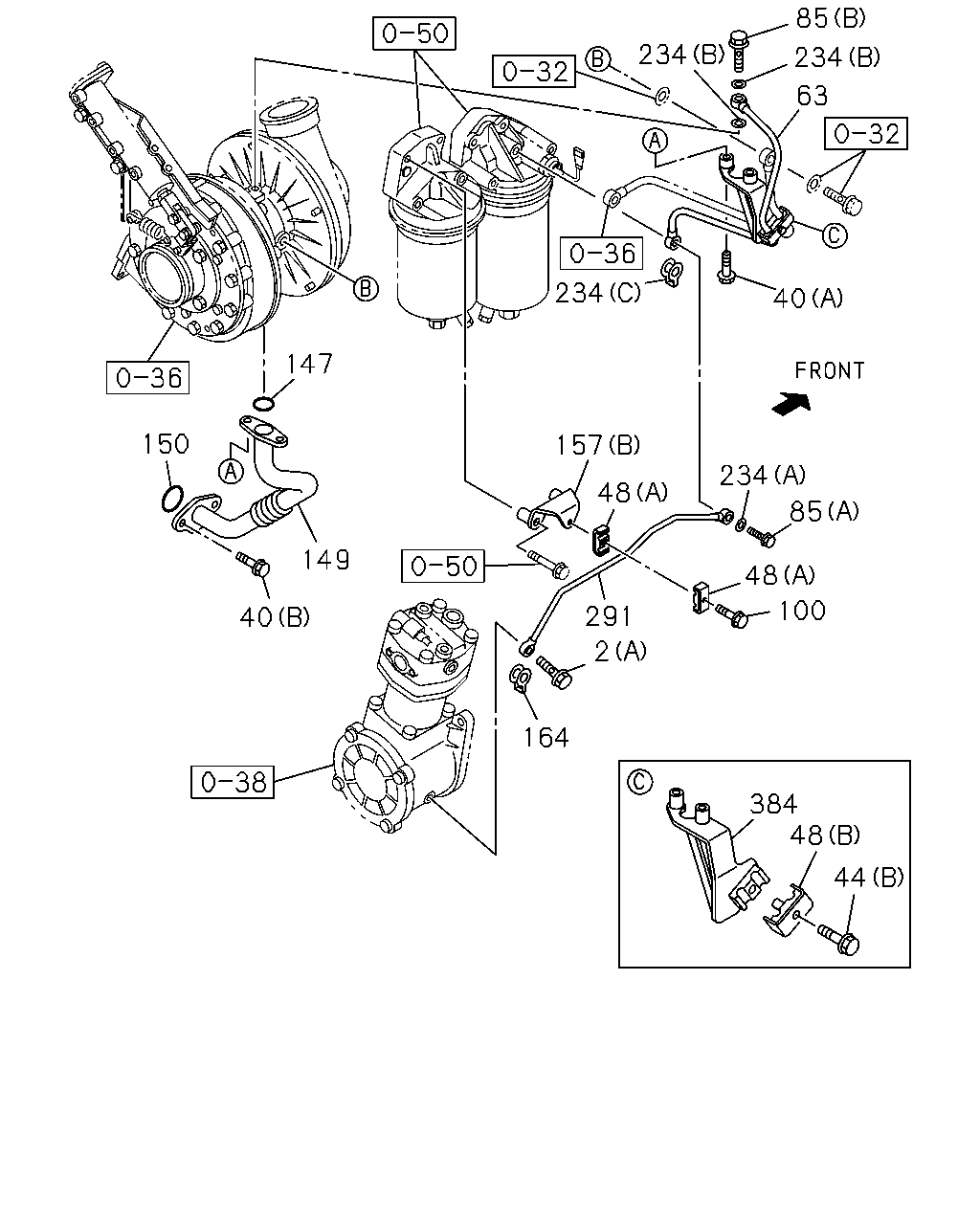

0-52 — OIL AND VACUUM PIPING; ENGINE (#176436) — 75 parça

150 40 149 147 234 157 48 291 2 164 234 85 48 100 234 85 63 234 40 384 48 44

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
2	BOLT; EYE,OIL PIPE (B) M10X21 FLANGE	8-97372-238-0	01	1	1509-
2	BOLT; EYE,OIL PIPE WHEEL BASE 5300MM(53W) (D) X8 M12X27 EYE-BOLT W/FLANGE	8-98037-826-0	01	1	1509-
2	BOLT; EYE,OIL PIPE (C) M14X33 FLANGE	1-09675-088-0	01	1	1509-
2	BOLT; EYE,OIL PIPE WHEEL BASE 5300MM(53W) (B) X8 M10X21 FLANGE	8-97372-238-0	02	1	1509-
2	BOLT; EYE,OIL PIPE (B) M10X21 FLANGE	8-97372-238-0	01	1	1509-
2	BOLT; EYE,OIL PIPE (A) M10X21 FLANGE	8-94396-711-0	01	1	1509-
40	BOLT; OIL PIPE (B) M10X25 FLANGE	0-28751-025-0	02	1	1509-
40	BOLT; OIL PIPE (A) M8X40 FLANGE	0-28050-840-0	02	1	1509-
44	BOLT; CLIP,OIL PIPE (B) M6X35 FLANGE	0-28650-635-0	01	1	1509-
44	BOLT; CLIP,OIL PIPE (A) M6X30 FLANGE	0-28050-630-0	03	1	1509-
48	CLIP; OIL PIPE (A) ID=11 & 11 L=19	8-98148-996-2	02	1	1509-
48	CLIP; OIL PIPE WHEEL BASE 5300MM(53W) (C) X8 ID=5.5 L=10.5	8-98029-953-1	02	1	1509-
48	CLIP; OIL PIPE WHEEL BASE 5300MM(53W) (A) X8 ID=11 & 11 L=19	8-98148-996-2	02	1	1509-
48	CLIP; OIL PIPE (B) ID=9 & 11 L=28	1-09701-265-1	01	1	1509-
63	PIPE; OIL,TURBOCHARGER FEED	8-97604-871-0	01	1	1509-
85	BOLT; EYE,OIL PIPE FIX (A) M12X41	1-09675-140-0	01	1	1509-
85	BOLT; EYE,OIL PIPE FIX (B) M12X27 EYE-BOLT W/FLANGE	8-98037-826-0	01	1	1509-
100	BOLT; CLIP M6X30 FLANGE	0-28050-630-0	01	1	1509-
100	BOLT; CLIP WHEEL BASE 5300MM(53W) X8 M6X30 FLANGE	0-28050-630-0	02	1	1509-
147	GASKET; OIL PIPE TO TURBOCHARGER ALSO INCLUDED IN GASKET SET(ENGINE). ID=22.1	8-94399-399-0	01	1	1509-
149	PIPE; OIL RETURN,TURBOCHARGER	8-97603-712-2	01	1	1509-
150	GASKET; OIL PIPE TO C/BL ALSO INCLUDED IN GASKET SET(ENGINE). ID=27.7	1-09623-450-0	01	1	1509-
157	BRACKET; OIL PIPE (A)	8-97620-045-0	01	1	1509-
157	BRACKET; OIL PIPE (B)	8-97610-356-1	01	1	1509-
157	BRACKET; OIL PIPE WHEEL BASE 5300MM(53W) (C) X8	8-97607-498-0	01	1	1509-
164	GASKET; EYE BOLT,OIL PIPE,FILTER ALSO INCLUDED IN GASKET SET(ENGINE). ID=10.6	8-98231-393-0	02	1	1509-
234	GASKET; EYE BOLT ALSO INCLUDED IN GASKET SET(ENGINE). (B) ID=12.2	9-09571-412-0	02	1	1509-
234	GASKET; EYE BOLT ALSO INCLUDED IN GASKET SET(ENGINE). (A) ID=12.2	8-98251-344-0	01	1	1509-
234	GASKET; EYE BOLT ALSO INCLUDED IN GASKET SET(ENGINE). (C) ID=12.2	8-97256-733-0	01	1	1509-
291	PIPE; OIL	8-98145-554-0	01	1	1509-
384	BRACKET; CLIP,OIL PIPE,TURBOCHARGER	1-13345-216-0	01	1	1509-

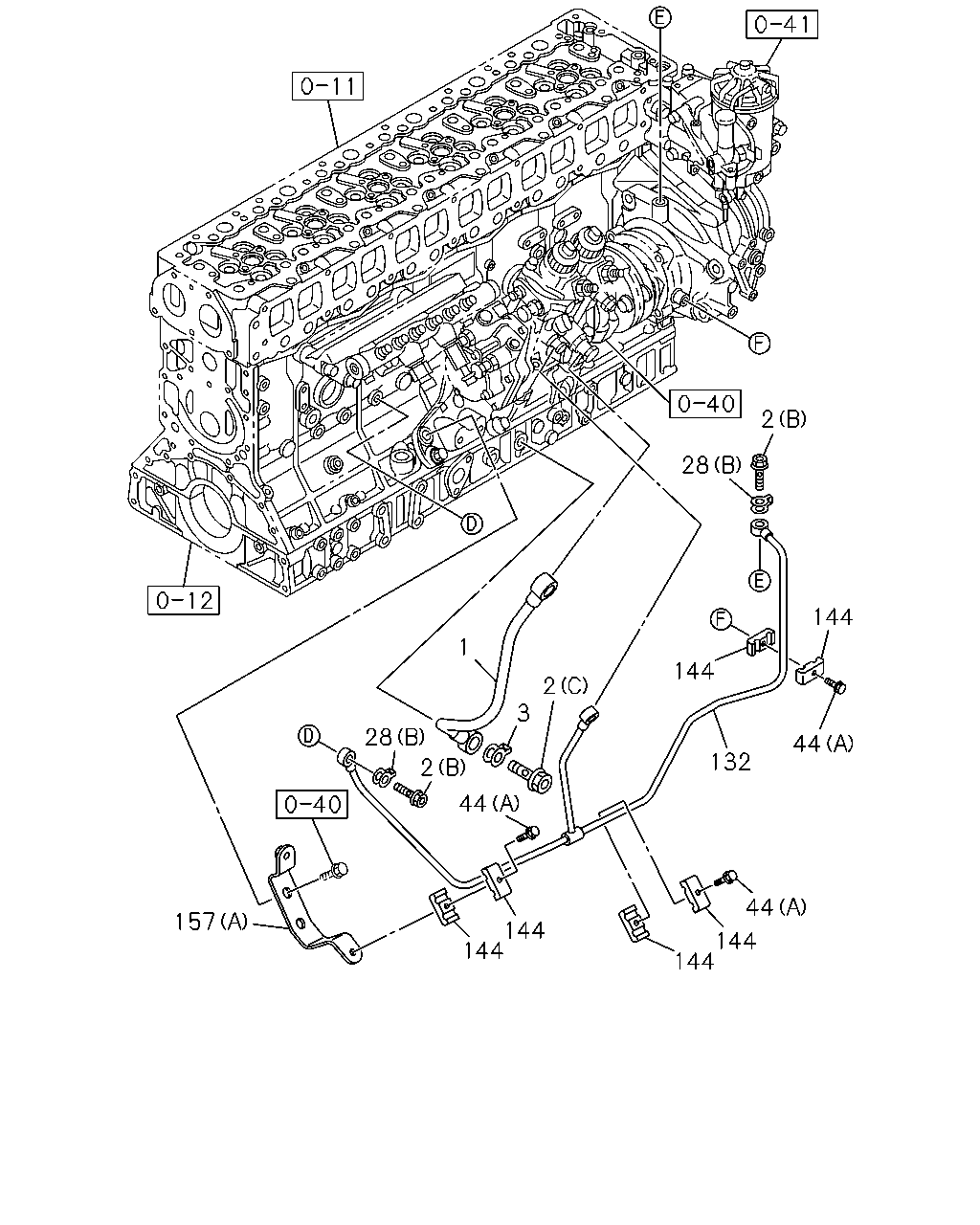

2 28 144 144 1 28 157 144 144 144 144 44 132 44 2 3 44 2

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	PIPE; OIL,INJ PUMP TO C/BL	8-97603-876-0	01	1	1509-
2	BOLT; EYE,OIL PIPE (B) M10X21 FLANGE	8-97372-238-0	01	1	1509-
2	BOLT; EYE,OIL PIPE WHEEL BASE 5300MM(53W) (D) X8 M12X27 EYE-BOLT W/FLANGE	8-98037-826-0	01	1	1509-
2	BOLT; EYE,OIL PIPE (C) M14X33 FLANGE	1-09675-088-0	01	1	1509-
2	BOLT; EYE,OIL PIPE WHEEL BASE 5300MM(53W) (B) X8 M10X21 FLANGE	8-97372-238-0	02	1	1509-
2	BOLT; EYE,OIL PIPE (B) M10X21 FLANGE	8-97372-238-0	01	1	1509-
2	BOLT; EYE,OIL PIPE (A) M10X21 FLANGE	8-94396-711-0	01	1	1509-
3	GASKET; EYE BOLT,OIL PIPE ALSO INCLUDED IN GASKET SET(ENGINE). ID=14.2 OD=21	8-97251-047-0	01	1	1509-
28	GASKET; OIL PIPE ALSO INCLUDED IN GASKET SET(ENGINE). (B) ID=10.6	8-98231-393-0	02	1	1509-
28	GASKET; OIL PIPE ALSO INCLUDED IN GASKET SET(ENGINE). (A) ID=26.2	9-09566-226-0	02	1	1509-
44	BOLT; CLIP,OIL PIPE (B) M6X35 FLANGE	0-28650-635-0	01	1	1509-
44	BOLT; CLIP,OIL PIPE (A) M6X30 FLANGE	0-28050-630-0	03	1	1509-
132	PIPE ASM; OIL,INJ PUMP FEED	8-98174-716-0	01	1	1509-
144	CLIP; OIL PIPE,INJ PUMP ID=11 & 11 L=19	8-98148-996-2	06	1	1509-
157	BRACKET; OIL PIPE (A)	8-97620-045-0	01	1	1509-
157	BRACKET; OIL PIPE (B)	8-97610-356-1	01	1	1509-
157	BRACKET; OIL PIPE WHEEL BASE 5300MM(53W) (C) X8	8-97607-498-0	01	1	1509-

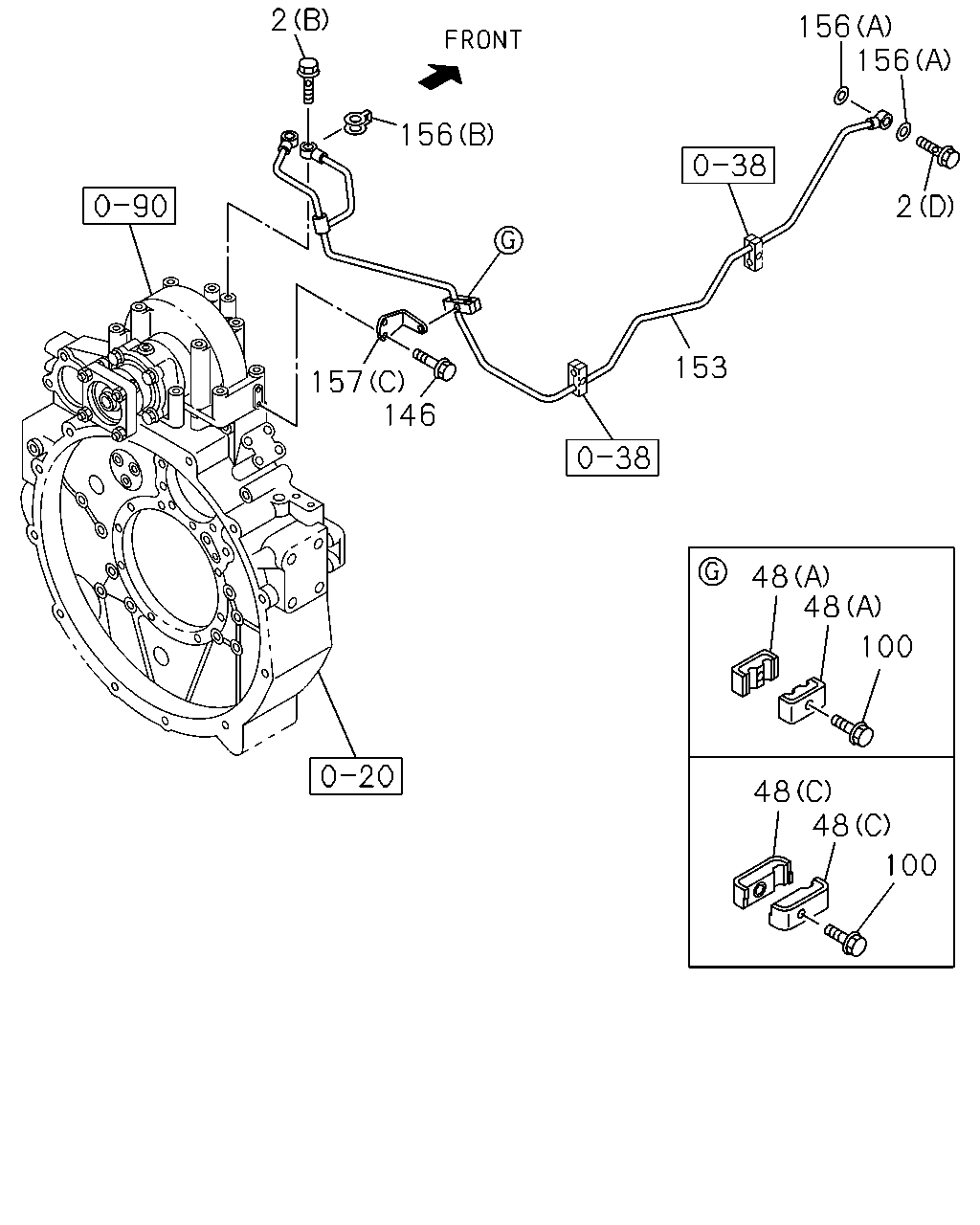

2 156 157 156 2 153 146 156 48 48 100 48 48 100

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
2	BOLT; EYE,OIL PIPE (B) M10X21 FLANGE	8-97372-238-0	01	1	1509-
2	BOLT; EYE,OIL PIPE WHEEL BASE 5300MM(53W) (D) X8 M12X27 EYE-BOLT W/FLANGE	8-98037-826-0	01	1	1509-
2	BOLT; EYE,OIL PIPE (C) M14X33 FLANGE	1-09675-088-0	01	1	1509-
2	BOLT; EYE,OIL PIPE WHEEL BASE 5300MM(53W) (B) X8 M10X21 FLANGE	8-97372-238-0	02	1	1509-
2	BOLT; EYE,OIL PIPE (B) M10X21 FLANGE	8-97372-238-0	01	1	1509-
2	BOLT; EYE,OIL PIPE (A) M10X21 FLANGE	8-94396-711-0	01	1	1509-
48	CLIP; OIL PIPE (A) ID=11 & 11 L=19	8-98148-996-2	02	1	1509-
48	CLIP; OIL PIPE WHEEL BASE 5300MM(53W) (C) X8 ID=5.5 L=10.5	8-98029-953-1	02	1	1509-
48	CLIP; OIL PIPE WHEEL BASE 5300MM(53W) (A) X8 ID=11 & 11 L=19	8-98148-996-2	02	1	1509-
48	CLIP; OIL PIPE (B) ID=9 & 11 L=28	1-09701-265-1	01	1	1509-
100	BOLT; CLIP M6X30 FLANGE	0-28050-630-0	01	1	1509-
100	BOLT; CLIP WHEEL BASE 5300MM(53W) X8 M6X30 FLANGE	0-28050-630-0	02	1	1509-
146	BOLT; BRKT WHEEL BASE 5300MM(53W) X8 M8X16 FLANGE	0-28050-816-0	02	1	1509-
153	PIPE; OIL,C/BL TO PTO WHEEL BASE 5300MM(53W) X8	8-98285-803-0	01	1	1509-
156	GASKET; EYE JOINT,OIL PIPE WHEEL BASE 5300MM(53W) (B) X8 ID=10.6	8-98231-393-0	02	1	1509-
156	GASKET; EYE JOINT,OIL PIPE WHEEL BASE 5300MM(53W) (A) X8 ID=12.2	8-98251-344-0	02	1	1509-
157	BRACKET; OIL PIPE (A)	8-97620-045-0	01	1	1509-
157	BRACKET; OIL PIPE (B)	8-97610-356-1	01	1	1509-
157	BRACKET; OIL PIPE WHEEL BASE 5300MM(53W) (C) X8	8-97607-498-0	01	1	1509-

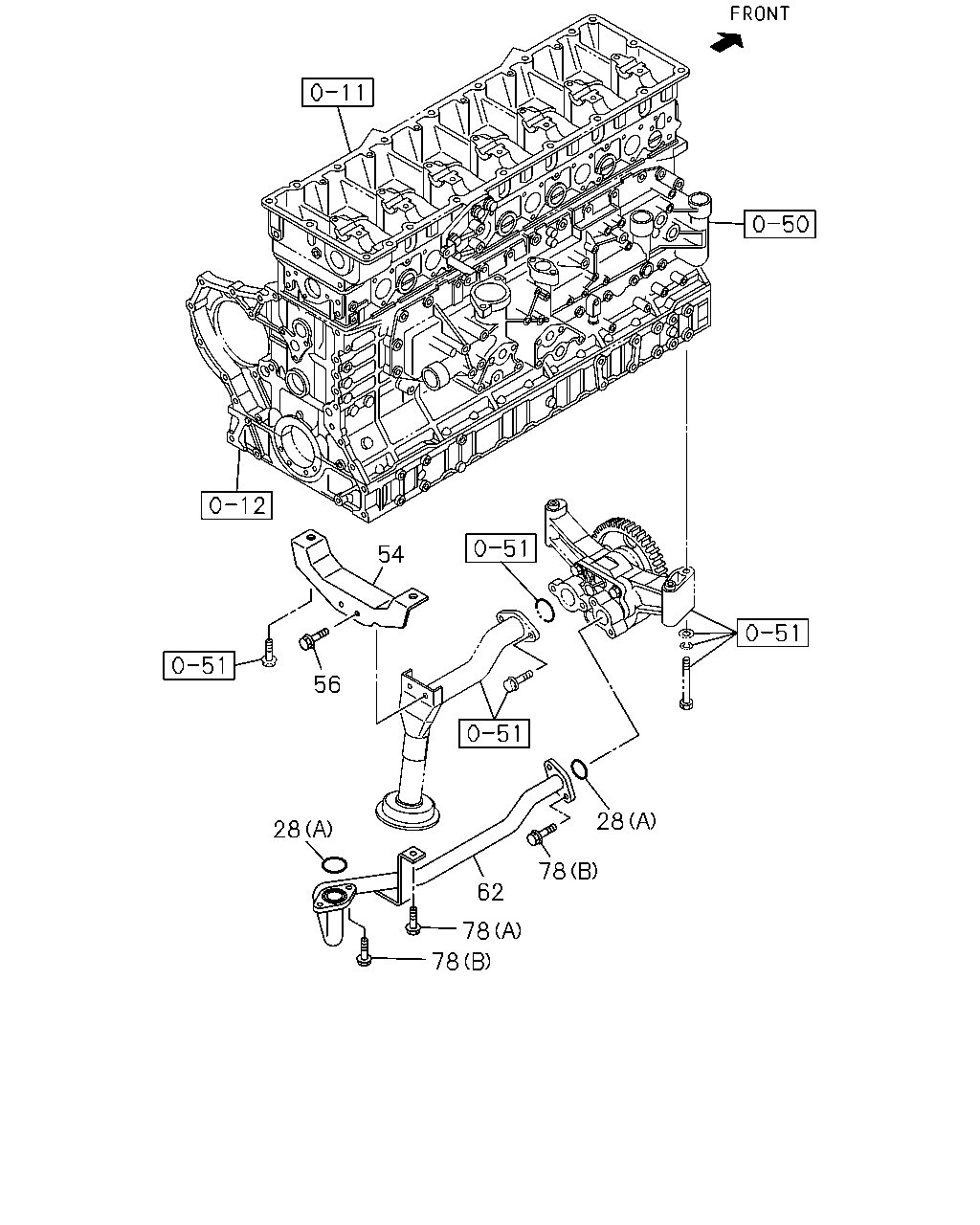

54 56 28 78 62 78 28 78

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
28	GASKET; OIL PIPE ALSO INCLUDED IN GASKET SET(ENGINE). (B) ID=10.6	8-98231-393-0	02	1	1509-
28	GASKET; OIL PIPE ALSO INCLUDED IN GASKET SET(ENGINE). (A) ID=26.2	9-09566-226-0	02	1	1509-
54	STAY; OIL STRAINER	1-13345-182-0	01	1	1509-
56	BOLT; STAY TO BRKT M8X16 FLANGE	0-28050-816-0	02	1	1509-
62	PIPE; OIL,PUMP TO C/BL	8-97603-066-1	01	1	1509-
78	BOLT; OIL PIPE,PUMP TO BODY (A) M8X16 FLANGE	0-28050-816-0	01	1	1509-
78	BOLT; OIL PIPE,PUMP TO BODY (B) M8X25 FLANGE	0-28650-825-0	02	1	1509-
78	BOLT; OIL PIPE,PUMP TO BODY (B) M8X25 FLANGE	0-28650-825-0	02	1	1509-
