0-38 — AIR COMPRESSOR PIPING; ENGINE SIDE (#176430) — 79 parça

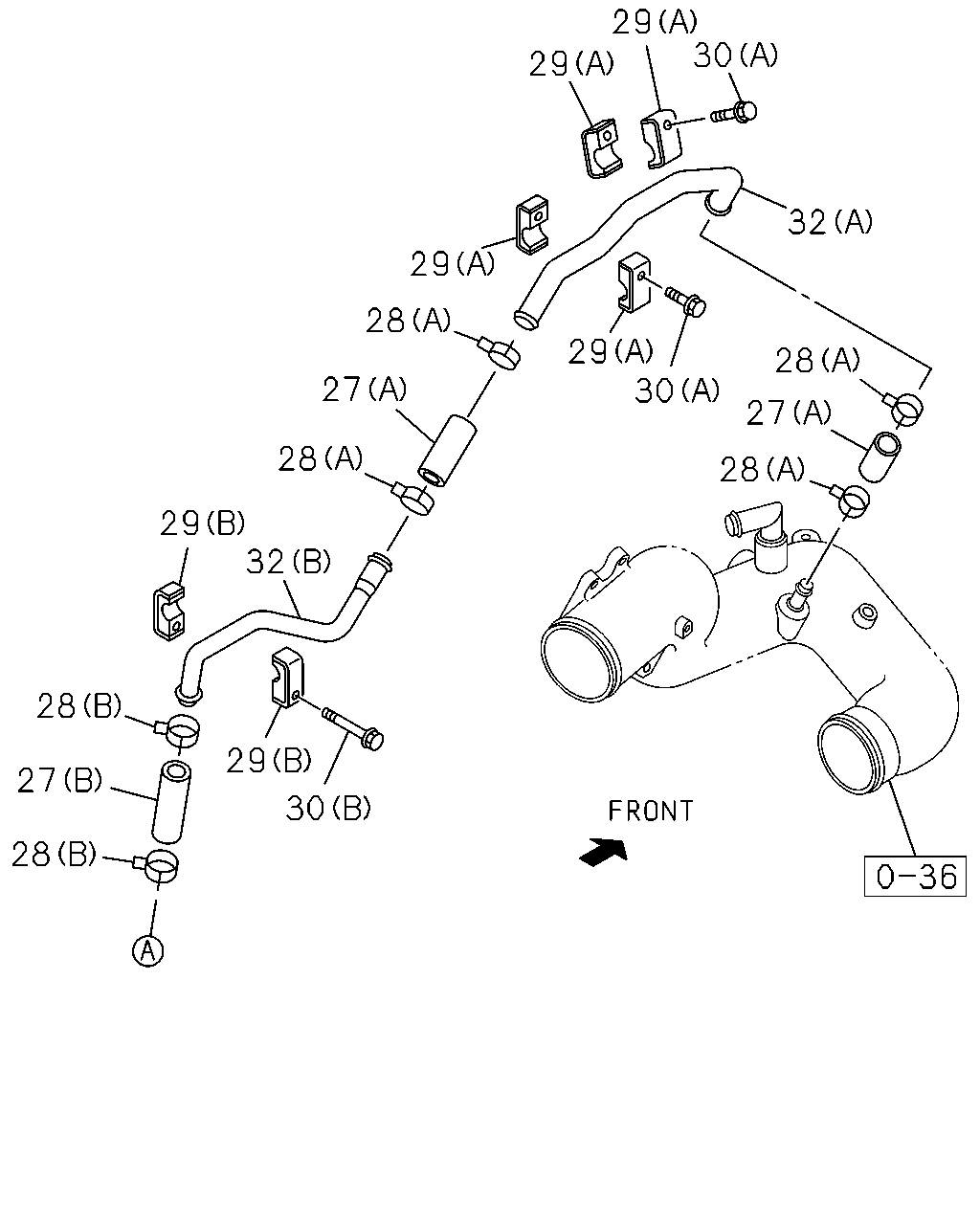

28 30 29 27 28 32 29 28 27 28 29 29 29 32 29 27 28 28 30 30

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
27	HOSE; AIR CMPR,SUCTION (B) L=55	1-09360-784-0	01	1	1509-
27	HOSE; AIR CMPR,SUCTION (A)	8-97613-266-0	02	1	1509-
28	CLIP; HOSE,AIR CMPR (B) ID=28.5	1-09707-150-0	02	1	1509-
28	CLIP; HOSE,AIR CMPR (A) ID=31.2	8-97237-146-0	04	1	1509-
29	CLIP; AIR PIPE (A) ID=24.5 L=22	8-97603-362-1	04	1	1509-
29	CLIP; AIR PIPE (B)	1-09701-281-1	02	1	1509-
30	BOLT; PIPE CLIP (B) M8X45 FLANGE	0-28050-845-0	01	1	1509-
30	BOLT; PIPE CLIP (A) M8X50 FLANGE	0-28050-850-0	02	1	1509-
32	PIPE; AIR,AIR CMPR (B)	8-97431-205-1	01	1	1509-
32	PIPE; AIR,AIR CMPR (A)	8-97613-954-0	01	1	1509-
32	PIPE; AIR,AIR CMPR (C)	8-98100-020-0	01	1	1509-

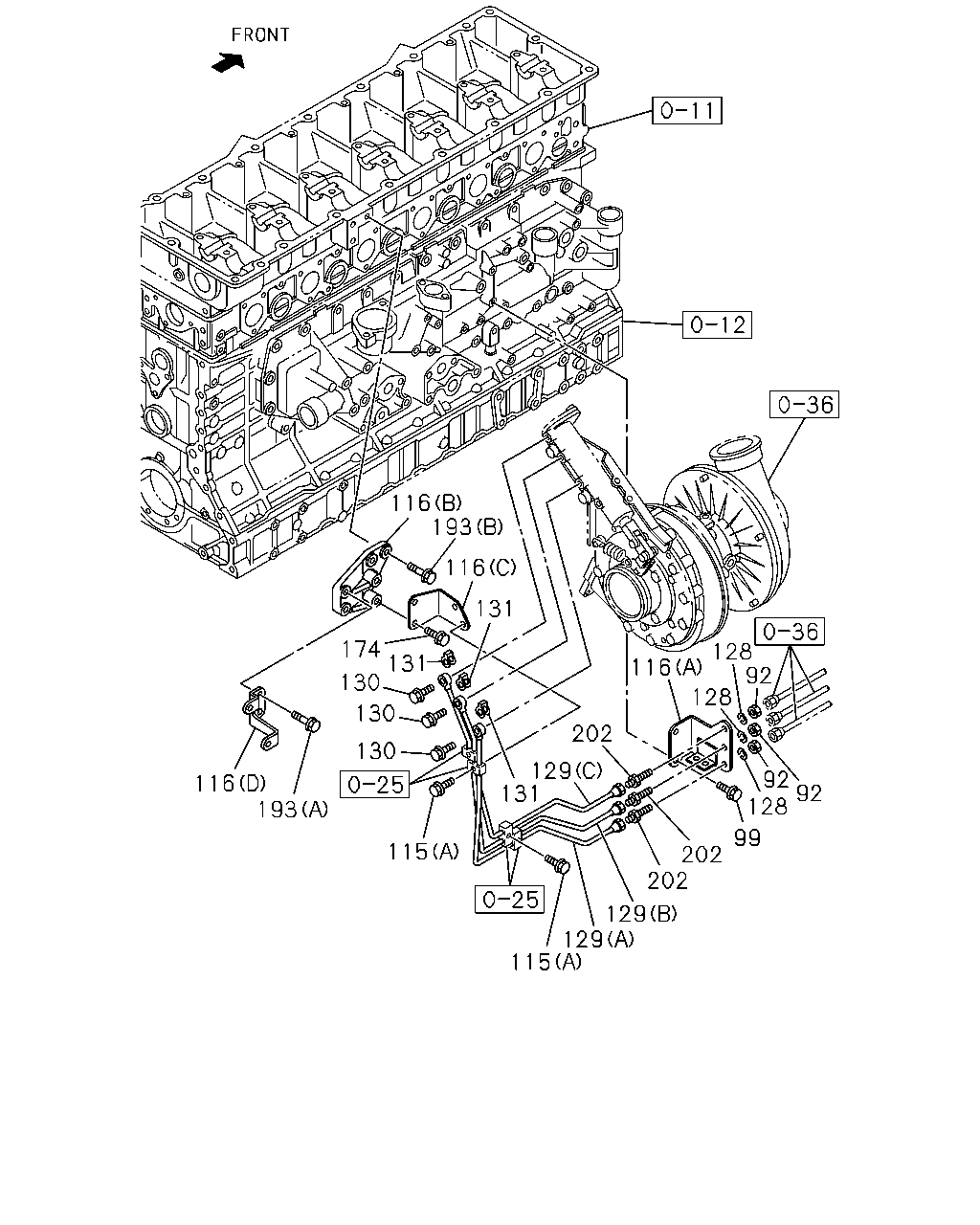

115 129 129 202 202 128 99 92 92 92 128 128 116 202 129 131 115 193 116 130 130 131 116 193 116 131 174 130

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
92	NUT; UNION M12	9-09840-280-0	03	1	1509-
92	NUT; UNION M12	9-09840-280-0	01	1	1509-
99	BOLT; BRKT AIR PIPE M10X20 FLANGE	0-28151-020-0	02	1	1509-
115	BOLT; AIR PIPE (A) M6X30 FLANGE	0-28050-630-0	04	1	1509-
115	BOLT; AIR PIPE (B) Q8 M8X25 FLANGE	0-28650-825-0	02	1	1509-
115	BOLT; AIR PIPE WHEEL BASE 5300MM(53W) (B) X8 M8X16 FLANGE	0-28050-816-0	02	1	1509-
116	BRACKET; AIR PIPE (C)	8-97605-950-0	01	1	1509-
116	BRACKET; AIR PIPE (B)	8-97605-948-0	01	1	1509-
116	BRACKET; AIR PIPE (D)	8-98052-306-0	01	1	1509-
116	BRACKET; AIR PIPE (A)	8-97603-755-2	01	1	1509-
128	WASHER; LK,UNION ID=12.2	0-91510-512-0	03	1	1509-
128	WASHER; LK,UNION ID=12.2	0-91510-512-0	01	1	1509-
129	PIPE; AIR,VGS (A)	8-98174-772-0	01	1	1509-
129	PIPE; AIR,VGS (B)	8-98174-773-0	01	1	1509-
129	PIPE; AIR,VGS (C)	8-98174-774-0	01	1	1509-
130	BOLT; EYE,AIR PIPE M10X21 FLANGE	8-94396-711-0	03	1	1509-
131	GASKET; AIR PIPE ALSO INCLUDED IN GASKET SET(ENGINE). ID=10.2	8-97365-390-0	03	1	1509-
174	BOLT; BRKT M8X16 FLANGE	0-28050-816-0	02	1	1509-
174	BOLT; BRKT M8X16 FLANGE	0-28050-816-0	02	1	1509-
193	BOLT; BRKT (B) M10X35 FLANGE	0-28751-035-0	03	1	1509-
193	BOLT; BRKT (A) M8X20 FLANGE	0-28050-820-0	02	1	1509-
202	UNION; AIR PIPE M12 L=62.5	0-92113-206-0	03	1	1509-
202	UNION; AIR PIPE M12 L=62.5	0-92113-206-0	01	1	1509-

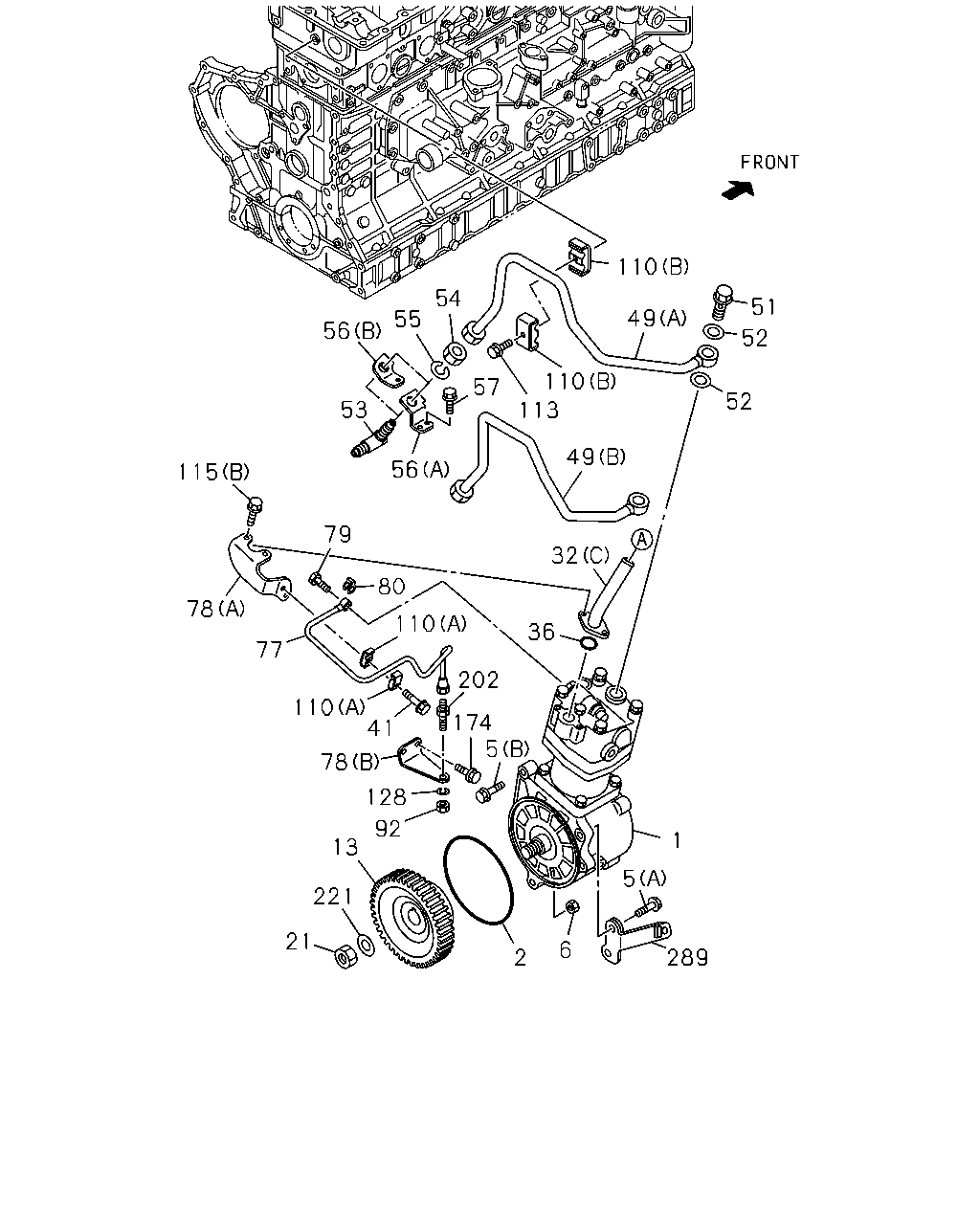

32 49 113 110 52 52 51 49 110 54 55 56 53 56 57 79 115 78 77 110 78 128 92 13 221 21 2 6 289 5 1 5 174 41 202 36 110 80

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	COMPRESSOR ASM; AIR	8-97431-826-0	01	1	1509-
2	GASKET; AIR CMPR ALSO INCLUDED IN GASKET SET(ENGINE). ID=159.6	1-09623-449-0	01	1	1509-
5	BOLT; AIR CMPR FIX (A) M12X50 FLANGE	0-28151-250-0	02	1	1509-
5	BOLT; AIR CMPR FIX (B) M12X140 FLANGE	0-28156-214-0	01	1	1509-
6	NUT; AIR CMPR M12 FLANGE	0-91180-112-0	01	1	1509-
13	GEAR; AIR CMPR DRIVE	8-97430-606-1	01	1	1509-
21	NUT; PUMP GEAR M24	0-91110-524-0	01	1	1509-
32	PIPE; AIR,AIR CMPR (B)	8-97431-205-1	01	1	1509-
32	PIPE; AIR,AIR CMPR (A)	8-97613-954-0	01	1	1509-
32	PIPE; AIR,AIR CMPR (C)	8-98100-020-0	01	1	1509-
36	GASKET; AIR PIPE TO AIR CMPR ALSO INCLUDED IN GASKET SET(ENGINE). ID=26.8	1-09623-415-0	01	1	1509-
41	BOLT; CLIP M6X30 FLANGE	0-28050-630-0	01	1	1509-
49	PIPE; AIR,CHARGE WHEEL BASE 5300MM(53W) (A) X8	8-97604-537-0	01	1	1509-
49	PIPE; AIR,CHARGE (A) Q8	8-97603-757-0	01	1	1509-
49	PIPE; AIR,CHARGE WHEEL BASE 5300MM(53W) (B) X8	8-97607-496-0	01	1	1509-
51	BOLT; EYE,AIR PIPE TO CMPR M24X39	1-09675-175-2	01	1	1509-
52	GASKET; EYE BOLT,AIR PIPE ALSO INCLUDED IN GASKET SET(ENGINE). ID=24.5 OD=32	9-09571-424-0	02	1	1509-
53	UNION; CHARGE PIPE M22 & M26 ELBOW	8-98008-887-2	01	1	1509-
54	NUT; PIPE UNION M26	8-98049-390-0	01	1	1509-
55	WASHER; LK,PIPE UNION ID=27.5	0-91510-527-0	01	1	1509-
56	BRACKET; AIR PIPE FIX WHEEL BASE 5300MM(53W) (A) X8	8-97605-477-2	01	1	1509-
56	BRACKET; AIR PIPE FIX (B) Q8	8-97603-937-2	01	1	1509-
57	BOLT; BRKT,AIR PIPE WHEEL BASE 5300MM(53W) X8 M10X20 FLANGE	0-28151-020-0	02	1	1509-
57	BOLT; BRKT,AIR PIPE Q8 M10X20 FLANGE	0-28151-020-0	01	1	1509-
77	PIPE; AIR,GOV	8-98285-801-0	01	1	1509-
78	BRACKET; PIPE,AIR GOV (B)	8-97605-218-1	01	1	1509-
78	BRACKET; PIPE,AIR GOV (A)	8-98285-800-0	01	1	1509-
79	BOLT; EYE,AIR PIPE TO CMPR M10X25	9-09906-173-1	01	1	1509-
80	GASKET; AIR PIPE TO CMPR ALSO INCLUDED IN GASKET SET(ENG. & HEAD) ID=10.6	8-98231-393-0	01	1	1509-
92	NUT; UNION M12	9-09840-280-0	03	1	1509-
92	NUT; UNION M12	9-09840-280-0	01	1	1509-
110	CLIP; AIR PIPE (A) ID=5.5 L=10.5	8-98029-953-1	02	1	1509-
110	CLIP; AIR PIPE (B) ID=17 L=17	1-09701-284-0	02	1	1509-
113	BOLT; CLIP,AIR PIPE M8X40 FLANGE	0-28050-840-0	01	1	1509-
115	BOLT; AIR PIPE (A) M6X30 FLANGE	0-28050-630-0	04	1	1509-
115	BOLT; AIR PIPE (B) Q8 M8X25 FLANGE	0-28650-825-0	02	1	1509-
115	BOLT; AIR PIPE WHEEL BASE 5300MM(53W) (B) X8 M8X16 FLANGE	0-28050-816-0	02	1	1509-
128	WASHER; LK,UNION ID=12.2	0-91510-512-0	03	1	1509-
128	WASHER; LK,UNION ID=12.2	0-91510-512-0	01	1	1509-
174	BOLT; BRKT M8X16 FLANGE	0-28050-816-0	02	1	1509-
174	BOLT; BRKT M8X16 FLANGE	0-28050-816-0	02	1	1509-
202	UNION; AIR PIPE M12 L=62.5	0-92113-206-0	03	1	1509-
202	UNION; AIR PIPE M12 L=62.5	0-92113-206-0	01	1	1509-
221	WASHER; PL,GEAR ID=25	0-91614-624-0	01	1	1509-
289	BRACKET; CABLE	8-97430-224-2	01	1	1509-
