0-22 — ENGINE MOUNTING (#176420) — 28 parça

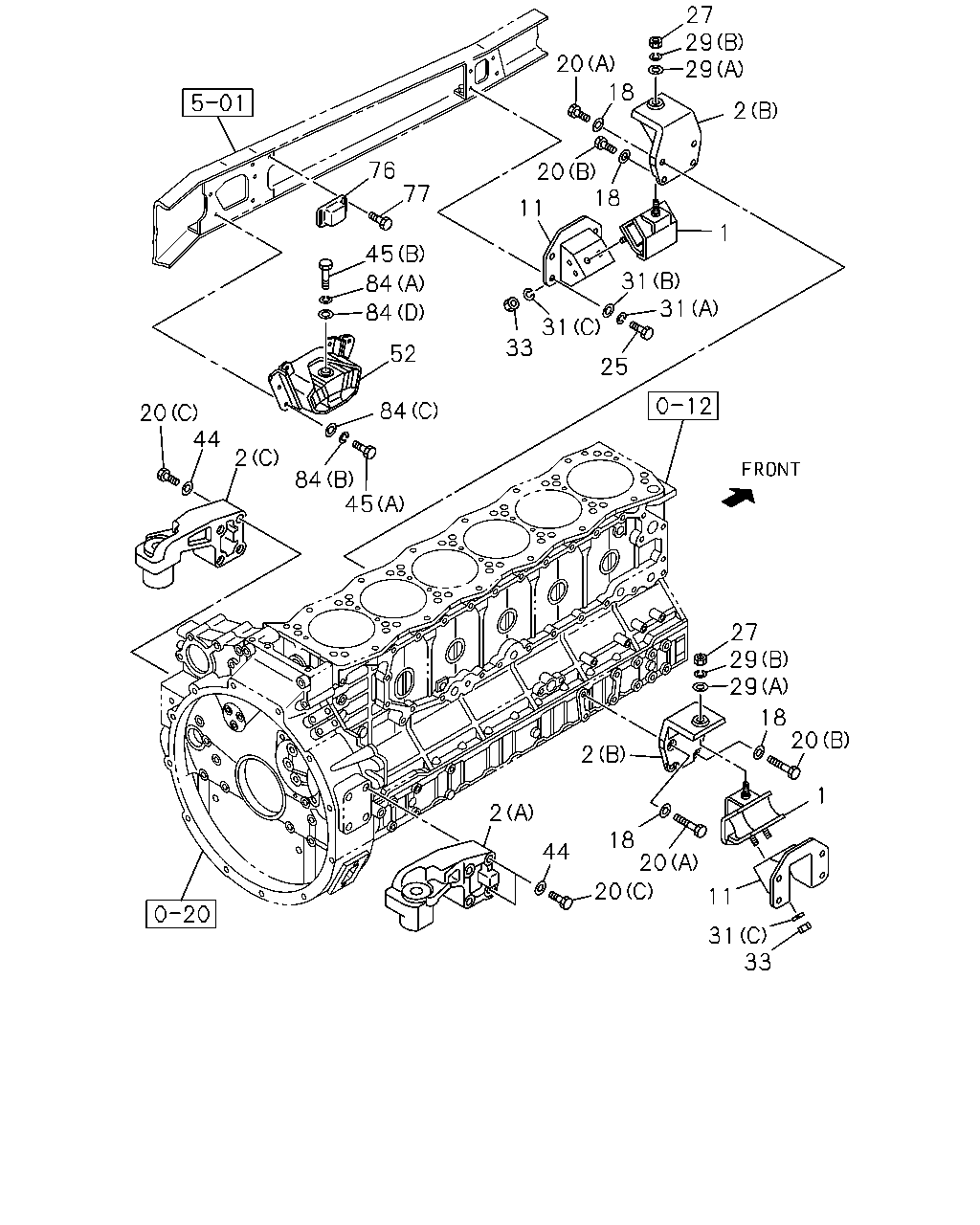

çizim 513140
76 45 84 84 20 44 2 84 45 84 52 20 20 11 33 31 31 25 31 1 18 18 27 29 29 2 2 44 2 20 18 20 31 11 33 20 1 18 29 27 29 77
BalonParca AdiParca NoAdetTipApplied Date
1 RUBBER; ENG FOOT,FRT 1-53215-227-0 02 1 1509-
2 FOOT; ENG
(B) 		8-97430-641-0 02 1 1509-
2 FOOT; ENG
(A) 		8-97430-642-0 01 1 1509-
2 FOOT; ENG
(C) 		8-97430-643-0 01 1 1509-
11 BRACKET; CUSHION RUBBER,FRT 8-98055-378-1 02 1 1509-
18 WASHER; PL,ENG FOOT
ID=12.2 		1-09503-008-0 08 1 1509-
20 BOLT; ENG FOOT
(C) M16X78 		1-09020-113-0 08 1 1509-
20 BOLT; ENG FOOT
(B) M12X24 		1-09020-101-0 04 1 1509-
20 BOLT; ENG FOOT
(A) M12X28.5 		1-09020-100-0 04 1 1509-
25 BOLT; CUSHION RUBBER TO BRKT
M14X35 		0-20951-435-0 08 1 1509-
27 NUT; CUSHION RUBBER TO ENG FOOT
M18 		0-91110-518-0 02 1 1509-
29 PLATE; LK,CUSHION RUBBER,FRT
(A) ID=19 OD=36 		0-91614-618-0 02 1 1509-
29 PLATE; LK,CUSHION RUBBER,FRT
(B) ID=18.2 		0-91510-518-0 02 1 1509-
31 WASHER; LK,BRKT TO FRAME
(A) ID=14.2 		0-91510-814-0 08 1 1509-
31 WASHER; LK,BRKT TO FRAME
(B) ID=15 		8-98010-627-1 08 1 1509-
31 WASHER; LK,BRKT TO FRAME
(C) ID=14.2 		0-91510-514-0 04 1 1509-
33 NUT; CUSHION RUBBER TO BRKT
M14 		0-91110-514-0 04 1 1509-
44 WASHER; LK,ENG FOOT
ID=16.2 		9-09851-672-2 08 1 1509-
45 BOLT; CUSHION RUBBER TO FRAME
(B) M20X85 		8-98013-797-0 02 1 1509-
45 BOLT; CUSHION RUBBER TO FRAME
(A) M14X40 		0-20951-440-0 12 1 1509-
52 RUBBER; CUSHION,ENG MTG,RR 8-98055-382-0 01 1 1509-
52 RUBBER; CUSHION,ENG MTG,RR 8-98055-380-0 01 1 1509-
76 STOPPER; ENG MTG RUBBER 1-53229-056-1 02 1 1509-
77 BOLT; STOPPER
M8X16 FLANGE 		0-28050-816-0 04 1 1509-
84 WASHER; PL,ENG MTG RR TO FRAME
(D) ID=23 		9-09164-622-0 02 1 1509-
84 WASHER; PL,ENG MTG RR TO FRAME
(C) ID=15 		8-98010-627-1 12 1 1509-
84 WASHER; PL,ENG MTG RR TO FRAME
(B) ID=14.2 		0-91510-814-0 12 1 1509-
84 WASHER; PL,ENG MTG RR TO FRAME
(A) ID=22.5 		0-91510-622-0 02 1 1509-
