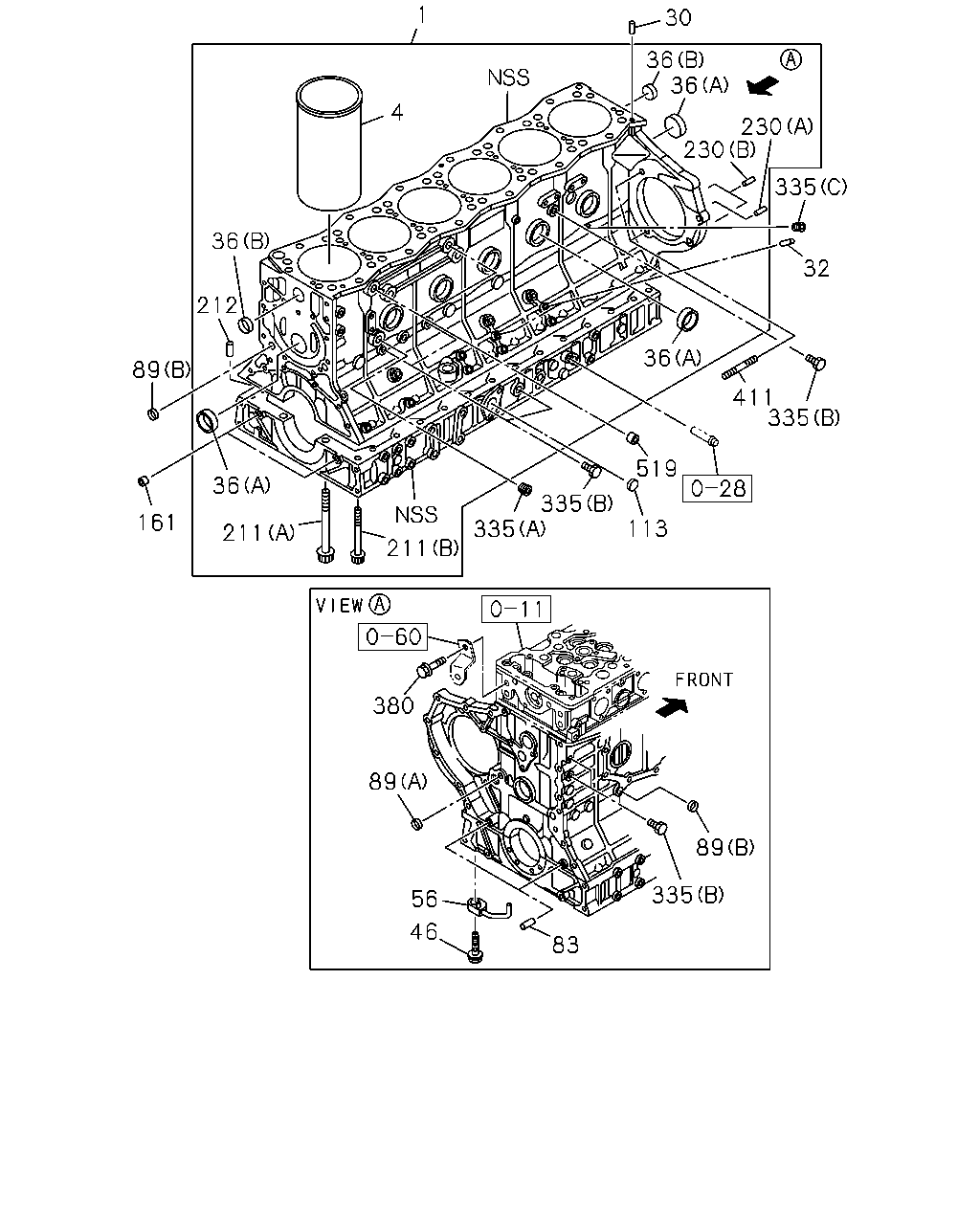

1 |
BLOCK ASM; CYL
|
8-97430-638-0 |
01 |
1 |
1509- |
| |
4 |
LINER; C/BL
ALSO INCLUDED IN LINER SET.
OD GRADE=1X,ID GRADE=AX
|
8-98112-230-0 |
06 |
1 |
1509- |
| |
4 |
LINER; C/BL
ALSO INCLUDED IN LINER SET.
OD GRADE=1X,ID GRADE=CX
|
8-98112-231-0 |
06 |
1 |
1509- |
| |
4 |
LINER; C/BL
ALSO INCLUDED IN LINER SET.
OD GRADE=3X,ID GRADE=AX
|
8-98112-232-0 |
06 |
1 |
1509- |
| |
4 |
LINER; C/BL
ALSO INCLUDED IN LINER SET.
OD GRADE=3X,ID GRADE=CX
|
8-98112-233-0 |
06 |
1 |
1509- |
| |
30 |
PIN; CYL HD GASKET SETTING
OD=8 L=16
|
9-08150-816-0 |
02 |
1 |
1509- |
| |
32 |
PIN; INJ PUMP BRKT
OD=8 L=16
|
9-08150-816-0 |
02 |
1 |
1509- |
| |
36 |
CUP; SEALING,WATER JACKET
(A)
OD=45
|
1-09600-058-1 |
07 |
1 |
1509- |
| |
36 |
CUP; SEALING,WATER JACKET
(B)
OD=32
|
1-09600-059-1 |
02 |
1 |
1509- |
| |
46 |
BOLT; JOINT,OIL JET,PISTON COOLING
M10X21 FLANGE
|
8-97372-238-0 |
06 |
1 |
1509- |
| |
56 |
JET; OIL,PISTON COOLING
|
8-98275-246-0 |
06 |
1 |
1509- |
| |
83 |
PIN; FLYWHEEL HSG
OD=10 L=22
|
9-08151-022-0 |
02 |
1 |
1509- |
| |
89 |
CUP; SEALING,OIL GALLERY
(B)
OD=20
|
9-11129-128-0 |
02 |
1 |
1509- |
| |
89 |
CUP; SEALING,OIL GALLERY
(A)
OD=16
|
5-11129-006-0 |
01 |
1 |
1509- |
| |
113 |
CUP; SEALING
OD=32
|
1-09600-012-2 |
01 |
1 |
1509- |
| |
161 |
DOWEL; FRT COVER
|
1-13119-004-0 |
02 |
1 |
1509- |
| |
211 |
BOLT; CRANKCASE
(B)
M10X95 FLANGE
|
8-98141-538-0 |
28 |
1 |
1509- |
| |
211 |
BOLT; CRANKCASE
(A)
M15X126.5 FLANGE
|
8-98229-864-0 |
14 |
1 |
1509- |
| |
212 |
PIN; CRANKCASE
OD=12 L=28
|
1-09740-031-0 |
02 |
1 |
1509- |
| |
230 |
PIN; THRUST METAL,CR/SHF
(B)
OD=5 L=10
|
9-08160-510-0 |
02 |
1 |
1509- |
| |
230 |
PIN; THRUST METAL,CR/SHF
(A)
L=25
|
1-09749-025-1 |
02 |
1 |
1509- |
| |
335 |
PLUG; C/BL,SIDE
(B)
M14X16.5
|
8-97329-617-0 |
04 |
1 |
1509- |
| |
335 |
PLUG; C/BL,SIDE
(A)
PT3/8
|
1-09605-056-0 |
01 |
1 |
1509- |
| |
335 |
PLUG; C/BL,SIDE
(C)
PT1/8
|
1-09605-050-0 |
01 |
1 |
1509- |
| |
335 |
PLUG; C/BL,SIDE
(B)
M14X16.5
|
8-97329-617-0 |
02 |
1 |
1509- |
| |
380 |
BOLT; BRKT,HEAT PROTECTOR
WHEEL BASE 5300MM(53W)
X8
M12X16
|
0-28151-216-0 |
01 |
1 |
1509- |
| |
411 |
STUD; BRG CASE
M12X40 L=58
|
9-94411-240-0 |
02 |
1 |
1509- |
| |
519 |
DOWEL; RAIL BRKT
OD=14 L=9
|
9-19759-019-1 |
02 |
1 |
1509- |
