Isuzu WW
▶
TRUCKS
▶
EXZ
▶
11745 - EXZ LHD EURO5
▶
8 - Chassis Electrical, Heating / Air Conditioning, Wipers, Radio
▶
8-90 - RADIO AND TV
▶

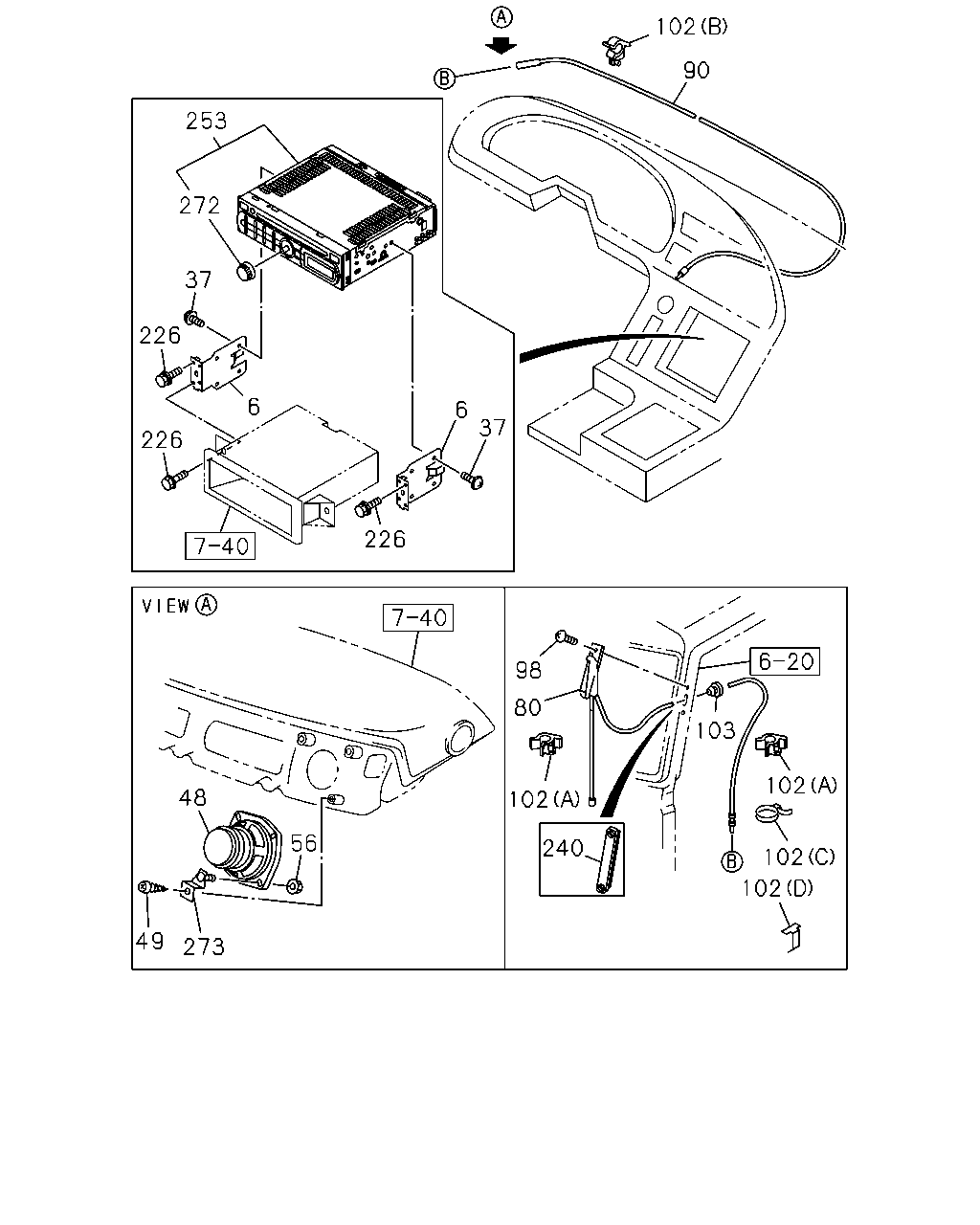

8-90 — RADIO AND TV
(#176410) — 18 parça
253
272
37
226
226
6
226
6
37
48
49
273
56
98
80
102
240
103
102
102
102
102
90
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
6
BRACKET; RADIO TO PANEL
1-65671-822-1
02
1
1512-
37
SCREW; CASSETTE & RADIO
RADIO AM/FM STEREO CD(UT3) M5X10 W/LK+PL WASHER
0-36230-510-0
04
1
1512-
48
SPEAKER; AUDIO
SPEAKER SYSTEM FRT 2 SPEAKERS<UX6>
8-98140-326-1
02
1
1512-
49
SCREW; SPEAKER
SPEAKER SYSTEM FRT 2 SPEAKERS<UX6> M5X14
8-94279-325-0
06
1
1512-
56
NUT; SPEAKER,RADIO OR STEREO
SPEAKER SYSTEM FRT 2 SPEAKERS<UX6> M5 FLANGE
1-09984-170-0
02
1
1512-
80
ANTENNA
ANTENNA RADIO<U73>
8-98210-874-1
01
1
1512-
90
CABLE; ANTENNA,FEEDER
ANTENNA RADIO<U73>
1-84113-011-2
01
1
1512-
98
SCREW; TAP,ANTENNA
ANTENNA RADIO<U73> M5X11
1-09981-536-1
02
1
1512-
102
CLIP; CABLE
ANTENNA RADIO<U73> (D) L=20 SET=10 PIECE
1-09987-246-2
01
1
1512-
102
CLIP; CABLE
ANTENNA RADIO<U73> (A) W/PACKING ID=4.8
1-73907-618-0
05
1
1512-
102
CLIP; CABLE
ANTENNA RADIO<U73> (B) WO/PACKING ID=4.8
8-94128-483-0
02
1
1512-
102
CLIP; CABLE
ANTENNA RADIO<U73> EXC. RADIO AM/FM STEREO CD(UT3) (C) L=140
5-09707-031-1
01
1
1512-
103
GROMMET; ANTENNA HOLE,FRT
ANTENNA RADIO<U73>
8-97027-381-0
01
1
1512-
226
BOLT; BRKT
M6X19.5 W/LK&PL WASHER
8-94279-201-0
04
1
1512-
240
COVER; ANTENNA
EXC. ANTENNA RADIO<U73>
1-79996-296-0
01
1
1512-
253
DECK ASM; RADIO & CD
RADIO AM/FM STEREO CD(UT3)
8-98105-038-0
01
1
1512-
272
KNOB; AUDIO CONTROL
RADIO AM/FM STEREO CD(UT3) CLARION
8-98048-329-0
01
1
1512-
273
BRACKET; SPEAKER
SPEAKER SYSTEM FRT 2 SPEAKERS<UX6>
1-65671-788-0
02
1
1512-
