◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ EXZ ▶ 11745 - EXZ LHD EURO5 ▶ 8 - Chassis Electrical, Heating / Air Conditioning, Wipers, Radio ▶ 8-60 - HEATER UNIT; FRONT ▶
8-60 — HEATER UNIT; FRONT (#176404) — 36 parça

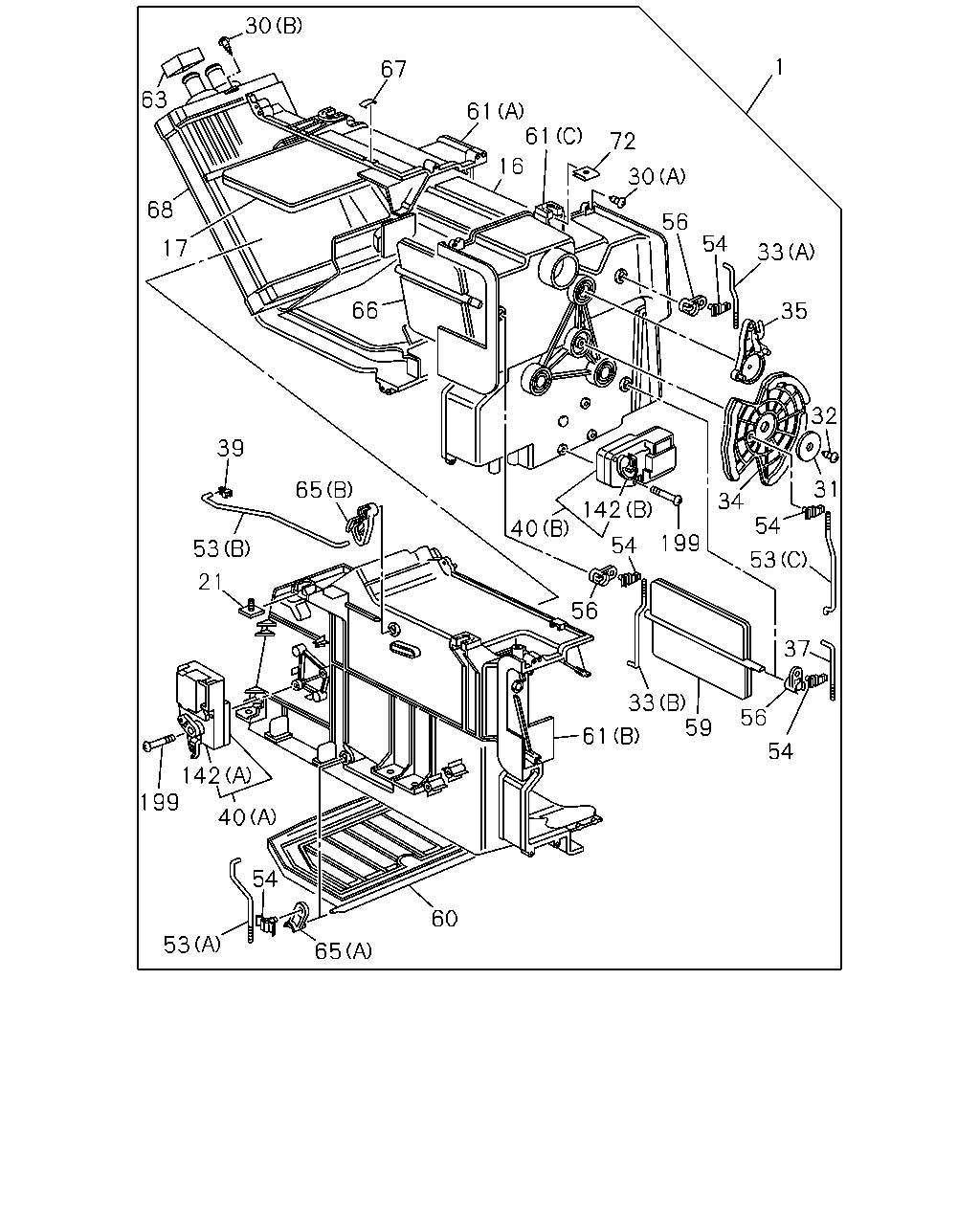

çizim 514101
63 68 30 17 66 67 61 16 61 72 56 30 54 35 1 32 31 34 53 142 40 54 199 54 37 54 56 59 33 61 60 65 53 54 199 40 142 21 53 39 65 56 33
BalonParca AdiParca NoAdetTipApplied Date
1 HEATER UNIT 8-98238-491-0 01 1 1512-
16 SHUTTER; HTR UNIT,CENTER UPR 1-83579-789-0 01 1 1512-
17 SHUTTER; HTR UNIT,CENTER 1-83579-787-0 01 1 1512-
21 BOLT; CASE,HTR UNIT 1-83579-657-2 02 1 1512-
30 SCREW; HTR UNIT
(B) M5X16 		8-94248-820-0 01 1 1512-
30 SCREW; HTR UNIT
(A) M4X16 		8-94324-850-0 12 1 1512-
31 WASHER; HTR UNIT 8-94129-950-0 01 1 1512-
32 SCREW; HTR UNIT
M5X16 		8-94248-820-0 01 1 1512-
33 ROD; SHUTTER LEVER
(A) 		1-83579-619-0 01 1 1512-
33 ROD; SHUTTER LEVER
(B) 		1-83579-621-0 01 1 1512-
34 LEVER; SHUTTER,HTR UNIT 1-83564-367-0 01 1 1512-
35 LEVER; SHUTTER,HTR UNIT 8-94380-580-0 03 1 1512-
37 ROD; LEVER 1-83579-620-1 01 1 1512-
39 CLIP; HTR UNIT 1-83574-136-0 01 1 1512-
40 ACTUATOR; HTR UNIT
(A) 		1-83579-792-1 01 1 1512-
40 ACTUATOR; HTR UNIT
(B) 		8-97087-574-1 01 1 1512-
53 ROD; SHUTTER LEVER
(A) 		1-83579-623-0 01 1 1512-
53 ROD; SHUTTER LEVER
(B) 		1-83579-793-0 01 1 1512-
53 ROD; SHUTTER LEVER
(C) 		1-83579-794-0 01 1 1512-
54 CLIP; SHUTTER LEVER 8-94248-794-0 05 1 1512-
56 LEVER; SHUTTER,HTR UNIT 1-83564-325-0 03 1 1512-
59 SHUTTER; HTR UNIT,SIDE 1-83579-790-0 01 1 1512-
60 DOOR; MIX,HTR UNIT 1-83579-788-0 01 1 1512-
61 CASE; HTR UNIT
(A) 		1-83564-363-0 01 1 1512-
61 CASE; HTR UNIT
(B) 		1-83564-364-0 01 1 1512-
61 CASE; HTR UNIT
(C) 		1-83564-365-1 01 1 1512-
63 LINING; HTR UNIT 1-83579-557-0 02 1 1512-
65 LEVER; MIX,DOOR
(A) 		1-83564-328-1 01 1 1512-
65 LEVER; MIX,DOOR
(B) 		1-83564-366-0 01 1 1512-
66 SHUTTER; HTR UNIT,CENTER LWR 1-83579-791-0 01 1 1512-
67 CLIP; HTR UNIT 1-83574-148-0 01 1 1512-
68 CORE; HTR UNIT 8-98238-475-0 01 1 1512-
72 NUT; CASE,HTR UNIT 1-83579-659-4 02 1 1512-
142 LEVER; ACTUATOR
(A) 		1-83564-384-0 01 1 1512-
142 LEVER; ACTUATOR
(B) 		1-83564-385-0 01 1 1512-
199 SCREW; ACTUATOR 8-94348-809-0 04 1 1512-
