8-52 — PIPING; AIR CONDITIONING (#176403) — 55 parça

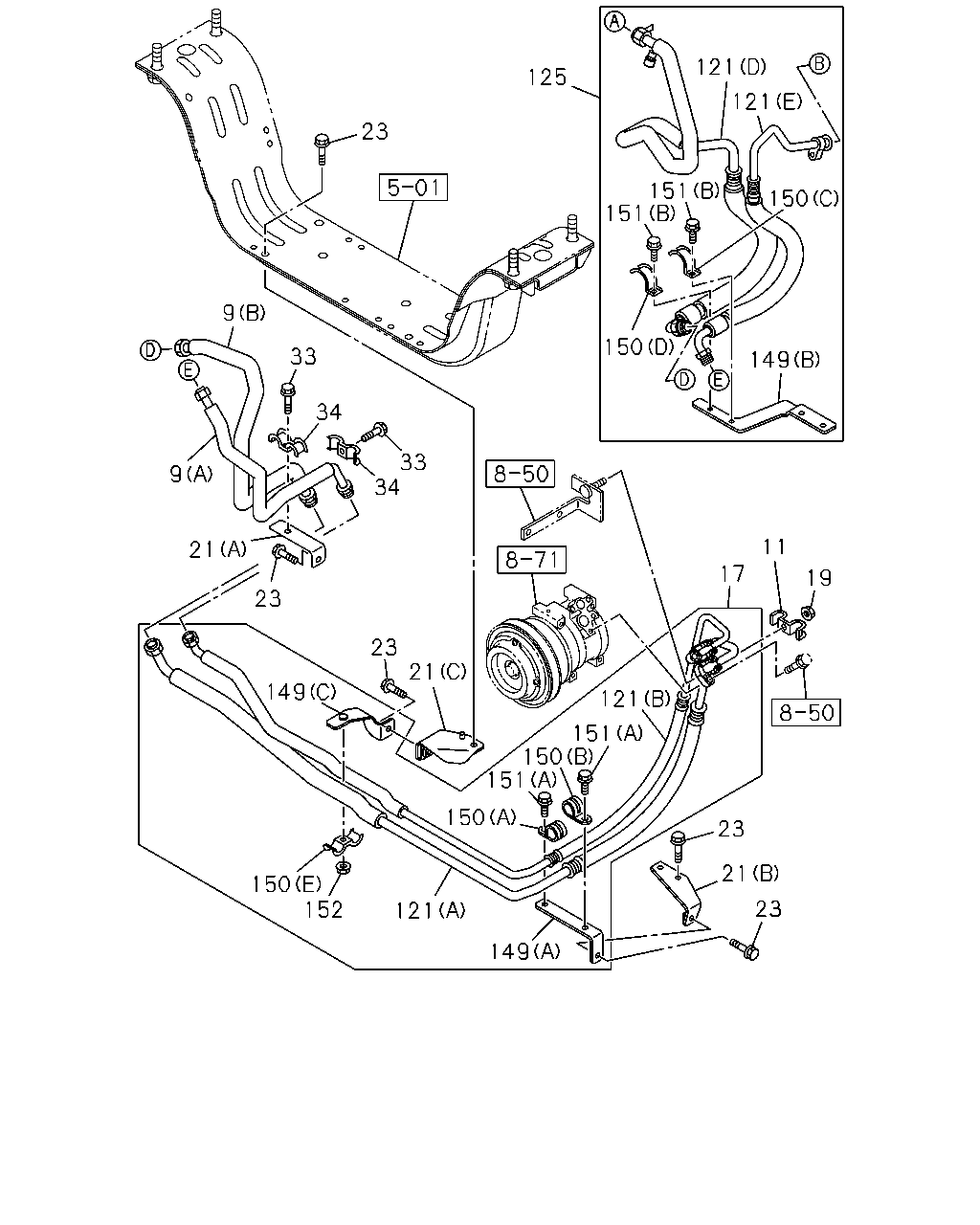

23 125 9 34 33 9 21 23 34 33 149 23 21 150 152 121 150 150 151 151 17 19 11 121 23 21 23 150 149 151 151 121 121 150 149

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
9	PIPE; COOLER,HOSE TO HOSE AIR CONDITIONER MANUAL CONTROL(C60) (A)	8-98233-443-0	01	1	1512-
9	PIPE; COOLER,HOSE TO HOSE AIR CONDITIONER MANUAL CONTROL(C60) (B)	8-98233-444-0	01	1	1512-
11	CLIP; COOLER PIPE AIR CONDITIONER MANUAL CONTROL(C60) ID=12 & 14.5	1-83574-257-0	01	1	1512-
17	HOSE; FLEX,CMPR TO PIPE AIR CONDITIONER MANUAL CONTROL(C60) FRONT UNDER RUN PROTECTOR<EBE>	8-98286-395-0	01	1	1512-
17	HOSE; FLEX,CMPR TO PIPE AIR CONDITIONER MANUAL CONTROL(C60) EXC. FRONT UNDER RUN PROTECTOR<EBE>	8-98233-440-0	01	1	1512-
19	NUT; CLIP FIX AIR CONDITIONER MANUAL CONTROL(C60) M8 FLANGE	0-91180-108-0	01	1	1512-
21	BRACKET; COOLER HOSE AIR CONDITIONER MANUAL CONTROL(C60) (B)	8-98227-084-0	01	1	1512-
21	BRACKET; COOLER HOSE AIR CONDITIONER MANUAL CONTROL(C60) (C)	8-98233-463-0	01	1	1512-
21	BRACKET; COOLER HOSE AIR CONDITIONER MANUAL CONTROL(C60) EXC. FRONT UNDER RUN PROTECTOR<EBE> (A)	8-98239-925-0	01	1	1512-
23	BOLT; BRKT AIR CONDITIONER MANUAL CONTROL(C60) M8X25 FLANGE	0-28650-825-0	02	1	1512-
23	BOLT; BRKT AIR CONDITIONER MANUAL CONTROL(C60) M10X25 FLANGE	0-28651-025-0	02	1	1512-
23	BOLT; BRKT AIR CONDITIONER MANUAL CONTROL(C60) M8X24.5 W/LK&PL WASHER	8-98059-720-0	01	1	1512-
23	BOLT; BRKT AIR CONDITIONER MANUAL CONTROL(C60) EXC. FRONT UNDER RUN PROTECTOR<EBE> M8X25 FLANGE	0-28650-825-0	01	1	1512-
33	BOLT; CLIP AIR CONDITIONER MANUAL CONTROL(C60) M8X25 FLANGE	0-28650-825-0	02	1	1512-
33	BOLT; CLIP AIR CONDITIONER MANUAL CONTROL(C60) M8X24.5 W/LK&PL WASHER	8-98059-720-0	04	1	1512-
34	CLIP; COOLER PIPE AIR CONDITIONER MANUAL CONTROL(C60) ID=20 & 20	1-83574-195-1	02	1	1512-
121	HOSE; COOLER AIR CONDITIONER MANUAL CONTROL(C60) (C)	8-98233-361-0	01	1	1512-
121	HOSE; COOLER AIR CONDITIONER MANUAL CONTROL(C60) (D)	8-98241-660-0	01	1	1512-
121	HOSE; COOLER AIR CONDITIONER MANUAL CONTROL(C60) (E)	8-98241-661-0	01	1	1512-
121	HOSE; COOLER AIR CONDITIONER MANUAL CONTROL(C60) (B)	8-98242-701-0	01	1	1512-
121	HOSE; COOLER AIR CONDITIONER MANUAL CONTROL(C60) FRONT UNDER RUN PROTECTOR<EBE> (A)	8-98290-738-0	01	1	1512-
121	HOSE; COOLER AIR CONDITIONER MANUAL CONTROL(C60) EXC. FRONT UNDER RUN PROTECTOR<EBE> (A)	8-98242-700-0	01	1	1512-
125	HOSE; FLEX,UNIT TO CMPR AIR CONDITIONER MANUAL CONTROL(C60)	8-98247-291-0	01	1	1512-
149	BRACKET; COOLER HOSE AIR CONDITIONER MANUAL CONTROL(C60) (B)	1-83573-206-1	01	1	1512-
149	BRACKET; COOLER HOSE AIR CONDITIONER MANUAL CONTROL(C60) (A)	8-98232-117-0	01	1	1512-
149	BRACKET; COOLER HOSE AIR CONDITIONER MANUAL CONTROL(C60) (C)	8-98243-874-0	01	1	1512-
150	CLIP; HOSE AIR CONDITIONER MANUAL CONTROL(C60) (A)	1-83574-249-0	01	1	1512-
150	CLIP; HOSE AIR CONDITIONER MANUAL CONTROL(C60) (C)	1-83574-254-0	01	1	1512-
150	CLIP; HOSE AIR CONDITIONER MANUAL CONTROL(C60) (D)	1-83574-255-0	01	1	1512-
150	CLIP; HOSE AIR CONDITIONER MANUAL CONTROL(C60) (B)	1-83574-264-0	01	1	1512-
150	CLIP; HOSE AIR CONDITIONER MANUAL CONTROL(C60) FRONT UNDER RUN PROTECTOR<EBE> (E) ID=20 & 20	1-83574-195-1	01	1	1512-
150	CLIP; HOSE AIR CONDITIONER MANUAL CONTROL(C60) EXC. FRONT UNDER RUN PROTECTOR<EBE> (E)	1-83574-288-0	01	1	1512-
151	BOLT; CLIP FIX,COOLER HOSE AIR CONDITIONER MANUAL CONTROL(C60) (B)	1-83539-336-0	02	1	1512-
151	BOLT; CLIP FIX,COOLER HOSE AIR CONDITIONER MANUAL CONTROL(C60) FRONT UNDER RUN PROTECTOR<EBE> (A)	1-83575-098-0	02	1	1512-
151	BOLT; CLIP FIX,COOLER HOSE AIR CONDITIONER MANUAL CONTROL(C60) EXC. FRONT UNDER RUN PROTECTOR<EBE> (A)	1-83578-098-0	02	1	1512-
152	NUT; CLIP AIR CONDITIONER MANUAL CONTROL(C60) M8	1-83539-319-0	01	1	1512-

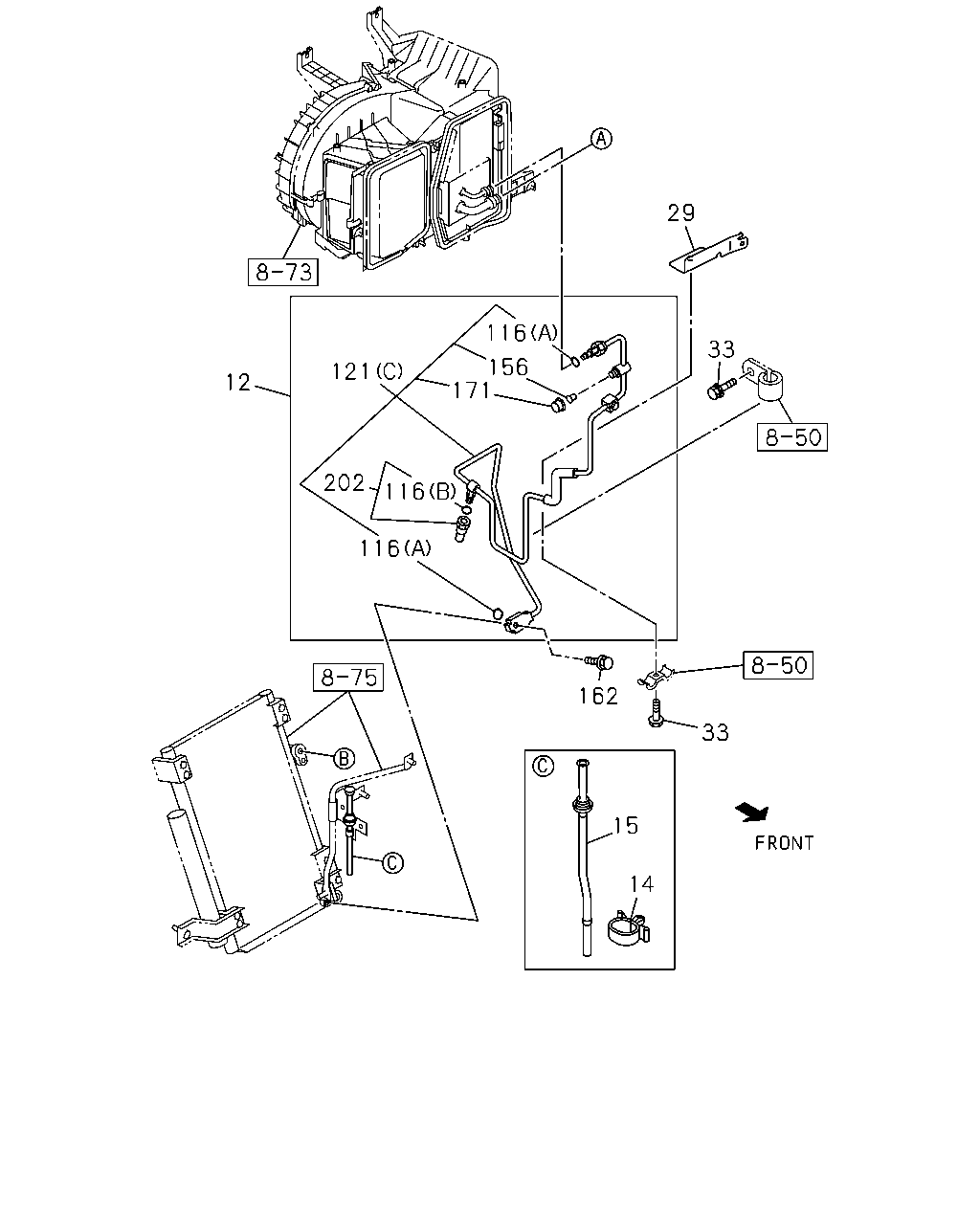

29 121 12 116 171 156 33 162 33 15 14 116 202 116

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
12	PIPE; COOLER,EVAP TO TANK AIR CONDITIONER MANUAL CONTROL(C60)	8-98228-386-0	01	1	1512-
14	CLIP; BAND,EVAP DRAIN HOSE AIR CONDITIONER MANUAL CONTROL(C60) ID=20	8-94410-200-0	01	1	1512-
15	HOSE; DRAIN AIR CONDITIONER MANUAL CONTROL(C60)	1-83572-635-0	01	1	1512-
15	HOSE; DRAIN HEATER & DEFROSTER(C41)	1-83572-412-0	01	1	1512-
29	BRACKET; COOLER PIPE AIR CONDITIONER MANUAL CONTROL(C60)	8-98228-480-1	01	1	1512-
33	BOLT; CLIP AIR CONDITIONER MANUAL CONTROL(C60) M8X25 FLANGE	0-28650-825-0	02	1	1512-
33	BOLT; CLIP AIR CONDITIONER MANUAL CONTROL(C60) M8X24.5 W/LK&PL WASHER	8-98059-720-0	04	1	1512-
116	GASKET; PIPE AIR CONDITIONER MANUAL CONTROL(C60) (A) ID=7.4	8-97095-906-0	02	1	1512-
116	GASKET; PIPE AIR CONDITIONER MANUAL CONTROL(C60) (B)	8-97178-772-0	01	1	1512-
121	HOSE; COOLER AIR CONDITIONER MANUAL CONTROL(C60) (C)	8-98233-361-0	01	1	1512-
121	HOSE; COOLER AIR CONDITIONER MANUAL CONTROL(C60) (D)	8-98241-660-0	01	1	1512-
121	HOSE; COOLER AIR CONDITIONER MANUAL CONTROL(C60) (E)	8-98241-661-0	01	1	1512-
121	HOSE; COOLER AIR CONDITIONER MANUAL CONTROL(C60) (B)	8-98242-701-0	01	1	1512-
121	HOSE; COOLER AIR CONDITIONER MANUAL CONTROL(C60) FRONT UNDER RUN PROTECTOR<EBE> (A)	8-98290-738-0	01	1	1512-
121	HOSE; COOLER AIR CONDITIONER MANUAL CONTROL(C60) EXC. FRONT UNDER RUN PROTECTOR<EBE> (A)	8-98242-700-0	01	1	1512-
156	VALVE; PIPE AIR CONDITIONER MANUAL CONTROL(C60)	8-97095-909-0	01	1	1512-
162	BOLT; FLEX HOSE AIR CONDITIONER MANUAL CONTROL(C60) M6X25 FLANGE	0-28050-625-0	02	1	1512-
171	CAP; PIPE AIR CONDITIONER MANUAL CONTROL(C60) CAP MARK H	8-97095-911-0	01	1	1512-
202	SWITCH; PRESSURE AIR CONDITIONER MANUAL CONTROL(C60)	1-83564-392-1	01	1	1512-
