Sayfa 4-35 - Isuzu EPC

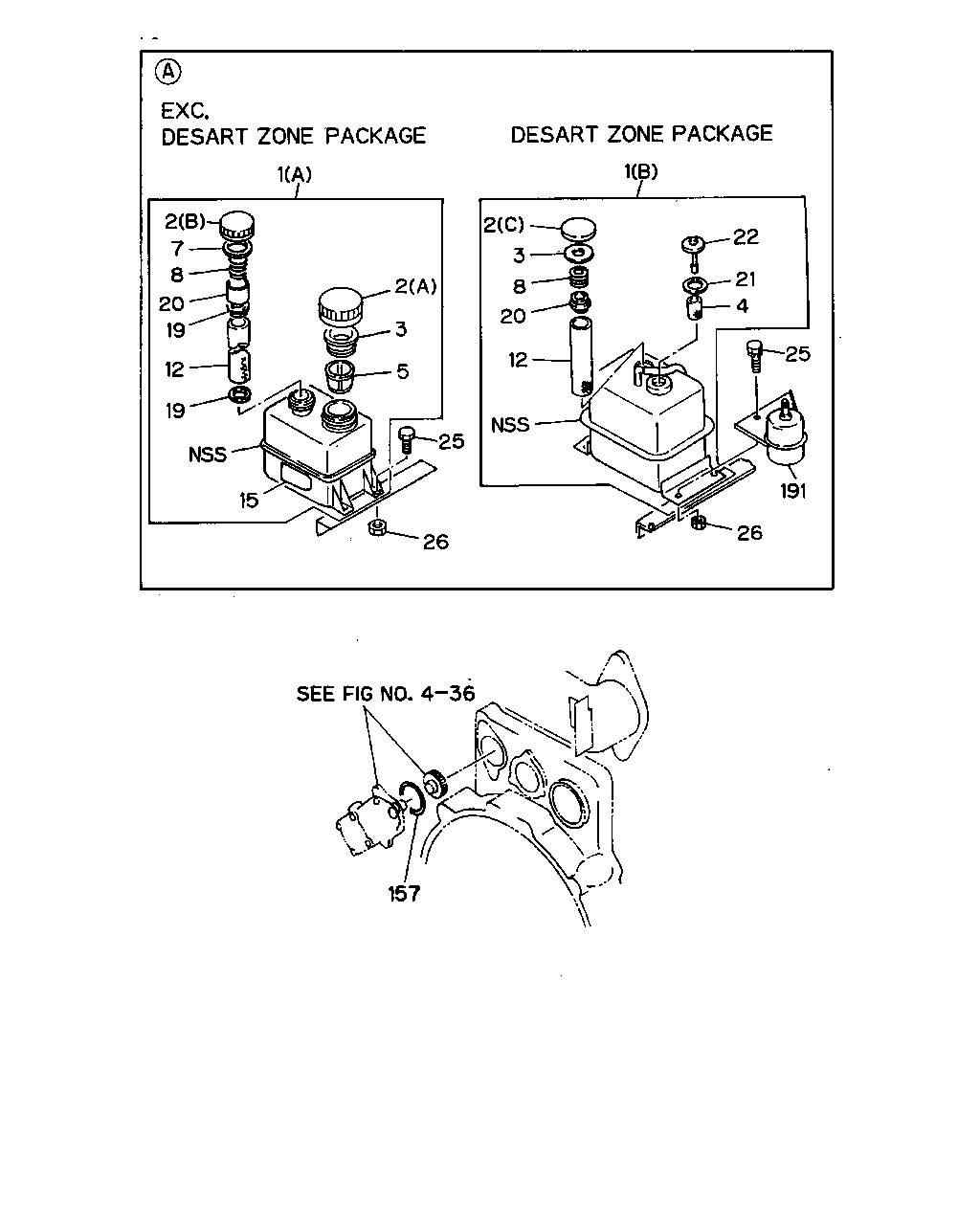

4-35 — POWER STEERING CONTROL; CHASSIS SIDE (#1764) — 290 parça

48 45 74 31 34

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
31	HOSE; P/S OIL TANK,INL	1-21111-924-0	01	1	9002-	●	●
34	HOSE; P/S OIL TANK,OUTLET 8PD1 STD ENG(38L),10PD1 STD ENG(40L)	1-21113-001-0	01	1	9307-	●
34	HOSE; P/S OIL TANK,OUTLET	1-21113-001-0	01	1	9307-		●
34	HOSE; P/S OIL TANK,OUTLET L TYPE ENG<90L> CAB UP 50MM(W60)	1-21112-054-1	01	1	9002-	●	●
34	HOSE; P/S OIL TANK,OUTLET L TYPE ENG<90L> EXC. CAB UP 50MM(W60)	1-21112-037-2	01	1	9002-	●	●
34	HOSE; P/S OIL TANK,OUTLET 10PD1 STD ENG(40L)	1-21112-084-1	01	1	9002-9306	●	●
34	HOSE; P/S OIL TANK,OUTLET 12PD1 STD ENG(42L)	1-21112-279-0	01	1	9002-9306		●
45	PIPE; OIL,P/S UNIT TO UNION L TYPE ENG<90L> NYLON TUBE AIR PIPING<Z29>	1-21113-486-0	01	1	9002-	●
45	PIPE; OIL,P/S UNIT TO UNION L TYPE ENG<90L> EXC. NYLON TUBE AIR PIPING<Z29>	1-21113-485-0	01	1	9002-9002	●
45	PIPE; OIL,P/S UNIT TO UNION L TYPE ENG<90L> EXC. NYLON TUBE AIR PIPING<Z29>	1-21113-762-0	01	1	9003-9008	●
45	PIPE; OIL,P/S UNIT TO UNION L TYPE ENG<90L> EXC. NYLON TUBE AIR PIPING<Z29>	1-21113-809-0	01	1	9009-	●
45	PIPE; OIL,P/S UNIT TO UNION	1-21113-686-0	01	1	9307-		●
45	PIPE; OIL,P/S UNIT TO UNION 12PD1 STD ENG(42L)	1-21113-684-0	01	1	9002-9002		●
45	PIPE; OIL,P/S UNIT TO UNION 12PD1 STD ENG(42L)	1-21113-761-0	01	1	9003-9306		●
45	PIPE; OIL,P/S UNIT TO UNION 6RB1 STD ENG(07L),10PD1 STD ENG(40L)	1-21113-685-0	01	1	9002-9002		●
45	PIPE; OIL,P/S UNIT TO UNION 6RB1 STD ENG(07L),10PD1 STD ENG(40L)	1-21113-686-0	01	1	9003-9306		●
48	PIPE; OIL,FLEX HOSE TO STRG UNIT L TYPE ENG<90L> NYLON TUBE AIR PIPING<Z29>	1-21113-317-0	01	1	9002-9306	●
48	PIPE; OIL,FLEX HOSE TO STRG UNIT L TYPE ENG<90L> NYLON TUBE AIR PIPING<Z29>	1-21114-440-0	01	1	9307-	●
48	PIPE; OIL,FLEX HOSE TO STRG UNIT L TYPE ENG<90L> EXC. NYLON TUBE AIR PIPING<Z29>	1-21113-481-0	01	1	9002-9006	●
48	PIPE; OIL,FLEX HOSE TO STRG UNIT L TYPE ENG<90L> EXC. NYLON TUBE AIR PIPING<Z29>	1-21113-799-0	01	1	9007-9306	●
48	PIPE; OIL,FLEX HOSE TO STRG UNIT L TYPE ENG<90L> EXC. NYLON TUBE AIR PIPING<Z29>	1-21114-443-0	01	1	9307-	●
48	PIPE; OIL,FLEX HOSE TO STRG UNIT 10PD1 STD ENG(40L)	1-21113-531-0	01	1	9002-9306	●
48	PIPE; OIL,FLEX HOSE TO STRG UNIT 10PD1 STD ENG(40L)	1-21114-441-0	01	1	9307-9410	●
48	PIPE; OIL,FLEX HOSE TO STRG UNIT 10PD1 STD ENG(40L) EXC. FRAME EQUIPMENT HEAVY DUTY<F03>,ANTI NOISE EQUIPMENT<SV9>	1-21114-441-0	01	1	9411-	●
48	PIPE; OIL,FLEX HOSE TO STRG UNIT 10PD1 STD ENG(40L) ANTI NOISE EQUIPMENT<SV9> EXC. FRAME EQUIPMENT HEAVY DUTY<F03>	1-21115-258-0	01	1	9411-	●
48	PIPE; OIL,FLEX HOSE TO STRG UNIT 8PD1 STD ENG(38L) FRAME EQUIPMENT HEAVY DUTY<F03>	1-21114-848-0	01	1	9307-9308	●
48	PIPE; OIL,FLEX HOSE TO STRG UNIT 8PD1 STD ENG(38L) FRAME EQUIPMENT HEAVY DUTY<F03>	1-21114-955-0	01	1	9309-	●
48	PIPE; OIL,FLEX HOSE TO STRG UNIT 8PD1 STD ENG(38L) EXC. FRAME EQUIPMENT HEAVY DUTY<F03>	1-21114-849-0	01	1	9307-9308	●
48	PIPE; OIL,FLEX HOSE TO STRG UNIT 8PD1 STD ENG(38L) EXC. FRAME EQUIPMENT HEAVY DUTY<F03>	1-21114-956-0	01	1	9309-	●
74	PIPE; OIL,P/S,UNION TO FLEX HOSE L TYPE ENG<90L> CAB UP 50MM(W60) L=1372	1-21113-535-0	01	1	9002-	●
74	PIPE; OIL,P/S,UNION TO FLEX HOSE L TYPE ENG<90L> EXC. CAB UP 50MM(W60) L=1279	1-21113-099-0	01	1	9002-	●
74	PIPE; OIL,P/S,UNION TO FLEX HOSE 10PD1 STD ENG(40L) L=3012	1-21113-538-0	01	1	9002-		●
74	PIPE; OIL,P/S,UNION TO FLEX HOSE 12PD1 STD ENG(42L) L=3269	1-21113-682-0	01	1	9002-9011		●
74	PIPE; OIL,P/S,UNION TO FLEX HOSE 12PD1 STD ENG(42L) L=3254	1-21113-766-0	01	1	9012-9306		●

58 61 61 37 68 227 55 37 37 64 62 65 63 58 54 54 54 58 64 63 65 66 61 66 68 59 39 55 58 58 54 65 63 64 58 62 62 54 166 262 234 76 66 63 66 61 255 239 257 256 256 257 255 59 58 66 61 61 58 58 54 59 202 203 203 65 64 68 63 63 54 58 59 61 58 65 66

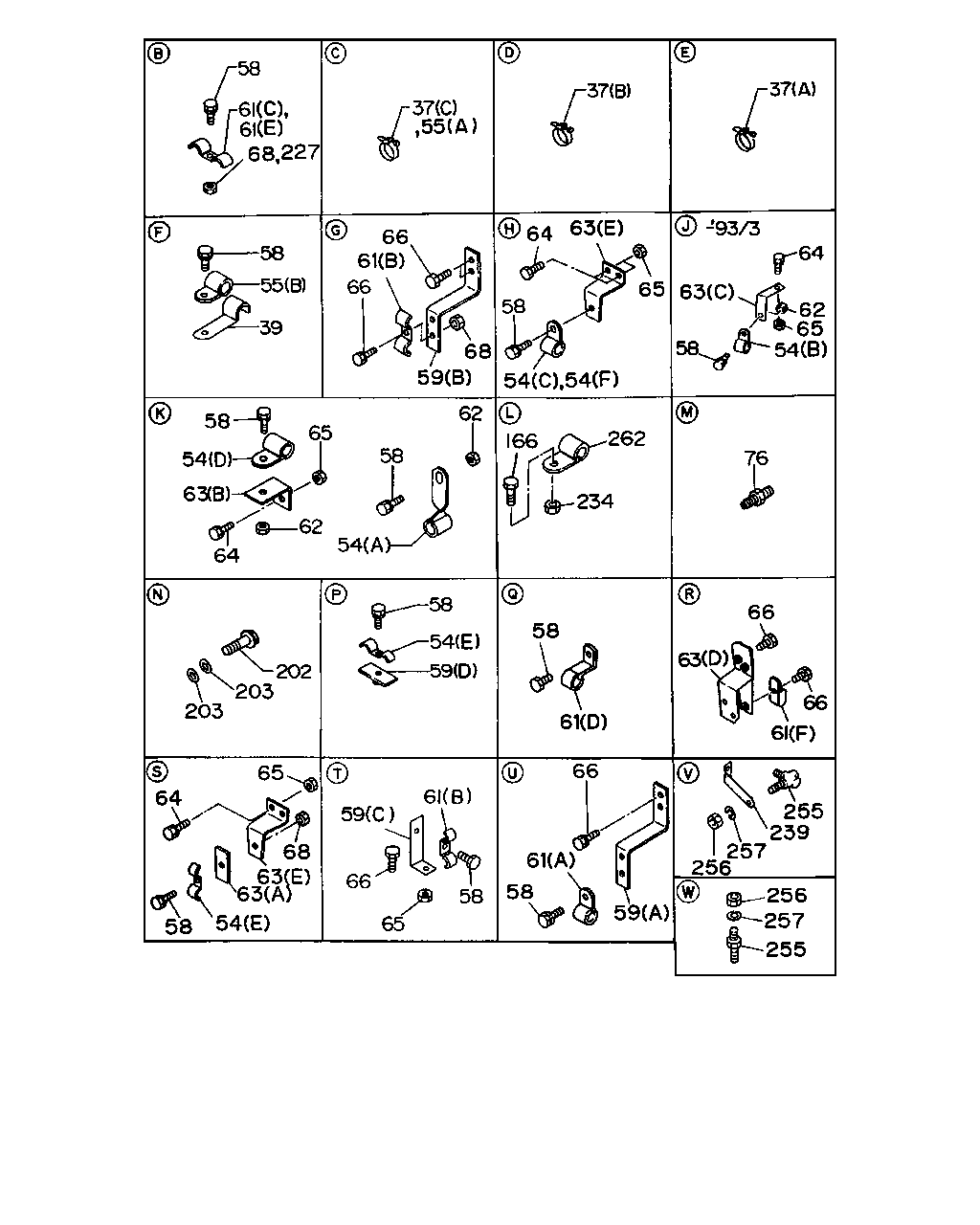

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
37	CLIP; HOSE,P/S (C) ID=28	9-09915-672-1	02	1	9002-	●	●
37	CLIP; HOSE,P/S L TYPE ENG<90L> (A) ID=38	9-09915-666-1	02	1	9002-	●	●
37	CLIP; HOSE,P/S V TYPE ENG<91L> (B) ID=32	1-09704-085-0	01	1	9002-	●	●
37	CLIP; HOSE,P/S V TYPE ENG<91L> (A) ID=38	9-09915-666-1	01	1	9002-	●	●
39	CLIP; FLEX HOSE L TYPE ENG<90L> ID=32 L=75	1-09700-702-0	01	1	9002-9409	●	●
39	CLIP; FLEX HOSE ID=32 L=75	1-09700-702-0	01	1	9410-	●	●
39	CLIP; FLEX HOSE V TYPE ENG<91L> ID=32 L=75	1-09700-704-1	01	1	9002-9409	●	●
54	CLIP; OIL PIPE NYLON TUBE AIR PIPING<Z29> (A) ID=16 L=48	9-09916-568-1	01	1	9002-	●
54	CLIP; OIL PIPE L TYPE ENG<90L> (B) ID=15 H=24 L=20	1-09700-606-0	01	1	9002-9303	●	●
54	CLIP; OIL PIPE (B) ID=16 L=50	9-09525-586-0	01	1	9304-	●	●
54	CLIP; OIL PIPE L TYPE ENG<90L> (C) ID=16 L=20	9-09525-535-0	01	1	9002-	●	●
54	CLIP; OIL PIPE L TYPE ENG<90L> EXC. NYLON TUBE AIR PIPING<Z29> (D) ID=16	9-09525-525-0	01	1	9002-	●	●
54	CLIP; OIL PIPE V TYPE ENG<91L> (E) ID=16 & 13 L=21.5 & 21.5	1-09700-668-0	01	1	9002-	●	●
54	CLIP; OIL PIPE (F) ID=13 L=28	9-09525-256-0	01	1	9002-9306		●
54	CLIP; OIL PIPE 12PD1 STD ENG(42L) (E) ID=16 & 7	1-09700-661-0	01	1	9002-9306		●
54	CLIP; OIL PIPE V TYPE ENG<91L> (E) ID=13 & 9	1-09700-658-0	01	1	9307-	●	●
55	CLIP; P/S RUBBER HOSE (B) ID=28 L=30	1-09700-607-1	01	1	9002-	●	●
55	CLIP; P/S RUBBER HOSE V TYPE ENG<91L> (A) ID=28	9-09915-672-1	02	1	9002-	●	●
58	BOLT; CLIP M8X20 W/LK WASHER	0-50040-820-0	01	1	9002-9302	●
58	BOLT; CLIP 12PD1 STD ENG(42L) M8X20 W/LK WASHER	0-50040-820-0	01	1	9002-9302		●
58	BOLT; CLIP M8X20 FLANGE	0-28080-820-0	01	1	9303-9306	●
58	BOLT; CLIP 12PD1 STD ENG(42L) M8X20 FLANGE	0-28080-820-0	01	1	9303-9306		●
58	BOLT; CLIP 8PD1 STD ENG(38L) M8X16 FLANGE	0-28080-816-0	02	1	9307-	●
58	BOLT; CLIP M8X16 FLANGE	0-28080-816-0	02	1	9307-		●
58	BOLT; CLIP M10X25 W/LK WASHER	0-50041-025-0	01	1	9002-9306	●	●
58	BOLT; CLIP M8X20 FLANGE	0-28080-820-0	01	1	9307-	●	●
58	BOLT; CLIP M8X20 FLANGE	0-28080-820-0	01	1	9307-		●
58	BOLT; CLIP M8X20 FLANGE	0-28080-820-0	04	1	9307-	●	●
58	BOLT; CLIP M10X25 W/LK WASHER	0-50041-025-0	01	1	9307-9506	●	●
58	BOLT; CLIP M10X20 FLANGE	0-28081-020-0	01	1	9507-	●	●
58	BOLT; CLIP L TYPE ENG<90L> M8X20 FLANGE	0-28080-820-0	04	1	9002-9306	●	●
58	BOLT; CLIP V TYPE ENG<91L> M8X18 FLANGE	0-28080-818-0	01	1	9002-9306	●	●
58	BOLT; CLIP M8X16 FLANGE	0-28080-816-0	01	1	9002-9306		●
58	BOLT; CLIP V TYPE ENG<91L> M8X20 W/LK WASHER	9-01900-820-0	02	1	9002-9204	●	●
58	BOLT; CLIP V TYPE ENG<91L> M8X20 W/LK WASHER	0-50040-820-0	02	1	9205-9302	●	●
58	BOLT; CLIP V TYPE ENG<91L> M8X20 FLANGE	0-28080-820-0	02	1	9303-9306	●	●
58	BOLT; CLIP V TYPE ENG<91L> M8X16 W/LK WASHER	0-50040-816-0	01	1	9307-	●	●
58	BOLT; CLIP M8X20 FLANGE	0-28080-820-0	05	1	9002-9306		●
58	BOLT; CLIP M8X16 FLANGE	0-28080-816-0	02	1	9307-		●
59	BRACKET; CLIP,OIL PIPE 10PD1 STD ENG(40L) (A)	1-47475-993-1	01	1	9307-9410	●
59	BRACKET; CLIP,OIL PIPE (A)	1-47475-993-1	01	1	9307-9410		●
59	BRACKET; CLIP,OIL PIPE 10PD1 STD ENG(40L) EXC. ANTI NOISE EQUIPMENT<SV9> (A)	1-47475-993-1	01	1	9411-	●
59	BRACKET; CLIP,OIL PIPE (A)	1-47475-993-1	01	1	9411-		●
59	BRACKET; CLIP,OIL PIPE 6RB1TC ENG(30L),8PD1 STD ENG(38L) (A)	1-47475-963-1	01	1	9307-	●
59	BRACKET; CLIP,OIL PIPE 8PD1 STD ENG(38L) (D)	1-47475-299-2	02	1	9307-	●
59	BRACKET; CLIP,OIL PIPE (C)	1-47475-081-4	01	1	9002-9306	●	●
59	BRACKET; CLIP,OIL PIPE (B)	1-47475-519-0	02	1	9002-		●
61	CLIP; OIL PIPE (E) ID=16 & 13 L=18 & 17	1-09700-658-0	01	1	9002-9306	●
61	CLIP; OIL PIPE 12PD1 STD ENG(42L) (E) ID=16 & 13 L=18 & 17	1-09700-658-0	01	1	9002-9306		●
61	CLIP; OIL PIPE (E) ID=16 & 13 L=18 & 17	1-09700-658-0	01	1	9307-9308	●
61	CLIP; OIL PIPE (E) ID=16 & 13 L=18 & 17	1-09700-658-0	01	1	9309-	●	●
61	CLIP; OIL PIPE 8PD1 STD ENG(38L),10PD1 STD ENG(40L) EXC. ANTI NOISE EQUIPMENT<SV9> (E) ID=16 & 13 L=18 & 17	1-09700-658-0	01	1	9309-	●
61	CLIP; OIL PIPE V TYPE ENG<91L> (B) ID=16 & 13 L=21.5 & 21.5	1-09700-668-0	01	1	9002-9308	●
61	CLIP; OIL PIPE (B) ID=16 & 13 L=21.5 & 21.5	1-09700-668-0	01	1	9002-9308		●
61	CLIP; OIL PIPE (B) ID=16 & 13 L=21.5 & 21.5	1-09700-668-0	01	1	9002-9308		●
61	CLIP; OIL PIPE (C) ID=16 & 13 L=21.5 & 21.5	1-09700-668-0	01	1	9309-9410		●
61	CLIP; OIL PIPE 10PD1 STD ENG(40L) ANTI NOISE EQUIPMENT<SV9> (B) ID=16 & 13 L=21.5 & 21.5	1-09700-668-0	01	1	9411-	●
61	CLIP; OIL PIPE (B) ID=16 & 13 L=21.5 & 21.5	1-09700-668-0	01	1	9411-		●
61	CLIP; OIL PIPE 8PD1 STD ENG(38L) (C) ID=16 & 13 L=21.5 & 21.5	1-09700-668-0	02	1	9307-	●
61	CLIP; OIL PIPE (C) ID=16 & 13 L=21.5 & 21.5	1-09700-668-0	02	1	9307-		●
61	CLIP; OIL PIPE L TYPE ENG<90L> (A) ID=16	9-09525-525-0	01	1	9002-	●	●
61	CLIP; OIL PIPE V TYPE ENG<91L> (D) ID=15 H=24 L=20	1-09700-606-0	02	1	9002-	●	●
61	CLIP; OIL PIPE (F) ID=16 L=28	9-09525-556-0	01	1	9002-9306		●
61	CLIP; OIL PIPE (F) ID=13	9-09525-255-0	01	1	9307-		●
61	CLIP; OIL PIPE 6RB1 STD ENG(07L),10PD1 STD ENG(40L) (C) ID=16 & 13 L=21.5 & 21.5	1-09700-668-0	02	1	9002-9306		●
62	NUT; CLIP FIX L TYPE ENG<90L> M8	9-09110-408-0	02	1	9002-9009	●	●
62	NUT; CLIP FIX L TYPE ENG<90L> M8	9-09110-408-0	03	1	9010-	●	●
62	NUT; CLIP FIX 12PD1 STD ENG(42L) M8	9-09110-408-0	01	1	9002-9306		●
63	BRACKET; CLIP,P/S NYLON TUBE AIR PIPING<Z29> (E) L=55	1-47475-304-0	01	1	9405-	●
63	BRACKET; CLIP,P/S L TYPE ENG<90L> (B)	1-34656-004-0	01	1	9002-9303	●	●
63	BRACKET; CLIP,P/S L TYPE ENG<90L> (C)	1-47475-369-0	02	1	9002-	●	●
63	BRACKET; CLIP,P/S L TYPE ENG<90L> EXC. NYLON TUBE AIR PIPING<Z29> (E)	1-47475-298-0	01	1	9002-9011	●	●
63	BRACKET; CLIP,P/S 12PD1 STD ENG(42L) (E)	1-47475-298-0	01	1	9002-9011		●
63	BRACKET; CLIP,P/S L TYPE ENG<90L> EXC. NYLON TUBE AIR PIPING<Z29> (E)	1-47475-298-0	01	1	9012-	●	●
63	BRACKET; CLIP,P/S V TYPE ENG<91L> (E)	1-21119-100-1	01	1	9002-	●	●
63	BRACKET; CLIP,P/S V TYPE ENG<91L> (A)	1-47475-299-2	01	1	9307-	●	●
63	BRACKET; CLIP,P/S (D)	1-47476-031-1	01	1	9002-		●
64	BOLT; CLIP BRKT FRAME EQUIPMENT HEAVY DUTY<F03> V TYPE ENG<91L> M8X30 FLANGE	0-28080-830-0	02	1	9307-	●
64	BOLT; CLIP BRKT NYLON TUBE AIR PIPING<Z29> M8X25 FLANGE	0-28080-825-0	01	1	9405-	●
64	BOLT; CLIP BRKT M8X25 W/LK WASHER	9-01900-825-0	02	1	9002-9009	●	●
64	BOLT; CLIP BRKT L TYPE ENG<90L> M8X25 W/LK WASHER	9-01900-825-0	02	1	9002-9009	●	●
64	BOLT; CLIP BRKT M8X25 W/LK WASHER	9-01900-825-0	02	1	9010-9204	●	●
64	BOLT; CLIP BRKT M8X25 W/LK WASHER	0-50040-825-0	02	1	9205-9302	●	●
64	BOLT; CLIP BRKT M8X25 FLANGE	0-28080-825-0	02	1	9303-	●	●
64	BOLT; CLIP BRKT M8X20 W/LK WASHER	0-50040-820-0	01	1	9307-		●
65	NUT; BRKT L TYPE ENG<90L> EXC. NYLON TUBE AIR PIPING<Z29> M8	9-09110-408-0	04	1	9010-	●
65	NUT; BRKT V TYPE ENG<91L> M8	9-09110-408-0	02	1	9405-	●
65	NUT; BRKT M8	9-09110-408-0	02	1	9405-		●
65	NUT; BRKT M8	9-09110-408-0	02	1	9405-		●
65	NUT; BRKT M8	9-09110-408-0	01	1	9002-9009	●	●
65	NUT; BRKT L TYPE ENG<90L> M8	9-09110-408-0	04	1	9002-9009	●	●
65	NUT; BRKT V TYPE ENG<91L> M8	9-09110-408-0	02	1	9002-9009	●	●
65	NUT; BRKT V TYPE ENG<91L> M8	9-09110-408-0	02	1	9010-9306	●	●
65	NUT; BRKT NYLON TUBE AIR PIPING<Z29> M8	9-09110-408-0	02	1	9010-9306	●
65	NUT; BRKT V TYPE ENG<91L> M8	9-09110-408-0	02	1	9307-9404	●	●
65	NUT; BRKT NYLON TUBE AIR PIPING<Z29> M8	9-09110-408-0	02	1	9307-9404	●
65	NUT; BRKT M8	9-09110-408-0	02	1	9307-9404		●
65	NUT; BRKT NYLON TUBE AIR PIPING<Z29> M8	9-09110-408-0	03	1	9405-	●
65	NUT; BRKT M8	9-09110-408-0	01	1	9002-		●
66	BOLT; BRKT,OIL PIPE L TYPE ENG<90L> M8X20 FLANGE	0-28080-820-0	01	1	9307-	●
66	BOLT; BRKT,OIL PIPE M8X20 FLANGE	0-28080-820-0	02	1	9205-9306	●	●
66	BOLT; BRKT,OIL PIPE V TYPE ENG<91L> M8X30 FLANGE	0-28080-830-0	02	1	9307-9410	●	●
66	BOLT; BRKT,OIL PIPE V TYPE ENG<91L> EXC. ANTI NOISE EQUIPMENT<SV9> M8X30 FLANGE	0-28080-830-0	02	1	9411-	●
66	BOLT; BRKT,OIL PIPE M8X30 FLANGE	0-28080-830-0	02	1	9411-		●
66	BOLT; BRKT,OIL PIPE M8X30 FLANGE	0-28080-830-0	02	1	9411-		●
66	BOLT; BRKT,OIL PIPE M8X30 FLANGE	0-28080-830-0	02	1	9411-		●
66	BOLT; BRKT,OIL PIPE M8X30 FLANGE	0-28080-830-0	05	1	9002-9306		●
66	BOLT; BRKT,OIL PIPE M8X30 FLANGE	0-28080-830-0	01	1	9307-		●
68	NUT; CLIP,OIL PIPE M8	9-09110-408-0	01	1	9002-	●	●
68	NUT; CLIP,OIL PIPE V TYPE ENG<91L> M8	9-09110-408-0	02	1	9002-	●	●
68	NUT; CLIP,OIL PIPE M8	9-09110-408-0	05	1	9002-9306		●
76	UNION; OIL PIPE L TYPE ENG<90L> M22	9-09233-015-1	01	1	9002-	●
76	UNION; OIL PIPE M22	9-09233-015-1	01	1	9002-		●
76	UNION; OIL PIPE M20 STRAIGHT	9-09233-012-1	01	1	9307-		●
76	UNION; OIL PIPE V TYPE ENG<91L> M20 STRAIGHT	9-09233-012-1	01	1	9002-9306		●
166	BOLT; CLIP L TYPE ENG<90L> M8X20 FLANGE	0-28080-820-0	03	1	9307-	●	●
202	BOLT; EYE,OIL PIPE L TYPE ENG<90L> M18X39	1-09675-114-0	01	1	9002-9310	●	●
202	BOLT; EYE,OIL PIPE L TYPE ENG<90L> M18X36	1-09675-205-0	01	1	9311-	●	●
203	GASKET; EYE BOLT L TYPE ENG<90L> ID=18.2 OD=24.4	1-09630-087-0	02	1	9002-	●	●
227	NUT; PIPE CLIP V TYPE ENG<91L> M8	9-09110-408-0	01	1	9307-	●	●
234	NUT; PIPE CLIP,P/S L TYPE ENG<90L> M8	9-09110-408-0	03	1	9307-	●
239	BRACKET; FLEX HOSE L TYPE ENG<90L>	1-47475-412-0	01	1	9002-	●	●
255	UNION; FLEX HOSE L TYPE ENG<90L> M20 & M22 ELBOW	1-09654-154-1	01	1	9002-	●	●
255	UNION; FLEX HOSE V TYPE ENG<91L> M20 & M22 STRAIGHT	1-09654-167-1	01	1	9002-	●	●
256	NUT; UNION M22	9-09111-422-0	01	1	9002-	●	●
257	WASHER; LK,UNION ID=22.5	9-09150-522-0	01	1	9002-	●	●
262	CLIP; P/S PIPE L TYPE ENG<90L> ID=16	9-09525-525-0	01	1	9307-	●

31 34 49 74 45 44 73 33 74 49

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
31	HOSE; P/S OIL TANK,INL	1-21111-924-0	01	1	9002-	●	●
33	HOSE; RUBBER,POWER STRG V TYPE ENG<91L> L=80	1-09360-570-0	01	1	9002-	●	●
34	HOSE; P/S OIL TANK,OUTLET 8PD1 STD ENG(38L),10PD1 STD ENG(40L)	1-21113-001-0	01	1	9307-	●
34	HOSE; P/S OIL TANK,OUTLET	1-21113-001-0	01	1	9307-		●
34	HOSE; P/S OIL TANK,OUTLET L TYPE ENG<90L> CAB UP 50MM(W60)	1-21112-054-1	01	1	9002-	●	●
34	HOSE; P/S OIL TANK,OUTLET L TYPE ENG<90L> EXC. CAB UP 50MM(W60)	1-21112-037-2	01	1	9002-	●	●
34	HOSE; P/S OIL TANK,OUTLET 10PD1 STD ENG(40L)	1-21112-084-1	01	1	9002-9306	●	●
34	HOSE; P/S OIL TANK,OUTLET 12PD1 STD ENG(42L)	1-21112-279-0	01	1	9002-9306		●
44	PIPE; OIL,P/S UNIT TO NIPPLE	1-21114-438-0	01	1	9307-9310		●
44	PIPE; OIL,P/S UNIT TO NIPPLE	1-21115-023-0	01	1	9311-		●
44	PIPE; OIL,P/S UNIT TO NIPPLE 10PD1 STD ENG(40L)	1-21113-355-0	01	1	9002-9306		●
44	PIPE; OIL,P/S UNIT TO NIPPLE 12PD1 STD ENG(42L)	1-21113-683-0	01	1	9002-9306		●
45	PIPE; OIL,P/S UNIT TO UNION L TYPE ENG<90L> NYLON TUBE AIR PIPING<Z29>	1-21113-486-0	01	1	9002-	●
45	PIPE; OIL,P/S UNIT TO UNION L TYPE ENG<90L> EXC. NYLON TUBE AIR PIPING<Z29>	1-21113-485-0	01	1	9002-9002	●
45	PIPE; OIL,P/S UNIT TO UNION L TYPE ENG<90L> EXC. NYLON TUBE AIR PIPING<Z29>	1-21113-762-0	01	1	9003-9008	●
45	PIPE; OIL,P/S UNIT TO UNION L TYPE ENG<90L> EXC. NYLON TUBE AIR PIPING<Z29>	1-21113-809-0	01	1	9009-	●
45	PIPE; OIL,P/S UNIT TO UNION	1-21113-686-0	01	1	9307-		●
45	PIPE; OIL,P/S UNIT TO UNION 12PD1 STD ENG(42L)	1-21113-684-0	01	1	9002-9002		●
45	PIPE; OIL,P/S UNIT TO UNION 12PD1 STD ENG(42L)	1-21113-761-0	01	1	9003-9306		●
45	PIPE; OIL,P/S UNIT TO UNION 6RB1 STD ENG(07L),10PD1 STD ENG(40L)	1-21113-685-0	01	1	9002-9002		●
45	PIPE; OIL,P/S UNIT TO UNION 6RB1 STD ENG(07L),10PD1 STD ENG(40L)	1-21113-686-0	01	1	9003-9306		●
49	PIPE; OIL,FLEX HOSE TO UNION	1-21114-435-0	01	1	9307-		●
49	PIPE; OIL,FLEX HOSE TO UNION L TYPE ENG<90L>	1-21113-479-0	01	1	9002-9306		●
49	PIPE; OIL,FLEX HOSE TO UNION 10PD1 STD ENG(40L)	1-21113-529-0	01	1	9002-9306		●
49	PIPE; OIL,FLEX HOSE TO UNION 12PD1 STD ENG(42L)	1-21113-528-0	01	1	9002-9011		●
49	PIPE; OIL,FLEX HOSE TO UNION 12PD1 STD ENG(42L)	1-21113-765-0	01	1	9012-9306		●
73	PIPE; OIL,FLEX HOSE TO RUBBER HOSE 8PD1 STD ENG(38L),10PD1 STD ENG(40L) L=390	1-21111-975-1	01	1	9002-	●	●
73	PIPE; OIL,FLEX HOSE TO RUBBER HOSE 12PD1 STD ENG(42L)	1-21112-431-0	01	1	9002-9306		●
74	PIPE; OIL,P/S,UNION TO FLEX HOSE L TYPE ENG<90L> CAB UP 50MM(W60) L=1372	1-21113-535-0	01	1	9002-	●
74	PIPE; OIL,P/S,UNION TO FLEX HOSE L TYPE ENG<90L> EXC. CAB UP 50MM(W60) L=1279	1-21113-099-0	01	1	9002-	●
74	PIPE; OIL,P/S,UNION TO FLEX HOSE 10PD1 STD ENG(40L) L=3012	1-21113-538-0	01	1	9002-		●
74	PIPE; OIL,P/S,UNION TO FLEX HOSE 12PD1 STD ENG(42L) L=3269	1-21113-682-0	01	1	9002-9011		●
74	PIPE; OIL,P/S,UNION TO FLEX HOSE 12PD1 STD ENG(42L) L=3254	1-21113-766-0	01	1	9012-9306		●

34 46 48 73 33

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
33	HOSE; RUBBER,POWER STRG V TYPE ENG<91L> L=80	1-09360-570-0	01	1	9002-	●	●
34	HOSE; P/S OIL TANK,OUTLET 8PD1 STD ENG(38L),10PD1 STD ENG(40L)	1-21113-001-0	01	1	9307-	●
34	HOSE; P/S OIL TANK,OUTLET	1-21113-001-0	01	1	9307-		●
34	HOSE; P/S OIL TANK,OUTLET L TYPE ENG<90L> CAB UP 50MM(W60)	1-21112-054-1	01	1	9002-	●	●
34	HOSE; P/S OIL TANK,OUTLET L TYPE ENG<90L> EXC. CAB UP 50MM(W60)	1-21112-037-2	01	1	9002-	●	●
34	HOSE; P/S OIL TANK,OUTLET 10PD1 STD ENG(40L)	1-21112-084-1	01	1	9002-9306	●	●
34	HOSE; P/S OIL TANK,OUTLET 12PD1 STD ENG(42L)	1-21112-279-0	01	1	9002-9306		●
46	PIPE; OIL,P/S UNIT TO OIL TANK 10PD1 STD ENG(40L)	1-21113-533-0	01	1	9002-9002	●
46	PIPE; OIL,P/S UNIT TO OIL TANK 10PD1 STD ENG(40L)	1-21113-764-0	01	1	9003-9410	●
46	PIPE; OIL,P/S UNIT TO OIL TANK 10PD1 STD ENG(40L) EXC. FRAME EQUIPMENT HEAVY DUTY<F03>,ANTI NOISE EQUIPMENT<SV9>	1-21113-764-0	01	1	9411-	●
46	PIPE; OIL,P/S UNIT TO OIL TANK 10PD1 STD ENG(40L) ANTI NOISE EQUIPMENT<SV9> EXC. FRAME EQUIPMENT HEAVY DUTY<F03>	1-21115-260-0	01	1	9411-	●
46	PIPE; OIL,P/S UNIT TO OIL TANK 8PD1 STD ENG(38L) FRAME EQUIPMENT HEAVY DUTY<F03>	1-21114-850-0	01	1	9307-9308	●
46	PIPE; OIL,P/S UNIT TO OIL TANK 8PD1 STD ENG(38L) FRAME EQUIPMENT HEAVY DUTY<F03>	1-21114-957-0	01	1	9309-	●
46	PIPE; OIL,P/S UNIT TO OIL TANK 8PD1 STD ENG(38L) EXC. FRAME EQUIPMENT HEAVY DUTY<F03>	1-21114-851-0	01	1	9307-9308	●
46	PIPE; OIL,P/S UNIT TO OIL TANK 8PD1 STD ENG(38L) EXC. FRAME EQUIPMENT HEAVY DUTY<F03>	1-21114-958-0	01	1	9309-	●
48	PIPE; OIL,FLEX HOSE TO STRG UNIT L TYPE ENG<90L> NYLON TUBE AIR PIPING<Z29>	1-21113-317-0	01	1	9002-9306	●
48	PIPE; OIL,FLEX HOSE TO STRG UNIT L TYPE ENG<90L> NYLON TUBE AIR PIPING<Z29>	1-21114-440-0	01	1	9307-	●
48	PIPE; OIL,FLEX HOSE TO STRG UNIT L TYPE ENG<90L> EXC. NYLON TUBE AIR PIPING<Z29>	1-21113-481-0	01	1	9002-9006	●
48	PIPE; OIL,FLEX HOSE TO STRG UNIT L TYPE ENG<90L> EXC. NYLON TUBE AIR PIPING<Z29>	1-21113-799-0	01	1	9007-9306	●
48	PIPE; OIL,FLEX HOSE TO STRG UNIT L TYPE ENG<90L> EXC. NYLON TUBE AIR PIPING<Z29>	1-21114-443-0	01	1	9307-	●
48	PIPE; OIL,FLEX HOSE TO STRG UNIT 10PD1 STD ENG(40L)	1-21113-531-0	01	1	9002-9306	●
48	PIPE; OIL,FLEX HOSE TO STRG UNIT 10PD1 STD ENG(40L)	1-21114-441-0	01	1	9307-9410	●
48	PIPE; OIL,FLEX HOSE TO STRG UNIT 10PD1 STD ENG(40L) EXC. FRAME EQUIPMENT HEAVY DUTY<F03>,ANTI NOISE EQUIPMENT<SV9>	1-21114-441-0	01	1	9411-	●
48	PIPE; OIL,FLEX HOSE TO STRG UNIT 10PD1 STD ENG(40L) ANTI NOISE EQUIPMENT<SV9> EXC. FRAME EQUIPMENT HEAVY DUTY<F03>	1-21115-258-0	01	1	9411-	●
48	PIPE; OIL,FLEX HOSE TO STRG UNIT 8PD1 STD ENG(38L) FRAME EQUIPMENT HEAVY DUTY<F03>	1-21114-848-0	01	1	9307-9308	●
48	PIPE; OIL,FLEX HOSE TO STRG UNIT 8PD1 STD ENG(38L) FRAME EQUIPMENT HEAVY DUTY<F03>	1-21114-955-0	01	1	9309-	●
48	PIPE; OIL,FLEX HOSE TO STRG UNIT 8PD1 STD ENG(38L) EXC. FRAME EQUIPMENT HEAVY DUTY<F03>	1-21114-849-0	01	1	9307-9308	●
48	PIPE; OIL,FLEX HOSE TO STRG UNIT 8PD1 STD ENG(38L) EXC. FRAME EQUIPMENT HEAVY DUTY<F03>	1-21114-956-0	01	1	9309-	●
73	PIPE; OIL,FLEX HOSE TO RUBBER HOSE 8PD1 STD ENG(38L),10PD1 STD ENG(40L) L=390	1-21111-975-1	01	1	9002-	●	●
73	PIPE; OIL,FLEX HOSE TO RUBBER HOSE 12PD1 STD ENG(42L)	1-21112-431-0	01	1	9002-9306		●

74 75 49 45 31 34

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
31	HOSE; P/S OIL TANK,INL	1-21111-924-0	01	1	9002-	●	●
34	HOSE; P/S OIL TANK,OUTLET 8PD1 STD ENG(38L),10PD1 STD ENG(40L)	1-21113-001-0	01	1	9307-	●
34	HOSE; P/S OIL TANK,OUTLET	1-21113-001-0	01	1	9307-		●
34	HOSE; P/S OIL TANK,OUTLET L TYPE ENG<90L> CAB UP 50MM(W60)	1-21112-054-1	01	1	9002-	●	●
34	HOSE; P/S OIL TANK,OUTLET L TYPE ENG<90L> EXC. CAB UP 50MM(W60)	1-21112-037-2	01	1	9002-	●	●
34	HOSE; P/S OIL TANK,OUTLET 10PD1 STD ENG(40L)	1-21112-084-1	01	1	9002-9306	●	●
34	HOSE; P/S OIL TANK,OUTLET 12PD1 STD ENG(42L)	1-21112-279-0	01	1	9002-9306		●
45	PIPE; OIL,P/S UNIT TO UNION L TYPE ENG<90L> NYLON TUBE AIR PIPING<Z29>	1-21113-486-0	01	1	9002-	●
45	PIPE; OIL,P/S UNIT TO UNION L TYPE ENG<90L> EXC. NYLON TUBE AIR PIPING<Z29>	1-21113-485-0	01	1	9002-9002	●
45	PIPE; OIL,P/S UNIT TO UNION L TYPE ENG<90L> EXC. NYLON TUBE AIR PIPING<Z29>	1-21113-762-0	01	1	9003-9008	●
45	PIPE; OIL,P/S UNIT TO UNION L TYPE ENG<90L> EXC. NYLON TUBE AIR PIPING<Z29>	1-21113-809-0	01	1	9009-	●
45	PIPE; OIL,P/S UNIT TO UNION	1-21113-686-0	01	1	9307-		●
45	PIPE; OIL,P/S UNIT TO UNION 12PD1 STD ENG(42L)	1-21113-684-0	01	1	9002-9002		●
45	PIPE; OIL,P/S UNIT TO UNION 12PD1 STD ENG(42L)	1-21113-761-0	01	1	9003-9306		●
45	PIPE; OIL,P/S UNIT TO UNION 6RB1 STD ENG(07L),10PD1 STD ENG(40L)	1-21113-685-0	01	1	9002-9002		●
45	PIPE; OIL,P/S UNIT TO UNION 6RB1 STD ENG(07L),10PD1 STD ENG(40L)	1-21113-686-0	01	1	9003-9306		●
49	PIPE; OIL,FLEX HOSE TO UNION	1-21114-435-0	01	1	9307-		●
49	PIPE; OIL,FLEX HOSE TO UNION L TYPE ENG<90L>	1-21113-479-0	01	1	9002-9306		●
49	PIPE; OIL,FLEX HOSE TO UNION 10PD1 STD ENG(40L)	1-21113-529-0	01	1	9002-9306		●
49	PIPE; OIL,FLEX HOSE TO UNION 12PD1 STD ENG(42L)	1-21113-528-0	01	1	9002-9011		●
49	PIPE; OIL,FLEX HOSE TO UNION 12PD1 STD ENG(42L)	1-21113-765-0	01	1	9012-9306		●
74	PIPE; OIL,P/S,UNION TO FLEX HOSE L TYPE ENG<90L> CAB UP 50MM(W60) L=1372	1-21113-535-0	01	1	9002-	●
74	PIPE; OIL,P/S,UNION TO FLEX HOSE L TYPE ENG<90L> EXC. CAB UP 50MM(W60) L=1279	1-21113-099-0	01	1	9002-	●
74	PIPE; OIL,P/S,UNION TO FLEX HOSE 10PD1 STD ENG(40L) L=3012	1-21113-538-0	01	1	9002-		●
74	PIPE; OIL,P/S,UNION TO FLEX HOSE 12PD1 STD ENG(42L) L=3269	1-21113-682-0	01	1	9002-9011		●
74	PIPE; OIL,P/S,UNION TO FLEX HOSE 12PD1 STD ENG(42L) L=3254	1-21113-766-0	01	1	9012-9306		●
75	PIPE; OIL,P/S,UNION TO UNION L TYPE ENG<90L>	1-21112-904-0	01	1	9002-9306		●

1 1 2 2 8 7 20 2 3 22 8 21 20 4 25 191 12 3 5 25 26 15 19 12 19 157

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	TANK ASM; OIL,P/S (A)	1-21210-127-5	01	1	9002-9202	●
1	TANK ASM; OIL,P/S EXC. DESERT ZONE PACKAGE(W01) (A)	1-21210-127-5	01	1	9002-9202		●
1	TANK ASM; OIL,P/S (A)	1-21210-195-2	01	1	9203-	●
1	TANK ASM; OIL,P/S EXC. DESERT ZONE PACKAGE(W01) (A)	1-21210-195-2	01	1	9203-		●
1	TANK ASM; OIL,P/S DESERT ZONE PACKAGE(W01) (B)	1-21210-203-0	01	1	9002-		●
2	CAP; OIL TANK,P/S (A) WO/GAUGE	1-21241-003-5	01	1	9002-	●
2	CAP; OIL TANK,P/S EXC. DESERT ZONE PACKAGE(W01) (A) WO/GAUGE	1-21241-003-5	01	1	9002-		●
2	CAP; OIL TANK,P/S (B) W/GAUGE	1-21241-006-3	01	1	9002-	●
2	CAP; OIL TANK,P/S EXC. DESERT ZONE PACKAGE(W01) (B) W/GAUGE	1-21241-006-3	01	1	9002-		●
2	CAP; OIL TANK,P/S DESERT ZONE PACKAGE(W01) (C)	1-21241-009-0	01	1	9002-		●
3	GASKET; OIL TANK,P/S	1-21249-006-2	01	1	9002-	●
3	GASKET; OIL TANK,P/S EXC. DESERT ZONE PACKAGE(W01)	1-21249-006-2	01	1	9002-		●
3	GASKET; OIL TANK,P/S DESERT ZONE PACKAGE(W01)	1-09630-106-0	01	1	9002-		●
4	FILTER; OIL TANK,P/S DESERT ZONE PACKAGE(W01)	1-21231-002-0	01	1	9002-		●
5	STRAINER; OIL TANK,P/S	1-21235-006-1	01	1	9002-	●
5	STRAINER; OIL TANK,P/S EXC. DESERT ZONE PACKAGE(W01)	1-21235-006-1	01	1	9002-		●
7	RING; GASKET,OIL TANK,P/S	1-21249-005-0	01	1	9002-	●
7	RING; GASKET,OIL TANK,P/S EXC. DESERT ZONE PACKAGE(W01)	1-21249-005-0	01	1	9002-		●
8	SPRING; OIL TANK,P/S	1-09580-319-1	01	1	9002-	●
8	SPRING; OIL TANK,P/S EXC. DESERT ZONE PACKAGE(W01)	1-09580-319-1	01	1	9002-		●
8	SPRING; OIL TANK,P/S DESERT ZONE PACKAGE(W01)	1-09580-365-0	01	1	9002-		●
12	FILTER; MICROBON,OIL TANK,P/S	1-21235-004-1	01	1	9002-	●
12	FILTER; MICROBON,OIL TANK,P/S EXC. DESERT ZONE PACKAGE(W01)	1-21235-004-1	01	1	9002-		●
12	FILTER; MICROBON,OIL TANK,P/S DESERT ZONE PACKAGE(W01)	1-21235-005-0	01	1	9002-		●
15	PLATE; FILTER,OIL TANK	1-21249-007-1	04	1	9002-	●
15	PLATE; FILTER,OIL TANK EXC. DESERT ZONE PACKAGE(W01)	1-21249-007-1	04	1	9002-		●
19	SEAT; OIL TANK	1-21262-001-0	02	1	9002-	●
19	SEAT; OIL TANK EXC. DESERT ZONE PACKAGE(W01)	1-21262-001-0	02	1	9002-		●
20	HOLDER; FILTER,OIL TANK,P/S	1-21239-001-2	01	1	9002-	●
20	HOLDER; FILTER,OIL TANK,P/S EXC. DESERT ZONE PACKAGE(W01)	1-21239-001-2	01	1	9002-		●
20	HOLDER; FILTER,OIL TANK,P/S DESERT ZONE PACKAGE(W01)	1-21239-005-0	01	1	9002-		●
21	GASKET; OIL GAUGE,P/S TANK DESERT ZONE PACKAGE(W01)	1-09630-095-1	01	1	9002-		●
22	GAUGE; OIL TANK,P/S DESERT ZONE PACKAGE(W01)	1-21240-001-1	01	1	9002-		●
25	BOLT; OIL TANK BRKT M8X20 W/LK WASHER	9-01910-820-0	04	1	9002-9005	●	●
25	BOLT; OIL TANK BRKT M8X20 W/LK WASHER	0-50040-820-0	04	1	9006-9302	●	●
25	BOLT; OIL TANK BRKT M8X20 FLANGE	0-28080-820-0	04	1	9303-	●	●
26	NUT; OIL TANK TO BRKT M8	9-09110-408-0	04	1	9002-	●	●
157	GASKET; P/S PUMP ALSO INCLUDED IN GASKET SET(ENGINE). 10PD1 STD ENG(40L) ID=79.6	1-09623-421-0	01	1	9311-	●	●
191	FILTER; BREATHER,P/S TANK DESERT ZONE PACKAGE(W01)	1-21219-076-1	01	1	9002-		●

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
