Isuzu WW
▶
TRUCKS
▶
EXZ
▶
11745 - EXZ LHD EURO5
▶
8 - Chassis Electrical, Heating / Air Conditioning, Wipers, Radio
▶
8-21 - METER ASM
▶

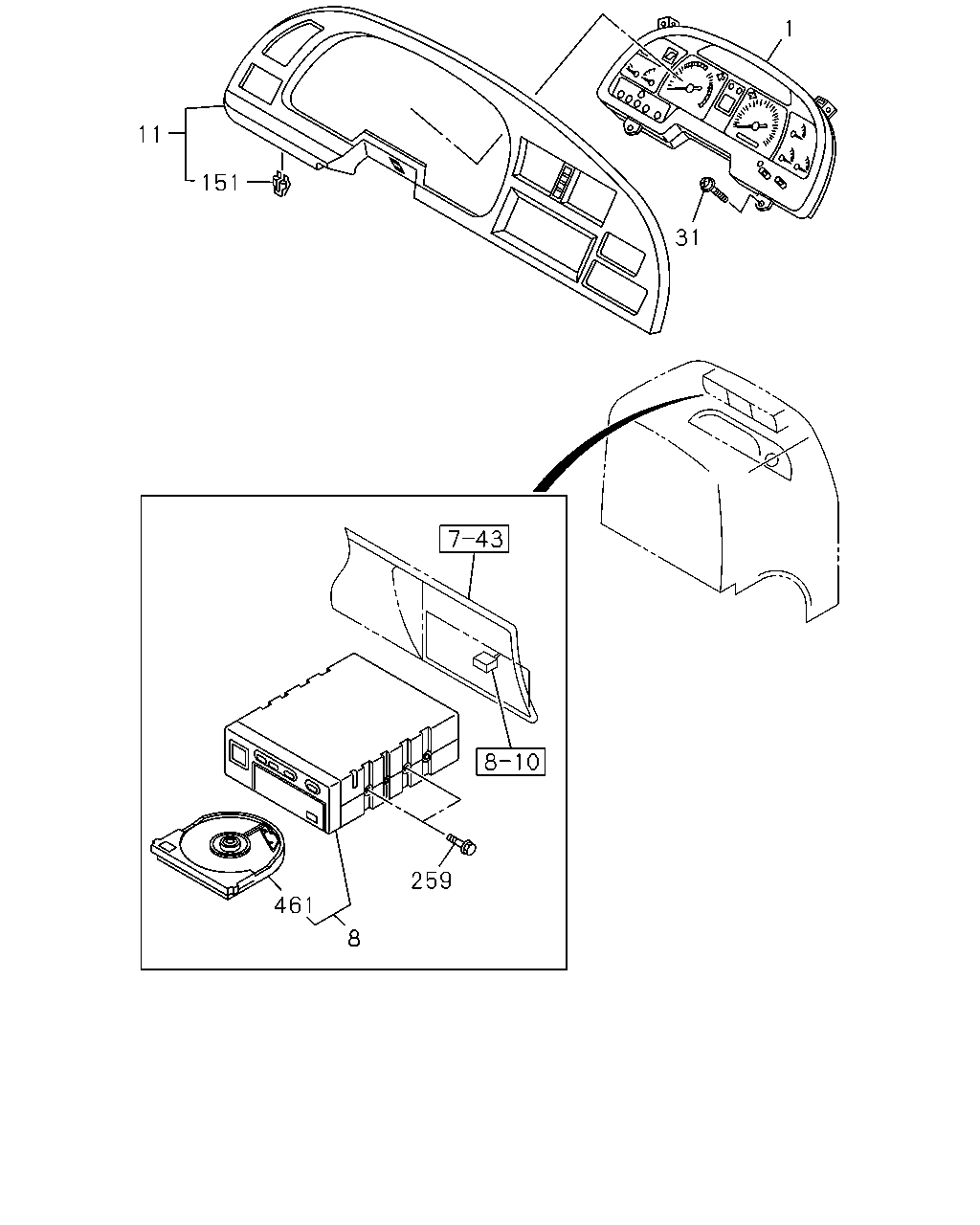

8-21 — METER ASM
(#176396) — 19 parça
◀
[821A] FIXING (8 parça)
[821A] COMPONENT (11 parça)
▶
11
151
1
31
259
461
8
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
1
METER COMPL; CLUSTER
RUSSIA EQUIPMENT(B12)
8-98219-430-1
01
1
1512-
1
METER COMPL; CLUSTER
EXC. RUSSIA EQUIPMENT(B12)
8-98332-307-0
01
1
1512-
8
TACHOGRAPH; CLUSTER METER
TACHOGRAPH 140KM/H<WC7>
1-83120-840-3
01
1
1512-
11
CLUSTER ASM; METER
1-72418-022-7
01
1
1512-
31
SCREW; METER,INST PANEL
M6X20 TAPPING W/PL WASHER
0-74160-620-0
04
1
1512-
151
CLIP; METER CLUSTER
8-97217-066-0
10
1
1512-
259
SCREW; TACHOGRAPH
TACHOGRAPH 140KM/H<WC7> M5X8 W/LK WASHER
0-36220-508-0
04
1
1512-
461
CARTRIDGE ASM; TACHOGRAPH
TACHOGRAPH 140KM/H<WC7>
1-83129-433-0
01
1
1512-
1
110
2
199
199
199
2
82
269

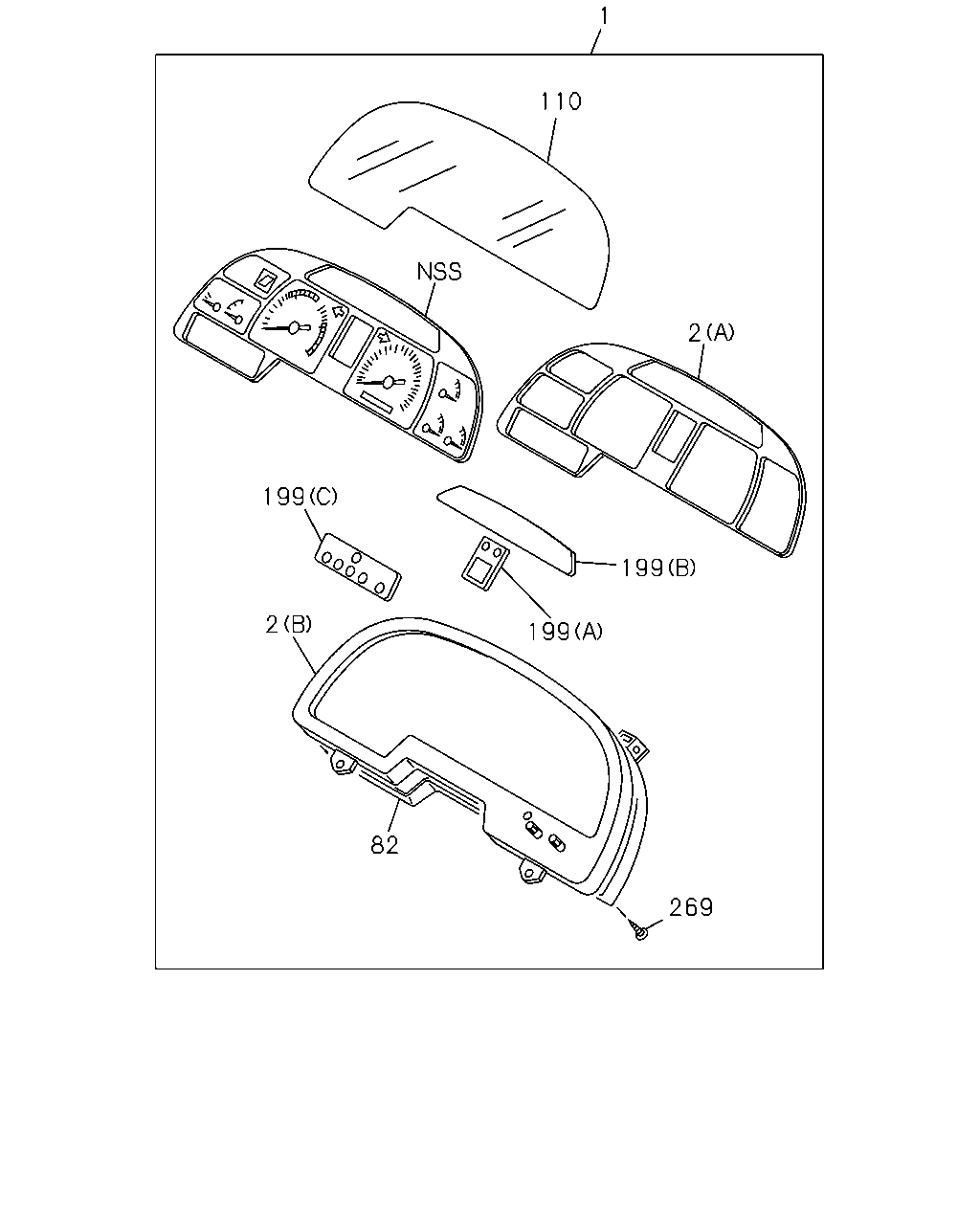

Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
1
METER COMPL; CLUSTER
RUSSIA EQUIPMENT(B12)
8-98219-430-1
01
1
1512-
1
METER COMPL; CLUSTER
EXC. RUSSIA EQUIPMENT(B12)
8-98332-307-0
01
1
1512-
2
PANEL; CLUSTER
(A)
1-83119-885-0
01
1
1512-
2
PANEL; CLUSTER
(B)
1-83119-887-0
01
1
1512-
82
CASE ASM; CLUSTER METER
1-83119-892-0
01
1
1512-
110
GLASS; CLUSTER METER
1-83119-886-0
01
1
1512-
199
LENS; WARNING LAMP
(A)
1-83119-891-0
01
1
1512-
199
LENS; WARNING LAMP
(C)
8-98224-893-0
01
1
1512-
199
LENS; WARNING LAMP
RUSSIA EQUIPMENT(B12) (B)
8-98224-892-0
01
1
1512-
199
LENS; WARNING LAMP
EXC. RUSSIA EQUIPMENT(B12) (B)
8-98162-668-0
01
1
1512-
269
SCREW; METER CLUSTER
1-83119-893-0
09
1
1512-
