◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ EXZ ▶ 11745 - EXZ LHD EURO5 ▶ 8 - Chassis Electrical, Heating / Air Conditioning, Wipers, Radio ▶ 8-20 - METER CABLE ▶
8-20 — METER CABLE (#176395) — 12 parça

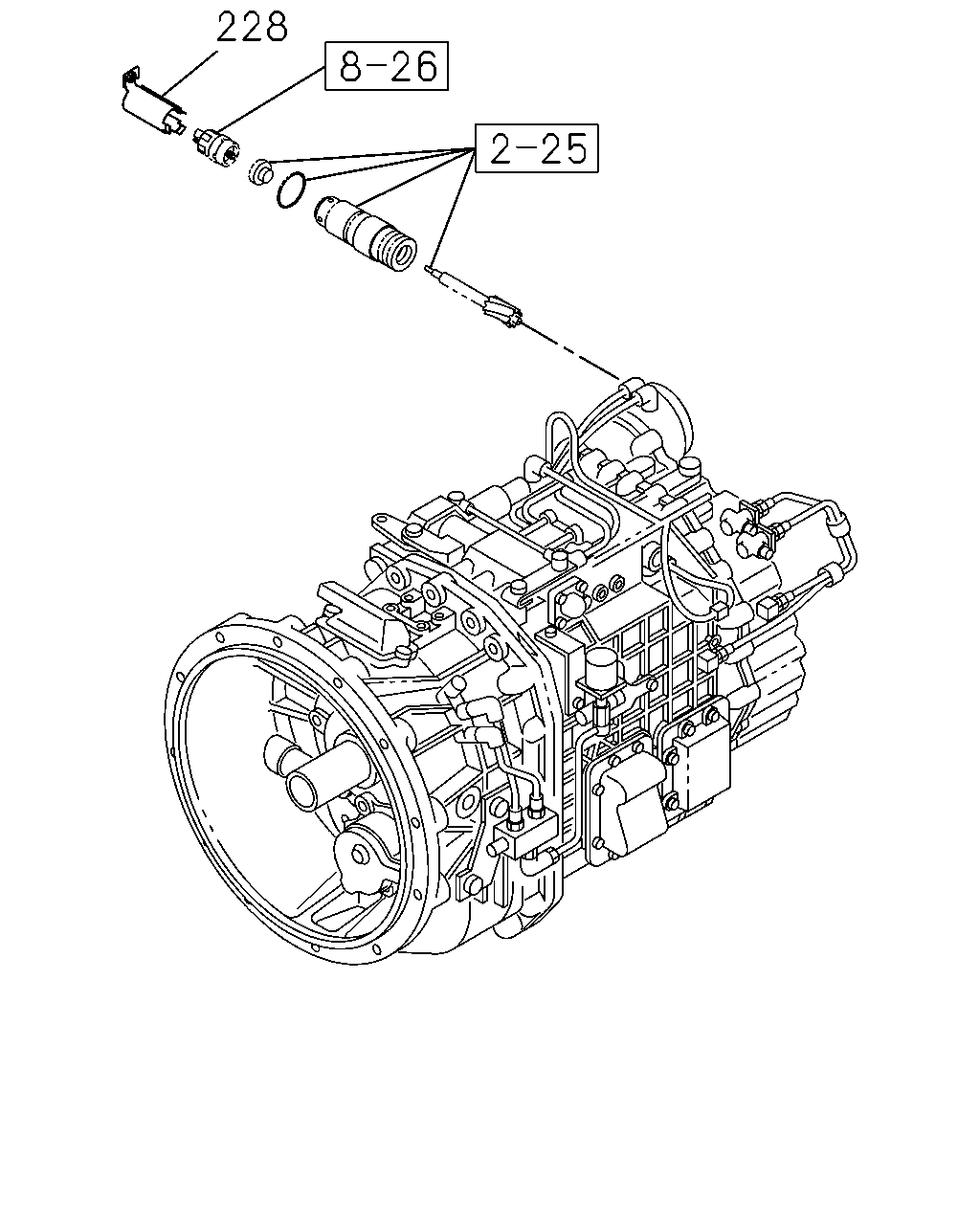

çizim 514158
228
BalonParca AdiParca NoAdetTipApplied Date
228 PROTECTOR; SENSOR 8-98119-901-0 01 1 1512-

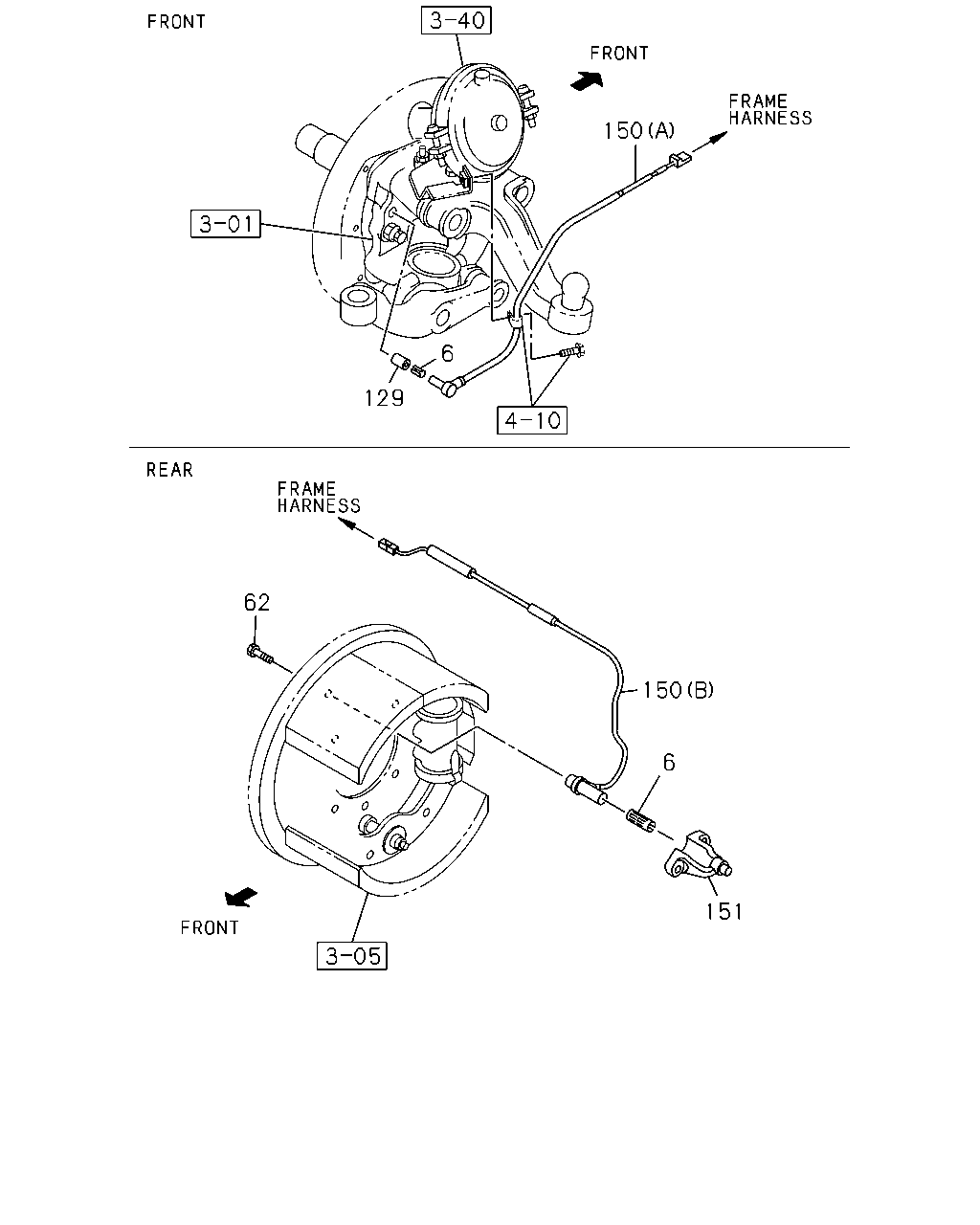

çizim 514736
150 129 6 62 150 6 151
BalonParca AdiParca NoAdetTipApplied Date
6 HOLDER; SPD SENSOR 1-83129-260-1 02 1 1512-
6 HOLDER; SPD SENSOR 1-83129-260-1 02 1 1512-
62 BOLT; SENSOR
M8X16 HEX SOCKET 		0-58330-816-0 02 1 1512-
129 COLLAR 1-83129-471-0 02 1 1512-
150 SENSOR; SPEED,ABS
(A) 		1-83127-853-3 02 1 1512-
150 SENSOR; SPEED,ABS
EXC. RUSSIA EQUIPMENT(B12) (B) 		8-98224-161-0 01 1 1512-
150 SENSOR; SPEED,ABS
EXC. RUSSIA EQUIPMENT(B12) (B) 		8-98224-162-0 01 1 1512-
150 SENSOR; SPEED,ABS
TAPER LEAF SUSP RR<SAT> RUSSIA EQUIPMENT(B12) (B) 		8-98148-100-0 01 1 1512-
150 SENSOR; SPEED,ABS
TAPER LEAF SUSP RR<SAT> RUSSIA EQUIPMENT(B12) (B) 		8-98148-101-0 01 1 1512-
151 BRACKET; SPD SENSOR 8-98299-398-0 01 1 1512-
151 BRACKET; SPD SENSOR 8-98299-399-0 01 1 1512-
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
