Sayfa 8-15 - Isuzu EPC

8-15 — FIXING PARTS; WIRING HARNESS (#176394) — 334 parça

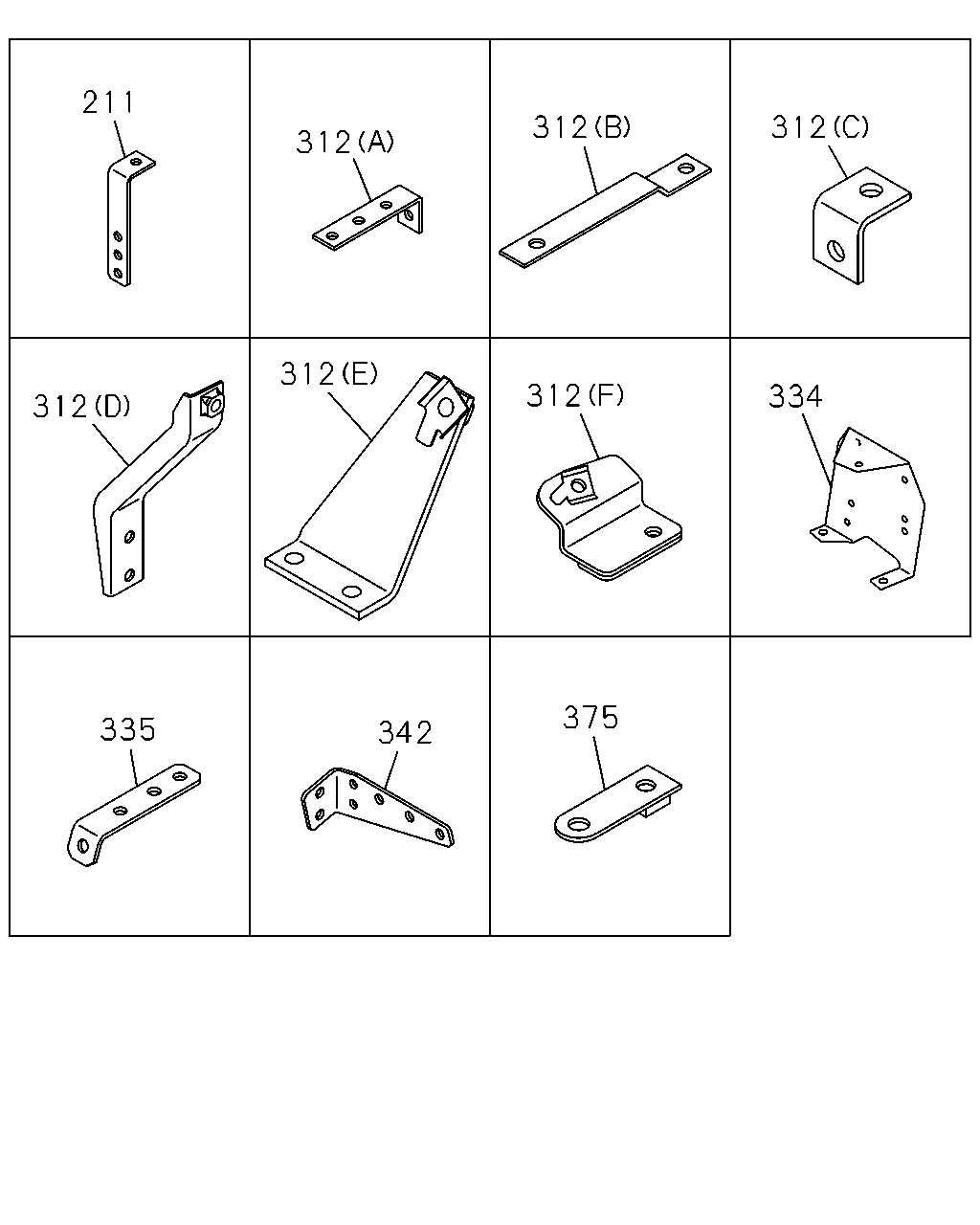

59 53 53 53 53 53 53 53 53 53 27 53 53 53

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
27	PROTECTOR; EDGE	8-98201-145-0	01	1	1512-
53	BRACKET; HARNESS (A)	1-47479-537-0	02	1	1512-
53	BRACKET; HARNESS (A)	1-47479-537-0	02	1	1512-
53	BRACKET; HARNESS (G)	8-97610-339-1	01	1	1512-
53	BRACKET; HARNESS (H)	8-97625-412-0	02	1	1512-
53	BRACKET; HARNESS (I)	8-97625-794-0	01	1	1512-
53	BRACKET; HARNESS (L)	8-97630-437-0	01	1	1512-
53	BRACKET; HARNESS (F)	8-97638-190-0	01	1	1512-
53	BRACKET; HARNESS (J)	8-98123-475-0	01	1	1512-
53	BRACKET; HARNESS (D)	8-98194-068-0	01	1	1512-
53	BRACKET; HARNESS (B)	8-98212-499-0	01	1	1512-
53	BRACKET; HARNESS (C)	8-98212-500-1	01	1	1512-
53	BRACKET; HARNESS RUSSIA EQUIPMENT(B12) (E)	8-97640-913-0	01	1	1512-
53	BRACKET; HARNESS EXC. RUSSIA EQUIPMENT(B12) (K)	8-98123-474-0	01	1	1512-
59	BRACKET; FRAME HARNESS	8-98061-135-1	01	1	1512-
59	BRACKET; FRAME HARNESS BURRS AND SHARP EDGES	8-98201-144-0	01	1	1512-

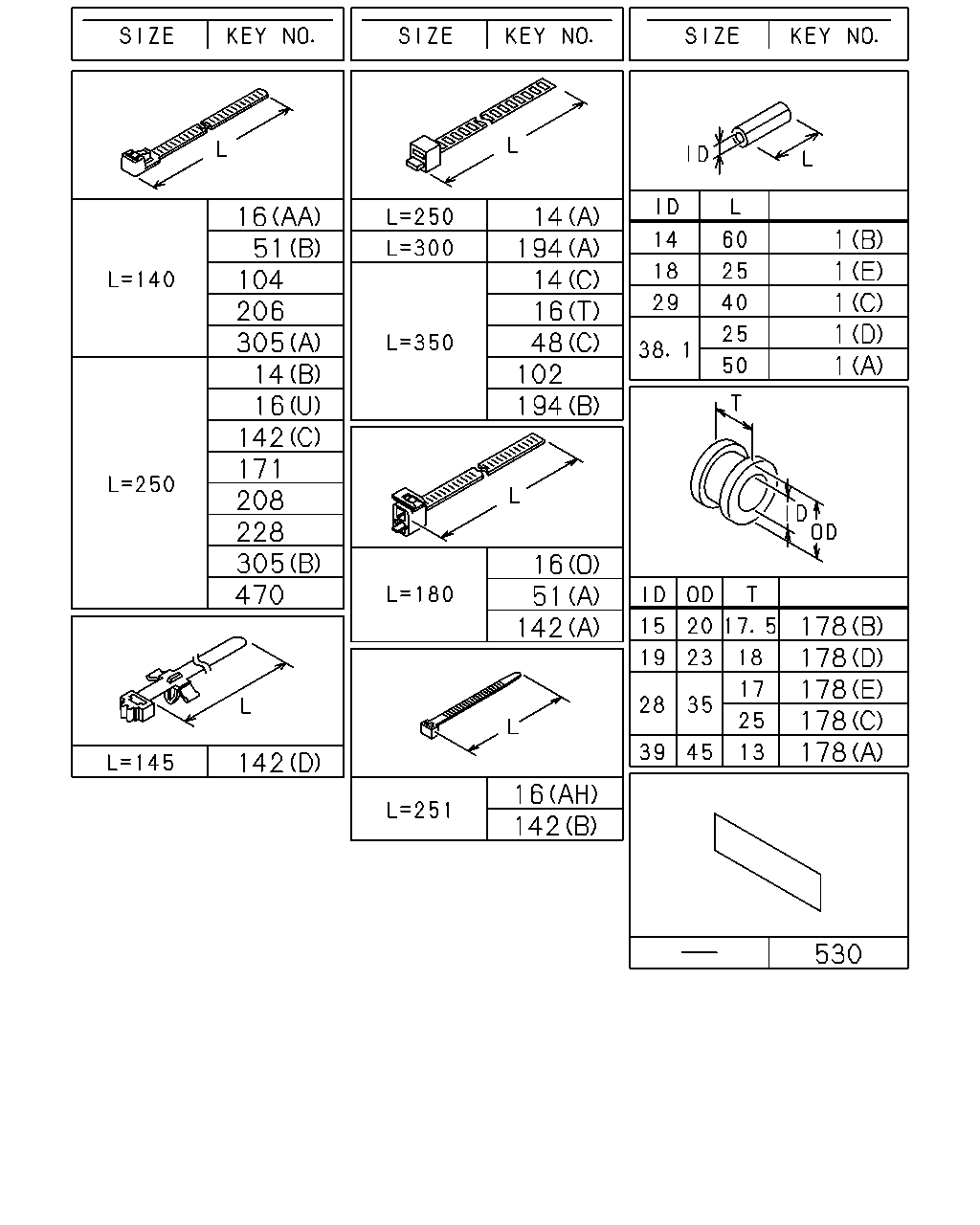

16 51 104 206 305 14 16 142 171 208 228 305 470 142 14 194 14 16 48 102 194 16 51 142 16 142 1 1 1 1 1 178 178 178 178 178 530

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	SLEEVE; RUBBER (C) ID=29 OD=39 L=40	1-09337-013-0	02	1	1512-
1	SLEEVE; RUBBER (B) ID=14 OD=18 L=60	1-09337-030-0	01	1	1512-
1	SLEEVE; RUBBER (D) ID=38.1 OD=48.1 L=25	1-09337-052-0	01	1	1512-
1	SLEEVE; RUBBER (E) ID=18 OD=22 L=25	8-94412-773-0	01	1	1512-
1	SLEEVE; RUBBER AIR CONDITIONER MANUAL CONTROL(C60) (A) ID=38.1 OD=48.1 L=50	5-09360-835-0	01	1	1512-
14	CLIP; BAND,HARNESS (A) L=250	1-09707-126-0	02	1	1512-
14	CLIP; BAND,HARNESS (C) L=350	1-09707-183-0	01	1	1512-
14	CLIP; BAND,HARNESS (B) L=250	5-09707-030-1	01	1	1512-
16	CLIP; HARNESS TRANSMISSION SIDE PTO HIGH CAPACITY(BBC), TRANSMISSION SIDE PTO HEAVY DUTY(B4P) (W) ID=5-12 L=18	1-09709-287-0	01	1	1512-
16	CLIP; HARNESS (W) ID=5-12 L=18	1-09709-287-0	03	1	1512-
16	CLIP; HARNESS (AB) ID=13-18 L=18	1-09709-291-0	02	1	1512-
16	CLIP; HARNESS (S) ID=11 L=16	0-95235-025-0	02	1	1512-
16	CLIP; HARNESS (D) B=18 ID=11 L=20	0-95235-035-0	02	1	1512-
16	CLIP; HARNESS (D) B=18 ID=11 L=20	0-95235-035-0	01	1	1512-
16	CLIP; HARNESS (X) T=0.8 ID=16 L=20	0-95235-535-0	01	1	1512-
16	CLIP; HARNESS (X) T=1.2 ID=16 L=20	0-95235-536-0	01	1	1512-
16	CLIP; HARNESS (G) ID=16 L=40	0-95235-576-0	02	1	1512-
16	CLIP; HARNESS (V) B=18 ID=19 L=20	0-95235-836-0	01	1	1512-
16	CLIP; HARNESS (V) B=18 ID=19 L=20	0-95235-836-0	01	1	1512-
16	CLIP; HARNESS (A) ID=22 L=32	1-09700-126-1	01	1	1512-
16	CLIP; HARNESS (C) ID=28 L=58	1-09700-400-0	04	1	1512-
16	CLIP; HARNESS (H) ID=11 L=41	1-09700-403-0	03	1	1512-
16	CLIP; HARNESS (H) ID=11 L=41	1-09700-403-0	04	1	1512-
16	CLIP; HARNESS (E) ID=20 L=50	1-09700-679-1	01	1	1512-
16	CLIP; HARNESS (F) ID=20 H=23 L=27	1-09700-861-0	01	1	1512-
16	CLIP; HARNESS (F) ID=20 H=23 L=27	1-09700-861-0	01	1	1512-
16	CLIP; HARNESS (F) ID=20 H=23 L=27	1-09700-861-0	01	1	1512-
16	CLIP; HARNESS (N) ID=35 H=45 L=33	1-09700-947-0	01	1	1512-
16	CLIP; HARNESS (M) ID=31.5 H=23 L=25	1-09701-017-0	01	1	1512-
16	CLIP; HARNESS (M) ID=31.5 H=23 L=25	1-09701-017-0	02	1	1512-
16	CLIP; HARNESS (J) ID=9 H=80 L=23	1-09701-061-0	02	1	1512-
16	CLIP; HARNESS (P) ID=18 L=28	1-09701-067-0	03	1	1512-
16	CLIP; HARNESS (L) ID=15 L=28	1-09701-216-0	01	1	1512-
16	CLIP; HARNESS (AE) ID=28 L=40	1-09701-261-0	01	1	1512-
16	CLIP; HARNESS (O) L=180	1-09707-162-1	01	1	1512-
16	CLIP; HARNESS (O) L=180	1-09707-162-1	01	1	1512-
16	CLIP; HARNESS (T) L=350	1-09707-183-0	01	1	1512-
16	CLIP; HARNESS TRANSMISSION SIDE PTO HIGH CAPACITY(BBC), TRANSMISSION SIDE PTO HEAVY DUTY(B4P) (T) L=350	1-09707-183-0	01	1	1512-
16	CLIP; HARNESS (T) L=350	1-09707-183-0	04	1	1512-
16	CLIP; HARNESS (K) W/SPONGE RUBBER	1-09709-150-0	01	1	1512-
16	CLIP; HARNESS (Q) OD=9 H=6	1-09709-178-0	01	1	1512-
16	CLIP; HARNESS (Q) OD=9 H=6	1-09709-178-0	01	1	1512-
16	CLIP; HARNESS (Q) OD=9 H=6	1-09709-178-0	02	1	1512-
16	CLIP; HARNESS (Q) OD=9 H=6	1-09709-178-0	03	1	1512-
16	CLIP; HARNESS (R) OD=9 H=13.5	1-09709-180-0	01	1	1512-
16	CLIP; HARNESS (I) ID=5-12 L=14.5	1-09987-221-0	01	1	1512-
16	CLIP; HARNESS POOR QUALITY DIESEL FUEL<KF0> (I) ID=5-12 L=14.5	1-09987-221-0	01	1	1512-
16	CLIP; HARNESS (I) ID=5-12 L=14.5	1-09987-221-0	02	1	1512-
16	CLIP; HARNESS (U) L=250	5-09707-030-1	01	1	1512-
16	CLIP; HARNESS (U) L=250	5-09707-030-1	05	1	1512-
16	CLIP; HARNESS (AA) L=140	5-09707-031-1	03	1	1512-
16	CLIP; HARNESS (AA) L=140	5-09707-031-1	03	1	1512-
16	CLIP; HARNESS (B) ID=21 L=47.5	8-94178-108-0	03	1	1512-
16	CLIP; HARNESS (AF) L=36	8-94224-891-1	01	1	1512-
16	CLIP; HARNESS (AD) ID=14-20	8-97061-603-0	03	1	1512-
16	CLIP; HARNESS (AG) ID=18 L=44	8-97367-985-1	02	1	1512-
16	CLIP; HARNESS (AH) L=251	8-97619-917-0	01	1	1512-
16	CLIP; HARNESS (AH) L=251	8-97619-917-0	04	1	1512-
16	CLIP; HARNESS (AC) ID=10 L=16.5	8-98082-034-0	02	1	1512-
16	CLIP; HARNESS (Z) ID=14 L=44	9-09917-427-0	01	1	1512-
16	CLIP; HARNESS (Z) ID=14 L=44	9-09917-427-0	03	1	1512-
16	CLIP; HARNESS (Y) ID=20 L=50	9-09917-430-0	03	1	1512-
16	CLIP; HARNESS (Y) ID=20 L=50	9-09917-430-0	06	1	1512-
16	CLIP; HARNESS POOR QUALITY DIESEL FUEL<KF0> (W) ID=5-12 L=18	1-09709-287-0	05	1	1512-
16	CLIP; HARNESS POOR QUALITY DIESEL FUEL<KF0> FUEL SEDIMENTER WITH HEATER<6HU> (W) ID=5-12 L=18	1-09709-287-0	04	1	1512-
16	CLIP; HARNESS EXC. POOR QUALITY DIESEL FUEL<KF0> (H) ID=11 L=41	1-09700-403-0	02	1	1512-
16	CLIP; HARNESS (H) ID=11 L=41	1-09700-403-0	02	1	1512-
16	CLIP; HARNESS RUSSIA EQUIPMENT(B12) (T) L=350	1-09707-183-0	02	1	1512-
16	CLIP; HARNESS RUSSIA EQUIPMENT(B12) (U) L=250	8-98216-430-0	11	1	1512-
16	CLIP; HARNESS EXC. RUSSIA EQUIPMENT(B12) (U) L=250	5-09707-030-1	04	1	1512-
16	CLIP; HARNESS EXC. RUSSIA EQUIPMENT(B12) (U) L=250	8-98216-430-0	10	1	1512-
48	CLIP; FRAME HARNESS (D) ID=11 H=30 L=17	1-09700-113-0	01	1	1512-
48	CLIP; FRAME HARNESS (A) ID=24.5 H=23 L=25	1-09700-862-0	01	1	1512-
48	CLIP; FRAME HARNESS (E) ID=34.5 H=23 L=27.5	1-09700-905-0	02	1	1512-
48	CLIP; FRAME HARNESS (E) ID=34.5 H=23 L=27.5	1-09700-905-0	03	1	1512-
48	CLIP; FRAME HARNESS (B) ID=20 H=18 L=82	1-09701-288-0	01	1	1512-
48	CLIP; FRAME HARNESS (C) L=350	1-09707-183-0	03	1	1512-
48	CLIP; FRAME HARNESS (C) L=350	1-09707-183-0	03	1	1512-
51	CLIP; COOLER CMPR AIR CONDITIONER MANUAL CONTROL(C60) (A) L=180	1-09707-162-1	01	1	1512-
51	CLIP; COOLER CMPR AIR CONDITIONER MANUAL CONTROL(C60) (B) L=140	5-09707-031-1	01	1	1512-
102	CLIP; BAND L=350	1-09707-183-0	01	1	1512-
104	CLIP; HEADLAMP HARNESS L=140	5-09707-031-1	02	1	1512-
142	CLIP; HARNESS,ENG (B) L=251	8-97619-917-0	01	1	1512-
142	CLIP; HARNESS,ENG (A) L=180	8-98216-427-0	01	1	1512-
142	CLIP; HARNESS,ENG (C) L=250	8-98216-430-0	02	1	1512-
142	CLIP; HARNESS,ENG RUSSIA EQUIPMENT(B12) (D) L=145	8-98116-079-0	01	1	1512-
171	CLIP; STARTER HARNESS L=250	5-09707-030-1	02	1	1512-
178	GROMMET; HARNESS (C) ID=28 OD=35 T=25	1-09332-011-1	01	1	1512-
178	GROMMET; HARNESS (C) ID=28 OD=35 T=25	1-09332-011-1	01	1	1512-
178	GROMMET; HARNESS (A) ID=39 OD=45 T=13	1-09332-076-0	01	1	1512-
178	GROMMET; HARNESS (B) ID=15 OD=20 T=17.5	1-09332-130-0	01	1	1512-
178	GROMMET; HARNESS (D) ID=19 OD=23 T=18	9-09956-130-1	01	1	1512-
178	GROMMET; HARNESS (E) ID=28 OD=35 T=17	9-09956-256-2	02	1	1512-
178	GROMMET; HARNESS (E) ID=28 OD=35 T=17	9-09956-256-2	03	1	1512-
194	CLIP; BAND (A) L=300	1-09707-001-1	01	1	1512-
194	CLIP; BAND (B) L=350	1-09707-183-0	03	1	1512-
206	CLIP; FUEL TANK HARNESS L=140	5-09707-031-1	02	1	1512-
208	CLIP; HARNESS,MAG VLV L=250	5-09707-030-1	01	1	1512-
228	CLIP; COOLER HARNESS L=250	5-09707-030-1	02	1	1512-
305	CLIP; ENG HARNESS (B) L=250	5-09707-030-1	04	1	1512-
305	CLIP; ENG HARNESS (A) L=140	5-09707-031-1	01	1	1512-
470	CLIP; HARNESS,LICENSE LAMP L=250	5-09707-030-1	04	1	1512-
530	SEAL; HARNESS 180X40	1-72498-019-1	12	1	1512-
530	SEAL; HARNESS 100X40	1-72498-022-1	01	1	1512-
530	SEAL; HARNESS MIRROR - O/SIDE RR VIEW,REM CONTROL&HEATED<EEP> 180X40	1-72498-019-1	01	1	1512-

119 340 515 524 294 219 515 515 423

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
119	SCREW; DOOR HARNESS EARTH M5X14 W/PL WASHER	8-94447-551-0	02	1	1512-
219	NUT M8 FLANGE	0-91180-108-0	02	1	1512-
219	NUT M8 FLANGE	0-91180-108-0	03	1	1512-
219	NUT M8 FLANGE	0-91180-108-0	06	1	1512-
219	NUT M8 FLANGE	0-91180-108-0	01	1	1512-
219	NUT M8 FLANGE	0-91180-108-0	01	1	1512-
219	NUT M8 FLANGE	0-91180-108-0	01	1	1512-
294	NUT M8 FLANGE	0-91180-108-0	02	1	1512-
294	NUT M8 FLANGE	0-91180-108-0	01	1	1512-
294	NUT M8 FLANGE	0-91180-108-0	01	1	1512-
340	NUT; HARNESS CAB TO FRAME M8 CUTTING NUT W/FLANGE	1-09985-340-0	01	1	1512-
423	WASHER; HARNESS,EARTH ID=8.4	1-09503-264-0	03	1	1512-
515	NUT; BRKT (A) M8 FLANGE	0-91180-108-0	01	1	1512-
515	NUT; BRKT (A) M8 FLANGE	0-91180-108-0	02	1	1512-
515	NUT; BRKT (B) M10 FLANGE	0-91180-210-0	01	1	1512-
515	NUT; BRKT (C) M8 CUTTING NUT W/FLANGE	1-09985-340-0	06	1	1512-
524	NUT; HARNESS M6 FLANGE	0-91180-106-0	02	1	1512-

38 242 150 139 38 150 242 38 38 480 38 242 38 139 313 86 38 242 139 133 516 19 38 386 377 358 239 88

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
19	BOLT; PROTECTOR M8X50 W/LK&PL WASHER	0-50640-850-0	02	1	1512-
38	BOLT; CLIP,HARNESS (B) M6X10 FLANGE	0-28050-610-0	01	1	1512-
38	BOLT; CLIP,HARNESS (C) M8X20 FLANGE	0-28050-820-0	01	1	1512-
38	BOLT; CLIP,HARNESS (C) M8X20 FLANGE	0-28050-820-0	01	1	1512-
38	BOLT; CLIP,HARNESS (F) M12X16 FLANGE	0-28051-216-0	01	1	1512-
38	BOLT; CLIP,HARNESS (A) M8X20 FLANGE	0-28650-820-0	05	1	1512-
38	BOLT; CLIP,HARNESS (A) M8X20 FLANGE	0-28650-820-0	01	1	1512-
38	BOLT; CLIP,HARNESS (A) M8X20 FLANGE	0-28650-820-0	01	1	1512-
38	BOLT; CLIP,HARNESS (A) M8X20 FLANGE	0-28650-820-0	02	1	1512-
38	BOLT; CLIP,HARNESS (A) M8X20 FLANGE	0-28650-820-0	02	1	1512-
38	BOLT; CLIP,HARNESS (A) M8X20 FLANGE	0-28650-820-0	02	1	1512-
38	BOLT; CLIP,HARNESS (A) M8X20 FLANGE	0-28650-820-0	02	1	1512-
38	BOLT; CLIP,HARNESS (D) M8X25 FLANGE	0-28650-825-0	01	1	1512-
38	BOLT; CLIP,HARNESS (D) M8X25 FLANGE	0-28650-825-0	01	1	1512-
38	BOLT; CLIP,HARNESS (H) M8X30 FLANGE	0-28650-830-0	06	1	1512-
38	BOLT; CLIP,HARNESS (E) M10X20 FLANGE	0-28751-020-0	01	1	1512-
38	BOLT; CLIP,HARNESS (G) M8X14 W/PL WASHER	8-98164-837-0	03	1	1512-
86	BOLT; CLIP BRKT M8X35 FLANGE	0-28650-835-0	01	1	1512-
88	BOLT; DOOR HARNESS EARTH POWER WINDOW<A30> M8X18.5 W/PL WASHER	8-98141-255-0	02	1	1512-
133	SCREW; HARNESS CLIP,STRG COLUMN M6X12 W/PL WASHER	8-97806-950-0	01	1	1512-
139	BOLT; BRKT (B) M8X16 FLANGE	0-28050-816-0	02	1	1512-
139	BOLT; BRKT (C) M10X30 FLANGE	0-28151-030-0	01	1	1512-
139	BOLT; BRKT (A) M8X30 FLANGE	0-28650-830-0	01	1	1512-
139	BOLT; BRKT (A) M8X30 FLANGE	0-28650-830-0	02	1	1512-
139	BOLT; BRKT (A) M8X30 FLANGE	0-28650-830-0	02	1	1512-
150	BOLT; CLIP (A) M8X12 FLANGE	0-28050-812-0	05	1	1512-
150	BOLT; CLIP (B) M8X16 FLANGE	0-28050-816-0	07	1	1512-
239	BOLT; GRAND M6X14 W/PL WASHER	8-98164-836-0	02	1	1512-
242	BOLT; BRKT,HARNESS (B) M8X12 FLANGE	0-28050-812-0	01	1	1512-
242	BOLT; BRKT,HARNESS (C) M8X20 FLANGE	0-28050-820-0	02	1	1512-
242	BOLT; BRKT,HARNESS (A) M8X25 FLANGE	0-28650-825-0	02	1	1512-
242	BOLT; BRKT,HARNESS (D) M10X25 FLANGE	0-28651-025-0	01	1	1512-
313	BOLT; BRKT M8X30 FLANGE	0-28650-830-0	02	1	1512-
358	BOLT; EARTH M5X16 W/LK&PL WASHER	8-94198-538-0	01	1	1512-
377	BOLT; CAB EARTH M8X14 W/PL WASHER	8-98164-837-0	01	1	1512-
386	BOLT; GRAND HARNESS M8X18.5 W/PL WASHER	8-98141-255-0	01	1	1512-
480	BOLT; BRKT M8X20 FLANGE	0-28650-820-0	03	1	1512-
516	BOLT; HARNESS M6X19.5 W/LK&PL WASHER	8-94279-201-0	02	1	1512-

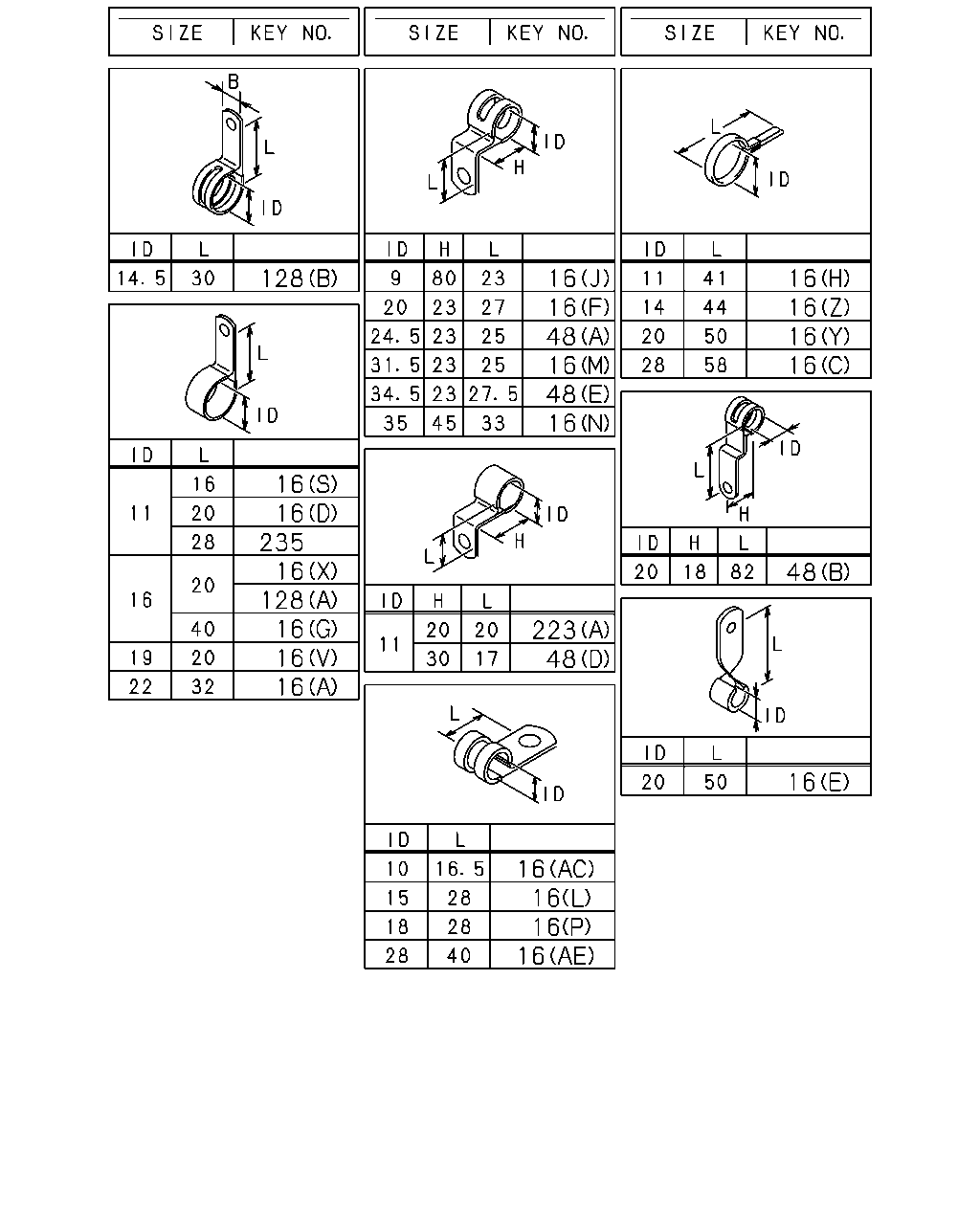

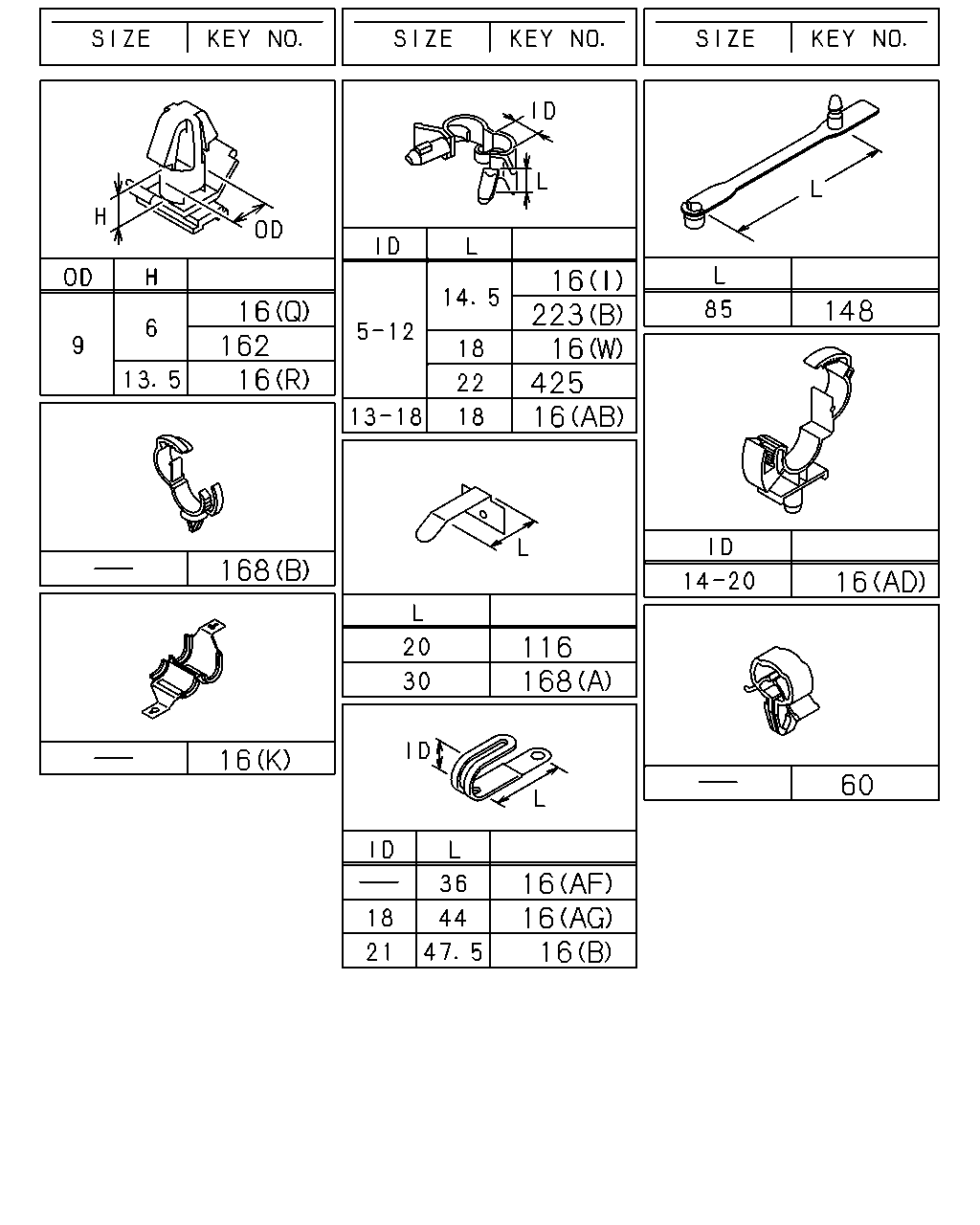

128 16 16 235 16 128 16 16 16 16 16 48 16 48 16 223 48 16 16 16 16 16 16 16 16 48 16

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
16	CLIP; HARNESS TRANSMISSION SIDE PTO HIGH CAPACITY(BBC), TRANSMISSION SIDE PTO HEAVY DUTY(B4P) (W) ID=5-12 L=18	1-09709-287-0	01	1	1512-
16	CLIP; HARNESS (W) ID=5-12 L=18	1-09709-287-0	03	1	1512-
16	CLIP; HARNESS (AB) ID=13-18 L=18	1-09709-291-0	02	1	1512-
16	CLIP; HARNESS (S) ID=11 L=16	0-95235-025-0	02	1	1512-
16	CLIP; HARNESS (D) B=18 ID=11 L=20	0-95235-035-0	02	1	1512-
16	CLIP; HARNESS (D) B=18 ID=11 L=20	0-95235-035-0	01	1	1512-
16	CLIP; HARNESS (X) T=0.8 ID=16 L=20	0-95235-535-0	01	1	1512-
16	CLIP; HARNESS (X) T=1.2 ID=16 L=20	0-95235-536-0	01	1	1512-
16	CLIP; HARNESS (G) ID=16 L=40	0-95235-576-0	02	1	1512-
16	CLIP; HARNESS (V) B=18 ID=19 L=20	0-95235-836-0	01	1	1512-
16	CLIP; HARNESS (V) B=18 ID=19 L=20	0-95235-836-0	01	1	1512-
16	CLIP; HARNESS (A) ID=22 L=32	1-09700-126-1	01	1	1512-
16	CLIP; HARNESS (C) ID=28 L=58	1-09700-400-0	04	1	1512-
16	CLIP; HARNESS (H) ID=11 L=41	1-09700-403-0	03	1	1512-
16	CLIP; HARNESS (H) ID=11 L=41	1-09700-403-0	04	1	1512-
16	CLIP; HARNESS (E) ID=20 L=50	1-09700-679-1	01	1	1512-
16	CLIP; HARNESS (F) ID=20 H=23 L=27	1-09700-861-0	01	1	1512-
16	CLIP; HARNESS (F) ID=20 H=23 L=27	1-09700-861-0	01	1	1512-
16	CLIP; HARNESS (F) ID=20 H=23 L=27	1-09700-861-0	01	1	1512-
16	CLIP; HARNESS (N) ID=35 H=45 L=33	1-09700-947-0	01	1	1512-
16	CLIP; HARNESS (M) ID=31.5 H=23 L=25	1-09701-017-0	01	1	1512-
16	CLIP; HARNESS (M) ID=31.5 H=23 L=25	1-09701-017-0	02	1	1512-
16	CLIP; HARNESS (J) ID=9 H=80 L=23	1-09701-061-0	02	1	1512-
16	CLIP; HARNESS (P) ID=18 L=28	1-09701-067-0	03	1	1512-
16	CLIP; HARNESS (L) ID=15 L=28	1-09701-216-0	01	1	1512-
16	CLIP; HARNESS (AE) ID=28 L=40	1-09701-261-0	01	1	1512-
16	CLIP; HARNESS (O) L=180	1-09707-162-1	01	1	1512-
16	CLIP; HARNESS (O) L=180	1-09707-162-1	01	1	1512-
16	CLIP; HARNESS (T) L=350	1-09707-183-0	01	1	1512-
16	CLIP; HARNESS TRANSMISSION SIDE PTO HIGH CAPACITY(BBC), TRANSMISSION SIDE PTO HEAVY DUTY(B4P) (T) L=350	1-09707-183-0	01	1	1512-
16	CLIP; HARNESS (T) L=350	1-09707-183-0	04	1	1512-
16	CLIP; HARNESS (K) W/SPONGE RUBBER	1-09709-150-0	01	1	1512-
16	CLIP; HARNESS (Q) OD=9 H=6	1-09709-178-0	01	1	1512-
16	CLIP; HARNESS (Q) OD=9 H=6	1-09709-178-0	01	1	1512-
16	CLIP; HARNESS (Q) OD=9 H=6	1-09709-178-0	02	1	1512-
16	CLIP; HARNESS (Q) OD=9 H=6	1-09709-178-0	03	1	1512-
16	CLIP; HARNESS (R) OD=9 H=13.5	1-09709-180-0	01	1	1512-
16	CLIP; HARNESS (I) ID=5-12 L=14.5	1-09987-221-0	01	1	1512-
16	CLIP; HARNESS POOR QUALITY DIESEL FUEL<KF0> (I) ID=5-12 L=14.5	1-09987-221-0	01	1	1512-
16	CLIP; HARNESS (I) ID=5-12 L=14.5	1-09987-221-0	02	1	1512-
16	CLIP; HARNESS (U) L=250	5-09707-030-1	01	1	1512-
16	CLIP; HARNESS (U) L=250	5-09707-030-1	05	1	1512-
16	CLIP; HARNESS (AA) L=140	5-09707-031-1	03	1	1512-
16	CLIP; HARNESS (AA) L=140	5-09707-031-1	03	1	1512-
16	CLIP; HARNESS (B) ID=21 L=47.5	8-94178-108-0	03	1	1512-
16	CLIP; HARNESS (AF) L=36	8-94224-891-1	01	1	1512-
16	CLIP; HARNESS (AD) ID=14-20	8-97061-603-0	03	1	1512-
16	CLIP; HARNESS (AG) ID=18 L=44	8-97367-985-1	02	1	1512-
16	CLIP; HARNESS (AH) L=251	8-97619-917-0	01	1	1512-
16	CLIP; HARNESS (AH) L=251	8-97619-917-0	04	1	1512-
16	CLIP; HARNESS (AC) ID=10 L=16.5	8-98082-034-0	02	1	1512-
16	CLIP; HARNESS (Z) ID=14 L=44	9-09917-427-0	01	1	1512-
16	CLIP; HARNESS (Z) ID=14 L=44	9-09917-427-0	03	1	1512-
16	CLIP; HARNESS (Y) ID=20 L=50	9-09917-430-0	03	1	1512-
16	CLIP; HARNESS (Y) ID=20 L=50	9-09917-430-0	06	1	1512-
16	CLIP; HARNESS POOR QUALITY DIESEL FUEL<KF0> (W) ID=5-12 L=18	1-09709-287-0	05	1	1512-
16	CLIP; HARNESS POOR QUALITY DIESEL FUEL<KF0> FUEL SEDIMENTER WITH HEATER<6HU> (W) ID=5-12 L=18	1-09709-287-0	04	1	1512-
16	CLIP; HARNESS EXC. POOR QUALITY DIESEL FUEL<KF0> (H) ID=11 L=41	1-09700-403-0	02	1	1512-
16	CLIP; HARNESS (H) ID=11 L=41	1-09700-403-0	02	1	1512-
16	CLIP; HARNESS RUSSIA EQUIPMENT(B12) (T) L=350	1-09707-183-0	02	1	1512-
16	CLIP; HARNESS RUSSIA EQUIPMENT(B12) (U) L=250	8-98216-430-0	11	1	1512-
16	CLIP; HARNESS EXC. RUSSIA EQUIPMENT(B12) (U) L=250	5-09707-030-1	04	1	1512-
16	CLIP; HARNESS EXC. RUSSIA EQUIPMENT(B12) (U) L=250	8-98216-430-0	10	1	1512-
48	CLIP; FRAME HARNESS (D) ID=11 H=30 L=17	1-09700-113-0	01	1	1512-
48	CLIP; FRAME HARNESS (A) ID=24.5 H=23 L=25	1-09700-862-0	01	1	1512-
48	CLIP; FRAME HARNESS (E) ID=34.5 H=23 L=27.5	1-09700-905-0	02	1	1512-
48	CLIP; FRAME HARNESS (E) ID=34.5 H=23 L=27.5	1-09700-905-0	03	1	1512-
48	CLIP; FRAME HARNESS (B) ID=20 H=18 L=82	1-09701-288-0	01	1	1512-
48	CLIP; FRAME HARNESS (C) L=350	1-09707-183-0	03	1	1512-
48	CLIP; FRAME HARNESS (C) L=350	1-09707-183-0	03	1	1512-
128	CLIP; COMB SW HARNESS,STRG COLUMN (A) ID=16 L=20	0-95235-535-0	01	1	1512-
128	CLIP; COMB SW HARNESS,STRG COLUMN (B) ID=14.5 L=30	9-09916-893-1	01	1	1512-
223	CLIP; AIR TANK HARNESS (B) ID=5-12 L=14.5	1-09987-221-0	01	1	1512-
223	CLIP; AIR TANK HARNESS (A) ID=11 H=20 L=20	8-98033-780-0	03	1	1512-
235	CLIP; HARNESS,SPD SENSOR,SSPS ID=11 L=28	9-09917-544-0	01	1	1512-

16 16 162 168 16 16 16 223 425 116 16 168 16 16 16 148 16 60

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
16	CLIP; HARNESS TRANSMISSION SIDE PTO HIGH CAPACITY(BBC), TRANSMISSION SIDE PTO HEAVY DUTY(B4P) (W) ID=5-12 L=18	1-09709-287-0	01	1	1512-
16	CLIP; HARNESS (W) ID=5-12 L=18	1-09709-287-0	03	1	1512-
16	CLIP; HARNESS (AB) ID=13-18 L=18	1-09709-291-0	02	1	1512-
16	CLIP; HARNESS (S) ID=11 L=16	0-95235-025-0	02	1	1512-
16	CLIP; HARNESS (D) B=18 ID=11 L=20	0-95235-035-0	02	1	1512-
16	CLIP; HARNESS (D) B=18 ID=11 L=20	0-95235-035-0	01	1	1512-
16	CLIP; HARNESS (X) T=0.8 ID=16 L=20	0-95235-535-0	01	1	1512-
16	CLIP; HARNESS (X) T=1.2 ID=16 L=20	0-95235-536-0	01	1	1512-
16	CLIP; HARNESS (G) ID=16 L=40	0-95235-576-0	02	1	1512-
16	CLIP; HARNESS (V) B=18 ID=19 L=20	0-95235-836-0	01	1	1512-
16	CLIP; HARNESS (V) B=18 ID=19 L=20	0-95235-836-0	01	1	1512-
16	CLIP; HARNESS (A) ID=22 L=32	1-09700-126-1	01	1	1512-
16	CLIP; HARNESS (C) ID=28 L=58	1-09700-400-0	04	1	1512-
16	CLIP; HARNESS (H) ID=11 L=41	1-09700-403-0	03	1	1512-
16	CLIP; HARNESS (H) ID=11 L=41	1-09700-403-0	04	1	1512-
16	CLIP; HARNESS (E) ID=20 L=50	1-09700-679-1	01	1	1512-
16	CLIP; HARNESS (F) ID=20 H=23 L=27	1-09700-861-0	01	1	1512-
16	CLIP; HARNESS (F) ID=20 H=23 L=27	1-09700-861-0	01	1	1512-
16	CLIP; HARNESS (F) ID=20 H=23 L=27	1-09700-861-0	01	1	1512-
16	CLIP; HARNESS (N) ID=35 H=45 L=33	1-09700-947-0	01	1	1512-
16	CLIP; HARNESS (M) ID=31.5 H=23 L=25	1-09701-017-0	01	1	1512-
16	CLIP; HARNESS (M) ID=31.5 H=23 L=25	1-09701-017-0	02	1	1512-
16	CLIP; HARNESS (J) ID=9 H=80 L=23	1-09701-061-0	02	1	1512-
16	CLIP; HARNESS (P) ID=18 L=28	1-09701-067-0	03	1	1512-
16	CLIP; HARNESS (L) ID=15 L=28	1-09701-216-0	01	1	1512-
16	CLIP; HARNESS (AE) ID=28 L=40	1-09701-261-0	01	1	1512-
16	CLIP; HARNESS (O) L=180	1-09707-162-1	01	1	1512-
16	CLIP; HARNESS (O) L=180	1-09707-162-1	01	1	1512-
16	CLIP; HARNESS (T) L=350	1-09707-183-0	01	1	1512-
16	CLIP; HARNESS TRANSMISSION SIDE PTO HIGH CAPACITY(BBC), TRANSMISSION SIDE PTO HEAVY DUTY(B4P) (T) L=350	1-09707-183-0	01	1	1512-
16	CLIP; HARNESS (T) L=350	1-09707-183-0	04	1	1512-
16	CLIP; HARNESS (K) W/SPONGE RUBBER	1-09709-150-0	01	1	1512-
16	CLIP; HARNESS (Q) OD=9 H=6	1-09709-178-0	01	1	1512-
16	CLIP; HARNESS (Q) OD=9 H=6	1-09709-178-0	01	1	1512-
16	CLIP; HARNESS (Q) OD=9 H=6	1-09709-178-0	02	1	1512-
16	CLIP; HARNESS (Q) OD=9 H=6	1-09709-178-0	03	1	1512-
16	CLIP; HARNESS (R) OD=9 H=13.5	1-09709-180-0	01	1	1512-
16	CLIP; HARNESS (I) ID=5-12 L=14.5	1-09987-221-0	01	1	1512-
16	CLIP; HARNESS POOR QUALITY DIESEL FUEL<KF0> (I) ID=5-12 L=14.5	1-09987-221-0	01	1	1512-
16	CLIP; HARNESS (I) ID=5-12 L=14.5	1-09987-221-0	02	1	1512-
16	CLIP; HARNESS (U) L=250	5-09707-030-1	01	1	1512-
16	CLIP; HARNESS (U) L=250	5-09707-030-1	05	1	1512-
16	CLIP; HARNESS (AA) L=140	5-09707-031-1	03	1	1512-
16	CLIP; HARNESS (AA) L=140	5-09707-031-1	03	1	1512-
16	CLIP; HARNESS (B) ID=21 L=47.5	8-94178-108-0	03	1	1512-
16	CLIP; HARNESS (AF) L=36	8-94224-891-1	01	1	1512-
16	CLIP; HARNESS (AD) ID=14-20	8-97061-603-0	03	1	1512-
16	CLIP; HARNESS (AG) ID=18 L=44	8-97367-985-1	02	1	1512-
16	CLIP; HARNESS (AH) L=251	8-97619-917-0	01	1	1512-
16	CLIP; HARNESS (AH) L=251	8-97619-917-0	04	1	1512-
16	CLIP; HARNESS (AC) ID=10 L=16.5	8-98082-034-0	02	1	1512-
16	CLIP; HARNESS (Z) ID=14 L=44	9-09917-427-0	01	1	1512-
16	CLIP; HARNESS (Z) ID=14 L=44	9-09917-427-0	03	1	1512-
16	CLIP; HARNESS (Y) ID=20 L=50	9-09917-430-0	03	1	1512-
16	CLIP; HARNESS (Y) ID=20 L=50	9-09917-430-0	06	1	1512-
16	CLIP; HARNESS POOR QUALITY DIESEL FUEL<KF0> (W) ID=5-12 L=18	1-09709-287-0	05	1	1512-
16	CLIP; HARNESS POOR QUALITY DIESEL FUEL<KF0> FUEL SEDIMENTER WITH HEATER<6HU> (W) ID=5-12 L=18	1-09709-287-0	04	1	1512-
16	CLIP; HARNESS EXC. POOR QUALITY DIESEL FUEL<KF0> (H) ID=11 L=41	1-09700-403-0	02	1	1512-
16	CLIP; HARNESS (H) ID=11 L=41	1-09700-403-0	02	1	1512-
16	CLIP; HARNESS RUSSIA EQUIPMENT(B12) (T) L=350	1-09707-183-0	02	1	1512-
16	CLIP; HARNESS RUSSIA EQUIPMENT(B12) (U) L=250	8-98216-430-0	11	1	1512-
16	CLIP; HARNESS EXC. RUSSIA EQUIPMENT(B12) (U) L=250	5-09707-030-1	04	1	1512-
16	CLIP; HARNESS EXC. RUSSIA EQUIPMENT(B12) (U) L=250	8-98216-430-0	10	1	1512-
60	CLIP; CONSOLE HARNESS,SW PTO DUMP CONTROL LEVER<RC4> ID=10	8-94450-392-0	01	1	1512-
116	CLIP; ROOF HARNESS L=20 SET=10 PIECE	1-09987-246-2	06	1	1512-
148	CLIP; BAND,HEADLAMP HARNESS L=85	8-94232-611-0	01	1	1512-
162	CLIP; SW HARNESS OD=9 H=6	1-09709-178-0	01	1	1512-
168	CLIP; DASH HARNESS (B) ID=6 & 10-13	8-97069-515-0	02	1	1512-
168	CLIP; DASH HARNESS HEATER & DEFROSTER(C41) (A) L=30 SET=10 PIECE	1-09987-265-0	01	1	1512-
223	CLIP; AIR TANK HARNESS (B) ID=5-12 L=14.5	1-09987-221-0	01	1	1512-
223	CLIP; AIR TANK HARNESS (A) ID=11 H=20 L=20	8-98033-780-0	03	1	1512-
425	CLIP; MODULATOR ID=5-12 L=22	1-09709-288-0	01	1	1512-

375 342 335 312 312 312 334 312 312 312 211

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
211	BRACKET; AXLE HARNESS L=95	1-82699-085-0	02	1	1512-
312	BRACKET; CLIP HARNESS (C)	1-47477-694-0	02	1	1512-
312	BRACKET; CLIP HARNESS (A) L=120 H=35	1-82698-088-0	01	1	1512-
312	BRACKET; CLIP HARNESS (D)	8-97636-868-1	02	1	1512-
312	BRACKET; CLIP HARNESS (B)	8-98201-136-0	01	1	1512-
312	BRACKET; CLIP HARNESS (E)	8-98225-560-0	01	1	1512-
312	BRACKET; CLIP HARNESS (F)	8-98233-397-0	01	1	1512-
334	BRACKET	8-98212-895-0	01	1	1512-
335	BRACKET; CONNECTOR	1-82698-167-0	01	1	1512-
342	BRACKET; HARNESS CAB MTG	1-82699-625-0	01	1	1512-
375	BRACKET; AC GEN HARNESS CLIP	1-82699-182-0	01	1	1512-

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
