◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ EXZ ▶ 11745 - EXZ LHD EURO5 ▶ 7 - Interior Trim, Emblems / Labels, Seats, Mirrors ▶ 7-60 - SEAT BELT ▶
7-60 — SEAT BELT (#176388) — 8 parça

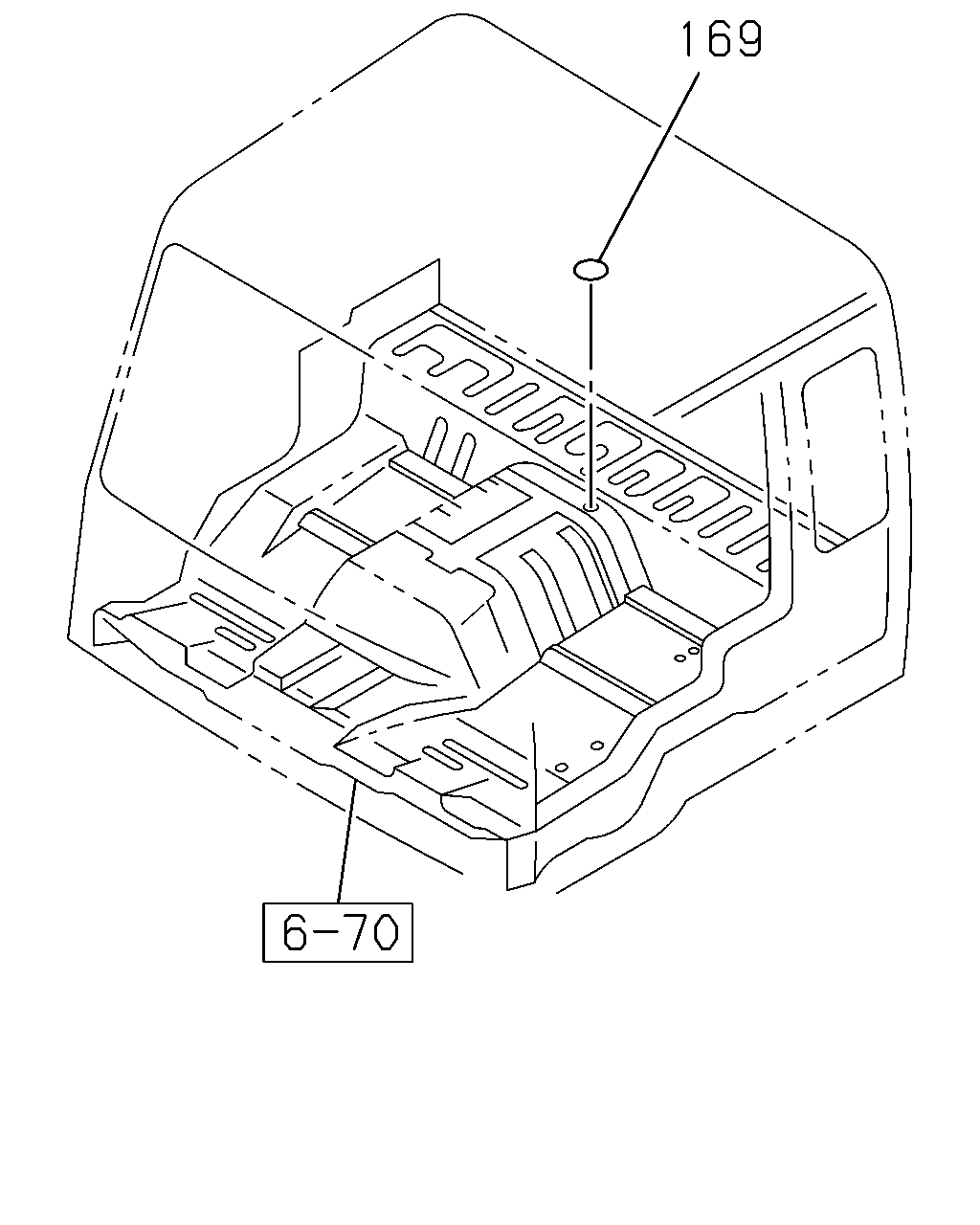

çizim 514035
169
BalonParca AdiParca NoAdetTipApplied Date
169 SEAL
CENTER SEAT DELETE(SP9) OD=25 BLACK 		1-76798-019-0 01 1 1512-

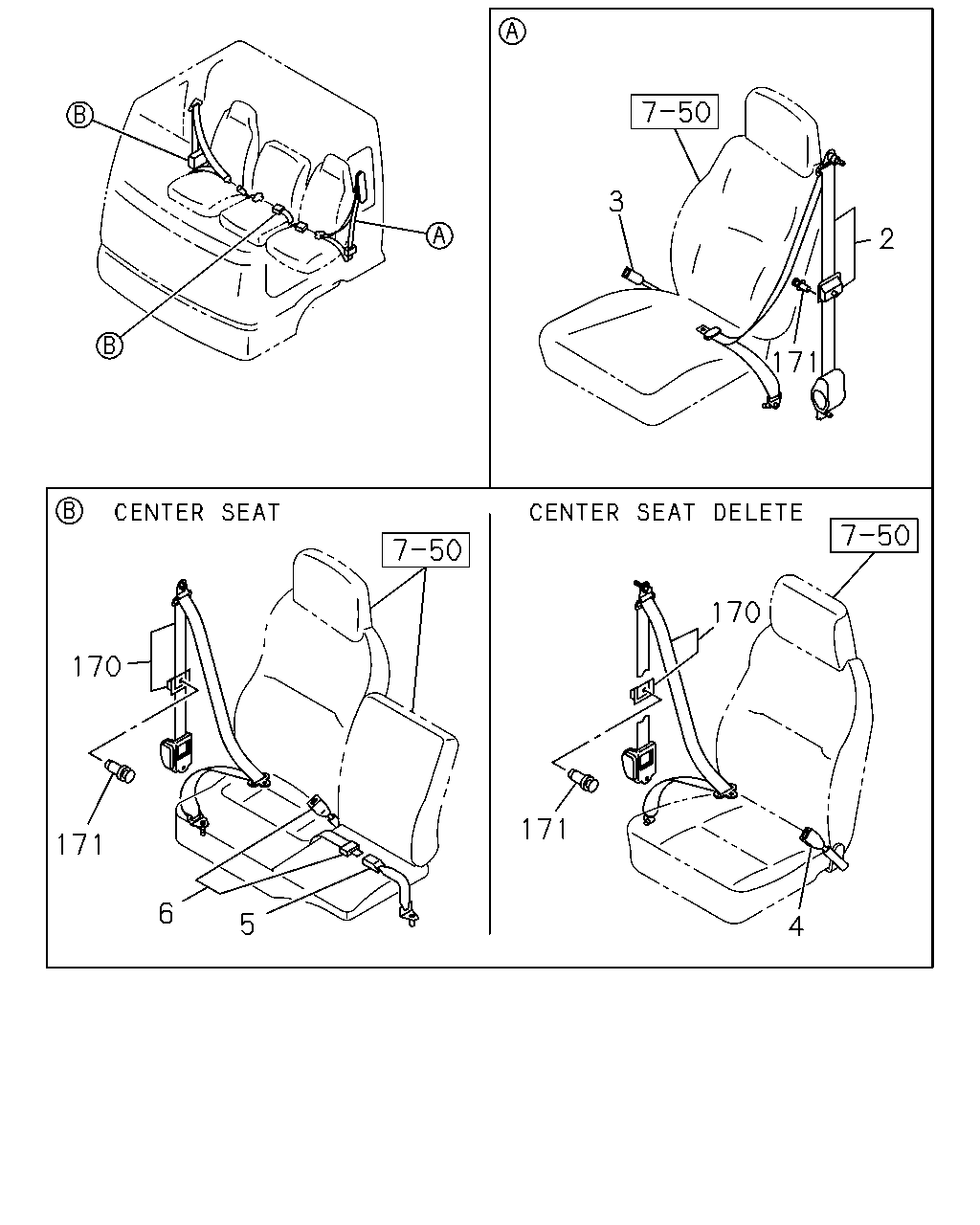

çizim 514720
170 171 6 5 3 2 171 170 171 4
BalonParca AdiParca NoAdetTipApplied Date
2 BELT; SEAT,TONGUE SIDE
FRT SEAT & SHOULDER BELT W/RETRACTOR(AK3) RUSSIA EQUIPMENT(B12),VIETNAM EQUIPMENT(JCD), PHILIPPINE EQUIPMENT(WE3) RIGID SEAT W/ARM REST(SGC),SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) 		8-98119-037-1 01 1 1512-
3 BELT; SEAT,BUCKLE SIDE 1-75617-545-0 01 1 1512-
4 BELT; PASSENGER SEAT,BUCKLE SIDE
RUSSIA EQUIPMENT(B12),VIETNAM EQUIPMENT(JCD), PHILIPPINE EQUIPMENT(WE3) CENTER SEAT DELETE(SP9) 		1-75618-911-1 01 1 1512-
5 BELT; CENTER SEAT,BUCKLE SIDE
CENTER SEAT(SA1) 		8-98127-493-0 01 1 1512-
6 BELT; CENTER SEAT,TONGUE SIDE
RUSSIA EQUIPMENT(B12),VIETNAM EQUIPMENT(JCD), PHILIPPINE EQUIPMENT(WE3) CENTER SEAT(SA1) 		8-98119-039-0 01 1 1512-
170 BELT; PASSENGER SEAT,TONGUE SIDE
RUSSIA EQUIPMENT(B12),VIETNAM EQUIPMENT(JCD), PHILIPPINE EQUIPMENT(WE3) 		8-98119-038-1 01 1 1512-
171 CLIP; SEAT BELT GUIDE 1-09987-239-0 02 1 1512-
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
