7-50 — FRONT SEAT (#176387) — 124 parça

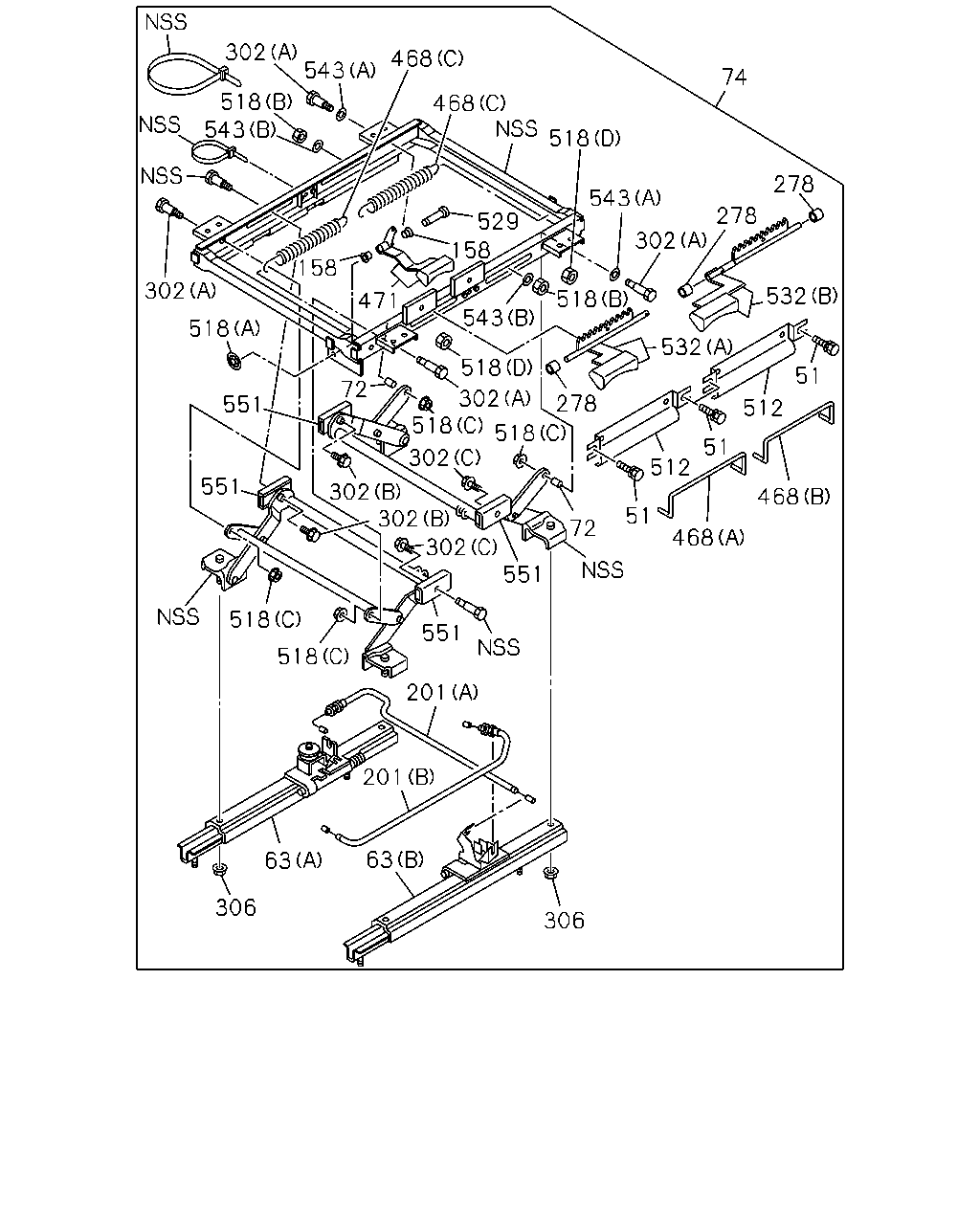

302 468 543 518 543 468 518 74 302 158 158 529 543 278 278 532 302 518 543 471 518 551 551 518 518 201 201 63 306 63 306 551 551 302 302 302 302 518 302 2 518 72 512 51 12 1 468 468 51 278 532 518

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	BACK ASM; SEAT RIGID SEAT W/ARM REST(SGC),SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL)	8-98210-851-0	01	1	1512-
2	COVER; TRIM,FRT SEAT,BACK RIGID SEAT W/ARM REST(SGC),SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL)	8-98210-852-0	01	1	1512-
12	CUSHION; SEAT,FRT RIGID SEAT W/ARM REST(SGC),SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL)	8-98210-849-0	01	1	1512-
51	SCREW; COVER RIGID SEAT W/ARM REST(SGC),SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL)	1-75518-325-1	04	1	1512-
63	ADJUSTER; SEAT SLIDE RIGID SEAT W/ARM REST(SGC),SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) (A)	1-75518-227-1	01	1	1512-
63	ADJUSTER; SEAT SLIDE RIGID SEAT W/ARM REST(SGC),SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) (B)	1-75518-324-0	01	1	1512-
72	SPACER; SEAT ADJ RIGID SEAT W/ARM REST(SGC),SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL)	8-98291-668-0	02	1	1512-
74	ADJUSTER; FRT SEAT,HEIGHT CONT RIGID SEAT W/ARM REST(SGC),SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL)	8-98291-646-0	01	1	1512-
158	BUSHING; LINK ARM RIGID SEAT W/ARM REST(SGC),SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL)	1-75518-209-0	02	1	1512-
201	CABLE; ADJ RIGID SEAT W/ARM REST(SGC),SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) (A) L=667	1-75518-288-0	01	1	1512-
201	CABLE; ADJ RIGID SEAT W/ARM REST(SGC),SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) (B) L=605	1-75518-289-1	01	1	1512-
278	COLLAR; FRT SEAT RIGID SEAT W/ARM REST(SGC),SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL)	1-75518-244-0	03	1	1512-
302	BOLT; ADJ,HEIGHT CONT RIGID SEAT W/ARM REST(SGC),SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) (C)	1-75518-266-2	02	1	1512-
302	BOLT; ADJ,HEIGHT CONT RIGID SEAT W/ARM REST(SGC),SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) (B)	1-75518-336-1	02	1	1512-
302	BOLT; ADJ,HEIGHT CONT RIGID SEAT W/ARM REST(SGC),SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) (A)	8-98291-667-0	04	1	1512-
306	NUT; SEAT ADJ RIGID SEAT W/ARM REST(SGC),SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) M8 FLANGE	1-75538-207-0	14	1	1512-
468	SPRING; RETURN RIGID SEAT W/ARM REST(SGC),SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) (A)	1-75518-206-0	01	1	1512-
468	SPRING; RETURN RIGID SEAT W/ARM REST(SGC),SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) (B)	1-75518-207-0	01	1	1512-
468	SPRING; RETURN RIGID SEAT W/ARM REST(SGC),SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) (C)	1-75518-208-0	02	1	1512-
468	SPRING; RETURN SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) (D)	1-75538-132-0	01	1	1512-
471	LEVER; SEAT ADJ RIGID SEAT W/ARM REST(SGC),SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL)	8-98107-870-0	01	1	1512-
512	COVER; LEVER RIGID SEAT W/ARM REST(SGC),SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL)	1-75518-245-1	02	1	1512-
518	NUT; TILT ADJ RIGID SEAT W/ARM REST(SGC),SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) (A)	1-75518-263-0	01	1	1512-
518	NUT; TILT ADJ RIGID SEAT W/ARM REST(SGC),SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) (C) M8	1-75518-264-0	04	1	1512-
518	NUT; TILT ADJ RIGID SEAT W/ARM REST(SGC),SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) (D) M6 LOCK NUT	5-09984-020-0	02	1	1512-
518	NUT; TILT ADJ RIGID SEAT W/ARM REST(SGC),SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) (B) M8 FLANGE	8-94152-886-0	04	1	1512-
529	PIN; LINK RIGID SEAT W/ARM REST(SGC),SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL)	1-75518-262-0	01	1	1512-
532	LEVER ASM; TILT RIGID SEAT W/ARM REST(SGC),SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) (A)	1-75518-221-0	01	1	1512-
532	LEVER ASM; TILT RIGID SEAT W/ARM REST(SGC),SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) (B)	1-75518-222-1	01	1	1512-
543	WASHER; HEIGHT ADJUSTER RIGID SEAT W/ARM REST(SGC),SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) (A) ID=13 OD=19	8-98291-669-0	02	1	1512-
543	WASHER; HEIGHT ADJUSTER RIGID SEAT W/ARM REST(SGC),SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) (B) ID=8.4	9-09160-508-0	04	1	1512-
551	SLIDER; HEIGHT ADJ RIGID SEAT W/ARM REST(SGC),SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL)	1-75518-265-0	04	1	1512-

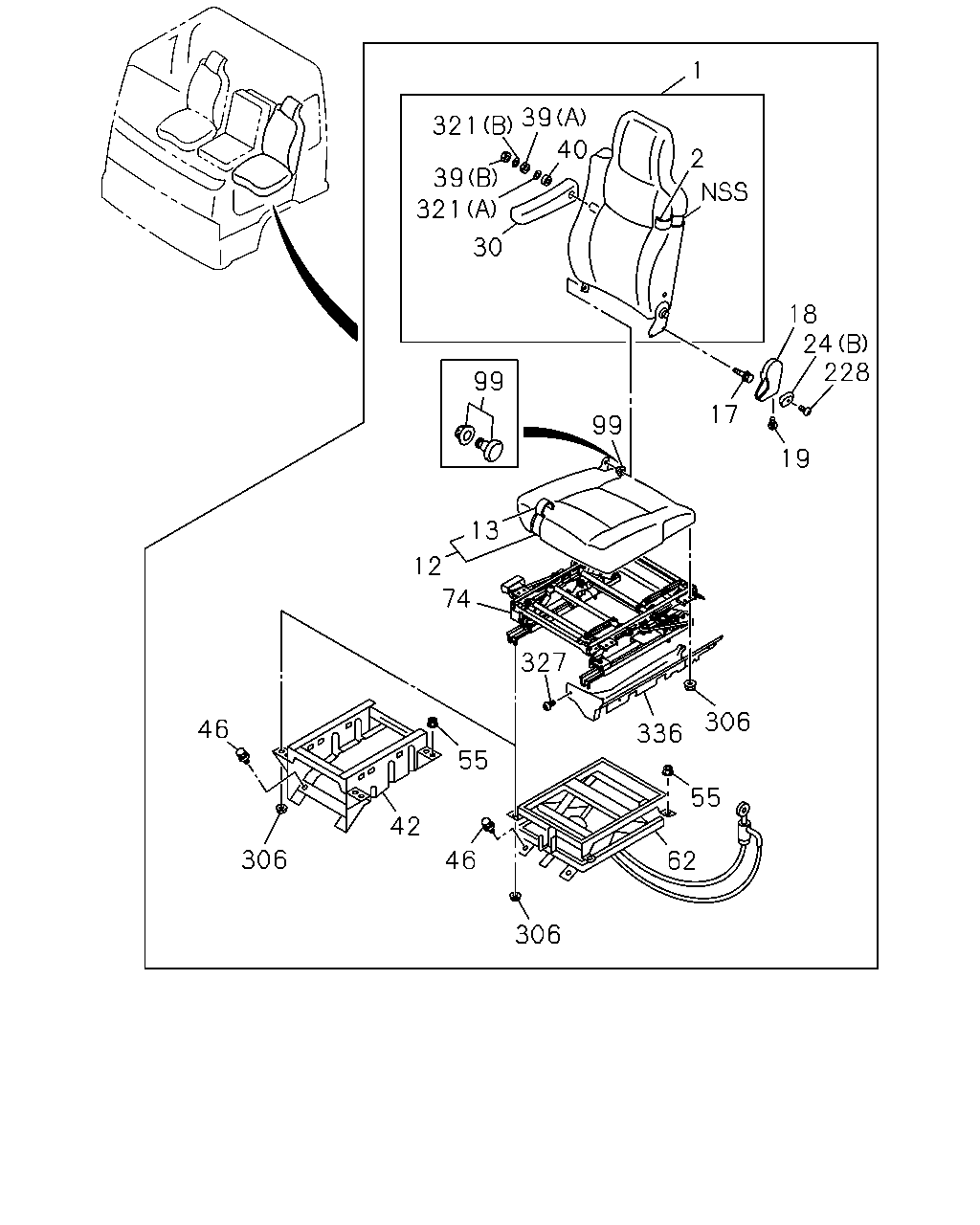

321 30 321 99 99 12 74 46 306 13 19 17 18 24 55 62 306 46 42 55 327 336 228 306 39 39 2 1 40

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	BACK ASM; SEAT RIGID SEAT W/ARM REST(SGC),SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL)	8-98210-851-0	01	1	1512-
2	COVER; TRIM,FRT SEAT,BACK RIGID SEAT W/ARM REST(SGC),SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL)	8-98210-852-0	01	1	1512-
12	CUSHION; SEAT,FRT RIGID SEAT W/ARM REST(SGC),SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL)	8-98210-849-0	01	1	1512-
13	COVER; TRIM,FRT SEAT,CUSHION RIGID SEAT W/ARM REST(SGC),SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL)	8-98210-850-0	01	1	1512-
17	BOLT; RECLINING RIGID SEAT W/ARM REST(SGC),SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) M8X20	8-97255-906-0	02	1	1512-
18	COVER; RECLINING RIGID SEAT W/ARM REST(SGC),SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) DARK GRAY	8-97859-018-0	01	1	1512-
19	SCREW; COVER RIGID SEAT W/ARM REST(SGC),SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) M5X16 TAPPING W/PL WASHER	0-74310-516-0	03	1	1512-
24	KNOB; RECLINING,FRT,SEAT (A)	1-75418-066-0	01	1	1512-
24	KNOB; RECLINING,FRT,SEAT RIGID SEAT W/ARM REST(SGC),SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) (B)	1-75418-067-0	01	1	1512-
30	REST ASM; ARM,FRT SEAT RIGID SEAT W/ARM REST(SGC),SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL)	8-98230-584-0	01	1	1512-
39	NUT; ARM REST RIGID SEAT W/ARM REST(SGC),SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) (B) M8	1-75147-657-0	01	1	1512-
39	NUT; ARM REST RIGID SEAT W/ARM REST(SGC),SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) (A) M10	9-09110-410-0	01	1	1512-
40	SPACER; ARM REST RIGID SEAT W/ARM REST(SGC),SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL)	8-94285-921-0	02	1	1512-
42	STAND; DRIVER SEAT RIGID SEAT W/ARM REST(SGC)	1-75558-604-2	01	1	1512-
46	BOLT; STAND TO FLOOR M10X20 FLANGE	0-28451-020-0	02	1	1512-
55	NUT; DRIVER SEAT STAND TO FLOOR PANEL M10 FLANGE	0-91180-110-0	02	1	1512-
62	DAMPER ASM; SEAT SUSP SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL)	8-98261-453-0	01	1	1512-
74	ADJUSTER; FRT SEAT,HEIGHT CONT RIGID SEAT W/ARM REST(SGC),SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL)	8-98291-646-0	01	1	1512-
99	BUSHING; SEAT BACK RIGID SEAT W/ARM REST(SGC),SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL)	8-97854-087-0	01	1	1512-
228	SCREW; KNOB M4	8-98062-662-0	01	1	1512-
228	SCREW; KNOB RIGID SEAT W/ARM REST(SGC),SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) M4	8-98062-662-0	01	1	1512-
306	NUT; SEAT ADJ RIGID SEAT W/ARM REST(SGC),SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) M8 FLANGE	1-75538-207-0	14	1	1512-
321	WASHER; PL,ARM REST RIGID SEAT W/ARM REST(SGC),SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) (A) ID=10.5 OD=22	9-09160-610-0	01	1	1512-
321	WASHER; PL,ARM REST RIGID SEAT W/ARM REST(SGC),SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) (B) ID=8.4 OD=22	9-09164-708-0	01	1	1512-
327	CLIP; COVER RIGID SEAT W/ARM REST(SGC),SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL)	1-09987-273-0	01	1	1512-
336	COVER; DRIVER SEAT RIGID SEAT W/ARM REST(SGC),SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL)	1-75518-313-0	01	1	1512-

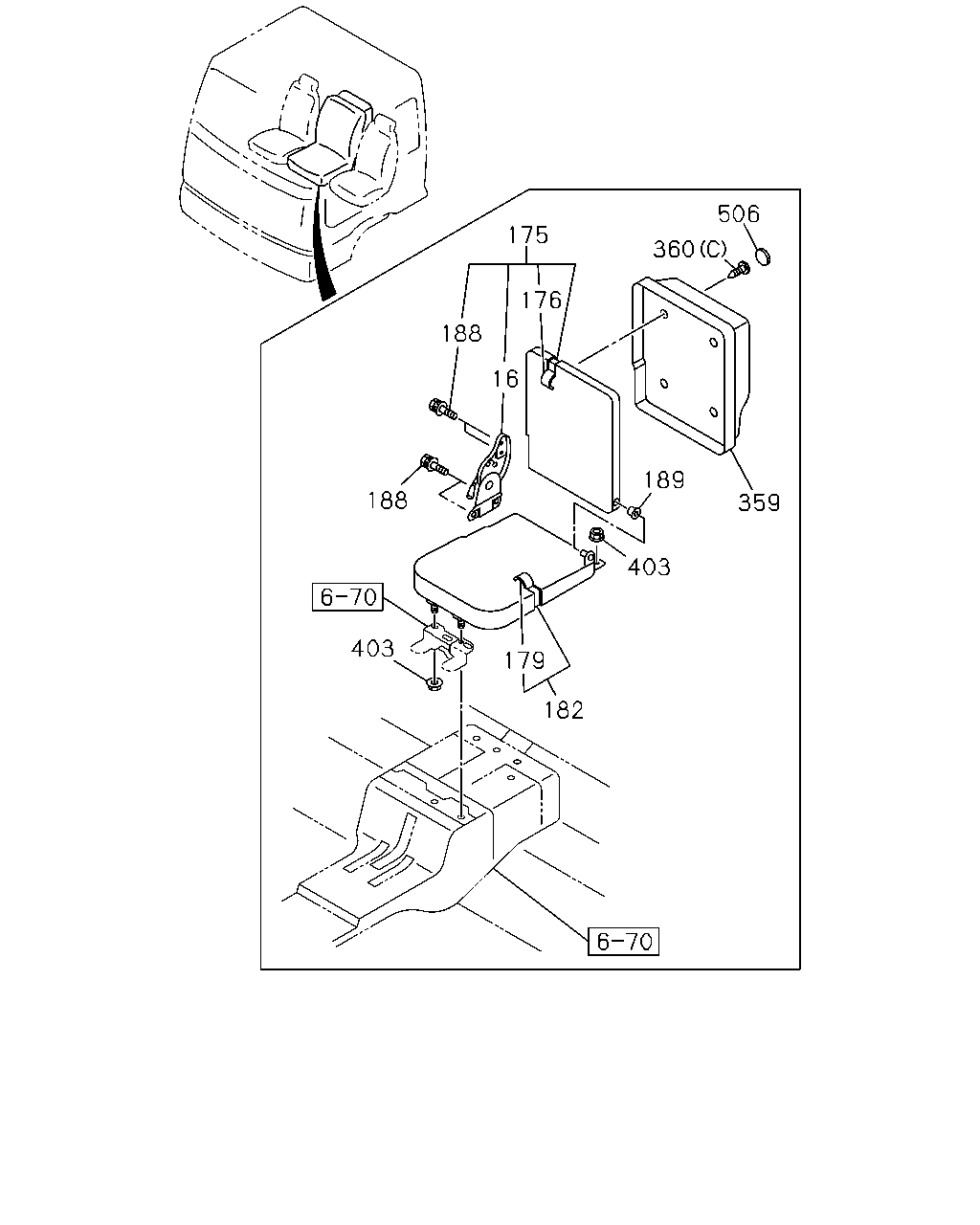

175 176 188 16 188 403 182 179 403 359 189 360 506

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
16	ADJUSTER ASM; RECLINING CENTER SEAT(SA1)	1-75418-062-1	01	1	1512-
175	BACK ASM; PASSENGER CENTER SEAT CENTER SEAT(SA1)	8-98210-861-0	01	1	1512-
176	COVER; TRIM,PASSENGER SEAT CENTER,BACK CENTER SEAT(SA1)	8-98210-862-0	01	1	1512-
179	COVER; TRIM,PASSENGER SEAT CENTER,CUSH CENTER SEAT(SA1)	8-98210-860-0	01	1	1512-
182	CUSHION ASM; CENTER SEAT CENTER SEAT(SA1)	8-98210-859-1	01	1	1512-
188	BOLT; BACK TO CUSHION CENTER SEAT(SA1) M10X16 FLANGE	1-75198-053-0	04	1	1512-
189	BUSHING; HINGE,CENTER SEAT BACK CENTER SEAT(SA1)	8-97854-900-0	01	1	1512-
359	BOX; PARCEL CENTER SEAT(SA1)	8-98145-114-0	01	1	1512-
360	SCREW; PARCEL CENTER SEAT(SA1) (A) M5X14 TAPPING CK-HEAD	0-70040-514-0	02	1	1512-
360	SCREW; PARCEL CENTER SEAT(SA1) (B) M4X16	0-70080-416-0	06	1	1512-
360	SCREW; PARCEL CENTER SEAT(SA1) (C) M5X16 TAPPING W/PL WASHER	0-74310-516-0	04	1	1512-
403	NUT; CENTER SEAT CENTER SEAT(SA1) M8 FLANGE	0-91180-108-0	04	1	1512-
506	CAP; PARCEL BOX CENTER SEAT(SA1)	1-09983-180-3	02	1	1512-

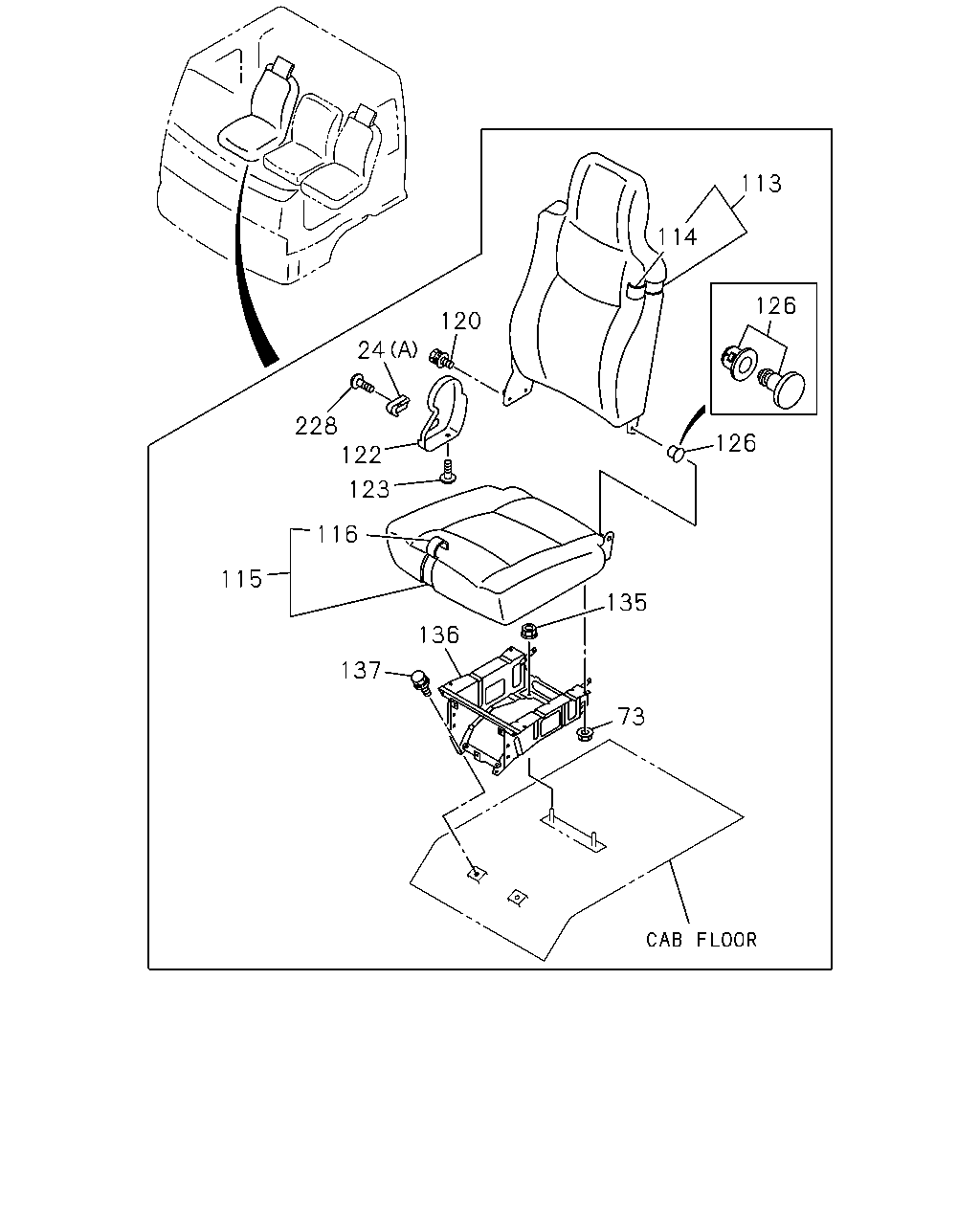

113 114 126 126 135 73 136 137 115 116 122 123 24 120 228

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
24	KNOB; RECLINING,FRT,SEAT (A)	1-75418-066-0	01	1	1512-
24	KNOB; RECLINING,FRT,SEAT RIGID SEAT W/ARM REST(SGC),SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) (B)	1-75418-067-0	01	1	1512-
73	NUT; ADJ,HEIGHT CONT M8 FLANGE	1-75538-207-0	04	1	1512-
113	BACK ASM; SEAT	8-98210-856-0	01	1	1512-
114	COVER; TRIM,PASSENGER SEAT,BACK	8-98210-857-0	01	1	1512-
115	CUSHION ASM; PASSENGER SEAT	8-98210-854-0	01	1	1512-
116	COVER; TRIM,PASSENGER SEAT,CUSHION	8-98210-855-0	01	1	1512-
120	BOLT; RECLINING ADJ M8X20	8-97255-906-0	02	1	1512-
122	COVER; ADJ,RECLINING DARK GRAY	8-97867-020-0	01	1	1512-
123	SCREW; COVER,RECLINING M5X16 TAPPING W/PL WASHER	0-74310-516-0	01	1	1512-
126	BUSHING; HINGE,RECLINING	8-97854-087-0	01	1	1512-
135	NUT; SEAT STAND M10 FLANGE	0-91180-110-0	02	1	1512-
136	STAND; PASSENGER SEAT	8-98242-299-0	01	1	1512-
137	BOLT; STAND M10X20 FLANGE	0-28451-020-0	02	1	1512-
228	SCREW; KNOB M4	8-98062-662-0	01	1	1512-
228	SCREW; KNOB RIGID SEAT W/ARM REST(SGC),SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) M4	8-98062-662-0	01	1	1512-

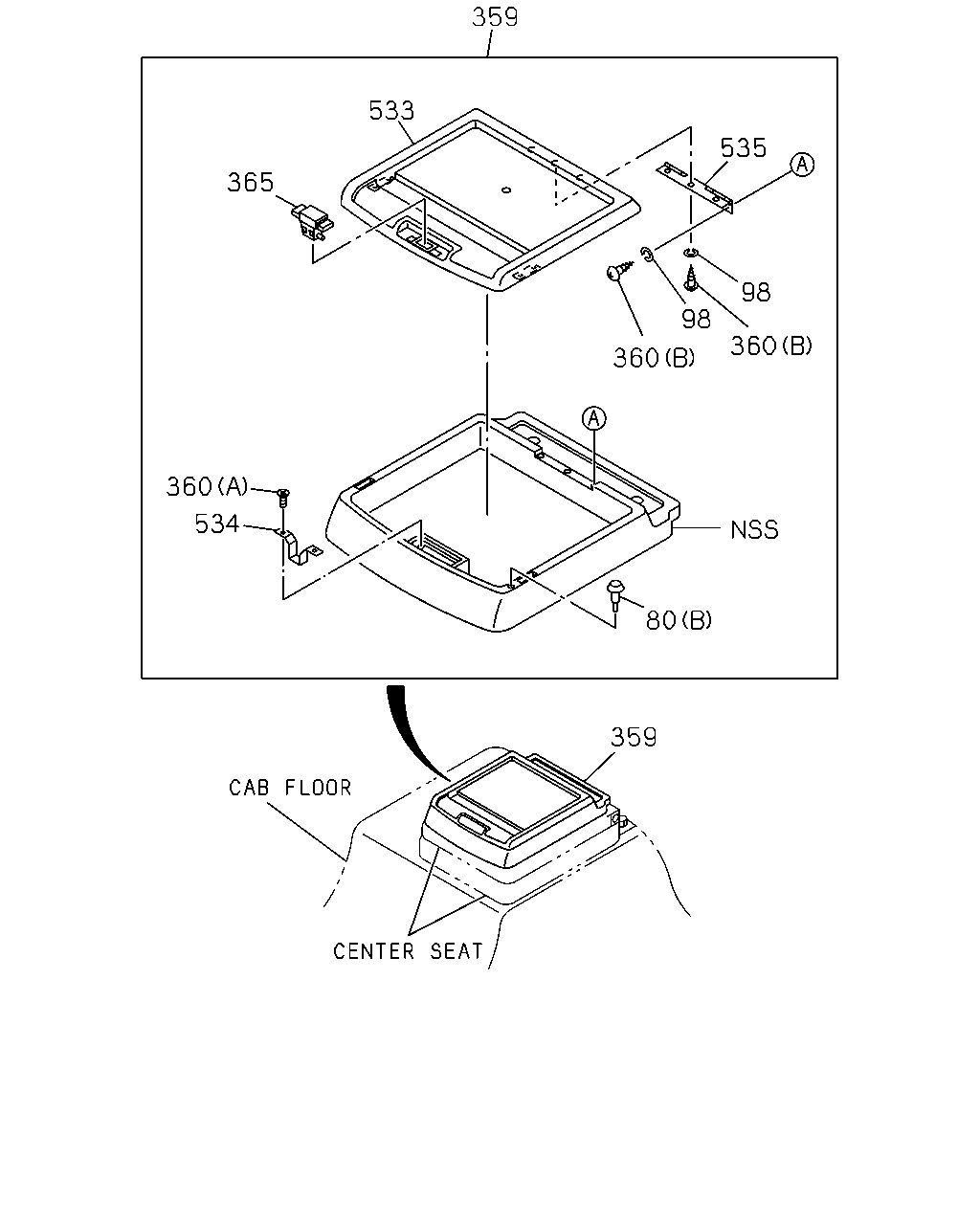

359 533 365 535 98 98 360 360 80 359 534 360

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
80	RUBBER; STOPPER CENTER SEAT(SA1) (B)	1-72538-187-0	02	1	1512-
80	RUBBER; STOPPER SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) (A)	1-09987-123-0	01	1	1512-
98	WASHER; HINGE CENTER SEAT(SA1) ID=4.3 TOOTH LK COUNTERSUNK	9-09152-704-0	06	1	1512-
359	BOX; PARCEL CENTER SEAT(SA1)	8-98145-114-0	01	1	1512-
360	SCREW; PARCEL CENTER SEAT(SA1) (A) M5X14 TAPPING CK-HEAD	0-70040-514-0	02	1	1512-
360	SCREW; PARCEL CENTER SEAT(SA1) (B) M4X16	0-70080-416-0	06	1	1512-
360	SCREW; PARCEL CENTER SEAT(SA1) (C) M5X16 TAPPING W/PL WASHER	0-74310-516-0	04	1	1512-
365	LOCK ASM; SEAT CENTER SEAT(SA1)	1-72538-180-0	01	1	1512-
533	LID; PARCEL BOX CENTER SEAT(SA1)	8-98145-118-0	01	1	1512-
534	STRIKER; PARCEL BOX CENTER SEAT(SA1)	1-72538-190-0	01	1	1512-
535	HINGE; PARCEL BOX CENTER SEAT(SA1)	1-72447-391-1	01	1	1512-

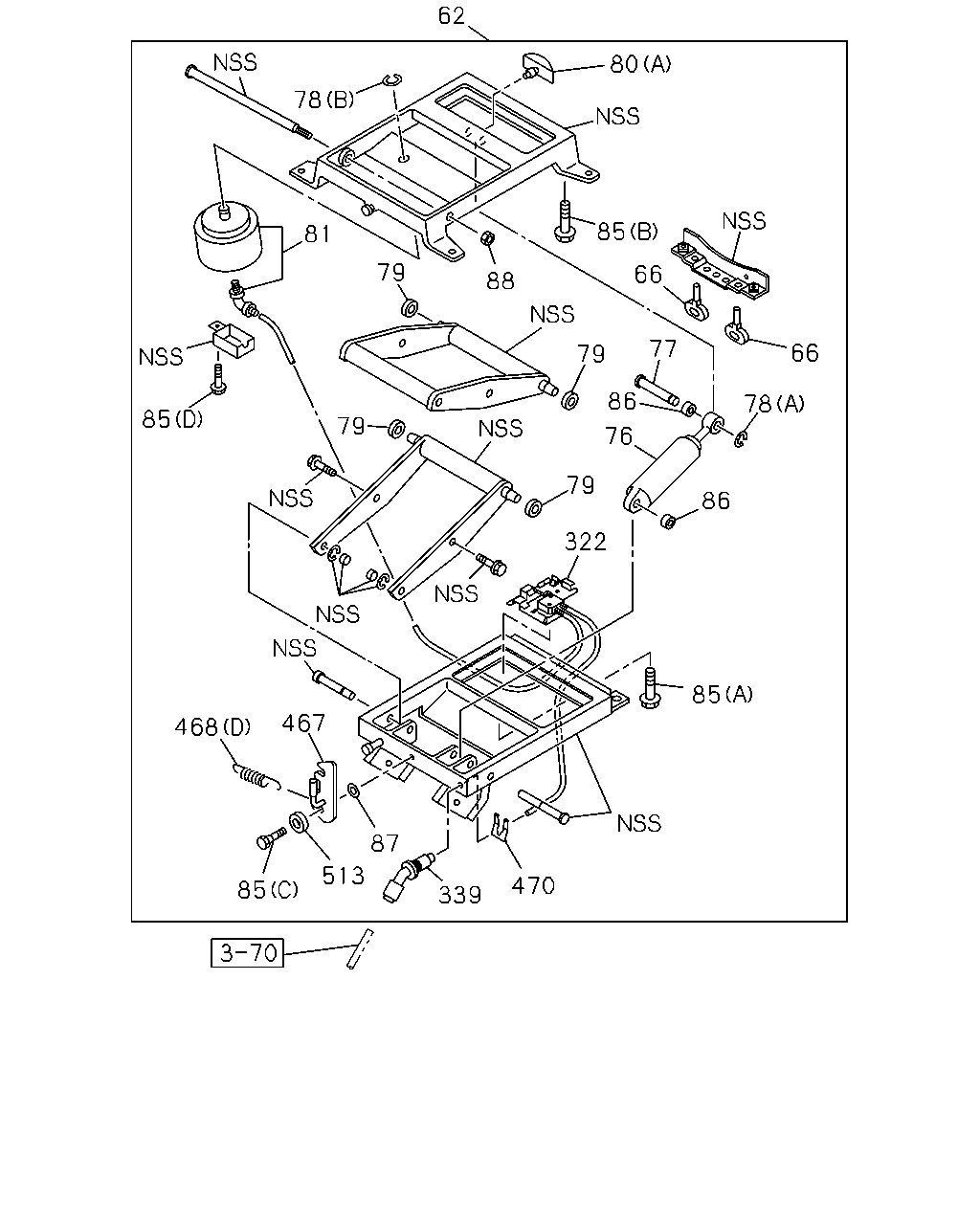

62 78 81 85 80 88 79 85 79 77 66 66 78 86 76 86 322 79 79 468 85 467 513 339 87 470 85

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
62	DAMPER ASM; SEAT SUSP SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL)	8-98261-453-0	01	1	1512-
66	RUBBER; LWR STOPPER SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL)	1-75538-145-0	02	1	1512-
76	DAMPER; AIR SUSP SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL)	1-75537-230-2	01	1	1512-
77	PIN; DAMPER SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL)	1-75538-138-2	01	1	1512-
78	RING; SNAP SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) (A) ID=8	9-09185-408-0	01	1	1512-
78	RING; SNAP SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) (B) ID=15	9-09185-415-0	01	1	1512-
79	ROLLER ASM; AIR SUSP SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL)	8-98261-489-0	04	1	1512-
80	RUBBER; STOPPER CENTER SEAT(SA1) (B)	1-72538-187-0	02	1	1512-
80	RUBBER; STOPPER SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) (A)	1-09987-123-0	01	1	1512-
81	SPRING; AIR SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL)	8-98242-816-0	01	1	1512-
85	BOLT; AIR SUSP SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) (C)	1-09980-577-1	01	1	1512-
85	BOLT; AIR SUSP SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) (A) M6X12	1-75538-208-1	02	1	1512-
85	BOLT; AIR SUSP SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) (B) M8X22 W/LK&PL WASHER	1-75538-209-0	02	1	1512-
85	BOLT; AIR SUSP SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) (D) M8X25 W/LK&PL WASHER	8-98243-394-0	01	1	1512-
86	BUSHING; GUIDE SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) OD=6.2 LIGHT GRAY	1-09983-173-1	02	1	1512-
87	WASHER; AIR SUSP SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) ID=8.2	0-91510-508-0	01	1	1512-
88	NUT; AIR SUSP SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) M10	1-75537-273-1	01	1	1512-
322	VALVE; AIR SPRING SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL)	1-75538-187-3	01	1	1512-
339	UNION; DRIVER SEAT SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL)	1-75538-131-3	01	1	1512-
467	LEVER; LOCK SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL)	1-75538-134-0	01	1	1512-
468	SPRING; RETURN RIGID SEAT W/ARM REST(SGC),SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) (A)	1-75518-206-0	01	1	1512-
468	SPRING; RETURN RIGID SEAT W/ARM REST(SGC),SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) (B)	1-75518-207-0	01	1	1512-
468	SPRING; RETURN RIGID SEAT W/ARM REST(SGC),SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) (C)	1-75518-208-0	02	1	1512-
468	SPRING; RETURN SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) (D)	1-75538-132-0	01	1	1512-
470	CLIP; HOSE SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL)	1-75538-137-0	01	1	1512-
513	SPACER; LEVER SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL)	1-75538-133-0	01	1	1512-
