Isuzu WW
▶
TRUCKS
▶
EXZ
▶
11745 - EXZ LHD EURO5
▶
7 - Interior Trim, Emblems / Labels, Seats, Mirrors
▶

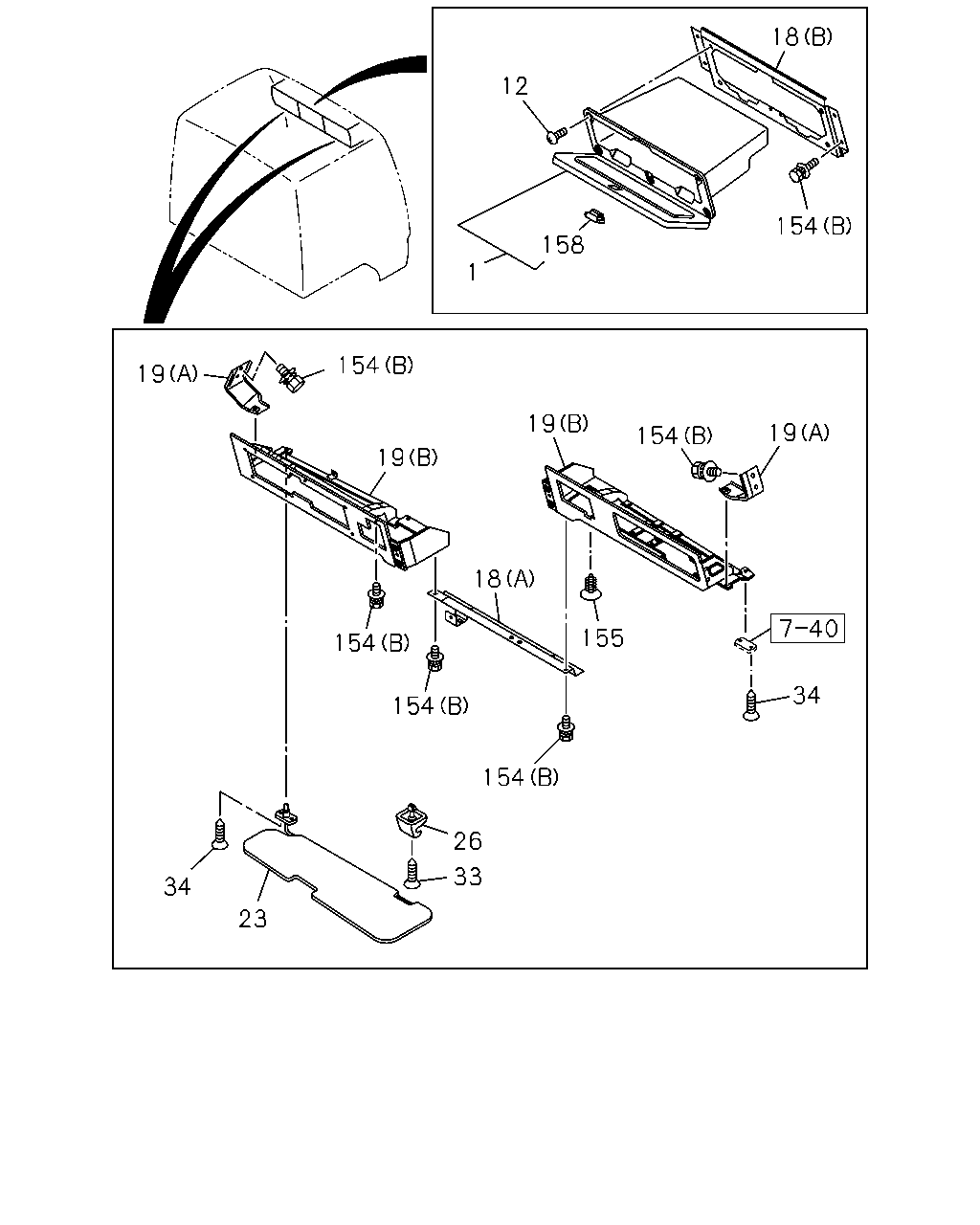

7-43 - SUN VISOR AND ASSIST GRIP
▶
7-43 — SUN VISOR AND ASSIST GRIP
(#176385) — 68 parça
◀
[743A] ASSIST GRIP; CAB OUTSIDE (26 parça)
[743A] SUN VISOR AND SUPPORT ASM (18 parça)
[743A] ASSIST GRIP; CAB INSIDE (24 parça)
▶
64
62
48
48
48
48
62
64
64
64
142
154
59
103
48
66
48
69
59
59
48
48
69
66
103
48
59
48
142
142
142
48
75
75
72
48
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
48
BOLT; ASSIST GRIP
(A) M6X12 W/LK&PL WASHER
1-09980-611-0
04
1
1512-
48
BOLT; ASSIST GRIP
(E) M6X33.5 W/LK&PL WASHER
1-09980-613-1
04
1
1512-
48
BOLT; ASSIST GRIP
(D) M8X30 W/LK&PL WASHER
8-94279-210-0
04
1
1512-
48
BOLT; ASSIST GRIP
(F) M8X29.5 W/LK+PL WASHER
8-94279-218-0
03
1
1512-
48
BOLT; ASSIST GRIP
(C) M8X24.5 W/LK&PL WASHER
8-98059-720-0
02
1
1512-
48
BOLT; ASSIST GRIP
(B) M6X20 W/LK&PL WASHER
8-94279-203-0
04
1
1512-
59
COVER; ASSIST GRIP
(B)
1-71998-789-2
02
1
1512-
59
COVER; ASSIST GRIP
(A)
1-71998-790-2
02
1
1512-
62
GRIP; ASSIST,ROOF PANEL
8-97630-819-0
02
1
1512-
64
SHEET; ASSIST GRIP
25X25
8-94272-533-0
04
1
1512-
66
BOLT; ASSIST GRIP BRKT
M8X20.5 W/LK&PL WASHER
8-94279-207-0
04
1
1512-
69
BRACKET; ASSIST GRIP
1-65570-243-0
01
1
1512-
69
BRACKET; ASSIST GRIP
1-65570-242-0
01
1
1512-
72
GRIP; ASSIST,CAB ENTRY,BACK
1-71907-543-0
01
1
1512-
75
SHEET; ASSIST GRIP,CAB ENTRY
1-71997-548-0
02
1
1512-
103
GRIP; ASSIST,FRT PNL
1-71998-939-3
01
1
1512-
103
GRIP; ASSIST,FRT PNL
1-71998-940-3
01
1
1512-
142
SEAL; ASSIST GRIP
(C)
1-71997-691-1
01
1
1512-
142
SEAL; ASSIST GRIP
(B) OD=25 BLACK
1-76798-019-0
01
1
1512-
142
SEAL; ASSIST GRIP
GRIP OUT SIDE<W52> (A) 25X25
8-94272-533-0
02
1
1512-
142
SEAL; ASSIST GRIP
(A) 25X25
8-94272-533-0
02
1
1512-
142
SEAL; ASSIST GRIP
GRIP OUT SIDE,DRIVER & PASSENGER<W63> (A) 25X25
8-94272-533-0
04
1
1512-
154
BOLT; SUPPORT
(B) M6X19.5 W/LK&PL WASHER
8-94279-201-0
18
1
1512-
154
BOLT; SUPPORT
GRIP OUT SIDE<W52> (A) M8X15 W/PL WASHER
1-79198-003-2
06
1
1512-
154
BOLT; SUPPORT
EXC. GRIP OUT SIDE<W52>,GRIP OUT SIDE,DRIVER & PASSENGER<W63> (A) M8X15 W/PL WASHER
1-79198-003-2
08
1
1512-
154
BOLT; SUPPORT
GRIP OUT SIDE,DRIVER & PASSENGER<W63> (A) M8X15 W/PL WASHER
1-79198-003-2
04
1
1512-
12
1
158
154
18
19
154
19
154
19
19
18
155
154
154
154
26
33
34
23
34
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
1
BOARD; HEADER SHELF
1-72447-968-0
01
1
1512-
12
SCREW; HEADER SHELF
M6X24 W/LK&PL WASHER
8-94279-404-0
04
1
1512-
18
SUPPORT; HEADER SHELF CENTER
(B)
1-72447-824-2
01
1
1512-
18
SUPPORT; HEADER SHELF CENTER
(A)
1-72447-937-0
01
1
1512-
19
SUPPORT ASM; HEADER SHELF
(B)
1-72447-938-4
01
1
1512-
19
SUPPORT ASM; HEADER SHELF
(A)
1-72448-324-1
01
1
1512-
19
SUPPORT ASM; HEADER SHELF
(B)
1-72447-878-4
01
1
1512-
19
SUPPORT ASM; HEADER SHELF
(A)
1-72448-323-1
01
1
1512-
23
SUN VISOR
1-73138-157-1
01
1
1512-
26
HOLDER; SUN VISOR
1-73137-175-0
01
1
1512-
33
SCREW; HOLDER,SUN VISOR
M4X20 TAPPING OVAL-HEAD
0-70540-420-0
01
1
1512-
34
SCREW; SUN VISOR
M6X25
1-09981-441-0
04
1
1512-
154
BOLT; SUPPORT
(B) M6X19.5 W/LK&PL WASHER
8-94279-201-0
18
1
1512-
154
BOLT; SUPPORT
GRIP OUT SIDE<W52> (A) M8X15 W/PL WASHER
1-79198-003-2
06
1
1512-
154
BOLT; SUPPORT
EXC. GRIP OUT SIDE<W52>,GRIP OUT SIDE,DRIVER & PASSENGER<W63> (A) M8X15 W/PL WASHER
1-79198-003-2
08
1
1512-
154
BOLT; SUPPORT
GRIP OUT SIDE,DRIVER & PASSENGER<W63> (A) M8X15 W/PL WASHER
1-79198-003-2
04
1
1512-
155
FASTENER; HOLDER
1-09983-181-0
01
1
1512-
158
LOCK; HEADER SHELF
1-72538-312-0
01
1
1512-
150
71
54
48
150
71
48
54
71
87
76
48
56
106
55
142
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
48
BOLT; ASSIST GRIP
(A) M6X12 W/LK&PL WASHER
1-09980-611-0
04
1
1512-
48
BOLT; ASSIST GRIP
(E) M6X33.5 W/LK&PL WASHER
1-09980-613-1
04
1
1512-
48
BOLT; ASSIST GRIP
(D) M8X30 W/LK&PL WASHER
8-94279-210-0
04
1
1512-
48
BOLT; ASSIST GRIP
(F) M8X29.5 W/LK+PL WASHER
8-94279-218-0
03
1
1512-
48
BOLT; ASSIST GRIP
(C) M8X24.5 W/LK&PL WASHER
8-98059-720-0
02
1
1512-
48
BOLT; ASSIST GRIP
(B) M6X20 W/LK&PL WASHER
8-94279-203-0
04
1
1512-
54
GRIP; ASSIST,QUARTER SIDE
8-98139-071-2
01
1
1512-
54
GRIP; ASSIST,QUARTER SIDE
8-98139-070-2
01
1
1512-
55
GRIP; ASSIST,CAB SIDE UPR
GRIP OUT SIDE<W52>
1-73618-169-1
01
1
1512-
55
GRIP; ASSIST,CAB SIDE UPR
GRIP OUT SIDE,DRIVER & PASSENGER<W63>
1-73618-169-1
02
1
1512-
56
GRIP; ASSIST,SIDE SILL
8-98139-073-1
01
1
1512-
56
GRIP; ASSIST,SIDE SILL
8-98139-072-1
01
1
1512-
71
SCREW
(B) M6X30 W/LK WASHER
5-09981-064-0
04
1
1512-
71
SCREW
(A) M6X34 W/LK&PL WASHER
8-94279-411-0
04
1
1512-
76
SPACER; ASSIST GRIP
OD=13 T=4.5
8-94230-464-1
04
1
1512-
87
GRIP; ASSIST,CANT RAIL SIDE
DARK GRAY
8-97098-476-2
02
1
1512-
106
SCREW; ASSIST GRIP
GRIP OUT SIDE<W52> M8X30 W/LK&PL WASHER
8-94279-210-0
02
1
1512-
106
SCREW; ASSIST GRIP
GRIP OUT SIDE,DRIVER & PASSENGER<W63> M8X30 W/LK&PL WASHER
8-94279-210-0
04
1
1512-
142
SEAL; ASSIST GRIP
(C)
1-71997-691-1
01
1
1512-
142
SEAL; ASSIST GRIP
(B) OD=25 BLACK
1-76798-019-0
01
1
1512-
142
SEAL; ASSIST GRIP
GRIP OUT SIDE<W52> (A) 25X25
8-94272-533-0
02
1
1512-
142
SEAL; ASSIST GRIP
(A) 25X25
8-94272-533-0
02
1
1512-
142
SEAL; ASSIST GRIP
GRIP OUT SIDE,DRIVER & PASSENGER<W63> (A) 25X25
8-94272-533-0
04
1
1512-
150
CLIP; ASSIST GRIP HOLE
OD=6 L=17 DARK GRAY
1-73996-364-0
02
1
1512-
