◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ EXZ ▶ 11745 - EXZ LHD EURO5 ▶ 7 - Interior Trim, Emblems / Labels, Seats, Mirrors ▶ 7-40 - INSTRUMENT PANEL AND BOX ▶
7-40 — INSTRUMENT PANEL AND BOX (#176384) — 95 parça

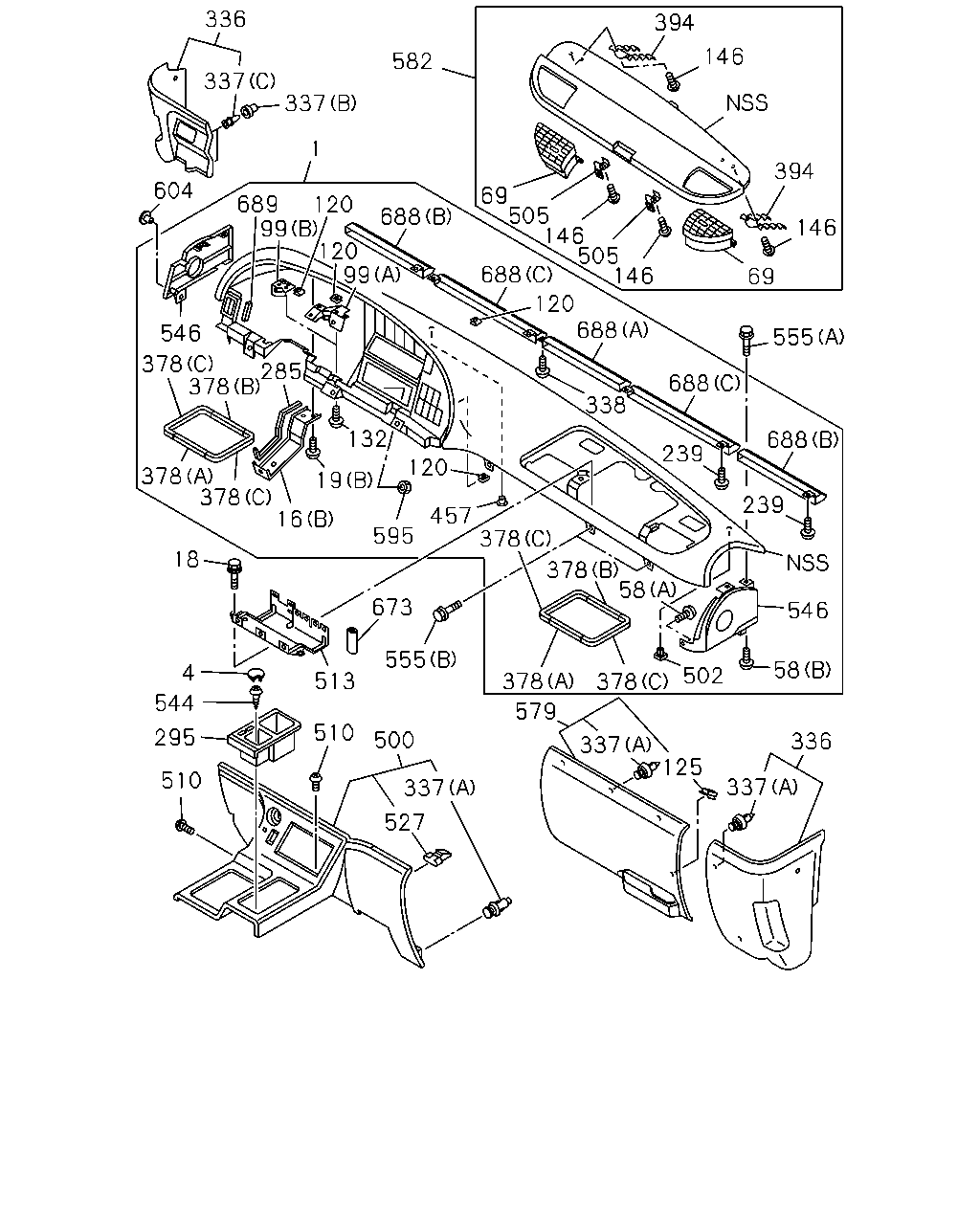

çizim 513406
336 337 582 337 604 120 689 688 120 546 99 99 688 69 285 378 378 378 16 378 595 120 132 19 457 378 378 378 378 58 546 688 555 69 146 394 146 394 505 688 146 146 688 239 239 502 58 337 125 337 336 337 500 527 510 513 673 555 4 544 295 510 18 338 505 120 579 1
BalonParca AdiParca NoAdetTipApplied Date
1 PANEL; INST 1-72317-370-2 01 1 1512-
4 COVER; INST PNL 1-72537-106-0 01 1 1512-
16 BRACKET; INST PNL
(B) 		1-72317-360-3 01 1 1512-
16 BRACKET; INST PNL
(A) 		1-73908-023-2 01 1 1512-
18 BOLT; BRKT
M6X19.5 W/LK&PL WASHER 		8-94279-201-0 02 1 1512-
18 BOLT; BRKT
M6X19.5 W/LK&PL WASHER 		8-94279-201-0 06 1 1512-
19 SCREW; BRKT
(A) M5X14 		8-94279-325-0 02 1 1512-
19 SCREW; BRKT
(B) M5X12 TAPPING 		9-07076-512-0 03 1 1512-
58 SCREW; INST PANEL
(A) M3X10 TAPPING 		0-71040-310-0 01 1 1512-
58 SCREW; INST PANEL
(B) M5X12 TAPPING 		9-07076-512-0 06 1 1512-
69 GRILLE; SIDE,AIR OUTLET 1-76368-028-5 01 1 1512-
69 GRILLE; SIDE,AIR OUTLET 1-76368-029-5 01 1 1512-
99 BRACKET; METER MTG,INST PNL
(A) 		1-72317-361-1 01 1 1512-
99 BRACKET; METER MTG,INST PNL
(B) 		1-72317-362-2 01 1 1512-
120 NUT; SPIRE,INST PNL
M5 		1-09984-196-0 09 1 1512-
125 CLIP; INST PANEL 8-97217-066-0 01 1 1512-
132 SCREW; BRKT,INST PANEL
M5X12 TAPPING 		9-07076-512-0 04 1 1512-
146 SCREW; TAP
M5X14 		8-94279-325-0 10 1 1512-
239 SCREW; DEFROSTER
M5X12 TAPPING 		9-07076-512-0 10 1 1512-
285 FINISHER; INST PANEL
L=190 SERVICED BY L=314 		8-94262-845-0 02 1 1512-
295 TRAY; CTR CLUSTER 1-72437-593-0 01 1 1512-
336 COVER; INST PANEL SIDE 1-72438-194-0 01 1 1512-
336 COVER; INST PANEL SIDE 1-72438-193-0 01 1 1512-
337 FASTENER; COVER
(A) 		1-72438-124-2 03 1 1512-
337 FASTENER; COVER
(A) 		1-72438-124-2 08 1 1512-
337 FASTENER; COVER
(B) 		1-72438-138-0 03 1 1512-
337 FASTENER; COVER
(C) 		1-72438-137-0 03 1 1512-
338 SCREW; COVER
M5X12 TAPPING 		9-07076-512-0 02 1 1512-
378 SEAL; INST PANEL
(A) 		1-72437-672-2 02 1 1512-
378 SEAL; INST PANEL
(B) 		1-72437-673-0 02 1 1512-
378 SEAL; INST PANEL
(C) 		1-72437-674-0 04 1 1512-
394 HOLDER; PANEL 1-72558-048-0 02 1 1512-
457 PLATE; INST PANEL 1-72317-363-2 08 1 1512-
500 CLUSTER; INST CENTER 1-72437-642-1 01 1 1512-
502 GROMMET; SCREW,CENTER,CLUSTER 8-94430-318-1 04 1 1512-
505 LOCK; LID 1-72558-024-2 02 1 1512-
510 SCREW; CENTER CLUSTER
M6X16 		8-94479-534-0 02 1 1512-
513 BRACKET; RELAY 8-97865-168-3 01 1 1512-
527 CLIP; INST CLUSTER 8-97217-066-0 05 1 1512-
544 SCREW; TRAY
M6X16 		8-94479-534-0 01 1 1512-
546 PANEL; INST,SUB 1-72317-354-4 01 1 1512-
546 PANEL; INST,SUB 1-72317-355-4 01 1 1512-
555 BOLT; PAD
(B) M6X19.5 W/LK&PL WASHER 		8-94279-201-0 03 1 1512-
555 BOLT; PAD
(A) M10X25 FLANGE 		8-98041-453-0 08 1 1512-
579 COVER; INST PNL 1-72438-195-1 01 1 1512-
582 LID; FUSE & RELAY 1-72548-146-1 01 1 1512-
595 NUT; HOOK 1-72418-013-0 06 1 1512-
604 CLIP; INST PAD 1-09983-123-0 01 1 1512-
673 FINISHER; BRKT,RELAY
L=50 		8-94270-377-1 01 1 1512-
688 NOZZLE; DEFROSTER
(A) 		1-76377-184-1 01 1 1512-
688 NOZZLE; DEFROSTER
(B) 		1-76378-335-2 01 1 1512-
688 NOZZLE; DEFROSTER
(B) 		1-76378-352-1 01 1 1512-
688 NOZZLE; DEFROSTER
(C) 		1-76378-378-6 01 1 1512-
688 NOZZLE; DEFROSTER
(C) 		1-76378-381-3 01 1 1512-
689 SEAL; INST 1-72317-364-0 01 1 1512-

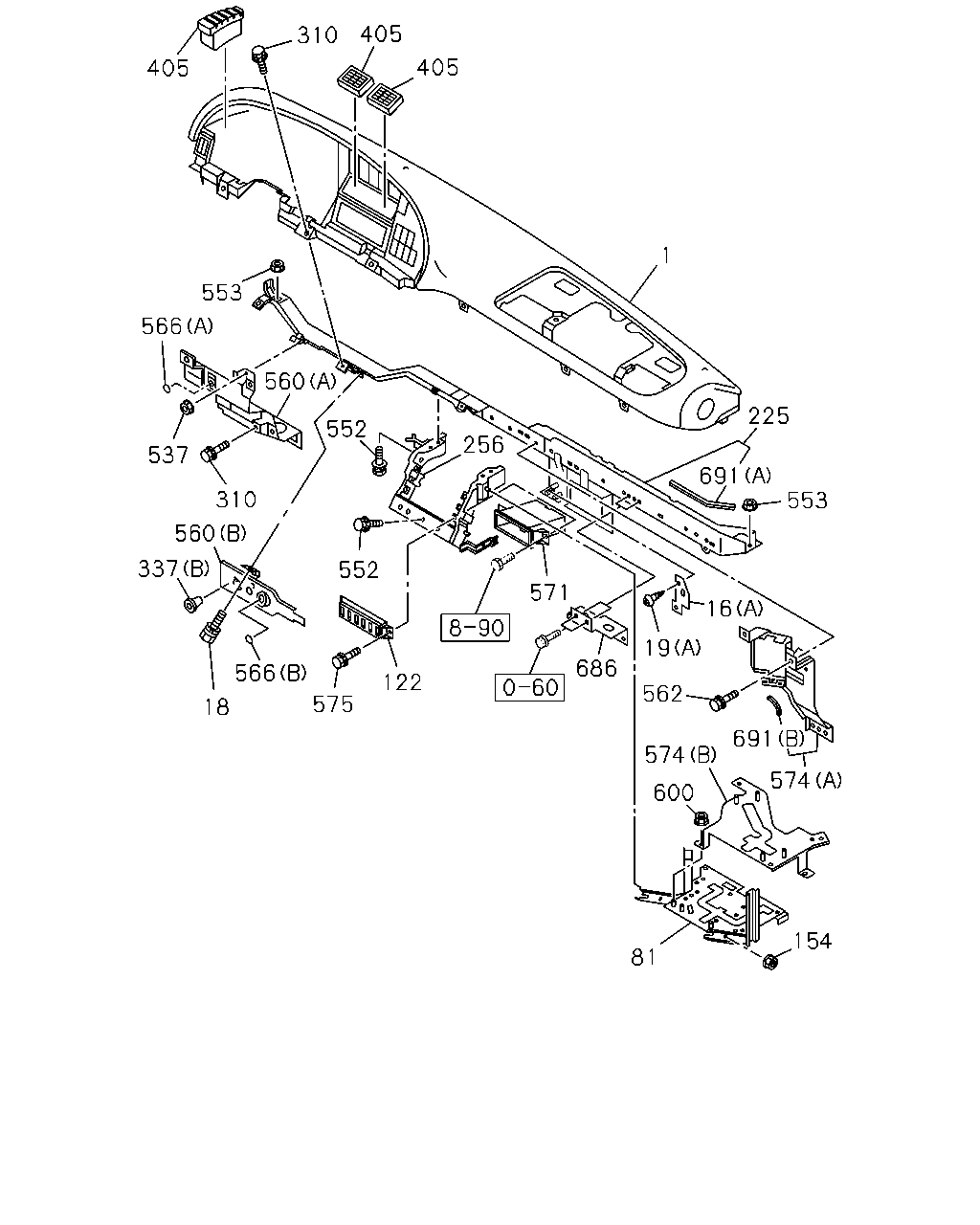

çizim 513566
1 310 405 405 405 553 566 560 256 537 552 310 560 337 566 18 575 571 686 16 691 225 553 552 122 562 19 691 574 574 600 154 81
BalonParca AdiParca NoAdetTipApplied Date
1 PANEL; INST 1-72317-370-2 01 1 1512-
16 BRACKET; INST PNL
(B) 		1-72317-360-3 01 1 1512-
16 BRACKET; INST PNL
(A) 		1-73908-023-2 01 1 1512-
18 BOLT; BRKT
M6X19.5 W/LK&PL WASHER 		8-94279-201-0 02 1 1512-
18 BOLT; BRKT
M6X19.5 W/LK&PL WASHER 		8-94279-201-0 06 1 1512-
19 SCREW; BRKT
(A) M5X14 		8-94279-325-0 02 1 1512-
19 SCREW; BRKT
(B) M5X12 TAPPING 		9-07076-512-0 03 1 1512-
81 BRACKET; ELEC CONT UNIT 8-98198-560-0 01 1 1512-
122 PANEL; CENTER CLUSTER 1-65671-550-5 01 1 1512-
154 NUT
M6 FLANGE 		0-91180-106-0 04 1 1512-
225 FRAME; FACIA 1-65671-727-5 01 1 1512-
256 BEZEL ASM; CENTER 1-65671-730-3 01 1 1512-
310 BOLT; SW PNL
M6X19.5 W/LK&PL WASHER 		8-94279-201-0 05 1 1512-
337 FASTENER; COVER
(A) 		1-72438-124-2 03 1 1512-
337 FASTENER; COVER
(A) 		1-72438-124-2 08 1 1512-
337 FASTENER; COVER
(B) 		1-72438-138-0 03 1 1512-
337 FASTENER; COVER
(C) 		1-72438-137-0 03 1 1512-
405 GRILLE ASM; METER VENT 1-76368-062-0 01 1 1512-
405 GRILLE ASM; METER VENT
BLACK 		8-94333-730-4 02 1 1512-
537 NUT; BRKT
M6 FLANGE 		0-91180-106-0 01 1 1512-
552 BOLT; FRAME
M6X19.5 W/LK&PL WASHER 		8-94279-201-0 06 1 1512-
553 NUT; FRAME
M8 FLANGE 		0-91180-108-0 04 1 1512-
560 BRACKET
(A) 		8-98155-951-0 01 1 1512-
560 BRACKET
(B) 		1-65671-787-2 01 1 1512-
562 BOLT; PANEL
M6X19.5 W/LK&PL WASHER 		8-94279-201-0 03 1 1512-
566 PLUG; HOLE
(B) OD=36 T=0.05 BLACK 		5-76777-035-0 01 1 1512-
566 PLUG; HOLE
(A) OD=20 T=0.05 BLACK 		5-76777-036-0 01 1 1512-
571 BEZEL; POCKET
EXC. RADIO AM/FM STEREO CD(UT3) 		1-72438-151-3 01 1 1512-
571 BEZEL; POCKET
EXC. TACHOGRAPH 140KM/H<WC7> 		1-72438-151-3 01 1 1512-
574 PANEL; RELAY BOX
(A) 		1-73907-737-2 01 1 1512-
574 PANEL; RELAY BOX
CAB SUSPENSION-FULL FLOATING(SMK) (B) 		8-98183-937-0 01 1 1512-
575 BOLT; PANEL
M6X19.5 W/LK&PL WASHER 		8-94279-201-0 02 1 1512-
600 NUT; PANEL
M6 FLANGE 		0-91180-106-0 03 1 1512-
686 BRACKET; SENSOR & RELAY 1-65681-227-1 01 1 1512-
691 FINISHER; HARNESS PROTECTOR
(A) L=175 SERVICED BY L=500 		1-79937-746-0 01 1 1512-
691 FINISHER; HARNESS PROTECTOR
(B) L=50 		8-94270-377-1 01 1 1512-
çizim 514633
259 18 554
BalonParca AdiParca NoAdetTipApplied Date
18 BOLT; BRKT
M6X19.5 W/LK&PL WASHER 		8-94279-201-0 02 1 1512-
18 BOLT; BRKT
M6X19.5 W/LK&PL WASHER 		8-94279-201-0 06 1 1512-
259 PLATE; STUFF,SUN VISOR 1-73317-410-0 01 1 1512-
554 BRACKET; CENTER BEZEL 1-65671-733-1 01 1 1512-
