Sayfa 7-20 - Isuzu EPC

7-20 — MIRROR AND MIRROR STAY (#176382) — 183 parça

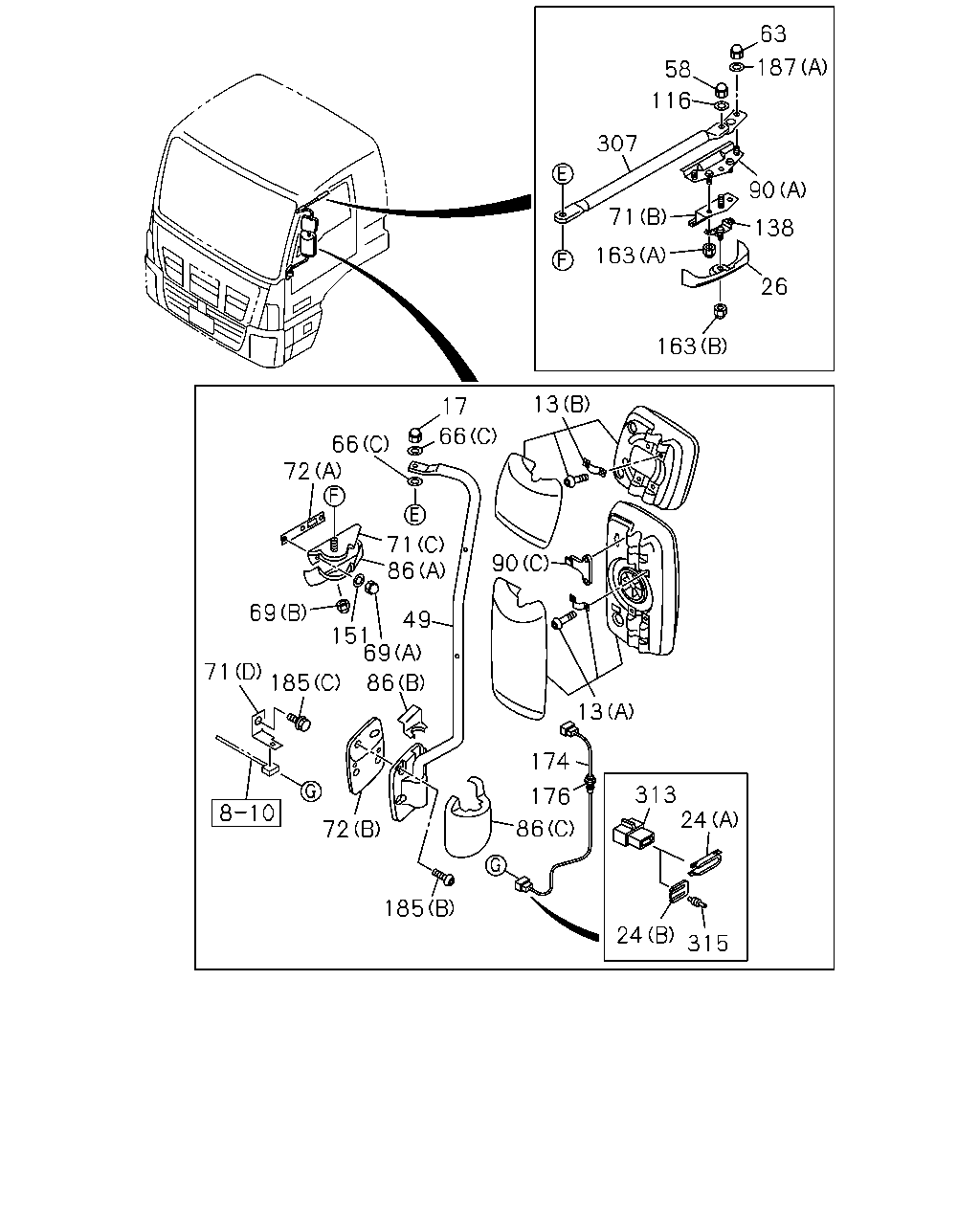

63 187 58 116 307 90 138 26 71 163 163 13 17 66 66 72 71 86 69 151 49 69 86 185 71 72 185 86 176 174 13 313 24 24 315 90

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
13	MIRROR ASM; OUTSIDE RR VIEW MIRROR - O/SIDE RR VIEW,REM CONTROL&HEATED<EEP> VIETNAM EQUIPMENT(JCD),PHILIPPINE EQUIPMENT(WE3) (A)	8-98043-060-1	01	1	1512-
13	MIRROR ASM; OUTSIDE RR VIEW MIRROR - O/SIDE RR VIEW,REM CONTROL&HEATED<EEP> VIETNAM EQUIPMENT(JCD),PHILIPPINE EQUIPMENT(WE3) (A)	8-98043-176-1	01	1	1512-
13	MIRROR ASM; OUTSIDE RR VIEW RUSSIA EQUIPMENT(B12) (A)	8-98043-058-1	01	1	1512-
13	MIRROR ASM; OUTSIDE RR VIEW RUSSIA EQUIPMENT(B12) (A)	8-98043-174-1	01	1	1512-
13	MIRROR ASM; OUTSIDE RR VIEW VIETNAM EQUIPMENT(JCD),PHILIPPINE EQUIPMENT(WE3) EXC. MIRROR - O/SIDE RR VIEW,REM CONTROL&HEATED<EEP>,MIRROR - O/SIDE RR VIEW,HEATED<7SV> (A)	8-98055-991-1	01	1	1512-
13	MIRROR ASM; OUTSIDE RR VIEW VIETNAM EQUIPMENT(JCD),PHILIPPINE EQUIPMENT(WE3) EXC. MIRROR - O/SIDE RR VIEW,REM CONTROL&HEATED<EEP>,MIRROR - O/SIDE RR VIEW,HEATED<7SV> (A)	8-98055-992-1	01	1	1512-
13	MIRROR ASM; OUTSIDE RR VIEW RUSSIA EQUIPMENT(B12) (B)	8-98162-676-1	02	1	1512-
13	MIRROR ASM; OUTSIDE RR VIEW VIETNAM EQUIPMENT(JCD),PHILIPPINE EQUIPMENT(WE3) EXC. MIRROR - O/SIDE RR VIEW,HEATED<7SV> (B)	8-98162-676-1	02	1	1512-
17	NUT; CAP,MIRROR STAY RUSSIA EQUIPMENT(B12),VIETNAM EQUIPMENT(JCD), PHILIPPINE EQUIPMENT(WE3) M10 CAP NUT	1-09984-134-0	02	1	1512-
17	NUT; CAP,MIRROR STAY RUSSIA EQUIPMENT(B12),VIETNAM EQUIPMENT(JCD), PHILIPPINE EQUIPMENT(WE3) M10 CAP NUT	1-09984-134-0	03	1	1512-
24	HOLDER; OUTSIDE MIRROR MIRROR - O/SIDE RR VIEW,REM CONTROL&HEATED<EEP> VIETNAM EQUIPMENT(JCD),PHILIPPINE EQUIPMENT(WE3) (B)	8-94447-536-0	02	1	1512-
24	HOLDER; OUTSIDE MIRROR RUSSIA EQUIPMENT(B12) (A)	8-94447-506-0	02	1	1512-
26	COVER; OUTSIDE MIRROR RUSSIA EQUIPMENT(B12),VIETNAM EQUIPMENT(JCD), PHILIPPINE EQUIPMENT(WE3)	8-98171-924-0	02	1	1512-
49	STAY; MIRROR SIDE MIRROR - O/SIDE RR VIEW,REM CONTROL&HEATED<EEP> VIETNAM EQUIPMENT(JCD),PHILIPPINE EQUIPMENT(WE3)	8-98222-325-0	01	1	1512-
49	STAY; MIRROR SIDE MIRROR - O/SIDE RR VIEW,REM CONTROL&HEATED<EEP> VIETNAM EQUIPMENT(JCD),PHILIPPINE EQUIPMENT(WE3)	8-98222-324-0	01	1	1512-
49	STAY; MIRROR SIDE RUSSIA EQUIPMENT(B12)	8-98234-650-0	01	1	1512-
49	STAY; MIRROR SIDE RUSSIA EQUIPMENT(B12)	8-98234-649-0	01	1	1512-
49	STAY; MIRROR SIDE VIETNAM EQUIPMENT(JCD),PHILIPPINE EQUIPMENT(WE3) EXC. MIRROR - O/SIDE RR VIEW,REM CONTROL&HEATED<EEP>,MIRROR - O/SIDE RR VIEW,HEATED<7SV>	8-98234-648-0	01	1	1512-
49	STAY; MIRROR SIDE VIETNAM EQUIPMENT(JCD),PHILIPPINE EQUIPMENT(WE3) EXC. MIRROR - O/SIDE RR VIEW,REM CONTROL&HEATED<EEP>,MIRROR - O/SIDE RR VIEW,HEATED<7SV>	8-98234-647-0	01	1	1512-
58	NUT; MIRROR STAY RUSSIA EQUIPMENT(B12),VIETNAM EQUIPMENT(JCD), PHILIPPINE EQUIPMENT(WE3) M10	1-09984-183-0	03	1	1512-
63	NUT; STAY M8	1-09984-187-0	06	1	1512-
66	WASHER; PL (A) ID=8.4 OD=16.0 T=1.6	1-09985-191-0	02	1	1512-
66	WASHER; PL RUSSIA EQUIPMENT(B12),VIETNAM EQUIPMENT(JCD), PHILIPPINE EQUIPMENT(WE3) (B) ID=10.5 OD=26 T=2.6	1-09985-184-0	06	1	1512-
66	WASHER; PL RUSSIA EQUIPMENT(B12),VIETNAM EQUIPMENT(JCD), PHILIPPINE EQUIPMENT(WE3) (C) ID=10.5 OD=26 T=2.6	1-09985-204-0	04	1	1512-
69	NUT; CAP RUSSIA EQUIPMENT(B12),VIETNAM EQUIPMENT(JCD), PHILIPPINE EQUIPMENT(WE3) (A) M8 CAP NUT	8-98059-914-0	06	1	1512-
69	NUT; CAP RUSSIA EQUIPMENT(B12),VIETNAM EQUIPMENT(JCD), PHILIPPINE EQUIPMENT(WE3) (B) M8 CAP NUT FLANGE	8-98197-000-0	02	1	1512-
71	BRACKET; OUTSIDE MIRROR (A)	1-71707-263-0	01	1	1512-
71	BRACKET; OUTSIDE MIRROR MIRROR - O/SIDE RR VIEW,REM CONTROL&HEATED<EEP>, MIRROR - O/SIDE RR VIEW,HEATED<7SV> (D)	8-98039-277-2	02	1	1512-
71	BRACKET; OUTSIDE MIRROR RUSSIA EQUIPMENT(B12),VIETNAM EQUIPMENT(JCD), PHILIPPINE EQUIPMENT(WE3) (B)	8-98167-111-0	01	1	1512-
71	BRACKET; OUTSIDE MIRROR RUSSIA EQUIPMENT(B12),VIETNAM EQUIPMENT(JCD), PHILIPPINE EQUIPMENT(WE3) (C)	8-98197-133-0	01	1	1512-
71	BRACKET; OUTSIDE MIRROR RUSSIA EQUIPMENT(B12),VIETNAM EQUIPMENT(JCD), PHILIPPINE EQUIPMENT(WE3) (B)	8-98154-718-2	01	1	1512-
71	BRACKET; OUTSIDE MIRROR RUSSIA EQUIPMENT(B12),VIETNAM EQUIPMENT(JCD), PHILIPPINE EQUIPMENT(WE3) (C)	8-98197-132-0	01	1	1512-
72	SHEET RUSSIA EQUIPMENT(B12),VIETNAM EQUIPMENT(JCD), PHILIPPINE EQUIPMENT(WE3) (A)	8-98147-891-0	02	1	1512-
72	SHEET RUSSIA EQUIPMENT(B12) (B)	8-98101-865-0	01	1	1512-
72	SHEET MIRROR - O/SIDE RR VIEW,REM CONTROL&HEATED<EEP> VIETNAM EQUIPMENT(JCD),PHILIPPINE EQUIPMENT(WE3) (B)	8-98101-865-0	01	1	1512-
72	SHEET RUSSIA EQUIPMENT(B12) (B)	8-98101-864-0	01	1	1512-
72	SHEET MIRROR - O/SIDE RR VIEW,REM CONTROL&HEATED<EEP> VIETNAM EQUIPMENT(JCD),PHILIPPINE EQUIPMENT(WE3) (B)	8-98101-864-0	01	1	1512-
72	SHEET VIETNAM EQUIPMENT(JCD),PHILIPPINE EQUIPMENT(WE3) EXC. MIRROR - O/SIDE RR VIEW,REM CONTROL&HEATED<EEP>,MIRROR - O/SIDE RR VIEW,HEATED<7SV> (B)	8-98116-605-0	01	1	1512-
72	SHEET VIETNAM EQUIPMENT(JCD),PHILIPPINE EQUIPMENT(WE3) EXC. MIRROR - O/SIDE RR VIEW,REM CONTROL&HEATED<EEP>,MIRROR - O/SIDE RR VIEW,HEATED<7SV> (B)	8-98116-604-0	01	1	1512-
86	COVER; STAY,OUTSIDE MIRROR RUSSIA EQUIPMENT(B12),VIETNAM EQUIPMENT(JCD), PHILIPPINE EQUIPMENT(WE3) (C)	8-98031-803-2	01	1	1512-
86	COVER; STAY,OUTSIDE MIRROR RUSSIA EQUIPMENT(B12),VIETNAM EQUIPMENT(JCD), PHILIPPINE EQUIPMENT(WE3) (B)	8-98031-806-0	01	1	1512-
86	COVER; STAY,OUTSIDE MIRROR RUSSIA EQUIPMENT(B12),VIETNAM EQUIPMENT(JCD), PHILIPPINE EQUIPMENT(WE3) (A)	8-98151-197-0	01	1	1512-
86	COVER; STAY,OUTSIDE MIRROR RUSSIA EQUIPMENT(B12),VIETNAM EQUIPMENT(JCD), PHILIPPINE EQUIPMENT(WE3) (C)	8-98031-802-2	01	1	1512-
86	COVER; STAY,OUTSIDE MIRROR RUSSIA EQUIPMENT(B12),VIETNAM EQUIPMENT(JCD), PHILIPPINE EQUIPMENT(WE3) (B)	8-98031-805-0	01	1	1512-
86	COVER; STAY,OUTSIDE MIRROR RUSSIA EQUIPMENT(B12),VIETNAM EQUIPMENT(JCD), PHILIPPINE EQUIPMENT(WE3) (A)	8-98151-196-0	01	1	1512-
90	BRACKET; MIRROR STAY (A)	8-98147-160-1	02	1	1512-
90	BRACKET; MIRROR STAY (B)	1-71707-237-0	01	1	1512-
90	BRACKET; MIRROR STAY EXC. MIRROR - O/SIDE RR VIEW,REM CONTROL&HEATED<EEP> (B)	1-71798-829-1	01	1	1512-
90	BRACKET; MIRROR STAY RUSSIA EQUIPMENT(B12) (C)	8-98129-822-0	02	1	1512-
116	WASHER; PL,STAY,MIRROR RUSSIA EQUIPMENT(B12),VIETNAM EQUIPMENT(JCD), PHILIPPINE EQUIPMENT(WE3) ID=10.5 OD=26 T=2.6	1-09985-204-0	03	1	1512-
138	BRACKET; LWR,OUTSIDE MIRROR RUSSIA EQUIPMENT(B12),VIETNAM EQUIPMENT(JCD), PHILIPPINE EQUIPMENT(WE3)	8-98171-926-0	02	1	1512-
151	WASHER; PL,MIRROR RUSSIA EQUIPMENT(B12),VIETNAM EQUIPMENT(JCD), PHILIPPINE EQUIPMENT(WE3) ID=8.4 OD=16.0 T=1.6	1-09985-191-0	06	1	1512-
163	NUT; MIRROR BRKT RUSSIA EQUIPMENT(B12),VIETNAM EQUIPMENT(JCD), PHILIPPINE EQUIPMENT(WE3) (A) M8 CAP NUT	8-98059-914-0	04	1	1512-
163	NUT; MIRROR BRKT RUSSIA EQUIPMENT(B12),VIETNAM EQUIPMENT(JCD), PHILIPPINE EQUIPMENT(WE3) (B) M8 CAP NUT FLANGE	8-98197-000-0	02	1	1512-
174	HARNESS; MIRROR MIRROR - O/SIDE RR VIEW,REM CONTROL&HEATED<EEP> VIETNAM EQUIPMENT(JCD),PHILIPPINE EQUIPMENT(WE3)	8-97644-030-0	02	1	1512-
174	HARNESS; MIRROR RUSSIA EQUIPMENT(B12)	8-98144-513-1	02	1	1512-
176	GROMMET; HARNESS RUSSIA EQUIPMENT(B12)	1-82699-906-0	02	1	1512-
176	GROMMET; HARNESS MIRROR - O/SIDE RR VIEW,REM CONTROL&HEATED<EEP> VIETNAM EQUIPMENT(JCD),PHILIPPINE EQUIPMENT(WE3)	1-82699-906-0	02	1	1512-
185	BOLT; BRKT MIRROR - O/SIDE RR VIEW,REM CONTROL&HEATED<EEP> (D) M6X16 FLANGE	0-28660-616-0	01	1	1512-
185	BOLT; BRKT MIRROR - O/SIDE RR VIEW,REM CONTROL&HEATED<EEP>, MIRROR - O/SIDE RR VIEW,HEATED<7SV> (C) M8X16 FLANGE	0-28050-816-0	02	1	1512-
185	BOLT; BRKT RUSSIA EQUIPMENT(B12),VIETNAM EQUIPMENT(JCD), PHILIPPINE EQUIPMENT(WE3) (A) M5X16	1-71707-259-0	02	1	1512-
185	BOLT; BRKT RUSSIA EQUIPMENT(B12),VIETNAM EQUIPMENT(JCD), PHILIPPINE EQUIPMENT(WE3) (B) M8X23	8-97310-216-1	08	1	1512-
187	WASHER; LK,BRKT (A) ID=8.4 OD=16.0 T=1.6	1-09985-191-0	04	1	1512-
187	WASHER; LK,BRKT RUSSIA EQUIPMENT(B12) (B)	8-98317-370-0	02	1	1512-
307	STAY; MIRROR SUPPORT	8-98154-969-1	01	1	1512-
307	STAY; MIRROR SUPPORT	8-98154-968-2	01	1	1512-
313	CONNECTOR; MIRROR MIRROR - O/SIDE RR VIEW,REM CONTROL&HEATED<EEP> VIETNAM EQUIPMENT(JCD),PHILIPPINE EQUIPMENT(WE3)	8-94447-532-0	02	1	1512-
313	CONNECTOR; MIRROR RUSSIA EQUIPMENT(B12)	8-94447-498-0	02	1	1512-
315	RUBBER ASM; CONNECTOR MIRROR - O/SIDE RR VIEW,REM CONTROL&HEATED<EEP> VIETNAM EQUIPMENT(JCD),PHILIPPINE EQUIPMENT(WE3)	1-82691-026-0	02	1	1512-

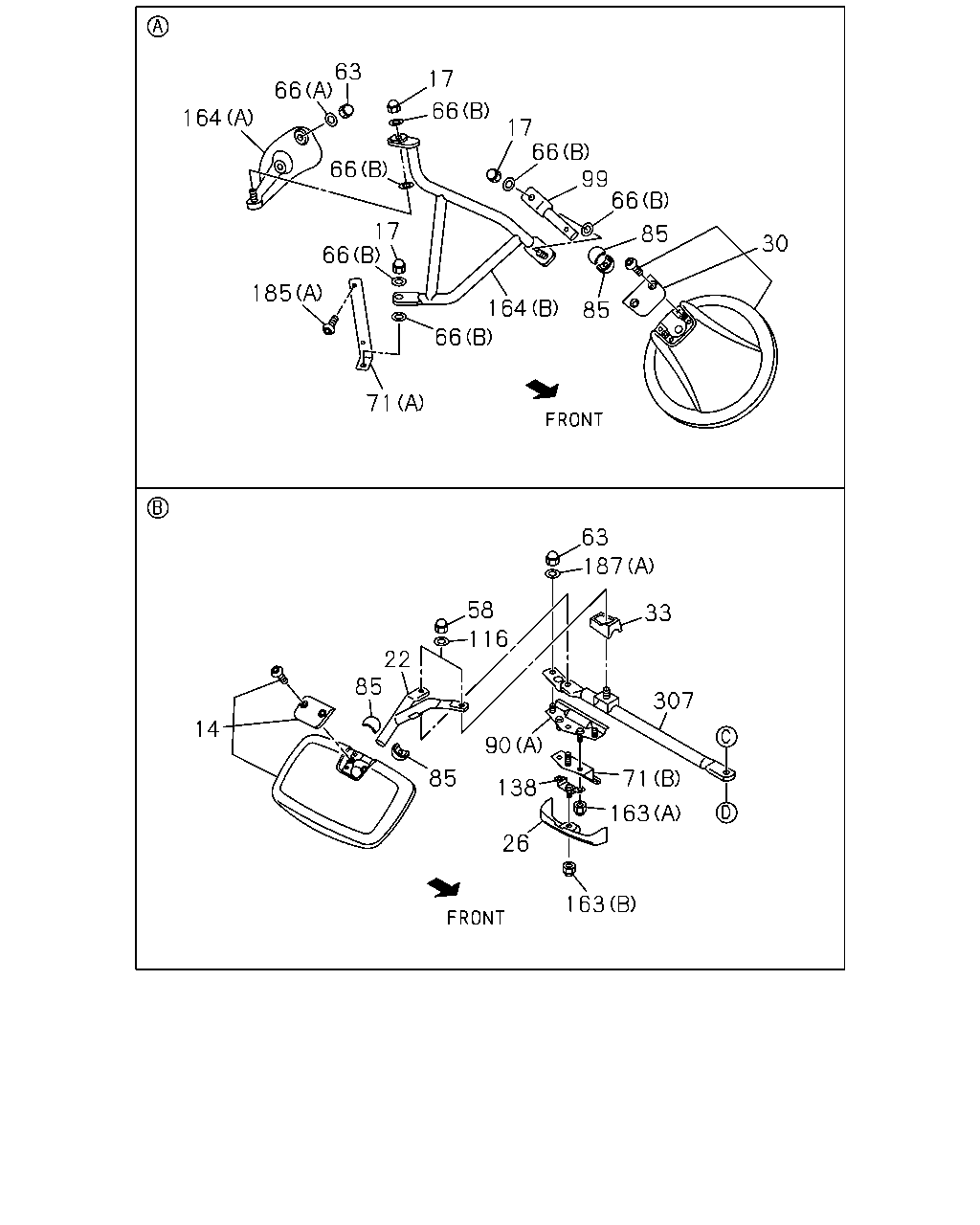

164 66 63 17 66 185 66 17 71 66 164 66 17 66 99 66 85 30 85 63 187 58 22 85 14 116 85 90 33 307 71 163 163 26 138

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
14	MIRROR ASM; OUTSIDE	8-98043-065-0	01	1	1512-
17	NUT; CAP,MIRROR STAY RUSSIA EQUIPMENT(B12),VIETNAM EQUIPMENT(JCD), PHILIPPINE EQUIPMENT(WE3) M10 CAP NUT	1-09984-134-0	02	1	1512-
17	NUT; CAP,MIRROR STAY RUSSIA EQUIPMENT(B12),VIETNAM EQUIPMENT(JCD), PHILIPPINE EQUIPMENT(WE3) M10 CAP NUT	1-09984-134-0	03	1	1512-
22	STAY; OUTSIDE MIRROR	8-98154-821-0	01	1	1512-
26	COVER; OUTSIDE MIRROR RUSSIA EQUIPMENT(B12),VIETNAM EQUIPMENT(JCD), PHILIPPINE EQUIPMENT(WE3)	8-98171-924-0	02	1	1512-
30	MIRROR; UNDER RUSSIA EQUIPMENT(B12),VIETNAM EQUIPMENT(JCD), PHILIPPINE EQUIPMENT(WE3)	8-98309-725-0	01	1	1512-
33	COVER; MIRROR RUSSIA EQUIPMENT(B12),VIETNAM EQUIPMENT(JCD), PHILIPPINE EQUIPMENT(WE3)	8-98171-925-0	01	1	1512-
58	NUT; MIRROR STAY RUSSIA EQUIPMENT(B12),VIETNAM EQUIPMENT(JCD), PHILIPPINE EQUIPMENT(WE3) M10	1-09984-183-0	03	1	1512-
63	NUT; STAY M8	1-09984-187-0	06	1	1512-
66	WASHER; PL (A) ID=8.4 OD=16.0 T=1.6	1-09985-191-0	02	1	1512-
66	WASHER; PL RUSSIA EQUIPMENT(B12),VIETNAM EQUIPMENT(JCD), PHILIPPINE EQUIPMENT(WE3) (B) ID=10.5 OD=26 T=2.6	1-09985-184-0	06	1	1512-
66	WASHER; PL RUSSIA EQUIPMENT(B12),VIETNAM EQUIPMENT(JCD), PHILIPPINE EQUIPMENT(WE3) (C) ID=10.5 OD=26 T=2.6	1-09985-204-0	04	1	1512-
71	BRACKET; OUTSIDE MIRROR (A)	1-71707-263-0	01	1	1512-
71	BRACKET; OUTSIDE MIRROR MIRROR - O/SIDE RR VIEW,REM CONTROL&HEATED<EEP>, MIRROR - O/SIDE RR VIEW,HEATED<7SV> (D)	8-98039-277-2	02	1	1512-
71	BRACKET; OUTSIDE MIRROR RUSSIA EQUIPMENT(B12),VIETNAM EQUIPMENT(JCD), PHILIPPINE EQUIPMENT(WE3) (B)	8-98167-111-0	01	1	1512-
71	BRACKET; OUTSIDE MIRROR RUSSIA EQUIPMENT(B12),VIETNAM EQUIPMENT(JCD), PHILIPPINE EQUIPMENT(WE3) (C)	8-98197-133-0	01	1	1512-
71	BRACKET; OUTSIDE MIRROR RUSSIA EQUIPMENT(B12),VIETNAM EQUIPMENT(JCD), PHILIPPINE EQUIPMENT(WE3) (B)	8-98154-718-2	01	1	1512-
71	BRACKET; OUTSIDE MIRROR RUSSIA EQUIPMENT(B12),VIETNAM EQUIPMENT(JCD), PHILIPPINE EQUIPMENT(WE3) (C)	8-98197-132-0	01	1	1512-
85	PIVOT; MAIN MIRROR ID=19.1	1-71737-633-2	02	1	1512-
85	PIVOT; MAIN MIRROR RUSSIA EQUIPMENT(B12),VIETNAM EQUIPMENT(JCD), PHILIPPINE EQUIPMENT(WE3) ID=19.1	1-71737-633-2	02	1	1512-
90	BRACKET; MIRROR STAY (A)	8-98147-160-1	02	1	1512-
90	BRACKET; MIRROR STAY (B)	1-71707-237-0	01	1	1512-
90	BRACKET; MIRROR STAY EXC. MIRROR - O/SIDE RR VIEW,REM CONTROL&HEATED<EEP> (B)	1-71798-829-1	01	1	1512-
90	BRACKET; MIRROR STAY RUSSIA EQUIPMENT(B12) (C)	8-98129-822-0	02	1	1512-
99	STAY; MAIN UNDER MIRROR RUSSIA EQUIPMENT(B12),VIETNAM EQUIPMENT(JCD), PHILIPPINE EQUIPMENT(WE3)	8-98092-493-0	01	1	1512-
116	WASHER; PL,STAY,MIRROR RUSSIA EQUIPMENT(B12),VIETNAM EQUIPMENT(JCD), PHILIPPINE EQUIPMENT(WE3) ID=10.5 OD=26 T=2.6	1-09985-204-0	03	1	1512-
138	BRACKET; LWR,OUTSIDE MIRROR RUSSIA EQUIPMENT(B12),VIETNAM EQUIPMENT(JCD), PHILIPPINE EQUIPMENT(WE3)	8-98171-926-0	02	1	1512-
163	NUT; MIRROR BRKT RUSSIA EQUIPMENT(B12),VIETNAM EQUIPMENT(JCD), PHILIPPINE EQUIPMENT(WE3) (A) M8 CAP NUT	8-98059-914-0	04	1	1512-
163	NUT; MIRROR BRKT RUSSIA EQUIPMENT(B12),VIETNAM EQUIPMENT(JCD), PHILIPPINE EQUIPMENT(WE3) (B) M8 CAP NUT FLANGE	8-98197-000-0	02	1	1512-
164	STAY; ROOF (A)	1-71798-300-5	01	1	1512-
164	STAY; ROOF (B)	8-98138-918-1	01	1	1512-
185	BOLT; BRKT MIRROR - O/SIDE RR VIEW,REM CONTROL&HEATED<EEP> (D) M6X16 FLANGE	0-28660-616-0	01	1	1512-
185	BOLT; BRKT MIRROR - O/SIDE RR VIEW,REM CONTROL&HEATED<EEP>, MIRROR - O/SIDE RR VIEW,HEATED<7SV> (C) M8X16 FLANGE	0-28050-816-0	02	1	1512-
185	BOLT; BRKT RUSSIA EQUIPMENT(B12),VIETNAM EQUIPMENT(JCD), PHILIPPINE EQUIPMENT(WE3) (A) M5X16	1-71707-259-0	02	1	1512-
185	BOLT; BRKT RUSSIA EQUIPMENT(B12),VIETNAM EQUIPMENT(JCD), PHILIPPINE EQUIPMENT(WE3) (B) M8X23	8-97310-216-1	08	1	1512-
187	WASHER; LK,BRKT (A) ID=8.4 OD=16.0 T=1.6	1-09985-191-0	04	1	1512-
187	WASHER; LK,BRKT RUSSIA EQUIPMENT(B12) (B)	8-98317-370-0	02	1	1512-
307	STAY; MIRROR SUPPORT	8-98154-969-1	01	1	1512-
307	STAY; MIRROR SUPPORT	8-98154-968-2	01	1	1512-

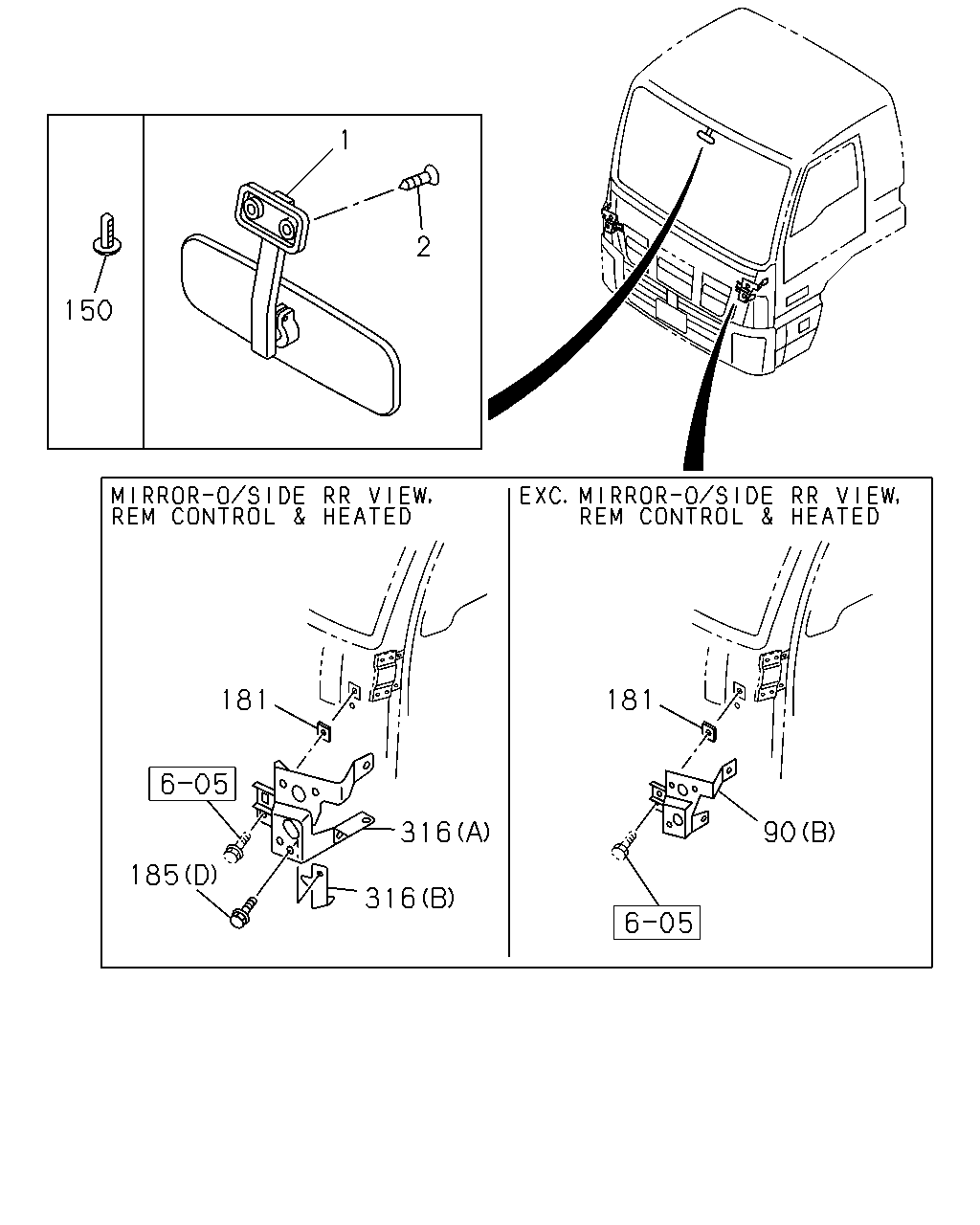

150 1 2 181 185 316 316 181 90

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	MIRROR; ROOM RR VIEW MIRROR<D31>	1-73117-033-1	01	1	1512-
2	SCREW; MIRROR TO BODY RR VIEW MIRROR<D31> M6X20	1-09981-310-0	02	1	1512-
90	BRACKET; MIRROR STAY (A)	8-98147-160-1	02	1	1512-
90	BRACKET; MIRROR STAY (B)	1-71707-237-0	01	1	1512-
90	BRACKET; MIRROR STAY EXC. MIRROR - O/SIDE RR VIEW,REM CONTROL&HEATED<EEP> (B)	1-71798-829-1	01	1	1512-
90	BRACKET; MIRROR STAY RUSSIA EQUIPMENT(B12) (C)	8-98129-822-0	02	1	1512-
150	PLUG; MIRROR HOLE EXC. RR VIEW MIRROR<D31> OD=6 L=17 LIGHT GRAY	1-73996-301-0	02	1	1512-
181	SEAL; BRKT 25X25	8-94272-533-0	02	1	1512-
185	BOLT; BRKT MIRROR - O/SIDE RR VIEW,REM CONTROL&HEATED<EEP> (D) M6X16 FLANGE	0-28660-616-0	01	1	1512-
185	BOLT; BRKT MIRROR - O/SIDE RR VIEW,REM CONTROL&HEATED<EEP>, MIRROR - O/SIDE RR VIEW,HEATED<7SV> (C) M8X16 FLANGE	0-28050-816-0	02	1	1512-
185	BOLT; BRKT RUSSIA EQUIPMENT(B12),VIETNAM EQUIPMENT(JCD), PHILIPPINE EQUIPMENT(WE3) (A) M5X16	1-71707-259-0	02	1	1512-
185	BOLT; BRKT RUSSIA EQUIPMENT(B12),VIETNAM EQUIPMENT(JCD), PHILIPPINE EQUIPMENT(WE3) (B) M8X23	8-97310-216-1	08	1	1512-
316	BRACKET; CONNECTOR MIRROR - O/SIDE RR VIEW,REM CONTROL&HEATED<EEP> (A)	8-98245-438-0	01	1	1512-
316	BRACKET; CONNECTOR MIRROR - O/SIDE RR VIEW,REM CONTROL&HEATED<EEP> (B)	8-98245-440-0	01	1	1512-

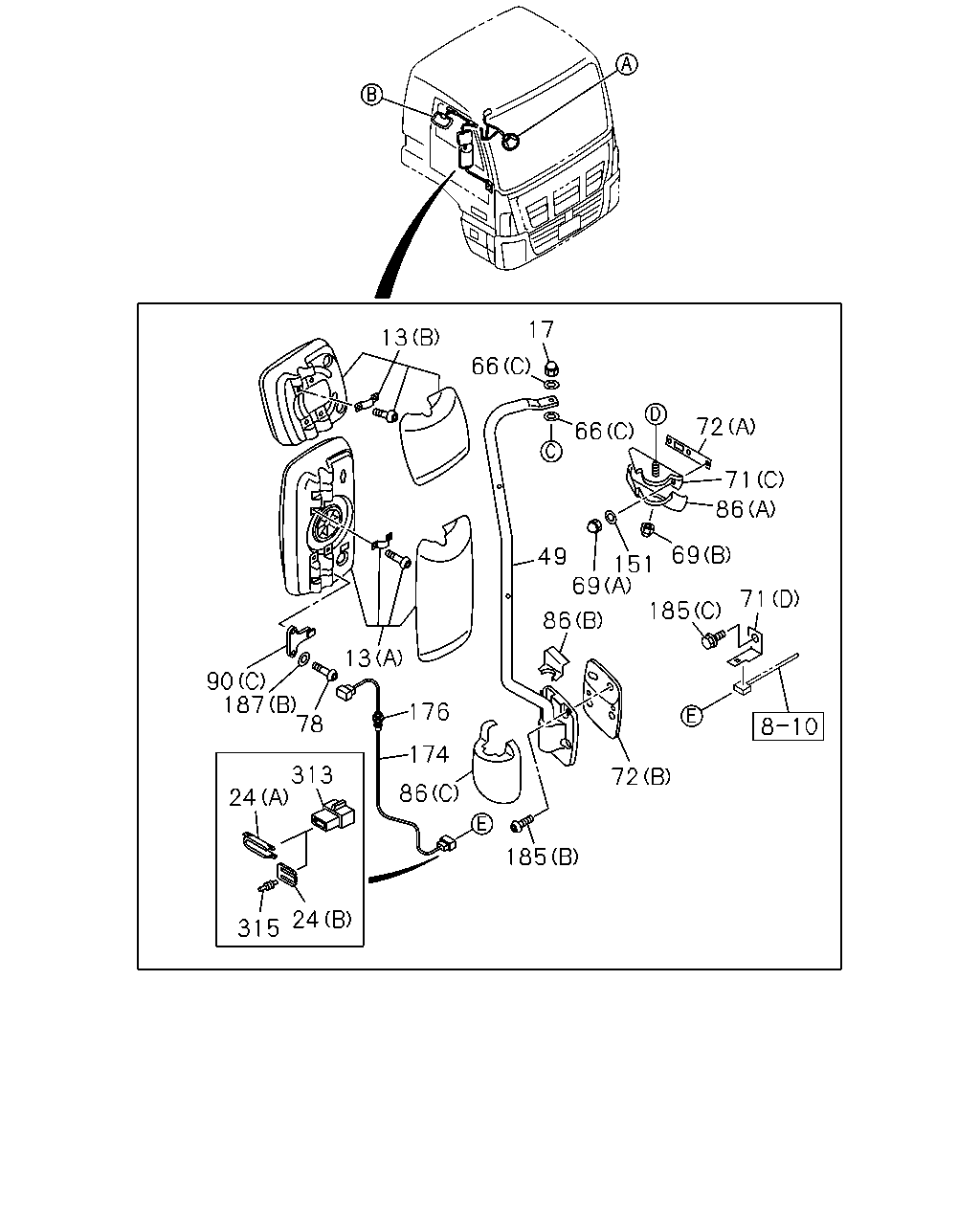

17 66 13 66 72 71 69 86 151 69 49 86 72 71 185 185 86 176 174 13 78 187 90 313 24 315 24

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
13	MIRROR ASM; OUTSIDE RR VIEW MIRROR - O/SIDE RR VIEW,REM CONTROL&HEATED<EEP> VIETNAM EQUIPMENT(JCD),PHILIPPINE EQUIPMENT(WE3) (A)	8-98043-060-1	01	1	1512-
13	MIRROR ASM; OUTSIDE RR VIEW MIRROR - O/SIDE RR VIEW,REM CONTROL&HEATED<EEP> VIETNAM EQUIPMENT(JCD),PHILIPPINE EQUIPMENT(WE3) (A)	8-98043-176-1	01	1	1512-
13	MIRROR ASM; OUTSIDE RR VIEW RUSSIA EQUIPMENT(B12) (A)	8-98043-058-1	01	1	1512-
13	MIRROR ASM; OUTSIDE RR VIEW RUSSIA EQUIPMENT(B12) (A)	8-98043-174-1	01	1	1512-
13	MIRROR ASM; OUTSIDE RR VIEW VIETNAM EQUIPMENT(JCD),PHILIPPINE EQUIPMENT(WE3) EXC. MIRROR - O/SIDE RR VIEW,REM CONTROL&HEATED<EEP>,MIRROR - O/SIDE RR VIEW,HEATED<7SV> (A)	8-98055-991-1	01	1	1512-
13	MIRROR ASM; OUTSIDE RR VIEW VIETNAM EQUIPMENT(JCD),PHILIPPINE EQUIPMENT(WE3) EXC. MIRROR - O/SIDE RR VIEW,REM CONTROL&HEATED<EEP>,MIRROR - O/SIDE RR VIEW,HEATED<7SV> (A)	8-98055-992-1	01	1	1512-
13	MIRROR ASM; OUTSIDE RR VIEW RUSSIA EQUIPMENT(B12) (B)	8-98162-676-1	02	1	1512-
13	MIRROR ASM; OUTSIDE RR VIEW VIETNAM EQUIPMENT(JCD),PHILIPPINE EQUIPMENT(WE3) EXC. MIRROR - O/SIDE RR VIEW,HEATED<7SV> (B)	8-98162-676-1	02	1	1512-
17	NUT; CAP,MIRROR STAY RUSSIA EQUIPMENT(B12),VIETNAM EQUIPMENT(JCD), PHILIPPINE EQUIPMENT(WE3) M10 CAP NUT	1-09984-134-0	02	1	1512-
17	NUT; CAP,MIRROR STAY RUSSIA EQUIPMENT(B12),VIETNAM EQUIPMENT(JCD), PHILIPPINE EQUIPMENT(WE3) M10 CAP NUT	1-09984-134-0	03	1	1512-
24	HOLDER; OUTSIDE MIRROR MIRROR - O/SIDE RR VIEW,REM CONTROL&HEATED<EEP> VIETNAM EQUIPMENT(JCD),PHILIPPINE EQUIPMENT(WE3) (B)	8-94447-536-0	02	1	1512-
24	HOLDER; OUTSIDE MIRROR RUSSIA EQUIPMENT(B12) (A)	8-94447-506-0	02	1	1512-
49	STAY; MIRROR SIDE MIRROR - O/SIDE RR VIEW,REM CONTROL&HEATED<EEP> VIETNAM EQUIPMENT(JCD),PHILIPPINE EQUIPMENT(WE3)	8-98222-325-0	01	1	1512-
49	STAY; MIRROR SIDE MIRROR - O/SIDE RR VIEW,REM CONTROL&HEATED<EEP> VIETNAM EQUIPMENT(JCD),PHILIPPINE EQUIPMENT(WE3)	8-98222-324-0	01	1	1512-
49	STAY; MIRROR SIDE RUSSIA EQUIPMENT(B12)	8-98234-650-0	01	1	1512-
49	STAY; MIRROR SIDE RUSSIA EQUIPMENT(B12)	8-98234-649-0	01	1	1512-
49	STAY; MIRROR SIDE VIETNAM EQUIPMENT(JCD),PHILIPPINE EQUIPMENT(WE3) EXC. MIRROR - O/SIDE RR VIEW,REM CONTROL&HEATED<EEP>,MIRROR - O/SIDE RR VIEW,HEATED<7SV>	8-98234-648-0	01	1	1512-
49	STAY; MIRROR SIDE VIETNAM EQUIPMENT(JCD),PHILIPPINE EQUIPMENT(WE3) EXC. MIRROR - O/SIDE RR VIEW,REM CONTROL&HEATED<EEP>,MIRROR - O/SIDE RR VIEW,HEATED<7SV>	8-98234-647-0	01	1	1512-
66	WASHER; PL (A) ID=8.4 OD=16.0 T=1.6	1-09985-191-0	02	1	1512-
66	WASHER; PL RUSSIA EQUIPMENT(B12),VIETNAM EQUIPMENT(JCD), PHILIPPINE EQUIPMENT(WE3) (B) ID=10.5 OD=26 T=2.6	1-09985-184-0	06	1	1512-
66	WASHER; PL RUSSIA EQUIPMENT(B12),VIETNAM EQUIPMENT(JCD), PHILIPPINE EQUIPMENT(WE3) (C) ID=10.5 OD=26 T=2.6	1-09985-204-0	04	1	1512-
69	NUT; CAP RUSSIA EQUIPMENT(B12),VIETNAM EQUIPMENT(JCD), PHILIPPINE EQUIPMENT(WE3) (A) M8 CAP NUT	8-98059-914-0	06	1	1512-
69	NUT; CAP RUSSIA EQUIPMENT(B12),VIETNAM EQUIPMENT(JCD), PHILIPPINE EQUIPMENT(WE3) (B) M8 CAP NUT FLANGE	8-98197-000-0	02	1	1512-
71	BRACKET; OUTSIDE MIRROR (A)	1-71707-263-0	01	1	1512-
71	BRACKET; OUTSIDE MIRROR MIRROR - O/SIDE RR VIEW,REM CONTROL&HEATED<EEP>, MIRROR - O/SIDE RR VIEW,HEATED<7SV> (D)	8-98039-277-2	02	1	1512-
71	BRACKET; OUTSIDE MIRROR RUSSIA EQUIPMENT(B12),VIETNAM EQUIPMENT(JCD), PHILIPPINE EQUIPMENT(WE3) (B)	8-98167-111-0	01	1	1512-
71	BRACKET; OUTSIDE MIRROR RUSSIA EQUIPMENT(B12),VIETNAM EQUIPMENT(JCD), PHILIPPINE EQUIPMENT(WE3) (C)	8-98197-133-0	01	1	1512-
71	BRACKET; OUTSIDE MIRROR RUSSIA EQUIPMENT(B12),VIETNAM EQUIPMENT(JCD), PHILIPPINE EQUIPMENT(WE3) (B)	8-98154-718-2	01	1	1512-
71	BRACKET; OUTSIDE MIRROR RUSSIA EQUIPMENT(B12),VIETNAM EQUIPMENT(JCD), PHILIPPINE EQUIPMENT(WE3) (C)	8-98197-132-0	01	1	1512-
72	SHEET RUSSIA EQUIPMENT(B12),VIETNAM EQUIPMENT(JCD), PHILIPPINE EQUIPMENT(WE3) (A)	8-98147-891-0	02	1	1512-
72	SHEET RUSSIA EQUIPMENT(B12) (B)	8-98101-865-0	01	1	1512-
72	SHEET MIRROR - O/SIDE RR VIEW,REM CONTROL&HEATED<EEP> VIETNAM EQUIPMENT(JCD),PHILIPPINE EQUIPMENT(WE3) (B)	8-98101-865-0	01	1	1512-
72	SHEET RUSSIA EQUIPMENT(B12) (B)	8-98101-864-0	01	1	1512-
72	SHEET MIRROR - O/SIDE RR VIEW,REM CONTROL&HEATED<EEP> VIETNAM EQUIPMENT(JCD),PHILIPPINE EQUIPMENT(WE3) (B)	8-98101-864-0	01	1	1512-
72	SHEET VIETNAM EQUIPMENT(JCD),PHILIPPINE EQUIPMENT(WE3) EXC. MIRROR - O/SIDE RR VIEW,REM CONTROL&HEATED<EEP>,MIRROR - O/SIDE RR VIEW,HEATED<7SV> (B)	8-98116-605-0	01	1	1512-
72	SHEET VIETNAM EQUIPMENT(JCD),PHILIPPINE EQUIPMENT(WE3) EXC. MIRROR - O/SIDE RR VIEW,REM CONTROL&HEATED<EEP>,MIRROR - O/SIDE RR VIEW,HEATED<7SV> (B)	8-98116-604-0	01	1	1512-
78	SCREW; BRKT FIX RUSSIA EQUIPMENT(B12)	8-98317-369-0	02	1	1512-
86	COVER; STAY,OUTSIDE MIRROR RUSSIA EQUIPMENT(B12),VIETNAM EQUIPMENT(JCD), PHILIPPINE EQUIPMENT(WE3) (C)	8-98031-803-2	01	1	1512-
86	COVER; STAY,OUTSIDE MIRROR RUSSIA EQUIPMENT(B12),VIETNAM EQUIPMENT(JCD), PHILIPPINE EQUIPMENT(WE3) (B)	8-98031-806-0	01	1	1512-
86	COVER; STAY,OUTSIDE MIRROR RUSSIA EQUIPMENT(B12),VIETNAM EQUIPMENT(JCD), PHILIPPINE EQUIPMENT(WE3) (A)	8-98151-197-0	01	1	1512-
86	COVER; STAY,OUTSIDE MIRROR RUSSIA EQUIPMENT(B12),VIETNAM EQUIPMENT(JCD), PHILIPPINE EQUIPMENT(WE3) (C)	8-98031-802-2	01	1	1512-
86	COVER; STAY,OUTSIDE MIRROR RUSSIA EQUIPMENT(B12),VIETNAM EQUIPMENT(JCD), PHILIPPINE EQUIPMENT(WE3) (B)	8-98031-805-0	01	1	1512-
86	COVER; STAY,OUTSIDE MIRROR RUSSIA EQUIPMENT(B12),VIETNAM EQUIPMENT(JCD), PHILIPPINE EQUIPMENT(WE3) (A)	8-98151-196-0	01	1	1512-
90	BRACKET; MIRROR STAY (A)	8-98147-160-1	02	1	1512-
90	BRACKET; MIRROR STAY (B)	1-71707-237-0	01	1	1512-
90	BRACKET; MIRROR STAY EXC. MIRROR - O/SIDE RR VIEW,REM CONTROL&HEATED<EEP> (B)	1-71798-829-1	01	1	1512-
90	BRACKET; MIRROR STAY RUSSIA EQUIPMENT(B12) (C)	8-98129-822-0	02	1	1512-
151	WASHER; PL,MIRROR RUSSIA EQUIPMENT(B12),VIETNAM EQUIPMENT(JCD), PHILIPPINE EQUIPMENT(WE3) ID=8.4 OD=16.0 T=1.6	1-09985-191-0	06	1	1512-
174	HARNESS; MIRROR MIRROR - O/SIDE RR VIEW,REM CONTROL&HEATED<EEP> VIETNAM EQUIPMENT(JCD),PHILIPPINE EQUIPMENT(WE3)	8-97644-030-0	02	1	1512-
174	HARNESS; MIRROR RUSSIA EQUIPMENT(B12)	8-98144-513-1	02	1	1512-
176	GROMMET; HARNESS RUSSIA EQUIPMENT(B12)	1-82699-906-0	02	1	1512-
176	GROMMET; HARNESS MIRROR - O/SIDE RR VIEW,REM CONTROL&HEATED<EEP> VIETNAM EQUIPMENT(JCD),PHILIPPINE EQUIPMENT(WE3)	1-82699-906-0	02	1	1512-
185	BOLT; BRKT MIRROR - O/SIDE RR VIEW,REM CONTROL&HEATED<EEP> (D) M6X16 FLANGE	0-28660-616-0	01	1	1512-
185	BOLT; BRKT MIRROR - O/SIDE RR VIEW,REM CONTROL&HEATED<EEP>, MIRROR - O/SIDE RR VIEW,HEATED<7SV> (C) M8X16 FLANGE	0-28050-816-0	02	1	1512-
185	BOLT; BRKT RUSSIA EQUIPMENT(B12),VIETNAM EQUIPMENT(JCD), PHILIPPINE EQUIPMENT(WE3) (A) M5X16	1-71707-259-0	02	1	1512-
185	BOLT; BRKT RUSSIA EQUIPMENT(B12),VIETNAM EQUIPMENT(JCD), PHILIPPINE EQUIPMENT(WE3) (B) M8X23	8-97310-216-1	08	1	1512-
187	WASHER; LK,BRKT (A) ID=8.4 OD=16.0 T=1.6	1-09985-191-0	04	1	1512-
187	WASHER; LK,BRKT RUSSIA EQUIPMENT(B12) (B)	8-98317-370-0	02	1	1512-
313	CONNECTOR; MIRROR MIRROR - O/SIDE RR VIEW,REM CONTROL&HEATED<EEP> VIETNAM EQUIPMENT(JCD),PHILIPPINE EQUIPMENT(WE3)	8-94447-532-0	02	1	1512-
313	CONNECTOR; MIRROR RUSSIA EQUIPMENT(B12)	8-94447-498-0	02	1	1512-
315	RUBBER ASM; CONNECTOR MIRROR - O/SIDE RR VIEW,REM CONTROL&HEATED<EEP> VIETNAM EQUIPMENT(JCD),PHILIPPINE EQUIPMENT(WE3)	1-82691-026-0	02	1	1512-

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
