Sayfa 7-10 - Isuzu EPC

7-10 — CAUTION PLATE AND LABEL (#176381) — 68 parça

60 60 263

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
60	PLATE; CAUTION,CAB TILT CAUTIONS ARABIAN<WJ7> (A)	8-98192-182-0	01	1	1512-
60	PLATE; CAUTION,CAB TILT CAUTIONS ENGLISH<RR8> (A)	8-98174-581-0	01	1	1512-
60	PLATE; CAUTION,CAB TILT CAUTIONS FRENCH<WJ8> (A)	8-98237-661-0	01	1	1512-
60	PLATE; CAUTION,CAB TILT CAUTIONS PORTUGUESE<NAT> (A)	8-98237-662-0	01	1	1512-
60	PLATE; CAUTION,CAB TILT CAUTIONS SPANISH<YN1> (A)	8-98192-183-0	01	1	1512-
60	PLATE; CAUTION,CAB TILT CAUTIONS ARABIAN<WJ7> (B)	8-98192-184-0	01	1	1512-
60	PLATE; CAUTION,CAB TILT CAUTIONS ENGLISH<RR8> (B)	8-98174-582-0	01	1	1512-
60	PLATE; CAUTION,CAB TILT CAUTIONS FRENCH<WJ8> (B)	8-98237-663-0	01	1	1512-
60	PLATE; CAUTION,CAB TILT CAUTIONS PORTUGUESE<NAT> (B)	8-98237-664-0	01	1	1512-
60	PLATE; CAUTION,CAB TILT CAUTIONS SPANISH<YN1> (B)	8-98192-185-0	01	1	1512-
263	PLATE; CAUTION,JACK TOOL B KIT<SL1> CAUTIONS ARABIAN<WJ7>	8-98094-561-0	01	1	1512-

181 181 144

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
144	PLATE; CAUTION,CLU	1-85878-345-0	01	1	1512-
181	PLATE; CAUTION,AIR CLEANER (A)	1-85886-796-1	01	1	1512-
181	PLATE; CAUTION,AIR CLEANER (B)	1-85886-813-1	01	1	1512-

5 162 289 304 6 5

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
5	LABEL; TIRE AIR PRESSURE TIRE 295/80R22.5-152/148K RIB LUG CHINA(5D9),TIRE 295/80R22.5-152/148J RIB CHINA(5E0),TIRE 315/80R22.5-156/150K RIB LUG GULF(5N0),TIRE315/80R22.5-156/150 K RIBLUG LATIN AMERICA(5N2),TIRE 11.00R20-16 RIBLUGOFF ROAD(5N4),TIRE 11.00R20-16 RIB(85R) CAUTIONS PORTUGUESE<NAT>,CAUTIONS ENGLISH<RR8>, CAUTIONS ARABIAN<WJ7>,CAUTIONS FRENCH<WJ8>,CAUTIONS SPANISH<YN1> (A)	1-85880-778-0	01	1	1512-
5	LABEL; TIRE AIR PRESSURE TIRE 315/80R22.5-156/150K RIB LUG RUSSIA(5N1),TIRE 315/80R22.5-156/150L BLOCK DIRECT RUSSIA(5N9) CAUTIONS PORTUGUESE<NAT>,CAUTIONS ENGLISH<RR8>, CAUTIONS ARABIAN<WJ7>,CAUTIONS FRENCH<WJ8>,CAUTIONS SPANISH<YN1> (B)	1-85880-814-0	01	1	1512-
6	PLATE; CAUTION,SPARE TIRE CAUTIONS PORTUGUESE<NAT> SPARE WHEEL CARRIER FRAME SIDE<P13>	1-53639-045-0	01	1	1512-
6	PLATE; CAUTION,SPARE TIRE SPARE WHEEL CARRIER FRAME SIDE<P13> CAUTIONS ARABIAN<WJ7>	8-98082-441-0	01	1	1512-
6	PLATE; CAUTION,SPARE TIRE SPARE WHEEL CARRIER FRAME SIDE<P13> CAUTIONS ENGLISH<RR8>	8-98082-437-0	01	1	1512-
6	PLATE; CAUTION,SPARE TIRE SPARE WHEEL CARRIER FRAME SIDE<P13> CAUTIONS FRENCH<WJ8>	8-98082-440-0	01	1	1512-
6	PLATE; CAUTION,SPARE TIRE SPARE WHEEL CARRIER FRAME SIDE<P13> CAUTIONS SPANISH<YN1>	8-98082-439-0	01	1	1512-
162	PLATE; CAUTION,FUEL CAUTIONS ENGLISH<RR8>	8-97623-712-0	01	1	1512-
162	PLATE; CAUTION,FUEL CAUTIONS FRENCH<WJ8>	8-97621-140-0	01	1	1512-
162	PLATE; CAUTION,FUEL CAUTIONS PORTUGUESE<NAT>,CAUTIONS ARABIAN<WJ7>	8-98083-160-0	01	1	1512-
162	PLATE; CAUTION,FUEL CAUTIONS SPANISH<YN1>	8-97635-806-0	01	1	1512-
289	PLATE; CAUTION,DRIVING CAUTIONS ARABIAN<WJ7>	8-98093-472-0	01	1	1512-
304	PLATE; CAUTION,LOW TEMP RUSSIA EQUIPMENT(B12) CAUTIONS ENGLISH<RR8>	8-97500-678-0	01	1	1512-

51 49 74 51 119 74 51 252

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
49	PLATE; CAUTION,FUSE BOX CAUTIONS ARABIAN<WJ7>	8-98333-758-0	01	1	1512-
49	PLATE; CAUTION,FUSE BOX CAUTIONS ENGLISH<RR8>	8-98333-756-0	01	1	1512-
49	PLATE; CAUTION,FUSE BOX CAUTIONS FRENCH<WJ8>	8-98333-759-0	01	1	1512-
49	PLATE; CAUTION,FUSE BOX CAUTIONS PORTUGUESE<NAT>	8-98333-757-0	01	1	1512-
49	PLATE; CAUTION,FUSE BOX CAUTIONS SPANISH<YN1>	8-98333-760-0	01	1	1512-
51	PLATE; CAUTION,WARNING CAUTIONS ARABIAN<WJ7> (A)	8-97624-052-0	01	1	1512-
51	PLATE; CAUTION,WARNING CAUTIONS ENGLISH<RR8> (A)	1-85878-544-0	01	1	1512-
51	PLATE; CAUTION,WARNING CAUTIONS FRENCH<WJ8> (A)	8-97633-742-0	01	1	1512-
51	PLATE; CAUTION,WARNING CAUTIONS PORTUGUESE<NAT> (A)	8-98162-838-0	01	1	1512-
51	PLATE; CAUTION,WARNING CAUTIONS SPANISH<YN1> (A)	8-97613-336-0	01	1	1512-
51	PLATE; CAUTION,WARNING CAUTIONS ARABIAN<WJ7> (B)	1-85880-787-0	01	1	1512-
51	PLATE; CAUTION,WARNING CAUTIONS ENGLISH<RR8> (B)	1-85880-777-0	01	1	1512-
51	PLATE; CAUTION,WARNING CAUTIONS FRENCH<WJ8> (B)	1-85880-786-0	01	1	1512-
51	PLATE; CAUTION,WARNING CAUTIONS PORTUGUESE<NAT> (B)	8-98161-460-0	01	1	1512-
51	PLATE; CAUTION,WARNING CAUTIONS SPANISH<YN1> (B)	1-85880-785-0	01	1	1512-
51	PLATE; CAUTION,WARNING EXC. SILENCER SINGLE VERTICAL<N28> (C)	1-85878-571-0	01	1	1512-
74	PLATE; CAUTION,CHANGE LEV (B)	8-98118-493-0	01	1	1512-
74	PLATE; CAUTION,CHANGE LEV CAUTIONS ARABIAN<WJ7> (A)	8-98124-445-0	01	1	1512-
74	PLATE; CAUTION,CHANGE LEV CAUTIONS ENGLISH<RR8> (A)	1-85881-836-0	01	1	1512-
74	PLATE; CAUTION,CHANGE LEV CAUTIONS FRENCH<WJ8> (A)	1-85881-970-0	01	1	1512-
74	PLATE; CAUTION,CHANGE LEV CAUTIONS PORTUGUESE<NAT> (A)	8-98164-667-0	01	1	1512-
74	PLATE; CAUTION,CHANGE LEV CAUTIONS SPANISH<YN1> (A)	1-85881-946-0	01	1	1512-
119	PLATE; CAUTION,HAND BRK LEVER CAUTIONS ARABIAN<WJ7>	1-85881-980-0	01	1	1512-
119	PLATE; CAUTION,HAND BRK LEVER CAUTIONS ENGLISH<RR8>	1-85881-791-0	01	1	1512-
119	PLATE; CAUTION,HAND BRK LEVER CAUTIONS FRENCH<WJ8>	1-85881-943-0	01	1	1512-
119	PLATE; CAUTION,HAND BRK LEVER CAUTIONS PORTUGUESE<NAT>	8-98161-152-0	01	1	1512-
119	PLATE; CAUTION,HAND BRK LEVER CAUTIONS SPANISH<YN1>	1-85881-942-0	01	1	1512-
252	PLATE; CAUTION,HARNESS CAUTIONS ARABIAN<WJ7>	8-97623-996-0	01	1	1512-
252	PLATE; CAUTION,HARNESS CAUTIONS ENGLISH<RR8>	1-85878-488-1	01	1	1512-
252	PLATE; CAUTION,HARNESS CAUTIONS FRENCH<WJ8>	1-85878-560-0	01	1	1512-
252	PLATE; CAUTION,HARNESS CAUTIONS PORTUGUESE<NAT>	8-97636-218-0	01	1	1512-
252	PLATE; CAUTION,HARNESS CAUTIONS SPANISH<YN1>	1-85878-559-0	01	1	1512-

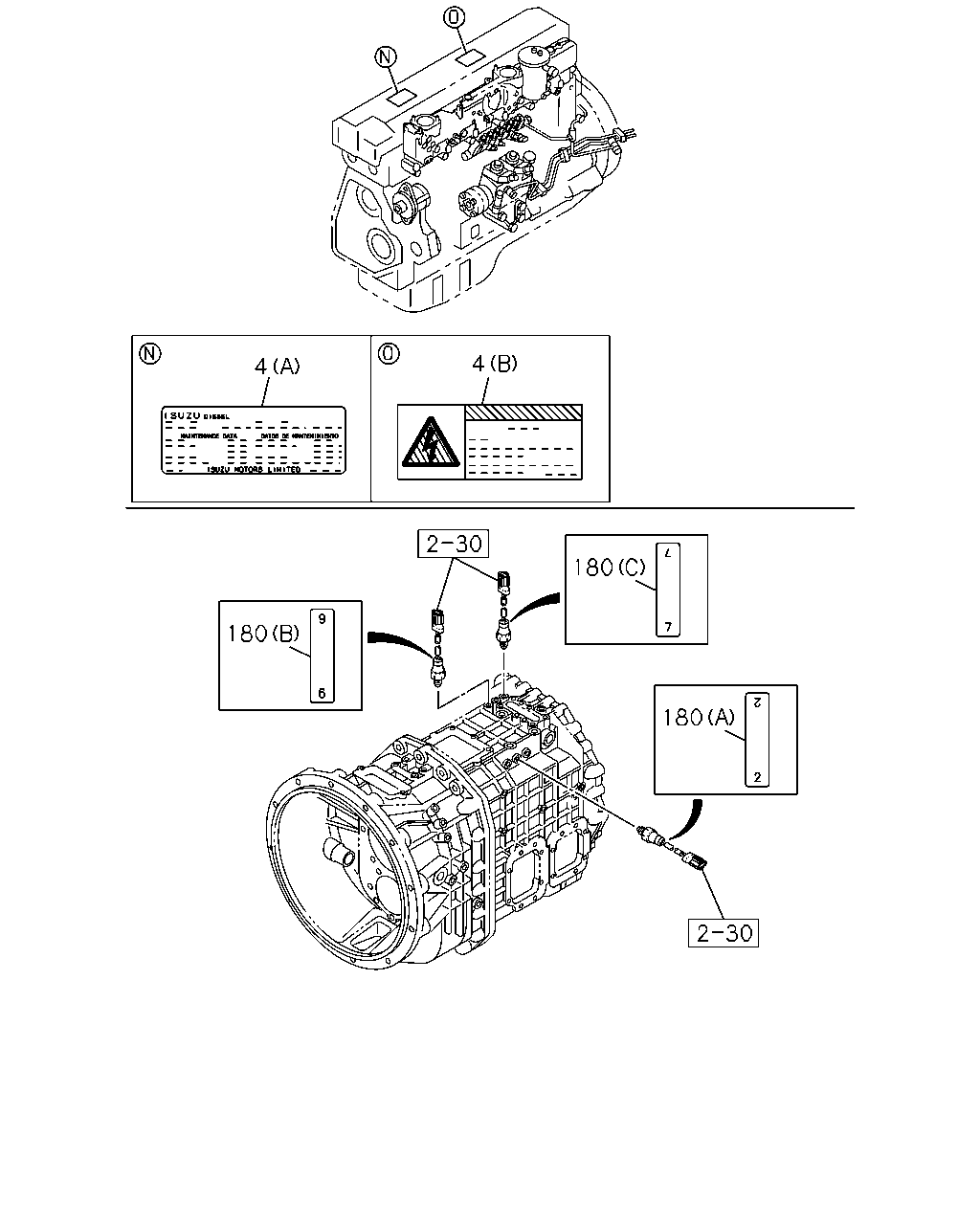

4 4 180 180 180

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
4	LABEL; ENG MAINTENANCE (A)	1-85875-350-2	01	1	1512-
4	LABEL; ENG MAINTENANCE CAUTIONS ARABIAN<WJ7> (B)	8-98088-627-0	01	1	1512-
4	LABEL; ENG MAINTENANCE CAUTIONS ENGLISH<RR8> (B)	8-94391-524-0	01	1	1512-
4	LABEL; ENG MAINTENANCE CAUTIONS FRENCH<WJ8> (B)	8-98160-132-0	01	1	1512-
4	LABEL; ENG MAINTENANCE CAUTIONS PORTUGUESE<NAT> (B)	8-98160-131-0	01	1	1512-
4	LABEL; ENG MAINTENANCE CAUTIONS SPANISH<YN1> (B)	8-98160-130-0	01	1	1512-
180	PLATE; CAUTION,SWITCH (A)	1-85881-872-0	01	1	1512-
180	PLATE; CAUTION,SWITCH (B)	1-85881-880-0	01	1	1512-
180	PLATE; CAUTION,SWITCH (C)	1-85881-881-0	01	1	1512-

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
