Isuzu WW
▶
TRUCKS
▶
EXZ
▶
11745 - EXZ LHD EURO5
▶
6 - Exterior Body, Glass Mounting, Door Trim, Molding
▶

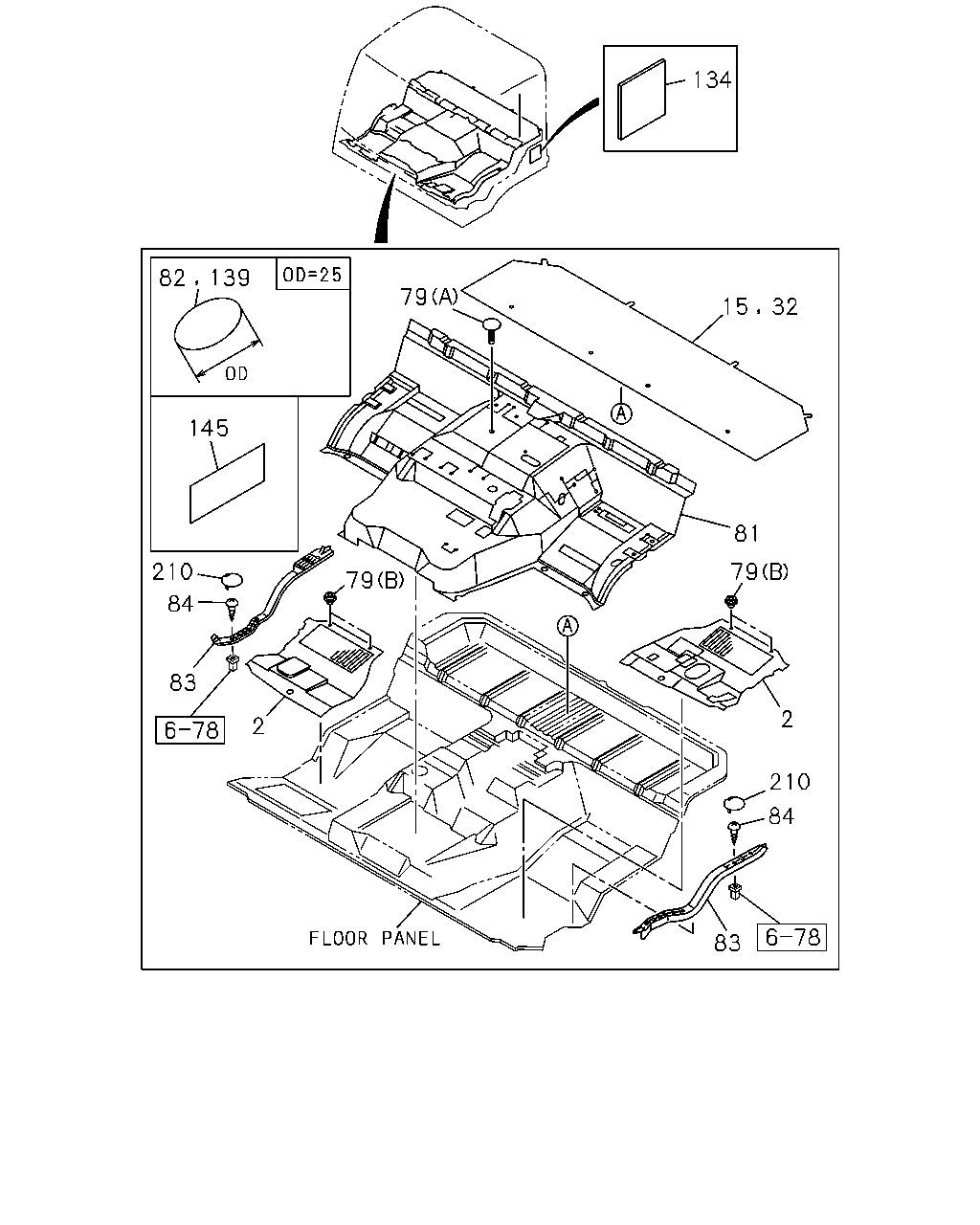

6-75 - MAT AND CARPET
▶
6-75 — MAT AND CARPET
(#176372) — 16 parça
82
145
139
79
134
210
84
83
2
79
15
81
32
79
2
210
84
83
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
2
MAT; FLOOR
EXC. DELUXE CARPET<BF2>
1-73237-785-1
01
1
1512-
2
MAT; FLOOR
EXC. DELUXE CARPET<BF2>
1-73237-787-1
01
1
1512-
15
MAT; FLOOR REAR
EXC. DELUXE CARPET<BF2>,MATTRESS SLEEPER CAB<E40>
1-73237-783-1
01
1
1512-
32
CARPET; FLOOR
DELUXE CARPET<BF2> EXC. MATTRESS SLEEPER CAB<E40>
1-73237-867-2
01
1
1512-
79
HOOK; MALE
(A) D6X23 BLACK
1-09987-114-0
01
1
1512-
79
HOOK; MALE
(B) BLACK
8-94279-089-0
08
1
1512-
81
MAT; FLOOR,CENTER
CENTER SEAT DELETE(SP9) EXC. DELUXE CARPET<BF2>
1-73237-830-2
01
1
1512-
81
MAT; FLOOR,CENTER
EXC. DELUXE CARPET<BF2>,CENTER SEAT DELETE(SP9)
1-73237-813-3
01
1
1512-
82
SEAL; BED PAN
OD=25 BLACK
1-76798-019-0
01
1
1512-
83
PLATE; KICKING,FLOOR MAT
1-76798-046-0
01
1
1512-
83
PLATE; KICKING,FLOOR MAT
1-76798-045-0
01
1
1512-
84
SCREW; PLATE TO FLOOR
M5X16
8-94279-312-0
08
1
1512-
134
SILENCER; RR FLOOR,SIDE
1-73367-016-2
01
1
1512-
139
SEAL; FLOOR
OD=25 BLACK
1-76798-019-0
01
1
1512-
145
SEAL; FLOOR PANEL
100X40
1-72498-022-1
01
1
1512-
210
COVER; KICKING PLATE
1-76337-461-0
09
1
1512-
Seçili parçaları sepete ekle
İpucu: çizimdeki balona veya tablodaki
Balon
sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
