Isuzu WW
▶
TRUCKS
▶
EXZ
▶
11745 - EXZ LHD EURO5
▶
6 - Exterior Body, Glass Mounting, Door Trim, Molding
▶
6-32 - FRONT DOOR LOCK AND HANDLE
▶

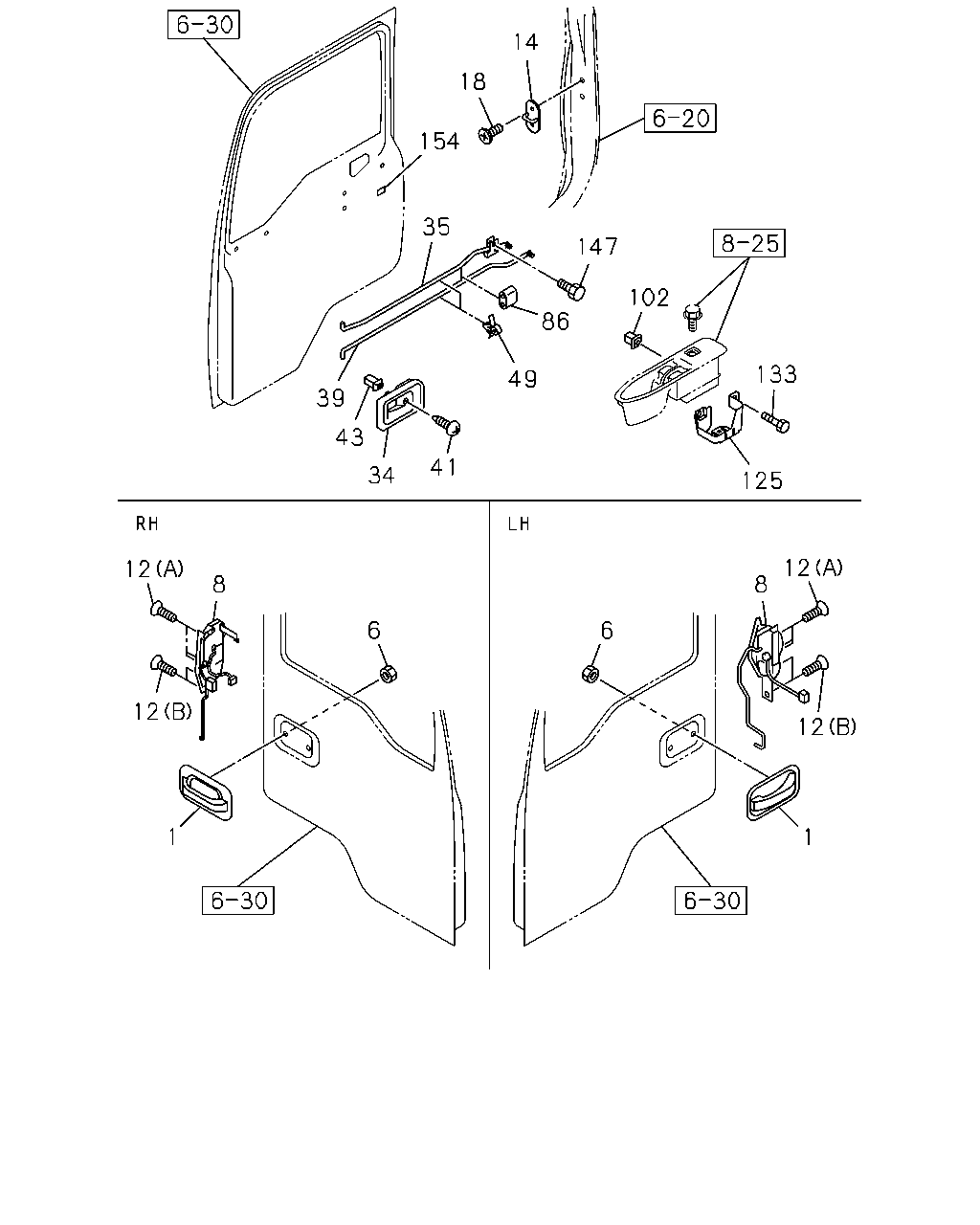

6-32 — FRONT DOOR LOCK AND HANDLE
(#176364) — 24 parça
1
12
12
8
6
6
8
12
12
1
41
34
43
39
49
86
14
18
154
35
147
102
125
133
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
1
HANDLE; OUTSIDE,FRT DOOR
1-74618-024-4
02
1
1512-
6
NUT; OUTSIDE HANDLE
M6 FLANGE W/RUBBER
1-09984-180-0
04
1
1512-
8
LOCK; DOOR,FRT DOOR
AUTO DOOR LOCK<AU4>
1-74518-114-3
01
1
1512-
8
LOCK; DOOR,FRT DOOR
AUTO DOOR LOCK<AU4>
1-74518-113-3
01
1
1512-
12
SCREW; DOOR LK
(B) M6X14
1-09981-512-1
04
1
1512-
12
SCREW; DOOR LK
(A) M6X16
8-97581-217-0
06
1
1512-
14
STRIKER; FRT DOOR
8-97221-702-1
02
1
1512-
18
SCREW; DOOR STRIKER
M8X23 W/LK WASHER
8-97221-701-0
04
1
1512-
34
HANDLE; INSIDE,FRT DOOR
1-74718-023-4
01
1
1512-
34
HANDLE; INSIDE,FRT DOOR
1-74718-022-4
01
1
1512-
35
LINK; DOOR LOCK,INSIDE
1-74518-094-3
01
1
1512-
35
LINK; DOOR LOCK,INSIDE
1-74518-093-3
01
1
1512-
39
LINK; INSIDE HANDLE,FRT DOOR
1-74758-022-2
01
1
1512-
39
LINK; INSIDE HANDLE,FRT DOOR
1-74758-021-2
01
1
1512-
41
SCREW; INSIDE HANDLE
M5X14
8-94152-495-0
02
1
1512-
43
GROMMET; SCREW,INSIDE LEVER,DOOR
D=7.8X7.8 L=18 NATURAL
8-94279-043-0
02
1
1512-
49
CLAMP; DOOR LOCK LINK ROD
ID=3.8 WHITE
8-94217-699-0
04
1
1512-
86
SEAL; DOOR LOCK LINK
1-76778-044-1
02
1
1512-
102
GROMMET; SCREW,ESCUTCHEON,DOOR PULL
D=7.8X7.8 L=18 NATURAL
8-94279-043-0
04
1
1512-
125
BRACKET; DOOR PULL
1-74718-011-4
01
1
1512-
125
BRACKET; DOOR PULL
1-74718-010-4
01
1
1512-
133
SCREW; DOOR PULL STAY
M5X16 W/PL WASHER TAPPING
8-94279-123-0
04
1
1512-
147
BOLT; ROD
M6X19.5 W/LK&PL WASHER
8-94279-201-0
02
1
1512-
154
SEAL; DOOR
30X30
1-74998-128-1
02
1
1512-
