6-20 — SIDE PANEL AND STEP (#176361) — 113 parça

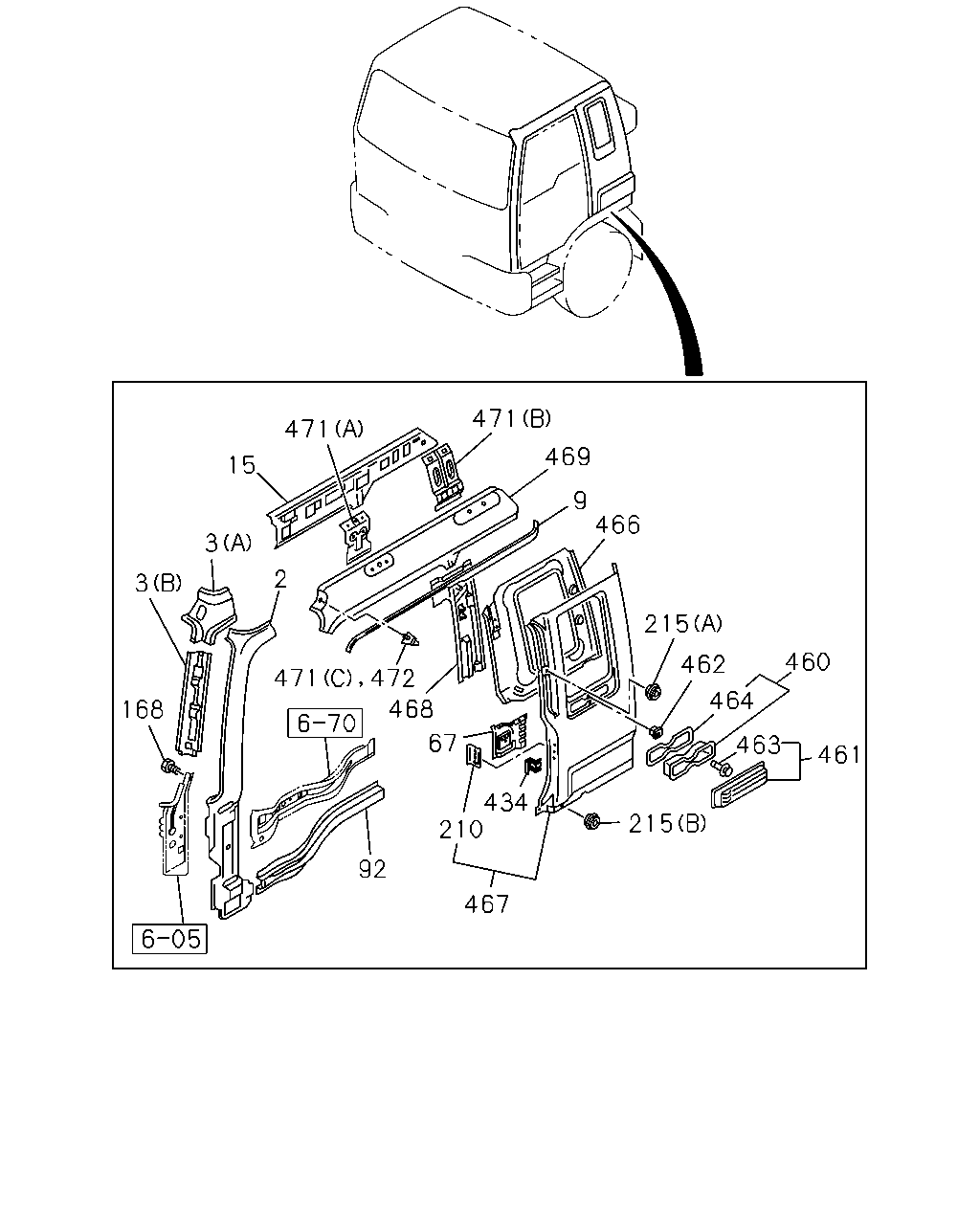

467 210 92 434 215 463 464 461 460 215 466 9 469 471 471 15 3 3 168 471 2 472 468 67 462

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
2	PILLAR; FRT RUSSIA EQUIPMENT(B12),VIETNAM EQUIPMENT(JCD), PHILIPPINE EQUIPMENT(WE3)	1-61281-410-2	01	1	1512-
2	PILLAR; FRT RUSSIA EQUIPMENT(B12),VIETNAM EQUIPMENT(JCD), PHILIPPINE EQUIPMENT(WE3)	1-61281-155-4	01	1	1512-
3	PANEL; CLOSING,FRT PILLAR RUSSIA EQUIPMENT(B12),VIETNAM EQUIPMENT(JCD), PHILIPPINE EQUIPMENT(WE3) (A)	1-61281-170-5	01	1	1512-
3	PANEL; CLOSING,FRT PILLAR RUSSIA EQUIPMENT(B12),VIETNAM EQUIPMENT(JCD), PHILIPPINE EQUIPMENT(WE3) (B)	1-61281-344-5	01	1	1512-
3	PANEL; CLOSING,FRT PILLAR RUSSIA EQUIPMENT(B12),VIETNAM EQUIPMENT(JCD), PHILIPPINE EQUIPMENT(WE3) (A)	1-61281-169-5	01	1	1512-
3	PANEL; CLOSING,FRT PILLAR RUSSIA EQUIPMENT(B12),VIETNAM EQUIPMENT(JCD), PHILIPPINE EQUIPMENT(WE3) (B)	1-61281-343-5	01	1	1512-
9	MOLDING; DRIP,CAB SIDE RUSSIA EQUIPMENT(B12),VIETNAM EQUIPMENT(JCD), PHILIPPINE EQUIPMENT(WE3)	1-61281-281-5	01	1	1512-
9	MOLDING; DRIP,CAB SIDE RUSSIA EQUIPMENT(B12),VIETNAM EQUIPMENT(JCD), PHILIPPINE EQUIPMENT(WE3)	1-61281-280-5	01	1	1512-
15	PANEL; CANT RAIL SIDE RUSSIA EQUIPMENT(B12),VIETNAM EQUIPMENT(JCD), PHILIPPINE EQUIPMENT(WE3)	1-61281-178-8	01	1	1512-
15	PANEL; CANT RAIL SIDE RUSSIA EQUIPMENT(B12),VIETNAM EQUIPMENT(JCD), PHILIPPINE EQUIPMENT(WE3)	1-61281-177-8	01	1	1512-
67	PANEL; INNER,RR PILLAR LWR RUSSIA EQUIPMENT(B12),VIETNAM EQUIPMENT(JCD), PHILIPPINE EQUIPMENT(WE3)	1-61281-195-5	01	1	1512-
67	PANEL; INNER,RR PILLAR LWR RUSSIA EQUIPMENT(B12),VIETNAM EQUIPMENT(JCD), PHILIPPINE EQUIPMENT(WE3)	1-61281-194-5	01	1	1512-
92	PANEL; SIDE SILL,CAB RUSSIA EQUIPMENT(B12),VIETNAM EQUIPMENT(JCD), PHILIPPINE EQUIPMENT(WE3)	1-61281-212-8	01	1	1512-
92	PANEL; SIDE SILL,CAB RUSSIA EQUIPMENT(B12),VIETNAM EQUIPMENT(JCD), PHILIPPINE EQUIPMENT(WE3)	1-61281-211-9	01	1	1512-
168	BOLT; BODY SIDE PANEL M6X10 FLANGE	0-28050-610-0	04	1	1512-
210	PANEL; DOOR STRIKER REINF RUSSIA EQUIPMENT(B12),VIETNAM EQUIPMENT(JCD), PHILIPPINE EQUIPMENT(WE3)	8-97851-446-1	01	1	1512-
215	GROMMET; RR PILLAR (A) OD=23.5	1-09983-101-0	02	1	1512-
215	GROMMET; RR PILLAR (B) OD=28.5	8-94279-711-0	02	1	1512-
434	PATCH; ASSIST GRIP RUSSIA EQUIPMENT(B12),VIETNAM EQUIPMENT(JCD), PHILIPPINE EQUIPMENT(WE3)	1-61270-763-1	01	1	1512-
434	PATCH; ASSIST GRIP RUSSIA EQUIPMENT(B12),VIETNAM EQUIPMENT(JCD), PHILIPPINE EQUIPMENT(WE3)	1-61270-763-1	01	1	1512-
460	VENTILATOR; BODY SIDE	1-76378-292-4	02	1	1512-
461	ORNAMENT; VENTILATOR	1-76378-303-6	01	1	1512-
461	ORNAMENT; VENTILATOR	1-76378-302-6	01	1	1512-
462	GROMMET; VENTILATOR OD=7.9X7.9 ID=4.2X4.2	1-09983-151-1	08	1	1512-
463	PIN; ORNAMENT D4.2X13	1-09983-161-0	08	1	1512-
464	SEAL; VENTILATOR	1-76378-299-0	02	1	1512-
466	PANEL; INNER,BACK CORNER RUSSIA EQUIPMENT(B12),VIETNAM EQUIPMENT(JCD), PHILIPPINE EQUIPMENT(WE3)	1-61281-416-1	01	1	1512-
466	PANEL; INNER,BACK CORNER RUSSIA EQUIPMENT(B12),VIETNAM EQUIPMENT(JCD), PHILIPPINE EQUIPMENT(WE3)	1-61281-415-1	01	1	1512-
467	PANEL; OUTER,BACK CORNER RUSSIA EQUIPMENT(B12)	1-61281-477-3	01	1	1512-
467	PANEL; OUTER,BACK CORNER RUSSIA EQUIPMENT(B12),VIETNAM EQUIPMENT(JCD), PHILIPPINE EQUIPMENT(WE3)	1-61281-204-4	01	1	1512-
467	PANEL; OUTER,BACK CORNER VIETNAM EQUIPMENT(JCD),PHILIPPINE EQUIPMENT(WE3)	1-61281-203-4	01	1	1512-
468	REINFORCEMENT; SEAT BELT ANCHOR RUSSIA EQUIPMENT(B12),VIETNAM EQUIPMENT(JCD), PHILIPPINE EQUIPMENT(WE3)	1-61281-418-2	01	1	1512-
468	REINFORCEMENT; SEAT BELT ANCHOR RUSSIA EQUIPMENT(B12),VIETNAM EQUIPMENT(JCD), PHILIPPINE EQUIPMENT(WE3)	1-61281-417-2	01	1	1512-
469	ROOF; SIDE RUSSIA EQUIPMENT(B12),VIETNAM EQUIPMENT(JCD), PHILIPPINE EQUIPMENT(WE3)	1-61281-199-8	01	1	1512-
469	ROOF; SIDE RUSSIA EQUIPMENT(B12),VIETNAM EQUIPMENT(JCD), PHILIPPINE EQUIPMENT(WE3)	1-61281-198-8	01	1	1512-
471	PATCH; AIR DEFLECTOR RUSSIA EQUIPMENT(B12),VIETNAM EQUIPMENT(JCD), PHILIPPINE EQUIPMENT(WE3) (B)	1-61281-202-3	01	1	1512-
471	PATCH; AIR DEFLECTOR RUSSIA EQUIPMENT(B12),VIETNAM EQUIPMENT(JCD), PHILIPPINE EQUIPMENT(WE3) (B)	1-61281-202-3	01	1	1512-
471	PATCH; AIR DEFLECTOR RUSSIA EQUIPMENT(B12),VIETNAM EQUIPMENT(JCD), PHILIPPINE EQUIPMENT(WE3) (A)	1-61281-201-3	01	1	1512-
471	PATCH; AIR DEFLECTOR RUSSIA EQUIPMENT(B12),VIETNAM EQUIPMENT(JCD), PHILIPPINE EQUIPMENT(WE3) (C)	8-98132-463-0	01	1	1512-
471	PATCH; AIR DEFLECTOR RUSSIA EQUIPMENT(B12),VIETNAM EQUIPMENT(JCD), PHILIPPINE EQUIPMENT(WE3) (A)	1-61281-200-3	01	1	1512-
472	PATCH; STAY,ROOF RUSSIA EQUIPMENT(B12),VIETNAM EQUIPMENT(JCD), PHILIPPINE EQUIPMENT(WE3)	1-61270-943-1	01	1	1512-

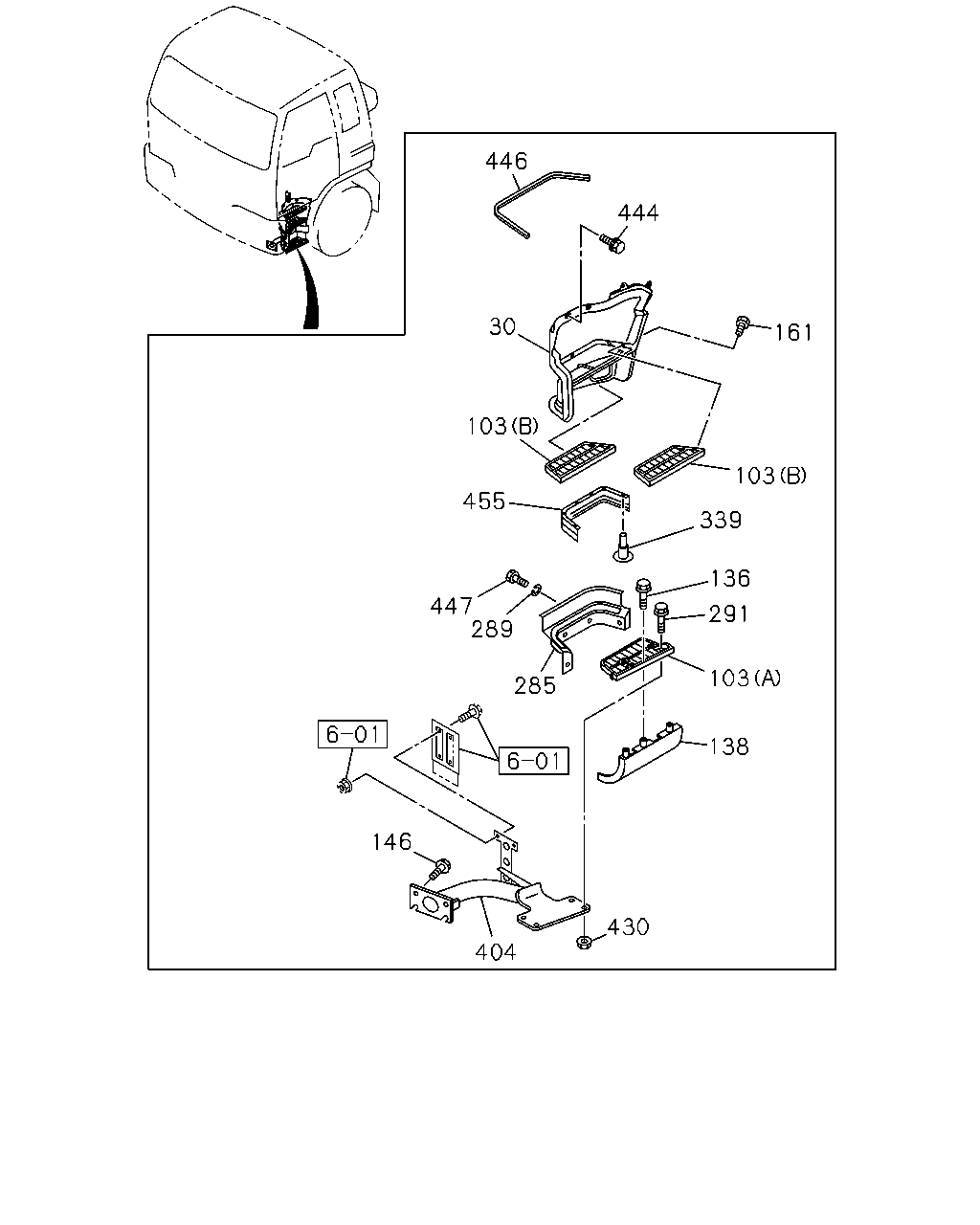

446 30 444 161 103 339 136 291 103 138 285 289 447 455 103 146 430 404

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
30	CLOSING; SIDE STEP	8-98157-935-0	01	1	1512-
30	CLOSING; SIDE STEP	8-98157-934-0	01	1	1512-
103	PLATE; STEP (A)	1-53414-181-0	01	1	1512-
103	PLATE; STEP (B)	1-71907-249-1	02	1	1512-
103	PLATE; STEP (A)	1-53414-180-0	01	1	1512-
103	PLATE; STEP (B)	1-71907-174-1	02	1	1512-
136	BOLT; OVER FENDER FRONT SPOILER<VP1> M5X22	8-97029-303-1	06	1	1512-
138	FENDER; OVER BODY COLOR ARC WHITE(729) FRONT SPOILER<VP1> EXC. FRONT UNDER RUN PROTECTOR<EBE>	1-79931-264-0	01	1	1512-
138	FENDER; OVER BODY COLOR ARC WHITE(729) FRONT SPOILER<VP1> EXC. FRONT UNDER RUN PROTECTOR<EBE>	1-79931-263-0	01	1	1512-
138	FENDER; OVER BODY COLOR ARC WHITE(729) FRONT UNDER RUN PROTECTOR<EBE> FRONT SPOILER<VP1>	8-98268-816-0	01	1	1512-
138	FENDER; OVER BODY COLOR ARC WHITE(729) FRONT UNDER RUN PROTECTOR<EBE> FRONT SPOILER<VP1>	8-98268-815-0	01	1	1512-
138	FENDER; OVER BODY COLOR GOLDEN YELLOW(904) FRONT SPOILER<VP1> EXC. FRONT UNDER RUN PROTECTOR<EBE>	1-79931-264-0	01	1	1512-
138	FENDER; OVER BODY COLOR GOLDEN YELLOW(904) FRONT SPOILER<VP1> EXC. FRONT UNDER RUN PROTECTOR<EBE>	1-79931-263-0	01	1	1512-
138	FENDER; OVER BODY COLOR MARINE BLUE(890) FRONT SPOILER<VP1> EXC. FRONT UNDER RUN PROTECTOR<EBE>	1-79931-264-0	01	1	1512-
138	FENDER; OVER BODY COLOR MARINE BLUE(890) FRONT SPOILER<VP1> EXC. FRONT UNDER RUN PROTECTOR<EBE>	1-79931-263-0	01	1	1512-
146	BOLT; STEP BRKT M12X40 FLANGE	0-28051-240-0	08	1	1512-
161	BOLT; FIX M8X29.5 W/LK+PL WASHER	8-94279-218-0	16	1	1512-
285	PLATE; STEP,1ST STEP	8-98227-947-1	01	1	1512-
285	PLATE; STEP,1ST STEP	8-98227-948-1	01	1	1512-
289	WASHER; PL,STEP ID=6.4 OD=18	0-91610-706-0	08	1	1512-
291	BOLT; STEP PLATE M8X50 FLANGE	0-28050-850-0	08	1	1512-
339	FASTENER; SIDE ID=6X6 OD=8	1-09987-194-0	10	1	1512-
404	BRACKET RUSSIA EQUIPMENT(B12),VIETNAM EQUIPMENT(JCD), PHILIPPINE EQUIPMENT(WE3) FRONT SPOILER<VP1> EXC. FRONT UNDER RUN PROTECTOR<EBE>	8-98241-383-0	01	1	1512-
404	BRACKET RUSSIA EQUIPMENT(B12),VIETNAM EQUIPMENT(JCD), PHILIPPINE EQUIPMENT(WE3) FRONT SPOILER<VP1> EXC. FRONT UNDER RUN PROTECTOR<EBE>	8-98241-384-0	01	1	1512-
404	BRACKET RUSSIA EQUIPMENT(B12),VIETNAM EQUIPMENT(JCD), PHILIPPINE EQUIPMENT(WE3) FRONT UNDER SPOILER DELETE<SGA> EXC. FRONT UNDER RUN PROTECTOR<EBE>	8-98227-951-0	01	1	1512-
404	BRACKET RUSSIA EQUIPMENT(B12),VIETNAM EQUIPMENT(JCD), PHILIPPINE EQUIPMENT(WE3) FRONT UNDER SPOILER DELETE<SGA> EXC. FRONT UNDER RUN PROTECTOR<EBE>	8-98227-952-0	01	1	1512-
404	BRACKET TIRE 295/80R22.5-152/148K RIB LUG CHINA(5D9),TIRE 295/80R22.5-152/148J RIB CHINA(5E0),TIRE 315/80R22.5-156/150K RIB LUG GULF(5N0) FRONT UNDER RUN PROTECTOR<EBE> VIETNAM EQUIPMENT(JCD),PHILIPPINE EQUIPMENT(WE3)	8-98268-771-0	01	1	1512-
404	BRACKET TIRE 295/80R22.5-152/148K RIB LUG CHINA(5D9),TIRE 295/80R22.5-152/148J RIB CHINA(5E0),TIRE 315/80R22.5-156/150K RIB LUG GULF(5N0) FRONT UNDER RUN PROTECTOR<EBE> VIETNAM EQUIPMENT(JCD),PHILIPPINE EQUIPMENT(WE3)	8-98268-772-0	01	1	1512-
404	BRACKET TIRE 295/80R22.5-152/148K RIB LUG CHINA(5D9),TIRE 315/80R22.5-156/150L BLOCK DIRECT RUSSIA(5N9) RUSSIA EQUIPMENT(B12) FRONT UNDER RUN PROTECTOR<EBE> FRT TAPER LEAF SUSPENSION<SAR>	8-98333-032-0	01	1	1512-
404	BRACKET TIRE 295/80R22.5-152/148K RIB LUG CHINA(5D9),TIRE 315/80R22.5-156/150L BLOCK DIRECT RUSSIA(5N9) RUSSIA EQUIPMENT(B12) FRONT UNDER RUN PROTECTOR<EBE> FRT TAPER LEAF SUSPENSION<SAR>	8-98333-033-0	01	1	1512-
430	NUT; PANEL M8 FLANGE	0-91180-108-0	08	1	1512-
444	BOLT; CLOSING M8X24.5 W/LK&PL WASHER	8-98059-720-0	06	1	1512-
446	FINISHER; STEP ID=18 L=80	1-71996-051-0	02	1	1512-
447	BOLT; PANEL M6X12 FLANGE	0-28050-612-0	08	1	1512-
455	PROTECTOR; STEP	8-98125-807-2	01	1	1512-
455	PROTECTOR; STEP	8-98125-808-2	01	1	1512-

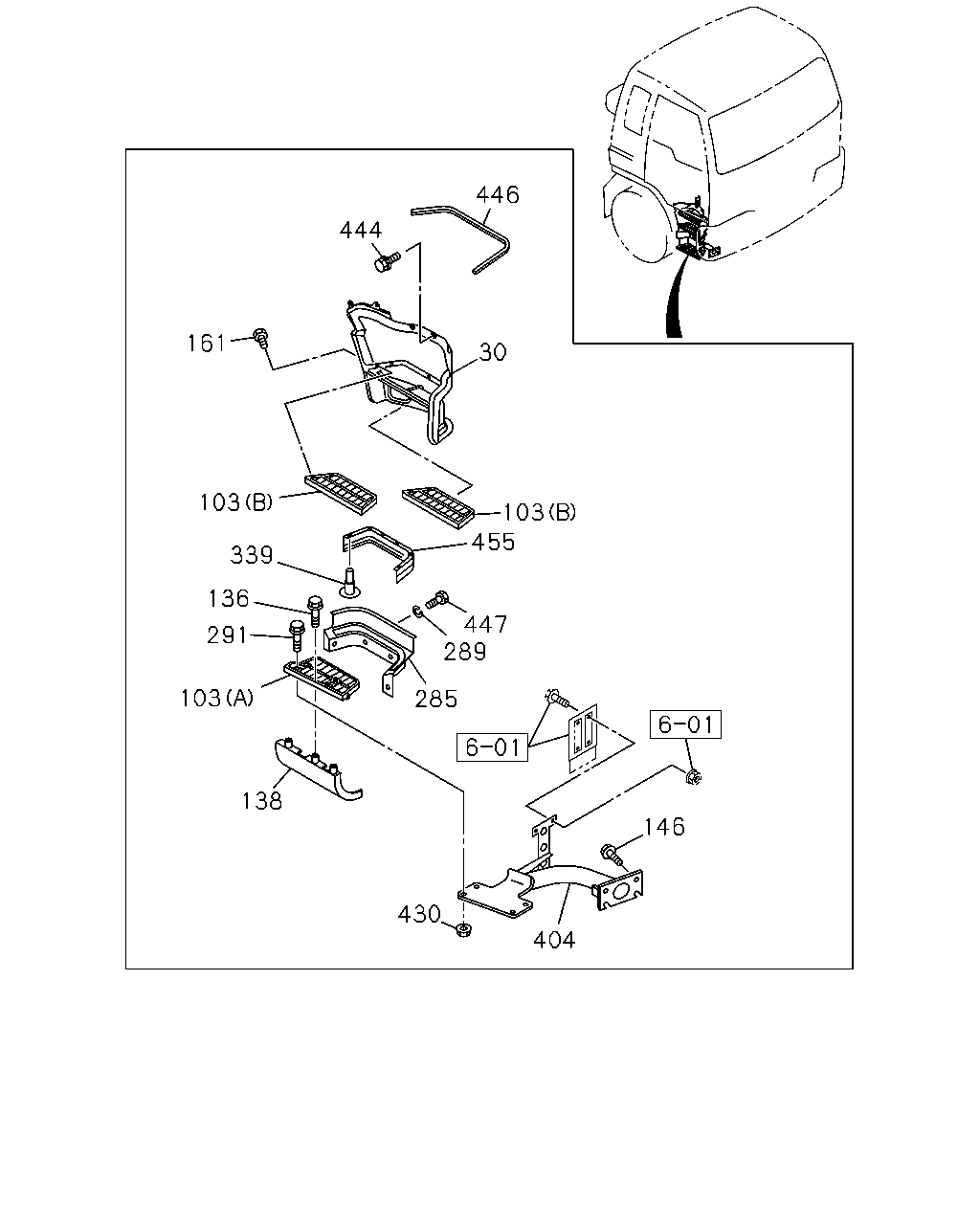

444 446 30 103 455 447 289 285 103 161 339 136 291 103 138 430 404 146

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
30	CLOSING; SIDE STEP	8-98157-935-0	01	1	1512-
30	CLOSING; SIDE STEP	8-98157-934-0	01	1	1512-
103	PLATE; STEP (A)	1-53414-181-0	01	1	1512-
103	PLATE; STEP (B)	1-71907-249-1	02	1	1512-
103	PLATE; STEP (A)	1-53414-180-0	01	1	1512-
103	PLATE; STEP (B)	1-71907-174-1	02	1	1512-
136	BOLT; OVER FENDER FRONT SPOILER<VP1> M5X22	8-97029-303-1	06	1	1512-
138	FENDER; OVER BODY COLOR ARC WHITE(729) FRONT SPOILER<VP1> EXC. FRONT UNDER RUN PROTECTOR<EBE>	1-79931-264-0	01	1	1512-
138	FENDER; OVER BODY COLOR ARC WHITE(729) FRONT SPOILER<VP1> EXC. FRONT UNDER RUN PROTECTOR<EBE>	1-79931-263-0	01	1	1512-
138	FENDER; OVER BODY COLOR ARC WHITE(729) FRONT UNDER RUN PROTECTOR<EBE> FRONT SPOILER<VP1>	8-98268-816-0	01	1	1512-
138	FENDER; OVER BODY COLOR ARC WHITE(729) FRONT UNDER RUN PROTECTOR<EBE> FRONT SPOILER<VP1>	8-98268-815-0	01	1	1512-
138	FENDER; OVER BODY COLOR GOLDEN YELLOW(904) FRONT SPOILER<VP1> EXC. FRONT UNDER RUN PROTECTOR<EBE>	1-79931-264-0	01	1	1512-
138	FENDER; OVER BODY COLOR GOLDEN YELLOW(904) FRONT SPOILER<VP1> EXC. FRONT UNDER RUN PROTECTOR<EBE>	1-79931-263-0	01	1	1512-
138	FENDER; OVER BODY COLOR MARINE BLUE(890) FRONT SPOILER<VP1> EXC. FRONT UNDER RUN PROTECTOR<EBE>	1-79931-264-0	01	1	1512-
138	FENDER; OVER BODY COLOR MARINE BLUE(890) FRONT SPOILER<VP1> EXC. FRONT UNDER RUN PROTECTOR<EBE>	1-79931-263-0	01	1	1512-
146	BOLT; STEP BRKT M12X40 FLANGE	0-28051-240-0	08	1	1512-
161	BOLT; FIX M8X29.5 W/LK+PL WASHER	8-94279-218-0	16	1	1512-
285	PLATE; STEP,1ST STEP	8-98227-947-1	01	1	1512-
285	PLATE; STEP,1ST STEP	8-98227-948-1	01	1	1512-
289	WASHER; PL,STEP ID=6.4 OD=18	0-91610-706-0	08	1	1512-
291	BOLT; STEP PLATE M8X50 FLANGE	0-28050-850-0	08	1	1512-
339	FASTENER; SIDE ID=6X6 OD=8	1-09987-194-0	10	1	1512-
404	BRACKET RUSSIA EQUIPMENT(B12),VIETNAM EQUIPMENT(JCD), PHILIPPINE EQUIPMENT(WE3) FRONT SPOILER<VP1> EXC. FRONT UNDER RUN PROTECTOR<EBE>	8-98241-383-0	01	1	1512-
404	BRACKET RUSSIA EQUIPMENT(B12),VIETNAM EQUIPMENT(JCD), PHILIPPINE EQUIPMENT(WE3) FRONT SPOILER<VP1> EXC. FRONT UNDER RUN PROTECTOR<EBE>	8-98241-384-0	01	1	1512-
404	BRACKET RUSSIA EQUIPMENT(B12),VIETNAM EQUIPMENT(JCD), PHILIPPINE EQUIPMENT(WE3) FRONT UNDER SPOILER DELETE<SGA> EXC. FRONT UNDER RUN PROTECTOR<EBE>	8-98227-951-0	01	1	1512-
404	BRACKET RUSSIA EQUIPMENT(B12),VIETNAM EQUIPMENT(JCD), PHILIPPINE EQUIPMENT(WE3) FRONT UNDER SPOILER DELETE<SGA> EXC. FRONT UNDER RUN PROTECTOR<EBE>	8-98227-952-0	01	1	1512-
404	BRACKET TIRE 295/80R22.5-152/148K RIB LUG CHINA(5D9),TIRE 295/80R22.5-152/148J RIB CHINA(5E0),TIRE 315/80R22.5-156/150K RIB LUG GULF(5N0) FRONT UNDER RUN PROTECTOR<EBE> VIETNAM EQUIPMENT(JCD),PHILIPPINE EQUIPMENT(WE3)	8-98268-771-0	01	1	1512-
404	BRACKET TIRE 295/80R22.5-152/148K RIB LUG CHINA(5D9),TIRE 295/80R22.5-152/148J RIB CHINA(5E0),TIRE 315/80R22.5-156/150K RIB LUG GULF(5N0) FRONT UNDER RUN PROTECTOR<EBE> VIETNAM EQUIPMENT(JCD),PHILIPPINE EQUIPMENT(WE3)	8-98268-772-0	01	1	1512-
404	BRACKET TIRE 295/80R22.5-152/148K RIB LUG CHINA(5D9),TIRE 315/80R22.5-156/150L BLOCK DIRECT RUSSIA(5N9) RUSSIA EQUIPMENT(B12) FRONT UNDER RUN PROTECTOR<EBE> FRT TAPER LEAF SUSPENSION<SAR>	8-98333-032-0	01	1	1512-
404	BRACKET TIRE 295/80R22.5-152/148K RIB LUG CHINA(5D9),TIRE 315/80R22.5-156/150L BLOCK DIRECT RUSSIA(5N9) RUSSIA EQUIPMENT(B12) FRONT UNDER RUN PROTECTOR<EBE> FRT TAPER LEAF SUSPENSION<SAR>	8-98333-033-0	01	1	1512-
430	NUT; PANEL M8 FLANGE	0-91180-108-0	08	1	1512-
444	BOLT; CLOSING M8X24.5 W/LK&PL WASHER	8-98059-720-0	06	1	1512-
446	FINISHER; STEP ID=18 L=80	1-71996-051-0	02	1	1512-
447	BOLT; PANEL M6X12 FLANGE	0-28050-612-0	08	1	1512-
455	PROTECTOR; STEP	8-98125-807-2	01	1	1512-
455	PROTECTOR; STEP	8-98125-808-2	01	1	1512-
