Sayfa 6-01 - Isuzu EPC

6-01 — FRONT BUMPER (#176357) — 278 parça

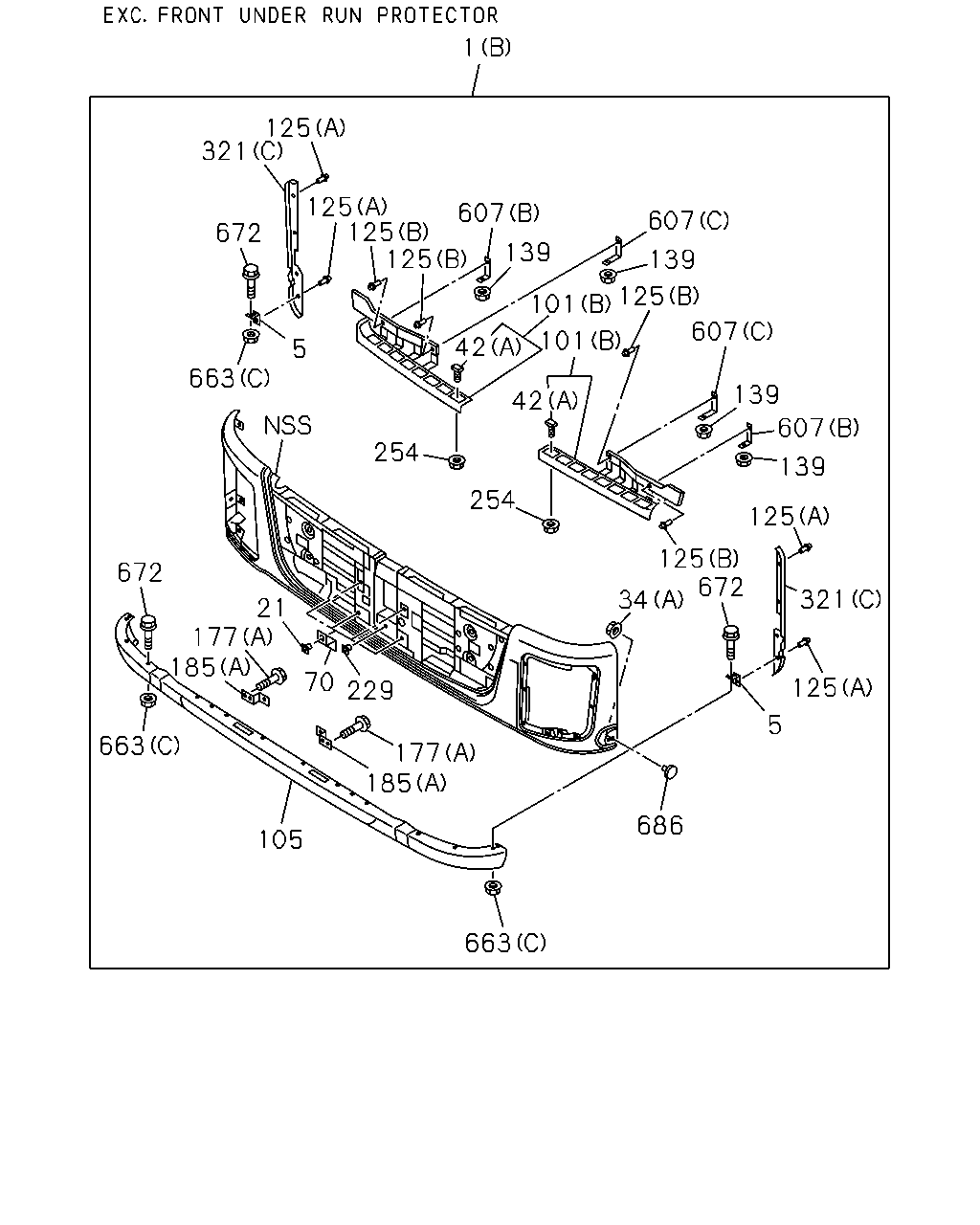

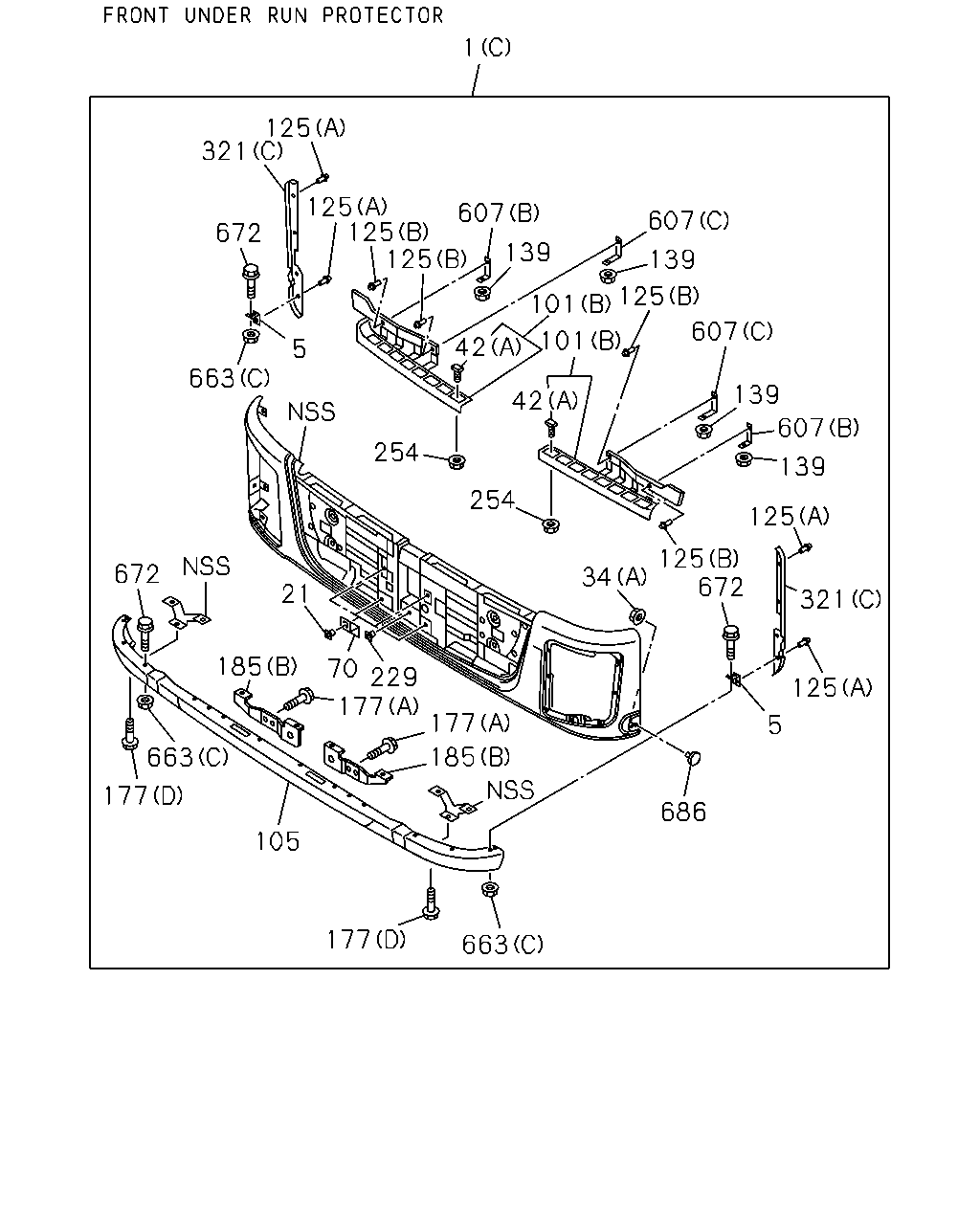

125 321 125 125 672 663 5 607 42 254 254 42 101 139 101 125 139 607 607 139 139 321 125 607 125 5 125 672 34 686 663 185 229 177 105 70 21 177 185 663 672 125

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
5	BRACKET; AIR DAM FRONT SPOILER<VP1>	8-98154-762-0	02	1	1512-
21	GROMMET; SCREW,BUMPER PROTECTOR D=9.7X9.7 L=8	8-94222-314-0	04	1	1512-
34	NUT; BRKT,BUMPER (A) M6 FLANGE	0-91180-106-0	02	1	1512-
34	NUT; BRKT,BUMPER (B) M10 FLANGE	0-91180-110-0	04	1	1512-
42	BOLT; BUMPER (A) M6X20	8-97611-666-0	06	1	1512-
42	BOLT; BUMPER FRONT SPOILER<VP1> EXC. FRONT UNDER RUN PROTECTOR<EBE> (C) M10X30 FLANGE	8-98055-942-0	14	1	1512-
42	BOLT; BUMPER FRONT UNDER RUN PROTECTOR<EBE> (C) M10X30 FLANGE	8-98055-942-0	12	1	1512-
42	BOLT; BUMPER EXC. FRONT UNDER RUN PROTECTOR<EBE> (B) M10X30 FLANGE	0-28051-030-0	04	1	1512-
42	BOLT; BUMPER FRONT SPOILER<VP1> EXC. FRONT UNDER RUN PROTECTOR<EBE> (B) M10X30 FLANGE	0-28051-030-0	04	1	1512-
42	BOLT; BUMPER FRONT UNDER SPOILER DELETE<SGA> EXC. FRONT UNDER RUN PROTECTOR<EBE> (C) M10X30 FLANGE	8-98055-942-0	10	1	1512-
70	BRACKET; LICENSE PLATE,FRT	8-98128-625-0	04	1	1512-
101	STEP; BUMPER (A)	8-98123-450-2	01	1	1512-
101	STEP; BUMPER (B)	8-98123-452-1	01	1	1512-
101	STEP; BUMPER (B)	8-98123-453-1	01	1	1512-
105	AIR DAM BODY COLOR ARC WHITE(729) FRONT SPOILER<VP1> WHITE	8-97417-859-4	01	1	1512-
105	AIR DAM BODY COLOR GOLDEN YELLOW(904) FRONT SPOILER<VP1> YELLOW	8-97425-003-4	01	1	1512-
105	AIR DAM BODY COLOR MARINE BLUE(890) FRONT SPOILER<VP1> BLUE	8-97425-002-4	01	1	1512-
125	CLIP; STEP (B)	8-98157-167-0	04	1	1512-
125	CLIP; STEP FRONT SPOILER<VP1> (A)	8-98157-186-0	08	1	1512-
125	CLIP; STEP EXC. FRONT SPOILER<VP1> (A)	8-98157-186-0	06	1	1512-
139	NUT; BRKT FIX M8 FLANGE	0-91180-208-0	04	1	1512-
177	BOLT FRONT SPOILER<VP1> (A) M8X20 FLANGE	0-28050-820-0	04	1	1512-
177	BOLT FRONT UNDER RUN PROTECTOR<EBE> (C) M8X20 FLANGE	0-28650-820-0	04	1	1512-
177	BOLT FRONT UNDER RUN PROTECTOR<EBE> FRONT SPOILER<VP1> (D) M10X20 FLANGE	0-28051-020-0	02	1	1512-
177	BOLT RUSSIA EQUIPMENT(B12),VIETNAM EQUIPMENT(JCD), PHILIPPINE EQUIPMENT(WE3) (B) M8X25 W/LK&PL WASHER	1-09030-093-0	06	1	1512-
185	BRACKET; BUMPER,INNER FRONT SPOILER<VP1> EXC. FRONT UNDER RUN PROTECTOR<EBE> (A)	8-98139-739-0	02	1	1512-
185	BRACKET; BUMPER,INNER FRONT UNDER RUN PROTECTOR<EBE> FRONT SPOILER<VP1> (B)	8-98302-730-0	01	1	1512-
185	BRACKET; BUMPER,INNER FRONT UNDER RUN PROTECTOR<EBE> FRONT SPOILER<VP1> (B)	8-98302-731-0	01	1	1512-
229	GROMMET D=7X7 L=7.5	8-94291-927-0	01	1	1512-
254	NUT; STEP M6 FLANGE	0-91180-106-0	06	1	1512-
321	COVER; BUMPER FRT SIDE (A)	8-98123-446-1	01	1	1512-
321	COVER; BUMPER FRT SIDE (A)	8-98123-447-1	01	1	1512-
321	COVER; BUMPER FRT SIDE (B)	8-98132-737-1	01	1	1512-
321	COVER; BUMPER FRT SIDE FRONT SPOILER<VP1> (C)	8-98123-455-1	01	1	1512-
321	COVER; BUMPER FRT SIDE FRONT SPOILER<VP1> (C)	8-98123-456-1	01	1	1512-
321	COVER; BUMPER FRT SIDE EXC. FRONT SPOILER<VP1> (C)	8-98123-457-1	01	1	1512-
321	COVER; BUMPER FRT SIDE EXC. FRONT SPOILER<VP1> (C)	8-98123-458-1	01	1	1512-
607	BRACKET (C)	8-98147-053-0	02	1	1512-
607	BRACKET (B)	8-98147-054-0	02	1	1512-
607	BRACKET EXC. FRONT UNDER RUN PROTECTOR<EBE> (A)	8-98211-759-0	01	1	1512-
607	BRACKET EXC. FRONT UNDER RUN PROTECTOR<EBE> (A)	8-98211-758-0	01	1	1512-
607	BRACKET TIRE 295/80R22.5-152/148K RIB LUG CHINA(5D9),TIRE 295/80R22.5-152/148J RIB CHINA(5E0),TIRE 315/80R22.5-156/150K RIB LUG GULF(5N0) FRONT UNDER RUN PROTECTOR<EBE> MULTI LEAF SUSPENSION FRT<SAQ>,FRT TAPER LEAF SUSPENSION<SAR> (G)	8-98223-543-0	01	1	1512-
607	BRACKET TIRE 315/80R22.5-156/150L BLOCK DIRECT RUSSIA(5N9) FRONT UNDER RUN PROTECTOR<EBE> FRT TAPER LEAF SUSPENSION<SAR> (G)	8-98223-543-0	01	1	1512-
607	BRACKET TIRE 295/80R22.5-152/148K RIB LUG CHINA(5D9),TIRE 295/80R22.5-152/148J RIB CHINA(5E0),TIRE 315/80R22.5-156/150K RIB LUG GULF(5N0) FRONT UNDER RUN PROTECTOR<EBE> MULTI LEAF SUSPENSION FRT<SAQ>,FRT TAPER LEAF SUSPENSION<SAR> (D)	8-98288-159-2	01	1	1512-
607	BRACKET TIRE 295/80R22.5-152/148K RIB LUG CHINA(5D9),TIRE 295/80R22.5-152/148J RIB CHINA(5E0),TIRE 315/80R22.5-156/150K RIB LUG GULF(5N0) FRONT UNDER RUN PROTECTOR<EBE> MULTI LEAF SUSPENSION FRT<SAQ>,FRT TAPER LEAF SUSPENSION<SAR> (E)	8-98290-478-1	01	1	1512-
607	BRACKET TIRE 315/80R22.5-156/150L BLOCK DIRECT RUSSIA(5N9) FRONT UNDER RUN PROTECTOR<EBE> FRT TAPER LEAF SUSPENSION<SAR> (E)	8-98290-478-1	01	1	1512-
607	BRACKET TIRE 295/80R22.5-152/148K RIB LUG CHINA(5D9),TIRE 295/80R22.5-152/148J RIB CHINA(5E0),TIRE 315/80R22.5-156/150K RIB LUG GULF(5N0) FRONT UNDER RUN PROTECTOR<EBE> MULTI LEAF SUSPENSION FRT<SAQ>,FRT TAPER LEAF SUSPENSION<SAR> (F)	8-98304-442-0	01	1	1512-
607	BRACKET TIRE 315/80R22.5-156/150L BLOCK DIRECT RUSSIA(5N9) FRONT UNDER RUN PROTECTOR<EBE> FRT TAPER LEAF SUSPENSION<SAR> (F)	8-98304-442-0	01	1	1512-
607	BRACKET TIRE 295/80R22.5-152/148K RIB LUG CHINA(5D9),TIRE 295/80R22.5-152/148J RIB CHINA(5E0),TIRE 315/80R22.5-156/150K RIB LUG GULF(5N0) FRONT UNDER RUN PROTECTOR<EBE> MULTI LEAF SUSPENSION FRT<SAQ>,FRT TAPER LEAF SUSPENSION<SAR> (G)	8-98223-542-0	01	1	1512-
607	BRACKET TIRE 315/80R22.5-156/150L BLOCK DIRECT RUSSIA(5N9) FRONT UNDER RUN PROTECTOR<EBE> FRT TAPER LEAF SUSPENSION<SAR> (G)	8-98223-542-0	01	1	1512-
607	BRACKET TIRE 295/80R22.5-152/148K RIB LUG CHINA(5D9),TIRE 295/80R22.5-152/148J RIB CHINA(5E0),TIRE 315/80R22.5-156/150K RIB LUG GULF(5N0) FRONT UNDER RUN PROTECTOR<EBE> MULTI LEAF SUSPENSION FRT<SAQ>,FRT TAPER LEAF SUSPENSION<SAR> (D)	8-98288-158-2	01	1	1512-
607	BRACKET TIRE 295/80R22.5-152/148K RIB LUG CHINA(5D9),TIRE 295/80R22.5-152/148J RIB CHINA(5E0),TIRE 315/80R22.5-156/150K RIB LUG GULF(5N0) FRONT UNDER RUN PROTECTOR<EBE> MULTI LEAF SUSPENSION FRT<SAQ>,FRT TAPER LEAF SUSPENSION<SAR> (E)	8-98290-477-1	01	1	1512-
607	BRACKET TIRE 315/80R22.5-156/150L BLOCK DIRECT RUSSIA(5N9) FRONT UNDER RUN PROTECTOR<EBE> FRT TAPER LEAF SUSPENSION<SAR> (E)	8-98290-477-1	01	1	1512-
607	BRACKET TIRE 295/80R22.5-152/148K RIB LUG CHINA(5D9),TIRE 295/80R22.5-152/148J RIB CHINA(5E0),TIRE 315/80R22.5-156/150K RIB LUG GULF(5N0) FRONT UNDER RUN PROTECTOR<EBE> MULTI LEAF SUSPENSION FRT<SAQ>,FRT TAPER LEAF SUSPENSION<SAR> (F)	8-98304-441-0	01	1	1512-
607	BRACKET TIRE 315/80R22.5-156/150L BLOCK DIRECT RUSSIA(5N9) FRONT UNDER RUN PROTECTOR<EBE> FRT TAPER LEAF SUSPENSION<SAR> (F)	8-98304-441-0	01	1	1512-
607	BRACKET TIRE 315/80R22.5-156/150L BLOCK DIRECT RUSSIA(5N9) FRONT UNDER RUN PROTECTOR<EBE> FRT TAPER LEAF SUSPENSION<SAR> (D)	8-98288-161-2	01	1	1512-
607	BRACKET TIRE 315/80R22.5-156/150L BLOCK DIRECT RUSSIA(5N9) FRONT UNDER RUN PROTECTOR<EBE> FRT TAPER LEAF SUSPENSION<SAR> (D)	8-98288-160-2	01	1	1512-
663	NUT (B) M12 FLANGE	0-91180-212-0	08	1	1512-
663	NUT FRONT SPOILER<VP1> (C) M6 FLANGE	0-91180-106-0	13	1	1512-
663	NUT RUSSIA EQUIPMENT(B12),VIETNAM EQUIPMENT(JCD), PHILIPPINE EQUIPMENT(WE3) (A) M8 FLANGE	0-91180-108-0	06	1	1512-
672	STUD; STEP FRONT SPOILER<VP1> M6X16 FLANGE	0-28050-616-0	13	1	1512-
686	REFLECTOR; REFLEX	8-98121-023-0	02	1	1512-

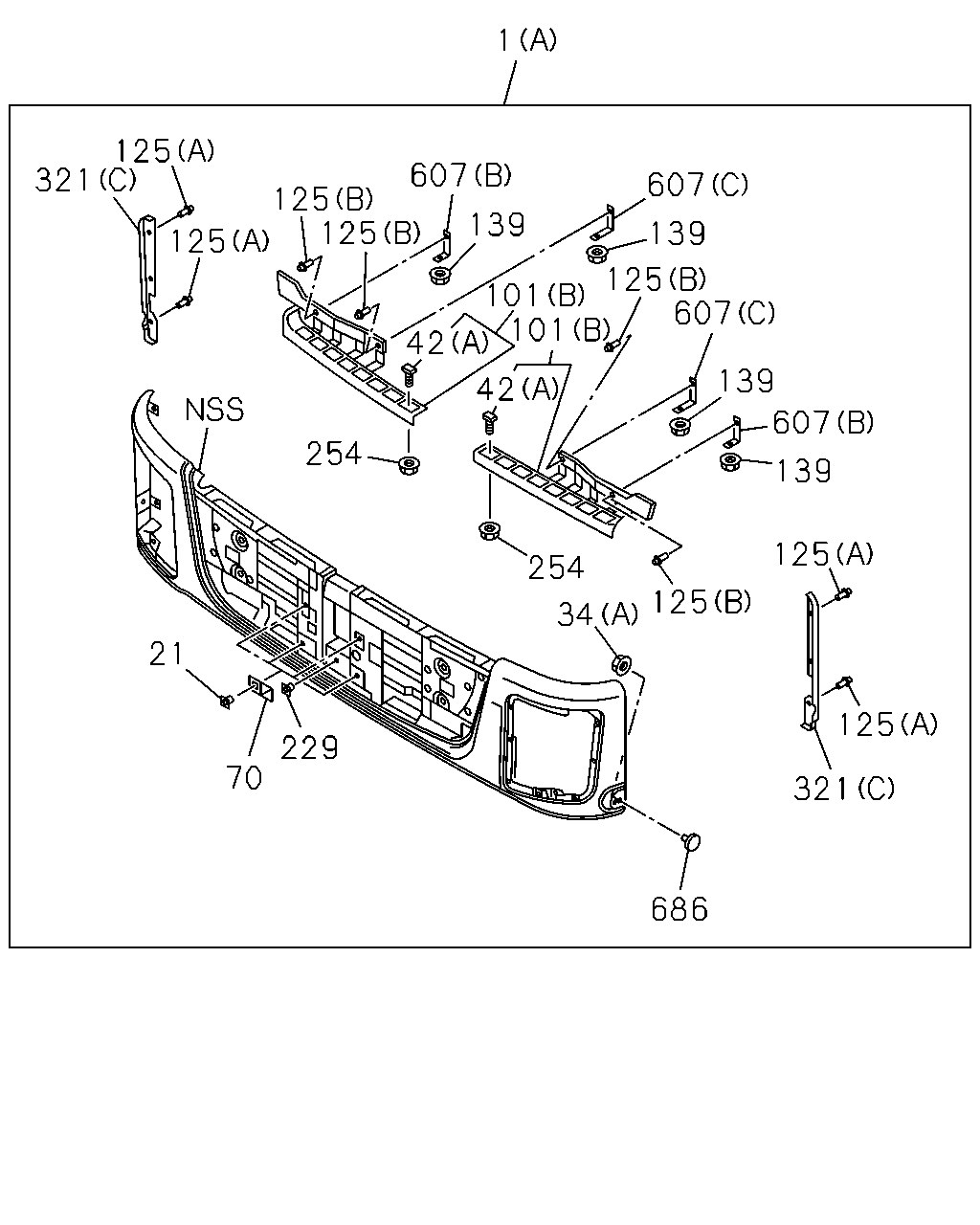

1 607 607 125 139 607 139 139 607 125 125 321 686 34 125 254 254 229 70 21 321 125 125 125 125 139 101 101 42 42

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	BUMPER ASM; FRT FRONT SPOILER<VP1> EXC. FRONT UNDER RUN PROTECTOR<EBE> (B) WHITE	8-97424-794-3	01	1	1512-
1	BUMPER ASM; FRT EXC. FRONT SPOILER<VP1> (A) WHITE	8-97417-846-3	01	1	1512-
1	BUMPER ASM; FRT FRONT UNDER RUN PROTECTOR<EBE> FRONT SPOILER<VP1> (C) WHITE	8-97466-340-0	01	1	1512-
21	GROMMET; SCREW,BUMPER PROTECTOR D=9.7X9.7 L=8	8-94222-314-0	04	1	1512-
34	NUT; BRKT,BUMPER (A) M6 FLANGE	0-91180-106-0	02	1	1512-
34	NUT; BRKT,BUMPER (B) M10 FLANGE	0-91180-110-0	04	1	1512-
42	BOLT; BUMPER (A) M6X20	8-97611-666-0	06	1	1512-
42	BOLT; BUMPER FRONT SPOILER<VP1> EXC. FRONT UNDER RUN PROTECTOR<EBE> (C) M10X30 FLANGE	8-98055-942-0	14	1	1512-
42	BOLT; BUMPER FRONT UNDER RUN PROTECTOR<EBE> (C) M10X30 FLANGE	8-98055-942-0	12	1	1512-
42	BOLT; BUMPER EXC. FRONT UNDER RUN PROTECTOR<EBE> (B) M10X30 FLANGE	0-28051-030-0	04	1	1512-
42	BOLT; BUMPER FRONT SPOILER<VP1> EXC. FRONT UNDER RUN PROTECTOR<EBE> (B) M10X30 FLANGE	0-28051-030-0	04	1	1512-
42	BOLT; BUMPER FRONT UNDER SPOILER DELETE<SGA> EXC. FRONT UNDER RUN PROTECTOR<EBE> (C) M10X30 FLANGE	8-98055-942-0	10	1	1512-
70	BRACKET; LICENSE PLATE,FRT	8-98128-625-0	04	1	1512-
101	STEP; BUMPER (A)	8-98123-450-2	01	1	1512-
101	STEP; BUMPER (B)	8-98123-452-1	01	1	1512-
101	STEP; BUMPER (B)	8-98123-453-1	01	1	1512-
125	CLIP; STEP (B)	8-98157-167-0	04	1	1512-
125	CLIP; STEP FRONT SPOILER<VP1> (A)	8-98157-186-0	08	1	1512-
125	CLIP; STEP EXC. FRONT SPOILER<VP1> (A)	8-98157-186-0	06	1	1512-
139	NUT; BRKT FIX M8 FLANGE	0-91180-208-0	04	1	1512-
229	GROMMET D=7X7 L=7.5	8-94291-927-0	01	1	1512-
254	NUT; STEP M6 FLANGE	0-91180-106-0	06	1	1512-
321	COVER; BUMPER FRT SIDE (A)	8-98123-446-1	01	1	1512-
321	COVER; BUMPER FRT SIDE (A)	8-98123-447-1	01	1	1512-
321	COVER; BUMPER FRT SIDE (B)	8-98132-737-1	01	1	1512-
321	COVER; BUMPER FRT SIDE FRONT SPOILER<VP1> (C)	8-98123-455-1	01	1	1512-
321	COVER; BUMPER FRT SIDE FRONT SPOILER<VP1> (C)	8-98123-456-1	01	1	1512-
321	COVER; BUMPER FRT SIDE EXC. FRONT SPOILER<VP1> (C)	8-98123-457-1	01	1	1512-
321	COVER; BUMPER FRT SIDE EXC. FRONT SPOILER<VP1> (C)	8-98123-458-1	01	1	1512-
607	BRACKET (C)	8-98147-053-0	02	1	1512-
607	BRACKET (B)	8-98147-054-0	02	1	1512-
607	BRACKET EXC. FRONT UNDER RUN PROTECTOR<EBE> (A)	8-98211-759-0	01	1	1512-
607	BRACKET EXC. FRONT UNDER RUN PROTECTOR<EBE> (A)	8-98211-758-0	01	1	1512-
607	BRACKET TIRE 295/80R22.5-152/148K RIB LUG CHINA(5D9),TIRE 295/80R22.5-152/148J RIB CHINA(5E0),TIRE 315/80R22.5-156/150K RIB LUG GULF(5N0) FRONT UNDER RUN PROTECTOR<EBE> MULTI LEAF SUSPENSION FRT<SAQ>,FRT TAPER LEAF SUSPENSION<SAR> (G)	8-98223-543-0	01	1	1512-
607	BRACKET TIRE 315/80R22.5-156/150L BLOCK DIRECT RUSSIA(5N9) FRONT UNDER RUN PROTECTOR<EBE> FRT TAPER LEAF SUSPENSION<SAR> (G)	8-98223-543-0	01	1	1512-
607	BRACKET TIRE 295/80R22.5-152/148K RIB LUG CHINA(5D9),TIRE 295/80R22.5-152/148J RIB CHINA(5E0),TIRE 315/80R22.5-156/150K RIB LUG GULF(5N0) FRONT UNDER RUN PROTECTOR<EBE> MULTI LEAF SUSPENSION FRT<SAQ>,FRT TAPER LEAF SUSPENSION<SAR> (D)	8-98288-159-2	01	1	1512-
607	BRACKET TIRE 295/80R22.5-152/148K RIB LUG CHINA(5D9),TIRE 295/80R22.5-152/148J RIB CHINA(5E0),TIRE 315/80R22.5-156/150K RIB LUG GULF(5N0) FRONT UNDER RUN PROTECTOR<EBE> MULTI LEAF SUSPENSION FRT<SAQ>,FRT TAPER LEAF SUSPENSION<SAR> (E)	8-98290-478-1	01	1	1512-
607	BRACKET TIRE 315/80R22.5-156/150L BLOCK DIRECT RUSSIA(5N9) FRONT UNDER RUN PROTECTOR<EBE> FRT TAPER LEAF SUSPENSION<SAR> (E)	8-98290-478-1	01	1	1512-
607	BRACKET TIRE 295/80R22.5-152/148K RIB LUG CHINA(5D9),TIRE 295/80R22.5-152/148J RIB CHINA(5E0),TIRE 315/80R22.5-156/150K RIB LUG GULF(5N0) FRONT UNDER RUN PROTECTOR<EBE> MULTI LEAF SUSPENSION FRT<SAQ>,FRT TAPER LEAF SUSPENSION<SAR> (F)	8-98304-442-0	01	1	1512-
607	BRACKET TIRE 315/80R22.5-156/150L BLOCK DIRECT RUSSIA(5N9) FRONT UNDER RUN PROTECTOR<EBE> FRT TAPER LEAF SUSPENSION<SAR> (F)	8-98304-442-0	01	1	1512-
607	BRACKET TIRE 295/80R22.5-152/148K RIB LUG CHINA(5D9),TIRE 295/80R22.5-152/148J RIB CHINA(5E0),TIRE 315/80R22.5-156/150K RIB LUG GULF(5N0) FRONT UNDER RUN PROTECTOR<EBE> MULTI LEAF SUSPENSION FRT<SAQ>,FRT TAPER LEAF SUSPENSION<SAR> (G)	8-98223-542-0	01	1	1512-
607	BRACKET TIRE 315/80R22.5-156/150L BLOCK DIRECT RUSSIA(5N9) FRONT UNDER RUN PROTECTOR<EBE> FRT TAPER LEAF SUSPENSION<SAR> (G)	8-98223-542-0	01	1	1512-
607	BRACKET TIRE 295/80R22.5-152/148K RIB LUG CHINA(5D9),TIRE 295/80R22.5-152/148J RIB CHINA(5E0),TIRE 315/80R22.5-156/150K RIB LUG GULF(5N0) FRONT UNDER RUN PROTECTOR<EBE> MULTI LEAF SUSPENSION FRT<SAQ>,FRT TAPER LEAF SUSPENSION<SAR> (D)	8-98288-158-2	01	1	1512-
607	BRACKET TIRE 295/80R22.5-152/148K RIB LUG CHINA(5D9),TIRE 295/80R22.5-152/148J RIB CHINA(5E0),TIRE 315/80R22.5-156/150K RIB LUG GULF(5N0) FRONT UNDER RUN PROTECTOR<EBE> MULTI LEAF SUSPENSION FRT<SAQ>,FRT TAPER LEAF SUSPENSION<SAR> (E)	8-98290-477-1	01	1	1512-
607	BRACKET TIRE 315/80R22.5-156/150L BLOCK DIRECT RUSSIA(5N9) FRONT UNDER RUN PROTECTOR<EBE> FRT TAPER LEAF SUSPENSION<SAR> (E)	8-98290-477-1	01	1	1512-
607	BRACKET TIRE 295/80R22.5-152/148K RIB LUG CHINA(5D9),TIRE 295/80R22.5-152/148J RIB CHINA(5E0),TIRE 315/80R22.5-156/150K RIB LUG GULF(5N0) FRONT UNDER RUN PROTECTOR<EBE> MULTI LEAF SUSPENSION FRT<SAQ>,FRT TAPER LEAF SUSPENSION<SAR> (F)	8-98304-441-0	01	1	1512-
607	BRACKET TIRE 315/80R22.5-156/150L BLOCK DIRECT RUSSIA(5N9) FRONT UNDER RUN PROTECTOR<EBE> FRT TAPER LEAF SUSPENSION<SAR> (F)	8-98304-441-0	01	1	1512-
607	BRACKET TIRE 315/80R22.5-156/150L BLOCK DIRECT RUSSIA(5N9) FRONT UNDER RUN PROTECTOR<EBE> FRT TAPER LEAF SUSPENSION<SAR> (D)	8-98288-161-2	01	1	1512-
607	BRACKET TIRE 315/80R22.5-156/150L BLOCK DIRECT RUSSIA(5N9) FRONT UNDER RUN PROTECTOR<EBE> FRT TAPER LEAF SUSPENSION<SAR> (D)	8-98288-160-2	01	1	1512-
686	REFLECTOR; REFLEX	8-98121-023-0	02	1	1512-

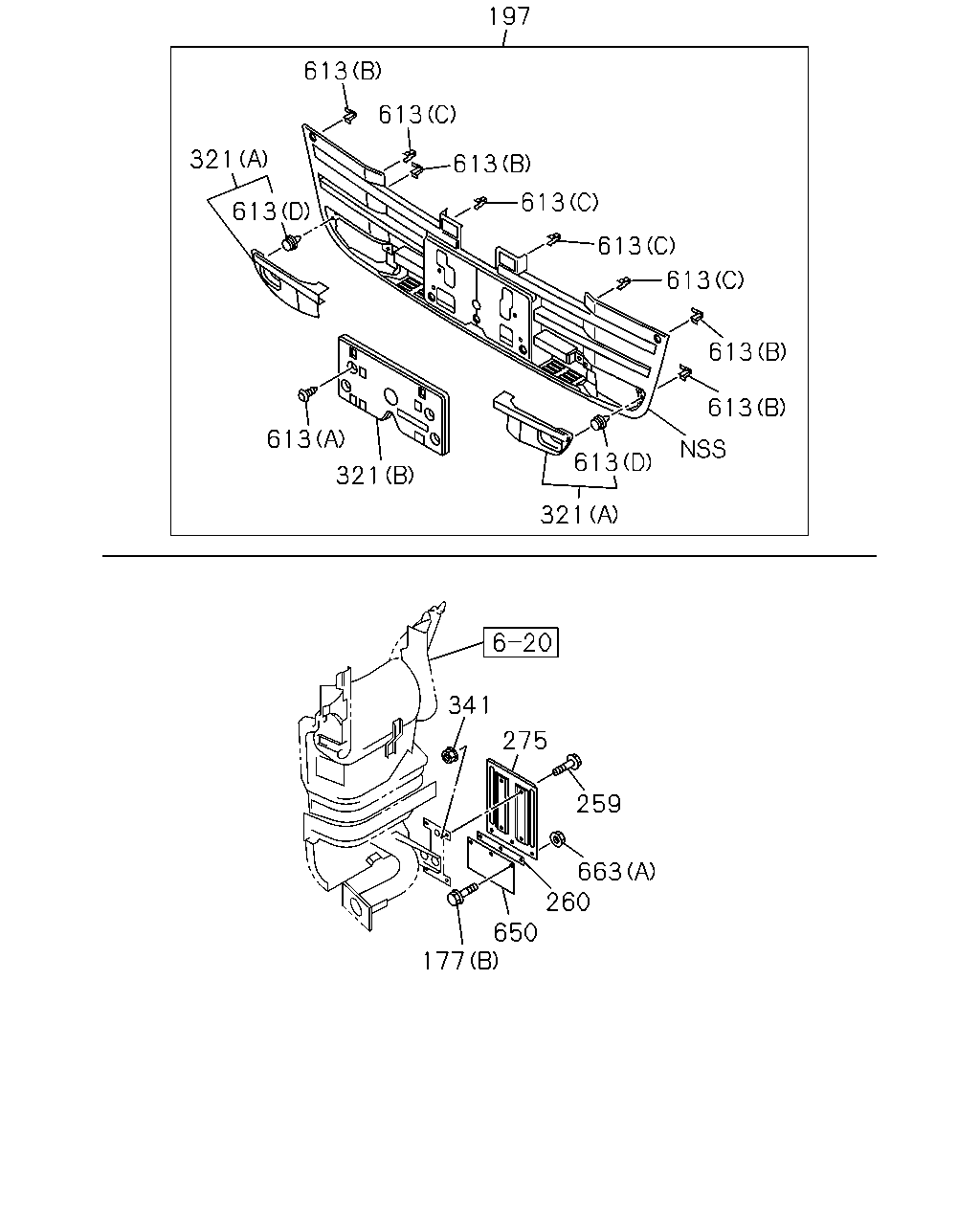

197 613 613 613 613 613 613 613 613 613 321 321 613 613 321 341 275 259 663 260 650 177

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
177	BOLT FRONT SPOILER<VP1> (A) M8X20 FLANGE	0-28050-820-0	04	1	1512-
177	BOLT FRONT UNDER RUN PROTECTOR<EBE> (C) M8X20 FLANGE	0-28650-820-0	04	1	1512-
177	BOLT FRONT UNDER RUN PROTECTOR<EBE> FRONT SPOILER<VP1> (D) M10X20 FLANGE	0-28051-020-0	02	1	1512-
177	BOLT RUSSIA EQUIPMENT(B12),VIETNAM EQUIPMENT(JCD), PHILIPPINE EQUIPMENT(WE3) (B) M8X25 W/LK&PL WASHER	1-09030-093-0	06	1	1512-
197	GRILLE; BUMPER	8-98144-188-4	01	1	1512-
259	BOLT; COVER RUSSIA EQUIPMENT(B12),VIETNAM EQUIPMENT(JCD), PHILIPPINE EQUIPMENT(WE3) M8X25 W/LK&PL WASHER	1-09030-093-0	08	1	1512-
260	RETAINER; UPR SKIRT RUSSIA EQUIPMENT(B12),VIETNAM EQUIPMENT(JCD), PHILIPPINE EQUIPMENT(WE3)	8-98125-829-0	02	1	1512-
275	GUARD; FRT RUSSIA EQUIPMENT(B12),VIETNAM EQUIPMENT(JCD), PHILIPPINE EQUIPMENT(WE3)	8-98125-825-0	02	1	1512-
321	COVER; BUMPER FRT SIDE (A)	8-98123-446-1	01	1	1512-
321	COVER; BUMPER FRT SIDE (A)	8-98123-447-1	01	1	1512-
321	COVER; BUMPER FRT SIDE (B)	8-98132-737-1	01	1	1512-
321	COVER; BUMPER FRT SIDE FRONT SPOILER<VP1> (C)	8-98123-455-1	01	1	1512-
321	COVER; BUMPER FRT SIDE FRONT SPOILER<VP1> (C)	8-98123-456-1	01	1	1512-
321	COVER; BUMPER FRT SIDE EXC. FRONT SPOILER<VP1> (C)	8-98123-457-1	01	1	1512-
321	COVER; BUMPER FRT SIDE EXC. FRONT SPOILER<VP1> (C)	8-98123-458-1	01	1	1512-
341	NUT; COVER RUSSIA EQUIPMENT(B12),VIETNAM EQUIPMENT(JCD), PHILIPPINE EQUIPMENT(WE3) M8 FLANGE	0-91180-108-0	08	1	1512-
613	CLIP (A) D8X13.5	1-09987-248-1	05	1	1512-
613	CLIP (D)	8-97581-651-2	04	1	1512-
613	CLIP (B)	8-98025-698-0	08	1	1512-
613	CLIP (C)	8-98144-173-1	06	1	1512-
650	RUBBER; MUD COVER RUSSIA EQUIPMENT(B12),VIETNAM EQUIPMENT(JCD), PHILIPPINE EQUIPMENT(WE3)	8-98125-828-0	02	1	1512-
663	NUT (B) M12 FLANGE	0-91180-212-0	08	1	1512-
663	NUT FRONT SPOILER<VP1> (C) M6 FLANGE	0-91180-106-0	13	1	1512-
663	NUT RUSSIA EQUIPMENT(B12),VIETNAM EQUIPMENT(JCD), PHILIPPINE EQUIPMENT(WE3) (A) M8 FLANGE	0-91180-108-0	06	1	1512-

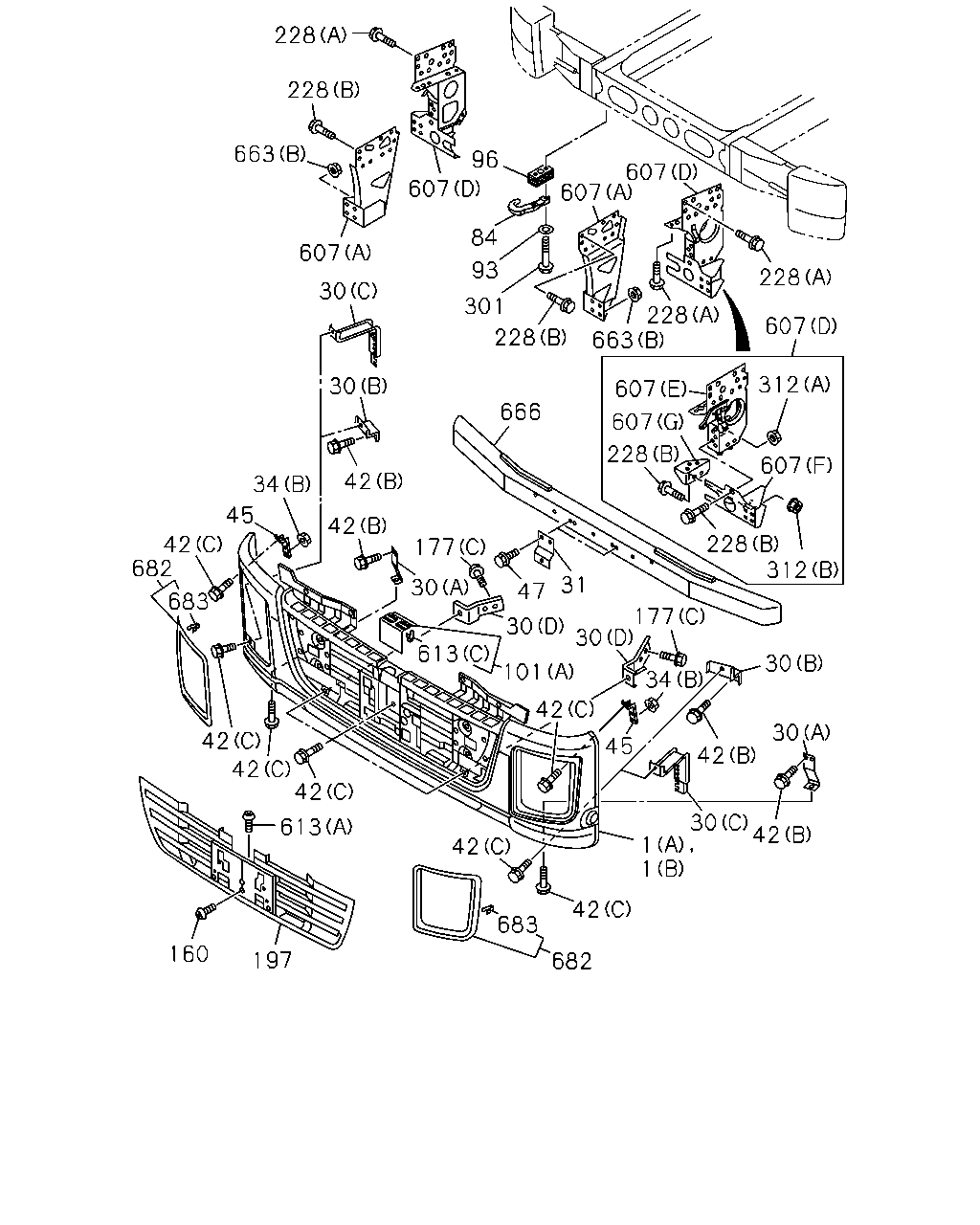

228 228 663 607 96 607 84 607 607 228 301 93 663 228 228 607 312 607 666 30 30 607 607 228 228 312 42 34 45 42 682 683 42 42 42 613 160 197 42 683 682 1 1 42 177 30 47 30 30 31 101 613 42 177 30 30 42 34 45 42 30 42

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	BUMPER ASM; FRT FRONT SPOILER<VP1> EXC. FRONT UNDER RUN PROTECTOR<EBE> (B) WHITE	8-97424-794-3	01	1	1512-
1	BUMPER ASM; FRT EXC. FRONT SPOILER<VP1> (A) WHITE	8-97417-846-3	01	1	1512-
1	BUMPER ASM; FRT FRONT UNDER RUN PROTECTOR<EBE> FRONT SPOILER<VP1> (C) WHITE	8-97466-340-0	01	1	1512-
30	BRACKET; FRT BUMPER FRONT SPOILER<VP1> EXC. FRONT UNDER RUN PROTECTOR<EBE> (A)	8-98139-907-0	01	1	1512-
30	BRACKET; FRT BUMPER FRONT SPOILER<VP1> EXC. FRONT UNDER RUN PROTECTOR<EBE> (A)	8-98139-909-0	01	1	1512-
30	BRACKET; FRT BUMPER FRONT UNDER RUN PROTECTOR<EBE> (C)	8-98218-617-3	01	1	1512-
30	BRACKET; FRT BUMPER FRONT UNDER RUN PROTECTOR<EBE> (D)	8-98236-332-0	01	1	1512-
30	BRACKET; FRT BUMPER FRONT UNDER RUN PROTECTOR<EBE> (C)	8-98218-616-3	01	1	1512-
30	BRACKET; FRT BUMPER FRONT UNDER RUN PROTECTOR<EBE> (D)	8-98236-334-0	01	1	1512-
30	BRACKET; FRT BUMPER EXC. FRONT UNDER RUN PROTECTOR<EBE> (B)	8-98135-977-1	01	1	1512-
30	BRACKET; FRT BUMPER EXC. FRONT UNDER RUN PROTECTOR<EBE> (B)	8-98135-978-1	01	1	1512-
31	SUPPORT; FRT BUMPER,LWR FRONT SPOILER<VP1> EXC. FRONT UNDER RUN PROTECTOR<EBE>	8-98139-742-0	02	1	1512-
34	NUT; BRKT,BUMPER (A) M6 FLANGE	0-91180-106-0	02	1	1512-
34	NUT; BRKT,BUMPER (B) M10 FLANGE	0-91180-110-0	04	1	1512-
42	BOLT; BUMPER (A) M6X20	8-97611-666-0	06	1	1512-
42	BOLT; BUMPER FRONT SPOILER<VP1> EXC. FRONT UNDER RUN PROTECTOR<EBE> (C) M10X30 FLANGE	8-98055-942-0	14	1	1512-
42	BOLT; BUMPER FRONT UNDER RUN PROTECTOR<EBE> (C) M10X30 FLANGE	8-98055-942-0	12	1	1512-
42	BOLT; BUMPER EXC. FRONT UNDER RUN PROTECTOR<EBE> (B) M10X30 FLANGE	0-28051-030-0	04	1	1512-
42	BOLT; BUMPER FRONT SPOILER<VP1> EXC. FRONT UNDER RUN PROTECTOR<EBE> (B) M10X30 FLANGE	0-28051-030-0	04	1	1512-
42	BOLT; BUMPER FRONT UNDER SPOILER DELETE<SGA> EXC. FRONT UNDER RUN PROTECTOR<EBE> (C) M10X30 FLANGE	8-98055-942-0	10	1	1512-
45	BRACKET; BRKT TO BUMPER	8-98126-935-2	02	1	1512-
47	BOLT; SUPPORT TO BODY FRONT SPOILER<VP1> EXC. FRONT UNDER RUN PROTECTOR<EBE> M10X30 FLANGE	0-28051-030-0	04	1	1512-
84	HOOK	8-98126-930-0	01	1	1512-
93	WASHER; LK,HOOK ID=16.2	0-91510-816-0	02	1	1512-
96	PLATE; DIST,HOOK FRONT UNDER RUN PROTECTOR<EBE>	8-98218-989-0	01	1	1512-
96	PLATE; DIST,HOOK EXC. FRONT UNDER RUN PROTECTOR<EBE>	8-98169-197-0	01	1	1512-
101	STEP; BUMPER (A)	8-98123-450-2	01	1	1512-
101	STEP; BUMPER (B)	8-98123-452-1	01	1	1512-
101	STEP; BUMPER (B)	8-98123-453-1	01	1	1512-
160	SCREW M5X16	8-94380-268-0	01	1	1512-
177	BOLT FRONT SPOILER<VP1> (A) M8X20 FLANGE	0-28050-820-0	04	1	1512-
177	BOLT FRONT UNDER RUN PROTECTOR<EBE> (C) M8X20 FLANGE	0-28650-820-0	04	1	1512-
177	BOLT FRONT UNDER RUN PROTECTOR<EBE> FRONT SPOILER<VP1> (D) M10X20 FLANGE	0-28051-020-0	02	1	1512-
177	BOLT RUSSIA EQUIPMENT(B12),VIETNAM EQUIPMENT(JCD), PHILIPPINE EQUIPMENT(WE3) (B) M8X25 W/LK&PL WASHER	1-09030-093-0	06	1	1512-
197	GRILLE; BUMPER	8-98144-188-4	01	1	1512-
228	BOLT; BRKT FRONT UNDER RUN PROTECTOR<EBE> (A) M16X40 FLANGE	0-28851-640-0	10	1	1512-
228	BOLT; BRKT EXC. FRONT UNDER RUN PROTECTOR<EBE> (B) M16X35 FLANGE	0-28851-635-0	06	1	1512-
228	BOLT; BRKT TIRE 295/80R22.5-152/148K RIB LUG CHINA(5D9),TIRE 295/80R22.5-152/148J RIB CHINA(5E0),TIRE 315/80R22.5-156/150K RIB LUG GULF(5N0) FRONT UNDER RUN PROTECTOR<EBE> MULTI LEAF SUSPENSION FRT<SAQ>,FRT TAPER LEAF SUSPENSION<SAR> (B) M16X35 FLANGE	0-28851-635-0	12	1	1512-
228	BOLT; BRKT TIRE 315/80R22.5-156/150L BLOCK DIRECT RUSSIA(5N9) FRONT UNDER RUN PROTECTOR<EBE> FRT TAPER LEAF SUSPENSION<SAR> (B) M16X35 FLANGE	0-28851-635-0	12	1	1512-
301	BOLT; HOOK TO FRAME M16X110	8-98074-591-0	02	1	1512-
312	NUT; BRKT TIRE 295/80R22.5-152/148K RIB LUG CHINA(5D9),TIRE 295/80R22.5-152/148J RIB CHINA(5E0),TIRE 315/80R22.5-156/150K RIB LUG GULF(5N0) FRONT UNDER RUN PROTECTOR<EBE> MULTI LEAF SUSPENSION FRT<SAQ>,FRT TAPER LEAF SUSPENSION<SAR> (A) M16	0-91110-516-0	02	1	1512-
312	NUT; BRKT TIRE 315/80R22.5-156/150L BLOCK DIRECT RUSSIA(5N9) FRONT UNDER RUN PROTECTOR<EBE> FRT TAPER LEAF SUSPENSION<SAR> (A) M16	0-91110-516-0	02	1	1512-
312	NUT; BRKT TIRE 295/80R22.5-152/148K RIB LUG CHINA(5D9),TIRE 295/80R22.5-152/148J RIB CHINA(5E0),TIRE 315/80R22.5-156/150K RIB LUG GULF(5N0) FRONT UNDER RUN PROTECTOR<EBE> MULTI LEAF SUSPENSION FRT<SAQ>,FRT TAPER LEAF SUSPENSION<SAR> (B) M16 FLANGE	0-91180-216-0	04	1	1512-
312	NUT; BRKT TIRE 315/80R22.5-156/150L BLOCK DIRECT RUSSIA(5N9) FRONT UNDER RUN PROTECTOR<EBE> FRT TAPER LEAF SUSPENSION<SAR> (B) M16 FLANGE	0-91180-216-0	04	1	1512-
607	BRACKET (C)	8-98147-053-0	02	1	1512-
607	BRACKET (B)	8-98147-054-0	02	1	1512-
607	BRACKET EXC. FRONT UNDER RUN PROTECTOR<EBE> (A)	8-98211-759-0	01	1	1512-
607	BRACKET EXC. FRONT UNDER RUN PROTECTOR<EBE> (A)	8-98211-758-0	01	1	1512-
607	BRACKET TIRE 295/80R22.5-152/148K RIB LUG CHINA(5D9),TIRE 295/80R22.5-152/148J RIB CHINA(5E0),TIRE 315/80R22.5-156/150K RIB LUG GULF(5N0) FRONT UNDER RUN PROTECTOR<EBE> MULTI LEAF SUSPENSION FRT<SAQ>,FRT TAPER LEAF SUSPENSION<SAR> (G)	8-98223-543-0	01	1	1512-
607	BRACKET TIRE 315/80R22.5-156/150L BLOCK DIRECT RUSSIA(5N9) FRONT UNDER RUN PROTECTOR<EBE> FRT TAPER LEAF SUSPENSION<SAR> (G)	8-98223-543-0	01	1	1512-
607	BRACKET TIRE 295/80R22.5-152/148K RIB LUG CHINA(5D9),TIRE 295/80R22.5-152/148J RIB CHINA(5E0),TIRE 315/80R22.5-156/150K RIB LUG GULF(5N0) FRONT UNDER RUN PROTECTOR<EBE> MULTI LEAF SUSPENSION FRT<SAQ>,FRT TAPER LEAF SUSPENSION<SAR> (D)	8-98288-159-2	01	1	1512-
607	BRACKET TIRE 295/80R22.5-152/148K RIB LUG CHINA(5D9),TIRE 295/80R22.5-152/148J RIB CHINA(5E0),TIRE 315/80R22.5-156/150K RIB LUG GULF(5N0) FRONT UNDER RUN PROTECTOR<EBE> MULTI LEAF SUSPENSION FRT<SAQ>,FRT TAPER LEAF SUSPENSION<SAR> (E)	8-98290-478-1	01	1	1512-
607	BRACKET TIRE 315/80R22.5-156/150L BLOCK DIRECT RUSSIA(5N9) FRONT UNDER RUN PROTECTOR<EBE> FRT TAPER LEAF SUSPENSION<SAR> (E)	8-98290-478-1	01	1	1512-
607	BRACKET TIRE 295/80R22.5-152/148K RIB LUG CHINA(5D9),TIRE 295/80R22.5-152/148J RIB CHINA(5E0),TIRE 315/80R22.5-156/150K RIB LUG GULF(5N0) FRONT UNDER RUN PROTECTOR<EBE> MULTI LEAF SUSPENSION FRT<SAQ>,FRT TAPER LEAF SUSPENSION<SAR> (F)	8-98304-442-0	01	1	1512-
607	BRACKET TIRE 315/80R22.5-156/150L BLOCK DIRECT RUSSIA(5N9) FRONT UNDER RUN PROTECTOR<EBE> FRT TAPER LEAF SUSPENSION<SAR> (F)	8-98304-442-0	01	1	1512-
607	BRACKET TIRE 295/80R22.5-152/148K RIB LUG CHINA(5D9),TIRE 295/80R22.5-152/148J RIB CHINA(5E0),TIRE 315/80R22.5-156/150K RIB LUG GULF(5N0) FRONT UNDER RUN PROTECTOR<EBE> MULTI LEAF SUSPENSION FRT<SAQ>,FRT TAPER LEAF SUSPENSION<SAR> (G)	8-98223-542-0	01	1	1512-
607	BRACKET TIRE 315/80R22.5-156/150L BLOCK DIRECT RUSSIA(5N9) FRONT UNDER RUN PROTECTOR<EBE> FRT TAPER LEAF SUSPENSION<SAR> (G)	8-98223-542-0	01	1	1512-
607	BRACKET TIRE 295/80R22.5-152/148K RIB LUG CHINA(5D9),TIRE 295/80R22.5-152/148J RIB CHINA(5E0),TIRE 315/80R22.5-156/150K RIB LUG GULF(5N0) FRONT UNDER RUN PROTECTOR<EBE> MULTI LEAF SUSPENSION FRT<SAQ>,FRT TAPER LEAF SUSPENSION<SAR> (D)	8-98288-158-2	01	1	1512-
607	BRACKET TIRE 295/80R22.5-152/148K RIB LUG CHINA(5D9),TIRE 295/80R22.5-152/148J RIB CHINA(5E0),TIRE 315/80R22.5-156/150K RIB LUG GULF(5N0) FRONT UNDER RUN PROTECTOR<EBE> MULTI LEAF SUSPENSION FRT<SAQ>,FRT TAPER LEAF SUSPENSION<SAR> (E)	8-98290-477-1	01	1	1512-
607	BRACKET TIRE 315/80R22.5-156/150L BLOCK DIRECT RUSSIA(5N9) FRONT UNDER RUN PROTECTOR<EBE> FRT TAPER LEAF SUSPENSION<SAR> (E)	8-98290-477-1	01	1	1512-
607	BRACKET TIRE 295/80R22.5-152/148K RIB LUG CHINA(5D9),TIRE 295/80R22.5-152/148J RIB CHINA(5E0),TIRE 315/80R22.5-156/150K RIB LUG GULF(5N0) FRONT UNDER RUN PROTECTOR<EBE> MULTI LEAF SUSPENSION FRT<SAQ>,FRT TAPER LEAF SUSPENSION<SAR> (F)	8-98304-441-0	01	1	1512-
607	BRACKET TIRE 315/80R22.5-156/150L BLOCK DIRECT RUSSIA(5N9) FRONT UNDER RUN PROTECTOR<EBE> FRT TAPER LEAF SUSPENSION<SAR> (F)	8-98304-441-0	01	1	1512-
607	BRACKET TIRE 315/80R22.5-156/150L BLOCK DIRECT RUSSIA(5N9) FRONT UNDER RUN PROTECTOR<EBE> FRT TAPER LEAF SUSPENSION<SAR> (D)	8-98288-161-2	01	1	1512-
607	BRACKET TIRE 315/80R22.5-156/150L BLOCK DIRECT RUSSIA(5N9) FRONT UNDER RUN PROTECTOR<EBE> FRT TAPER LEAF SUSPENSION<SAR> (D)	8-98288-160-2	01	1	1512-
613	CLIP (A) D8X13.5	1-09987-248-1	05	1	1512-
613	CLIP (D)	8-97581-651-2	04	1	1512-
613	CLIP (B)	8-98025-698-0	08	1	1512-
613	CLIP (C)	8-98144-173-1	06	1	1512-
663	NUT (B) M12 FLANGE	0-91180-212-0	08	1	1512-
663	NUT FRONT SPOILER<VP1> (C) M6 FLANGE	0-91180-106-0	13	1	1512-
663	NUT RUSSIA EQUIPMENT(B12),VIETNAM EQUIPMENT(JCD), PHILIPPINE EQUIPMENT(WE3) (A) M8 FLANGE	0-91180-108-0	06	1	1512-
666	PROTECTOR; UNDER FRONT UNDER RUN PROTECTOR<EBE> FRONT SPOILER<VP1>	8-98172-164-0	01	1	1512-
666	PROTECTOR; UNDER FRONT UNDER RUN PROTECTOR<EBE> EXC. FRONT SPOILER<VP1>	8-98220-526-0	01	1	1512-
666	PROTECTOR; UNDER EXC. FRONT UNDER RUN PROTECTOR<EBE>	8-98198-583-0	01	1	1512-
682	BEZEL; BUMPER	8-98123-445-2	01	1	1512-
682	BEZEL; BUMPER	8-98123-444-2	01	1	1512-
683	CLIP; BEZEL,BUMPER	8-98144-173-1	16	1	1512-

1 607 607 607 125 139 101 139 42 125 125 125 125 321 672 5 254 254 34 672 125 125 139 607 139 321 125 5 686 185 177 177 663 177 105 185 21 70 229 663 177 672 663 101 42

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	BUMPER ASM; FRT FRONT SPOILER<VP1> EXC. FRONT UNDER RUN PROTECTOR<EBE> (B) WHITE	8-97424-794-3	01	1	1512-
1	BUMPER ASM; FRT EXC. FRONT SPOILER<VP1> (A) WHITE	8-97417-846-3	01	1	1512-
1	BUMPER ASM; FRT FRONT UNDER RUN PROTECTOR<EBE> FRONT SPOILER<VP1> (C) WHITE	8-97466-340-0	01	1	1512-
5	BRACKET; AIR DAM FRONT SPOILER<VP1>	8-98154-762-0	02	1	1512-
21	GROMMET; SCREW,BUMPER PROTECTOR D=9.7X9.7 L=8	8-94222-314-0	04	1	1512-
34	NUT; BRKT,BUMPER (A) M6 FLANGE	0-91180-106-0	02	1	1512-
34	NUT; BRKT,BUMPER (B) M10 FLANGE	0-91180-110-0	04	1	1512-
42	BOLT; BUMPER (A) M6X20	8-97611-666-0	06	1	1512-
42	BOLT; BUMPER FRONT SPOILER<VP1> EXC. FRONT UNDER RUN PROTECTOR<EBE> (C) M10X30 FLANGE	8-98055-942-0	14	1	1512-
42	BOLT; BUMPER FRONT UNDER RUN PROTECTOR<EBE> (C) M10X30 FLANGE	8-98055-942-0	12	1	1512-
42	BOLT; BUMPER EXC. FRONT UNDER RUN PROTECTOR<EBE> (B) M10X30 FLANGE	0-28051-030-0	04	1	1512-
42	BOLT; BUMPER FRONT SPOILER<VP1> EXC. FRONT UNDER RUN PROTECTOR<EBE> (B) M10X30 FLANGE	0-28051-030-0	04	1	1512-
42	BOLT; BUMPER FRONT UNDER SPOILER DELETE<SGA> EXC. FRONT UNDER RUN PROTECTOR<EBE> (C) M10X30 FLANGE	8-98055-942-0	10	1	1512-
70	BRACKET; LICENSE PLATE,FRT	8-98128-625-0	04	1	1512-
101	STEP; BUMPER (A)	8-98123-450-2	01	1	1512-
101	STEP; BUMPER (B)	8-98123-452-1	01	1	1512-
101	STEP; BUMPER (B)	8-98123-453-1	01	1	1512-
105	AIR DAM BODY COLOR ARC WHITE(729) FRONT SPOILER<VP1> WHITE	8-97417-859-4	01	1	1512-
105	AIR DAM BODY COLOR GOLDEN YELLOW(904) FRONT SPOILER<VP1> YELLOW	8-97425-003-4	01	1	1512-
105	AIR DAM BODY COLOR MARINE BLUE(890) FRONT SPOILER<VP1> BLUE	8-97425-002-4	01	1	1512-
125	CLIP; STEP (B)	8-98157-167-0	04	1	1512-
125	CLIP; STEP FRONT SPOILER<VP1> (A)	8-98157-186-0	08	1	1512-
125	CLIP; STEP EXC. FRONT SPOILER<VP1> (A)	8-98157-186-0	06	1	1512-
139	NUT; BRKT FIX M8 FLANGE	0-91180-208-0	04	1	1512-
177	BOLT FRONT SPOILER<VP1> (A) M8X20 FLANGE	0-28050-820-0	04	1	1512-
177	BOLT FRONT UNDER RUN PROTECTOR<EBE> (C) M8X20 FLANGE	0-28650-820-0	04	1	1512-
177	BOLT FRONT UNDER RUN PROTECTOR<EBE> FRONT SPOILER<VP1> (D) M10X20 FLANGE	0-28051-020-0	02	1	1512-
177	BOLT RUSSIA EQUIPMENT(B12),VIETNAM EQUIPMENT(JCD), PHILIPPINE EQUIPMENT(WE3) (B) M8X25 W/LK&PL WASHER	1-09030-093-0	06	1	1512-
185	BRACKET; BUMPER,INNER FRONT SPOILER<VP1> EXC. FRONT UNDER RUN PROTECTOR<EBE> (A)	8-98139-739-0	02	1	1512-
185	BRACKET; BUMPER,INNER FRONT UNDER RUN PROTECTOR<EBE> FRONT SPOILER<VP1> (B)	8-98302-730-0	01	1	1512-
185	BRACKET; BUMPER,INNER FRONT UNDER RUN PROTECTOR<EBE> FRONT SPOILER<VP1> (B)	8-98302-731-0	01	1	1512-
229	GROMMET D=7X7 L=7.5	8-94291-927-0	01	1	1512-
254	NUT; STEP M6 FLANGE	0-91180-106-0	06	1	1512-
321	COVER; BUMPER FRT SIDE (A)	8-98123-446-1	01	1	1512-
321	COVER; BUMPER FRT SIDE (A)	8-98123-447-1	01	1	1512-
321	COVER; BUMPER FRT SIDE (B)	8-98132-737-1	01	1	1512-
321	COVER; BUMPER FRT SIDE FRONT SPOILER<VP1> (C)	8-98123-455-1	01	1	1512-
321	COVER; BUMPER FRT SIDE FRONT SPOILER<VP1> (C)	8-98123-456-1	01	1	1512-
321	COVER; BUMPER FRT SIDE EXC. FRONT SPOILER<VP1> (C)	8-98123-457-1	01	1	1512-
321	COVER; BUMPER FRT SIDE EXC. FRONT SPOILER<VP1> (C)	8-98123-458-1	01	1	1512-
607	BRACKET (C)	8-98147-053-0	02	1	1512-
607	BRACKET (B)	8-98147-054-0	02	1	1512-
607	BRACKET EXC. FRONT UNDER RUN PROTECTOR<EBE> (A)	8-98211-759-0	01	1	1512-
607	BRACKET EXC. FRONT UNDER RUN PROTECTOR<EBE> (A)	8-98211-758-0	01	1	1512-
607	BRACKET TIRE 295/80R22.5-152/148K RIB LUG CHINA(5D9),TIRE 295/80R22.5-152/148J RIB CHINA(5E0),TIRE 315/80R22.5-156/150K RIB LUG GULF(5N0) FRONT UNDER RUN PROTECTOR<EBE> MULTI LEAF SUSPENSION FRT<SAQ>,FRT TAPER LEAF SUSPENSION<SAR> (G)	8-98223-543-0	01	1	1512-
607	BRACKET TIRE 315/80R22.5-156/150L BLOCK DIRECT RUSSIA(5N9) FRONT UNDER RUN PROTECTOR<EBE> FRT TAPER LEAF SUSPENSION<SAR> (G)	8-98223-543-0	01	1	1512-
607	BRACKET TIRE 295/80R22.5-152/148K RIB LUG CHINA(5D9),TIRE 295/80R22.5-152/148J RIB CHINA(5E0),TIRE 315/80R22.5-156/150K RIB LUG GULF(5N0) FRONT UNDER RUN PROTECTOR<EBE> MULTI LEAF SUSPENSION FRT<SAQ>,FRT TAPER LEAF SUSPENSION<SAR> (D)	8-98288-159-2	01	1	1512-
607	BRACKET TIRE 295/80R22.5-152/148K RIB LUG CHINA(5D9),TIRE 295/80R22.5-152/148J RIB CHINA(5E0),TIRE 315/80R22.5-156/150K RIB LUG GULF(5N0) FRONT UNDER RUN PROTECTOR<EBE> MULTI LEAF SUSPENSION FRT<SAQ>,FRT TAPER LEAF SUSPENSION<SAR> (E)	8-98290-478-1	01	1	1512-
607	BRACKET TIRE 315/80R22.5-156/150L BLOCK DIRECT RUSSIA(5N9) FRONT UNDER RUN PROTECTOR<EBE> FRT TAPER LEAF SUSPENSION<SAR> (E)	8-98290-478-1	01	1	1512-
607	BRACKET TIRE 295/80R22.5-152/148K RIB LUG CHINA(5D9),TIRE 295/80R22.5-152/148J RIB CHINA(5E0),TIRE 315/80R22.5-156/150K RIB LUG GULF(5N0) FRONT UNDER RUN PROTECTOR<EBE> MULTI LEAF SUSPENSION FRT<SAQ>,FRT TAPER LEAF SUSPENSION<SAR> (F)	8-98304-442-0	01	1	1512-
607	BRACKET TIRE 315/80R22.5-156/150L BLOCK DIRECT RUSSIA(5N9) FRONT UNDER RUN PROTECTOR<EBE> FRT TAPER LEAF SUSPENSION<SAR> (F)	8-98304-442-0	01	1	1512-
607	BRACKET TIRE 295/80R22.5-152/148K RIB LUG CHINA(5D9),TIRE 295/80R22.5-152/148J RIB CHINA(5E0),TIRE 315/80R22.5-156/150K RIB LUG GULF(5N0) FRONT UNDER RUN PROTECTOR<EBE> MULTI LEAF SUSPENSION FRT<SAQ>,FRT TAPER LEAF SUSPENSION<SAR> (G)	8-98223-542-0	01	1	1512-
607	BRACKET TIRE 315/80R22.5-156/150L BLOCK DIRECT RUSSIA(5N9) FRONT UNDER RUN PROTECTOR<EBE> FRT TAPER LEAF SUSPENSION<SAR> (G)	8-98223-542-0	01	1	1512-
607	BRACKET TIRE 295/80R22.5-152/148K RIB LUG CHINA(5D9),TIRE 295/80R22.5-152/148J RIB CHINA(5E0),TIRE 315/80R22.5-156/150K RIB LUG GULF(5N0) FRONT UNDER RUN PROTECTOR<EBE> MULTI LEAF SUSPENSION FRT<SAQ>,FRT TAPER LEAF SUSPENSION<SAR> (D)	8-98288-158-2	01	1	1512-
607	BRACKET TIRE 295/80R22.5-152/148K RIB LUG CHINA(5D9),TIRE 295/80R22.5-152/148J RIB CHINA(5E0),TIRE 315/80R22.5-156/150K RIB LUG GULF(5N0) FRONT UNDER RUN PROTECTOR<EBE> MULTI LEAF SUSPENSION FRT<SAQ>,FRT TAPER LEAF SUSPENSION<SAR> (E)	8-98290-477-1	01	1	1512-
607	BRACKET TIRE 315/80R22.5-156/150L BLOCK DIRECT RUSSIA(5N9) FRONT UNDER RUN PROTECTOR<EBE> FRT TAPER LEAF SUSPENSION<SAR> (E)	8-98290-477-1	01	1	1512-
607	BRACKET TIRE 295/80R22.5-152/148K RIB LUG CHINA(5D9),TIRE 295/80R22.5-152/148J RIB CHINA(5E0),TIRE 315/80R22.5-156/150K RIB LUG GULF(5N0) FRONT UNDER RUN PROTECTOR<EBE> MULTI LEAF SUSPENSION FRT<SAQ>,FRT TAPER LEAF SUSPENSION<SAR> (F)	8-98304-441-0	01	1	1512-
607	BRACKET TIRE 315/80R22.5-156/150L BLOCK DIRECT RUSSIA(5N9) FRONT UNDER RUN PROTECTOR<EBE> FRT TAPER LEAF SUSPENSION<SAR> (F)	8-98304-441-0	01	1	1512-
607	BRACKET TIRE 315/80R22.5-156/150L BLOCK DIRECT RUSSIA(5N9) FRONT UNDER RUN PROTECTOR<EBE> FRT TAPER LEAF SUSPENSION<SAR> (D)	8-98288-161-2	01	1	1512-
607	BRACKET TIRE 315/80R22.5-156/150L BLOCK DIRECT RUSSIA(5N9) FRONT UNDER RUN PROTECTOR<EBE> FRT TAPER LEAF SUSPENSION<SAR> (D)	8-98288-160-2	01	1	1512-
663	NUT (B) M12 FLANGE	0-91180-212-0	08	1	1512-
663	NUT FRONT SPOILER<VP1> (C) M6 FLANGE	0-91180-106-0	13	1	1512-
663	NUT RUSSIA EQUIPMENT(B12),VIETNAM EQUIPMENT(JCD), PHILIPPINE EQUIPMENT(WE3) (A) M8 FLANGE	0-91180-108-0	06	1	1512-
672	STUD; STEP FRONT SPOILER<VP1> M6X16 FLANGE	0-28050-616-0	13	1	1512-
686	REFLECTOR; REFLEX	8-98121-023-0	02	1	1512-

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
