Sayfa 5-16 - Isuzu EPC

5-16 — OIL PUMP; CAB TILT (#176353) — 74 parça

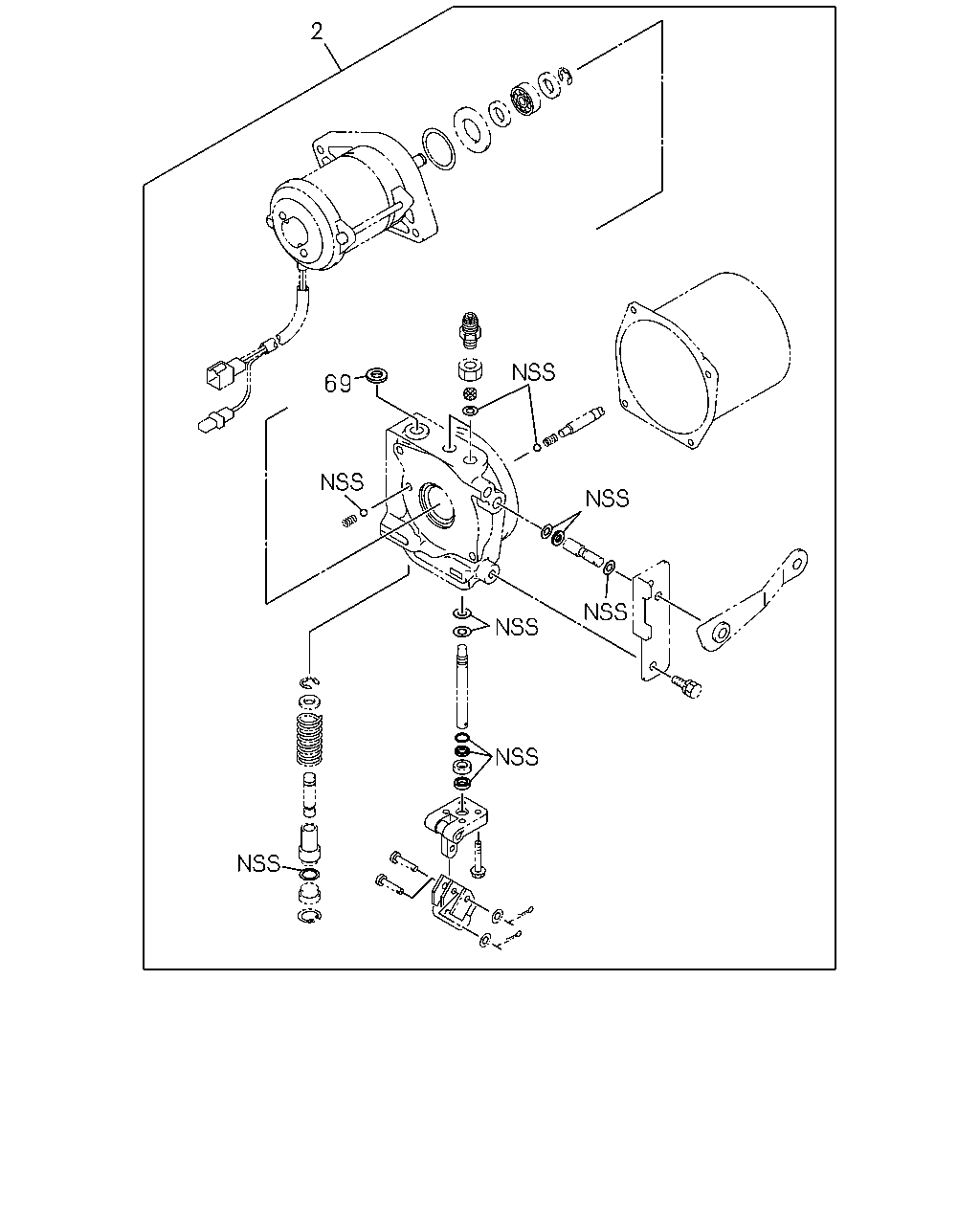

2 69

	Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
	2	REPAIR KIT; OIL PUMP CAB SUSPENSION-FULL FLOATING(SMK)	1-85579-069-0	01	1	1512-
	69	GASKET; FILLER PLUG CAB SUSPENSION-FULL FLOATING(SMK)	1-53458-427-0	01	1	1512-

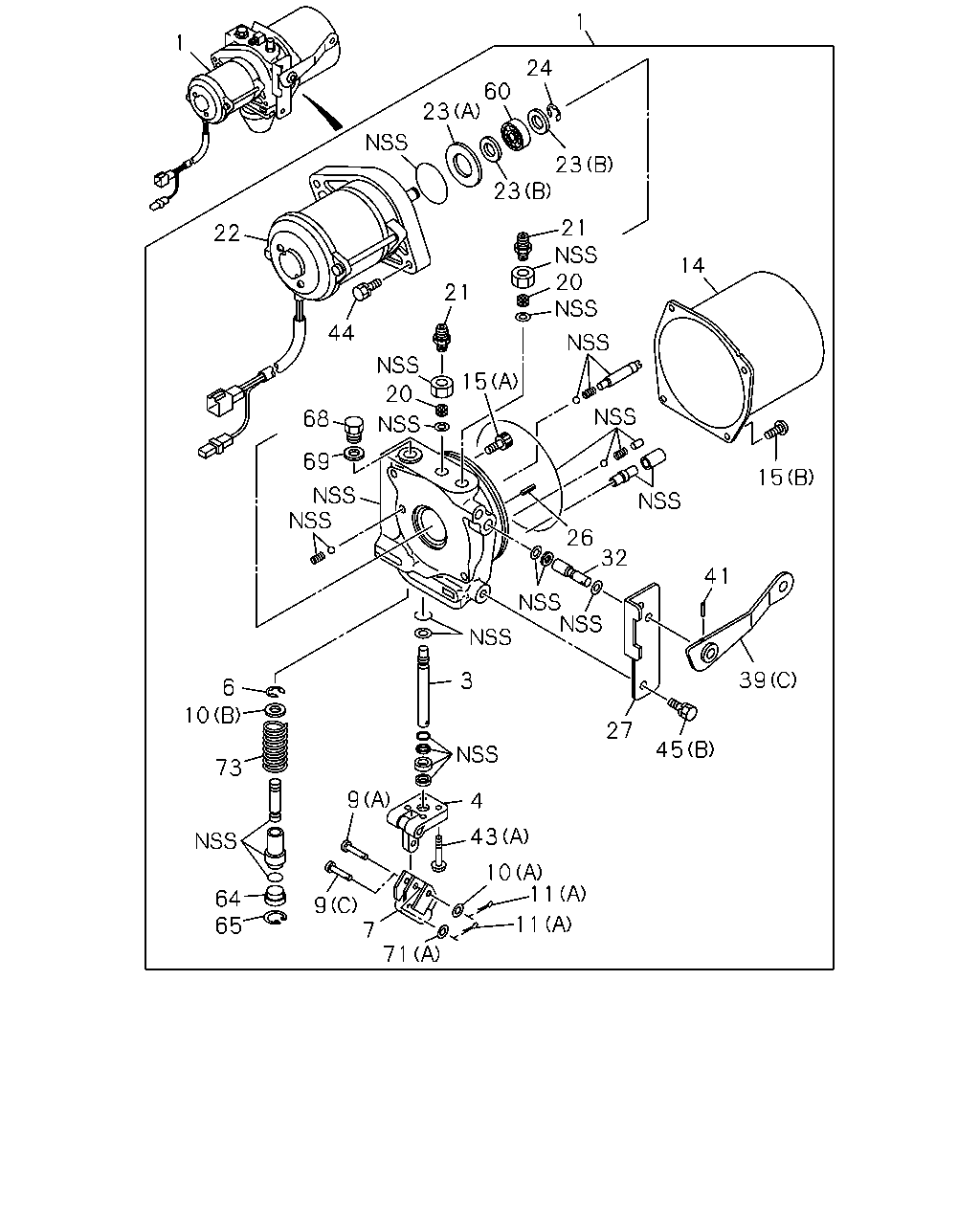

1 1 22 23 60 24 23 23 21 44 68 69 20 15 21 20 14 15 41 39 45 27 32 26 3 4 43 10 11 11 7 9 9 65 73 6 10 64 71

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	PUMP; OIL,CAB TILT CAB SUSPENSION-FULL FLOATING(SMK)	8-98172-037-0	01	1	1512-
3	PISTON; MANUAL CAB SUSPENSION-FULL FLOATING(SMK)	1-53457-204-0	01	1	1512-
4	BRACKET; OIL PUMP CAB SUSPENSION-FULL FLOATING(SMK)	1-53457-205-0	01	1	1512-
6	RING; SNAP CAB SUSPENSION-FULL FLOATING(SMK)	1-53458-411-0	01	1	1512-
7	SOCKET; OIL PUMP CAB SUSPENSION-FULL FLOATING(SMK)	1-53457-207-0	01	1	1512-
9	PIN; OIL PUMP (B) L=27.7	1-09987-141-0	02	1	1512-
9	PIN; OIL PUMP CAB SUSPENSION-FULL FLOATING(SMK) (C)	1-53458-057-0	01	1	1512-
9	PIN; OIL PUMP CAB SUSPENSION-FULL FLOATING(SMK) (A)	1-53458-060-0	01	1	1512-
10	WASHER; OIL PUMP (C) ID=8.4 OD=22	0-91610-708-0	02	1	1512-
10	WASHER; OIL PUMP CAB SUSPENSION-FULL FLOATING(SMK) (A)	1-53458-013-0	01	1	1512-
10	WASHER; OIL PUMP CAB SUSPENSION-FULL FLOATING(SMK) (B)	1-53458-561-0	01	1	1512-
11	PIN; SPLIT,OIL PUMP (B) OD=8 L=17	0-82253-817-0	02	1	1512-
11	PIN; SPLIT,OIL PUMP CAB SUSPENSION-FULL FLOATING(SMK) (A)	1-53457-209-0	01	1	1512-
14	RESERVOIR; OIL PUMP CAB SUSPENSION-FULL FLOATING(SMK)	1-53458-432-0	01	1	1512-
15	BOLT; RESERVOIR CAB SUSPENSION-FULL FLOATING(SMK) (B) M5X8	1-53458-005-0	04	1	1512-
15	BOLT; RESERVOIR CAB SUSPENSION-FULL FLOATING(SMK) (A) M5X8	1-53458-433-0	02	1	1512-
20	FILTER; OIL PUMP CAB SUSPENSION-FULL FLOATING(SMK)	1-53457-081-0	02	1	1512-
21	CONNECTOR; OIL PUMP CAB SUSPENSION-FULL FLOATING(SMK) M12	1-53458-941-0	02	1	1512-
22	MOTOR; OIL PUMP CAB SUSPENSION-FULL FLOATING(SMK)	1-53457-080-0	01	1	1512-
23	WASHER; MOTOR CAB SUSPENSION-FULL FLOATING(SMK) (A)	1-53458-018-0	01	1	1512-
23	WASHER; MOTOR CAB SUSPENSION-FULL FLOATING(SMK) (B)	1-53458-045-0	02	1	1512-
24	RING; SNAP,MOTOR CAB SUSPENSION-FULL FLOATING(SMK)	1-53458-044-0	01	1	1512-
26	PIN; SPR,OIL PUMP CAB SUSPENSION-FULL FLOATING(SMK)	1-53458-038-0	01	1	1512-
27	COVER; OIL PUMP CAB SUSPENSION-FULL FLOATING(SMK)	1-53458-725-0	01	1	1512-
32	VALVE; OIL PUMP CAB SUSPENSION-FULL FLOATING(SMK)	1-53458-569-0	01	1	1512-
39	LEVER; OIL PUMP (A)	8-98198-734-0	01	1	1512-
39	LEVER; OIL PUMP (B)	8-98210-574-0	01	1	1512-
39	LEVER; OIL PUMP CAB SUSPENSION-FULL FLOATING(SMK) (C)	1-53458-723-0	01	1	1512-
41	PIN; SPR,LEVER CAB SUSPENSION-FULL FLOATING(SMK)	1-53458-019-0	01	1	1512-
43	BOLT; LEVER (B) M8X20 FLANGE	0-28050-820-0	02	1	1512-
43	BOLT; LEVER CAB SUSPENSION-FULL FLOATING(SMK) (A) M5X16	1-53457-206-0	03	1	1512-
44	BOLT; MOTOR CAB SUSPENSION-FULL FLOATING(SMK) M6X20	1-53458-007-0	02	1	1512-
45	BOLT; COVER (A) M8X16 FLANGE	0-28050-816-0	01	1	1512-
45	BOLT; COVER (C) M8X20 FLANGE	0-28650-820-0	01	1	1512-
45	BOLT; COVER CAB SUSPENSION-FULL FLOATING(SMK) (B) M6X8	1-53458-004-0	02	1	1512-
60	BEARING; OIL PUMP CAB SUSPENSION-FULL FLOATING(SMK)	1-53458-423-0	01	1	1512-
64	SLEEVE; OIL PUMP CAB SUSPENSION-FULL FLOATING(SMK)	1-53458-572-0	01	1	1512-
65	RING; SNAP,SLEEVE CAB SUSPENSION-FULL FLOATING(SMK)	1-53458-570-0	01	1	1512-
68	PLUG; FILLER CAB SUSPENSION-FULL FLOATING(SMK)	1-53458-428-0	01	1	1512-
69	GASKET; FILLER PLUG CAB SUSPENSION-FULL FLOATING(SMK)	1-53458-427-0	01	1	1512-
71	NUT; PUSH (B) ID=9.9 PUSH NUT	8-97022-566-0	01	1	1512-
71	NUT; PUSH CAB SUSPENSION-FULL FLOATING(SMK) (A)	1-53457-208-0	01	1	1512-
73	SPRING; PISTON CAB SUSPENSION-FULL FLOATING(SMK)	1-53458-040-0	01	1	1512-

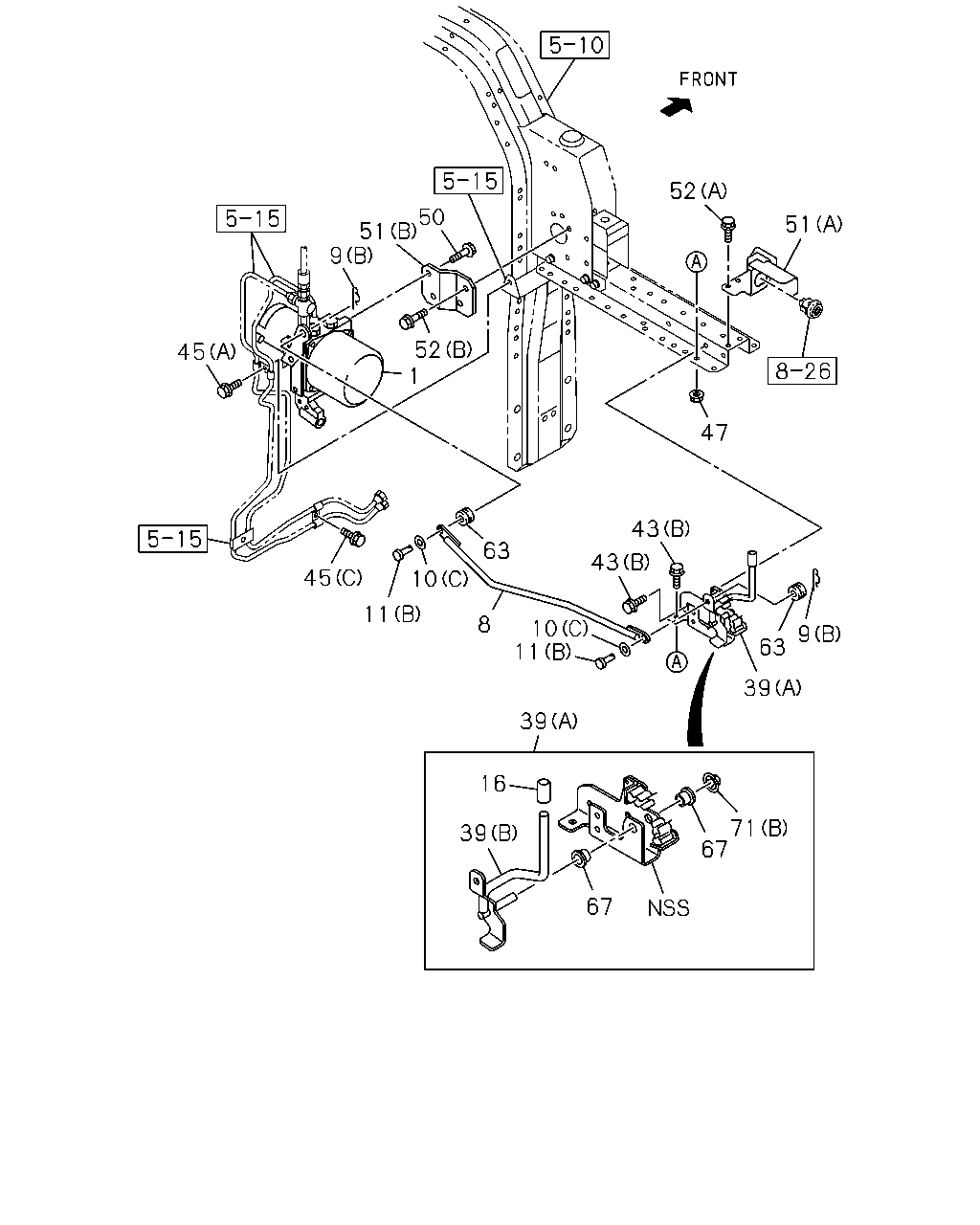

52 1 45 45 11 8 11 63 10 10 39 43 39 43 63 47 9 71 67 67 39 16 9 51 50 52 51

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	PUMP; OIL,CAB TILT CAB SUSPENSION-FULL FLOATING(SMK)	8-98172-037-0	01	1	1512-
8	LINK; OIL PUMP	8-98198-747-2	01	1	1512-
9	PIN; OIL PUMP (B) L=27.7	1-09987-141-0	02	1	1512-
9	PIN; OIL PUMP CAB SUSPENSION-FULL FLOATING(SMK) (C)	1-53458-057-0	01	1	1512-
9	PIN; OIL PUMP CAB SUSPENSION-FULL FLOATING(SMK) (A)	1-53458-060-0	01	1	1512-
10	WASHER; OIL PUMP (C) ID=8.4 OD=22	0-91610-708-0	02	1	1512-
10	WASHER; OIL PUMP CAB SUSPENSION-FULL FLOATING(SMK) (A)	1-53458-013-0	01	1	1512-
10	WASHER; OIL PUMP CAB SUSPENSION-FULL FLOATING(SMK) (B)	1-53458-561-0	01	1	1512-
11	PIN; SPLIT,OIL PUMP (B) OD=8 L=17	0-82253-817-0	02	1	1512-
11	PIN; SPLIT,OIL PUMP CAB SUSPENSION-FULL FLOATING(SMK) (A)	1-53457-209-0	01	1	1512-
16	CAP ID=9.0	8-94207-303-0	01	1	1512-
39	LEVER; OIL PUMP (A)	8-98198-734-0	01	1	1512-
39	LEVER; OIL PUMP (B)	8-98210-574-0	01	1	1512-
39	LEVER; OIL PUMP CAB SUSPENSION-FULL FLOATING(SMK) (C)	1-53458-723-0	01	1	1512-
43	BOLT; LEVER (B) M8X20 FLANGE	0-28050-820-0	02	1	1512-
43	BOLT; LEVER CAB SUSPENSION-FULL FLOATING(SMK) (A) M5X16	1-53457-206-0	03	1	1512-
45	BOLT; COVER (A) M8X16 FLANGE	0-28050-816-0	01	1	1512-
45	BOLT; COVER (C) M8X20 FLANGE	0-28650-820-0	01	1	1512-
45	BOLT; COVER CAB SUSPENSION-FULL FLOATING(SMK) (B) M6X8	1-53458-004-0	02	1	1512-
47	NUT; LEVER M8 FLANGE	0-91180-108-0	01	1	1512-
50	BOLT; OIL PUMP M10X16 FLANGE	0-28051-016-0	02	1	1512-
51	BRACKET; OIL PUMP (B)	1-53458-666-0	01	1	1512-
51	BRACKET; OIL PUMP (A)	8-98198-737-0	01	1	1512-
52	BOLT; BRKT (A) M8X20 FLANGE	0-28050-820-0	02	1	1512-
52	BOLT; BRKT (B) M10X25 FLANGE	0-28651-025-0	02	1	1512-
63	GROMMET ID=10 OD=23 T=8	1-09983-010-0	02	1	1512-
67	BUSHING T=6 OD=17.5	9-33659-249-0	02	1	1512-
71	NUT; PUSH (B) ID=9.9 PUSH NUT	8-97022-566-0	01	1	1512-
71	NUT; PUSH CAB SUSPENSION-FULL FLOATING(SMK) (A)	1-53457-208-0	01	1	1512-
