5-10 — CAB MOUNTING; FRAME SIDE (#176351) — 139 parça

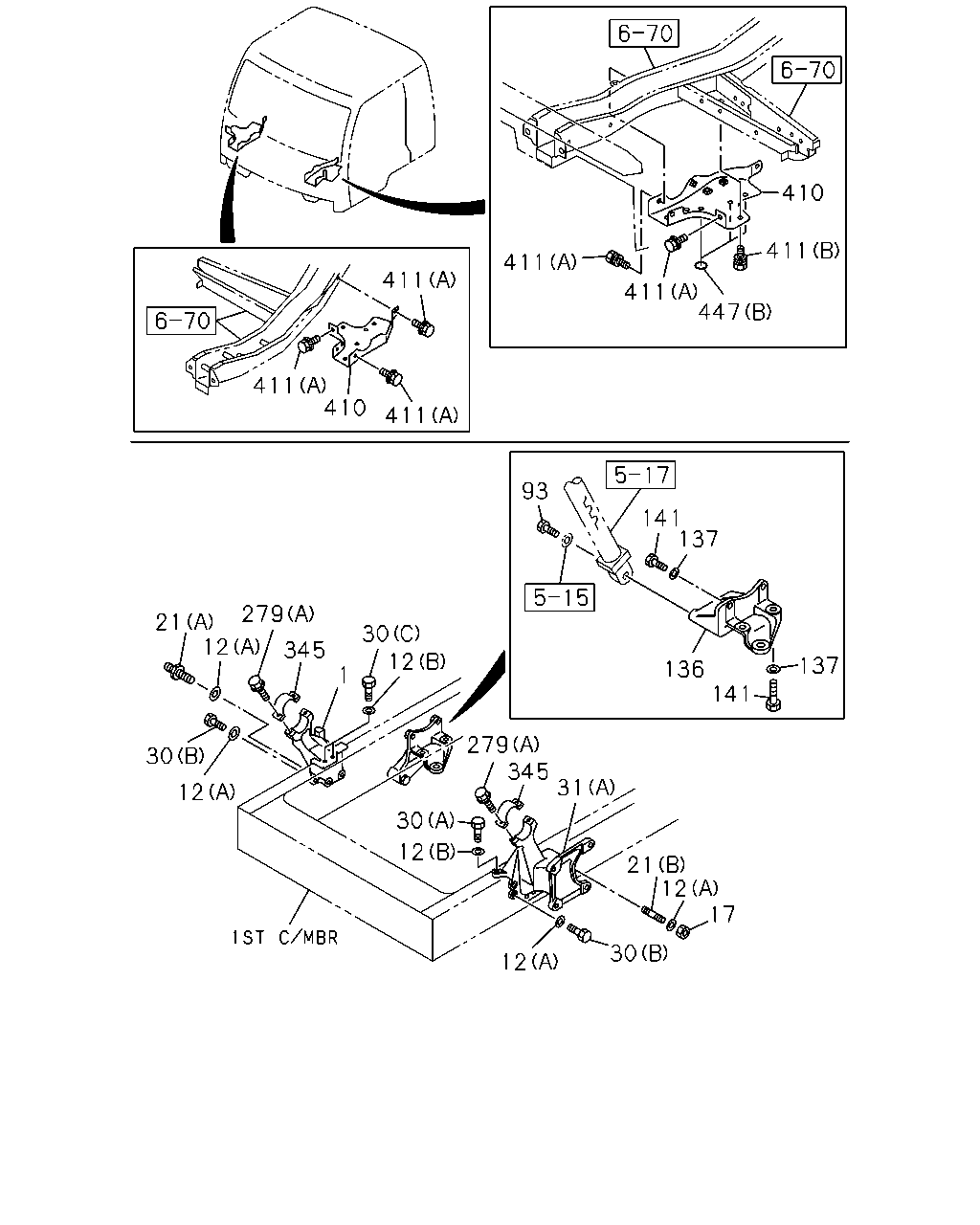

çizim 513631
30 12 12 21 31 345 279 30 12 12 30 12 21 279 345 30 1 12 93 141 137 136 141 137 411 411 447 411 410 411 410 411 411 17
BalonParca AdiParca NoAdetTipApplied Date
1 BRACKET; CAB MTG
RUSSIA EQUIPMENT(B12),VIETNAM EQUIPMENT(JCD), PHILIPPINE EQUIPMENT(WE3) 		8-98225-458-0 01 1 1512-
12 WASHER; LK,BRKT
(A) ID=16.2 		1-09503-316-0 11 1 1512-
12 WASHER; LK,BRKT
(B) ID=15 		8-98010-627-1 04 1 1512-
17 NUT; BRKT,CAB TILT
M16 		0-91110-516-0 01 1 1512-
21 STUD; BRKT,CAB TILT
(A) M10X20,M16X50 L=81 		1-09029-069-0 02 1 1512-
21 STUD; BRKT,CAB TILT
(B) M16X50 L=74 		1-09300-117-0 01 1 1512-
30 BOLT; CAB FRT FOOT
(C) M14X50 		0-20951-450-0 02 1 1512-
30 BOLT; CAB FRT FOOT
(A) M14X60 		0-20951-460-0 02 1 1512-
30 BOLT; CAB FRT FOOT
(B) M16X50 		0-20951-650-0 03 1 1512-
30 BOLT; CAB FRT FOOT
(B) M16X50 		0-20951-650-0 05 1 1512-
31 BRACKET; CAB
(A) 		8-98209-487-0 01 1 1512-
31 BRACKET; CAB
RUSSIA EQUIPMENT(B12),VIETNAM EQUIPMENT(JCD), PHILIPPINE EQUIPMENT(WE3) CAB SUSPENSION-FULL FLOATING(SMK) (B) 		1-53453-274-1 01 1 1512-
31 BRACKET; CAB
RUSSIA EQUIPMENT(B12),VIETNAM EQUIPMENT(JCD), PHILIPPINE EQUIPMENT(WE3) CAB SUSPENSION-FULL FLOATING(SMK) (B) 		1-53453-280-2 01 1 1512-
93 BOLT; PIN
M10X30 		1-09000-283-0 01 1 1512-
136 BRACKET; OIL CYL 1-53458-903-0 01 1 1512-
137 WASHER; PL,BRKT
ID=15 		8-98010-627-1 04 1 1512-
141 BOLT; BRKT
M14X50 		0-20951-450-0 04 1 1512-
279 BOLT
(A) M12X40 FLANGE 		8-98270-173-0 04 1 1512-
279 BOLT
RUSSIA EQUIPMENT(B12) (B) M8X25 FLANGE 		0-28650-825-0 02 1 1512-
345 CAP; CAB 1-53458-336-3 02 1 1512-
410 REINFORCEMENT; CAB TILT 1-62570-864-0 01 1 1512-
410 REINFORCEMENT; CAB TILT 1-62570-939-0 01 1 1512-
411 BOLT; REINFORCEMENT
(B) M10X20 W/LK&PL WASHER 		8-94279-211-0 01 1 1512-
411 BOLT; REINFORCEMENT
(A) M8X24.5 W/LK&PL WASHER 		8-98059-720-0 06 1 1512-
447 SEAL
(B) OD=25 BLACK 		1-76798-019-0 03 1 1512-
447 SEAL
RUSSIA EQUIPMENT(B12) (A) OD=45 BLACK 		1-76798-017-0 02 1 1512-

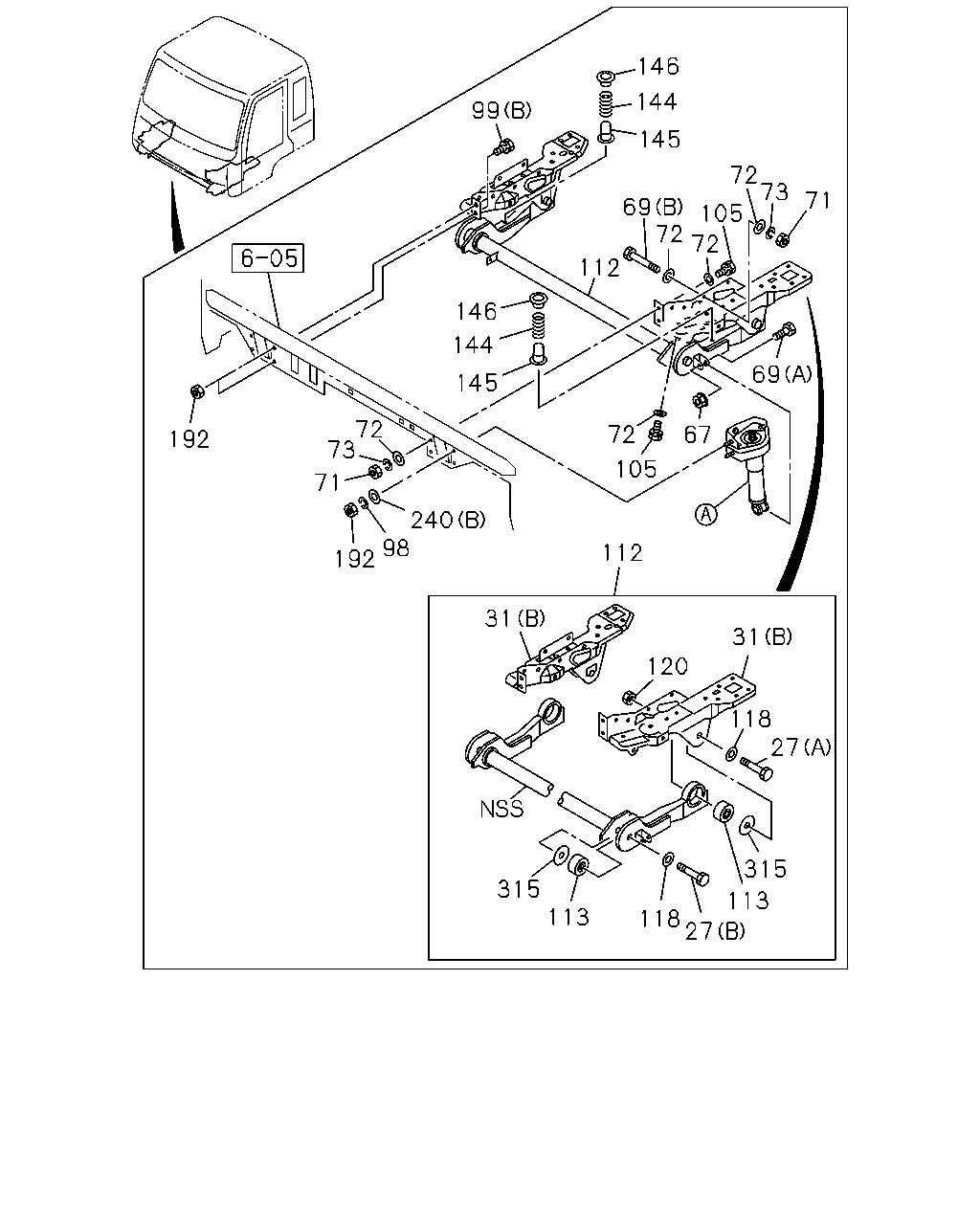

çizim 513747
146 145 144 72 71 73 105 72 69 67 72 69 99 112 72 112 105 31 118 27 315 113 27 118 113 315 31 98 240 192 71 73 72 192 145 144 146 120
BalonParca AdiParca NoAdetTipApplied Date
27 BOLT; BUSHING
RUSSIA EQUIPMENT(B12),VIETNAM EQUIPMENT(JCD), PHILIPPINE EQUIPMENT(WE3) CAB SUSPENSION-FULL FLOATING(SMK) (B) M18X120 		1-09000-442-1 02 1 1512-
27 BOLT; BUSHING
RUSSIA EQUIPMENT(B12),VIETNAM EQUIPMENT(JCD), PHILIPPINE EQUIPMENT(WE3) CAB SUSPENSION-FULL FLOATING(SMK) (A) M18X90 		9-91066-890-0 02 1 1512-
31 BRACKET; CAB
(A) 		8-98209-487-0 01 1 1512-
31 BRACKET; CAB
RUSSIA EQUIPMENT(B12),VIETNAM EQUIPMENT(JCD), PHILIPPINE EQUIPMENT(WE3) CAB SUSPENSION-FULL FLOATING(SMK) (B) 		1-53453-274-1 01 1 1512-
31 BRACKET; CAB
RUSSIA EQUIPMENT(B12),VIETNAM EQUIPMENT(JCD), PHILIPPINE EQUIPMENT(WE3) CAB SUSPENSION-FULL FLOATING(SMK) (B) 		1-53453-280-2 01 1 1512-
67 NUT; S/ABS,CAB FRT SUSPENSION
M12 FLANGE 		0-91180-212-0 02 1 1512-
69 BOLT; S/ABS,CAB FRT SUSPENSION
(A) M12X60 		0-20801-260-0 02 1 1512-
69 BOLT; S/ABS,CAB FRT SUSPENSION
(B) M10X105 		1-79198-008-1 08 1 1512-
71 NUT; BRKT TO CAB FRAME
M10 		1-09984-142-0 06 1 1512-
72 WASHER; PL,BRKT TO FRAME
ID=10.5 OD=26 T=2.6 		1-09985-184-0 22 1 1512-
73 WASHER; LK,BRKT TO CAB FRAME
ID=10 		1-09985-185-0 12 1 1512-
98 WASHER; LK,BRKT
ID=10 		1-09985-185-0 04 1 1512-
99 BOLT; BRKT
(A) M8X20 FLANGE 		0-28650-820-0 04 1 1512-
99 BOLT; BRKT
(B) M10X30 W/SP WASHER 		1-09980-546-0 01 1 1512-
105 BOLT; BRKT TO CAB FRAME
M10X30 W/SP WASHER 		1-09980-546-0 14 1 1512-
112 ARM ASM; LINK,CAB FRT SUSP
RUSSIA EQUIPMENT(B12),VIETNAM EQUIPMENT(JCD), PHILIPPINE EQUIPMENT(WE3) CAB SUSPENSION-FULL FLOATING(SMK) 		1-53450-567-8 01 1 1512-
113 BUSHING; RUBBER,FLOATING LINK ARM,W/PI
RUSSIA EQUIPMENT(B12),VIETNAM EQUIPMENT(JCD), PHILIPPINE EQUIPMENT(WE3) CAB SUSPENSION-FULL FLOATING(SMK) 		1-53458-714-0 04 1 1512-
118 WASHER; PL,STOPPER RUBBER,LINK ARM
RUSSIA EQUIPMENT(B12),VIETNAM EQUIPMENT(JCD), PHILIPPINE EQUIPMENT(WE3) CAB SUSPENSION-FULL FLOATING(SMK) ID=19 OD=30 		1-09503-279-0 04 1 1512-
120 NUT; STOPPER RUBBER,LINK ARM
RUSSIA EQUIPMENT(B12),VIETNAM EQUIPMENT(JCD), PHILIPPINE EQUIPMENT(WE3) CAB SUSPENSION-FULL FLOATING(SMK) M18 		0-91110-518-0 02 1 1512-
144 SPRING; COIL,CAB FRT SUSPENSION 1-09580-537-0 02 1 1512-
145 RUBBER; CUSHION,CAB FRT SUSPENSION 1-53366-139-0 02 1 1512-
146 SEAT; SPRING,CAB FRT SUSPENSION 1-53366-138-0 02 1 1512-
192 NUT; BRKT FIX
M10 		1-09984-142-0 05 1 1512-
240 WASHER; PL,BRKT
(A) ID=12.5 OD=22 		0-91610-512-0 02 1 1512-
240 WASHER; PL,BRKT
(B) ID=10.5 OD=26 T=2.6 		1-09985-184-0 04 1 1512-
315 WASHER; CAB MTG
RUSSIA EQUIPMENT(B12),VIETNAM EQUIPMENT(JCD), PHILIPPINE EQUIPMENT(WE3) CAB SUSPENSION-FULL FLOATING(SMK) ID=34.5 		1-53458-281-1 04 1 1512-
çizim 514238
294 202 202 203 204 205 204 203 201 173 203 204 205 66 174 205 204 203 202 202
BalonParca AdiParca NoAdetTipApplied Date
66 BRACKET; S/ABS 8-98214-572-0 01 1 1512-
66 BRACKET; S/ABS 1-53458-786-0 01 1 1512-
173 MEMBER; CAB MTG RR
RUSSIA EQUIPMENT(B12) CAB SUSPENSION-FULL FLOATING(SMK) 		8-98169-447-0 01 1 1512-
173 MEMBER; CAB MTG RR
VIETNAM EQUIPMENT(JCD),PHILIPPINE EQUIPMENT(WE3) CAB SUSPENSION-FULL FLOATING(SMK) 		8-98166-348-0 01 1 1512-
174 OUTRIGGER 8-97614-275-1 01 1 1512-
174 OUTRIGGER 8-98198-712-2 01 1 1512-
201 ABSORBER ASM; SHOCK,RR MTG 1-51630-728-1 02 1 1512-
202 NUT; S/ABS
(C) M10 FLANGE 		0-91180-110-0 02 1 1512-
202 NUT; S/ABS
(A) M10 		9-09110-410-0 04 1 1512-
202 NUT; S/ABS
(B) M10 		9-09111-410-0 06 1 1512-
203 WASHER; RUBBER,SHOCK
(A) ID=10.8 OD=38 T=6 		1-51631-005-0 10 1 1512-
203 WASHER; RUBBER,SHOCK
(B) ID=10 OD=38 T=5 		1-51631-104-0 02 1 1512-
204 RUBBER; CUSHION,SHOCK 1-51631-004-0 12 1 1512-
205 WASHER; RUBBER,SHOCK 1-51631-079-0 08 1 1512-
294 MEMBER; FLOATING 1-53454-950-3 01 1 1512-

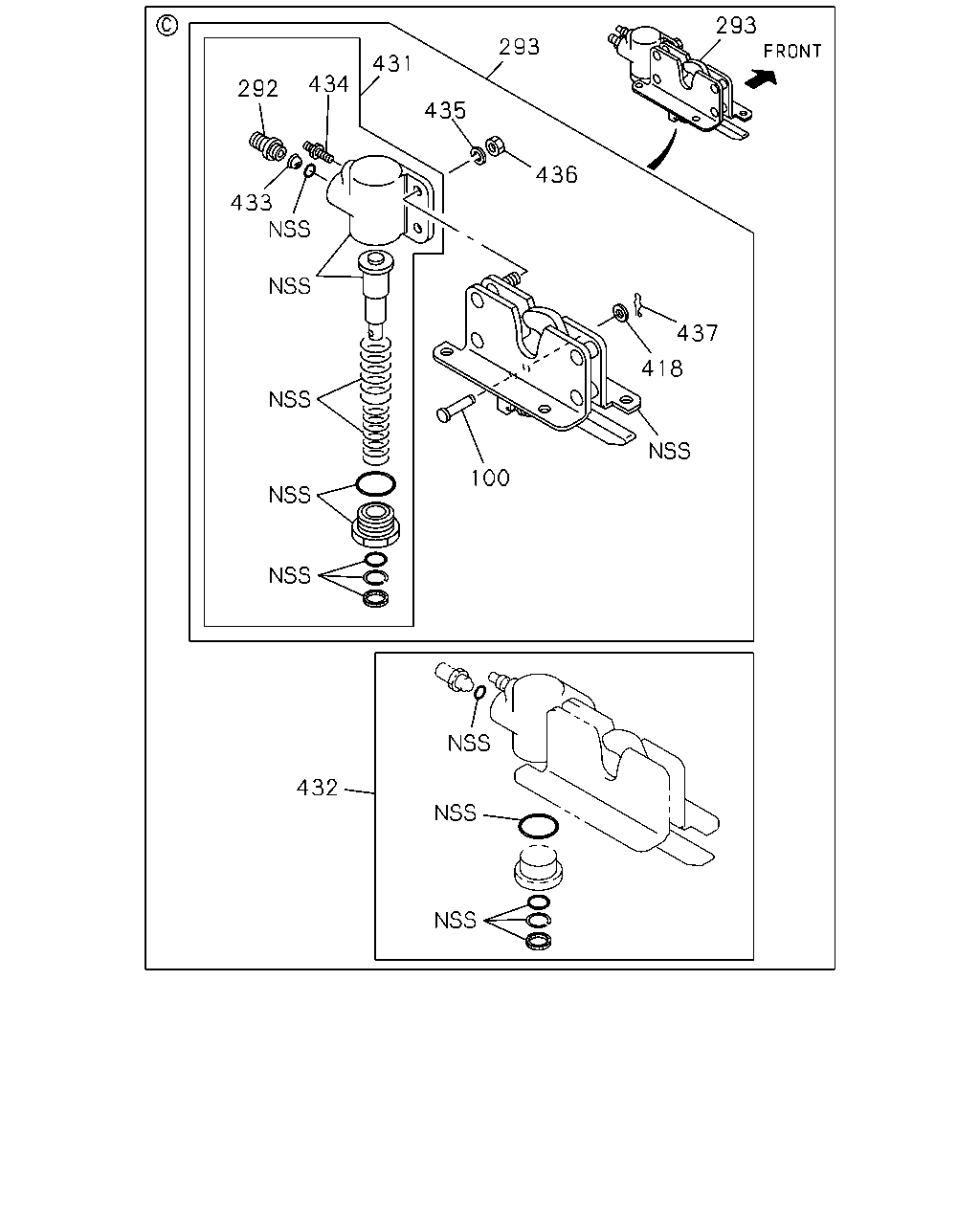

çizim 514291
292 434 433 431 435 436 293 293 437 418 100 432
BalonParca AdiParca NoAdetTipApplied Date
100 PIN; JOINT 1-53458-831-0 01 1 1512-
292 CONNECTOR; CAB SUSPENSION
M12 		1-53458-941-0 01 1 1512-
293 RATCH; CAB SUSP,RR 1-53458-918-0 01 1 1512-
418 WASHER; PL,PIN 1-53458-059-0 01 1 1512-
431 CYLINDER; AIR,RATCH 1-53457-013-0 01 1 1512-
432 REPAIR KIT; AIR CYL 1-85579-052-0 01 1 1512-
433 FILTER; AIR CYL 1-53458-048-0 01 1 1512-
434 SCREW; AIR BLEEDER 1-53458-529-0 01 1 1512-
435 WASHER; LK,AIR CYL
ID=10.2 		9-09150-510-0 02 1 1512-
436 NUT; AIR CYL 1-53458-528-0 02 1 1512-
437 PIN; SNAP 1-53458-526-0 01 1 1512-
çizim 514314
69 70 72 202 202 203 204 205 204 203 65
BalonParca AdiParca NoAdetTipApplied Date
65 ABSORBER; SHOCK,CAB FRT SUSPENSION 1-51630-604-1 02 1 1512-
69 BOLT; S/ABS,CAB FRT SUSPENSION
(A) M12X60 		0-20801-260-0 02 1 1512-
69 BOLT; S/ABS,CAB FRT SUSPENSION
(B) M10X105 		1-79198-008-1 08 1 1512-
70 BRACKET; S/ABS,CAB FRT SUSP 1-53458-492-1 01 1 1512-
70 BRACKET; S/ABS,CAB FRT SUSP 1-53458-493-1 01 1 1512-
72 WASHER; PL,BRKT TO FRAME
ID=10.5 OD=26 T=2.6 		1-09985-184-0 22 1 1512-
202 NUT; S/ABS
(C) M10 FLANGE 		0-91180-110-0 02 1 1512-
202 NUT; S/ABS
(A) M10 		9-09110-410-0 04 1 1512-
202 NUT; S/ABS
(B) M10 		9-09111-410-0 06 1 1512-
203 WASHER; RUBBER,SHOCK
(A) ID=10.8 OD=38 T=6 		1-51631-005-0 10 1 1512-
203 WASHER; RUBBER,SHOCK
(B) ID=10 OD=38 T=5 		1-51631-104-0 02 1 1512-
204 RUBBER; CUSHION,SHOCK 1-51631-004-0 12 1 1512-
205 WASHER; RUBBER,SHOCK 1-51631-079-0 08 1 1512-

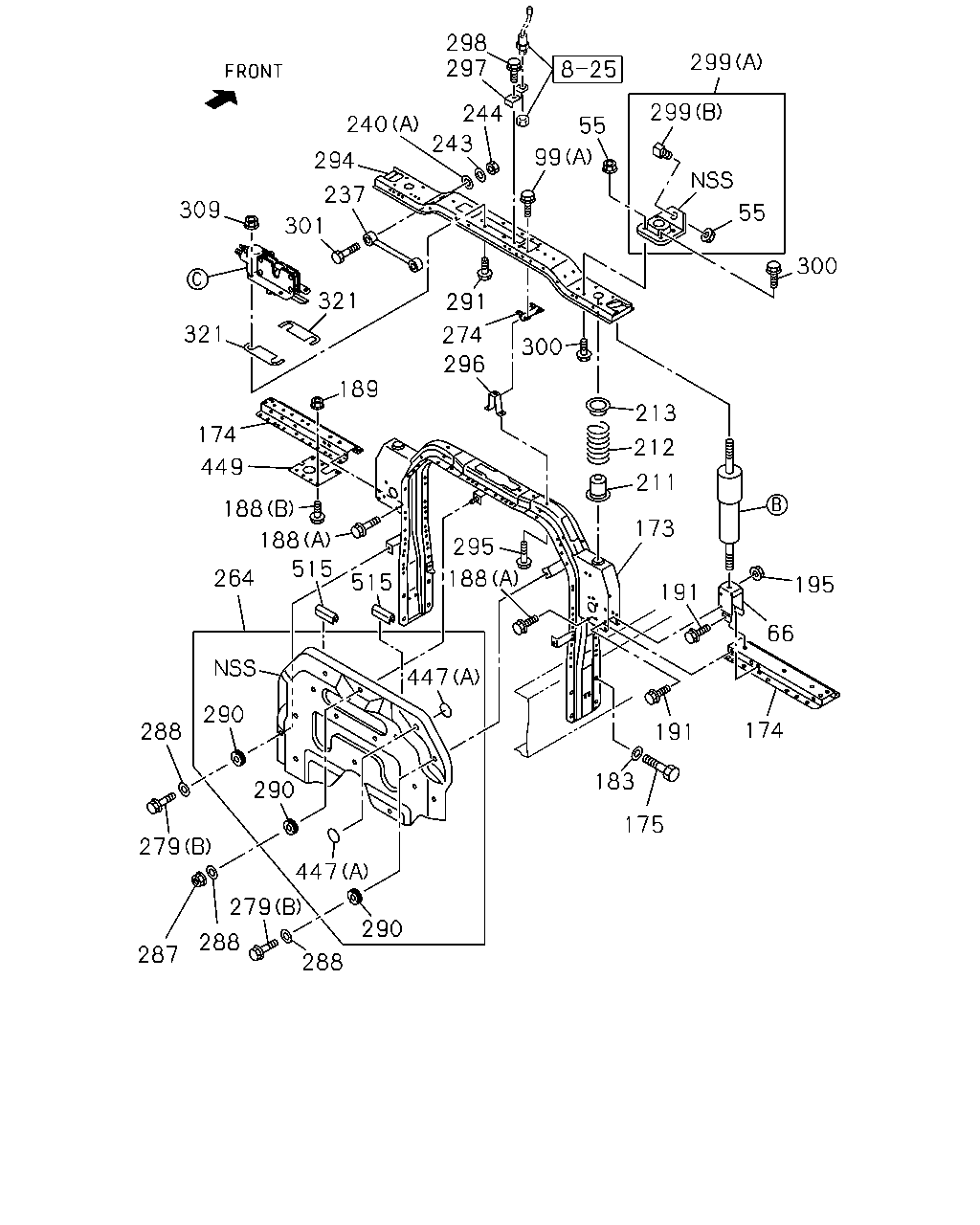

çizim 514348
240 294 237 301 309 321 174 449 188 188 515 515 264 290 288 279 279 290 447 447 188 295 296 321 189 291 274 300 99 55 298 297 244 243 299 299 55 300 213 211 212 173 191 191 183 175 174 290 288 288 287 195 66
BalonParca AdiParca NoAdetTipApplied Date
55 NUT; RUBBER
M8 FLANGE 		0-91180-108-0 06 1 1512-
66 BRACKET; S/ABS 8-98214-572-0 01 1 1512-
66 BRACKET; S/ABS 1-53458-786-0 01 1 1512-
99 BOLT; BRKT
(A) M8X20 FLANGE 		0-28650-820-0 04 1 1512-
99 BOLT; BRKT
(B) M10X30 W/SP WASHER 		1-09980-546-0 01 1 1512-
173 MEMBER; CAB MTG RR
RUSSIA EQUIPMENT(B12) CAB SUSPENSION-FULL FLOATING(SMK) 		8-98169-447-0 01 1 1512-
173 MEMBER; CAB MTG RR
VIETNAM EQUIPMENT(JCD),PHILIPPINE EQUIPMENT(WE3) CAB SUSPENSION-FULL FLOATING(SMK) 		8-98166-348-0 01 1 1512-
174 OUTRIGGER 8-97614-275-1 01 1 1512-
174 OUTRIGGER 8-98198-712-2 01 1 1512-
175 BOLT; MEMBER TO FRAME
M14X40 		0-20951-440-0 08 1 1512-
183 WASHER; PL,MEMBER
ID=15 		8-98010-627-1 08 1 1512-
188 BOLT; OUTRIGGER
(B) M10X20 FLANGE 		0-28651-020-0 04 1 1512-
188 BOLT; OUTRIGGER
(A) M10X25 FLANGE 		0-28651-025-0 08 1 1512-
189 NUT; OUTRIGGER
M10 FLANGE 		0-91180-210-0 04 1 1512-
191 BOLT; BRKT FIX
M10X25 FLANGE 		0-28651-025-0 07 1 1512-
195 NUT; BRKT FIX
M10 FLANGE 		0-91180-210-0 04 1 1512-
211 RUBBER; CUSHION,S/ABS 1-53366-128-0 02 1 1512-
212 SPRING; COIL 1-09580-515-0 02 1 1512-
213 SEAT; SPR,S/ABS 1-53366-132-1 02 1 1512-
237 ROD ASM; LATERAL 1-53458-343-0 01 1 1512-
240 WASHER; PL,BRKT
(A) ID=12.5 OD=22 		0-91610-512-0 02 1 1512-
240 WASHER; PL,BRKT
(B) ID=10.5 OD=26 T=2.6 		1-09985-184-0 04 1 1512-
243 WASHER; LK,LATERAL ROD
ID=12.2 		0-91510-512-0 02 1 1512-
244 NUT; LATERAL ROD
M12 		0-91110-512-0 02 1 1512-
264 PANEL; BACK
RUSSIA EQUIPMENT(B12) 		1-53194-511-2 01 1 1512-
274 PIN 1-53458-996-0 01 1 1512-
279 BOLT
(A) M12X40 FLANGE 		8-98270-173-0 04 1 1512-
279 BOLT
RUSSIA EQUIPMENT(B12) (B) M8X25 FLANGE 		0-28650-825-0 02 1 1512-
287 NUT
RUSSIA EQUIPMENT(B12) M8 FLANGE 		0-91180-108-0 01 1 1512-
288 WASHER; PL
RUSSIA EQUIPMENT(B12) ID=8.4 OD=26 		0-91614-808-0 03 1 1512-
290 RUBBER; MTG
RUSSIA EQUIPMENT(B12) 		1-53459-702-1 03 1 1512-
291 BOLT; RATCH
M10X25 FLANGE 		0-28651-025-0 04 1 1512-
294 MEMBER; FLOATING 1-53454-950-3 01 1 1512-
295 BOLT; STOPPER,UPR
M10X20 FLANGE 		0-28651-020-0 02 1 1512-
296 STOPPER; UPR 1-53458-973-1 01 1 1512-
297 BRACKET; LIMIT SW 1-53458-782-0 01 1 1512-
298 BOLT; BRKT
M8X20 FLANGE 		0-28650-820-0 01 1 1512-
299 RUBBER; MTG
(B) 		1-53366-155-0 02 1 1512-
299 RUBBER; MTG
(A) 		1-53366-194-0 02 1 1512-
300 BOLT; MTG RUBBER
M8X25 W/LK&PL WASHER 		1-09030-027-0 08 1 1512-
301 PIN; LATERAL ROD
M12X57.5 		1-53459-498-1 02 1 1512-
309 NUT
M10 FLANGE 		0-91180-210-0 04 1 1512-
321 SHIM; FRT CAB MTG 1-53458-629-1 04 1 1512-
447 SEAL
(B) OD=25 BLACK 		1-76798-019-0 03 1 1512-
447 SEAL
RUSSIA EQUIPMENT(B12) (A) OD=45 BLACK 		1-76798-017-0 02 1 1512-
449 BRACKET; OUTRIGGER 1-53456-279-0 01 1 1512-
515 FINISHER; BACK PANEL
RUSSIA EQUIPMENT(B12) L=150 		1-76710-004-0 01 1 1512-
515 FINISHER; BACK PANEL
RUSSIA EQUIPMENT(B12) L=300 		1-76710-006-0 01 1 1512-
