5-01 — FRAME AND OTHER PARTS
(#176350) — 56 parça
◀

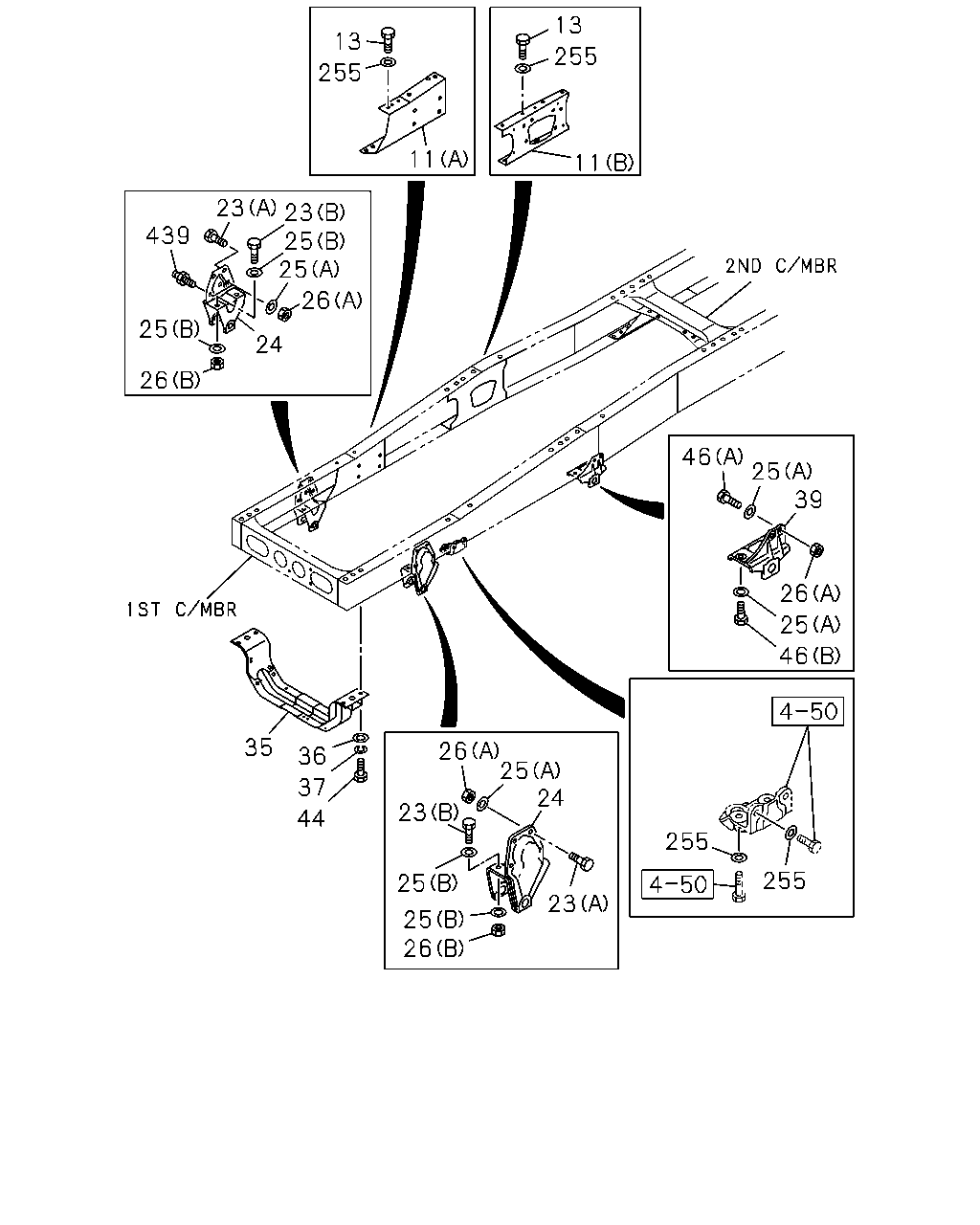

[501A] BRACKET FRONT AND UNDER MEMBER (23 parça)
[501A] BRACKET REAR (12 parça)
[501A] CROSS MEMBER AND OUTRIGGER (21 parça)
▶
13
255
11
13
255
11
23
439
23
25
25
26
24
26
25
46
25
39
26
25
46
255
255
23
25
25
26
23
26
25
24
44
37
36
35
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
11
BRACKET; ENG MTG
(A)
1-53211-367-1
01
1
1512-
11
BRACKET; ENG MTG
(A)
1-53211-368-1
01
1
1512-
11
BRACKET; ENG MTG
(B)
8-98056-611-1
01
1
1512-
11
BRACKET; ENG MTG
(B)
8-98056-612-0
01
1
1512-
13
BOLT; BRKT,ENG MTG
M14X40
0-20951-440-0
04
1
1512-
23
BOLT; BRKT,SPR
(A) M14X40
0-20951-440-0
06
1
1512-
23
BOLT; BRKT,SPR
(B) M16X50
0-20951-650-0
04
1
1512-
24
BRACKET; FRT SPR,FRT
1-53351-237-1
01
1
1512-
24
BRACKET; FRT SPR,FRT
1-53351-238-1
01
1
1512-
25
WASHER; PL,BRKT
(B) ID=16.2
1-09503-316-0
08
1
1512-
25
WASHER; PL,BRKT
(A) ID=15
8-98010-627-1
16
1
1512-
26
NUT; BRKT,SPR
(A) M14
0-91110-514-0
12
1
1512-
26
NUT; BRKT,SPR
(B) M16
0-91110-516-0
04
1
1512-
35
MEMBER; UNDER
1-53174-263-2
01
1
1512-
36
WASHER; PL,UNDER MBR
ID=17
0-91614-516-0
04
1
1512-
37
WASHER; LK,UNDER MBR
ID=16.2
0-91510-816-0
04
1
1512-
39
BRACKET; FRT SPR,RR
1-53352-179-0
01
1
1512-
39
BRACKET; FRT SPR,RR
1-53352-180-0
01
1
1512-
44
BOLT; UNDER MBR
M16X60
0-20951-660-0
04
1
1512-
46
BOLT; BRKT FIX
(A) M14X40
0-20951-440-0
04
1
1512-
46
BOLT; BRKT FIX
(B) M14X50
0-20951-450-0
04
1
1512-
255
WASHER; PL,BRKT
ID=15
8-98010-627-1
08
1
1512-
439
STUD; BRKT,SPR
M12X25,M14X45 L=81
1-09029-103-0
02
1
1512-

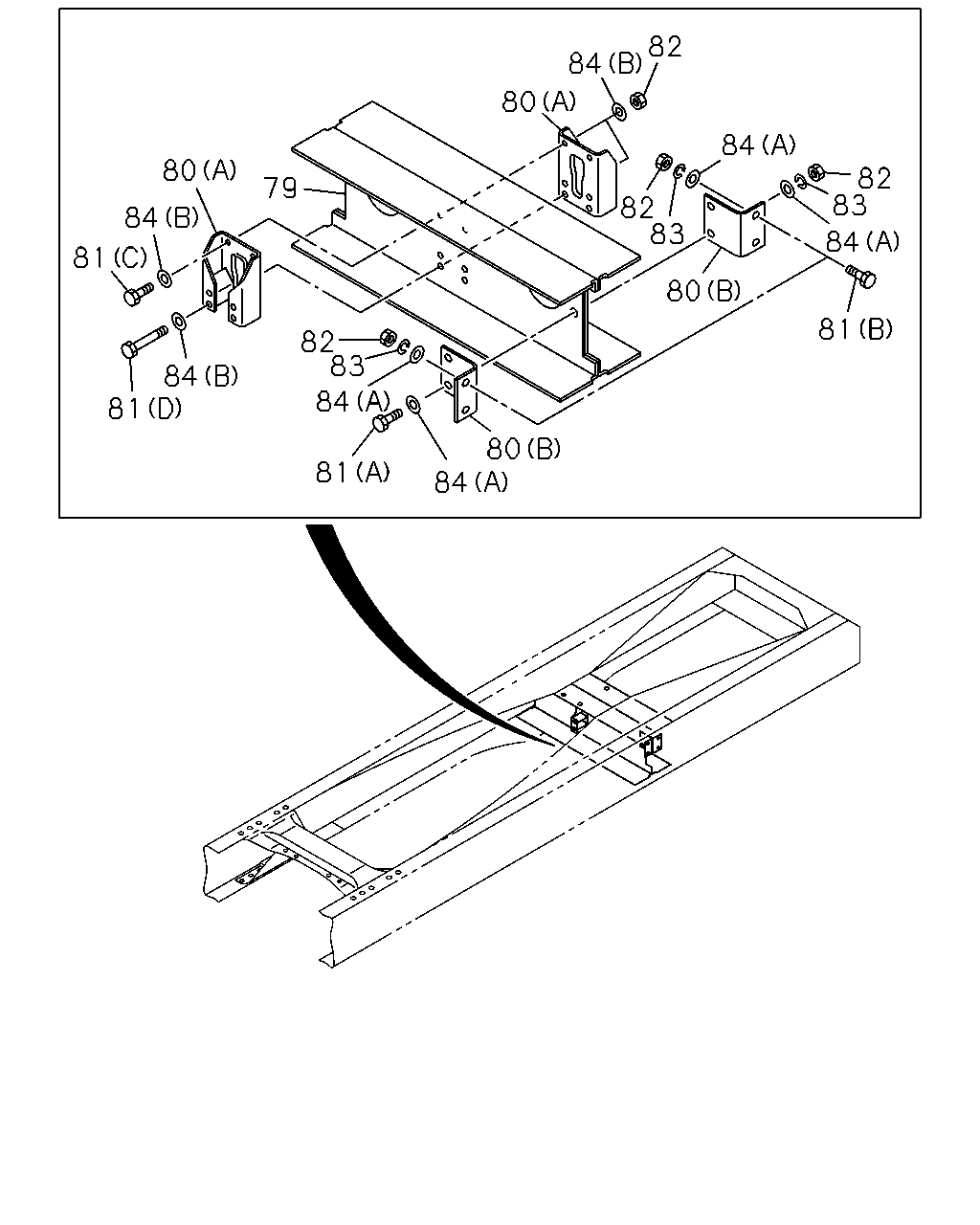

80
84
81
81
84
79
82
84
81
84
80
83
80
84
82
84
82
83
82
83
81
84
80
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
79
MEMBER; CROSS,TRUNNION ASM
8-98226-878-0
01
1
1512-
80
BRACKET; C/MBR
(B)
1-53167-610-0
04
1
1512-
80
BRACKET; C/MBR
(A)
1-53363-031-2
02
1
1512-
81
BOLT; BRKT
(B) M14X40
0-20951-440-0
08
1
1512-
81
BOLT; BRKT
(C) M14X50
0-20951-450-0
02
1
1512-
81
BOLT; BRKT
(A) M14X60
0-20951-460-0
04
1
1512-
81
BOLT; BRKT
(D) M14X205
1-09000-147-0
02
1
1512-
82
NUT; BRKT
M14
0-91110-514-0
04
1
1512-
82
NUT; BRKT
M14
0-91110-514-0
12
1
1512-
83
WASHER; LK,BRKT
ID=14.2
0-91510-814-0
12
1
1512-
84
WASHER; PL,BRKT
(A) ID=15 OD=26
0-91614-514-0
16
1
1512-
84
WASHER; PL,BRKT
(B) ID=15
8-98010-627-1
08
1
1512-

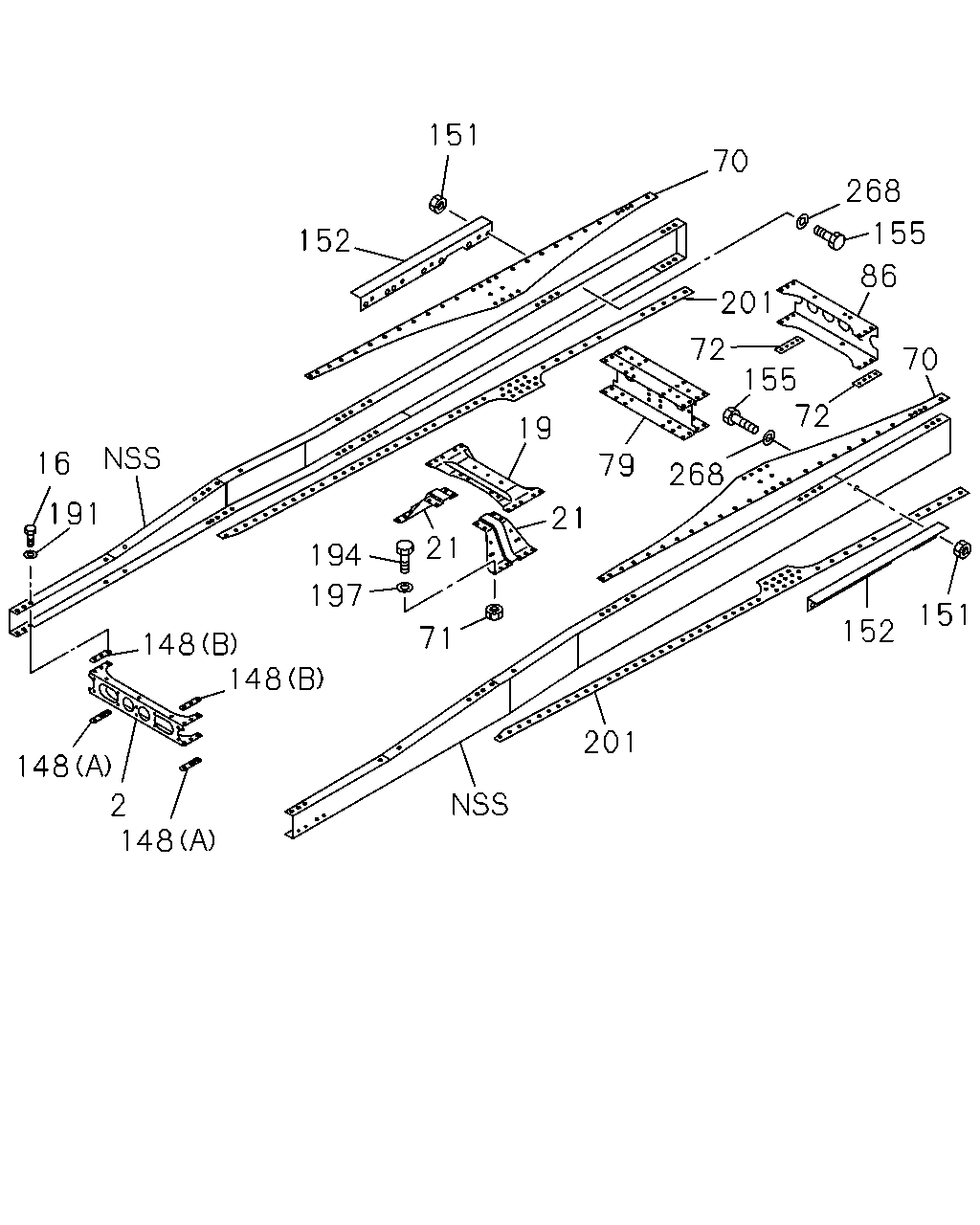

151
70
268
86
155
201
155
72
70
72
152
151
79
268
21
19
21
71
197
194
152
191
16
148
148
148
2
148
201
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
2
MEMBER; CROSS,1ST
8-98226-877-0
01
1
1512-
16
BOLT; 1ST C/MBR TO S/MBR
EXC. FRONT UNDER RUN PROTECTOR<EBE> M16X40
0-20951-640-0
02
1
1512-
19
MEMBER; CROSS,2ND
8-98098-303-0
01
1
1512-
21
GUSSET; 2ND CROSS
8-98098-310-1
01
1
1512-
21
GUSSET; 2ND CROSS
8-98098-311-1
01
1
1512-
70
GUSSET; TRUNNION,UPR
8-98196-471-0
02
1
1512-
71
NUT; 2ND C/MBR
M14
0-91110-514-0
08
1
1512-
72
SPACER; TRUNNION
8-98098-261-0
02
1
1512-
79
MEMBER; CROSS,TRUNNION ASM
8-98226-878-0
01
1
1512-
86
MEMBER; CROSS,RR SUSP RR
8-98047-518-0
01
1
1512-
148
SPACER; C/MBR
(B)
8-98118-884-2
02
1
1512-
148
SPACER; C/MBR
(A)
8-98118-885-0
02
1
1512-
151
NUT; OUTRIGGER
M16
0-91110-516-0
28
1
1512-
152
OUTRIGGER
1-53456-356-1
01
1
1512-
152
OUTRIGGER
1-53456-355-1
01
1
1512-
155
BOLT; OUTRIGGER
M16X50
0-20951-650-0
28
1
1512-
191
WASHER; PL,1ST C/MBR TO S/MBR
EXC. FRONT UNDER RUN PROTECTOR<EBE> ID=16.2
1-09503-316-0
02
1
1512-
194
BOLT; 2ND C/MBR
M14X60
0-20951-460-0
08
1
1512-
197
WASHER; PL,2ND C/MBR
ID=15
8-98010-627-1
08
1
1512-
201
GUSSET; C/MBR
8-98142-064-0
02
1
1512-
268
WASHER; PL,OUTRIGGER
ID=17 OD=30
9-09851-935-0
28
1
1512-
