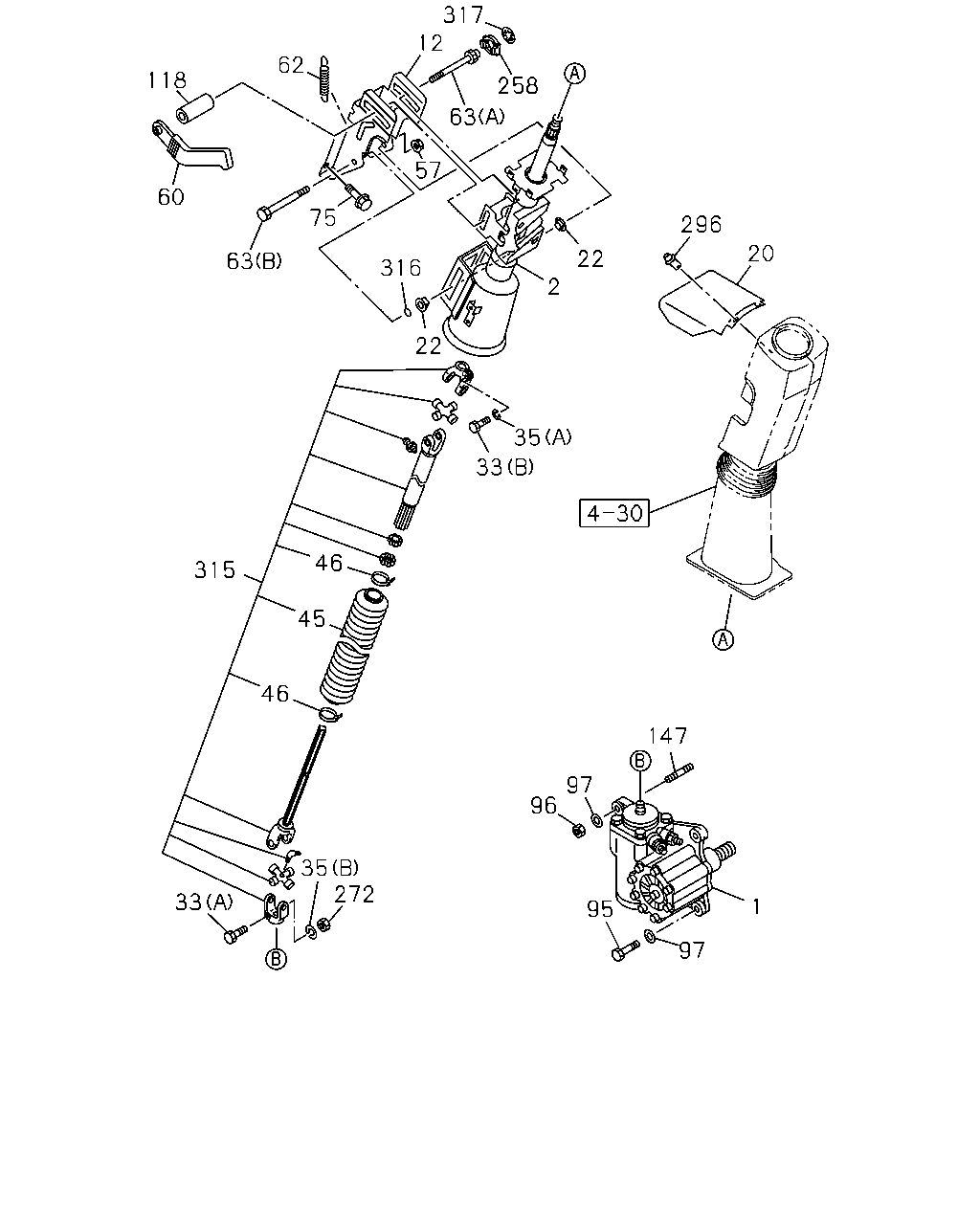

4-31 — STEERING COLUMN AND SHAFT
(#176339) — 28 parça
118
60
63
75
57
63
258
12
317
62
316
22
2
22
296
20
35
33
147
97
96
95
97
1
35
272
33
315
46
45
46
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
1
STEERING UNIT
SEE FIG-NO 4-40 FOR COMPONENT.
1-44000-957-2
01
1
1512-
2
SHAFT ASM; STRG
1-44130-689-1
01
1
1512-
12
BRACKET; LWR,STRG COLUMN
1-44227-167-0
01
1
1512-
20
COVER; STRG SHAFT
1-72438-121-3
01
1
1512-
22
BUSHING; STRG COLUMN
1-44227-150-0
02
1
1512-
33
BOLT; STRG SHAFT TO UNIT
(A) M10X50
1-09000-786-0
01
1
1512-
33
BOLT; STRG SHAFT TO UNIT
(B)
1-44139-153-0
01
1
1512-
35
WASHER; LK,STRG SHAFT
(B) ID=10.2
0-91510-810-0
01
1
1512-
35
WASHER; LK,STRG SHAFT
(A)
1-44139-154-0
01
1
1512-
45
BOOT; STRG SHAFT
1-44139-155-0
01
1
1512-
46
CLIP; BOOT
1-44139-156-0
02
1
1512-
57
NUT; ADJ BOLT
1-44227-151-0
01
1
1512-
60
LEVER; ADJ,STRG COLUMN
1-44227-144-0
01
1
1512-
62
SPRING; LK,LEVER
1-44227-153-0
01
1
1512-
63
BOLT; ADJ LEVER,TILT STRG
(A)
1-44227-145-0
01
1
1512-
63
BOLT; ADJ LEVER,TILT STRG
(B)
1-44227-149-0
01
1
1512-
75
BOLT; STRG COLUMN
M8X20 FLANGE
0-28650-820-0
04
1
1512-
95
BOLT; STRG UNIT
M18X60
8-98036-497-0
03
1
1512-
96
NUT; STRG UNIT
M18
0-91110-518-0
01
1
1512-
97
WASHER; PL,STRG UNIT
ID=18
9-09851-862-0
04
1
1512-
118
NUT; LEVER,TILT BOLT
1-44227-163-0
01
1
1512-
147
STUD; STRG UNIT
M18X49 L=76
1-09300-107-0
01
1
1512-
258
STOPPER; STRG COLUMN,TILT & TELESCOPIC
1-44227-147-0
01
1
1512-
272
NUT; SHAFT TO YOKE
M10
0-91110-510-0
01
1
1512-
296
CLIP; COVER
D6X12.5
8-94146-425-0
02
1
1512-
315
JOINT; SPLINE
1-44135-345-2
01
1
1512-
316
RING
1-44227-152-0
01
1
1512-
317
NUT; PUSH
1-44227-148-0
01
1
1512-
