4-10 — FRONT AXLE (#176334) — 87 parça

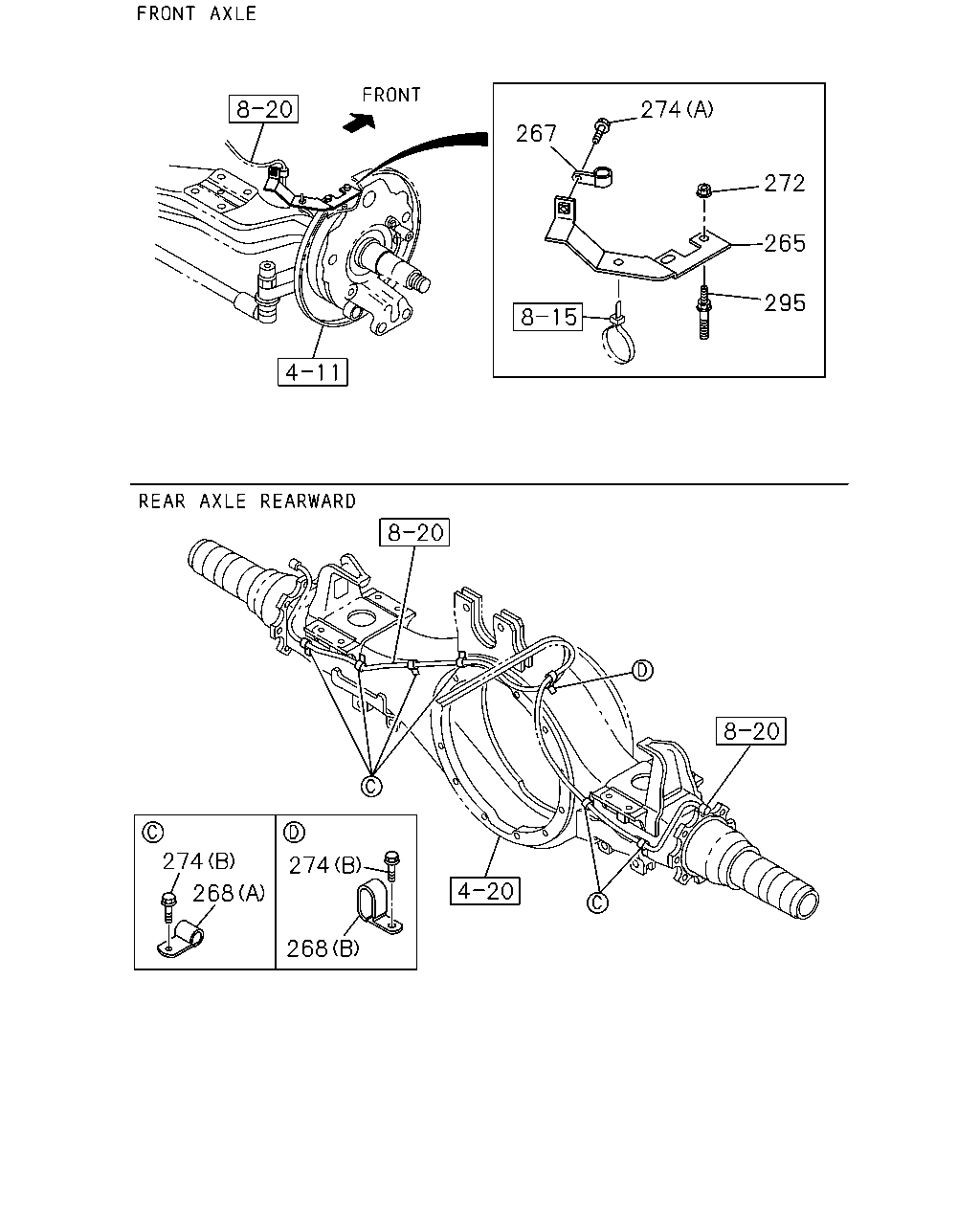

267 274 272 265 295 274 274 268 268

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
265	BRACKET; CLIP I BEAM	1-82698-426-0	01	1	1512-
265	BRACKET; CLIP I BEAM	1-82698-427-0	01	1	1512-
267	CLIP; HARNESS ID=11 L=20	0-95235-035-0	02	1	1512-
268	CLIP; HARNESS (A) ID=11 L=20	0-95235-035-0	06	1	1512-
268	CLIP; HARNESS (B) ID=11X2 L=20	1-09700-871-0	01	1	1512-
272	NUT; CLIP M10 FLANGE	0-91180-110-0	04	1	1512-
274	BOLT; CLIP (B) M8X10 FLANGE	0-28050-810-0	07	1	1512-
274	BOLT; CLIP (A) M8X16 FLANGE	0-28050-816-0	02	1	1512-
295	STUD; COVER,KING PIN M10X20,M10X26 L=56	8-98010-334-0	04	1	1512-

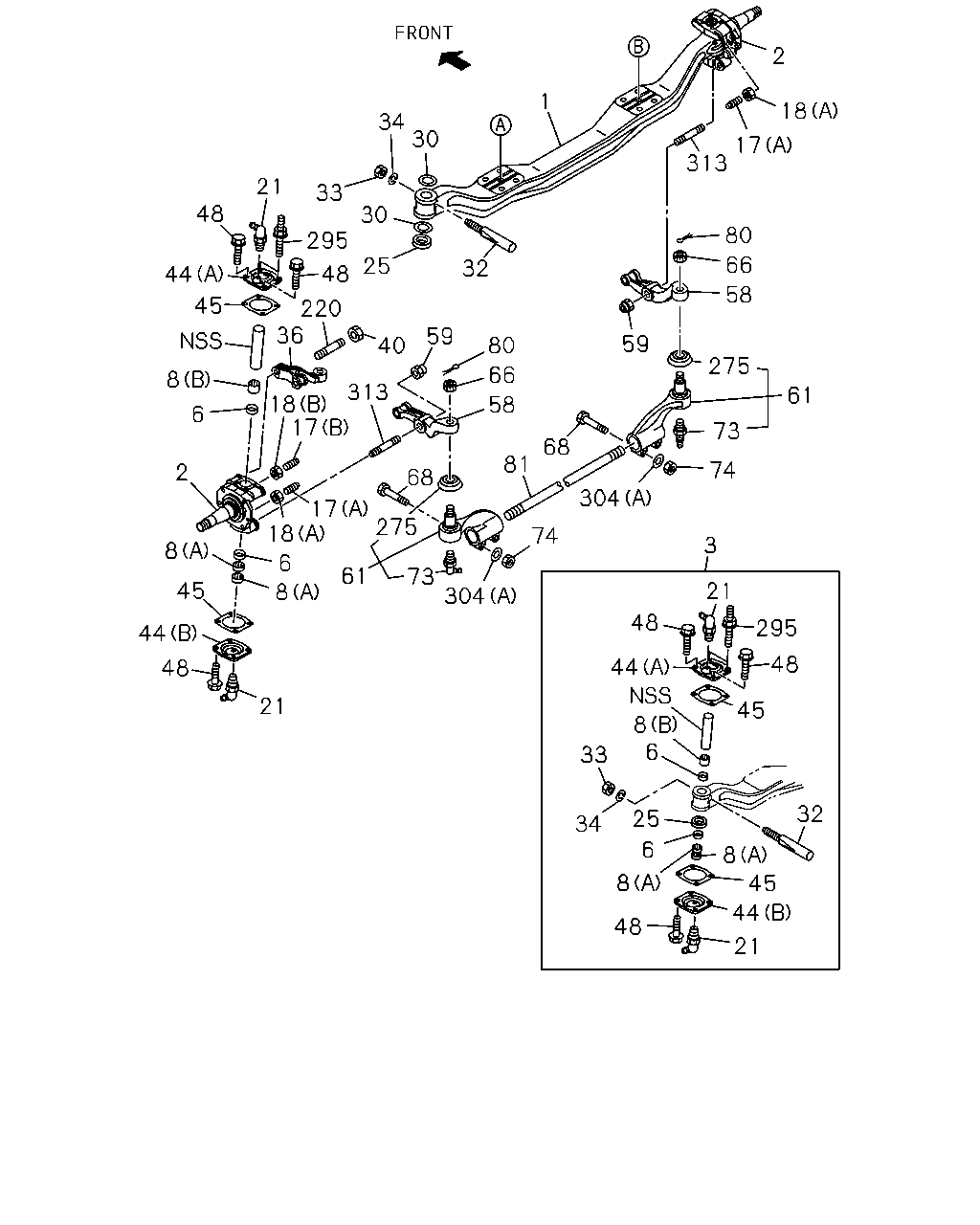

44 21 45 8 32 48 45 295 21 3 48 44 8 6 33 25 34 6 8 48 73 61 8 18 6 21 48 44 8 45 2 6 8 45 44 304 74 73 61 275 58 66 80 313 17 18 2 1 30 34 33 25 30 32 80 58 66 59 40 313 17 18 36 220 48 295 275 17 74 68 81 304 59 21 48 68

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	AXLE; FRT	1-43111-178-3	01	1	1512-
2	KNUCKLE; FRT AXLE	1-43131-120-1	01	1	1512-
2	KNUCKLE; FRT AXLE	1-43132-120-1	01	1	1512-
3	KING PIN SET	1-87831-349-3	02	1	1512-
6	SEAL; KING PIN	9-09926-024-0	04	1	1512-
8	BEARING; NEEDLE,KING PIN (A) NTN	9-00096-242-0	04	1	1512-
8	BEARING; NEEDLE,KING PIN (B) NTN	9-00096-243-0	02	1	1512-
17	BOLT; STOPPER KNUCKLE (B) M18X53	1-09009-066-0	01	1	1512-
17	BOLT; STOPPER KNUCKLE (A) M18X43	1-09009-190-0	02	1	1512-
18	NUT; STOPPER BOLT,KNUCKLE (A) M18	0-91110-518-0	02	1	1512-
18	NUT; STOPPER BOLT,KNUCKLE (B) OCTAGON M18	1-09469-011-1	01	1	1512-
21	NIPPLE; GREASE,KING PIN PT1/8 ELBOW 67.5 DEGREES	0-90301-510-0	04	1	1512-
25	BEARING; THRUST,KING PIN NSK	1-09829-043-2	02	1	1512-
30	WASHER; THRUST,KING PIN T=4.875 -4.900	1-43171-185-0	AR	1	1512-
30	WASHER; THRUST,KING PIN T=4.900 -4.925	1-43171-186-0	AR	1	1512-
30	WASHER; THRUST,KING PIN T=4.925 -4.950	1-43171-187-0	AR	1	1512-
30	WASHER; THRUST,KING PIN T=4.950 -4.975	1-43171-188-0	AR	1	1512-
30	WASHER; THRUST,KING PIN T=4.975 -5.000	1-43171-189-0	AR	1	1512-
30	WASHER; THRUST,KING PIN T=5.000 -5.025	1-43171-190-0	AR	1	1512-
30	WASHER; THRUST,KING PIN T=5.025 -5.050	1-43171-191-0	AR	1	1512-
30	WASHER; THRUST,KING PIN T=5.050 -5.075	1-43171-192-0	AR	1	1512-
30	WASHER; THRUST,KING PIN T=5.075 -5.100	1-43171-193-0	AR	1	1512-
30	WASHER; THRUST,KING PIN T=5.100 -5.125	1-43171-194-0	AR	1	1512-
30	WASHER; THRUST,KING PIN T=5.125 -5.150	1-43171-195-0	AR	1	1512-
30	WASHER; THRUST,KING PIN T=5.150 -5.175	1-43171-196-0	AR	1	1512-
30	WASHER; THRUST,KING PIN T=5.175 -5.200	1-43171-197-0	AR	1	1512-
30	WASHER; THRUST,KING PIN T=5.200 -5.225	1-43171-198-0	AR	1	1512-
30	WASHER; THRUST,KING PIN T=5.225 -5.250	1-43171-199-0	AR	1	1512-
32	BOLT; KEY,KING PIN	1-43116-002-2	02	1	1512-
33	NUT; KEY BOLT M10	0-91110-510-0	02	1	1512-
34	WASHER; LK,KEY BOLT ID=10.2	0-91510-510-0	02	1	1512-
36	ARM; KNUCKLE	1-43133-083-3	01	1	1512-
40	NUT; KNUCKLE ARM M22	1-09449-084-0	02	1	1512-
44	COVER; KING PIN (A)	8-98100-654-0	02	1	1512-
44	COVER; KING PIN (B)	8-98100-655-0	02	1	1512-
45	GASKET; KING PIN COVER	8-98100-656-1	04	1	1512-
48	BOLT; COVER M10X25 FLANGE	0-28751-025-0	12	1	1512-
58	ARM; TIE ROD	8-98145-592-0	01	1	1512-
58	ARM; TIE ROD	8-98145-593-0	01	1	1512-
59	NUT; TIE ROD ARM M22	1-09449-084-0	04	1	1512-
61	ROD END; TIE ROD	8-98228-106-0	01	1	1512-
61	ROD END; TIE ROD	8-98228-107-0	01	1	1512-
66	NUT; TIE ROD END M24	1-09442-032-0	02	1	1512-
68	BOLT; TIE ROD END M12X65	8-98053-922-0	04	1	1512-
73	NIPPLE; GREASE,TIE ROD END	1-43159-133-0	02	1	1512-
74	NUT; TIE ROD END M12	0-91110-512-0	04	1	1512-
80	PIN; SPLIT,ROD END OD=4.6 L=35	0-81125-035-0	02	1	1512-
81	ROD; TIE	8-98105-064-0	01	1	1512-
220	STUD; KNUCKLE ARM M22X145	1-09300-127-1	02	1	1512-
275	BOOT; ROD END,TIE	8-98229-116-0	02	1	1512-
295	STUD; COVER,KING PIN M10X20,M10X26 L=56	8-98010-334-0	04	1	1512-
304	WASHER; PL (A) ID=12.5	0-91614-512-0	04	1	1512-
304	WASHER; PL RUSSIA EQUIPMENT(B12),VIETNAM EQUIPMENT(JCD), PHILIPPINE EQUIPMENT(WE3) FRONT STABILIZER SHAFT<F59> (B) ID=21	0-91614-520-0	02	1	1512-
313	STUD; TIE ROD ARM M22X145	1-09300-127-1	04	1	1512-

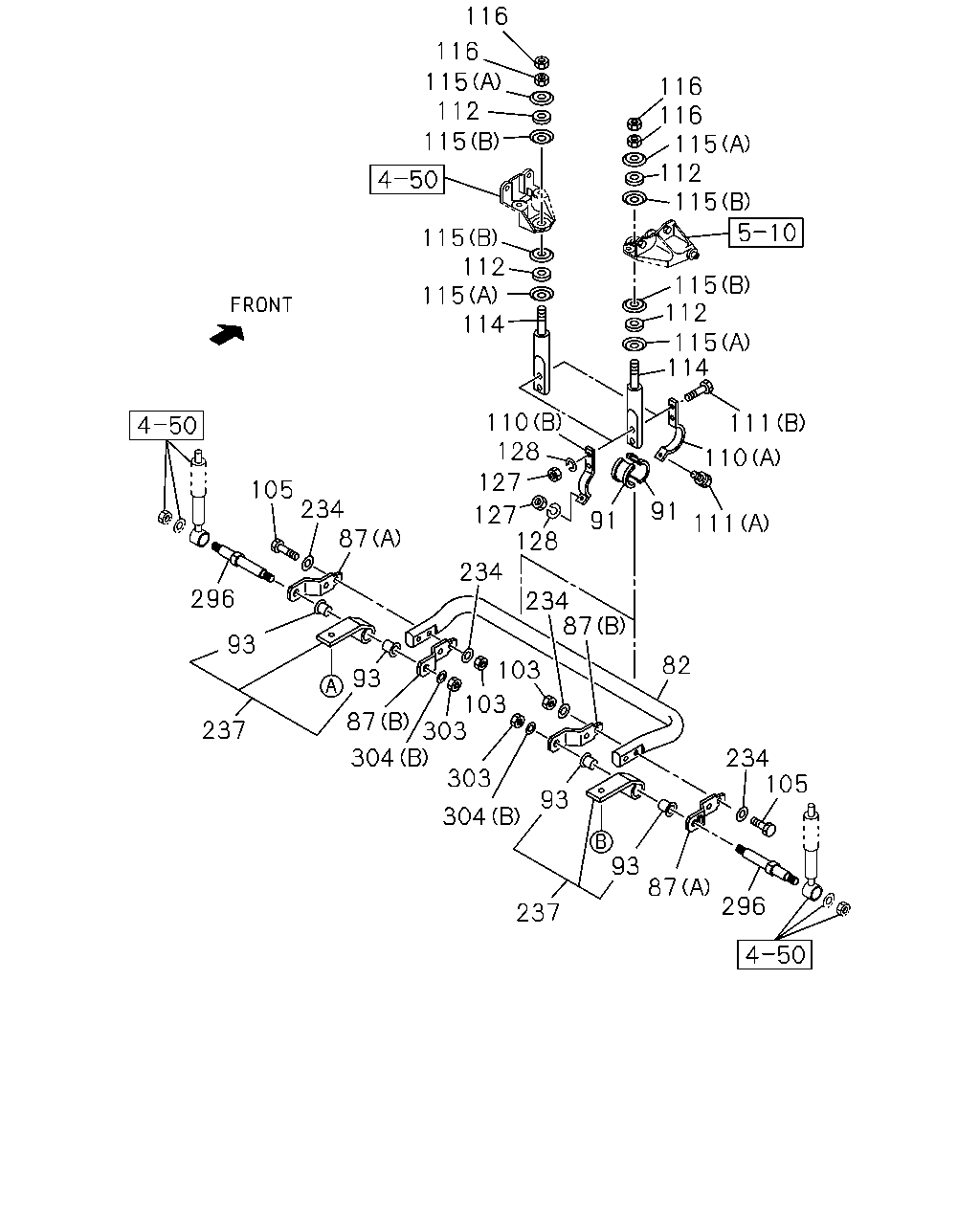

296 87 93 237 304 303 103 93 303 87 237 93 296 87 234 105 114 115 112 115 115 112 115 116 116 116 115 116 112 115 115 112 115 111 114 110 111 91 91 128 127 127 128 110 103 234 82 87 234 234 105 93 304

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
82	BAR; STAB,FRT SUSP RUSSIA EQUIPMENT(B12),VIETNAM EQUIPMENT(JCD), PHILIPPINE EQUIPMENT(WE3) FRONT STABILIZER SHAFT<F59>	1-51771-136-1	01	1	1512-
87	BRACKET; STABILIZER RUSSIA EQUIPMENT(B12),VIETNAM EQUIPMENT(JCD), PHILIPPINE EQUIPMENT(WE3) FRONT STABILIZER SHAFT<F59> (A)	8-98012-958-0	02	1	1512-
87	BRACKET; STABILIZER RUSSIA EQUIPMENT(B12),VIETNAM EQUIPMENT(JCD), PHILIPPINE EQUIPMENT(WE3) FRONT STABILIZER SHAFT<F59> (B)	8-98012-959-0	02	1	1512-
91	BUSHING; RUBBER,STAB BAR RUSSIA EQUIPMENT(B12),VIETNAM EQUIPMENT(JCD), PHILIPPINE EQUIPMENT(WE3) FRONT STABILIZER SHAFT<F59>	1-51779-087-1	04	1	1512-
93	BUSHING; STABILIZER RUSSIA EQUIPMENT(B12),VIETNAM EQUIPMENT(JCD), PHILIPPINE EQUIPMENT(WE3) FRONT STABILIZER SHAFT<F59>	1-51689-015-3	04	1	1512-
103	NUT; BRKT FIX RUSSIA EQUIPMENT(B12),VIETNAM EQUIPMENT(JCD), PHILIPPINE EQUIPMENT(WE3) FRONT STABILIZER SHAFT<F59> M14	0-91110-514-0	04	1	1512-
105	BOLT; BRKT FIX RUSSIA EQUIPMENT(B12),VIETNAM EQUIPMENT(JCD), PHILIPPINE EQUIPMENT(WE3) FRONT STABILIZER SHAFT<F59> M14X70	0-10956-470-0	04	1	1512-
110	CLAMP; STAB TO ROD RUSSIA EQUIPMENT(B12),VIETNAM EQUIPMENT(JCD), PHILIPPINE EQUIPMENT(WE3) FRONT STABILIZER SHAFT<F59> (A)	1-51789-027-2	02	1	1512-
110	CLAMP; STAB TO ROD RUSSIA EQUIPMENT(B12),VIETNAM EQUIPMENT(JCD), PHILIPPINE EQUIPMENT(WE3) FRONT STABILIZER SHAFT<F59> (B)	1-51789-028-1	02	1	1512-
111	BOLT; CLAMP TO ROD RUSSIA EQUIPMENT(B12),VIETNAM EQUIPMENT(JCD), PHILIPPINE EQUIPMENT(WE3) FRONT STABILIZER SHAFT<F59> (A) M12X30	0-20851-230-0	02	1	1512-
111	BOLT; CLAMP TO ROD RUSSIA EQUIPMENT(B12),VIETNAM EQUIPMENT(JCD), PHILIPPINE EQUIPMENT(WE3) FRONT STABILIZER SHAFT<F59> (B) M12X50	0-20851-250-0	04	1	1512-
112	BUSHING; ROD FRONT STABILIZER SHAFT<F59>	9-51631-039-0	04	1	1512-
114	ROD; STAB BAR RUSSIA EQUIPMENT(B12),VIETNAM EQUIPMENT(JCD), PHILIPPINE EQUIPMENT(WE3) FRONT STABILIZER SHAFT<F59>	1-51773-072-2	02	1	1512-
115	WASHER; CENTER,STAB TO FRAME FRONT STABILIZER SHAFT<F59> (A) ID=16.5	9-51631-040-0	04	1	1512-
115	WASHER; CENTER,STAB TO FRAME FRONT STABILIZER SHAFT<F59> (B) ID=20.8	9-51631-041-0	04	1	1512-
116	NUT; LK,STAB TO FRAME FRONT STABILIZER SHAFT<F59> M14	0-91111-514-0	04	1	1512-
127	NUT; CLAMP RUSSIA EQUIPMENT(B12),VIETNAM EQUIPMENT(JCD), PHILIPPINE EQUIPMENT(WE3) FRONT STABILIZER SHAFT<F59> M12	0-91110-512-0	06	1	1512-
128	WASHER; LK,CLAMP RUSSIA EQUIPMENT(B12),VIETNAM EQUIPMENT(JCD), PHILIPPINE EQUIPMENT(WE3) FRONT STABILIZER SHAFT<F59> ID=12.2	0-91510-812-0	06	1	1512-
234	WASHER; STAB RUSSIA EQUIPMENT(B12),VIETNAM EQUIPMENT(JCD), PHILIPPINE EQUIPMENT(WE3) FRONT STABILIZER SHAFT<F59> ID=15	8-98010-627-1	08	1	1512-
237	SUPPORT; STAB BAR RUSSIA EQUIPMENT(B12),VIETNAM EQUIPMENT(JCD), PHILIPPINE EQUIPMENT(WE3) FRONT STABILIZER SHAFT<F59>	1-51681-662-0	02	1	1512-
296	PIN; STAB RUSSIA EQUIPMENT(B12),VIETNAM EQUIPMENT(JCD), PHILIPPINE EQUIPMENT(WE3) FRONT STABILIZER SHAFT<F59>	8-98022-874-1	02	1	1512-
303	NUT; PIN RUSSIA EQUIPMENT(B12),VIETNAM EQUIPMENT(JCD), PHILIPPINE EQUIPMENT(WE3) FRONT STABILIZER SHAFT<F59> M20	0-91110-520-0	02	1	1512-
304	WASHER; PL (A) ID=12.5	0-91614-512-0	04	1	1512-
304	WASHER; PL RUSSIA EQUIPMENT(B12),VIETNAM EQUIPMENT(JCD), PHILIPPINE EQUIPMENT(WE3) FRONT STABILIZER SHAFT<F59> (B) ID=21	0-91614-520-0	02	1	1512-
