◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ EXZ ▶ 11745 - EXZ LHD EURO5 ▶ 3 - Brakes, Brake System ▶ 3-78 - FIXING PARTS; AIR PIPING ▶
3-78 — FIXING PARTS; AIR PIPING (#176330) — 206 parça

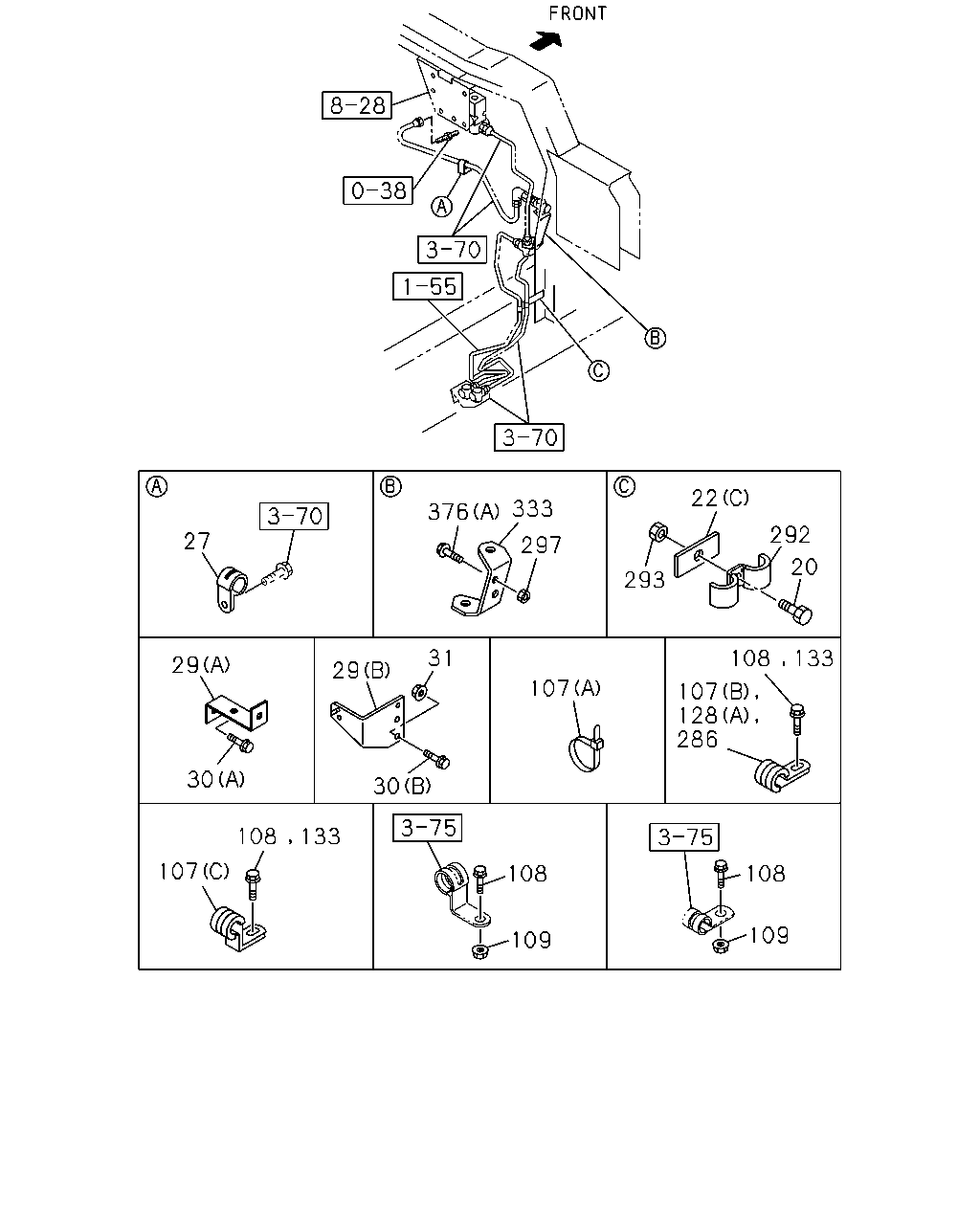

çizim 512753
27 29 376 297 333 22 293 292 20 133 108 107 128 286 107 31 29 30 107 108 133 108 109 108 109 30
BalonParca AdiParca NoAdetTipApplied Date
20 BOLT; CLIP
M8X20 FLANGE 		0-28650-820-0 01 1 1512-
20 BOLT; CLIP
M8X20 FLANGE 		0-28650-820-0 04 1 1512-
22 BRACKET; CLIP
(A) 		1-46147-101-0 02 1 1512-
22 BRACKET; CLIP
(C) L=50 		1-47475-299-2 01 1 1512-
22 BRACKET; CLIP
(D) L=100 H=30 		1-47477-645-2 02 1 1512-
22 BRACKET; CLIP
(E) 		1-47479-554-0 01 1 1512-
22 BRACKET; CLIP
(B) 		8-98174-901-0 01 1 1512-
27 CLIP; FLEX HOSE
ID=11 L=50 		0-95235-085-0 01 1 1512-
29 BRACKET; CLIP,AIR PIPE
(A) 		1-47479-698-0 01 1 1512-
29 BRACKET; CLIP,AIR PIPE
(B) 		8-98169-621-1 01 1 1512-
30 BOLT; CLIP BRKT
(A) M8X30 FLANGE 		0-28650-830-0 01 1 1512-
30 BOLT; CLIP BRKT
(B) M10X25 FLANGE 		0-28651-025-0 01 1 1512-
31 NUT; CLIP BRKT
M10 FLANGE 		0-91180-210-0 01 1 1512-
107 CLIP; NYLON TUBE
(B) ID=35 L=33 		1-09700-945-0 02 1 1512-
107 CLIP; NYLON TUBE
(C) ID=35 H=45 L=33 		1-09700-947-0 01 1 1512-
107 CLIP; NYLON TUBE
(C) ID=35 H=45 L=33 		1-09700-947-0 01 1 1512-
107 CLIP; NYLON TUBE
(B) ID=15 L=28 		1-09701-216-0 01 1 1512-
107 CLIP; NYLON TUBE
(C) ID=45 H=31 L=35 		1-09701-308-0 01 1 1512-
107 CLIP; NYLON TUBE
(A) L=350 		1-09707-183-0 02 1 1512-
107 CLIP; NYLON TUBE
(A) L=350 		1-09707-183-0 15 1 1512-
107 CLIP; NYLON TUBE
(D) ID=13-18 L=14.5 		1-09709-290-0 01 1 1512-
107 CLIP; NYLON TUBE
(D) ID=5-12 L=14.5 		1-09987-221-0 02 1 1512-
108 BOLT; TUBE CLIP
M8X20 FLANGE 		0-28650-820-0 02 1 1512-
108 BOLT; TUBE CLIP
M8X20 FLANGE 		0-28650-820-0 01 1 1512-
108 BOLT; TUBE CLIP
M8X20 FLANGE 		0-28650-820-0 01 1 1512-
108 BOLT; TUBE CLIP
M8X25 FLANGE 		0-28650-825-0 02 1 1512-
108 BOLT; TUBE CLIP
M8X25 FLANGE 		0-28650-825-0 01 1 1512-
108 BOLT; TUBE CLIP
M8X30 FLANGE 		0-28650-830-0 01 1 1512-
108 BOLT; TUBE CLIP
M8X35 FLANGE 		0-28650-835-0 01 1 1512-
109 NUT; TUBE CLIP
M8 FLANGE 		0-91180-108-0 03 1 1512-
109 NUT; TUBE CLIP
M8 FLANGE 		0-91180-108-0 01 1 1512-
109 NUT; TUBE CLIP
M8 FLANGE 		0-91180-108-0 01 1 1512-
128 CLIP; NYLON TUBE
(A) ID=24 L=27 		1-09700-809-0 01 1 1512-
128 CLIP; NYLON TUBE
(B) ID=16 H=25 L=25 		1-09701-162-0 01 1 1512-
128 CLIP; NYLON TUBE
(C) L=350 		1-09707-183-0 10 1 1512-
133 BOLT; BRKT
M6X10 FLANGE 		0-28050-610-0 01 1 1512-
133 BOLT; BRKT
M8X20 FLANGE 		0-28650-820-0 04 1 1512-
133 BOLT; BRKT
M8X25 FLANGE 		0-28650-825-0 08 1 1512-
133 BOLT; BRKT
M8X30 FLANGE 		0-28650-830-0 12 1 1512-
133 BOLT; BRKT
M8X35 FLANGE 		0-28650-835-0 02 1 1512-
286 CLIP; NYLON TUBE
ID=15 L=28 		1-09701-216-0 01 1 1512-
292 CLIP; AIR PIPE
ID=7 & 7 L=17.5 & 17.5 		1-09700-745-0 01 1 1512-
293 NUT; CLIP
M8 FLANGE 		0-91180-108-0 01 1 1512-
297 NUT; BRKT
M8 FLANGE 		0-91180-108-0 02 1 1512-
297 NUT; BRKT
M8 FLANGE 		0-91180-108-0 07 1 1512-
333 BRACKET; BRK AIR PIPE 1-47477-045-0 01 1 1512-
376 BOLT; BRKT
(A) M8X25 FLANGE 		0-28650-825-0 02 1 1512-
376 BOLT; BRKT
(B) M6X19.5 W/LK&PL WASHER 		8-94279-201-0 01 1 1512-
376 BOLT; BRKT
(B) M6X19.5 W/LK&PL WASHER 		8-94279-201-0 03 1 1512-
376 BOLT; BRKT
(C) M8X24.5 W/LK&PL WASHER 		8-98059-720-0 03 1 1512-

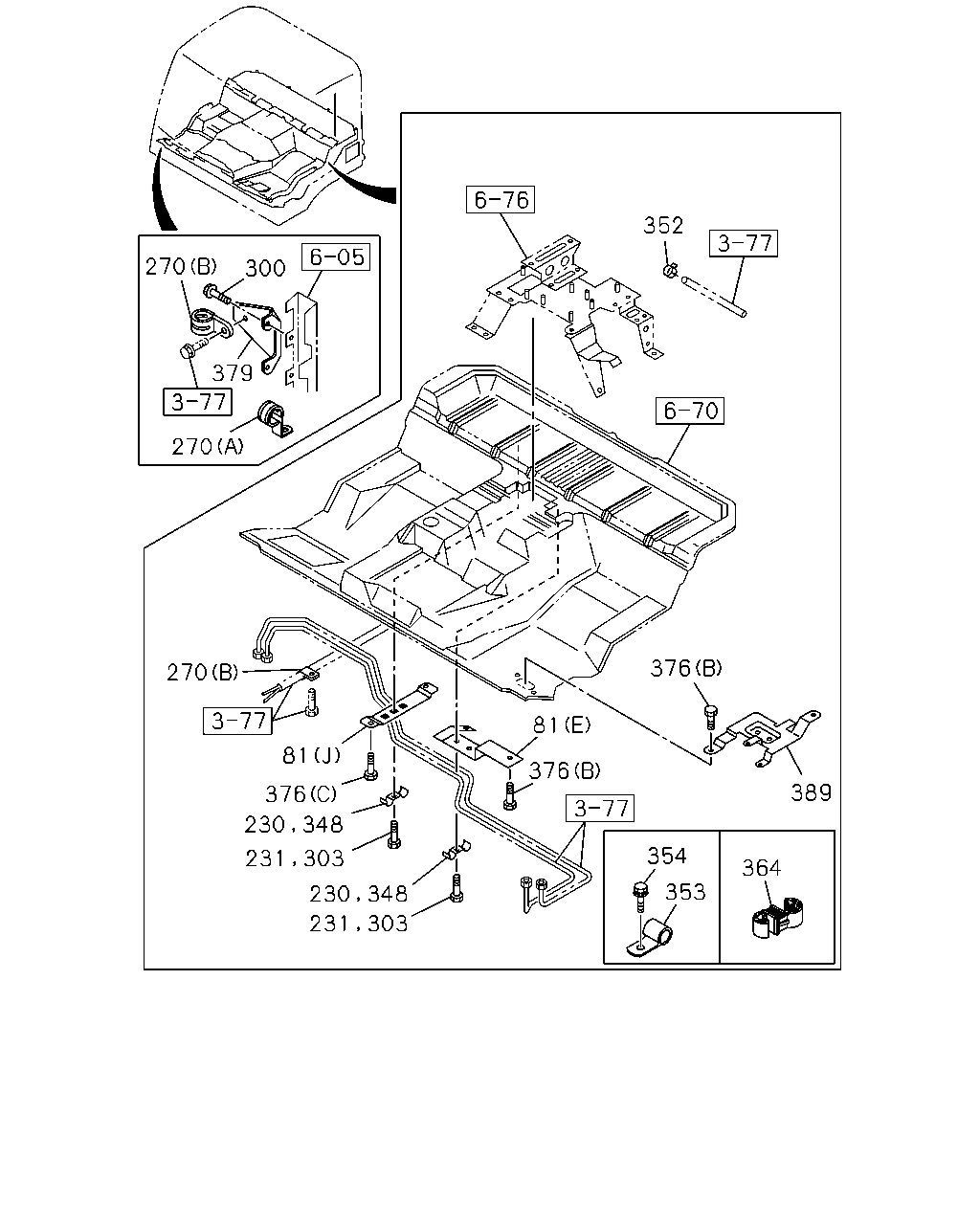

çizim 513085
270 300 270 379 270 81 376 230 303 231 230 348 348 303 231 376 81 376 389 353 354 364 352
BalonParca AdiParca NoAdetTipApplied Date
81 BRACKET; CLIP
(A) L=150 		1-47471-217-0 02 1 1512-
81 BRACKET; CLIP
(C) L=100 H=30 		1-47477-645-2 02 1 1512-
81 BRACKET; CLIP
(D) 		1-47478-113-0 01 1 1512-
81 BRACKET; CLIP
(E) 		1-79996-133-2 01 1 1512-
81 BRACKET; CLIP
(F) 		8-98052-412-0 01 1 1512-
81 BRACKET; CLIP
(G) 		8-98052-413-0 01 1 1512-
81 BRACKET; CLIP
(H) 		8-98052-414-0 01 1 1512-
81 BRACKET; CLIP
(I) 		8-98052-415-0 01 1 1512-
81 BRACKET; CLIP
(B) 		8-98061-758-0 02 1 1512-
81 BRACKET; CLIP
(J) 		1-79996-127-2 01 1 1512-
230 CLIP; PIPE,AIR
ID=11 & 9 L=15 & 15 		1-09700-062-0 03 1 1512-
231 BOLT; CLIP
M6X19.5 W/LK&PL WASHER 		8-94279-201-0 03 1 1512-
270 CLIP; NYLON TUBE
(A) ID=27.5 H=23 L=24 		1-09700-863-0 01 1 1512-
270 CLIP; NYLON TUBE
(B) ID=28 L=32 		1-09701-107-1 03 1 1512-
270 CLIP; NYLON TUBE
(C) ID=16 H=25 L=25 		1-09701-162-0 02 1 1512-
300 BOLT; TUBE CLIP
M8X20.5 W/LK&PL WASHER 		8-94279-207-0 02 1 1512-
303 BOLT; PIPE CLIP
M6X19.5 W/LK&PL WASHER 		8-94279-201-0 03 1 1512-
348 CLIP; AIR PIPE
ID=9 & 9 L=15 & 15 		1-09700-061-0 03 1 1512-
352 CLIP; EXH HOSE
ID=14 		8-94238-572-0 02 1 1512-
353 CLIP; AIR PIPE
ID=9 L=16 		0-95234-822-0 01 1 1512-
354 BOLT; PIPE CLIP
M6X19.5 W/LK&PL WASHER 		8-94279-201-0 01 1 1512-
364 CLIP; AIR PIPE
ID=8.3 & 10 		8-94176-792-0 01 1 1512-
376 BOLT; BRKT
(A) M8X25 FLANGE 		0-28650-825-0 02 1 1512-
376 BOLT; BRKT
(B) M6X19.5 W/LK&PL WASHER 		8-94279-201-0 01 1 1512-
376 BOLT; BRKT
(B) M6X19.5 W/LK&PL WASHER 		8-94279-201-0 03 1 1512-
376 BOLT; BRKT
(C) M8X24.5 W/LK&PL WASHER 		8-98059-720-0 03 1 1512-
379 BRACKET; NYLON TUBE 1-79996-110-2 01 1 1512-
389 BRACKET; UNION 1-79738-795-1 01 1 1512-

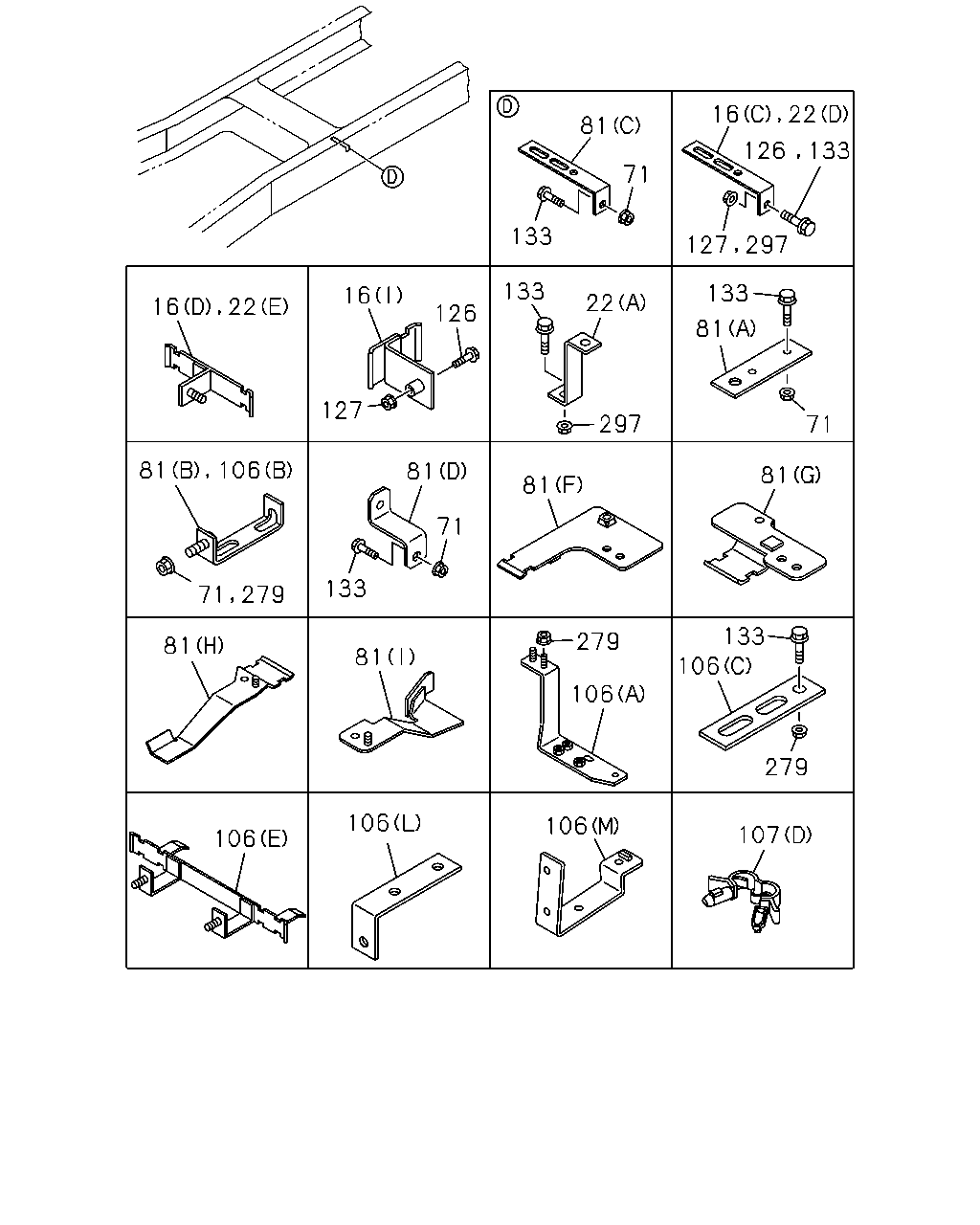

çizim 513192
16 22 81 106 81 279 71 81 106 106 133 81 71 81 127 126 16 279 106 106 106 107 279 133 81 297 22 133 133 81 71 16 133 22 126 297 71 81 133 127
BalonParca AdiParca NoAdetTipApplied Date
16 BRACKET; PIPE CLIP
(A) 		1-47471-309-0 01 1 1512-
16 BRACKET; PIPE CLIP
(B) L=85 H=40 		1-47476-676-0 01 1 1512-
16 BRACKET; PIPE CLIP
(C) L=100 H=30 		1-47477-645-2 01 1 1512-
16 BRACKET; PIPE CLIP
(D) 		1-47479-554-0 01 1 1512-
16 BRACKET; PIPE CLIP
(E) 		1-47479-721-0 01 1 1512-
16 BRACKET; PIPE CLIP
(F) 		1-47479-856-0 01 1 1512-
16 BRACKET; PIPE CLIP
(F) 		1-47479-856-0 01 1 1512-
16 BRACKET; PIPE CLIP
(G) 		1-47479-857-0 01 1 1512-
16 BRACKET; PIPE CLIP
(G) 		1-47479-857-0 01 1 1512-
16 BRACKET; PIPE CLIP
(H) 		1-47479-898-0 01 1 1512-
16 BRACKET; PIPE CLIP
(H) 		1-47479-898-0 01 1 1512-
16 BRACKET; PIPE CLIP
(I) 		8-98054-389-0 01 1 1512-
22 BRACKET; CLIP
(A) 		1-46147-101-0 02 1 1512-
22 BRACKET; CLIP
(C) L=50 		1-47475-299-2 01 1 1512-
22 BRACKET; CLIP
(D) L=100 H=30 		1-47477-645-2 02 1 1512-
22 BRACKET; CLIP
(E) 		1-47479-554-0 01 1 1512-
22 BRACKET; CLIP
(B) 		8-98174-901-0 01 1 1512-
71 NUT; BRKT
M8 FLANGE 		0-91180-108-0 06 1 1512-
81 BRACKET; CLIP
(A) L=150 		1-47471-217-0 02 1 1512-
81 BRACKET; CLIP
(C) L=100 H=30 		1-47477-645-2 02 1 1512-
81 BRACKET; CLIP
(D) 		1-47478-113-0 01 1 1512-
81 BRACKET; CLIP
(E) 		1-79996-133-2 01 1 1512-
81 BRACKET; CLIP
(F) 		8-98052-412-0 01 1 1512-
81 BRACKET; CLIP
(G) 		8-98052-413-0 01 1 1512-
81 BRACKET; CLIP
(H) 		8-98052-414-0 01 1 1512-
81 BRACKET; CLIP
(I) 		8-98052-415-0 01 1 1512-
81 BRACKET; CLIP
(B) 		8-98061-758-0 02 1 1512-
81 BRACKET; CLIP
(J) 		1-79996-127-2 01 1 1512-
106 BRACKET; TUBE CLIP
(A) 		1-47471-108-0 01 1 1512-
106 BRACKET; TUBE CLIP
(C) 		1-47477-514-3 02 1 1512-
106 BRACKET; TUBE CLIP
(D) 		1-47479-381-2 02 1 1512-
106 BRACKET; TUBE CLIP
(E) 		1-47479-553-0 01 1 1512-
106 BRACKET; TUBE CLIP
(F) 		1-47479-870-0 01 1 1512-
106 BRACKET; TUBE CLIP
(I) 		8-98052-409-0 01 1 1512-
106 BRACKET; TUBE CLIP
(J) 		8-98052-410-0 01 1 1512-
106 BRACKET; TUBE CLIP
(K) 		8-98052-411-0 01 1 1512-
106 BRACKET; TUBE CLIP
(B) 		8-98061-758-0 01 1 1512-
106 BRACKET; TUBE CLIP
(M) 		8-98224-856-1 01 1 1512-
106 BRACKET; TUBE CLIP
(G) 		8-98251-771-0 01 1 1512-
106 BRACKET; TUBE CLIP
(L) L=82 B=20 		8-98259-390-0 01 1 1512-
106 BRACKET; TUBE CLIP
(H) 		8-98297-188-0 01 1 1512-
107 CLIP; NYLON TUBE
(B) ID=35 L=33 		1-09700-945-0 02 1 1512-
107 CLIP; NYLON TUBE
(C) ID=35 H=45 L=33 		1-09700-947-0 01 1 1512-
107 CLIP; NYLON TUBE
(C) ID=35 H=45 L=33 		1-09700-947-0 01 1 1512-
107 CLIP; NYLON TUBE
(B) ID=15 L=28 		1-09701-216-0 01 1 1512-
107 CLIP; NYLON TUBE
(C) ID=45 H=31 L=35 		1-09701-308-0 01 1 1512-
107 CLIP; NYLON TUBE
(A) L=350 		1-09707-183-0 02 1 1512-
107 CLIP; NYLON TUBE
(A) L=350 		1-09707-183-0 15 1 1512-
107 CLIP; NYLON TUBE
(D) ID=13-18 L=14.5 		1-09709-290-0 01 1 1512-
107 CLIP; NYLON TUBE
(D) ID=5-12 L=14.5 		1-09987-221-0 02 1 1512-
126 BOLT; CLIP BRKT
M8X12 FLANGE 		0-28050-812-0 02 1 1512-
126 BOLT; CLIP BRKT
M8X12 FLANGE 		0-28050-812-0 02 1 1512-
126 BOLT; CLIP BRKT
M8X45 FLANGE 		0-28050-845-0 01 1 1512-
126 BOLT; CLIP BRKT
M8X25 FLANGE 		0-28650-825-0 02 1 1512-
126 BOLT; CLIP BRKT
M8X25 FLANGE 		0-28650-825-0 02 1 1512-
126 BOLT; CLIP BRKT
M8X25 FLANGE 		0-28650-825-0 02 1 1512-
126 BOLT; CLIP BRKT
M8X35 FLANGE 		0-28650-835-0 02 1 1512-
127 NUT; CLIP BRKT
M8 FLANGE 		0-91180-108-0 01 1 1512-
127 NUT; CLIP BRKT
M8 FLANGE 		0-91180-108-0 03 1 1512-
133 BOLT; BRKT
M6X10 FLANGE 		0-28050-610-0 01 1 1512-
133 BOLT; BRKT
M8X20 FLANGE 		0-28650-820-0 04 1 1512-
133 BOLT; BRKT
M8X25 FLANGE 		0-28650-825-0 08 1 1512-
133 BOLT; BRKT
M8X30 FLANGE 		0-28650-830-0 12 1 1512-
133 BOLT; BRKT
M8X35 FLANGE 		0-28650-835-0 02 1 1512-
279 NUT; BRKT
M8 FLANGE 		0-91180-108-0 09 1 1512-
279 NUT; BRKT
M10 FLANGE 		0-91180-210-0 02 1 1512-
297 NUT; BRKT
M8 FLANGE 		0-91180-108-0 02 1 1512-
297 NUT; BRKT
M8 FLANGE 		0-91180-108-0 07 1 1512-

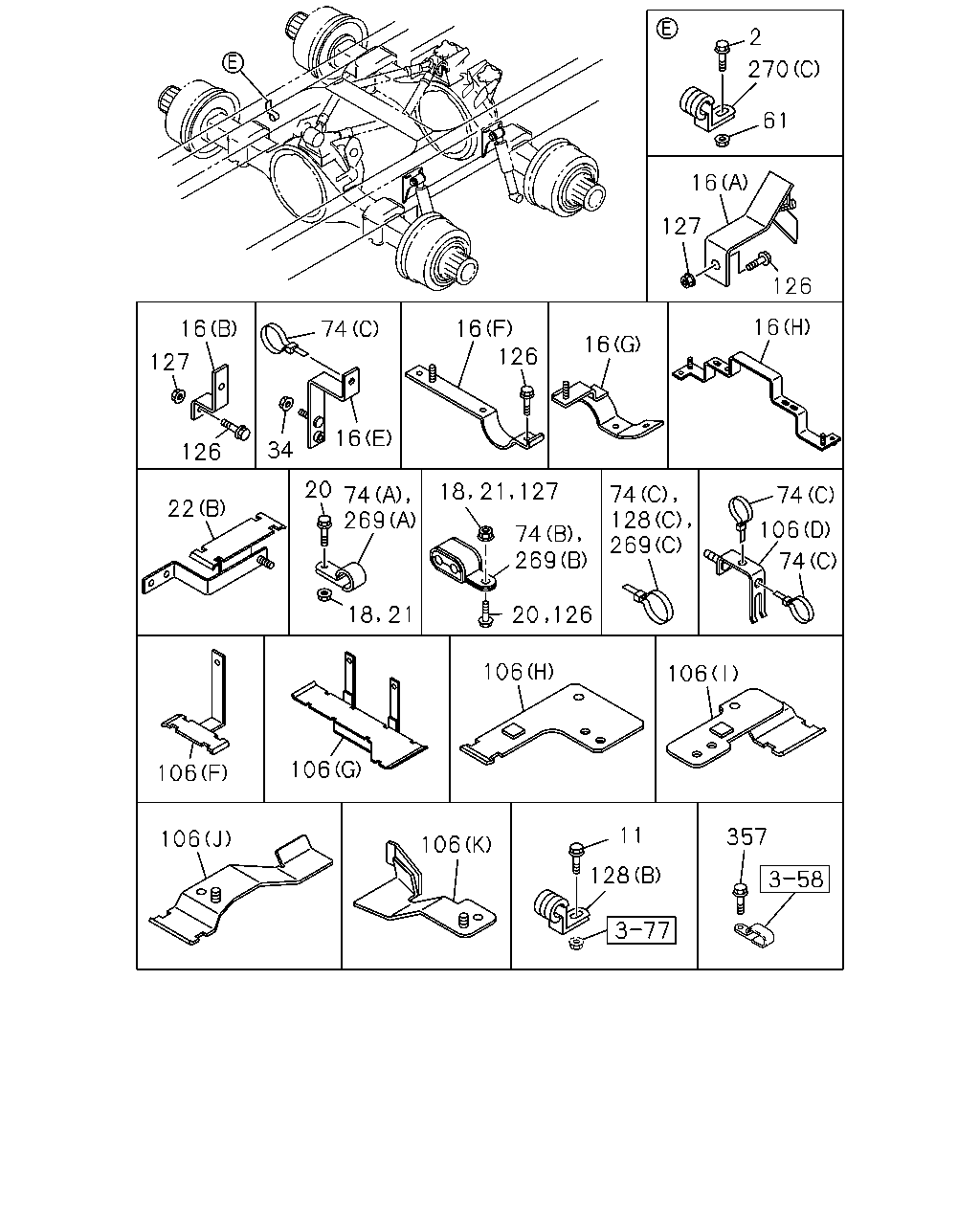

çizim 513324
16 127 126 22 34 74 16 16 126 16 127 16 61 270 2 126 16 74 128 269 269 74 127 21 18 74 20 269 18 21 20 126 106 106 106 106 106 11 128 74 106 74 106 357
BalonParca AdiParca NoAdetTipApplied Date
2 BOLT; CLIP FIX
M8X20 FLANGE 		0-28650-820-0 01 1 1512-
11 BOLT; CLIP BRKT
M8X25 FLANGE 		0-28650-825-0 01 1 1512-
16 BRACKET; PIPE CLIP
(A) 		1-47471-309-0 01 1 1512-
16 BRACKET; PIPE CLIP
(B) L=85 H=40 		1-47476-676-0 01 1 1512-
16 BRACKET; PIPE CLIP
(C) L=100 H=30 		1-47477-645-2 01 1 1512-
16 BRACKET; PIPE CLIP
(D) 		1-47479-554-0 01 1 1512-
16 BRACKET; PIPE CLIP
(E) 		1-47479-721-0 01 1 1512-
16 BRACKET; PIPE CLIP
(F) 		1-47479-856-0 01 1 1512-
16 BRACKET; PIPE CLIP
(F) 		1-47479-856-0 01 1 1512-
16 BRACKET; PIPE CLIP
(G) 		1-47479-857-0 01 1 1512-
16 BRACKET; PIPE CLIP
(G) 		1-47479-857-0 01 1 1512-
16 BRACKET; PIPE CLIP
(H) 		1-47479-898-0 01 1 1512-
16 BRACKET; PIPE CLIP
(H) 		1-47479-898-0 01 1 1512-
16 BRACKET; PIPE CLIP
(I) 		8-98054-389-0 01 1 1512-
18 NUT; CLIP
M8 FLANGE 		0-91180-108-0 04 1 1512-
20 BOLT; CLIP
M8X20 FLANGE 		0-28650-820-0 01 1 1512-
20 BOLT; CLIP
M8X20 FLANGE 		0-28650-820-0 04 1 1512-
21 NUT; CLIP
M8 FLANGE 		0-91180-108-0 06 1 1512-
22 BRACKET; CLIP
(A) 		1-46147-101-0 02 1 1512-
22 BRACKET; CLIP
(C) L=50 		1-47475-299-2 01 1 1512-
22 BRACKET; CLIP
(D) L=100 H=30 		1-47477-645-2 02 1 1512-
22 BRACKET; CLIP
(E) 		1-47479-554-0 01 1 1512-
22 BRACKET; CLIP
(B) 		8-98174-901-0 01 1 1512-
34 NUT; BRKT
M8 FLANGE 		0-91180-108-0 01 1 1512-
61 NUT; CLIP FIX
M8 FLANGE 		0-91180-108-0 01 1 1512-
74 CLIP; NYLON TUBE
(A) ID=13 		1-09701-030-1 04 1 1512-
74 CLIP; NYLON TUBE
(B) ID=11X2 L=42 		1-09701-306-0 01 1 1512-
74 CLIP; NYLON TUBE
(C) L=350 		1-09707-183-0 15 1 1512-
106 BRACKET; TUBE CLIP
(A) 		1-47471-108-0 01 1 1512-
106 BRACKET; TUBE CLIP
(C) 		1-47477-514-3 02 1 1512-
106 BRACKET; TUBE CLIP
(D) 		1-47479-381-2 02 1 1512-
106 BRACKET; TUBE CLIP
(E) 		1-47479-553-0 01 1 1512-
106 BRACKET; TUBE CLIP
(F) 		1-47479-870-0 01 1 1512-
106 BRACKET; TUBE CLIP
(I) 		8-98052-409-0 01 1 1512-
106 BRACKET; TUBE CLIP
(J) 		8-98052-410-0 01 1 1512-
106 BRACKET; TUBE CLIP
(K) 		8-98052-411-0 01 1 1512-
106 BRACKET; TUBE CLIP
(B) 		8-98061-758-0 01 1 1512-
106 BRACKET; TUBE CLIP
(M) 		8-98224-856-1 01 1 1512-
106 BRACKET; TUBE CLIP
(G) 		8-98251-771-0 01 1 1512-
106 BRACKET; TUBE CLIP
(L) L=82 B=20 		8-98259-390-0 01 1 1512-
106 BRACKET; TUBE CLIP
(H) 		8-98297-188-0 01 1 1512-
126 BOLT; CLIP BRKT
M8X12 FLANGE 		0-28050-812-0 02 1 1512-
126 BOLT; CLIP BRKT
M8X12 FLANGE 		0-28050-812-0 02 1 1512-
126 BOLT; CLIP BRKT
M8X45 FLANGE 		0-28050-845-0 01 1 1512-
126 BOLT; CLIP BRKT
M8X25 FLANGE 		0-28650-825-0 02 1 1512-
126 BOLT; CLIP BRKT
M8X25 FLANGE 		0-28650-825-0 02 1 1512-
126 BOLT; CLIP BRKT
M8X25 FLANGE 		0-28650-825-0 02 1 1512-
126 BOLT; CLIP BRKT
M8X35 FLANGE 		0-28650-835-0 02 1 1512-
127 NUT; CLIP BRKT
M8 FLANGE 		0-91180-108-0 01 1 1512-
127 NUT; CLIP BRKT
M8 FLANGE 		0-91180-108-0 03 1 1512-
128 CLIP; NYLON TUBE
(A) ID=24 L=27 		1-09700-809-0 01 1 1512-
128 CLIP; NYLON TUBE
(B) ID=16 H=25 L=25 		1-09701-162-0 01 1 1512-
128 CLIP; NYLON TUBE
(C) L=350 		1-09707-183-0 10 1 1512-
269 CLIP; BAND,NYLON TUBE
(A) ID=13 		1-09701-030-1 05 1 1512-
269 CLIP; BAND,NYLON TUBE
(B) ID=11X2 L=42 		1-09701-306-0 04 1 1512-
269 CLIP; BAND,NYLON TUBE
(C) L=350 		1-09707-183-0 03 1 1512-
270 CLIP; NYLON TUBE
(A) ID=27.5 H=23 L=24 		1-09700-863-0 01 1 1512-
270 CLIP; NYLON TUBE
(B) ID=28 L=32 		1-09701-107-1 03 1 1512-
270 CLIP; NYLON TUBE
(C) ID=16 H=25 L=25 		1-09701-162-0 02 1 1512-
357 BOLT; CLIP FIX
M8X10 FLANGE 		0-28050-810-0 02 1 1512-
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
Isuzu EPC — test · veri: yerel (eski sürüm)
