Sayfa 3-70 - Isuzu EPC

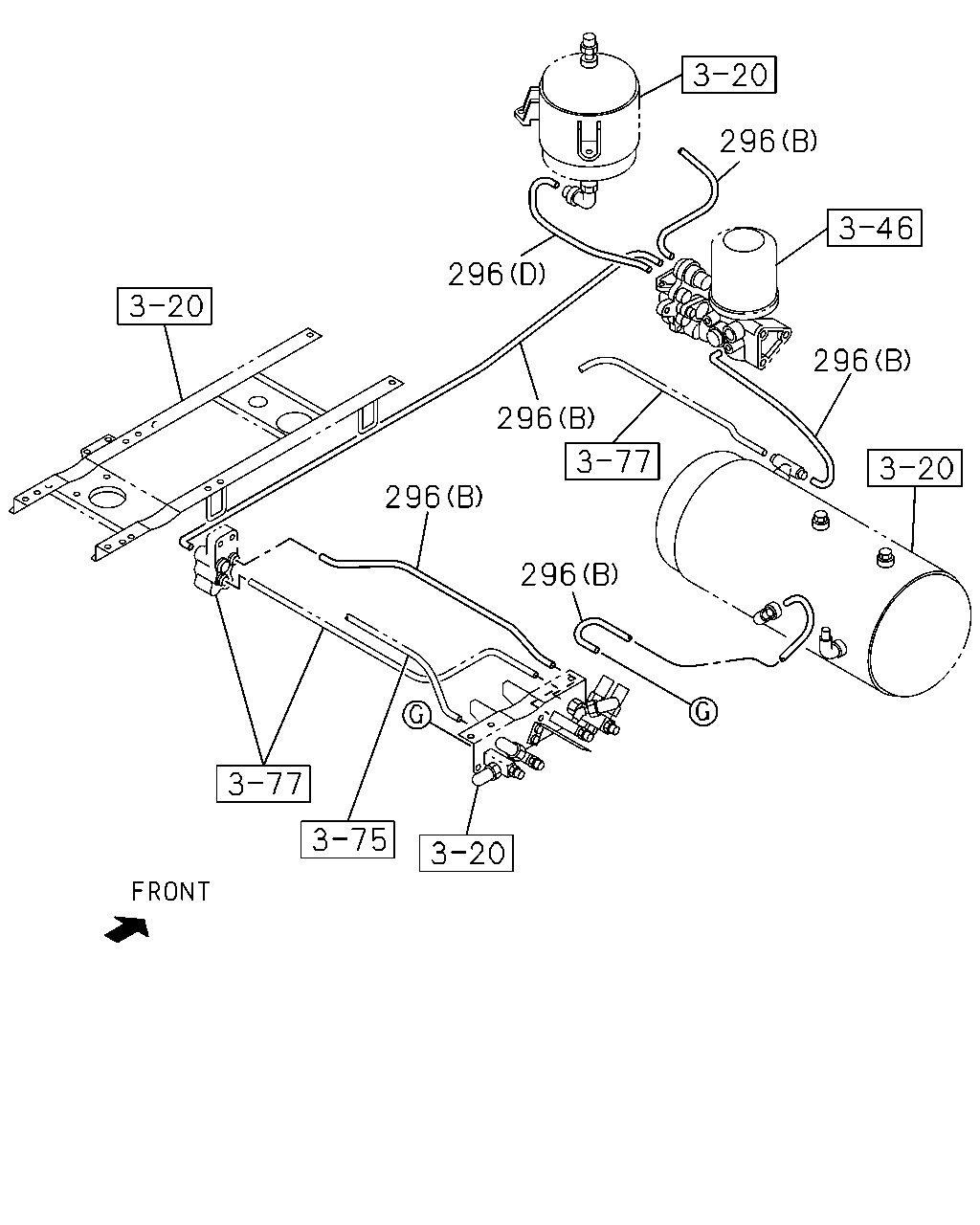

296 296 296 296 296 296

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
296	TUBE; NYLON (D)	8-98241-072-0	01	1	1512-
296	TUBE; NYLON (C)	8-98242-435-0	01	1	1512-
296	TUBE; NYLON SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) (A) L=1200 OD=6	1-09366-256-1	01	1	1512-
296	TUBE; NYLON (B) SERVICED BY L=2000 OD=6	1-87411-001-0	AR	1	1512-
296	TUBE; NYLON (B) SERVICED BY L=4000 OD=6	1-87411-002-0	AR	1	1512-
296	TUBE; NYLON (B) SERVICED BY L=2000 OD=8	1-87411-006-0	AR	1	1512-
296	TUBE; NYLON (B) SERVICED BY L=4000 OD=8	1-87411-007-0	AR	1	1512-
296	TUBE; NYLON (B) SERVICED BY L=4000 OD=12	1-87411-012-0	AR	1	1512-

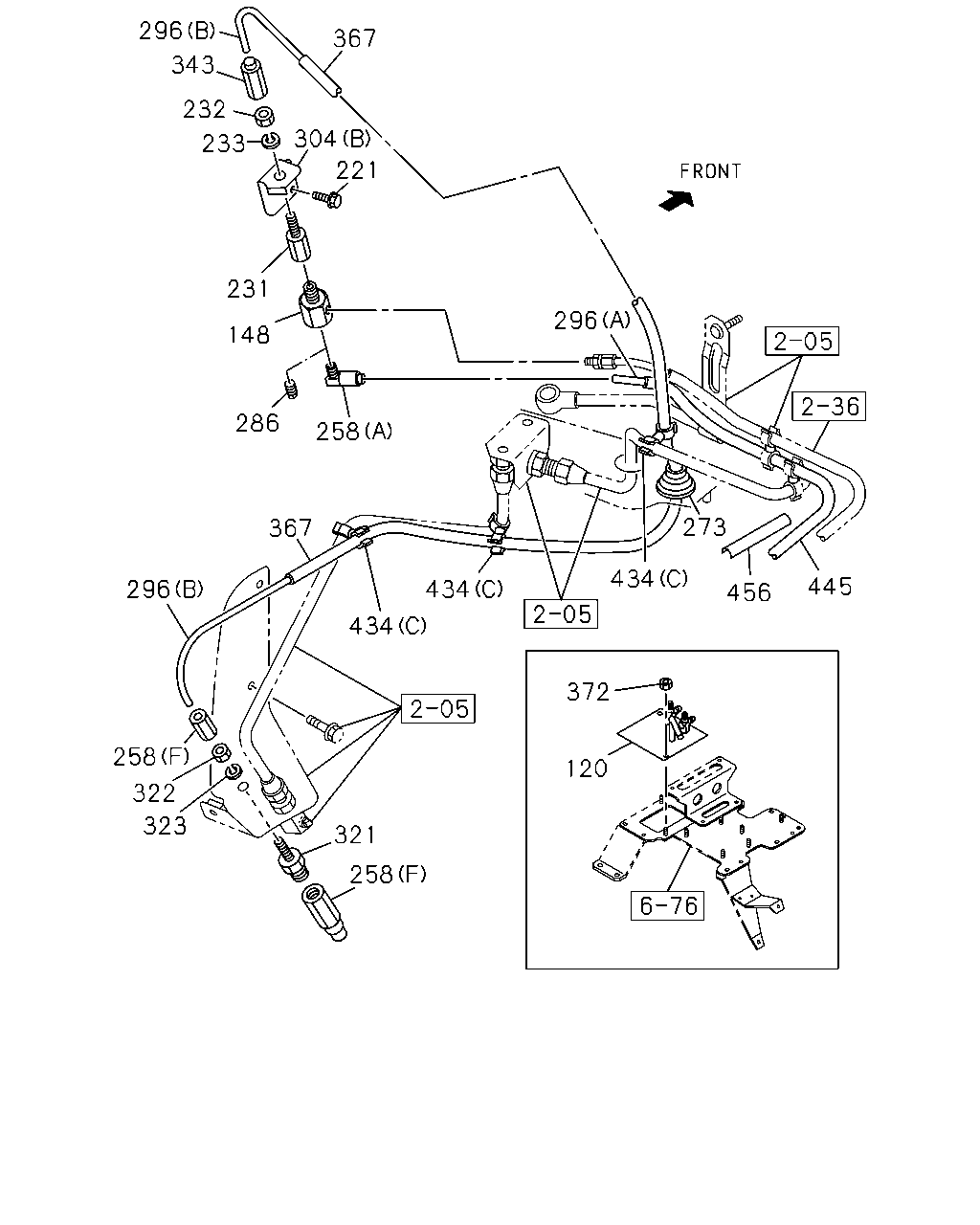

296 343 232 233 367 304 221 231 148 286 258 296 273 445 456 434 434 434 367 296 258 322 323 321 258 372 120

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
120	CONNECTOR; AIR PIPE	1-47470-655-0	01	1	1512-
148	CONNECTOR; UNION	8-94338-417-0	01	1	1512-
221	BOLT; BRKT RIGID SEAT W/ARM REST(SGC),SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) M6X19.5 W/LK&PL WASHER	8-94279-201-0	02	1	1512-
231	UNION; AIR PIPE RIGID SEAT W/ARM REST(SGC),SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) PT1/8 & M10 STRAIGHT	1-09656-713-2	01	1	1512-
232	NUT; UNION,AIR PIPE RIGID SEAT W/ARM REST(SGC),SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) M10 H=8	1-09400-029-0	01	1	1512-
233	WASHER; LK,UNION,AIR PIPE RIGID SEAT W/ARM REST(SGC),SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) ID=10.2	0-91510-510-0	01	1	1512-
258	CONNECTOR; NYLON TUBE (C) DIN12 & R3/8 ELBOW	1-09660-959-0	01	1	1512-
258	CONNECTOR; NYLON TUBE (B) DIN8X2 & PT3/8 DOUBLE ELBOW	1-09661-025-0	01	1	1512-
258	CONNECTOR; NYLON TUBE (D) PT3/8 3WAY	1-09661-300-0	01	1	1512-
258	CONNECTOR; NYLON TUBE (E) PT3/8 & PT3/8	1-09661-303-0	01	1	1512-
258	CONNECTOR; NYLON TUBE RIGID SEAT W/ARM REST(SGC),SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) (F) DIN6 & M12 STRAIGHT	1-09661-379-0	02	1	1512-
258	CONNECTOR; NYLON TUBE SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) (A) TRI LC6X4-R1/8	1-09660-760-1	01	1	1512-
273	GROMMET RIGID SEAT W/ARM REST(SGC),SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL)	1-09332-102-0	01	1	1512-
286	PLUG; AIR PIPE RIGID SEAT W/ARM REST(SGC)	9-09204-510-0	01	1	1512-
296	TUBE; NYLON (D)	8-98241-072-0	01	1	1512-
296	TUBE; NYLON (C)	8-98242-435-0	01	1	1512-
296	TUBE; NYLON SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) (A) L=1200 OD=6	1-09366-256-1	01	1	1512-
296	TUBE; NYLON (B) SERVICED BY L=2000 OD=6	1-87411-001-0	AR	1	1512-
296	TUBE; NYLON (B) SERVICED BY L=4000 OD=6	1-87411-002-0	AR	1	1512-
296	TUBE; NYLON (B) SERVICED BY L=2000 OD=8	1-87411-006-0	AR	1	1512-
296	TUBE; NYLON (B) SERVICED BY L=4000 OD=8	1-87411-007-0	AR	1	1512-
296	TUBE; NYLON (B) SERVICED BY L=4000 OD=12	1-87411-012-0	AR	1	1512-
304	BRACKET; UNION (A)	8-98082-870-0	01	1	1512-
304	BRACKET; UNION RIGID SEAT W/ARM REST(SGC),SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) (B)	1-71117-210-0	01	1	1512-
321	JOINT; FLEX HOSE RIGID SEAT W/ARM REST(SGC),SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) M12 L=66.5	0-92113-306-0	01	1	1512-
322	NUT; JOINT,FLEX HOSE RIGID SEAT W/ARM REST(SGC),SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) M12	9-09840-280-0	01	1	1512-
323	WASHER; LK,JOINT RIGID SEAT W/ARM REST(SGC),SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) ID=12.2	0-91510-512-0	01	1	1512-
343	UNION; NYLON TUBE RIGID SEAT W/ARM REST(SGC),SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL)	1-09660-796-1	01	1	1512-
367	TUBE; CORRUGATE SERVICED BY L=2000 ID=7	1-87411-016-0	AR	1	1512-
367	TUBE; CORRUGATE SERVICED BY L=2000 ID=10	1-87411-019-0	AR	1	1512-
367	TUBE; CORRUGATE SERVICED BY L=2000 ID=13	1-87411-022-0	AR	1	1512-
367	TUBE; CORRUGATE SERVICED BY L=2000 ID=19	1-87411-027-0	AR	1	1512-
372	NUT M8 FLANGE	0-91180-108-0	02	1	1512-
434	CLIP (A) ID=24 L=27	1-09700-809-0	03	1	1512-
434	CLIP (B) ID=12 & 24	1-09701-248-0	01	1	1512-
434	CLIP RIGID SEAT W/ARM REST(SGC),SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) (C) ID=8.3 & 8.3	8-94426-175-0	03	1	1512-
445	GUARD SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) L=520 ID=7.4 SERVICED BY L=800 ID=7	1-83129-031-1	01	1	1512-
456	SEAL; NYLON TUBE SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) 100X40	1-72498-022-1	01	1	1512-

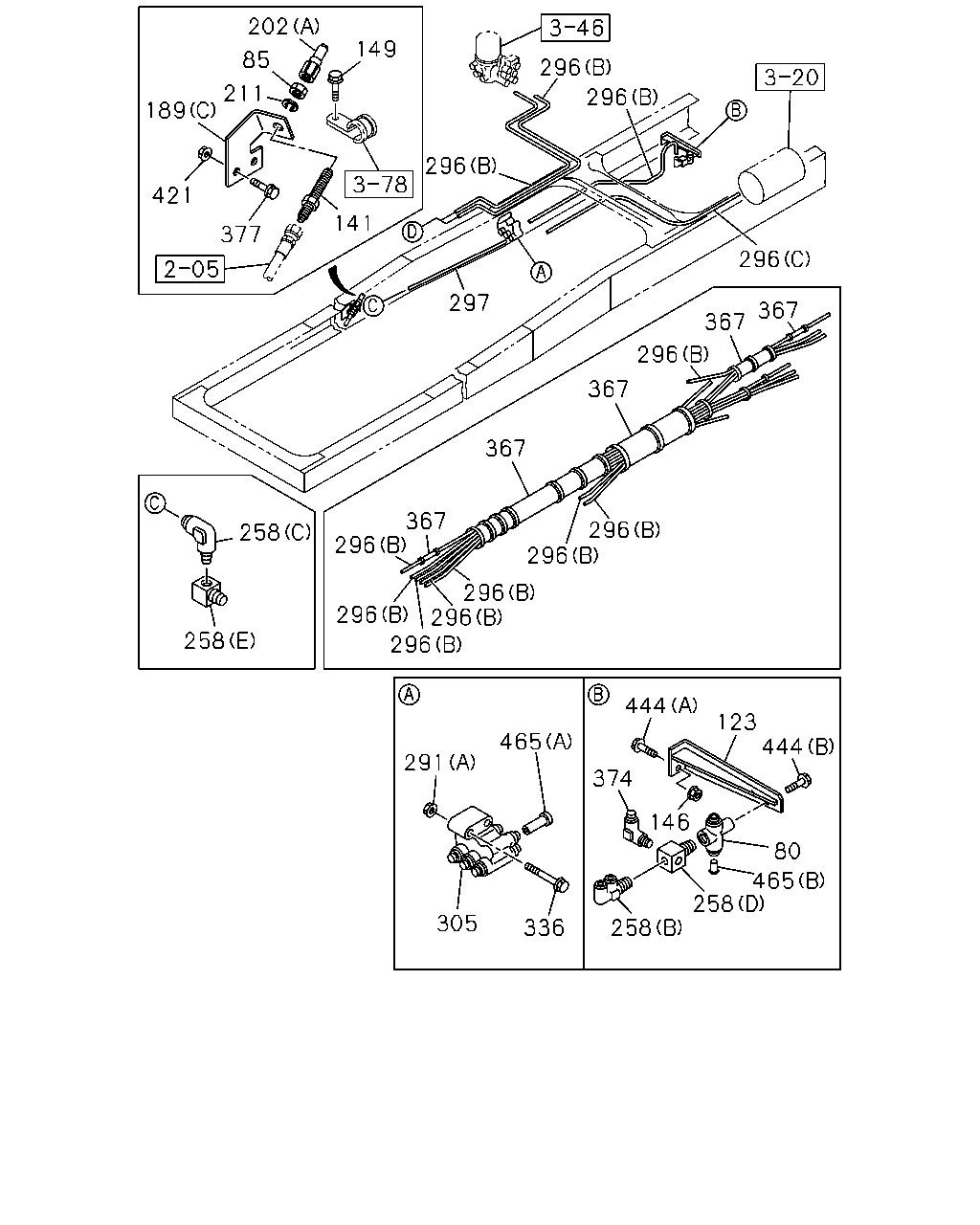

202 85 211 189 149 421 377 141 258 258 296 296 296 297 296 367 367 296 367 367 367 296 296 296 296 296 296 296 291 465 305 336 444 374 123 444 146 258 258 465 80

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
80	UNION; 3 WAY DIN8 & RC3/8 3WAY	1-09661-129-0	01	1	1512-
85	NUT; UNION M12	9-09840-280-0	01	1	1512-
123	BRACKET; UNION	1-47479-401-0	01	1	1512-
141	UNION; FLEX HOSE M12 L=66.5	0-92113-306-0	01	1	1512-
146	NUT; UNION M8 FLANGE	0-91180-108-0	02	1	1512-
149	BOLT; TUBE CLIP M8X25 FLANGE	0-28650-825-0	01	1	1512-
189	BRACKET; FLEX HOSE (A)	1-47477-337-1	01	1	1512-
189	BRACKET; FLEX HOSE (B) L=75	1-47478-328-0	01	1	1512-
189	BRACKET; FLEX HOSE (C)	8-97646-842-0	01	1	1512-
202	ADAPTER (A) DIN8 & M12 STRAIGHT	1-09660-873-0	01	1	1512-
202	ADAPTER (B) DIN6 & M12 STRAIGHT	1-09661-379-0	02	1	1512-
211	WASHER; LK,UNION ID=12.2	0-91510-512-0	01	1	1512-
258	CONNECTOR; NYLON TUBE (C) DIN12 & R3/8 ELBOW	1-09660-959-0	01	1	1512-
258	CONNECTOR; NYLON TUBE (B) DIN8X2 & PT3/8 DOUBLE ELBOW	1-09661-025-0	01	1	1512-
258	CONNECTOR; NYLON TUBE (D) PT3/8 3WAY	1-09661-300-0	01	1	1512-
258	CONNECTOR; NYLON TUBE (E) PT3/8 & PT3/8	1-09661-303-0	01	1	1512-
258	CONNECTOR; NYLON TUBE RIGID SEAT W/ARM REST(SGC),SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) (F) DIN6 & M12 STRAIGHT	1-09661-379-0	02	1	1512-
258	CONNECTOR; NYLON TUBE SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) (A) TRI LC6X4-R1/8	1-09660-760-1	01	1	1512-
291	NUT; UNION (A) M8 FLANGE	0-91180-108-0	02	1	1512-
291	NUT; UNION (B) M12	9-09840-280-0	02	1	1512-
296	TUBE; NYLON (D)	8-98241-072-0	01	1	1512-
296	TUBE; NYLON (C)	8-98242-435-0	01	1	1512-
296	TUBE; NYLON SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) (A) L=1200 OD=6	1-09366-256-1	01	1	1512-
296	TUBE; NYLON (B) SERVICED BY L=2000 OD=6	1-87411-001-0	AR	1	1512-
296	TUBE; NYLON (B) SERVICED BY L=4000 OD=6	1-87411-002-0	AR	1	1512-
296	TUBE; NYLON (B) SERVICED BY L=2000 OD=8	1-87411-006-0	AR	1	1512-
296	TUBE; NYLON (B) SERVICED BY L=4000 OD=8	1-87411-007-0	AR	1	1512-
296	TUBE; NYLON (B) SERVICED BY L=4000 OD=12	1-87411-012-0	AR	1	1512-
297	TUBE; NYLON SERVICED BY L=2000 OD=12	1-87411-011-0	AR	1	1512-
305	UNION ASM; NYLON TUBE	1-09661-613-1	01	1	1512-
336	BOLT; PIPE UNION M8X60 FLANGE	0-28050-860-0	02	1	1512-
367	TUBE; CORRUGATE SERVICED BY L=2000 ID=7	1-87411-016-0	AR	1	1512-
367	TUBE; CORRUGATE SERVICED BY L=2000 ID=10	1-87411-019-0	AR	1	1512-
367	TUBE; CORRUGATE SERVICED BY L=2000 ID=13	1-87411-022-0	AR	1	1512-
367	TUBE; CORRUGATE SERVICED BY L=2000 ID=19	1-87411-027-0	AR	1	1512-
374	CONNECTOR DIN8 & R3/8 ELBOW	1-09660-957-0	02	1	1512-
377	BOLT; BRKT FIX M8X25 FLANGE	0-28650-825-0	02	1	1512-
421	NUT; BRKT M8 FLANGE	0-91180-108-0	02	1	1512-
444	BOLT; UNION (B) M8X16 FLANGE	0-28050-816-0	01	1	1512-
444	BOLT; UNION (A) M8X30 FLANGE	0-28650-830-0	02	1	1512-
465	PLUG (B) OD=8 PLASTIC	1-09661-616-0	01	1	1512-
465	PLUG (B) OD=8 PLASTIC	1-09661-616-0	01	1	1512-
465	PLUG EXC. TRANSMISSION SIDE PTO HIGH CAPACITY(BBC), TRANSMISSION SIDE PTO HEAVY DUTY(B4P) (A) OD=6 L=27	1-09661-615-0	01	1	1512-
465	PLUG (A) OD=6 L=27	1-09661-615-0	01	1	1512-

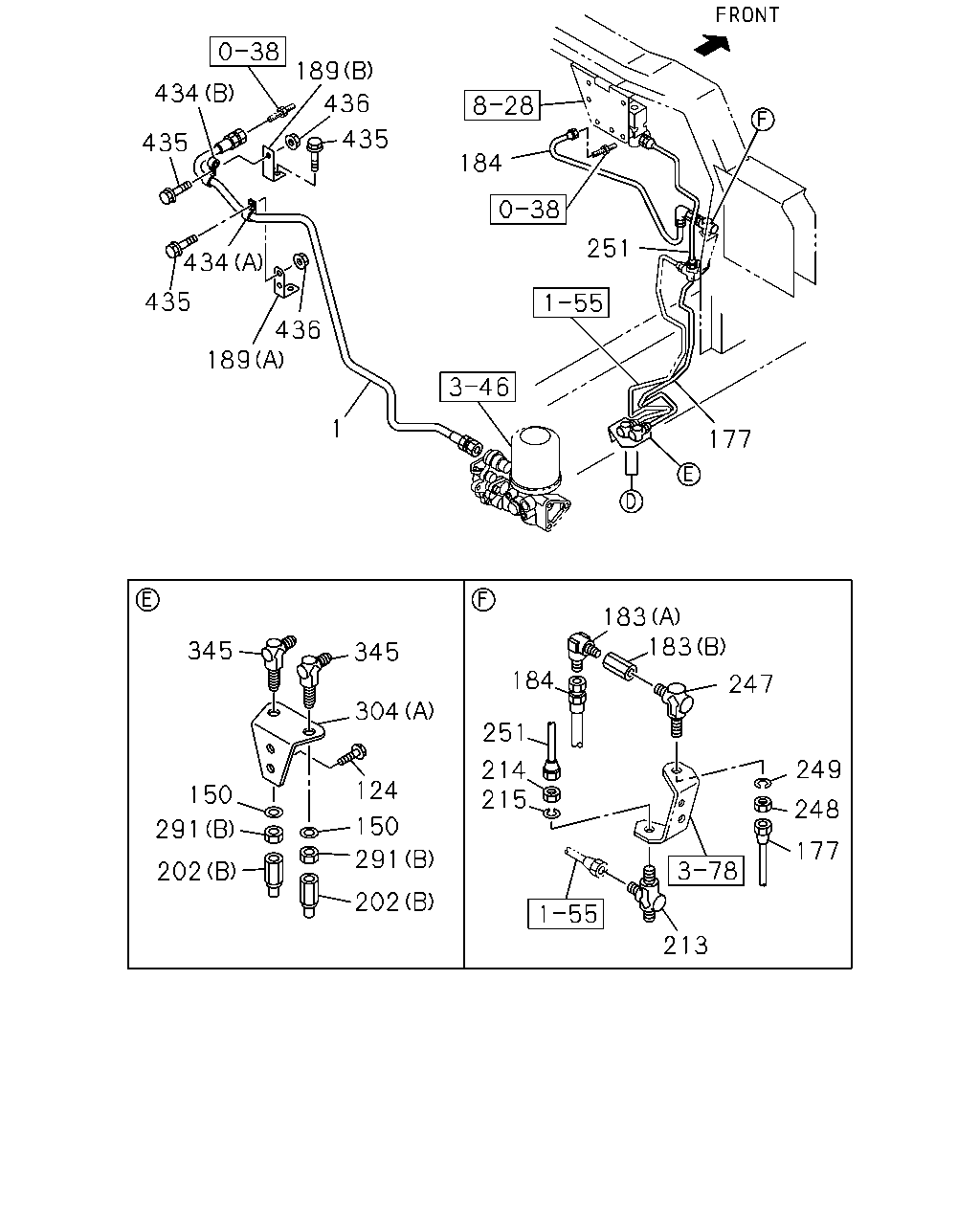

434 435 434 435 189 436 435 436 189 184 251 177 345 150 291 202 345 304 124 150 291 202 183 184 251 214 215 213 177 249 247 183 248 1

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	HOSE; FLEX,AIR TANK L=1480	8-98169-578-0	01	1	1512-
124	BOLT; BRKT M8X30 FLANGE	0-28650-830-0	02	1	1512-
150	WASHER; LK,UNION ID=12.2	0-91510-512-0	02	1	1512-
177	PIPE; AIR,UNION TO UNION L=582 SERVICED BY L=600	1-47428-809-0	01	1	1512-
183	UNION; FLEX HOSE,GOV (A) M12 & PT3/8 ELBOW	1-09650-436-0	01	1	1512-
183	UNION; FLEX HOSE,GOV (B) M12 & RC3/8 STRAIGHT	1-09660-879-0	01	1	1512-
184	HOSE; FLEX,AIR GOV L=740	1-09363-675-0	01	1	1512-
189	BRACKET; FLEX HOSE (A)	1-47477-337-1	01	1	1512-
189	BRACKET; FLEX HOSE (B) L=75	1-47478-328-0	01	1	1512-
189	BRACKET; FLEX HOSE (C)	8-97646-842-0	01	1	1512-
202	ADAPTER (A) DIN8 & M12 STRAIGHT	1-09660-873-0	01	1	1512-
202	ADAPTER (B) DIN6 & M12 STRAIGHT	1-09661-379-0	02	1	1512-
213	UNION; AIR PIPE CAB SUSPENSION-FULL FLOATING(SMK) M12 ELBOW	0-92125-206-0	01	1	1512-
214	NUT; UNION,AIR PIPE M12	9-09840-280-0	01	1	1512-
215	WASHER; LK,UNION,AIR PIPE ID=12.2	0-91510-512-0	01	1	1512-
247	UNION; AIR PIPE M12 ELBOW	0-92125-206-0	01	1	1512-
248	NUT; PIPE UNION M12	9-09840-280-0	01	1	1512-
249	WASHER; LK,PIPE UNION ID=12.2	0-91510-512-0	01	1	1512-
251	PIPE; AIR,UNION TO MAG VLV L=375	1-49124-511-0	01	1	1512-
291	NUT; UNION (A) M8 FLANGE	0-91180-108-0	02	1	1512-
291	NUT; UNION (B) M12	9-09840-280-0	02	1	1512-
304	BRACKET; UNION (A)	8-98082-870-0	01	1	1512-
304	BRACKET; UNION RIGID SEAT W/ARM REST(SGC),SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) (B)	1-71117-210-0	01	1	1512-
345	UNION; AIR PIPE M12 ELBOW	0-92125-206-0	02	1	1512-
434	CLIP (A) ID=24 L=27	1-09700-809-0	03	1	1512-
434	CLIP (B) ID=12 & 24	1-09701-248-0	01	1	1512-
434	CLIP RIGID SEAT W/ARM REST(SGC),SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) (C) ID=8.3 & 8.3	8-94426-175-0	03	1	1512-
435	BOLT; CLIP M8X20 FLANGE	0-28650-820-0	04	1	1512-
436	NUT; CLIP M8 FLANGE	0-91180-108-0	03	1	1512-

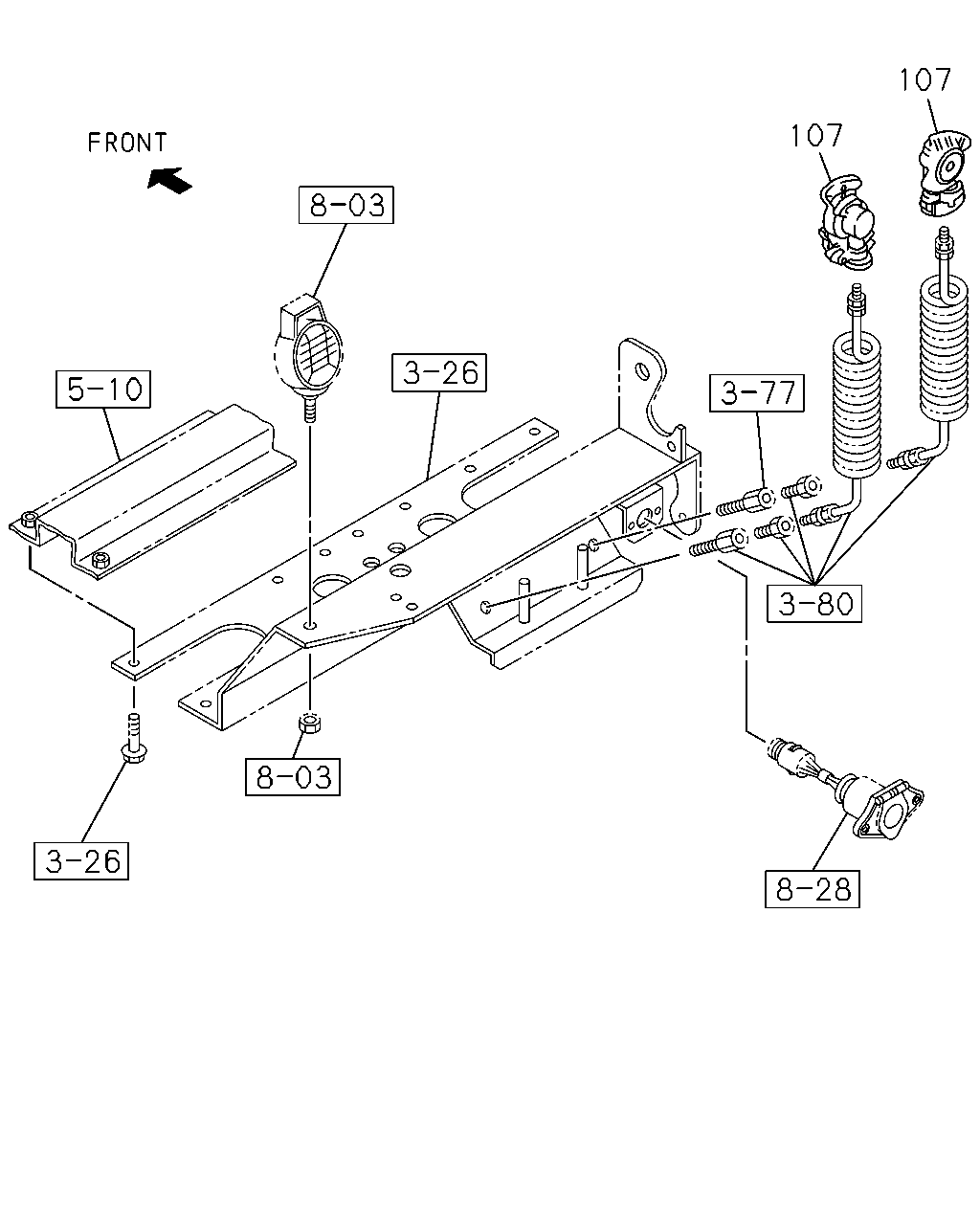

107 107

	Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
	107	COUPLING; SERVICE EMERGENCY	1-47478-210-0	01	1	1512-
	107	COUPLING; SERVICE SERVICE	1-47478-211-0	01	1	1512-
