Isuzu WW
▶
TRUCKS
▶
FVR
▶
11167 - FVR(SOUTH AFRICA)
▶
3 - Brakes, Brake System
▶
3-46 - AIR DRYER
▶
3-46 — AIR DRYER
(#17632) — 28 parça
◀
[346A] THERMOSTAT,PISTON AND REPAIR KIT (6 parça)

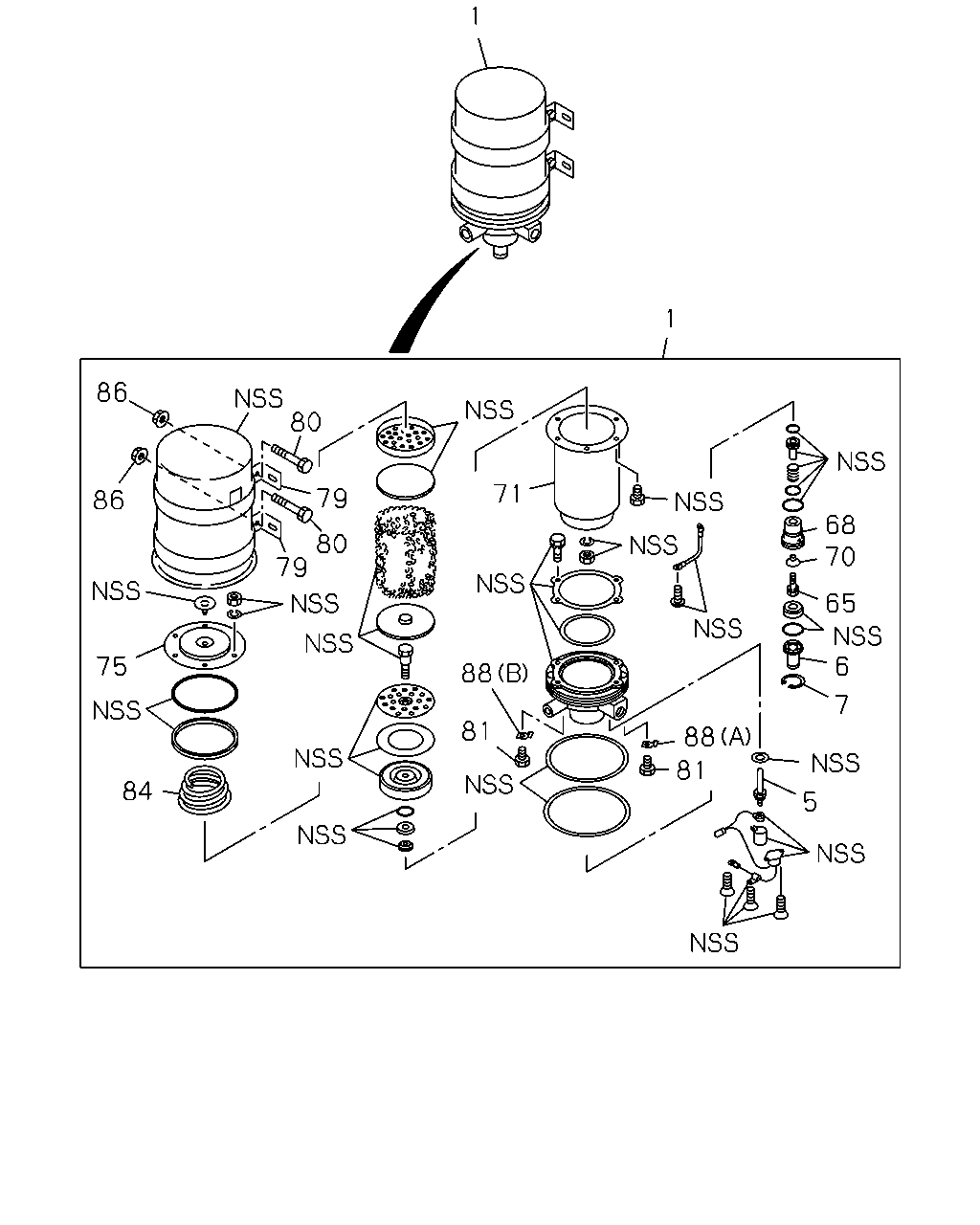

[346A] COMPONENT (16 parça)

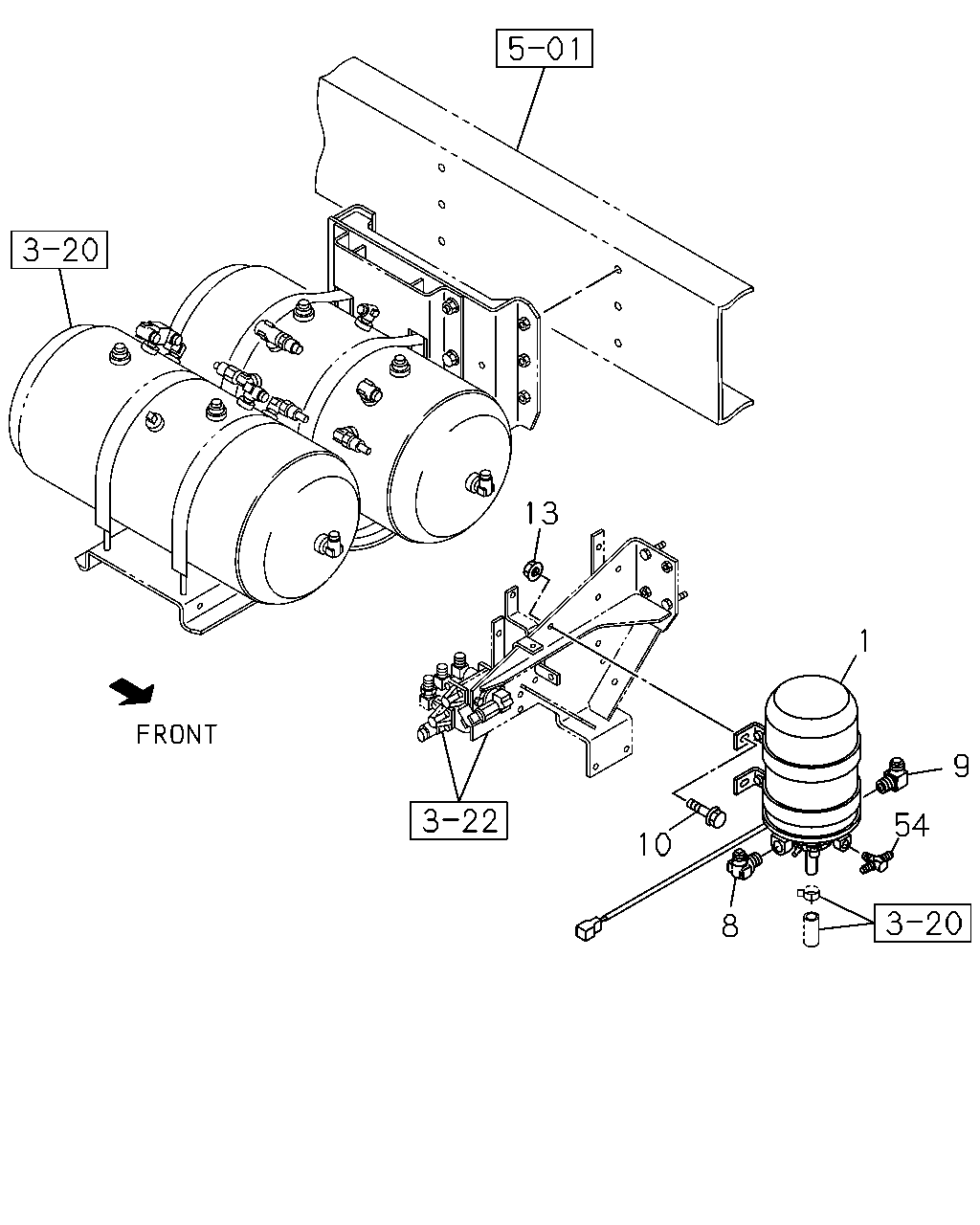

[346A] FIXING (6 parça)
▶
2
4
3
68
70
65
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
2
REPAIR KIT; AIR DRYER
AIR DRYER<PS7> SOU
1-85576-226-0
01
1
1001-
3
PISTON KIT; AIR DRYER
AIR DRYER<PS7> SOU
1-85576-057-1
01
1
1001-
4
THERMOSTAT KIT; AIR DRYER
AIR DRYER<PS7> SOU
1-85576-254-0
01
1
1001-
65
BOLT; PURGE VLV
AIR DRYER<PS7> SOU
1-48199-393-0
01
1
1001-
68
BODY; VALVE
AIR DRYER<PS7> SOU
1-48199-216-0
01
1
1001-
70
VALVE; AIR DRYER
AIR DRYER<PS7> SOU
1-48199-105-0
01
1
1001-
1
1
86
80
80
79
71
79
86
68
70
65
6
75
88
7
81
88
81
84
5
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
1
DRYER; AIR
AIR DRYER<PS7>
1-48190-277-1
01
1
1001-
5
HEATER ASM; AIR DRYER
AIR DRYER<PS7> SOU
1-48199-085-0
02
1
1001-
6
COVER; EXH,AIR DRYER
AIR DRYER<PS7> SOU
1-48199-101-0
01
1
1001-
7
RING; SNAP,AIR DRYER
AIR DRYER<PS7> SOU
1-48199-154-0
01
1
1001-
65
BOLT; PURGE VLV
AIR DRYER<PS7> SOU
1-48199-393-0
01
1
1001-
68
BODY; VALVE
AIR DRYER<PS7> SOU
1-48199-216-0
01
1
1001-
70
VALVE; AIR DRYER
AIR DRYER<PS7> SOU
1-48199-105-0
01
1
1001-
71
CASE; INNER,AIR DRYER
AIR DRYER<PS7> SOU
1-48199-156-1
01
1
1001-
75
COVER; CASE,AIR DRYER
AIR DRYER<PS7> SOU
1-48199-167-0
01
1
1001-
79
BRACKET; AIR DRYER
AIR DRYER<PS7> SOU
1-48199-189-0
02
1
1001-
80
BOLT; BRKT
AIR DRYER<PS7> SOU
1-48199-190-0
02
1
1001-
81
BOLT; CASE,AIR DRYER
AIR DRYER<PS7> SOU
1-48199-177-0
02
1
1001-
84
SPRING; AIR DRYER
AIR DRYER<PS7> SOU
1-48199-166-0
01
1
1001-
86
NUT; BRKT
AIR DRYER<PS7> SOU
1-48199-320-0
02
1
1001-
88
PLATE; STOPPER
AIR DRYER<PS7> (A) SOU
1-48199-178-0
01
1
1001-
88
PLATE; STOPPER
AIR DRYER<PS7> (B) SOU
1-48199-179-0
01
1
1001-
13
1
9
54
10
8
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
1
DRYER; AIR
AIR DRYER<PS7>
1-48190-277-1
01
1
1001-
8
CONNECTOR; OUT,AIR DRYER
AIR DRYER<PS7> M20 & PT1/2 ELBOW SOU
1-09650-443-0
01
1
1001-
9
CONNECTOR; PIPE,AIR DRYER
AIR DRYER<PS7> M22 & R1/2 W/VALVE
1-48320-026-2
01
1
1001-
10
BOLT; AIR DRYER
AIR DRYER<PS7> M10X25 FLANGE SOU
0-28651-025-0
04
1
1001-
13
NUT; AIR DRYER
AIR DRYER<PS7> M10 FLANGE SOU
0-91180-210-0
04
1
1001-
54
CONNECTOR
AIR DRYER<PS7> M12X2 & PT1/4 3WAY SOU
1-09656-229-1
01
1
1001-
