3-22 — AIR CONTROL PARTS (#176317) — 116 parça

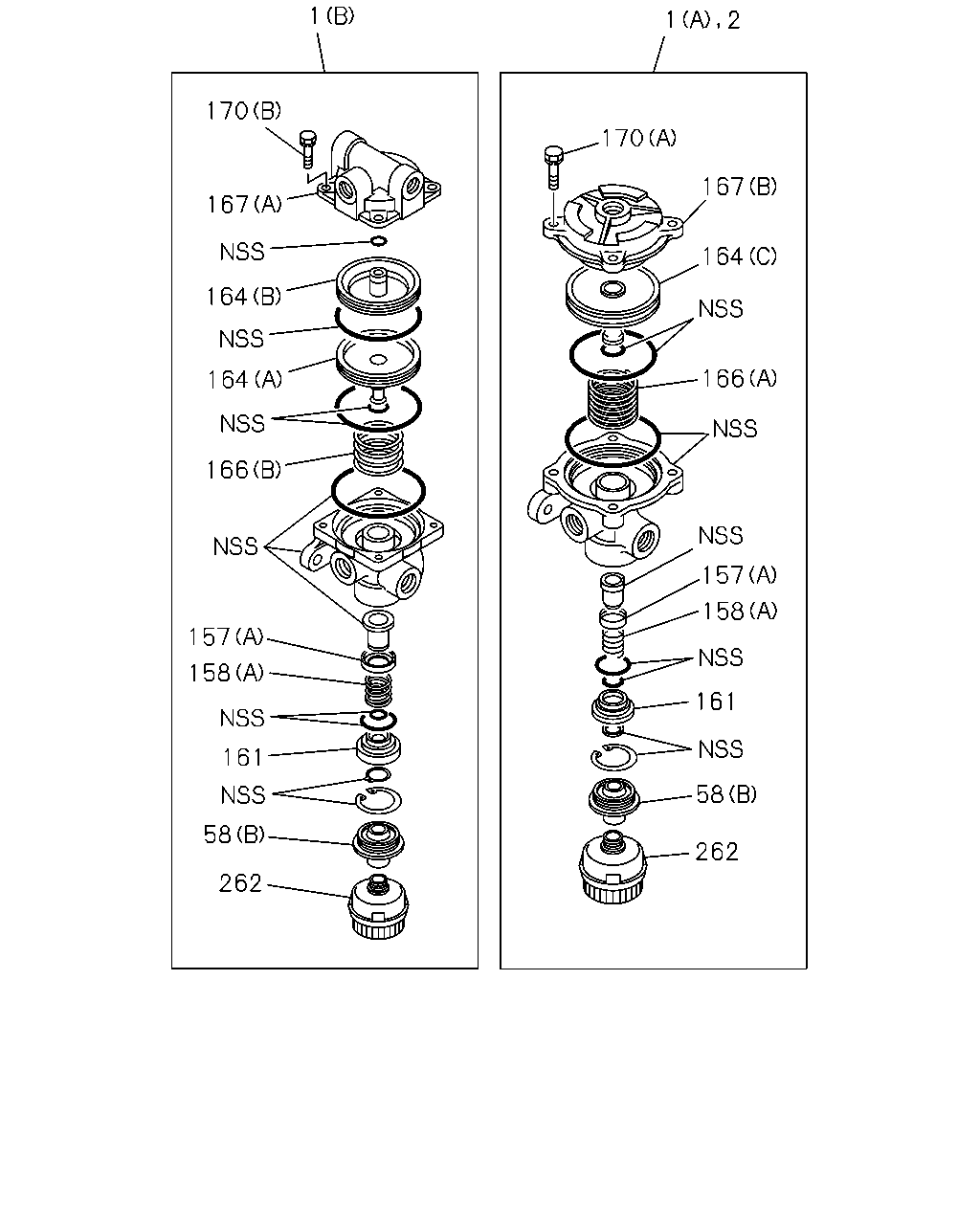

çizim 512027
1 170 167 164 164 166 157 158 161 58 262 1 2 170 167 164 166 157 158 161 58 262
BalonParca AdiParca NoAdetTipApplied Date
1 VALVE; RELAY RWD RR
RUSSIA EQUIPMENT(B12) (A) 		1-48210-997-0 01 1 1512-
1 VALVE; RELAY RWD RR
EXC. RUSSIA EQUIPMENT(B12) (A) 		1-48210-875-0 01 1 1512-
1 VALVE; RELAY RWD RR
EXC. RUSSIA EQUIPMENT(B12) (B) 		1-48240-041-1 01 1 1512-
2 VALVE; RELAY
RUSSIA EQUIPMENT(B12) 		1-48210-997-0 01 1 1512-
2 VALVE; RELAY
RUSSIA EQUIPMENT(B12) 		1-48210-997-0 01 1 1512-
2 VALVE; RELAY
EXC. RUSSIA EQUIPMENT(B12) 		1-48210-875-0 01 1 1512-
58 ADAPTER
(A) PT3/8 3WAY 		1-09661-300-0 01 1 1512-
58 ADAPTER
RUSSIA EQUIPMENT(B12) (B) M22 ADAPTER 		1-48219-154-0 01 1 1512-
58 ADAPTER
RUSSIA EQUIPMENT(B12) (B) M22 ADAPTER 		1-48219-154-0 02 1 1512-
157 RETAINER; VALVE
(B) 		1-48419-020-0 01 1 1512-
157 RETAINER; VALVE
RUSSIA EQUIPMENT(B12) (A) 		1-48213-002-0 02 1 1512-
157 RETAINER; VALVE
EXC. RUSSIA EQUIPMENT(B12) (A) 		1-48213-002-0 01 1 1512-
157 RETAINER; VALVE
EXC. RUSSIA EQUIPMENT(B12) (A) 		1-48213-002-0 01 1 1512-
157 RETAINER; VALVE
(A) 		1-48213-002-0 01 1 1512-
158 SPRING; VALVE
(B) 		9-48419-003-0 01 1 1512-
158 SPRING; VALVE
RUSSIA EQUIPMENT(B12) (A) 		1-47819-089-0 02 1 1512-
158 SPRING; VALVE
EXC. RUSSIA EQUIPMENT(B12) (A) 		1-47819-089-0 01 1 1512-
158 SPRING; VALVE
EXC. RUSSIA EQUIPMENT(B12) (A) 		1-47819-089-0 01 1 1512-
158 SPRING; VALVE
(A) 		1-47819-089-0 01 1 1512-
161 GUIDE; VALVE
RUSSIA EQUIPMENT(B12) 		1-48129-014-0 02 1 1512-
161 GUIDE; VALVE
EXC. RUSSIA EQUIPMENT(B12) 		1-48129-014-0 01 1 1512-
161 GUIDE; VALVE
EXC. RUSSIA EQUIPMENT(B12) 		1-48129-014-0 01 1 1512-
161 GUIDE; VALVE 1-48129-014-0 01 1 1512-
164 PISTON; RELAY VALVE
RUSSIA EQUIPMENT(B12) (C) 		1-48219-071-0 02 1 1512-
164 PISTON; RELAY VALVE
EXC. RUSSIA EQUIPMENT(B12) (A) 		1-48219-032-0 01 1 1512-
164 PISTON; RELAY VALVE
EXC. RUSSIA EQUIPMENT(B12) (B) 		1-48219-047-0 01 1 1512-
164 PISTON; RELAY VALVE
EXC. RUSSIA EQUIPMENT(B12) (C) 		1-48219-071-0 01 1 1512-
164 PISTON; RELAY VALVE
(C) 		1-48219-071-0 01 1 1512-
166 SPRING; PISTON
RUSSIA EQUIPMENT(B12) (A) 		1-47819-090-0 02 1 1512-
166 SPRING; PISTON
EXC. RUSSIA EQUIPMENT(B12) (A) 		1-47819-090-0 01 1 1512-
166 SPRING; PISTON
(A) 		1-47819-090-0 01 1 1512-
166 SPRING; PISTON
EXC. RUSSIA EQUIPMENT(B12) (B) 		1-48219-048-0 01 1 1512-
167 COVER; VALVE
RUSSIA EQUIPMENT(B12) (B) 		1-48219-070-0 02 1 1512-
167 COVER; VALVE
EXC. RUSSIA EQUIPMENT(B12) (A) 		1-48219-050-1 01 1 1512-
167 COVER; VALVE
EXC. RUSSIA EQUIPMENT(B12) (B) 		1-48219-070-0 01 1 1512-
167 COVER; VALVE
(B) 		1-48219-070-0 01 1 1512-
170 SCREW; COVER TO BODY
RUSSIA EQUIPMENT(B12) (A) 		1-48219-039-0 08 1 1512-
170 SCREW; COVER TO BODY
EXC. RUSSIA EQUIPMENT(B12) (A) 		1-48219-039-0 04 1 1512-
170 SCREW; COVER TO BODY
(A) 		1-48219-039-0 04 1 1512-
170 SCREW; COVER TO BODY
EXC. RUSSIA EQUIPMENT(B12) (B) 		1-48219-041-0 04 1 1512-
262 SILENCER; RELAY VALVE 1-48219-149-0 01 1 1512-
262 SILENCER; RELAY VALVE
RUSSIA EQUIPMENT(B12) 		1-48219-149-0 01 1 1512-
262 SILENCER; RELAY VALVE
RUSSIA EQUIPMENT(B12) 		1-48219-149-0 02 1 1512-

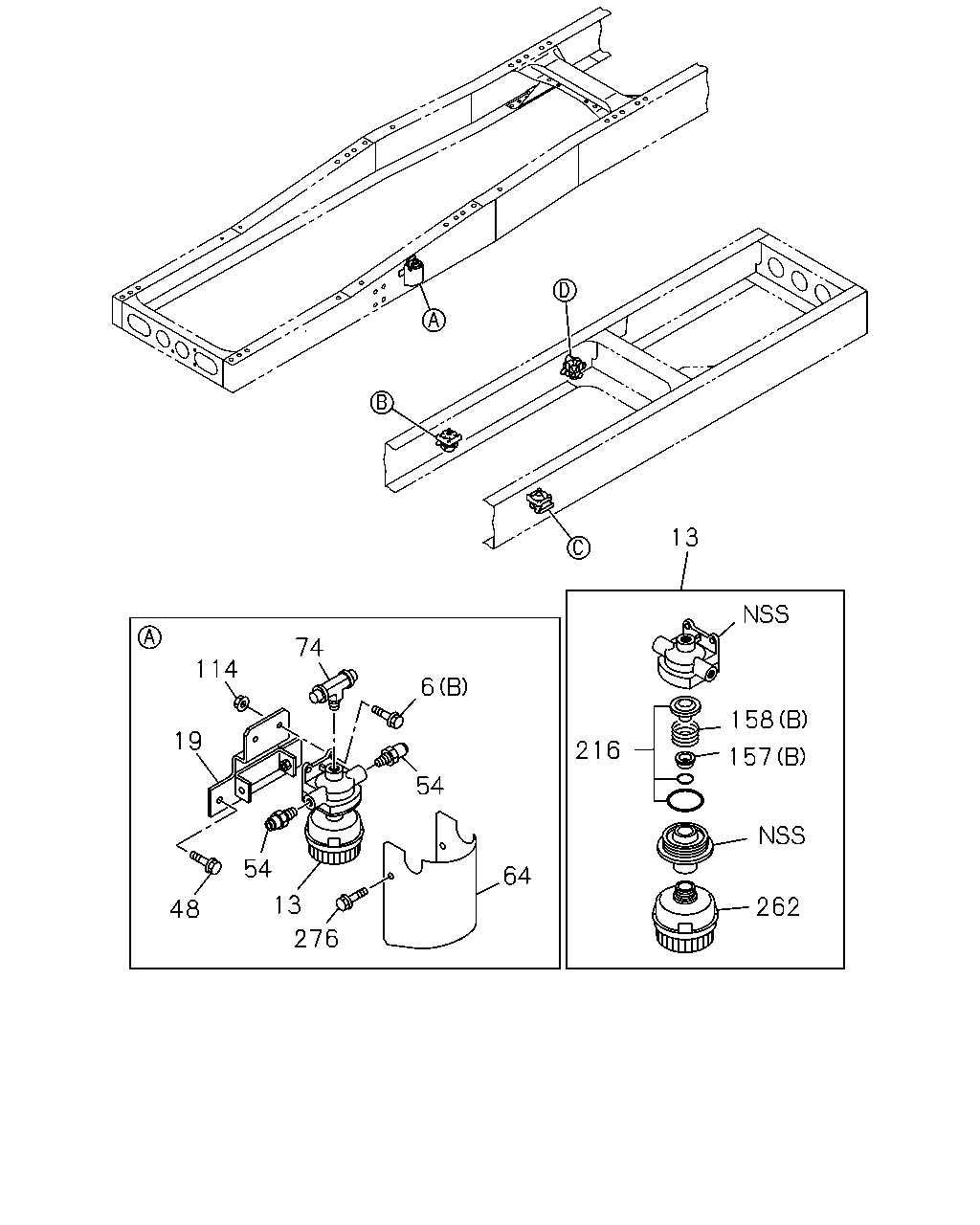

çizim 512890
114 74 6 54 64 13 216 158 157 262 48 276 54 13 19
BalonParca AdiParca NoAdetTipApplied Date
6 BOLT; VLV
(B) M8X25 FLANGE 		0-28650-825-0 02 1 1512-
6 BOLT; VLV
(A) M8X35 FLANGE 		0-28650-835-0 02 1 1512-
13 VALVE ASM; QUICK RELEASE 1-48410-726-1 01 1 1512-
19 BRACKET; QUICK RELEASE VLV 1-47471-014-0 01 1 1512-
48 BOLT; QUICK RELEASE VLV
M8X30 FLANGE 		0-28650-830-0 02 1 1512-
54 CONNECTOR; QUICK RELEASE VLV
DIN12 & R3/8 STRAIGHT 		1-09660-965-0 02 1 1512-
64 PROTECTOR; QUICK RELEASE VALVE 8-98043-421-0 01 1 1512-
74 CONNECTOR; 3WAY
DIN8 & DIN12 & R3/8 3WAY 		1-09660-821-0 01 1 1512-
114 NUT; VLV
M8 FLANGE 		0-91180-108-0 02 1 1512-
157 RETAINER; VALVE
(B) 		1-48419-020-0 01 1 1512-
157 RETAINER; VALVE
RUSSIA EQUIPMENT(B12) (A) 		1-48213-002-0 02 1 1512-
157 RETAINER; VALVE
EXC. RUSSIA EQUIPMENT(B12) (A) 		1-48213-002-0 01 1 1512-
157 RETAINER; VALVE
EXC. RUSSIA EQUIPMENT(B12) (A) 		1-48213-002-0 01 1 1512-
157 RETAINER; VALVE
(A) 		1-48213-002-0 01 1 1512-
158 SPRING; VALVE
(B) 		9-48419-003-0 01 1 1512-
158 SPRING; VALVE
RUSSIA EQUIPMENT(B12) (A) 		1-47819-089-0 02 1 1512-
158 SPRING; VALVE
EXC. RUSSIA EQUIPMENT(B12) (A) 		1-47819-089-0 01 1 1512-
158 SPRING; VALVE
EXC. RUSSIA EQUIPMENT(B12) (A) 		1-47819-089-0 01 1 1512-
158 SPRING; VALVE
(A) 		1-47819-089-0 01 1 1512-
216 REPAIR KIT; QUICK RELEASE VLV 1-85576-484-0 01 1 1512-
262 SILENCER; RELAY VALVE 1-48219-149-0 01 1 1512-
262 SILENCER; RELAY VALVE
RUSSIA EQUIPMENT(B12) 		1-48219-149-0 01 1 1512-
262 SILENCER; RELAY VALVE
RUSSIA EQUIPMENT(B12) 		1-48219-149-0 02 1 1512-
276 BOLT; PROTECTOR
M8X20 FLANGE 		0-28650-820-0 02 1 1512-

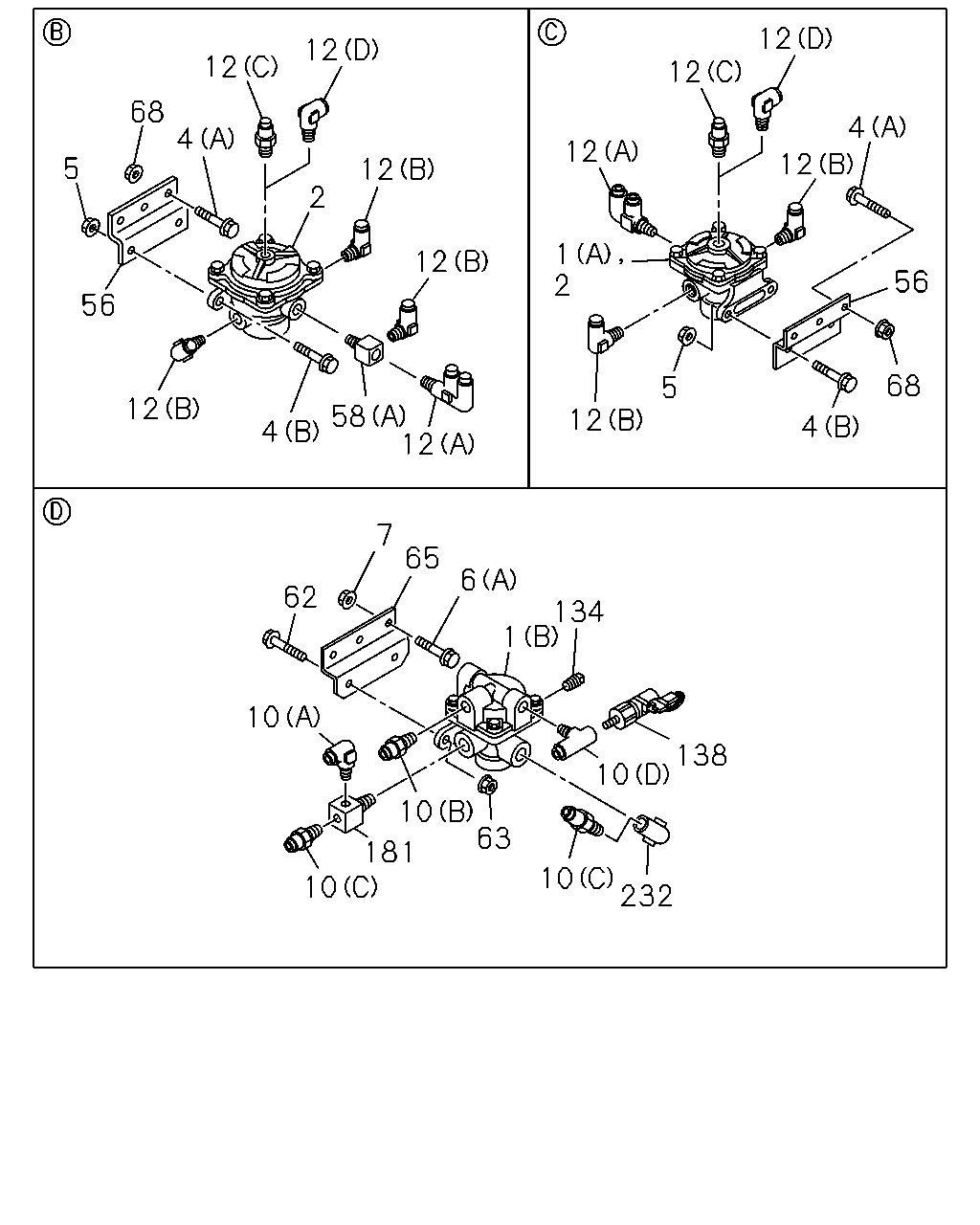

çizim 513401
5 56 12 68 12 12 12 2 4 12 58 62 10 7 10 10 181 65 12 63 10 232 138 10 134 6 12 1 12 2 5 4 68 56 12 4 12 12 4 1
BalonParca AdiParca NoAdetTipApplied Date
1 VALVE; RELAY RWD RR
RUSSIA EQUIPMENT(B12) (A) 		1-48210-997-0 01 1 1512-
1 VALVE; RELAY RWD RR
EXC. RUSSIA EQUIPMENT(B12) (A) 		1-48210-875-0 01 1 1512-
1 VALVE; RELAY RWD RR
EXC. RUSSIA EQUIPMENT(B12) (B) 		1-48240-041-1 01 1 1512-
2 VALVE; RELAY
RUSSIA EQUIPMENT(B12) 		1-48210-997-0 01 1 1512-
2 VALVE; RELAY
RUSSIA EQUIPMENT(B12) 		1-48210-997-0 01 1 1512-
2 VALVE; RELAY
EXC. RUSSIA EQUIPMENT(B12) 		1-48210-875-0 01 1 1512-
4 BOLT; RELAY VLV TO BRKT
(A) M8X35 FLANGE 		0-28650-835-0 04 1 1512-
4 BOLT; RELAY VLV TO BRKT
RUSSIA EQUIPMENT(B12) (B) M10X35 FLANGE 		0-28651-035-0 04 1 1512-
4 BOLT; RELAY VLV TO BRKT
EXC. RUSSIA EQUIPMENT(B12) (B) M10X35 FLANGE 		0-28651-035-0 02 1 1512-
4 BOLT; RELAY VLV TO BRKT
(B) M10X35 FLANGE 		0-28651-035-0 02 1 1512-
5 NUT
RUSSIA EQUIPMENT(B12) M10 FLANGE 		0-91180-210-0 04 1 1512-
5 NUT
EXC. RUSSIA EQUIPMENT(B12) M10 FLANGE 		0-91180-210-0 02 1 1512-
5 NUT
M10 FLANGE 		0-91180-210-0 02 1 1512-
6 BOLT; VLV
(B) M8X25 FLANGE 		0-28650-825-0 02 1 1512-
6 BOLT; VLV
(A) M8X35 FLANGE 		0-28650-835-0 02 1 1512-
7 NUT; RELAY VLV
M8 FLANGE 		0-91180-108-0 02 1 1512-
10 CONNECTOR
EXC. RUSSIA EQUIPMENT(B12) (A) DIN12 & R3/8 ELBOW 		1-09660-959-0 01 1 1512-
10 CONNECTOR
EXC. RUSSIA EQUIPMENT(B12) (B) DIN8 & R3/8 STRAIGHT 		1-09660-964-0 01 1 1512-
10 CONNECTOR
EXC. RUSSIA EQUIPMENT(B12) (C) DIN12 & R3/8 STRAIGHT 		1-09660-965-0 02 1 1512-
10 CONNECTOR
EXC. RUSSIA EQUIPMENT(B12) (D) DIN8 & R3/8 & RC1/4 3WAY 		8-97620-116-0 01 1 1512-
12 CONNECTOR; RELAY VLV
(B) DIN12 & R3/8 ELBOW 		1-09660-959-0 03 1 1512-
12 CONNECTOR; RELAY VLV
RUSSIA EQUIPMENT(B12) (D) DIN8 & R3/8 ELBOW 		1-09660-957-0 01 1 1512-
12 CONNECTOR; RELAY VLV
RUSSIA EQUIPMENT(B12) (D) DIN8 & R3/8 ELBOW 		1-09660-957-0 02 1 1512-
12 CONNECTOR; RELAY VLV
RUSSIA EQUIPMENT(B12) (B) DIN12 & R3/8 ELBOW 		1-09660-959-0 04 1 1512-
12 CONNECTOR; RELAY VLV
RUSSIA EQUIPMENT(B12) (A) DIN12X2 & PT3/8 DOUBLE ELBOW 		1-09661-026-0 02 1 1512-
12 CONNECTOR; RELAY VLV
EXC. RUSSIA EQUIPMENT(B12) (B) DIN12 & R3/8 ELBOW 		1-09660-959-0 02 1 1512-
12 CONNECTOR; RELAY VLV
EXC. RUSSIA EQUIPMENT(B12) (C) DIN8 & R3/8 STRAIGHT 		1-09660-964-0 01 1 1512-
12 CONNECTOR; RELAY VLV
EXC. RUSSIA EQUIPMENT(B12) (C) DIN8 & R3/8 STRAIGHT 		1-09660-964-0 01 1 1512-
12 CONNECTOR; RELAY VLV
EXC. RUSSIA EQUIPMENT(B12) (A) DIN12X2 & PT3/8 DOUBLE ELBOW 		1-09661-026-0 01 1 1512-
12 CONNECTOR; RELAY VLV
(A) DIN12X2 & PT3/8 DOUBLE ELBOW 		1-09661-026-0 01 1 1512-
56 BRACKET; RELAY VLV
RUSSIA EQUIPMENT(B12) 		1-47479-328-0 02 1 1512-
56 BRACKET; RELAY VLV
EXC. RUSSIA EQUIPMENT(B12) 		1-47479-328-0 01 1 1512-
56 BRACKET; RELAY VLV 1-47479-328-0 01 1 1512-
58 ADAPTER
(A) PT3/8 3WAY 		1-09661-300-0 01 1 1512-
58 ADAPTER
RUSSIA EQUIPMENT(B12) (B) M22 ADAPTER 		1-48219-154-0 01 1 1512-
58 ADAPTER
RUSSIA EQUIPMENT(B12) (B) M22 ADAPTER 		1-48219-154-0 02 1 1512-
62 BOLT; BRKT FIX
EXC. RUSSIA EQUIPMENT(B12) M10X35 FLANGE 		0-28651-035-0 02 1 1512-
63 NUT; BRKT FIX
EXC. RUSSIA EQUIPMENT(B12) M10 FLANGE 		0-91180-210-0 02 1 1512-
65 BRACKET; RELAY VLV RR
EXC. RUSSIA EQUIPMENT(B12) 		1-47479-328-0 01 1 1512-
68 NUT; RELAY VLV TO BRKT
M8 FLANGE 		0-91180-108-0 04 1 1512-
134 PLUG; RELAY VALVE
EXC. RUSSIA EQUIPMENT(B12) PT3/8 		9-09204-517-0 01 1 1512-
138 SWITCH; RELAY VALVE
EXC. RUSSIA EQUIPMENT(B12) STAMP 2.0 		8-98010-856-2 01 1 1512-
181 ADAPTER; PRESSURE SW
EXC. RUSSIA EQUIPMENT(B12) PT3/8 3WAY 		1-09661-300-0 01 1 1512-
232 VALVE; CHECK
EXC. RUSSIA EQUIPMENT(B12) 		1-48320-031-1 01 1 1512-

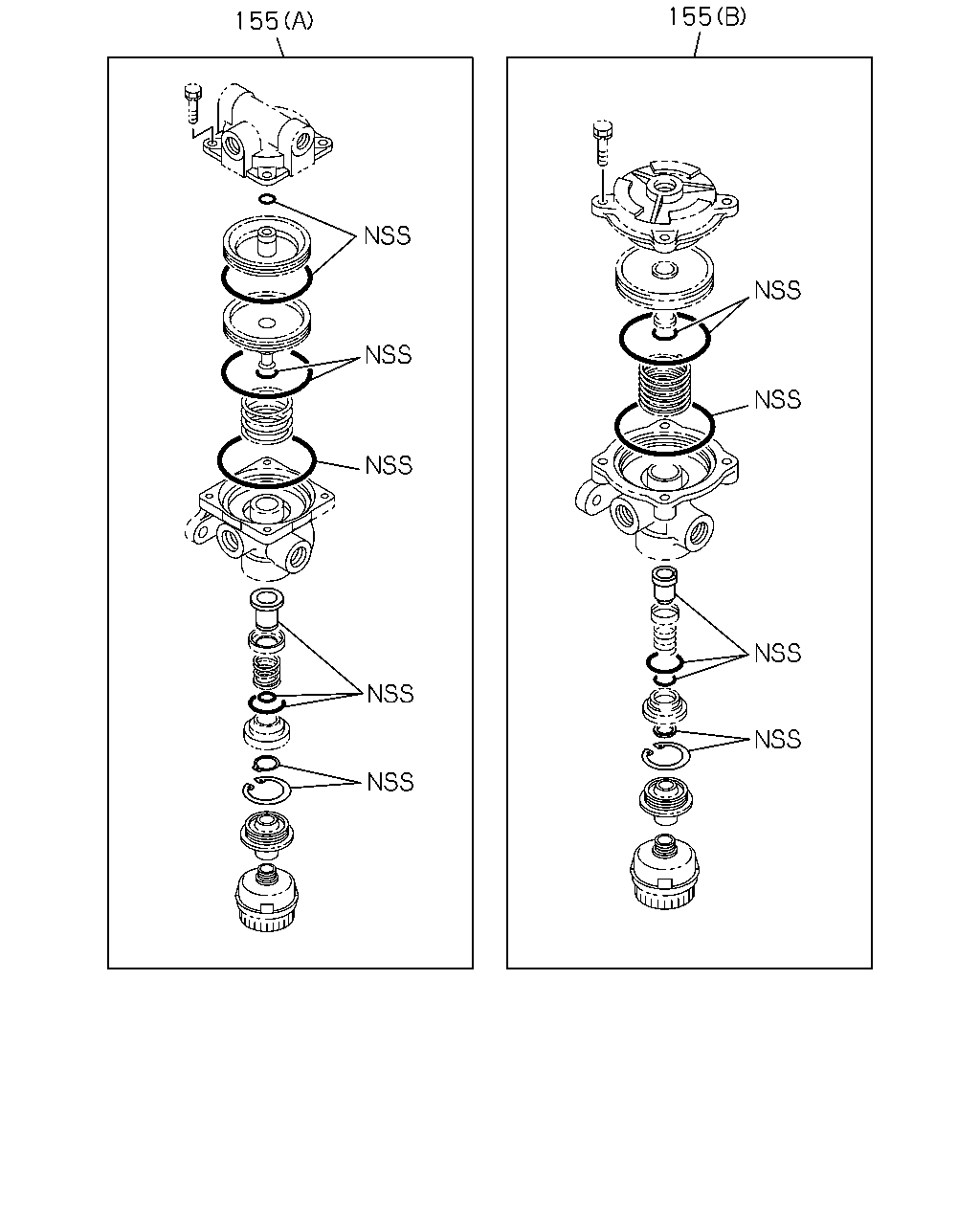

çizim 513824
155 155
BalonParca AdiParca NoAdetTipApplied Date
155 REPAIR KIT; RELAY VALVE
RUSSIA EQUIPMENT(B12) (B) 		1-85576-294-0 01 1 1512-
155 REPAIR KIT; RELAY VALVE
RUSSIA EQUIPMENT(B12) (B) 		1-85576-294-0 02 1 1512-
155 REPAIR KIT; RELAY VALVE
EXC. RUSSIA EQUIPMENT(B12) (B) 		1-85576-033-0 01 1 1512-
155 REPAIR KIT; RELAY VALVE
EXC. RUSSIA EQUIPMENT(B12) (B) 		1-85576-033-0 01 1 1512-
155 REPAIR KIT; RELAY VALVE
EXC. RUSSIA EQUIPMENT(B12) (A) 		1-85576-035-0 01 1 1512-
