◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ EXZ ▶ 11745 - EXZ LHD EURO5 ▶ 3 - Brakes, Brake System ▶ 3-20 - AIR TANK ▶
3-20 — AIR TANK (#176316) — 339 parça

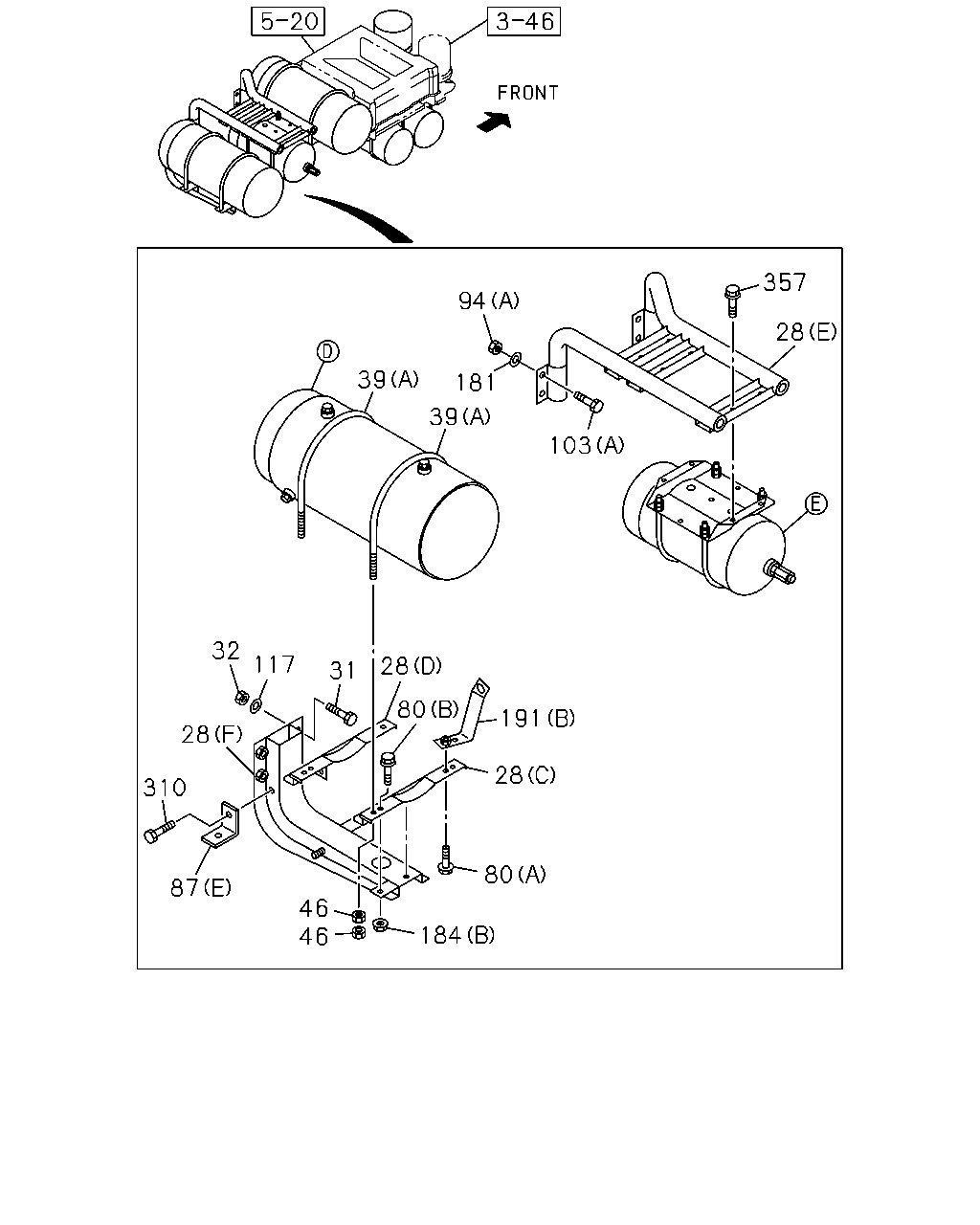

çizim 512901
94 181 103 357 28 39 39 32 117 31 28 80 191 28 28 310 87 46 46 80 184
BalonParca AdiParca NoAdetTipApplied Date
28 BRACKET; AIR TANK
(F) 		1-48316-024-3 01 1 1512-
28 BRACKET; AIR TANK
(D) 		1-48316-026-0 01 1 1512-
28 BRACKET; AIR TANK
(E) 		1-48317-985-1 01 1 1512-
28 BRACKET; AIR TANK
(C) 		1-48317-994-2 01 1 1512-
28 BRACKET; AIR TANK
(G) 		8-97627-750-3 01 1 1512-
28 BRACKET; AIR TANK
(A) 		8-98200-121-2 01 1 1512-
28 BRACKET; AIR TANK
RUSSIA EQUIPMENT(B12) (B) 		1-48317-473-2 01 1 1512-1512
28 BRACKET; AIR TANK
(B) 		1-48317-473-2 01 1 1512-1512
28 BRACKET; AIR TANK
(B) 		1-48317-473-2 01 1 1512-
28 BRACKET; AIR TANK
RUSSIA EQUIPMENT(B12) (H) 		8-98172-056-0 01 1 1512-
31 BOLT; BRKT TO FRAME
M14X50 		0-20851-450-0 04 1 1512-
32 NUT; BRKT TO FRAME
M14 		0-91110-514-0 04 1 1512-
39 U-BOLT; AIR TANK
(A) L=303 		1-48317-087-2 02 1 1512-
39 U-BOLT; AIR TANK
(A) L=303 		1-48317-087-2 03 1 1512-
39 U-BOLT; AIR TANK
(B) L=210 		1-48317-458-1 02 1 1512-1512
39 U-BOLT; AIR TANK
EXC. RUSSIA EQUIPMENT(B12) (B) L=210 		1-48317-458-1 02 1 1512-1512
39 U-BOLT; AIR TANK
EXC. RUSSIA EQUIPMENT(B12) (B) L=210 		1-48317-458-1 02 1 1512-
39 U-BOLT; AIR TANK
EXC. RUSSIA EQUIPMENT(B12) (B) L=210 		1-48317-458-1 02 1 1512-
39 U-BOLT; AIR TANK
RUSSIA EQUIPMENT(B12) (B) L=210 		1-48317-458-1 04 1 1512-
39 U-BOLT; AIR TANK
(B) L=210 		1-48317-458-1 04 1 1512-
46 NUT; U-BOLT
M8 		0-91110-508-0 12 1 1512-
46 NUT; U-BOLT
M8 		0-91110-508-0 08 1 1512-1512
46 NUT; U-BOLT
M8 		0-91110-508-0 08 1 1512-1512
46 NUT; U-BOLT
EXC. RUSSIA EQUIPMENT(B12) M8 		0-91110-508-0 08 1 1512-1512
46 NUT; U-BOLT
M8 		0-91110-508-0 08 1 1512-
46 NUT; U-BOLT
EXC. RUSSIA EQUIPMENT(B12) M8 		0-91110-508-0 08 1 1512-
46 NUT; U-BOLT
EXC. RUSSIA EQUIPMENT(B12) M8 		0-91110-508-0 08 1 1512-
46 NUT; U-BOLT
RUSSIA EQUIPMENT(B12) M8 		0-91110-508-0 16 1 1512-
80 BOLT; BRKT
(A) M8X25 FLANGE 		0-28650-825-0 01 1 1512-
80 BOLT; BRKT
(B) M12X25 FLANGE 		0-28651-225-0 04 1 1512-
87 BRACKET; AIR PIPE JOINT
(B) 		1-47471-189-0 02 1 1512-
87 BRACKET; AIR PIPE JOINT
(C) 		1-47471-241-0 01 1 1512-
87 BRACKET; AIR PIPE JOINT
(E) 		8-98053-747-0 01 1 1512-
87 BRACKET; AIR PIPE JOINT
(A) 		8-98054-525-0 01 1 1512-
87 BRACKET; AIR PIPE JOINT
(D) 		8-98060-053-0 01 1 1512-
94 NUT; BRKT FIX
(A) M10 FLANGE 		0-91180-210-0 02 1 1512-
94 NUT; BRKT FIX
RUSSIA EQUIPMENT(B12) (B) M8 FLANGE 		0-91180-108-0 02 1 1512-
103 BOLT; BRKT
RUSSIA EQUIPMENT(B12) (B) M10X30 FLANGE 		0-28651-030-0 04 1 1512-
103 BOLT; BRKT
(A) M14X35 		0-20851-435-0 04 1 1512-
103 BOLT; BRKT
(B) M10X30 FLANGE 		0-28651-030-0 02 1 1512-
103 BOLT; BRKT
RUSSIA EQUIPMENT(B12) (C) M8X30 FLANGE 		0-28650-830-0 02 1 1512-
117 WASHER; LK,BRKT
ID=14.2 		0-91510-514-0 04 1 1512-
181 WASHER; LK,AIR TANK
ID=14.2 		0-91510-514-0 04 1 1512-
184 NUT; BRKT
(A) M10 FLANGE 		0-91180-210-0 04 1 1512-
184 NUT; BRKT
(B) M12 FLANGE 		0-91180-212-0 01 1 1512-
191 BRACKET; STOPPER,AIR TANK
(B) 		1-48316-014-1 01 1 1512-
191 BRACKET; STOPPER,AIR TANK
(A) 		1-48316-015-1 01 1 1512-
310 BOLT; CLIP,AIR PIPE
M8X20 FLANGE 		0-28650-820-0 05 1 1512-
310 BOLT; CLIP,AIR PIPE
M8X25 FLANGE 		0-28650-825-0 01 1 1512-
357 BOLT; BRKT
M10X30 FLANGE 		0-28651-030-0 04 1 1512-1512
357 BOLT; BRKT
EXC. RUSSIA EQUIPMENT(B12) M10X30 FLANGE 		0-28651-030-0 04 1 1512-
çizim 512913
203 203 180 180 126 176 10 174 175 124 124 344 383 383 429 369 126 176 124 11 28
BalonParca AdiParca NoAdetTipApplied Date
10 PLUG; AIR TANK
(A) M22 		1-09661-502-0 01 1 1512-
10 PLUG; AIR TANK
(A) M22 		1-09661-502-0 02 1 1512-
10 PLUG; AIR TANK
(E) M14 		1-09661-569-0 01 1 1512-
10 PLUG; AIR TANK
(D) PT1/4 		9-99204-513-0 01 1 1512-
10 PLUG; AIR TANK
RUSSIA EQUIPMENT(B12) (C) PT3/4 		9-09204-526-0 01 1 1512-1512
10 PLUG; AIR TANK
(C) PT3/4 		9-09204-526-0 01 1 1512-1512
10 PLUG; AIR TANK
(C) PT3/4 		9-09204-526-0 01 1 1512-
10 PLUG; AIR TANK
RUSSIA EQUIPMENT(B12) (D) PT1/4 		9-99204-513-0 02 1 1512-
10 PLUG; AIR TANK
EXC. RUSSIA EQUIPMENT(B12) (B) PT3/8 		9-09204-517-0 01 1 1512-
10 PLUG; AIR TANK
(B) PT3/8 		9-09204-517-0 01 1 1512-
10 PLUG; AIR TANK
EXC. RUSSIA EQUIPMENT(B12) (D) PT1/4 		9-99204-513-0 06 1 1512-
11 VALVE; SAFETY,AIR TANK
(A) 		1-48320-012-2 01 1 1512-
11 VALVE; SAFETY,AIR TANK
RUSSIA EQUIPMENT(B12) (B) 		1-48320-047-2 01 1 1512-
28 BRACKET; AIR TANK
(F) 		1-48316-024-3 01 1 1512-
28 BRACKET; AIR TANK
(D) 		1-48316-026-0 01 1 1512-
28 BRACKET; AIR TANK
(E) 		1-48317-985-1 01 1 1512-
28 BRACKET; AIR TANK
(C) 		1-48317-994-2 01 1 1512-
28 BRACKET; AIR TANK
(G) 		8-97627-750-3 01 1 1512-
28 BRACKET; AIR TANK
(A) 		8-98200-121-2 01 1 1512-
28 BRACKET; AIR TANK
RUSSIA EQUIPMENT(B12) (B) 		1-48317-473-2 01 1 1512-1512
28 BRACKET; AIR TANK
(B) 		1-48317-473-2 01 1 1512-1512
28 BRACKET; AIR TANK
(B) 		1-48317-473-2 01 1 1512-
28 BRACKET; AIR TANK
RUSSIA EQUIPMENT(B12) (H) 		8-98172-056-0 01 1 1512-
124 SWITCH; AIR PRESSURE
RUSSIA EQUIPMENT(B12) (A) STAMP 5.5 		8-97609-249-0 01 1 1512-
124 SWITCH; AIR PRESSURE
RUSSIA EQUIPMENT(B12) (B) STAMP 6.0 		8-97615-622-0 01 1 1512-
124 SWITCH; AIR PRESSURE
EXC. RUSSIA EQUIPMENT(B12) (A) STAMP 5.5 		8-97609-249-0 02 1 1512-
126 CONNECTOR; ELBOW
(B) DIN8 & M22 ELBOW 		1-09661-495-0 01 1 1512-
126 CONNECTOR; ELBOW
(A) R1/4 & RC3/8 ELBOW 		8-98227-936-0 01 1 1512-
126 CONNECTOR; ELBOW
TIRE INFLATOR DEVICE<SG4> EXC. RUSSIA EQUIPMENT(B12) (C) PT1/4 & PT1/4 2WAY 		1-09660-693-0 01 1 1512-
126 CONNECTOR; ELBOW
RUSSIA EQUIPMENT(B12) EXC. TIRE INFLATOR DEVICE<SG4> (C) PT1/4 & PT1/4 2WAY 		1-09660-693-0 01 1 1512-
174 COCK; AIR,INFLATOR
TIRE INFLATOR DEVICE<SG4> EXC. RUSSIA EQUIPMENT(B12) 		1-09680-099-0 01 1 1512-
174 COCK; AIR,INFLATOR
RUSSIA EQUIPMENT(B12) EXC. TIRE INFLATOR DEVICE<SG4> 		1-09680-099-0 01 1 1512-
175 CAP; AIR COCK
TIRE INFLATOR DEVICE<SG4> EXC. RUSSIA EQUIPMENT(B12) 		9-48319-102-0 01 1 1512-
175 CAP; AIR COCK
RUSSIA EQUIPMENT(B12) EXC. TIRE INFLATOR DEVICE<SG4> 		9-48319-102-0 01 1 1512-
176 ADAPTER
(A) INNER PT3/8,OUTER M22 		1-09650-494-1 01 1 1512-
176 ADAPTER
(A) INNER PT3/8,OUTER M22 		1-09650-494-1 04 1 1512-
176 ADAPTER
(D) PT3/8 ELBOW 		1-09660-696-0 02 1 1512-
176 ADAPTER
(B) PT3/8 3WAY 		1-09661-300-0 02 1 1512-
176 ADAPTER
EXC. RUSSIA EQUIPMENT(B12),TIRE INFLATOR DEVICE<SG4> (C) PS1/4 & PT1/4 STRAIGHT 		1-09660-090-0 01 1 1512-
176 ADAPTER
RUSSIA EQUIPMENT(B12) TIRE INFLATOR DEVICE<SG4> (C) PS1/4 & PT1/4 STRAIGHT 		1-09660-090-0 01 1 1512-
176 ADAPTER
TIRE INFLATOR DEVICE<SG4> EXC. RUSSIA EQUIPMENT(B12) (C) PS1/4 & PT1/4 STRAIGHT 		1-09660-090-0 02 1 1512-
176 ADAPTER
RUSSIA EQUIPMENT(B12) EXC. TIRE INFLATOR DEVICE<SG4> (C) PS1/4 & PT1/4 STRAIGHT 		1-09660-090-0 02 1 1512-
180 WASHER; LK
ID=18.2 		0-91510-518-0 02 1 1512-
203 NUT
M18 		0-91110-518-0 02 1 1512-
344 CONNECTOR; 4WAY
TIRE INFLATOR DEVICE<SG4> EXC. RUSSIA EQUIPMENT(B12) PT1/4 4WAY 		1-09660-358-0 01 1 1512-
344 CONNECTOR; 4WAY
RUSSIA EQUIPMENT(B12) EXC. TIRE INFLATOR DEVICE<SG4> PT1/4 4WAY 		1-09660-358-0 01 1 1512-
369 CONNECTOR; 3WAY
EXC. RUSSIA EQUIPMENT(B12),TIRE INFLATOR DEVICE<SG4> DIN14 & R1/4 & RC1/4 		1-09661-729-0 01 1 1512-
369 CONNECTOR; 3WAY
RUSSIA EQUIPMENT(B12) TIRE INFLATOR DEVICE<SG4> DIN14 & R1/4 & RC1/4 		1-09661-729-0 01 1 1512-
383 UNION; 3 WAY
(A) PT1/4 MALE & PT1/4 FEMALE X2 3WAY 		1-09660-363-0 01 1 1512-
383 UNION; 3 WAY
(B) 		1-09661-092-0 02 1 1512-
429 SENSOR
THREAD R1/4 		1-80220-023-1 01 1 1512-

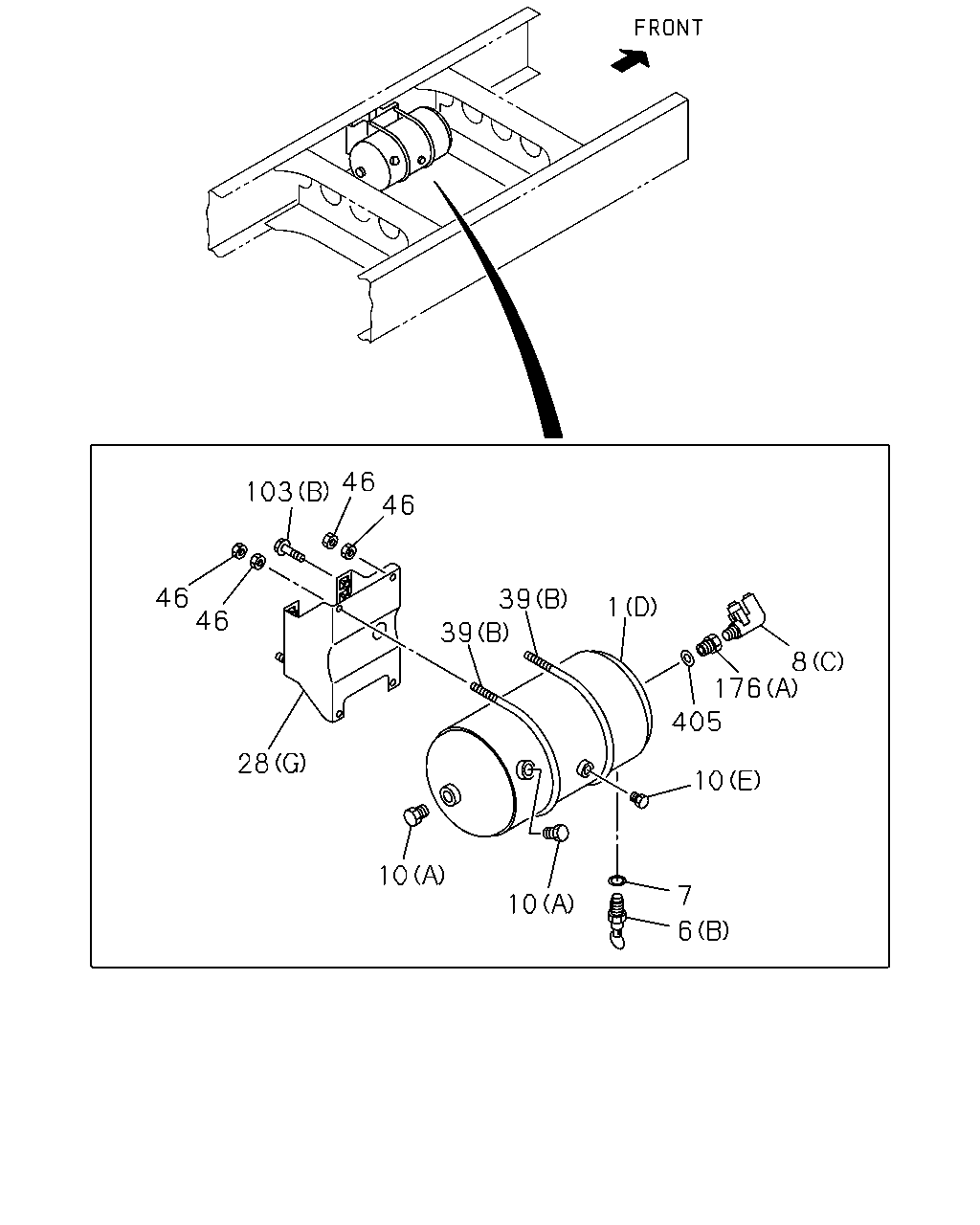

çizim 512915
103 46 46 28 46 46 39 39 1 8 176 405 10 7 6 10 10
BalonParca AdiParca NoAdetTipApplied Date
1 TANK ASM; AIR
(A) 		1-48371-387-1 01 1 1512-
1 TANK ASM; AIR
(B) 		1-48371-434-1 01 1 1512-
1 TANK ASM; AIR
(D) 		8-97626-720-0 01 1 1512-
1 TANK ASM; AIR
RUSSIA EQUIPMENT(B12) (C) 		1-48371-165-3 01 1 1512-1512
1 TANK ASM; AIR
(C) 		1-48371-165-3 01 1 1512-1512
1 TANK ASM; AIR
(C) 		1-48371-165-3 01 1 1512-
6 COCK; DRAIN,AIR TANK
(A) 		1-48312-006-1 01 1 1512-
6 COCK; DRAIN,AIR TANK
(B) 		1-48312-017-0 01 1 1512-1512
6 COCK; DRAIN,AIR TANK
EXC. RUSSIA EQUIPMENT(B12) (B) 		1-48312-017-0 01 1 1512-1512
6 COCK; DRAIN,AIR TANK
EXC. RUSSIA EQUIPMENT(B12) (B) 		1-48312-017-0 01 1 1512-
6 COCK; DRAIN,AIR TANK
EXC. RUSSIA EQUIPMENT(B12) (B) 		1-48312-017-0 01 1 1512-
6 COCK; DRAIN,AIR TANK
(B) 		1-48312-017-0 03 1 1512-
6 COCK; DRAIN,AIR TANK
RUSSIA EQUIPMENT(B12) (B) 		1-48312-017-0 04 1 1512-
6 COCK; DRAIN,AIR TANK
EXC. RUSSIA EQUIPMENT(B12) (B) 		1-48312-017-0 02 1 1512-
7 GASKET; DRAIN COCK
ID=14 		1-09630-145-0 01 1 1512-1512
7 GASKET; DRAIN COCK
EXC. RUSSIA EQUIPMENT(B12) ID=14 		1-09630-145-0 01 1 1512-1512
7 GASKET; DRAIN COCK
EXC. RUSSIA EQUIPMENT(B12) ID=14 		1-09630-145-0 01 1 1512-
7 GASKET; DRAIN COCK
EXC. RUSSIA EQUIPMENT(B12) ID=14 		1-09630-145-0 01 1 1512-
7 GASKET; DRAIN COCK
RUSSIA EQUIPMENT(B12) ID=14 		1-09630-145-0 04 1 1512-
7 GASKET; DRAIN COCK
ID=14 		1-09630-145-0 04 1 1512-
7 GASKET; DRAIN COCK
EXC. RUSSIA EQUIPMENT(B12) ID=14 		1-09630-145-0 02 1 1512-
8 CONNECTOR; AIR TANK
(C) DIN12X2 & PT3/8 DOUBLE ELBOW 		1-09661-026-0 01 1 1512-
8 CONNECTOR; AIR TANK
(A) DIN8 & R3/8 & RC3/8 3WAY 		1-09661-271-0 01 1 1512-
8 CONNECTOR; AIR TANK
RUSSIA EQUIPMENT(B12) (B) R1/4 & M16 TEST CONNECTOR 		1-47459-013-1 04 1 1512-
10 PLUG; AIR TANK
(A) M22 		1-09661-502-0 01 1 1512-
10 PLUG; AIR TANK
(A) M22 		1-09661-502-0 02 1 1512-
10 PLUG; AIR TANK
(E) M14 		1-09661-569-0 01 1 1512-
10 PLUG; AIR TANK
(D) PT1/4 		9-99204-513-0 01 1 1512-
10 PLUG; AIR TANK
RUSSIA EQUIPMENT(B12) (C) PT3/4 		9-09204-526-0 01 1 1512-1512
10 PLUG; AIR TANK
(C) PT3/4 		9-09204-526-0 01 1 1512-1512
10 PLUG; AIR TANK
(C) PT3/4 		9-09204-526-0 01 1 1512-
10 PLUG; AIR TANK
RUSSIA EQUIPMENT(B12) (D) PT1/4 		9-99204-513-0 02 1 1512-
10 PLUG; AIR TANK
EXC. RUSSIA EQUIPMENT(B12) (B) PT3/8 		9-09204-517-0 01 1 1512-
10 PLUG; AIR TANK
(B) PT3/8 		9-09204-517-0 01 1 1512-
10 PLUG; AIR TANK
EXC. RUSSIA EQUIPMENT(B12) (D) PT1/4 		9-99204-513-0 06 1 1512-
28 BRACKET; AIR TANK
(F) 		1-48316-024-3 01 1 1512-
28 BRACKET; AIR TANK
(D) 		1-48316-026-0 01 1 1512-
28 BRACKET; AIR TANK
(E) 		1-48317-985-1 01 1 1512-
28 BRACKET; AIR TANK
(C) 		1-48317-994-2 01 1 1512-
28 BRACKET; AIR TANK
(G) 		8-97627-750-3 01 1 1512-
28 BRACKET; AIR TANK
(A) 		8-98200-121-2 01 1 1512-
28 BRACKET; AIR TANK
RUSSIA EQUIPMENT(B12) (B) 		1-48317-473-2 01 1 1512-1512
28 BRACKET; AIR TANK
(B) 		1-48317-473-2 01 1 1512-1512
28 BRACKET; AIR TANK
(B) 		1-48317-473-2 01 1 1512-
28 BRACKET; AIR TANK
RUSSIA EQUIPMENT(B12) (H) 		8-98172-056-0 01 1 1512-
39 U-BOLT; AIR TANK
(A) L=303 		1-48317-087-2 02 1 1512-
39 U-BOLT; AIR TANK
(A) L=303 		1-48317-087-2 03 1 1512-
39 U-BOLT; AIR TANK
(B) L=210 		1-48317-458-1 02 1 1512-1512
39 U-BOLT; AIR TANK
EXC. RUSSIA EQUIPMENT(B12) (B) L=210 		1-48317-458-1 02 1 1512-1512
39 U-BOLT; AIR TANK
EXC. RUSSIA EQUIPMENT(B12) (B) L=210 		1-48317-458-1 02 1 1512-
39 U-BOLT; AIR TANK
EXC. RUSSIA EQUIPMENT(B12) (B) L=210 		1-48317-458-1 02 1 1512-
39 U-BOLT; AIR TANK
RUSSIA EQUIPMENT(B12) (B) L=210 		1-48317-458-1 04 1 1512-
39 U-BOLT; AIR TANK
(B) L=210 		1-48317-458-1 04 1 1512-
46 NUT; U-BOLT
M8 		0-91110-508-0 12 1 1512-
46 NUT; U-BOLT
M8 		0-91110-508-0 08 1 1512-1512
46 NUT; U-BOLT
M8 		0-91110-508-0 08 1 1512-1512
46 NUT; U-BOLT
EXC. RUSSIA EQUIPMENT(B12) M8 		0-91110-508-0 08 1 1512-1512
46 NUT; U-BOLT
M8 		0-91110-508-0 08 1 1512-
46 NUT; U-BOLT
EXC. RUSSIA EQUIPMENT(B12) M8 		0-91110-508-0 08 1 1512-
46 NUT; U-BOLT
EXC. RUSSIA EQUIPMENT(B12) M8 		0-91110-508-0 08 1 1512-
46 NUT; U-BOLT
RUSSIA EQUIPMENT(B12) M8 		0-91110-508-0 16 1 1512-
103 BOLT; BRKT
RUSSIA EQUIPMENT(B12) (B) M10X30 FLANGE 		0-28651-030-0 04 1 1512-
103 BOLT; BRKT
(A) M14X35 		0-20851-435-0 04 1 1512-
103 BOLT; BRKT
(B) M10X30 FLANGE 		0-28651-030-0 02 1 1512-
103 BOLT; BRKT
RUSSIA EQUIPMENT(B12) (C) M8X30 FLANGE 		0-28650-830-0 02 1 1512-
176 ADAPTER
(A) INNER PT3/8,OUTER M22 		1-09650-494-1 01 1 1512-
176 ADAPTER
(A) INNER PT3/8,OUTER M22 		1-09650-494-1 04 1 1512-
176 ADAPTER
(D) PT3/8 ELBOW 		1-09660-696-0 02 1 1512-
176 ADAPTER
(B) PT3/8 3WAY 		1-09661-300-0 02 1 1512-
176 ADAPTER
EXC. RUSSIA EQUIPMENT(B12),TIRE INFLATOR DEVICE<SG4> (C) PS1/4 & PT1/4 STRAIGHT 		1-09660-090-0 01 1 1512-
176 ADAPTER
RUSSIA EQUIPMENT(B12) TIRE INFLATOR DEVICE<SG4> (C) PS1/4 & PT1/4 STRAIGHT 		1-09660-090-0 01 1 1512-
176 ADAPTER
TIRE INFLATOR DEVICE<SG4> EXC. RUSSIA EQUIPMENT(B12) (C) PS1/4 & PT1/4 STRAIGHT 		1-09660-090-0 02 1 1512-
176 ADAPTER
RUSSIA EQUIPMENT(B12) EXC. TIRE INFLATOR DEVICE<SG4> (C) PS1/4 & PT1/4 STRAIGHT 		1-09660-090-0 02 1 1512-
405 GASKET
ID=22.5 		9-09571-422-0 01 1 1512-
405 GASKET
ID=22.5 		9-09571-422-0 04 1 1512-
405 GASKET
ID=22.5 		9-09571-422-0 04 1 1512-

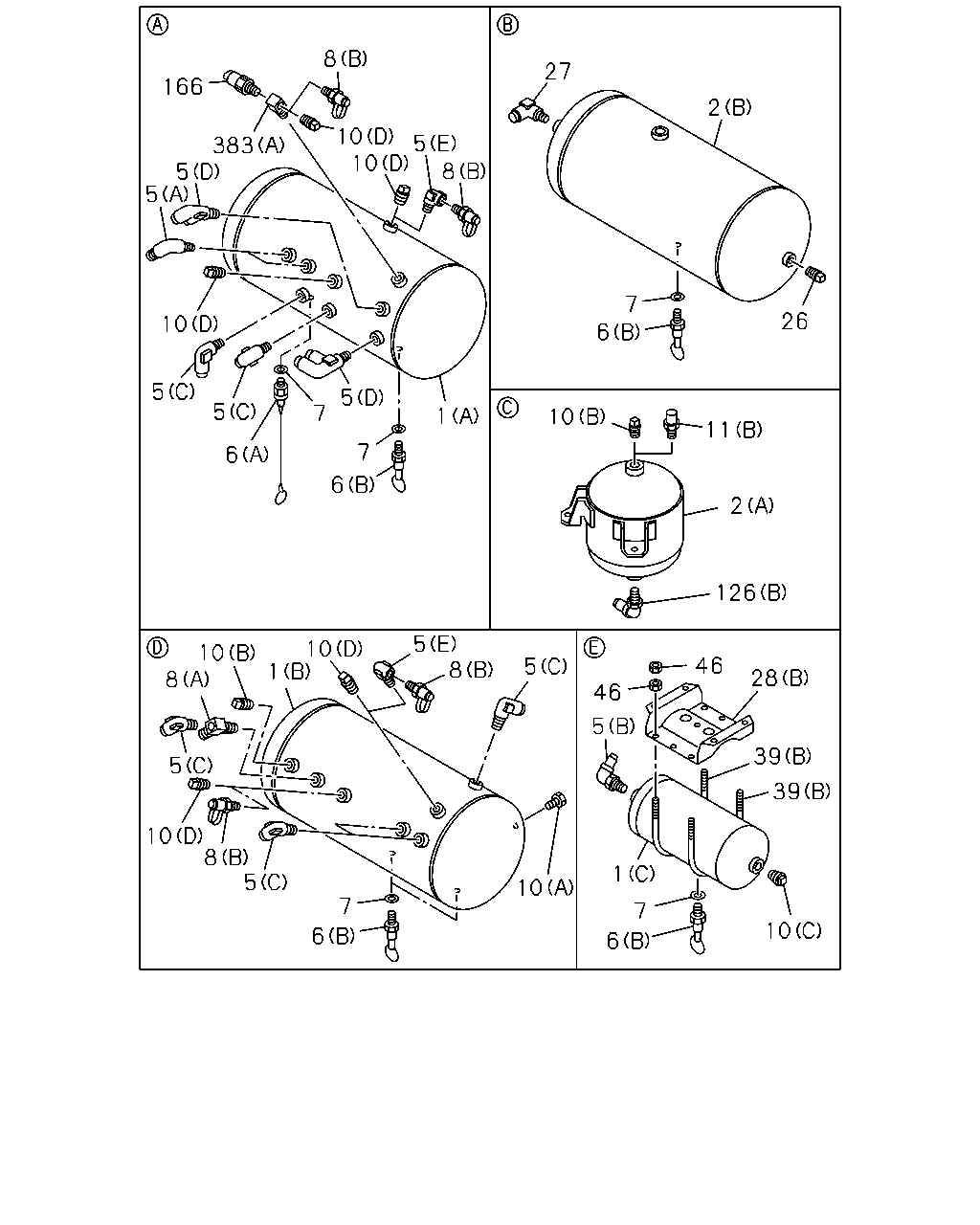

çizim 513243
166 5 5 383 8 10 10 5 6 5 5 7 7 1 6 10 5 8 10 8 5 1 5 10 10 5 8 7 6 8 5 10 27 7 6 26 2 11 10 2 126 46 46 8 39 39 1 6 10 5 7
BalonParca AdiParca NoAdetTipApplied Date
1 TANK ASM; AIR
(A) 		1-48371-387-1 01 1 1512-
1 TANK ASM; AIR
(B) 		1-48371-434-1 01 1 1512-
1 TANK ASM; AIR
(D) 		8-97626-720-0 01 1 1512-
1 TANK ASM; AIR
RUSSIA EQUIPMENT(B12) (C) 		1-48371-165-3 01 1 1512-1512
1 TANK ASM; AIR
(C) 		1-48371-165-3 01 1 1512-1512
1 TANK ASM; AIR
(C) 		1-48371-165-3 01 1 1512-
2 TANK; AIR
(A) 		1-48371-166-3 01 1 1512-
2 TANK; AIR
(B) 		1-48371-389-1 02 1 1512-
5 UNION; AIR TANK
(C) DIN12 & R3/8 ELBOW 		1-09660-959-0 06 1 1512-
5 UNION; AIR TANK
(D) DIN12X2 & PT3/8 DOUBLE ELBOW 		1-09661-026-0 02 1 1512-
5 UNION; AIR TANK
(A) M22 & M22 ELBOW 		1-09661-550-0 02 1 1512-
5 UNION; AIR TANK
RUSSIA EQUIPMENT(B12) (E) PT1/4 & PT1/4 2WAY 		1-09660-693-0 02 1 1512-
5 UNION; AIR TANK
RUSSIA EQUIPMENT(B12) (B) DIN12 & M22 ELBOW 		1-09661-497-0 01 1 1512-1512
5 UNION; AIR TANK
(B) DIN12 & M22 ELBOW 		1-09661-497-0 01 1 1512-1512
5 UNION; AIR TANK
(B) DIN12 & M22 ELBOW 		1-09661-497-0 01 1 1512-
6 COCK; DRAIN,AIR TANK
(A) 		1-48312-006-1 01 1 1512-
6 COCK; DRAIN,AIR TANK
(B) 		1-48312-017-0 01 1 1512-1512
6 COCK; DRAIN,AIR TANK
EXC. RUSSIA EQUIPMENT(B12) (B) 		1-48312-017-0 01 1 1512-1512
6 COCK; DRAIN,AIR TANK
EXC. RUSSIA EQUIPMENT(B12) (B) 		1-48312-017-0 01 1 1512-
6 COCK; DRAIN,AIR TANK
EXC. RUSSIA EQUIPMENT(B12) (B) 		1-48312-017-0 01 1 1512-
6 COCK; DRAIN,AIR TANK
(B) 		1-48312-017-0 03 1 1512-
6 COCK; DRAIN,AIR TANK
RUSSIA EQUIPMENT(B12) (B) 		1-48312-017-0 04 1 1512-
6 COCK; DRAIN,AIR TANK
EXC. RUSSIA EQUIPMENT(B12) (B) 		1-48312-017-0 02 1 1512-
7 GASKET; DRAIN COCK
ID=14 		1-09630-145-0 01 1 1512-1512
7 GASKET; DRAIN COCK
EXC. RUSSIA EQUIPMENT(B12) ID=14 		1-09630-145-0 01 1 1512-1512
7 GASKET; DRAIN COCK
EXC. RUSSIA EQUIPMENT(B12) ID=14 		1-09630-145-0 01 1 1512-
7 GASKET; DRAIN COCK
EXC. RUSSIA EQUIPMENT(B12) ID=14 		1-09630-145-0 01 1 1512-
7 GASKET; DRAIN COCK
RUSSIA EQUIPMENT(B12) ID=14 		1-09630-145-0 04 1 1512-
7 GASKET; DRAIN COCK
ID=14 		1-09630-145-0 04 1 1512-
7 GASKET; DRAIN COCK
EXC. RUSSIA EQUIPMENT(B12) ID=14 		1-09630-145-0 02 1 1512-
8 CONNECTOR; AIR TANK
(C) DIN12X2 & PT3/8 DOUBLE ELBOW 		1-09661-026-0 01 1 1512-
8 CONNECTOR; AIR TANK
(A) DIN8 & R3/8 & RC3/8 3WAY 		1-09661-271-0 01 1 1512-
8 CONNECTOR; AIR TANK
RUSSIA EQUIPMENT(B12) (B) R1/4 & M16 TEST CONNECTOR 		1-47459-013-1 04 1 1512-
10 PLUG; AIR TANK
(A) M22 		1-09661-502-0 01 1 1512-
10 PLUG; AIR TANK
(A) M22 		1-09661-502-0 02 1 1512-
10 PLUG; AIR TANK
(E) M14 		1-09661-569-0 01 1 1512-
10 PLUG; AIR TANK
(D) PT1/4 		9-99204-513-0 01 1 1512-
10 PLUG; AIR TANK
RUSSIA EQUIPMENT(B12) (C) PT3/4 		9-09204-526-0 01 1 1512-1512
10 PLUG; AIR TANK
(C) PT3/4 		9-09204-526-0 01 1 1512-1512
10 PLUG; AIR TANK
(C) PT3/4 		9-09204-526-0 01 1 1512-
10 PLUG; AIR TANK
RUSSIA EQUIPMENT(B12) (D) PT1/4 		9-99204-513-0 02 1 1512-
10 PLUG; AIR TANK
EXC. RUSSIA EQUIPMENT(B12) (B) PT3/8 		9-09204-517-0 01 1 1512-
10 PLUG; AIR TANK
(B) PT3/8 		9-09204-517-0 01 1 1512-
10 PLUG; AIR TANK
EXC. RUSSIA EQUIPMENT(B12) (D) PT1/4 		9-99204-513-0 06 1 1512-
11 VALVE; SAFETY,AIR TANK
(A) 		1-48320-012-2 01 1 1512-
11 VALVE; SAFETY,AIR TANK
RUSSIA EQUIPMENT(B12) (B) 		1-48320-047-2 01 1 1512-
26 PLUG; SUB AIR TANK
PT3/8 		9-09204-517-0 02 1 1512-
27 UNION; ELBOW,AIR TANK
DIN12 & R3/8 ELBOW 		1-09660-959-0 02 1 1512-
39 U-BOLT; AIR TANK
(A) L=303 		1-48317-087-2 02 1 1512-
39 U-BOLT; AIR TANK
(A) L=303 		1-48317-087-2 03 1 1512-
39 U-BOLT; AIR TANK
(B) L=210 		1-48317-458-1 02 1 1512-1512
39 U-BOLT; AIR TANK
EXC. RUSSIA EQUIPMENT(B12) (B) L=210 		1-48317-458-1 02 1 1512-1512
39 U-BOLT; AIR TANK
EXC. RUSSIA EQUIPMENT(B12) (B) L=210 		1-48317-458-1 02 1 1512-
39 U-BOLT; AIR TANK
EXC. RUSSIA EQUIPMENT(B12) (B) L=210 		1-48317-458-1 02 1 1512-
39 U-BOLT; AIR TANK
RUSSIA EQUIPMENT(B12) (B) L=210 		1-48317-458-1 04 1 1512-
39 U-BOLT; AIR TANK
(B) L=210 		1-48317-458-1 04 1 1512-
46 NUT; U-BOLT
M8 		0-91110-508-0 12 1 1512-
46 NUT; U-BOLT
M8 		0-91110-508-0 08 1 1512-1512
46 NUT; U-BOLT
M8 		0-91110-508-0 08 1 1512-1512
46 NUT; U-BOLT
EXC. RUSSIA EQUIPMENT(B12) M8 		0-91110-508-0 08 1 1512-1512
46 NUT; U-BOLT
M8 		0-91110-508-0 08 1 1512-
46 NUT; U-BOLT
EXC. RUSSIA EQUIPMENT(B12) M8 		0-91110-508-0 08 1 1512-
46 NUT; U-BOLT
EXC. RUSSIA EQUIPMENT(B12) M8 		0-91110-508-0 08 1 1512-
46 NUT; U-BOLT
RUSSIA EQUIPMENT(B12) M8 		0-91110-508-0 16 1 1512-
126 CONNECTOR; ELBOW
(B) DIN8 & M22 ELBOW 		1-09661-495-0 01 1 1512-
126 CONNECTOR; ELBOW
(A) R1/4 & RC3/8 ELBOW 		8-98227-936-0 01 1 1512-
126 CONNECTOR; ELBOW
TIRE INFLATOR DEVICE<SG4> EXC. RUSSIA EQUIPMENT(B12) (C) PT1/4 & PT1/4 2WAY 		1-09660-693-0 01 1 1512-
126 CONNECTOR; ELBOW
RUSSIA EQUIPMENT(B12) EXC. TIRE INFLATOR DEVICE<SG4> (C) PT1/4 & PT1/4 2WAY 		1-09660-693-0 01 1 1512-
166 SWITCH ASM; LOW PRESSURE,MAIN TANK
STAMP 5.5 		8-97609-249-0 01 1 1512-
383 UNION; 3 WAY
(A) PT1/4 MALE & PT1/4 FEMALE X2 3WAY 		1-09660-363-0 01 1 1512-
383 UNION; 3 WAY
(B) 		1-09661-092-0 02 1 1512-
çizim 513431
241
BalonParca AdiParca NoAdetTipApplied Date
241 BOLT; SET,CONT VLV
M8X30 W/LK&PL WASHER 		0-50640-830-0 01 1 1512-

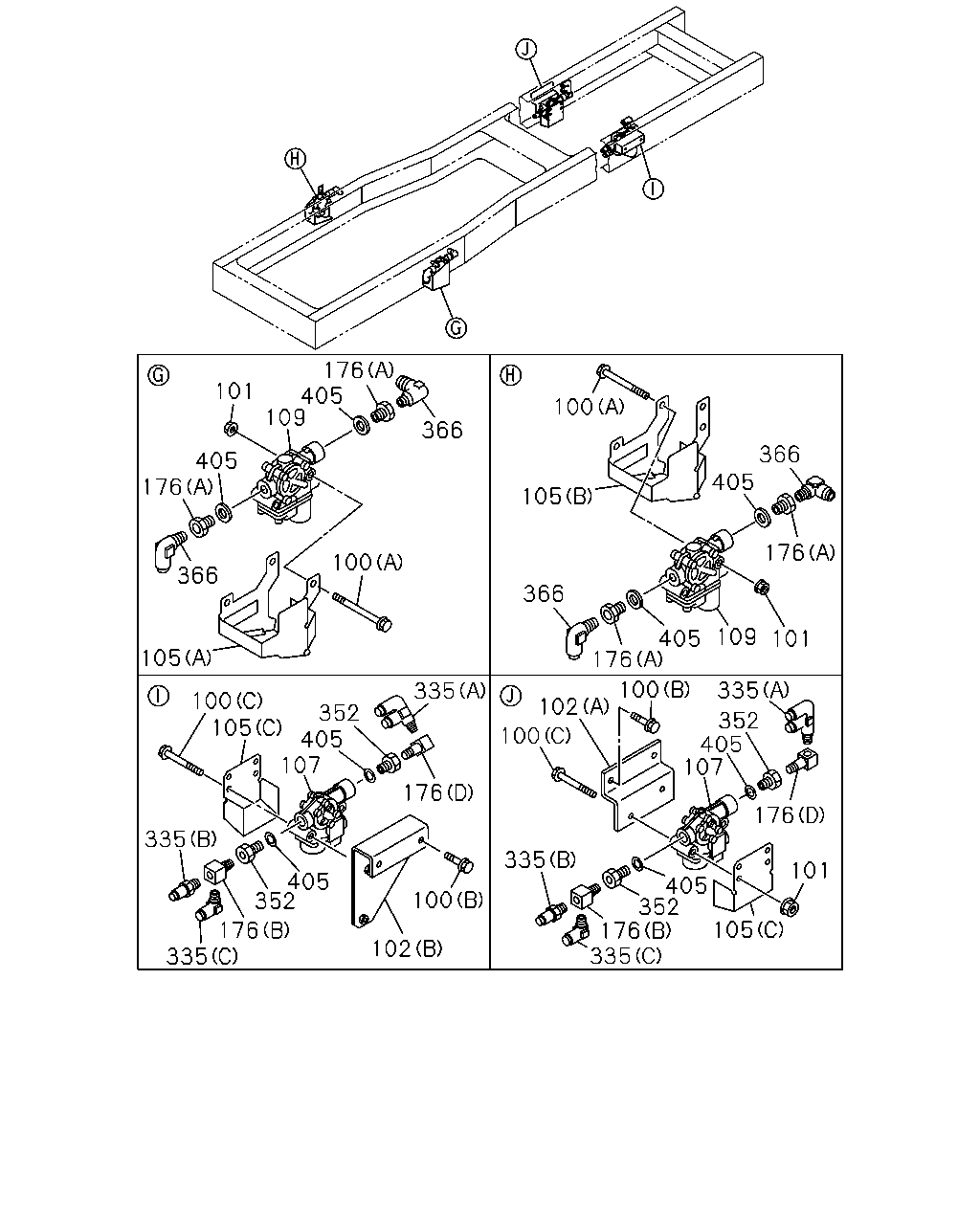

çizim 513573
101 176 366 105 100 109 405 176 366 405 100 105 405 335 352 107 335 352 176 100 176 100 105 405 366 176 405 366 176 109 101 100 100 352 176 335 102 405 105 101 176 107 335 352 405 335 102 405 335
BalonParca AdiParca NoAdetTipApplied Date
100 BOLT; MODULATOR
(A) M8X80 FLANGE 		0-28050-880-0 04 1 1512-
100 BOLT; MODULATOR
(B) M8X25 FLANGE 		0-28650-825-0 04 1 1512-
100 BOLT; MODULATOR
(C) M8X85 		1-09044-074-0 04 1 1512-
101 NUT; MODULATOR
M8 FLANGE 		0-91180-108-0 02 1 1512-
101 NUT; MODULATOR
M8 FLANGE 		0-91180-108-0 02 1 1512-
102 BRACKET; MODULATOR
(A) 		8-98300-018-0 01 1 1512-
102 BRACKET; MODULATOR
(B) 		8-98300-020-0 01 1 1512-
105 COVER; MODULATOR
(A) 		8-98300-150-0 01 1 1512-
105 COVER; MODULATOR
(B) 		8-98300-154-0 01 1 1512-
105 COVER; MODULATOR
(C) 		8-98302-924-0 01 1 1512-
105 COVER; MODULATOR
(C) 		8-98302-925-0 01 1 1512-
107 MODULATOR; RR 8-98215-454-0 02 1 1512-
109 MODULATOR; FRT 8-98215-454-0 02 1 1512-
176 ADAPTER
(A) INNER PT3/8,OUTER M22 		1-09650-494-1 01 1 1512-
176 ADAPTER
(A) INNER PT3/8,OUTER M22 		1-09650-494-1 04 1 1512-
176 ADAPTER
(D) PT3/8 ELBOW 		1-09660-696-0 02 1 1512-
176 ADAPTER
(B) PT3/8 3WAY 		1-09661-300-0 02 1 1512-
176 ADAPTER
EXC. RUSSIA EQUIPMENT(B12),TIRE INFLATOR DEVICE<SG4> (C) PS1/4 & PT1/4 STRAIGHT 		1-09660-090-0 01 1 1512-
176 ADAPTER
RUSSIA EQUIPMENT(B12) TIRE INFLATOR DEVICE<SG4> (C) PS1/4 & PT1/4 STRAIGHT 		1-09660-090-0 01 1 1512-
176 ADAPTER
TIRE INFLATOR DEVICE<SG4> EXC. RUSSIA EQUIPMENT(B12) (C) PS1/4 & PT1/4 STRAIGHT 		1-09660-090-0 02 1 1512-
176 ADAPTER
RUSSIA EQUIPMENT(B12) EXC. TIRE INFLATOR DEVICE<SG4> (C) PS1/4 & PT1/4 STRAIGHT 		1-09660-090-0 02 1 1512-
335 CONNECTOR; MODULATOR
(C) DIN12 & R3/8 ELBOW 		1-09660-959-0 02 1 1512-
335 CONNECTOR; MODULATOR
(B) DIN12 & R3/8 STRAIGHT 		1-09660-965-0 02 1 1512-
335 CONNECTOR; MODULATOR
(A) DIN12X2 & PT3/8 DOUBLE ELBOW 		1-09661-026-0 02 1 1512-
352 CONNECTOR; STRAIGHT
INNER PT3/8,OUTER M22 		1-09650-494-1 04 1 1512-
366 CONNECTOR; NYLON TUBE
DIN12 & R3/8 ELBOW 		1-09660-959-0 04 1 1512-
405 GASKET
ID=22.5 		9-09571-422-0 01 1 1512-
405 GASKET
ID=22.5 		9-09571-422-0 04 1 1512-
405 GASKET
ID=22.5 		9-09571-422-0 04 1 1512-

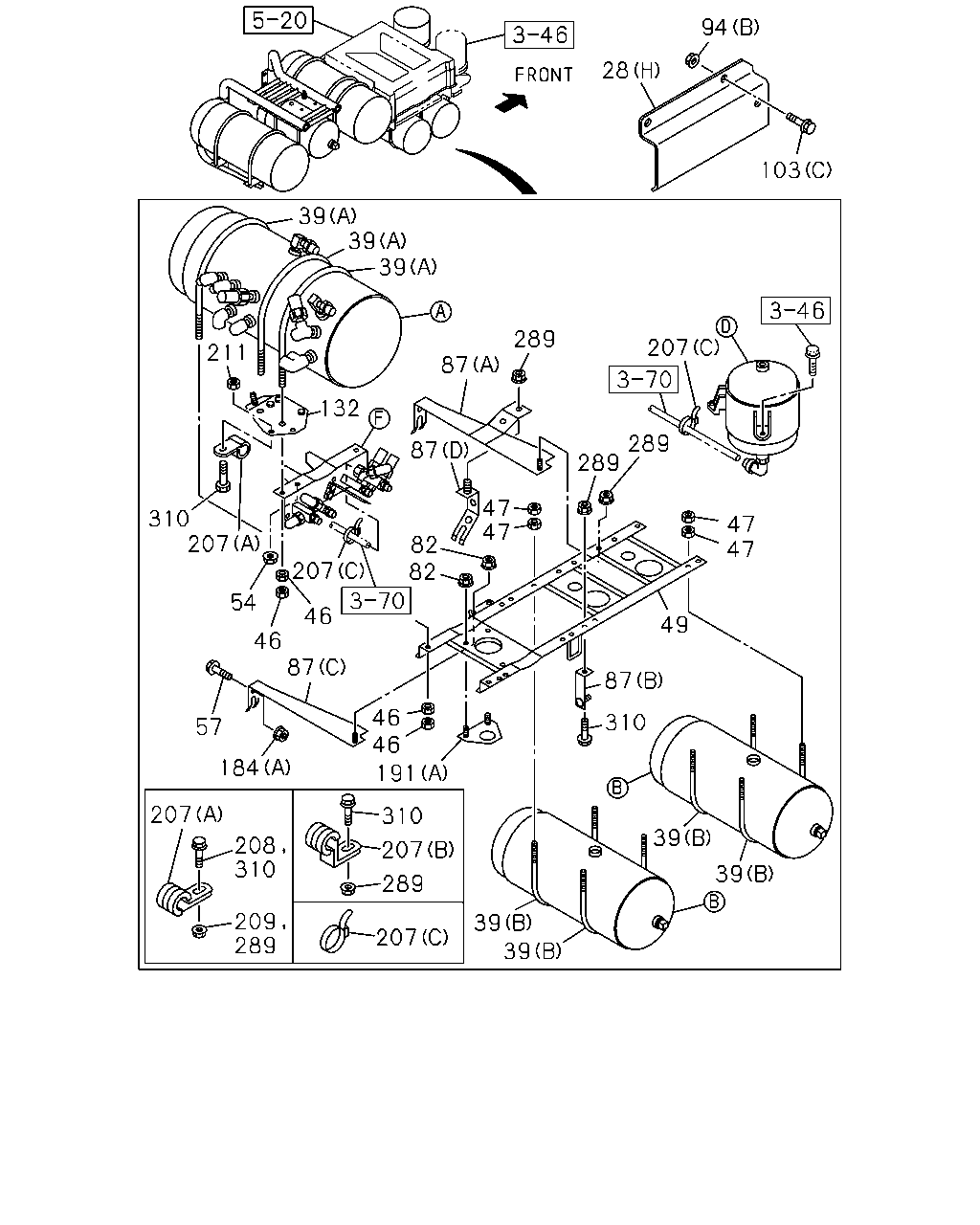

çizim 514040
94 28 103 39 39 39 87 289 207 289 289 47 47 49 87 310 87 47 47 82 82 211 132 310 207 207 54 46 87 46 57 184 46 46 191 39 39 39 39 310 207 289 207 207 208 310 209 289
BalonParca AdiParca NoAdetTipApplied Date
28 BRACKET; AIR TANK
(F) 		1-48316-024-3 01 1 1512-
28 BRACKET; AIR TANK
(D) 		1-48316-026-0 01 1 1512-
28 BRACKET; AIR TANK
(E) 		1-48317-985-1 01 1 1512-
28 BRACKET; AIR TANK
(C) 		1-48317-994-2 01 1 1512-
28 BRACKET; AIR TANK
(G) 		8-97627-750-3 01 1 1512-
28 BRACKET; AIR TANK
(A) 		8-98200-121-2 01 1 1512-
28 BRACKET; AIR TANK
RUSSIA EQUIPMENT(B12) (B) 		1-48317-473-2 01 1 1512-1512
28 BRACKET; AIR TANK
(B) 		1-48317-473-2 01 1 1512-1512
28 BRACKET; AIR TANK
(B) 		1-48317-473-2 01 1 1512-
28 BRACKET; AIR TANK
RUSSIA EQUIPMENT(B12) (H) 		8-98172-056-0 01 1 1512-
39 U-BOLT; AIR TANK
(A) L=303 		1-48317-087-2 02 1 1512-
39 U-BOLT; AIR TANK
(A) L=303 		1-48317-087-2 03 1 1512-
39 U-BOLT; AIR TANK
(B) L=210 		1-48317-458-1 02 1 1512-1512
39 U-BOLT; AIR TANK
EXC. RUSSIA EQUIPMENT(B12) (B) L=210 		1-48317-458-1 02 1 1512-1512
39 U-BOLT; AIR TANK
EXC. RUSSIA EQUIPMENT(B12) (B) L=210 		1-48317-458-1 02 1 1512-
39 U-BOLT; AIR TANK
EXC. RUSSIA EQUIPMENT(B12) (B) L=210 		1-48317-458-1 02 1 1512-
39 U-BOLT; AIR TANK
RUSSIA EQUIPMENT(B12) (B) L=210 		1-48317-458-1 04 1 1512-
39 U-BOLT; AIR TANK
(B) L=210 		1-48317-458-1 04 1 1512-
46 NUT; U-BOLT
M8 		0-91110-508-0 12 1 1512-
46 NUT; U-BOLT
M8 		0-91110-508-0 08 1 1512-1512
46 NUT; U-BOLT
M8 		0-91110-508-0 08 1 1512-1512
46 NUT; U-BOLT
EXC. RUSSIA EQUIPMENT(B12) M8 		0-91110-508-0 08 1 1512-1512
46 NUT; U-BOLT
M8 		0-91110-508-0 08 1 1512-
46 NUT; U-BOLT
EXC. RUSSIA EQUIPMENT(B12) M8 		0-91110-508-0 08 1 1512-
46 NUT; U-BOLT
EXC. RUSSIA EQUIPMENT(B12) M8 		0-91110-508-0 08 1 1512-
46 NUT; U-BOLT
RUSSIA EQUIPMENT(B12) M8 		0-91110-508-0 16 1 1512-
47 NUT; LK,U BOLT,AIR TANK
M8 		0-91110-508-0 16 1 1512-
49 BRACKET; AIR TANK 8-98241-376-0 01 1 1512-
54 NUT; STAY
M8 FLANGE 		0-91180-108-0 01 1 1512-
57 BOLT; BRKT,AIR TANK TO FRAME
M10X25 FLANGE 		0-28651-025-0 04 1 1512-
82 NUT; STAY,AIR MASTER BRKT
M8 FLANGE 		0-91180-108-0 02 1 1512-
87 BRACKET; AIR PIPE JOINT
(B) 		1-47471-189-0 02 1 1512-
87 BRACKET; AIR PIPE JOINT
(C) 		1-47471-241-0 01 1 1512-
87 BRACKET; AIR PIPE JOINT
(E) 		8-98053-747-0 01 1 1512-
87 BRACKET; AIR PIPE JOINT
(A) 		8-98054-525-0 01 1 1512-
87 BRACKET; AIR PIPE JOINT
(D) 		8-98060-053-0 01 1 1512-
94 NUT; BRKT FIX
(A) M10 FLANGE 		0-91180-210-0 02 1 1512-
94 NUT; BRKT FIX
RUSSIA EQUIPMENT(B12) (B) M8 FLANGE 		0-91180-108-0 02 1 1512-
103 BOLT; BRKT
RUSSIA EQUIPMENT(B12) (B) M10X30 FLANGE 		0-28651-030-0 04 1 1512-
103 BOLT; BRKT
(A) M14X35 		0-20851-435-0 04 1 1512-
103 BOLT; BRKT
(B) M10X30 FLANGE 		0-28651-030-0 02 1 1512-
103 BOLT; BRKT
RUSSIA EQUIPMENT(B12) (C) M8X30 FLANGE 		0-28650-830-0 02 1 1512-
132 BRACKET; STRING GUIDE 8-98200-122-0 01 1 1512-
184 NUT; BRKT
(A) M10 FLANGE 		0-91180-210-0 04 1 1512-
184 NUT; BRKT
(B) M12 FLANGE 		0-91180-212-0 01 1 1512-
191 BRACKET; STOPPER,AIR TANK
(B) 		1-48316-014-1 01 1 1512-
191 BRACKET; STOPPER,AIR TANK
(A) 		1-48316-015-1 01 1 1512-
207 CLIP; AIR PIPE
(A) ID=7 L=20 		0-95234-635-0 01 1 1512-
207 CLIP; AIR PIPE
(A) ID=16 L=20 		0-95235-535-0 01 1 1512-
207 CLIP; AIR PIPE
(A) ID=35 L=35 		1-09700-895-0 01 1 1512-
207 CLIP; AIR PIPE
(A) ID=35 L=33 		1-09700-945-0 01 1 1512-
207 CLIP; AIR PIPE
(B) ID=31 H=30 L=35 		1-09700-994-0 01 1 1512-
207 CLIP; AIR PIPE
(C) L=350 		1-09707-183-0 13 1 1512-
207 CLIP; AIR PIPE
(C) L=256 		1-09707-189-0 02 1 1512-
208 BOLT; CLIP
M8X16 FLANGE 		0-28050-816-0 01 1 1512-
209 NUT; CLIP
M8 FLANGE 		0-91180-108-0 02 1 1512-
211 NUT; STRING GUIDE
M8 FLANGE 		0-91180-108-0 02 1 1512-
289 NUT; CLIP,AIR PIPE
M8 FLANGE 		0-91180-108-0 06 1 1512-
310 BOLT; CLIP,AIR PIPE
M8X20 FLANGE 		0-28650-820-0 05 1 1512-
310 BOLT; CLIP,AIR PIPE
M8X25 FLANGE 		0-28650-825-0 01 1 1512-
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
Isuzu EPC — test · veri: yerel (eski sürüm)
