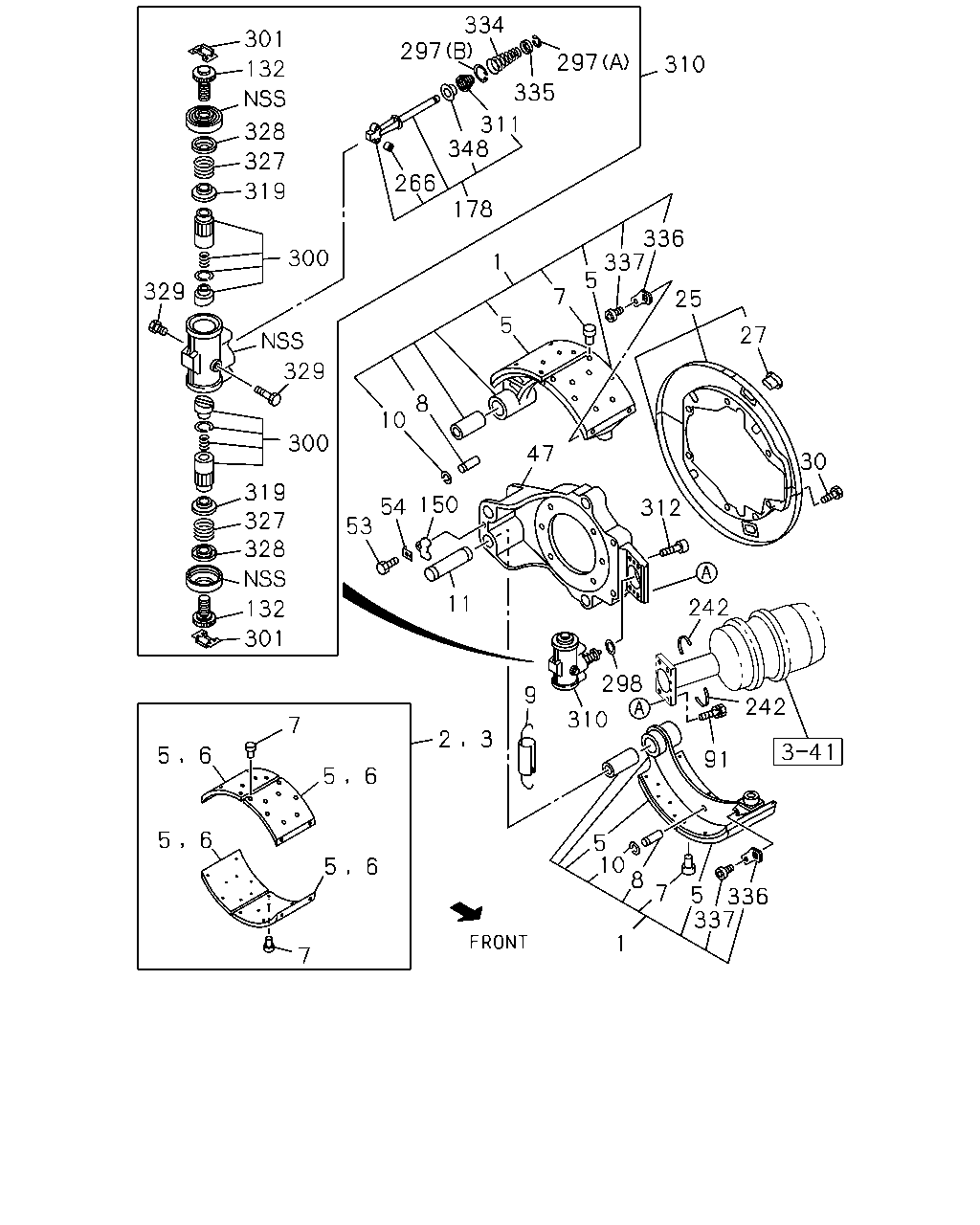

1 |
SHOE; BRK,RR
LEADING
|
1-47170-324-0 |
01 |
1 |
1512- |
| |
1 |
SHOE; BRK,RR
LEADING
|
1-47170-324-0 |
01 |
1 |
1512- |
| |
1 |
SHOE; BRK,RR
TRAILING
|
1-47170-325-0 |
01 |
1 |
1512- |
| |
1 |
SHOE; BRK,RR
TRAILING
|
1-47170-325-0 |
01 |
1 |
1512- |
| |
1 |
SHOE; BRK,RR
LEADING
|
1-47170-326-0 |
01 |
1 |
1512- |
| |
1 |
SHOE; BRK,RR
LEADING
|
1-47170-326-0 |
01 |
1 |
1512- |
| |
1 |
SHOE; BRK,RR
TRAILING
|
1-47170-327-0 |
01 |
1 |
1512- |
| |
1 |
SHOE; BRK,RR
TRAILING
|
1-47170-327-0 |
01 |
1 |
1512- |
| |
2 |
LINING SET; RR BRK,STANDARD
|
1-88310-775-1 |
02 |
1 |
1512- |
| |
2 |
LINING SET; RR BRK,STANDARD
|
1-88310-775-1 |
02 |
1 |
1512- |
| |
2 |
LINING SET; RR BRK,STANDARD
BEST VALUE PARTS
|
1-87610-132-0 |
01 |
1 |
1512- |
| |
2 |
LINING SET; RR BRK,STANDARD
BEST VALUE PARTS
|
1-87610-132-0 |
01 |
1 |
1512- |
| |
3 |
LINING SET; RR BRK,OVER SIZE
|
1-88310-776-1 |
02 |
1 |
1512- |
| |
3 |
LINING SET; RR BRK,OVER SIZE
|
1-88310-776-1 |
02 |
1 |
1512- |
| |
5 |
LINING; RR BRK SHOE,STANDARD
|
1-47126-093-0 |
08 |
1 |
1512- |
| |
5 |
LINING; RR BRK SHOE,STANDARD
|
1-47126-093-0 |
08 |
1 |
1512- |
| |
6 |
LINING; RR BRK SHOE,OVER SIZE
|
1-47126-094-0 |
08 |
1 |
1512- |
| |
6 |
LINING; RR BRK SHOE,OVER SIZE
|
1-47126-094-0 |
08 |
1 |
1512- |
| |
7 |
RIVET; LINING,RR BRK
L=15.5
|
1-09732-053-0 |
AR |
1 |
1512- |
| |
7 |
RIVET; LINING,RR BRK
L=15.5
|
1-09732-053-0 |
AR |
1 |
1512- |
| |
8 |
PIN; RETURN SPRING,RR BRK SHOE
TRAILING
|
1-47119-136-0 |
02 |
1 |
1512- |
| |
8 |
PIN; RETURN SPRING,RR BRK SHOE
TRAILING
|
1-47119-136-0 |
02 |
1 |
1512- |
| |
8 |
PIN; RETURN SPRING,RR BRK SHOE
LEADING
|
1-47119-172-0 |
02 |
1 |
1512- |
| |
8 |
PIN; RETURN SPRING,RR BRK SHOE
LEADING
|
1-47119-172-0 |
02 |
1 |
1512- |
| |
9 |
SPRING; RETURN,BRK SHOE
|
1-09583-365-1 |
02 |
1 |
1512- |
| |
9 |
SPRING; RETURN,BRK SHOE
|
1-09583-365-1 |
02 |
1 |
1512- |
| |
10 |
RING; SNAP,SPR PIN
ID=10
|
0-91805-510-0 |
02 |
1 |
1512- |
| |
10 |
RING; SNAP,SPR PIN
ID=10
|
0-91805-510-0 |
02 |
1 |
1512- |
| |
11 |
PIN; ANCHOR,RR WHEEL BRK
L=138.5
|
1-47131-045-0 |
04 |
1 |
1512- |
| |
11 |
PIN; ANCHOR,RR WHEEL BRK
L=138.5
|
1-47131-045-0 |
04 |
1 |
1512- |
| |
25 |
COVER SET; RR BRK DRUM
|
1-47151-878-0 |
02 |
1 |
1512- |
| |
25 |
COVER SET; RR BRK DRUM
|
1-47151-878-0 |
02 |
1 |
1512- |
| |
27 |
COVER; CHECK HOLE,DRUM COVER
|
1-09333-151-0 |
04 |
1 |
1512- |
| |
27 |
COVER; CHECK HOLE,DRUM COVER
|
1-09333-151-0 |
04 |
1 |
1512- |
| |
30 |
BOLT; DRUM COVER
M10X12
|
1-47159-187-0 |
12 |
1 |
1512- |
| |
30 |
BOLT; DRUM COVER
M10X12
|
1-47159-187-0 |
12 |
1 |
1512- |
| |
47 |
BRACKET; ANCHOR PIN,RR WHEEL BRK
FORWARD
|
8-98091-253-1 |
02 |
1 |
1512- |
| |
47 |
BRACKET; ANCHOR PIN,RR WHEEL BRK
REARWARD
|
8-98091-254-1 |
01 |
1 |
1512- |
| |
47 |
BRACKET; ANCHOR PIN,RR WHEEL BRK
REARWARD
|
8-98091-255-1 |
01 |
1 |
1512- |
| |
53 |
BOLT; LOCK PLATE
M10X16
|
1-47139-173-0 |
02 |
1 |
1512- |
| |
53 |
BOLT; LOCK PLATE
M10X16
|
1-47139-173-0 |
02 |
1 |
1512- |
| |
54 |
WASHER; LK,ANCHOR PIN,RR BRK
|
1-47133-011-0 |
02 |
1 |
1512- |
| |
54 |
WASHER; LK,ANCHOR PIN,RR BRK
|
1-47133-011-0 |
02 |
1 |
1512- |
| |
91 |
BOLT; CHAMBER
M10X53
|
1-47139-148-0 |
08 |
1 |
1512- |
| |
91 |
BOLT; CHAMBER
M10X53
|
1-47139-148-0 |
08 |
1 |
1512- |
| |
132 |
SCREW; ADJ,RR BRK
|
1-47623-035-2 |
04 |
1 |
1512- |
| |
132 |
SCREW; ADJ,RR BRK
|
1-47623-035-2 |
04 |
1 |
1512- |
| |
150 |
PLATE; LK,ANCHOR PIN
|
1-47133-010-0 |
02 |
1 |
1512- |
| |
150 |
PLATE; LK,ANCHOR PIN
|
1-47133-010-0 |
02 |
1 |
1512- |
| |
178 |
WEDGE; RR WHEEL CYL
|
1-47640-012-0 |
02 |
1 |
1512- |
| |
178 |
WEDGE; RR WHEEL CYL
|
1-47640-012-0 |
02 |
1 |
1512- |
| |
242 |
SEAL
|
1-47159-186-0 |
04 |
1 |
1512- |
| |
242 |
SEAL
|
1-47159-186-0 |
04 |
1 |
1512- |
| |
266 |
ROLLER; WEDGE
|
1-47643-007-0 |
04 |
1 |
1512- |
| |
266 |
ROLLER; WEDGE
|
1-47643-007-0 |
04 |
1 |
1512- |
| |
297 |
RING; SNAP
(A)
|
1-47649-031-0 |
02 |
1 |
1512- |
| |
297 |
RING; SNAP
(A)
|
1-47649-031-0 |
02 |
1 |
1512- |
| |
297 |
RING; SNAP
(B)
|
1-47649-034-1 |
02 |
1 |
1512- |
| |
297 |
RING; SNAP
(B)
|
1-47649-034-1 |
02 |
1 |
1512- |
| |
298 |
GASKET
|
1-48259-231-0 |
02 |
1 |
1512- |
| |
298 |
GASKET
|
1-48259-231-0 |
02 |
1 |
1512- |
| |
300 |
SLEEVE
|
1-47629-247-1 |
04 |
1 |
1512- |
| |
300 |
SLEEVE
|
1-47629-247-1 |
04 |
1 |
1512- |
| |
301 |
CLIP; ANTI LOTATION
|
1-47621-017-0 |
04 |
1 |
1512- |
| |
301 |
CLIP; ANTI LOTATION
|
1-47621-017-0 |
04 |
1 |
1512- |
| |
310 |
EXPANDER
|
1-47601-087-0 |
02 |
1 |
1512- |
| |
310 |
EXPANDER
|
1-47601-087-0 |
02 |
1 |
1512- |
| |
311 |
BOOT; WEDGE
|
1-47649-042-0 |
02 |
1 |
1512- |
| |
311 |
BOOT; WEDGE
|
1-47649-042-0 |
02 |
1 |
1512- |
| |
312 |
BOLT; EXPANDER
M8X16 HEXALOBULAR SOCKET
|
1-47634-008-0 |
04 |
1 |
1512- |
| |
312 |
BOLT; EXPANDER
M8X16 HEXALOBULAR SOCKET
|
1-47634-008-0 |
04 |
1 |
1512- |
| |
319 |
RING; DRIVE
|
1-47629-200-0 |
04 |
1 |
1512- |
| |
319 |
RING; DRIVE
|
1-47629-200-0 |
04 |
1 |
1512- |
| |
327 |
SPRING; ADJ
|
1-47629-196-0 |
04 |
1 |
1512- |
| |
327 |
SPRING; ADJ
|
1-47629-196-0 |
04 |
1 |
1512- |
| |
328 |
CAGE; SPRING
|
1-47629-192-0 |
04 |
1 |
1512- |
| |
328 |
CAGE; SPRING
|
1-47629-192-0 |
04 |
1 |
1512- |
| |
329 |
SCREW; LOCATING
|
1-47619-149-1 |
04 |
1 |
1512- |
| |
329 |
SCREW; LOCATING
|
1-47619-149-1 |
04 |
1 |
1512- |
| |
334 |
SPRING; ROD
|
1-47649-041-0 |
02 |
1 |
1512- |
| |
334 |
SPRING; ROD
|
1-47649-041-0 |
02 |
1 |
1512- |
| |
335 |
RETAINER; SPRING
|
1-47649-020-0 |
02 |
1 |
1512- |
| |
335 |
RETAINER; SPRING
|
1-47649-020-0 |
02 |
1 |
1512- |
| |
336 |
PLATE; PIVOT
|
1-47119-152-0 |
04 |
1 |
1512- |
| |
336 |
PLATE; PIVOT
|
1-47119-152-0 |
04 |
1 |
1512- |
| |
337 |
BOLT; PLATE
|
1-47119-153-0 |
04 |
1 |
1512- |
| |
337 |
BOLT; PLATE
|
1-47119-153-0 |
04 |
1 |
1512- |
| |
348 |
CAP; EXPANDER
|
1-47649-044-0 |
02 |
1 |
1512- |
| |
348 |
CAP; EXPANDER
|
1-47649-044-0 |
02 |
1 |
1512- |
