Isuzu WW
▶
TRUCKS
▶
EXZ
▶
11745 - EXZ LHD EURO5
▶
2 - Clutch, Transmission, Trans Axle
▶
2-53 - TRANSMISSION OIL COOLER SYSTEM
▶

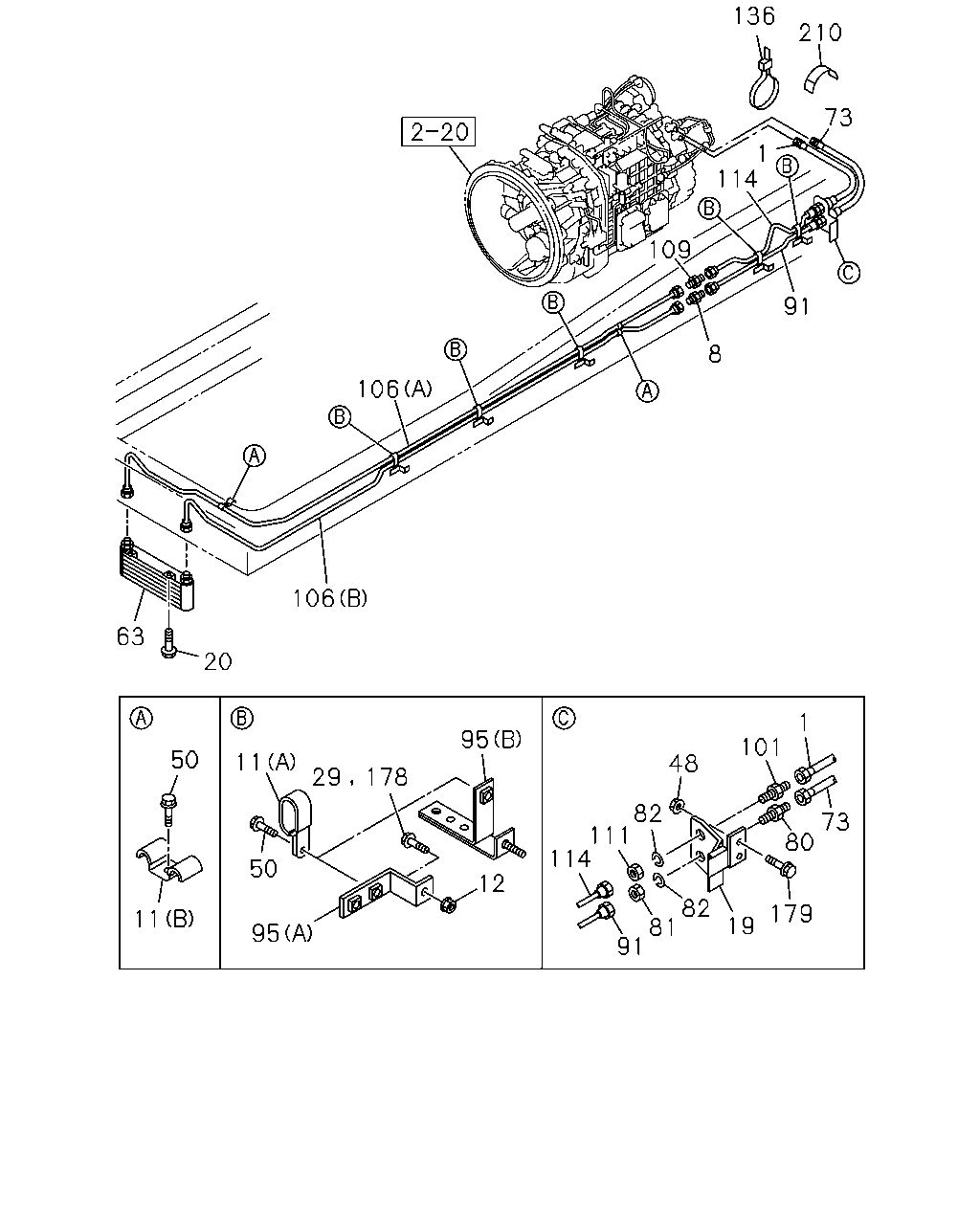

2-53 — TRANSMISSION OIL COOLER SYSTEM
(#176309) — 29 parça
136
73
210
114
1
91
109
106
106
63
20
11
50
50
29
178
95
12
95
11
114
82
111
91
19
82
81
48
1
101
73
80
179
8
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
1
HOSE; ATF
L=710
8-97635-173-0
01
1
1512-
8
UNION
M22 L=51
0-92123-015-0
01
1
1512-
11
CLIP; PIPE
(A) ID=16X2 L=20
0-95325-535-0
05
1
1512-
11
CLIP; PIPE
(B) ID=16 & 16 L=21.5 & 21.5
1-09700-674-0
01
1
1512-
12
NUT; BRKT
M8 FLANGE
0-91180-108-0
04
1
1512-
19
BRACKET; FLEX HOSE
1-47479-561-1
01
1
1512-
20
BOLT; COOLER TO BRKT
M10X20 FLANGE
0-28051-020-0
02
1
1512-
29
BOLT; FILTER TO BRKT
M8X35 FLANGE
0-28650-835-0
02
1
1512-
48
NUT; BRKT
M8 FLANGE
0-91180-108-0
02
1
1512-
50
BOLT; CLIP
M8X20 FLANGE
0-28650-820-0
01
1
1512-
50
BOLT; CLIP
M8X25 FLANGE
0-28650-825-0
05
1
1512-
63
COOLER; OIL
8-98240-507-0
01
1
1512-
73
HOSE; FLEX,TRANS
L=630
8-97635-172-0
01
1
1512-
80
UNION; FLEX HOSE
M22 & M22 STRAIGHT
1-09654-204-2
01
1
1512-
81
NUT; UNION
M22
0-91111-522-0
01
1
1512-
82
WASHER; LK,UNION
ID=22.5
0-91510-522-0
02
1
1512-
91
PIPE; OIL,FLEX HOSE TO UNION
L=919
1-49166-987-1
01
1
1512-
95
BRACKET; CLIP
(A)
1-47479-482-0
03
1
1512-
95
BRACKET; CLIP
(B)
8-98199-287-2
01
1
1512-
101
UNION; FLEX HOSE
M22 & M22 STRAIGHT
1-09654-204-2
01
1
1512-
106
PIPE ASM; OIL,COOLER TO UNION
(B) L=1746
8-98234-809-0
01
1
1512-
106
PIPE ASM; OIL,COOLER TO UNION
(A) L=2347
8-98234-810-0
01
1
1512-
109
UNION
M22 L=51
0-92123-015-0
01
1
1512-
111
NUT; UNION
M22
0-91111-522-0
01
1
1512-
114
PIPE; OIL,UNION TO FLEX HOSE
L=849
1-49167-146-0
01
1
1512-
136
CLIP; FLEX HOSE
L=350
1-09707-183-0
02
1
1512-
178
BOLT; BRKT,CLIP
M8X35 FLANGE
0-28650-835-0
01
1
1512-
179
BOLT; BRKT
M8X35 FLANGE
0-28650-835-0
02
1
1512-
210
BAND; FLEX HOSE
L=175
1-09707-178-0
02
1
1512-
Seçili parçaları sepete ekle
İpucu: çizimdeki balona veya tablodaki
Balon
sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
